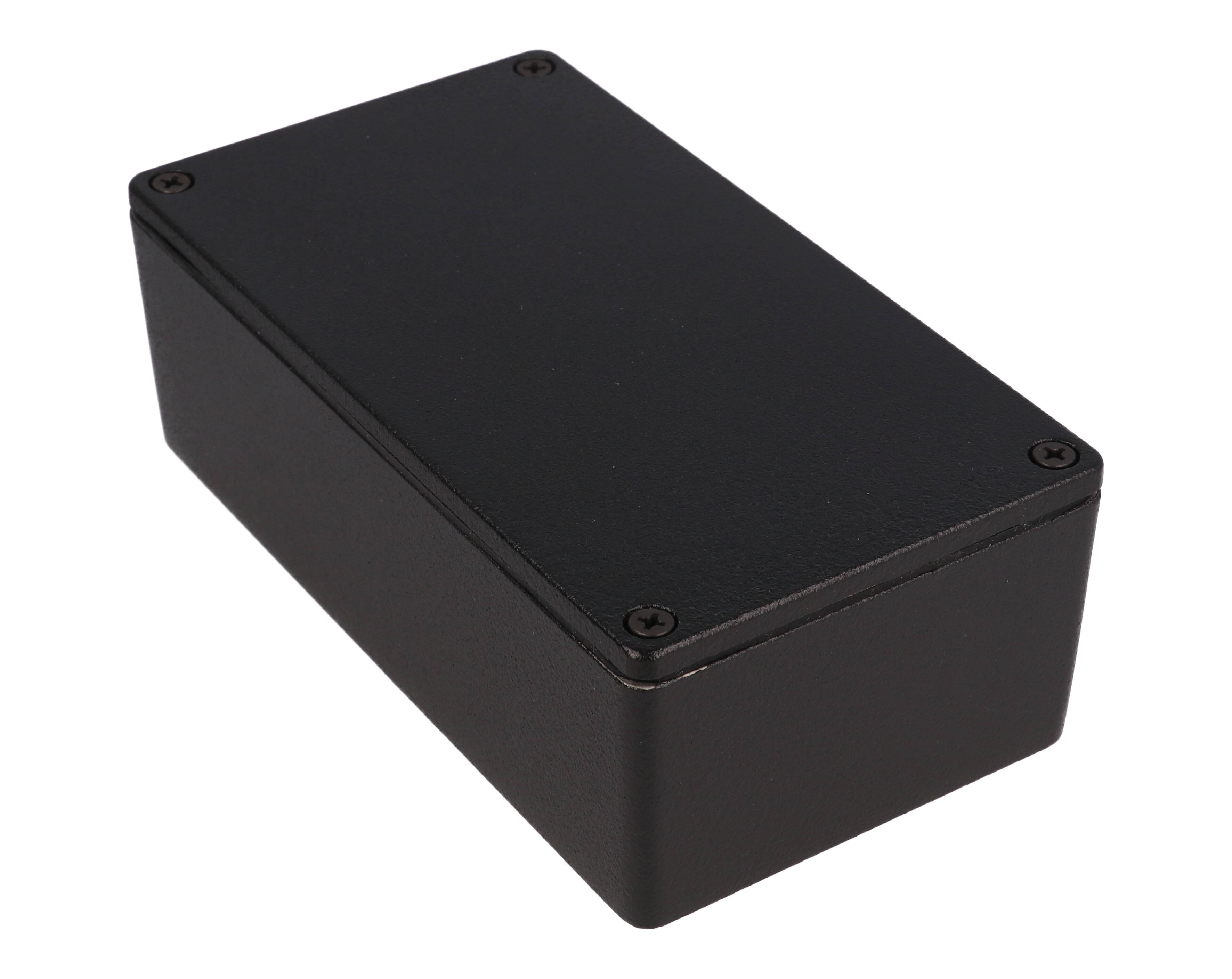

Hammond 1590WPBK IP65 Watertight 153mm Diecast Enclosure, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP65 water-tight design; silicone gasket supplied loose
- Black polyester powder paint finish with black screws included
- 153 x 83 x 50 mm nominal size (6.02 x 3.27 x 1.97 in)
- Internal ribs accept a P.C. board up to 143.22 x 73.12 mm
- 4 M3.5x0.6 cover screws; 25-30 cN.m torque with gasket
- RoHS and REACH compliant
The 1590WPBK is the black painted, water-tight version of the 1590P diecast aluminum enclosure. It is aimed at OEM product designers and integrators who want an IP65-designed metal housing with a finished black appearance and internal ribs for board mounting.
The die-cast aluminum alloy box and lid are painted with tough polyester powder paint that lasts even after machining, and black screws are included to enhance appearance. Lap joint construction and a silicone gasket, supplied loose inside the enclosure and not pre-installed, provide the seal.
Nominal dimensions are 153 x 83 x 50 mm (6.02 x 3.27 x 1.97 in) with the lid; the part page lists 6.03 x 3.27 x 1.98 in. Inside, the enclosure measures 146.29 mm [5.759 in] long, 73.98 mm [2.913 in] wide and 45.40 mm [1.787 in] high. Board guides take a P.C. board up to 143.22 x 73.12 mm, and side walls have a draft angle of 2 degrees or less.

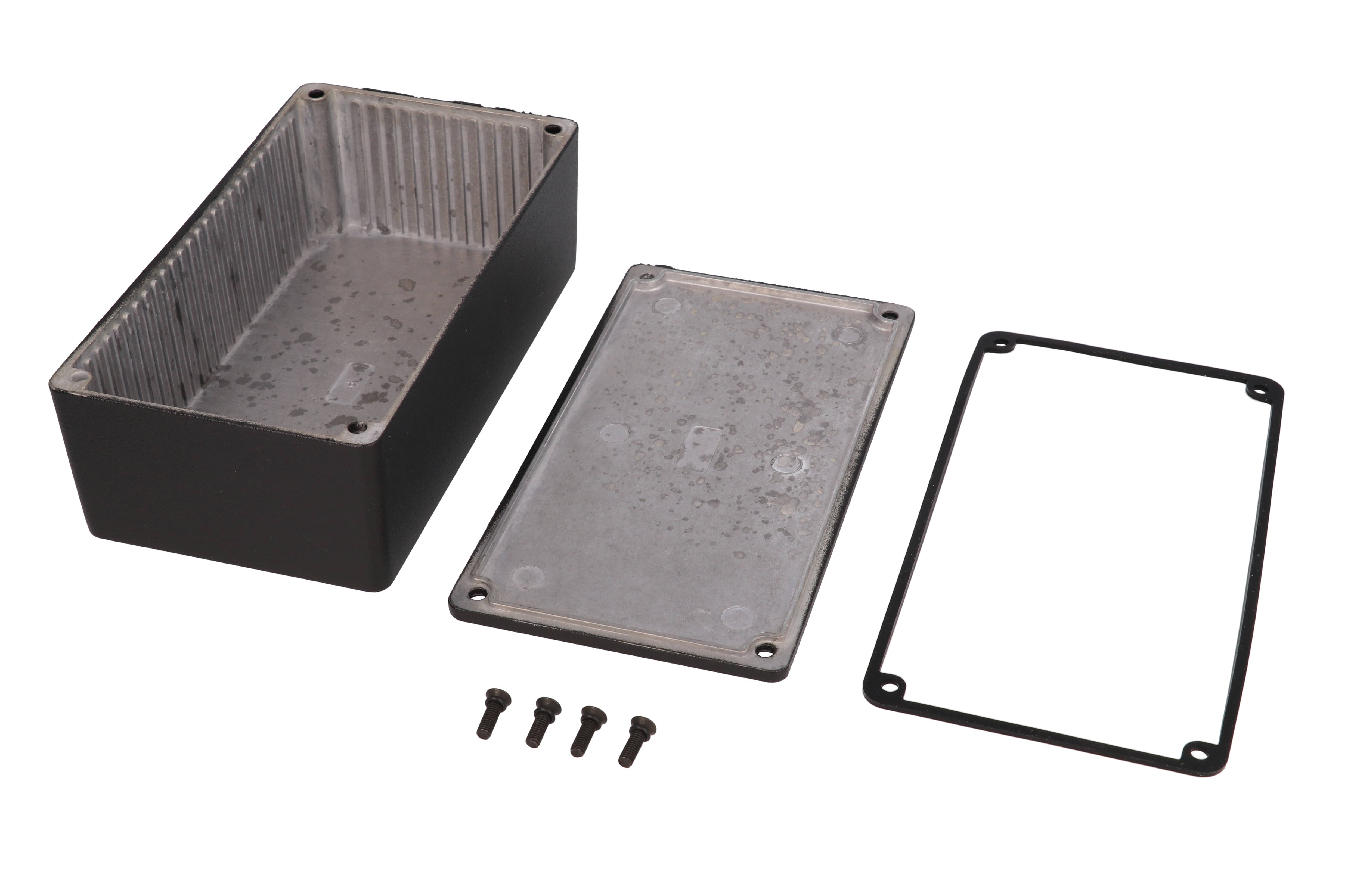

Included are box, lid, gasket and 4 M3.5x0.6 cover screws. With the gasket installed, the recommended torque is 25-30 cN.m [36-43 ozf.in]. Listed accessories include black liquid resistant screws with O-ring (1550WMS100BK) and the 1590PGASKET kit. The 1590WPBK weighs 0.79 lbs (0.36 kg) and is RoHS and REACH compliant.
Ideal For
- IP65 sealed electronics in a black finish
- PCB-based control and instrumentation housings
- Customer-facing equipment enclosures
- Machined OEM enclosures
Overview
| Type | Die-cast box, water-tight |
| Series | 1590-RIBBED (Diecast Aluminum Enclosures with Internal Ribs) |
| Version | Water-tight, no mounting flanges |
| CAD Models | Solid models available |
| Description | 1590P Waterproof Painted Black |
| Part Number | 1590WPBK |
| Factory Modification | Can be factory modified (milling, drilling, printing) |
Dimensions
| Box Height | 46.40 mm [1.827 in] |
| Lid Height | 4 mm (0.16 in) - included in overall dimensions |
| Inside Width | 73.98 mm [2.913 in] |
| Inside Height | 45.40 mm [1.787 in] |
| Inside Length | 146.29 mm [5.759 in] |
| Overall Width | 83.10 mm [3.272 in] |
| Overall Height | 50.40 mm [1.984 in] |
| Overall Length | 153.20 mm [6.031 in] |
| PCB Slot Width | 2.00 mm [.079 in] |
| Size L X W X H | 6.03 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| PCB Guide Depth | 1.10 mm [.043 in] |
| PCB Guide Width | 3.00 mm [.118 in] |
| PCB Guide Height | 41.73 mm [1.643 in] |
| Max. P.C. Board Width | 143.22 mm |
| Max. P.C. Board Length | 73.12 mm |
| Nominal Size (L X W X D) | 6.02 in (153 mm) x 3.27 in (83 mm) x 1.97 in (50 mm) |
Accessories
| Optional Replacement Gasket Kit | 1590PGASKET |
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Standard Cover Screws, Black (Pkg 100) | 1550MS100BK [M3.5 x 12mm] |
| Standard Cover Screws, Plated (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
| Tamper-Resistant Torx With Pin Screws (50-pack) | 1550MS50T (natural), 1550MS50TBK (black), 1550WMS50T (water-tight), 1550WMS50TBK (water-tight black) |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1550WMS100 [M3.5 x 12mm, With O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1550WMS100BK [M3.5 x 12mm, With O-Ring] |
Identifiers
| UPC | 623980677026 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.79 lbs (0.36 kg) |
Construction & Finish
| Color | Black |
| Finish | Black textured, polyester powder paint |
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint construction for protection against access of dust and splashing water |
| Assembly Hardware | Screws threaded into factory-tapped holes |
| Included Hardware | Box, lid, 4 cover screws (4X M3.5x0.6); black screws and silicone gasket |
| Internal Features | Internal ribs with P.C. board guide slots |
| Side Wall Draft Angle | 2 degrees or less (for easy P.C. board mounting) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Lid Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590WPBK differ from the 1590WP?▾
The 1590WPBK is the black painted version with black screws; the 1590WP is natural aluminum. Both are water-tight 1590P-size enclosures.
Is the gasket included?▾
Yes. A silicone gasket is supplied loose inside the enclosure; it is not pre-installed.
What are the inside dimensions?▾
146.29 mm [5.759 in] long, 73.98 mm [2.913 in] wide and 45.40 mm [1.787 in] high.
Will the paint survive machining?▾
The black version uses tough polyester powder paint, described as a lasting finish even after machining.
What does it weigh?▾
The shipping weight is 0.79 lbs (0.36 kg).
