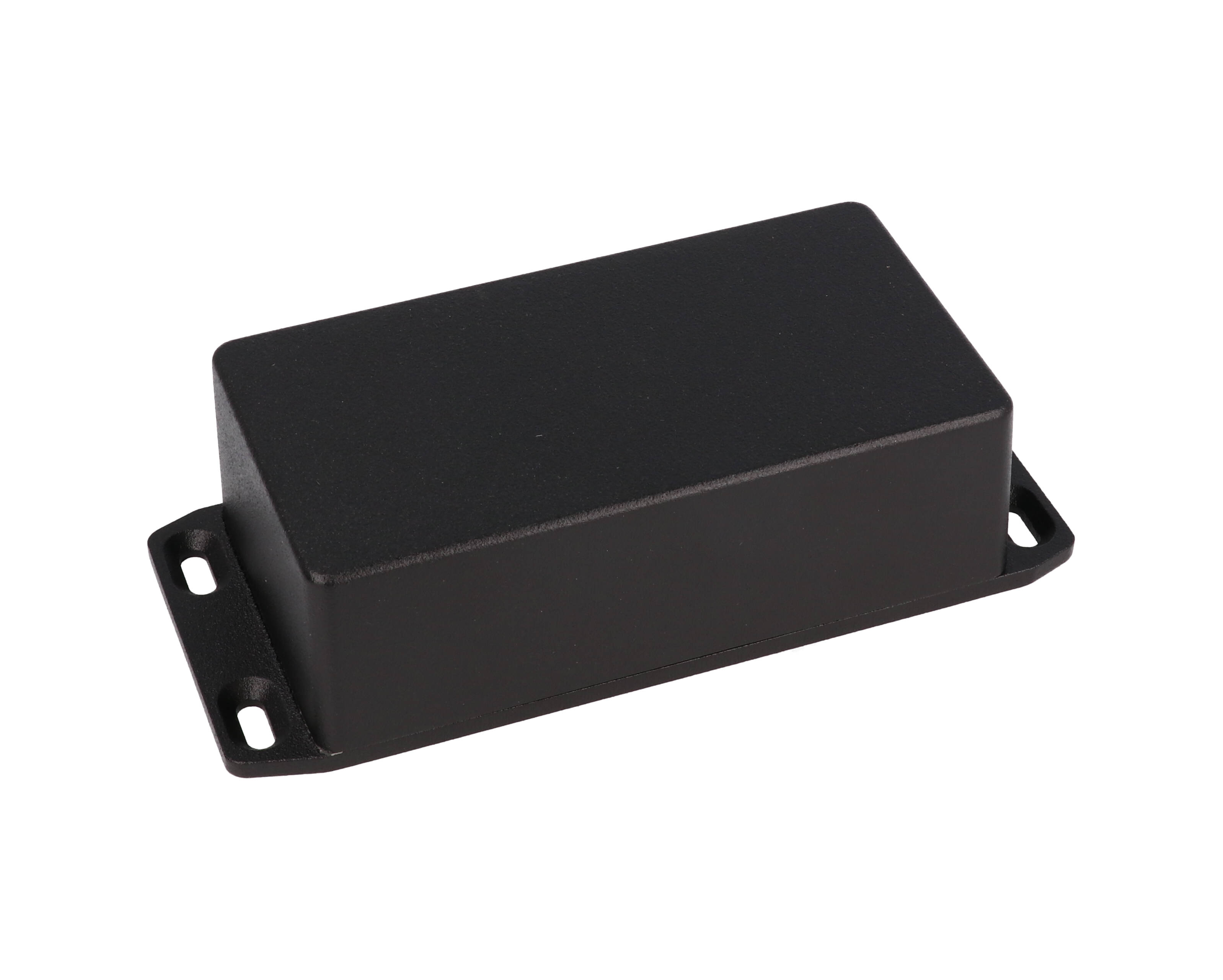

Hammond 1590NFLBK 121x66 mm Flanged Lid Black Diecast Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged lid; 149.50 mm overall length
- Satin black polyester powder paint; black screws included
- 121 x 66 x 40 mm diecast aluminum alloy body with internal ribs
- Fits P.C. boards up to 112.24 x 56.34 mm
- IP54 standard; 1590NGASKET kit listed for IP65
- Box, lid and 4 M3.5x0.6 cover screws included
- RoHS and REACH compliant; 0.42 lbs (0.19 kg)
The 1590NFLBK is the black painted, flanged-lid version of the 1590N diecast aluminum enclosure. The flanged lid gives an overall length of 149.50 mm [5.886"], so installers and OEM designers can mount a finished black enclosure by its lid while housing a P.C. board up to 112.24 mm by 56.34 mm.
It is made of diecast aluminum alloy, tough yet easy to machine, with a satin black polyester powder paint that gives a lasting finish even after machining. Black screws are included to enhance appearance. Lap joint construction protects against dust and splashing water for an IP54 rating, and internal ribs with a side wall draft angle of 2 degrees or less make board mounting easy.
The part page lists 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm); the series table lists 121 x 66 x 40 mm. Inside there is 113.71 mm [4.477"] of length, 57.81 mm [2.276"] of width and 35.35 mm [1.392"] of height. Shipping weight is 0.42 lbs (0.19 kg).

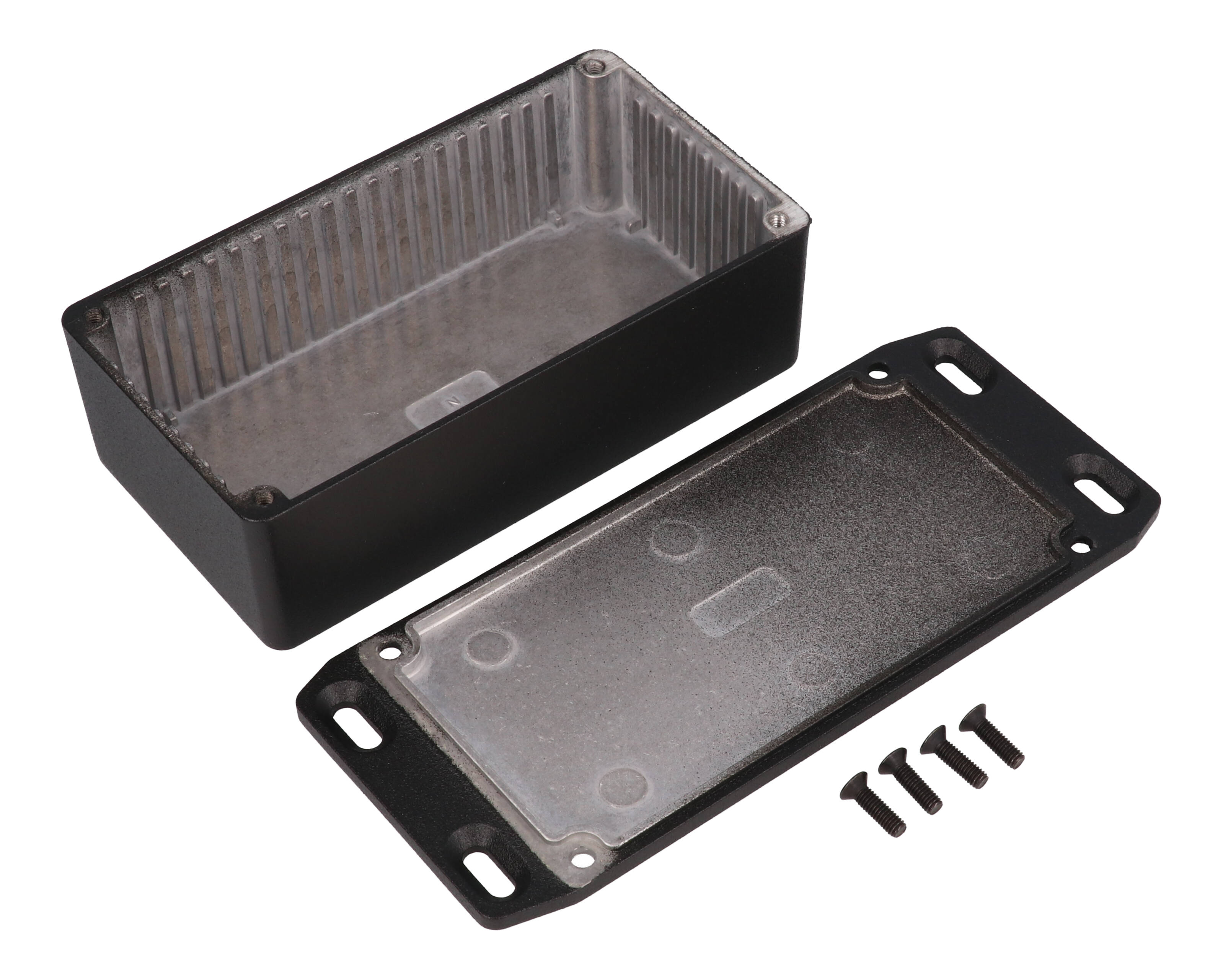

The assembly includes box, lid and 4 cover screws (M3.5x0.6), torqued to 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. The 1590NGASKET kit is listed for this size, and 1590WNFLBK is the black water-tight flanged-lid version. RoHS and REACH compliant.
Ideal For
- Black surface-mounted electronics
- OEM control and interface housings
- Painted flanged instrument enclosures
- P.C. board projects needing a mounting flange
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | Flanged Lid, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590NFLBK |
| Short Description | 1590N FLANGED LID BLACK |
Dimensions
| Inside Width | 57.81 mm [2.276"] |
| Inside Height | 35.35 mm [1.392"] |
| Inside Length | 113.71 mm [4.477"] |
| Size L X W X H | 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 65.50 mm [2.579"] |
| Overall Height (Drawing) | 40.00 mm [1.575"] |
| Nominal Size (Series Table) L X W X D | 4.76 in (121 mm) x 2.60 in (66 mm) x 1.57 in (40 mm) |
| Overall Length Incl. Flange (Drawing) | 149.50 mm [5.886"] |
Identifiers
| UPC | 623980539850 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Depth | 1.50 mm [.059"] |
| Slot Width | 2.01 mm [.079"] |
| Guide Width | 3.00 mm [.118"] |
| Guide Height | 31.13 mm [1.226"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 112.24 |
| Max. P.C. Board Length (Mm) | 56.34 |
Documentation
| Drawing Revision | 25.05.2020 |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | .stp or .x_t |
Related Versions
| Other Versions In Same Size & Color | No Mounting Flanges, Standard Version: 1590NBK · No Mounting Flanges, Water-Tight Version: 1590WNBK · Flanged Lid, Water-Tight Version: 1590WNFLBK · Flanged Bottom Plate, Standard Version: 1590NFBK · Flanged Bottom Plate, Water-Tight Version: 1590WNFBK |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.42 lbs (0.19 kg) |
Construction & Finish
| Finish | Satin black polyester powder paint |
| Flange | Flanged lid |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6, threaded into factory-tapped holes (black screws included) |
| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Counterparts | 1590WNBK, 1590WNFLBK, 1590WNFBK |
| Optional Gasket Kit (IP54 To IP65 Upgrade) | 1590NGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does the flanged lid add?▾
It extends the overall length to 149.50 mm [5.886"], providing a mounting flange on the lid.
What finish is used?▾
Satin black polyester powder paint, with black screws included.
What are the inside dimensions?▾
113.71 mm [4.477"] long, 57.81 mm [2.276"] wide and 35.35 mm [1.392"] high.
Is there a water-tight black version?▾
Yes, 1590WNFLBK is listed as the water-tight flanged-lid version in black.
What is the IP rating?▾
IP54.
Related Products
Save 52%1590NFL — enclosure - diecast
Hammond Manufacturing · 1590NFL

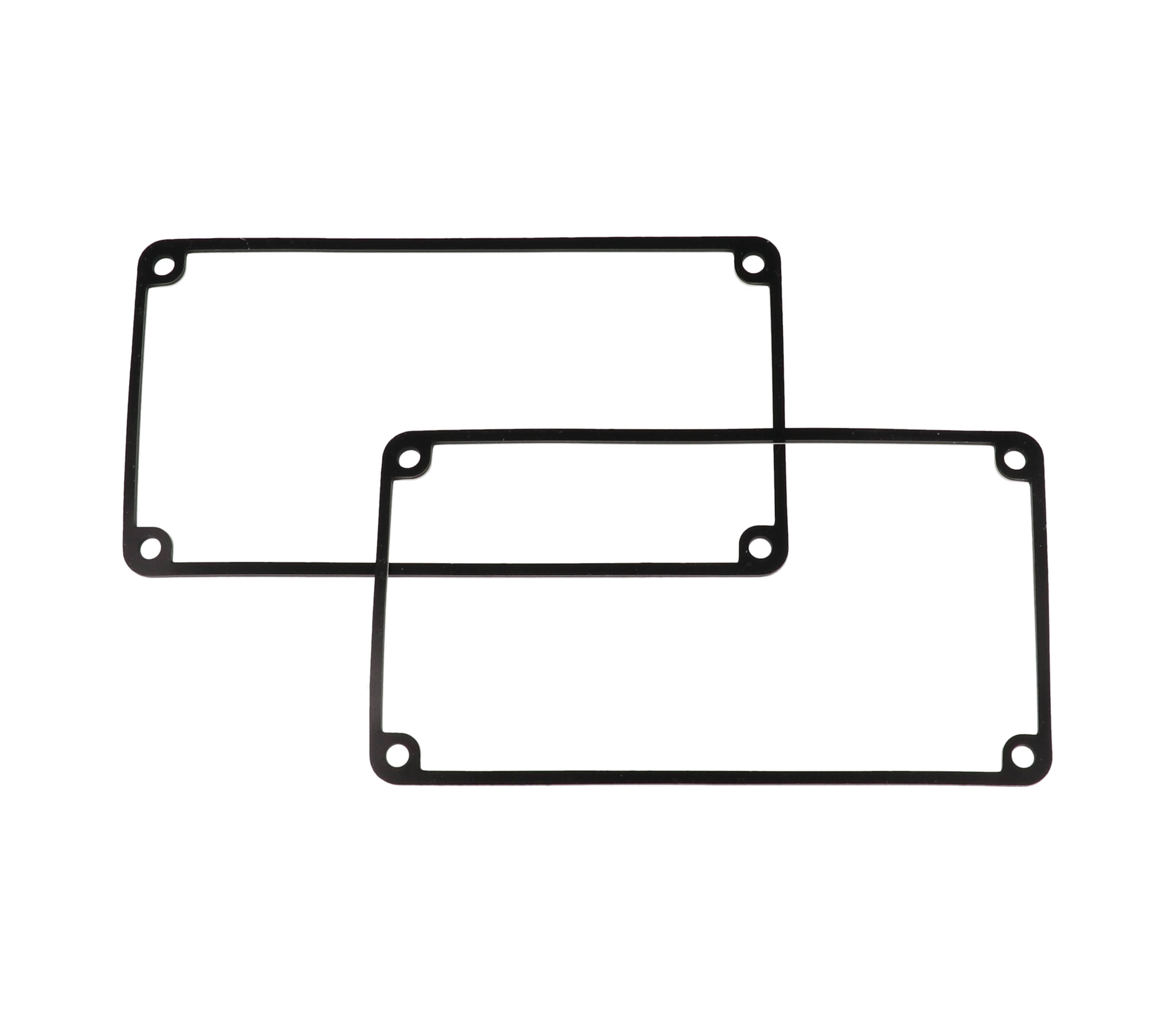

Save 52%1590NGASKET — silicone gasket for 1590N, N1 enclosures, 2-pack
