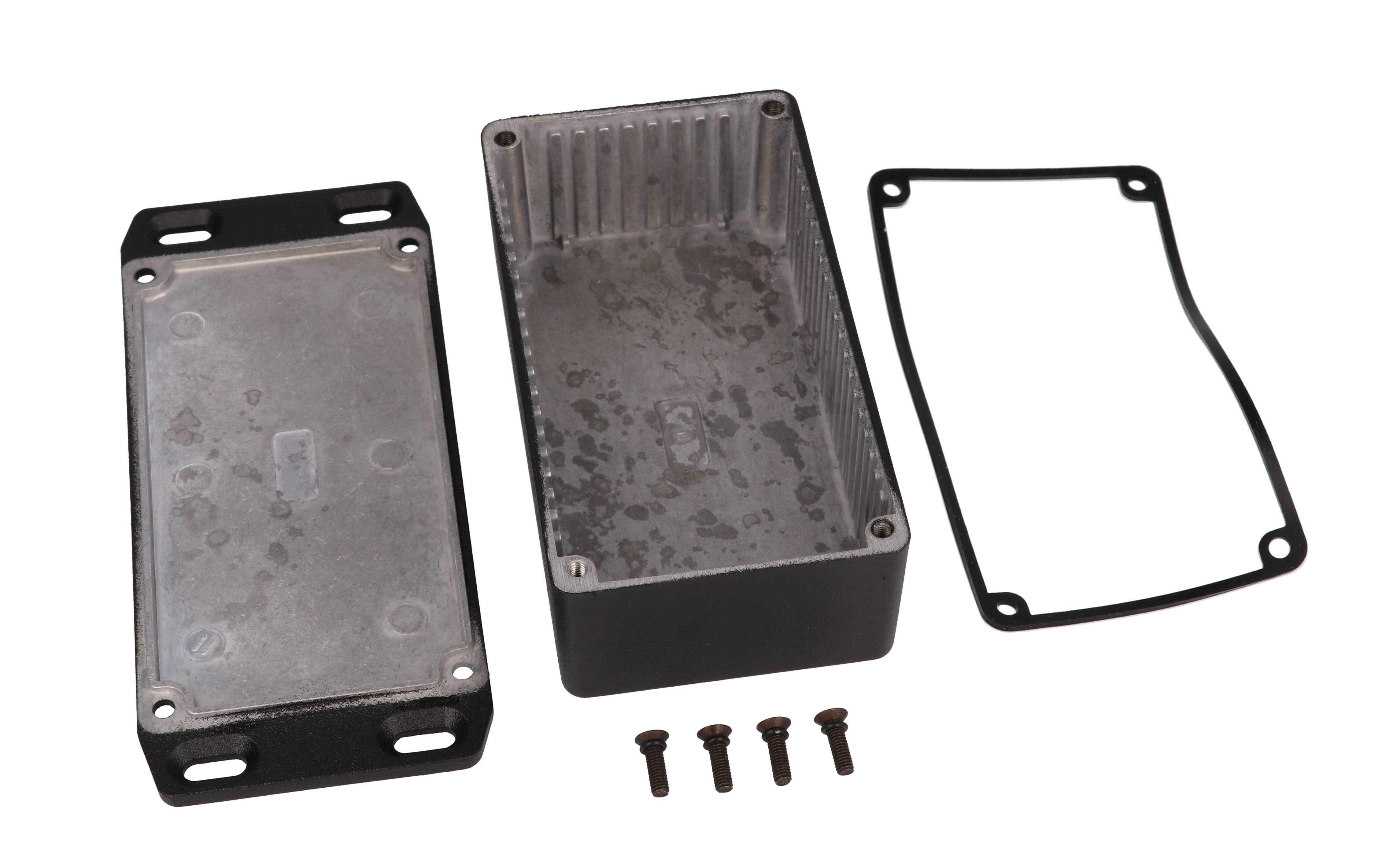

Hammond 1590WNFLBK Black Card-Guide Flanged-Lid Box, 121x66x36 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Watertight version designed to meet IP65, with silicone gasket supplied loose inside
- Nominal size 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm)
- Mounting: wall-mounting flange integrated into lid
- Textured black polyester powder paint; black screws included
- Diecast aluminum alloy box and lid, tough yet easy to machine
- Max. P.C. board length 56.34 mm / width 112.24 mm (as listed)
- Internal card guides; 4 cover screws (4X M3.5x0.6) included
- Low side wall draft angle (2° or less) for easy PC board mounting
The 1590WNFLBK is the textured black version of the watertight 1590N enclosure with a flanged lid. It measures 4.75 x 2.61 x 1.42 in (121 x 66 x 36 mm), is designed to meet IP65 and includes internal card guides, suiting OEM engineers who want a slide-in board mounting and a black finish on a wall-mounted box.
The box and lid are diecast aluminum alloy, which is tough yet easy to machine, and this part has textured black polyester powder paint for a lasting finish, even after machining, with black screws included. Lap joint construction where lid and box meet helps keep out dust and splashing water, and the low side wall draft angle (2° or less) makes P.C. board mounting easier.
Inside, the box measures 113.71 x 57.81 x 35.35 mm (4.477 x 2.276 x 1.392 in), with card guides 31.13 mm (1.226 in) high. The cover fastens with four M3.5 x 0.6 screws, and the flanged lid gives an overall length of 149.50 mm (5.886 in).
A silicone gasket is supplied with this liquid resistant enclosure, loose inside the box rather than pre-installed. The purchased assembly includes the box, lid and 4 cover screws (4X M3.5x0.6 threads); recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with the gasket. The part is RoHS and REACH compliant, and the enclosure can be factory modified (milling, drilling, printing).
Ideal For
- Wall-mounted black watertight enclosure
- Slide-in PCB housings using card guides
- Control enclosures for equipment and facilities
- Machined instrument and interface boxes
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight (liquid resistant, silicone gasket) |
| Description | enclosure - watertight diecast |
| Part Number | 1590WNFLBK |
| Mounting Style | Wall-mounting flange integrated into lid |
| Enclosure Family | 1590NFL |
| Manufacturer Short Description | 1590N W-PROOF F-LID BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 57.81 mm [2.276 in] |
| Inside Height | 35.35 mm [1.392 in] |
| Inside Length | 113.71 mm [4.477 in] |
| Overall Width | 65.50 mm [2.579 in] |
| Size (L X W X H) | 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm) |
| Card Guide Height | 31.13 mm [1.226 in] |
| Max. P.C. Board Width | 112.24 mm |
| Max. P.C. Board Length | 56.34 mm |
| Overall Length Incl. Lid Flange | 149.50 mm [5.886 in] |
Accessories
| Solid Models | .stp or .x_t |
| Factory Modification | Milling, drilling, printing available from factory |
| Black Cover Screws (Pkg 100) | 1550MS100BK [M3.5 x 12mm] |
| Plated Cover Screws (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
| Stainless Steel Cover Screws With O-Ring (Pkg 100) | 1550WMS100 [M3.5 x 12mm] |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100) | 1550WMS100BK [M3.5 x 12mm] |
Identifiers
| UPC | 623980539942 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.41 lbs (0.19 kg) |
Construction & Finish
| Color | Black (Textured) |
| Joint | Lap joint construction where lid and box meet |
| Finish | Textured polyester powder paint |
| Included | Box, lid and 4 cover screws; black screws |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Threads | 4X M3.5x0.6 |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1590WNFLBK waterproof?▾
It is the watertight version of the enclosure, designed to meet IP65. A silicone gasket is included, supplied loose inside the enclosure (not pre-installed), and the recommended lid screw torque with the gasket is 25-30 cN.m [36-43 ozf.in].
What are the dimensions of the 1590WNFLBK?▾
The listed size is 4.75 in x 2.61 in x 1.42 in (121 mm x 66 mm x 36 mm). overall length incl. lid flange: 149.50 mm [5.886 in]; overall width: 65.50 mm [2.579 in]; inside length: 113.71 mm [4.477 in].
What is it made of and what finish does it have?▾
Box and lid are diecast aluminum alloy. This version is coated with textured black polyester powder paint, and black screws are included.
Can the enclosure be machined or modified?▾
Yes. Diecast aluminum is described as tough yet easy to machine, and the drawing notes the enclosure can be factory modified (milling, drilling, printing). Solid models are available in .stp or .x_t.
Does the 1590WNFLBK have card guides?▾
Yes. The drawing shows internal guide slots, with a guide height of 31.13 mm (1.226 in).
