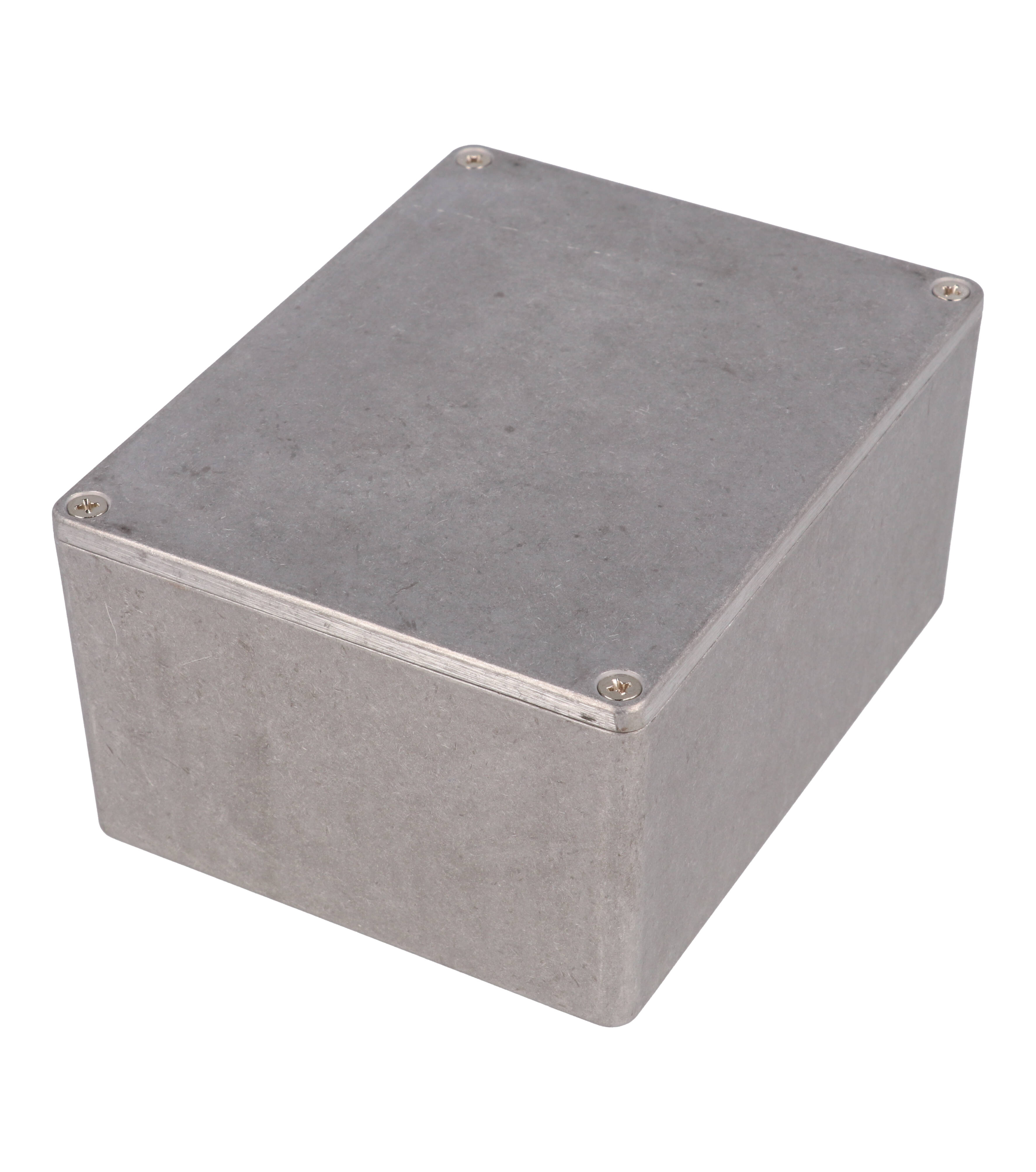

Hammond 1590PP 121x95x57 mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 121 x 95 x 57 mm diecast aluminum alloy enclosure with internal ribs
- Deep interior: 56.20 mm inside height, 52.91 mm guide height
- Fits P.C. boards up to 111.57 x 85.67 mm
- IP54 rated; lap joint construction resists dust and splashing water
- Box, lid and 4 M3.5x0.6 x 12 mm cover screws included
- Natural vibra finish with no sharp edges
- RoHS and REACH compliant; 0.64 lbs (0.29 kg)
The 1590PP is a deep, wide diecast aluminum enclosure in the 1590-RIBBED series. With an inside height of 56.20 mm [2.213"], it suits engineers and builders whose assemblies need more depth, with P.C. boards up to 111.57 mm by 85.67 mm housed in a rugged metal box with internal ribs.
Box and lid are diecast aluminum alloy, tough yet easy to machine. This natural version is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction protects against access of dust and splashing water, and the 1590PP is rated IP54. The purchased assembly includes box, lid and 4 cover screws (M3.5x0.6 x 12.00 mm) threaded into factory-tapped holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket.
The part page lists 4.76 in x 3.74 in x 2.24 in (121 mm x 95 mm x 57 mm); the series table lists 121 x 85 x 61 mm, and the drawing shows a 121.00 x 95.00 x 60.70 mm outline. Inside dimensions are 113.58 mm [4.472"] long, 87.68 mm [3.452"] wide and 56.20 mm [2.213"] high, with 52.91 mm [2.083"] guide height. Shipping weight is 0.64 lbs (0.29 kg).
The 1590PP is RoHS and REACH compliant and ships shrink wrapped. Solid models are available in .stp or .x_t.
Ideal For
- Deep P.C. board and component housings
- Guitar effects and stomp box builds needing extra depth
- OEM control electronics
- Electronics project boxes
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Series | 1590-RIBBED Series Diecast Aluminum Enclosures (With Internal Ribs) |
| Version | No Mounting Flanges, Standard Version |
| Description | enclosure - diecast |
| Part Number | 1590PP |
| Short Description | DIECAST BOX 121X95X60 |
Dimensions
| Inside Width | 87.68 mm [3.452"] |
| Inside Height | 56.20 mm [2.213"] |
| Inside Length | 113.58 mm [4.472"] |
| Size L X W X H | 4.76 in x 3.74 in x 2.24 in (121 mm x 95 mm x 57 mm) |
| Series Table Note | Dimensions include lid. Lid height is 4mm (0.16"). |
| Overall Width (Drawing) | 95.00 mm [3.740"] |
| Overall Height (Drawing) | 60.70 mm [2.390"] |
| Overall Length (Drawing) | 121.00 mm [4.764"] |
| Nominal Size (Series Table) L X W X D | 4.76 in (121 mm) x 3.35 in (85 mm) x 2.40 in (61 mm) |
Identifiers
| UPC | 623980023403 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Width | 2.00 mm |
| Guide Depth | 1.00 mm [.039"] |
| Guide Width | 3.03 mm [.119"] |
| Guide Height | 52.91 mm [2.083"] |
| Side Wall Draft Angle | 2 degrees or less (low draft for easy P.C. board mounting) |
| Max. P.C. Board Width (Mm) | 111.57 |
| Max. P.C. Board Length (Mm) | 85.67 |
Documentation
| Drawing Revision | 25.05.2020 |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Solid Models Available | .stp or .x_t |
Compatible Hardware
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Philips Machine Screws (100-pack) | 1550MS100 (natural), 1550MS100BK (black) |
| Water-Tight Philips Machine Screws (100-pack) | 1550WMS100 (natural), 1550WMS100BK (black) |
| Torx With Pin Tamper-Resistant Screws (50-pack) | 1550MS50T, 1550MS50TBK, 1550WMS50T, 1550WMS50TBK (water-tight) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.64 lbs (0.29 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Diecast aluminum alloy with internal ribs; lap joint construction protects against access of dust and splashing water |
| Cover Screws | 4X M3.5x0.6 x 12.00 mm, threaded into factory-tapped holes |
| Lid Screw Holes | 4X Ø 4.00 mm [.157"] |

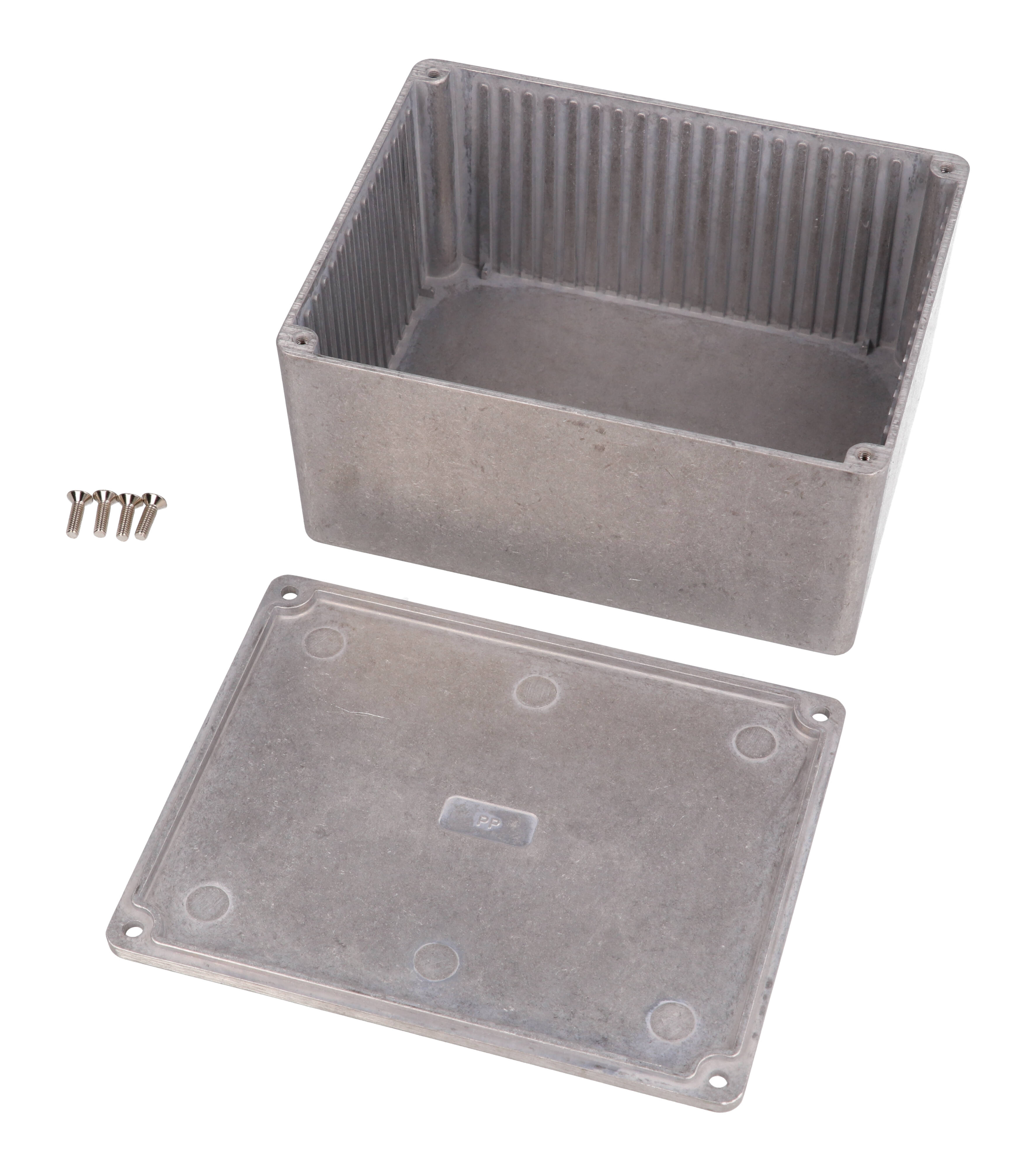

| Assembly Includes | box, lid and 4 cover screws |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1590PP?▾
113.58 mm [4.472"] long, 87.68 mm [3.452"] wide and 56.20 mm [2.213"] high.
Why do the listed sizes differ?▾
The part page lists 121 x 95 x 57 mm, while the series table lists 121 x 85 x 61 mm (dimensions including the 4 mm lid). The drawing shows 121.00 x 95.00 x 60.70 mm overall.
What board size fits?▾
Maximum P.C. board length is 85.67 mm and maximum P.C. board width 111.57 mm.
What is the IP rating?▾
IP54.
What is included?▾
Box, lid and 4 cover screws.
