Hammond 1590RF Flanged 192mm Diecast Aluminum Enclosure, Natural
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

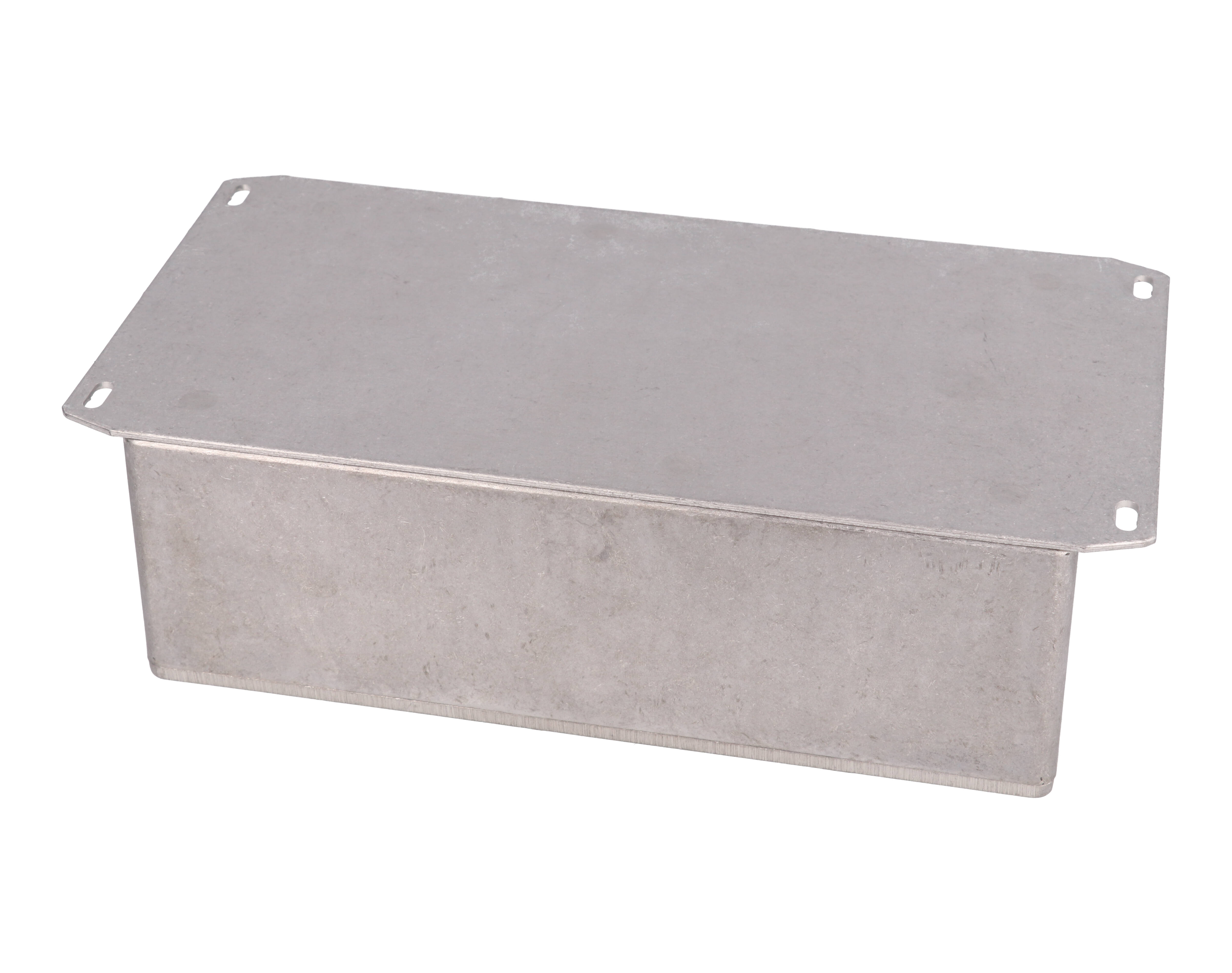

- Welded flanged bottom plate for direct surface mounting
- Natural die-cast aluminum alloy, vibra finished with no sharp edges
- 192 x 102 x 61 mm nominal size; 216.43 mm overall length with flange
- Internal ribs accept a P.C. board up to 182.42 x 102.42 mm
- Designed to meet IP54; optional 1590RGASKET gasket kit
- Includes 6 M3.5x0.6 cover screws in factory-tapped holes
- RoHS and REACH compliant

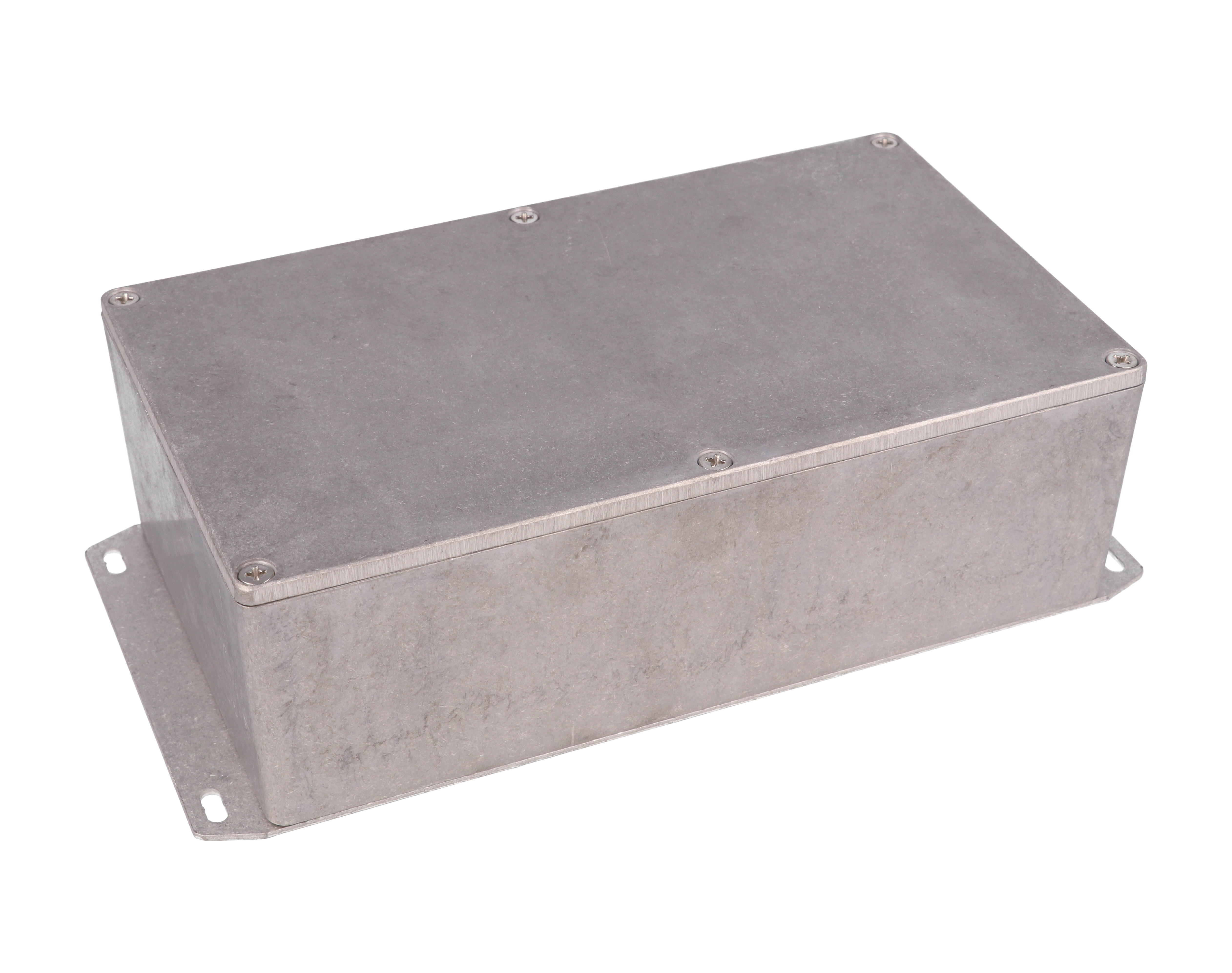

The 1590RF is the 1590R diecast aluminum enclosure with a flanged bottom plate, supplied in a natural unpainted finish. The external mounting flange lets integrators and OEM engineers bolt the box directly to a panel, wall or chassis, while the internal ribs carry a printed circuit board.
Box and lid are die-cast aluminum alloy, and the bottom flange is welded to the box. The unpainted version is vibra finished for a smooth surface with no sharp edges. Lap joint construction protects against access of dust and splashing water, and this standard version is designed to meet IP54.
Nominal size is 192 x 102 x 61 mm (7.56 x 4.02 x 2.40 in). Including the flange, the drawing shows an overall length of 216.43 mm [8.521 in] and an overall height of 62.50 mm [2.461 in]. Inside, the box measures 183.29 mm [7.216 in] long, 103.29 mm [4.067 in] wide and 56.80 mm [2.236 in] high, with guides for a P.C. board up to 182.42 x 102.42 mm. A side wall draft angle of 2 degrees or less aids board mounting.

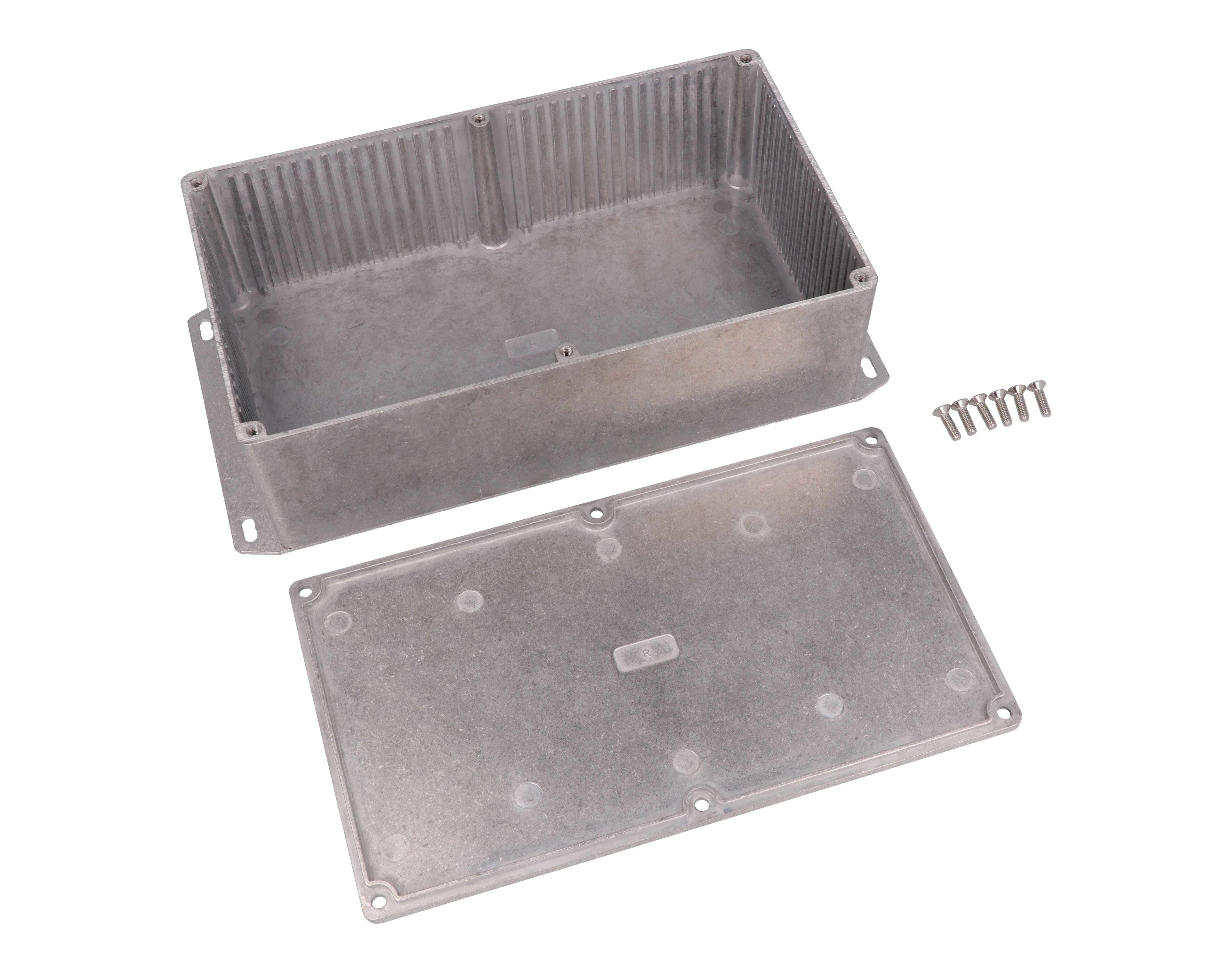

The 1590RF ships as box, lid and 6 M3.5x0.6 cover screws threaded into factory-tapped holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. The optional 1590RGASKET kit is listed for this size. It is RoHS and REACH compliant and weighs 1 lb (0.45 kg) as shipped.
Ideal For
- Panel- or wall-mounted electronics housings
- Electronic instrument enclosures
- PCB-based control modules needing a mounting flange
- Custom machined OEM enclosures
Mounting
| Mounting | Flanged bottom plate (bottom flange is welded) |
Overview
| Type | Die-cast box, flanged |
| Series | 1590-RIBBED (Diecast Aluminum Enclosures with Internal Ribs) |
| Version | Standard, with flanged bottom plate |
| CAD Models | Solid models available |
| Description | 1590R with flange, diecast enclosure |
| Part Number | 1590RF |
| Factory Modification | Can be factory modified (milling, drilling, printing) |
Dimensions
| Box Width | 102.00 mm [4.016 in] |
| Box Height | 57.00 mm [2.244 in] |
| Box Length | 191.80 mm [7.551 in] |
| Lid Height | 4 mm (0.16 in) - included in overall dimensions |
| Inside Width | 103.29 mm [4.067 in] |
| Inside Height | 56.80 mm [2.236 in] |
| Inside Length | 183.29 mm [7.216 in] |
| Overall Width | 111.60 mm [4.394 in] |
| Overall Height | 62.50 mm [2.461 in] |
| PCB Slot Depth | 1.00 mm [.039 in] |
| PCB Slot Width | 2.00 mm [.079 in] |
| Size L X W X H | 7.55 in x 4.37 in x 2.24 in (192 mm x 111 mm x 57 mm) |
| PCB Guide Width | 3.00 mm [.118 in] |
| PCB Guide Height | 53.03 mm [2.088 in] |
| Max. P.C. Board Width | 182.42 mm |
| Max. P.C. Board Length | 102.42 mm |
| Nominal Size (L X W X D) | 7.56 in (192 mm) x 4.02 in (102 mm) x 2.40 in (61 mm) |
| Overall Length Including Flange | 216.43 mm [8.521 in] |
Accessories
| Optional Replacement Gasket Kit | 1590RGASKET |
| Tamper-Resistant Screwdriver Bit | SCDRIVET15-2 |
| Standard Cover Screws, Black (Pkg 100) | 1550MS100BK [M3.5 x 12mm] |
| Standard Cover Screws, Plated (Pkg 100) | 1550MS100 [M3.5 x 12mm] |
| Tamper-Resistant Torx With Pin Screws (50-pack) | 1550MS50T (natural), 1550MS50TBK (black), 1550WMS50T (water-tight), 1550WMS50TBK (water-tight black) |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1550WMS100 [M3.5 x 12mm, With O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1550WMS100BK [M3.5 x 12mm, With O-Ring] |
Identifiers
| UPC | 623980536927 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint construction for protection against access of dust and splashing water |
| Assembly Hardware | Screws threaded into factory-tapped holes |
| Included Hardware | Box, lid and 6 cover screws (6X M3.5x0.6) |
| Internal Features | Internal ribs with P.C. board guide slots |
| Side Wall Draft Angle | 2 degrees or less (for easy P.C. board mounting) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Lid Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590RF different from the 1590R?▾
The 1590RF adds a flanged bottom plate for mounting; the bottom flange is welded. Overall length including the flange is 216.43 mm [8.521 in].
What is the IP rating of the 1590RF?▾
The 1590RF is rated IP54. The optional 1590RGASKET silicone gasket kit is listed for this enclosure size.
What board size fits the internal ribs?▾
A P.C. board up to 182.42 mm by 102.42 mm. Inside length is 183.29 mm, inside width 103.29 mm and inside height 56.80 mm.
What screws come with the enclosure?▾
The assembly includes 6 M3.5x0.6 cover screws. Replacement packs include 1550MS100 plated screws and 1550WMS100 liquid resistant stainless steel screws with O-ring, both M3.5 x 12mm.
Is the finish painted?▾
No. The 1590RF is natural aluminum; the unpainted version is vibra finished for a smooth surface with no sharp edges.
