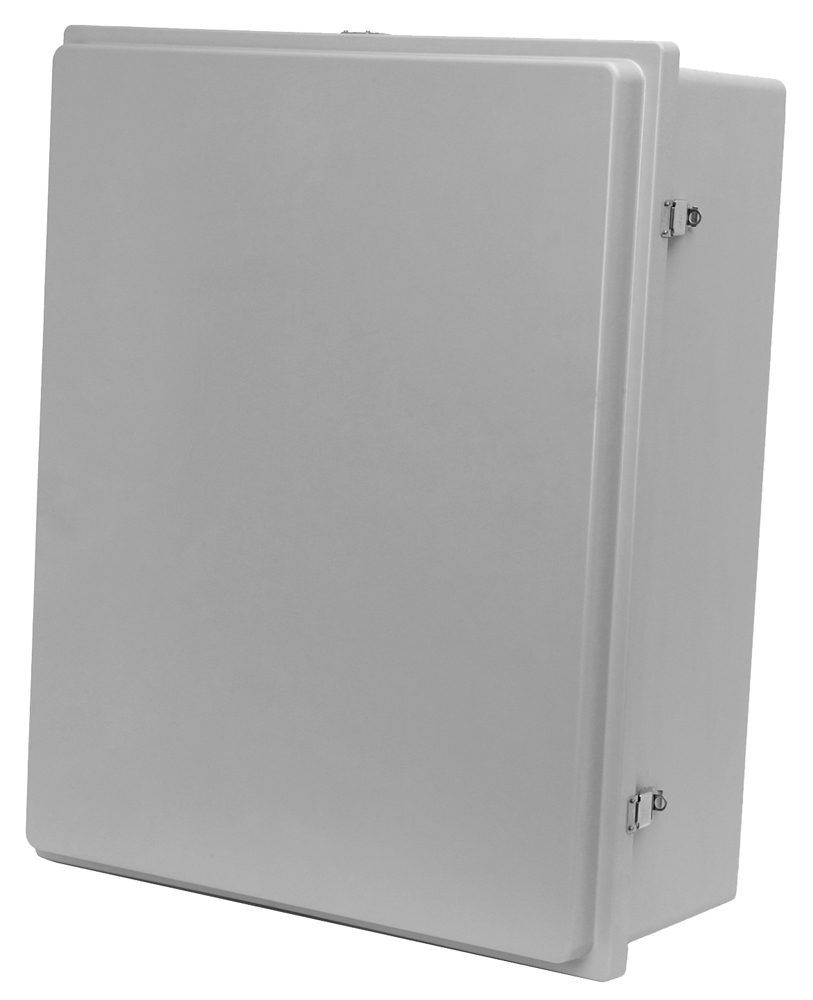

Type 4X Polyester Junction Box w/ Raised Lid (Solid and Window) PJ Series

Type 4X Polyester Junction Box w/ Raised Lid (Solid and Window) · PJ Series

Brand: Hammond Manufacturing · 46 part numbers

Continuous Hinge Door with Snap Latches

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.
  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12, & 13 IEC 60529, IP66

from $5.35

43 of 46 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PJ Series part number

Filter 34 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

34 of 34 part numbers · 31 priced online

PJ664RL

6X6X4 Non-Met Raised Lid

$112.10In stock
Buy now
PJ664RLW

6X6X4 Non-Met Raised Window

$165.73In stock
Buy now
PJ864RL

8X6X4 Non-Met Raised Lid

$116.59In stock
Buy now
PJ864RLW

8X6X4 Non-Met Raised Window

$175.93In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Solid Cover · Part No.Window · Cover Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · DOptional Inner Panel · Part No.PriceOrder
PJ664RLPJ664RLW6.106.104.184.884.8814R0505$112.10In stockPJ664RLBuy now
PJ864RLPJ864RLW8.006.124.136.754.8814R0705$116.59In stockPJ864RLBuy now
PJ1084RLPJ1084RLW10.138.264.138.756.8814R0907$124.92In stockPJ1084RLBuy now
PJ1086RLPJ1086RLW10.138.266.138.756.8814R0907$133.16In stockPJ1086RLBuy now
PJ12106RLPJ12106RLW12.1310.266.1310.758.8814R1109$148.74In stockPJ12106RLBuy now
PJ12124RLPJ12124RLW13.3311.854.1312.3213.7214R1111$159.05In stockPJ12124RLBuy now
PJ12126RLPJ12126RLW13.3311.856.1312.3213.7214R1111$164.20In stockPJ12126RLBuy now
PJ14126RLPJ14126RLW14.1312.266.1312.7510.8814R1311$172.57In stockPJ14126RLBuy now
PJ16148RLPJ16148RLW16.2714.408.1314.7512.8814R1513$196.99In stockPJ16148RLBuy now
PJ18168RLPJ18168RLW18.4016.408.1316.8814.88P1868$260.22In stockPJ18168RLBuy now
PJ20168RLPJ20168RLW20.0016.008.1318.4414.44P2068$592.28In stockPJ20168RLWBuy now
PJ24208RLPJ24208RLW24.0020.008.1321.0017.0018P2117$678.82In stockPJ24208RLBuy now
PJ24248RLPJ24248RLW24.0024.008.1321.0021.0018P2121$723.61In stockPJ24248RLBuy now
PJ30248RLPJ30248RLW30.0024.008.1327.0021.0018P2721$805.49In stockPJ30248RLBuy now
PJ242010RLPJ242010RLW24.0020.0010.1321.0017.0018P2117$691.77In stockPJ242010RLBuy now
PJ242410RLPJ242410RLW24.0024.0010.1321.0021.0018P2121$741.35In stockPJ242410RLBuy now
PJ302410RLPJ302410RLW30.0024.0010.1327.0021.0018P2721$820.49In stockPJ302410RLBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.

Standards

  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12, & 13 IEC 60529, IP66
  • ■NEMA Type 1, 2, 3, 4, 4X, 12, & 13
  • ■IEC 60529, IP66

Construction

  • ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • ■Enhanced UV inhibitors protect against outdoor weathering.
  • ■Standard JIC sizes under 18"x16".
  • ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • ■Stainless steel draw type "snap latch" door fasteners.
  • ■Door fasteners include a provision for padlocking.
  • ■Enclosures are available with bonded polycarbonate viewing windows.
  • ■Door is supported with a continuous stainless steel hinge.
  • ■Captive oil resistant gasket provides a positive seal.
  • ■Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
  • ■Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
  • ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • ■Impact index of 6.78J (5 ft/lb).
  • ■For corrosion resistance information, please refer to table in the Technical Information section.

Finish

  • ■Fiberglass polyester material has a gray finish.
  • ■Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or fiberglass.

Documents

Specification Sheet

Additional information

Part Details

Solid Cover · Part No.Window · Cover Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · DOptional Inner Panel · Part No.
PJ664RLPJ664RLW6.106.104.184.884.8814R0505
PJ864RLPJ864RLW8.006.124.136.754.8814R0705
PJ1084RLPJ1084RLW10.138.264.138.756.8814R0907
PJ1086RLPJ1086RLW10.138.266.138.756.8814R0907
PJ12106RLPJ12106RLW12.1310.266.1310.758.8814R1109
PJ12124RLPJ12124RLW13.3311.854.1312.3213.7214R1111
PJ12126RLPJ12126RLW13.3311.856.1312.3213.7214R1111
PJ14126RLPJ14126RLW14.1312.266.1312.7510.8814R1311
PJ16148RLPJ16148RLW16.2714.408.1314.7512.8814R1513
PJ18168RLPJ18168RLW18.4016.408.1316.8814.88P1868
PJ20168RLPJ20168RLW20.0016.008.1318.4414.44P2068
PJ24208RLPJ24208RLW24.0020.008.1321.0017.0018P2117
PJ24248RL ¹PJ24248RLW ¹24.0024.008.1321.0021.0018P2121
PJ30248RL ¹PJ30248RLW ¹30.0024.008.1327.0021.0018P2721
PJ242010RL ¹PJ242010RLW ¹24.0020.0010.1321.0017.0018P2117
PJ242410RL ¹PJ242410RLW ¹24.0024.0010.1321.0021.0018P2121
PJ302410RL ¹PJ302410RLW ¹30.0024.0010.1327.0021.0018P2721
