ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs · 1591XX Series

Key Features:

• ■Ideally suited for mounting printed circuit boards horizontally.

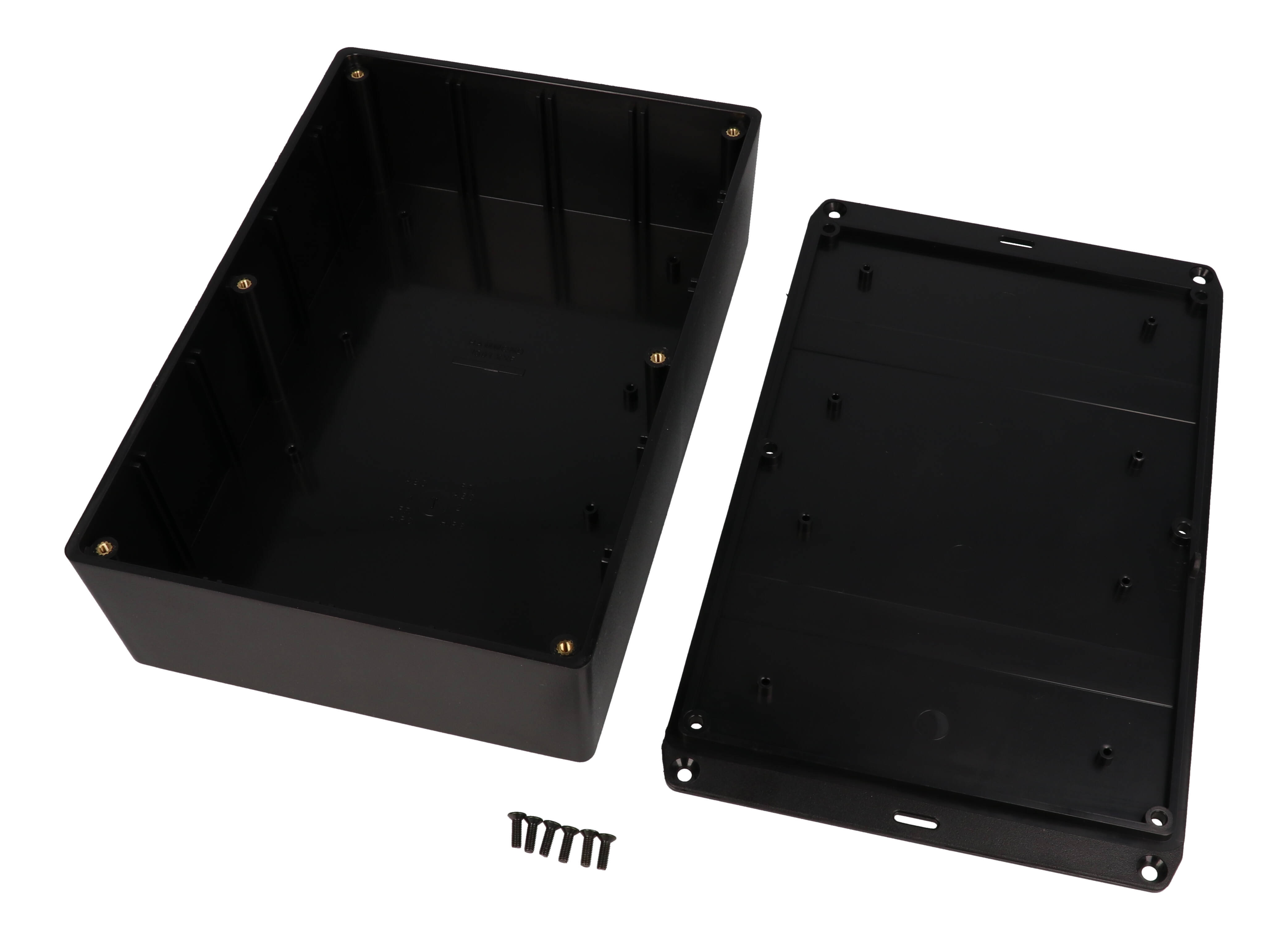

• ■Internal sides of enclosure are smooth for easy connector installation, except for the largest enclosure 1591XXF. 1591XXF size is a universal type which includes PC board standoffs in the lid and enclosure as well as card guides.
• ■Provides protection against access of dust and splashing water.
• ■Designed to meet IP54.

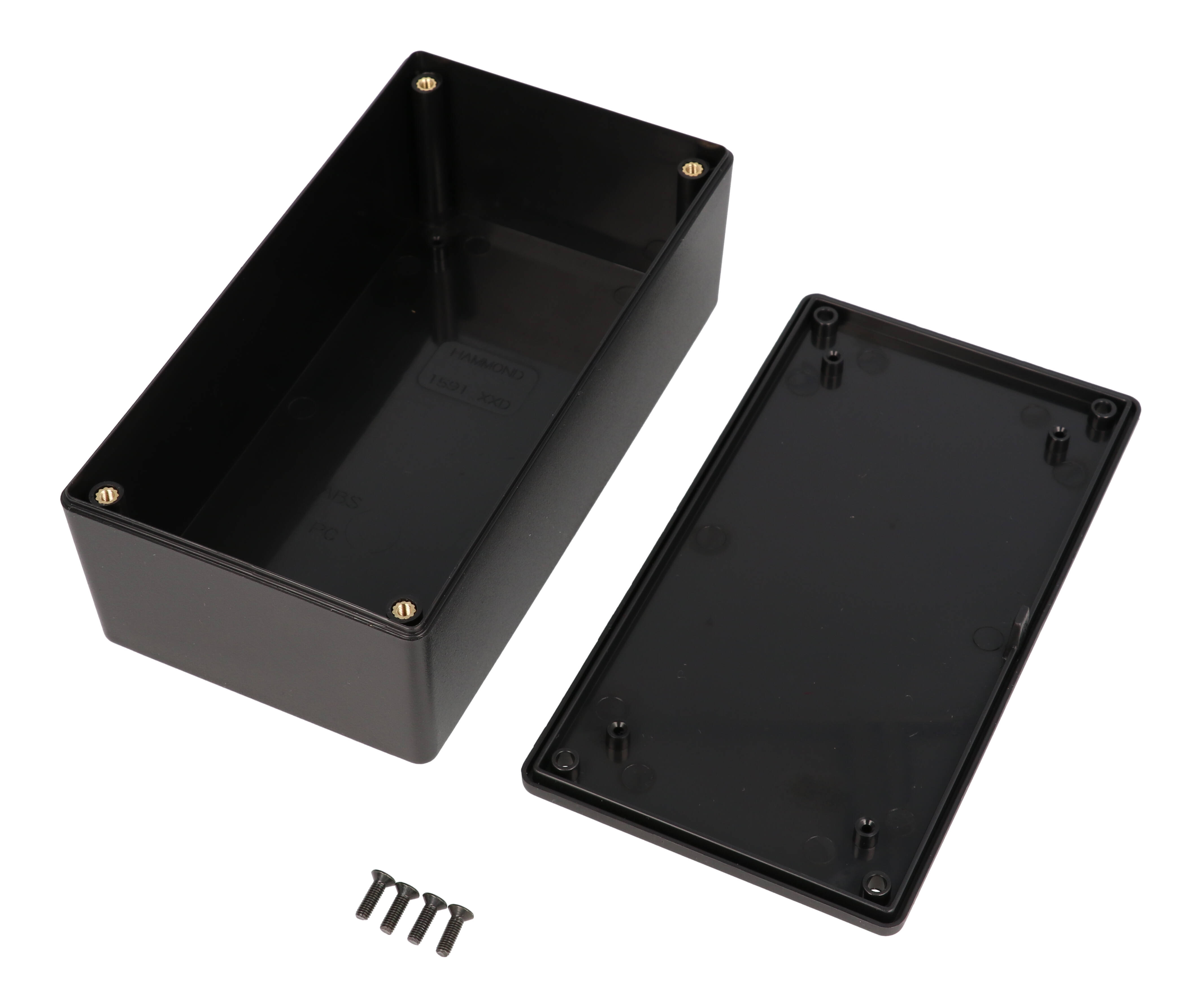

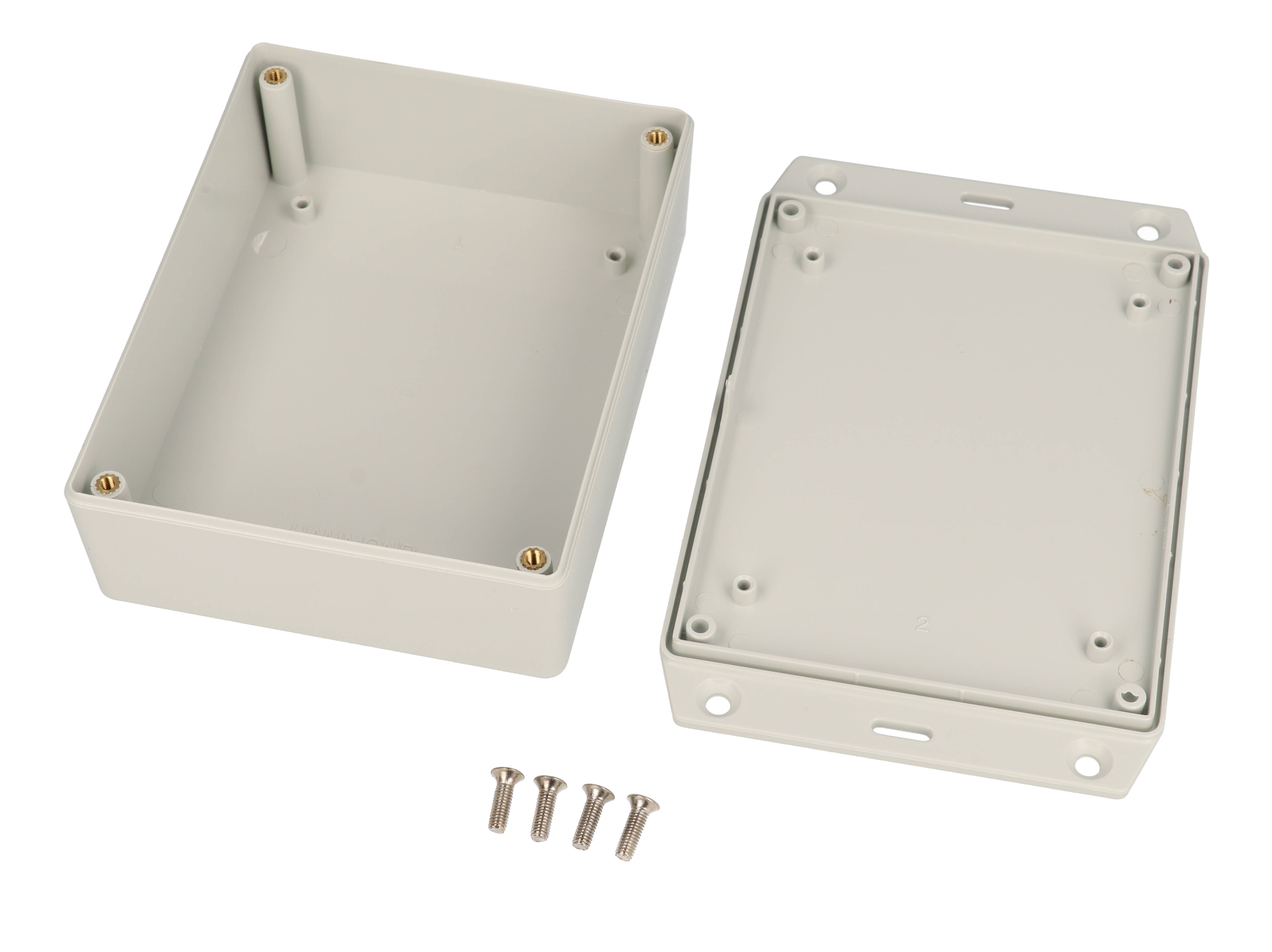

• ■Lid and box both contain integral PC board standoffs.
• ■Standard black and gray versions molded from easy-to-machine, flame retardant ABS plastic which carries a UL flammability rating of UL94 V-0.

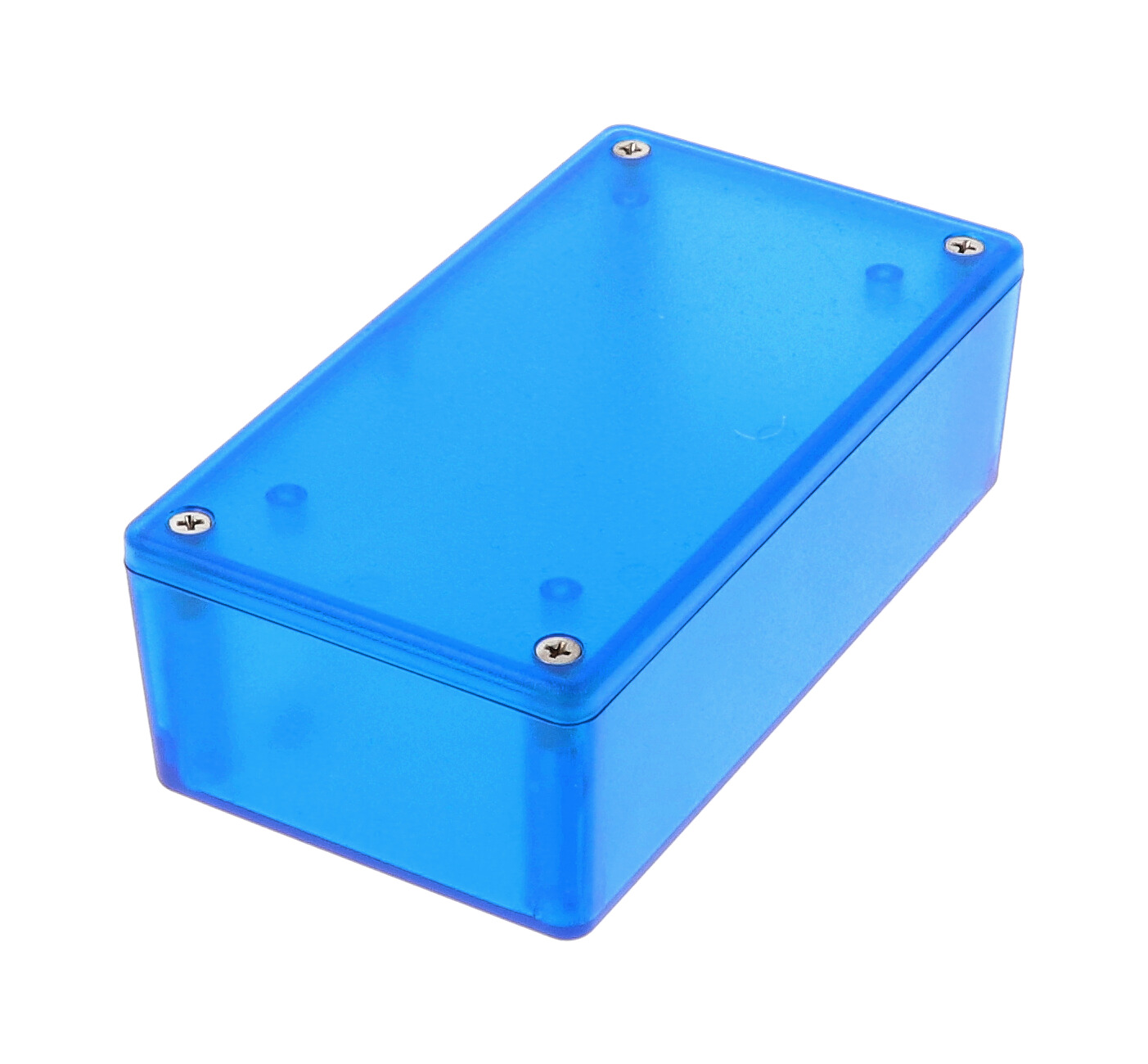

• ■Transparent blue and all economy versions are molded from general purpose plastic that is not flame retardant.

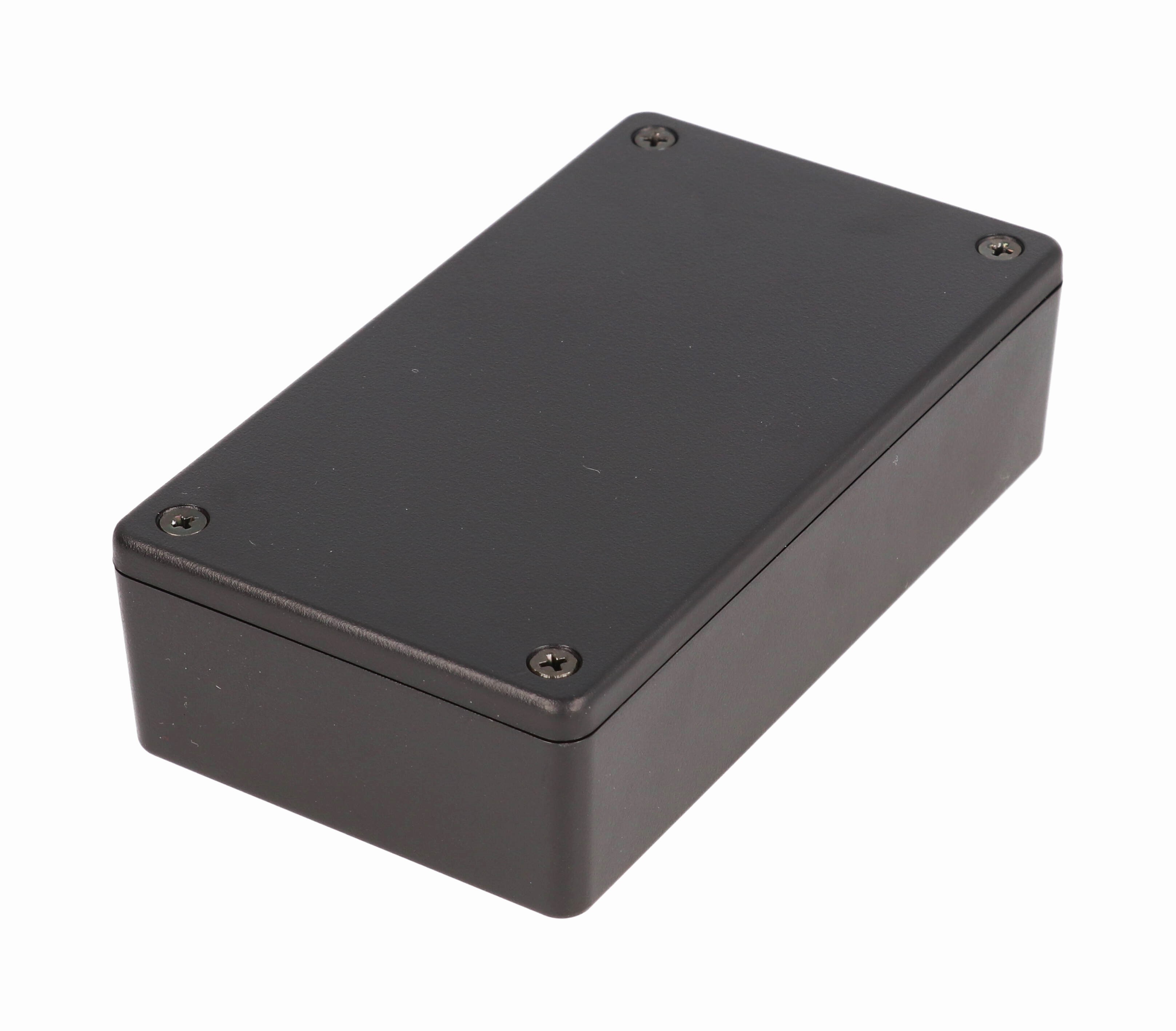

• ■On standard versions, the lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.

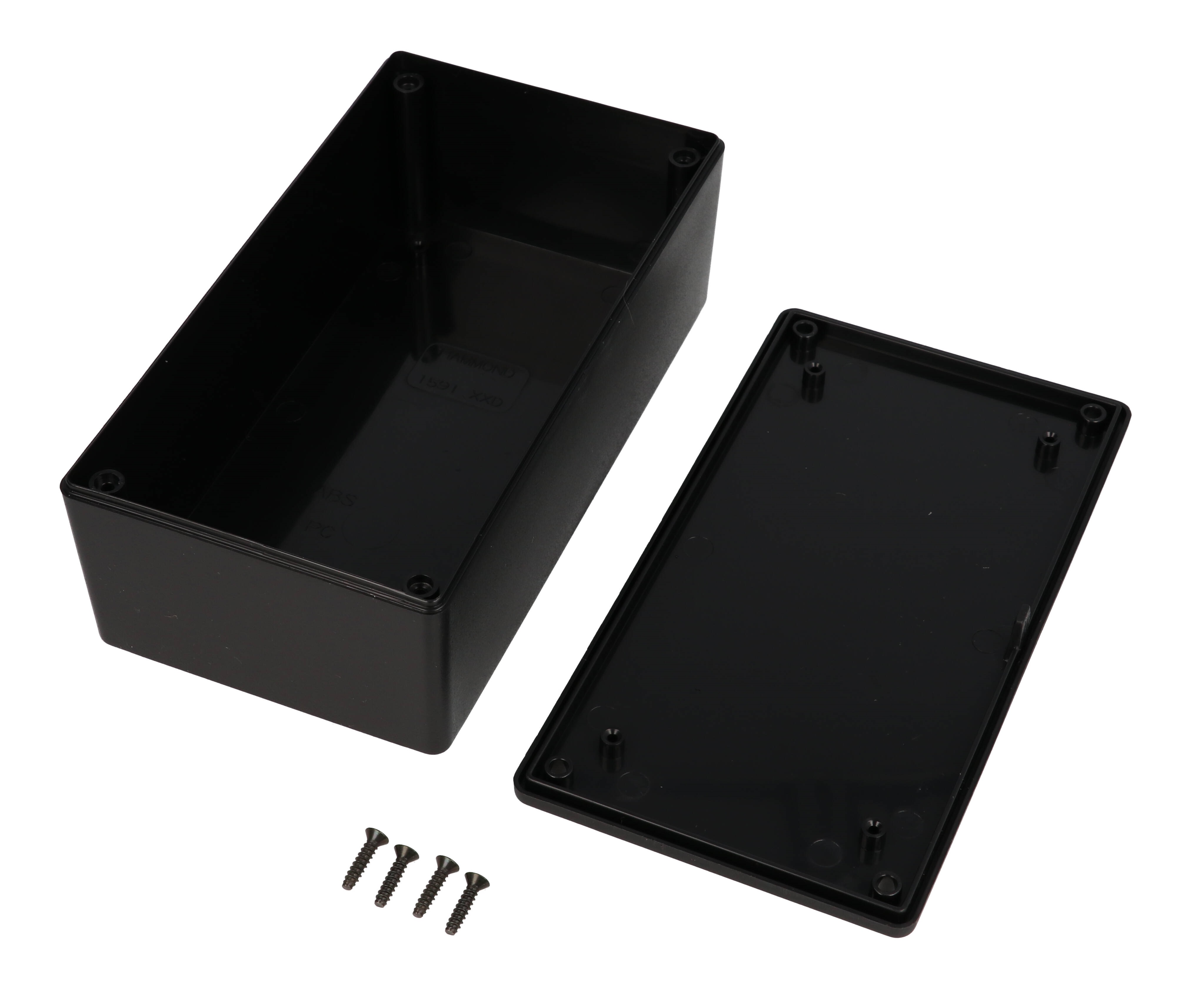

• ■Economy versions are assembled with self-tapping screws into fully plastic posts.
• ■Black and transparent blue enclosures include black screws, while gray enclosures include nickel plated screws.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

Photo Features:

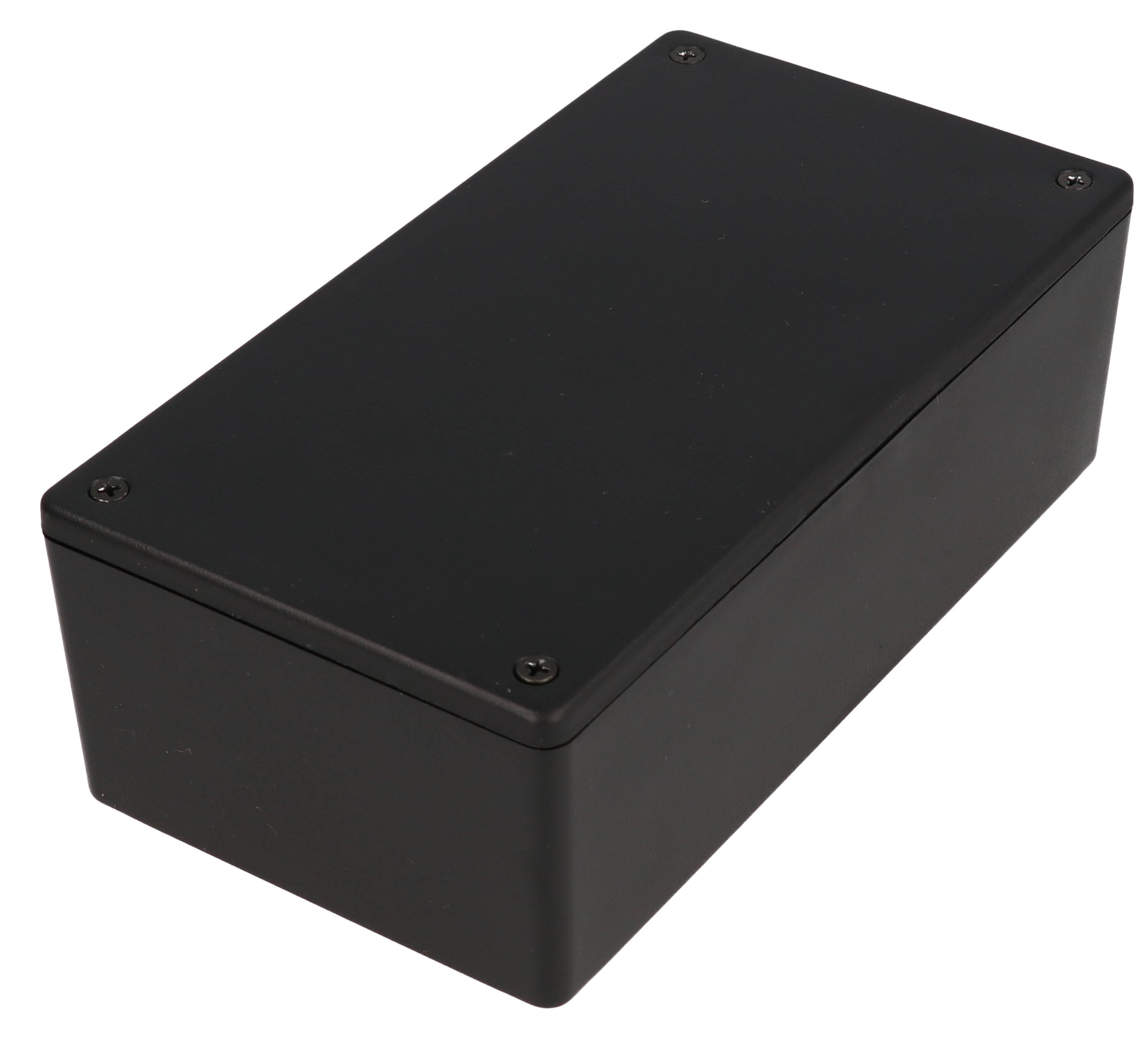

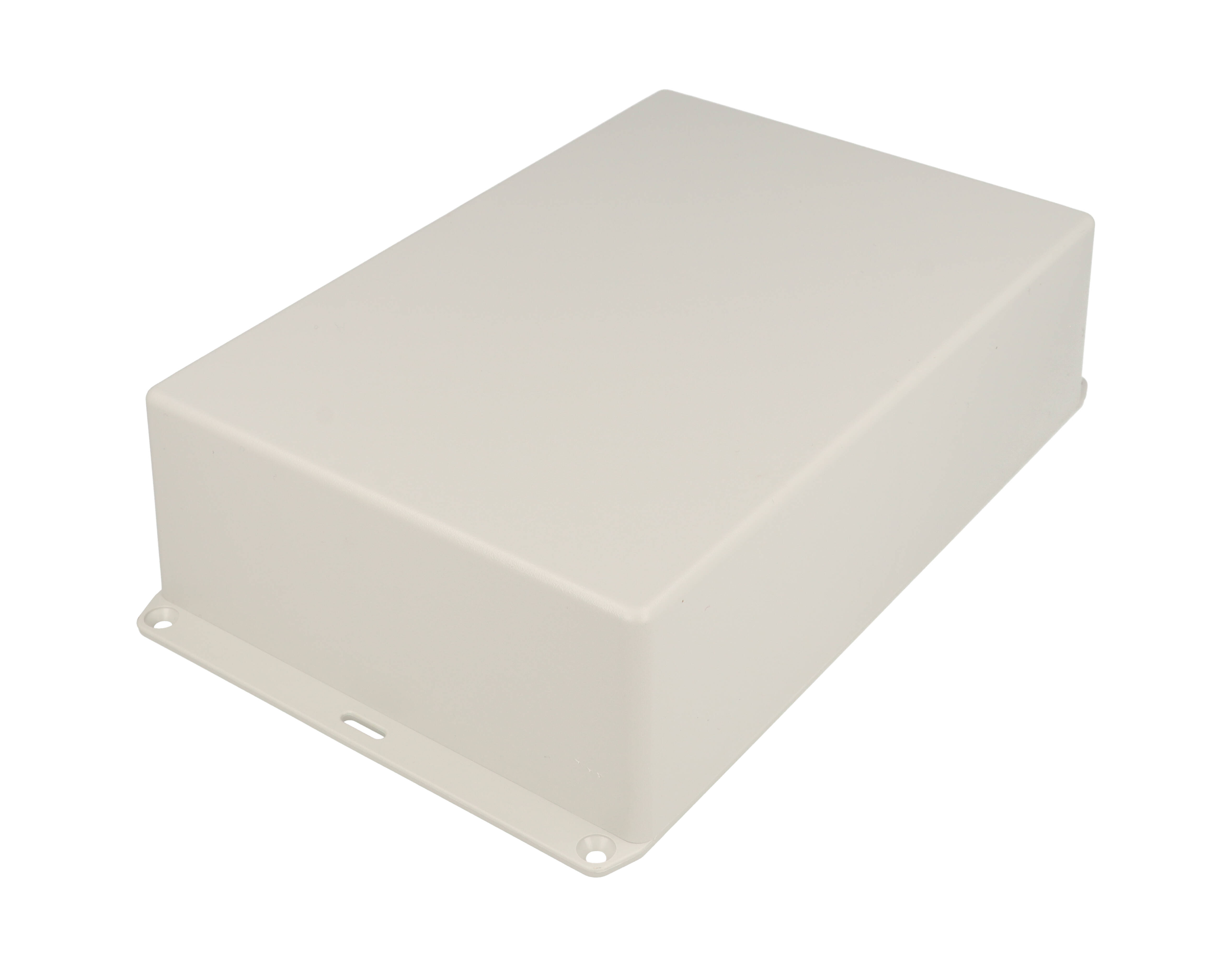

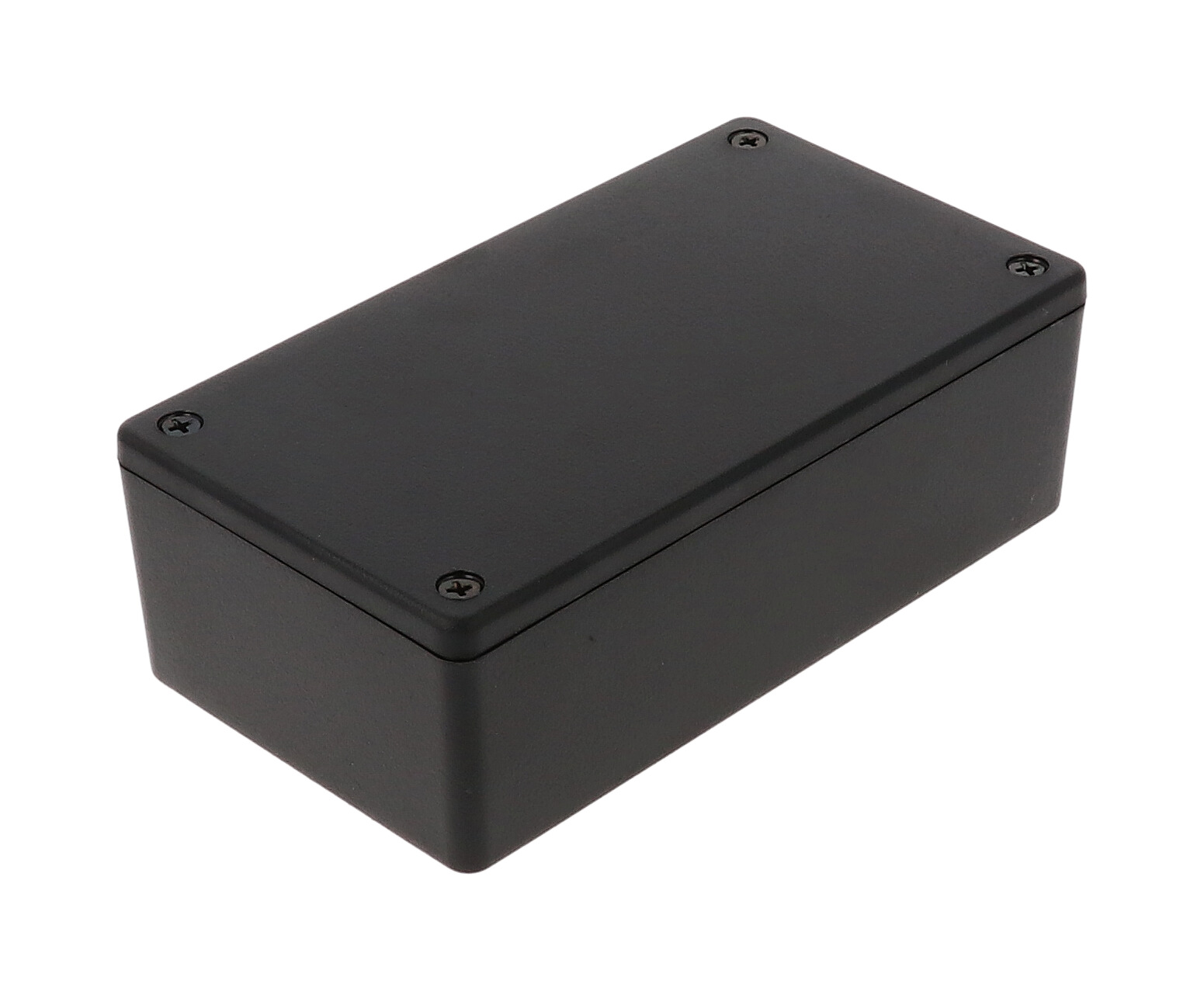

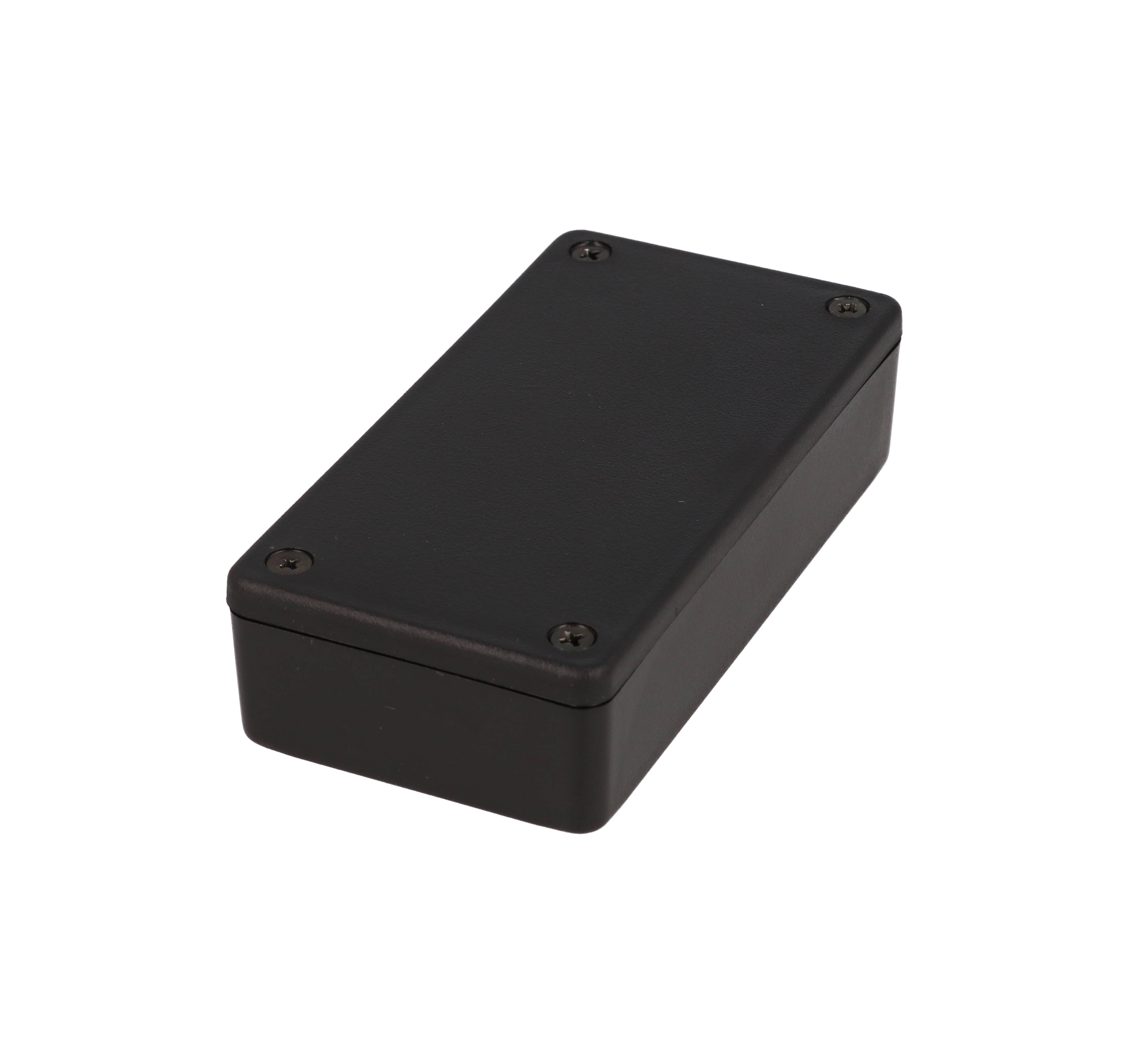

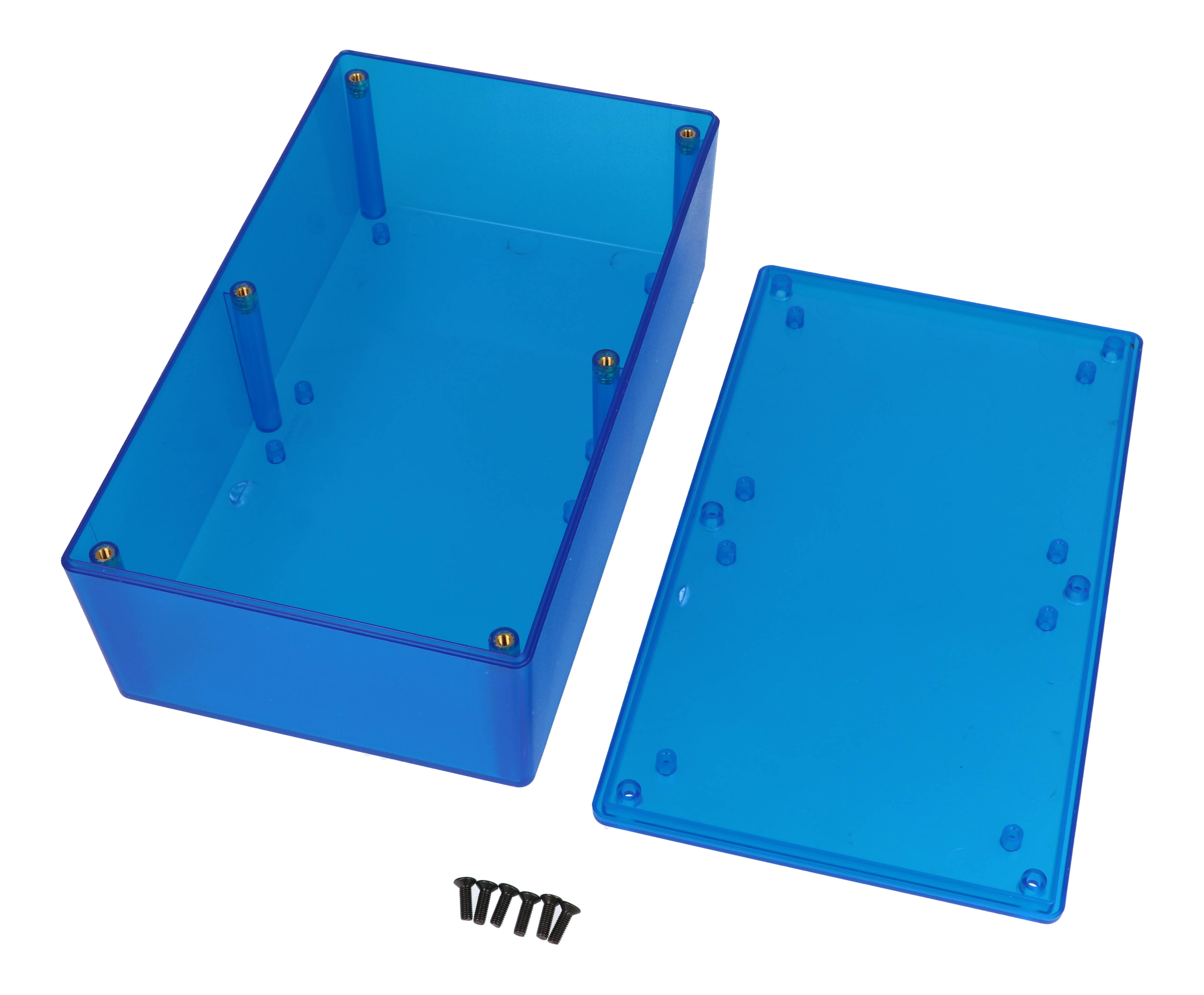

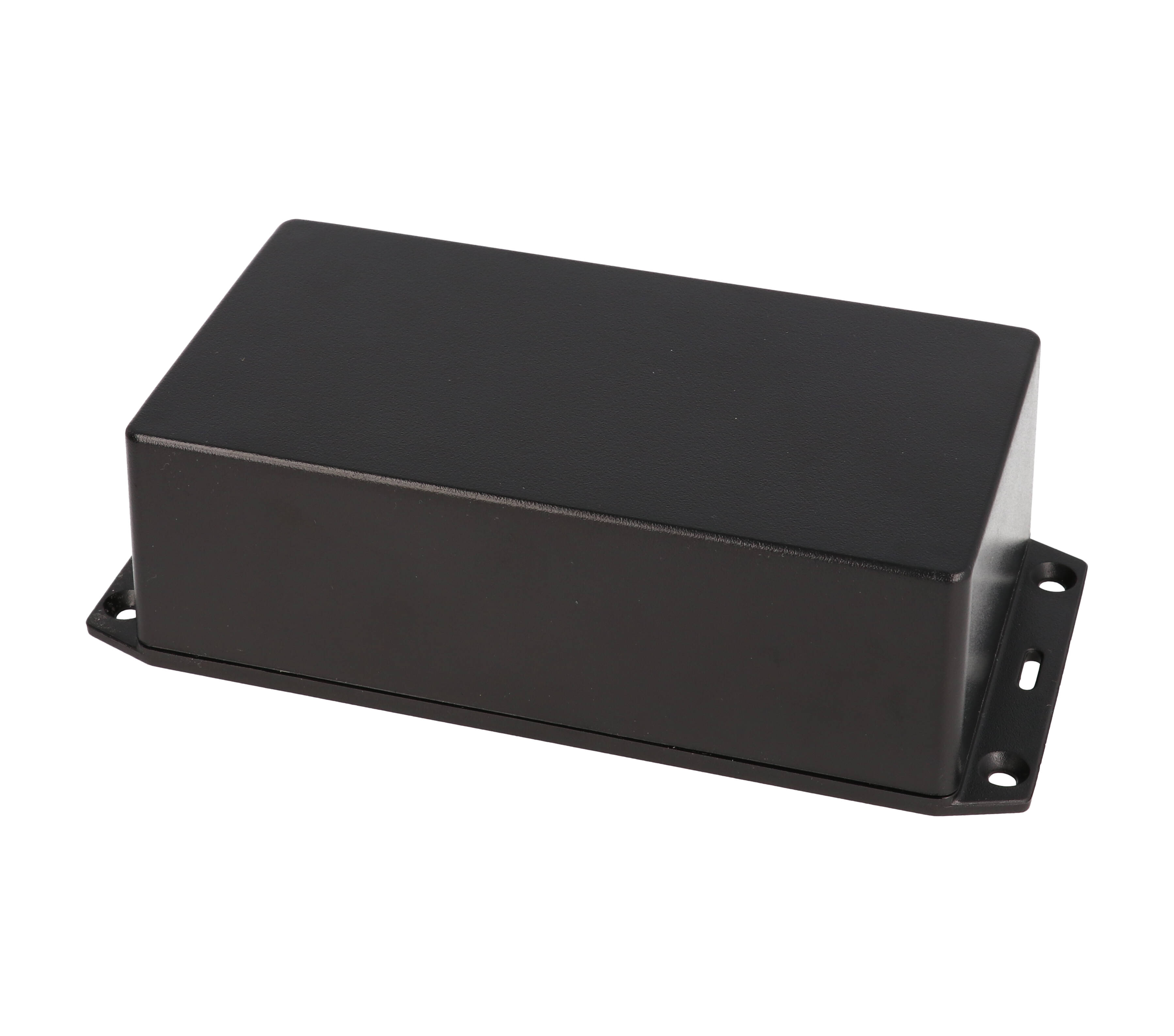

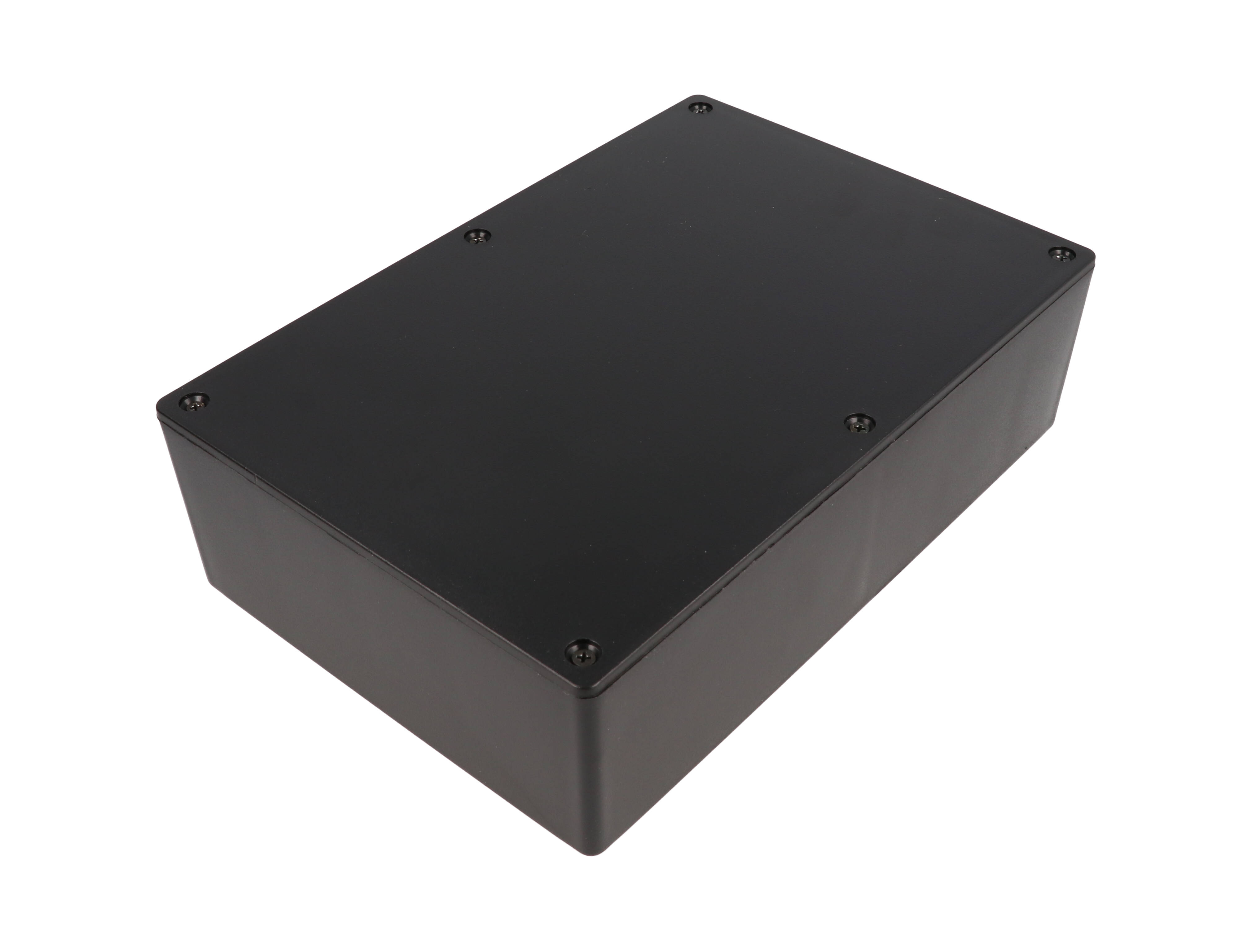

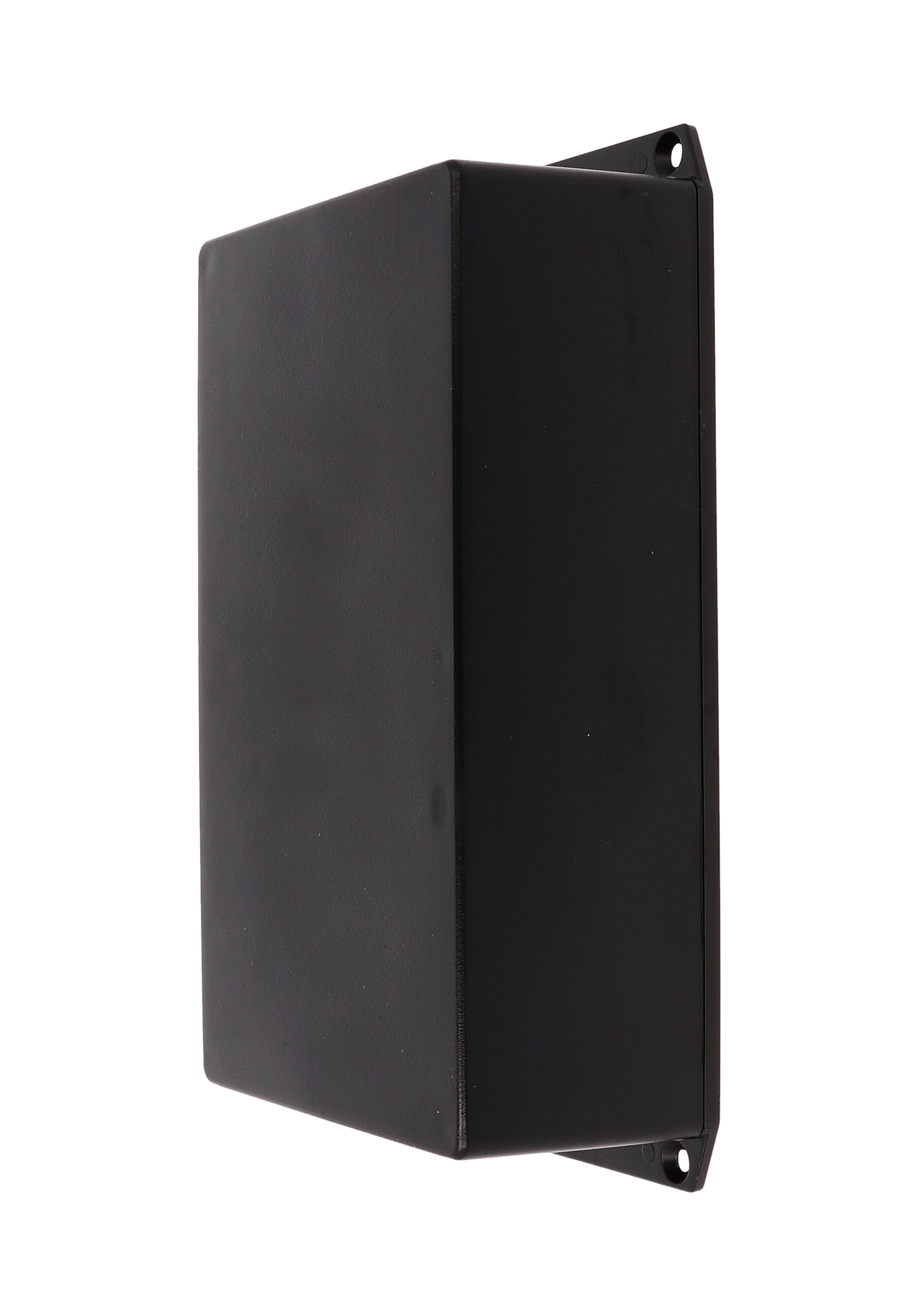

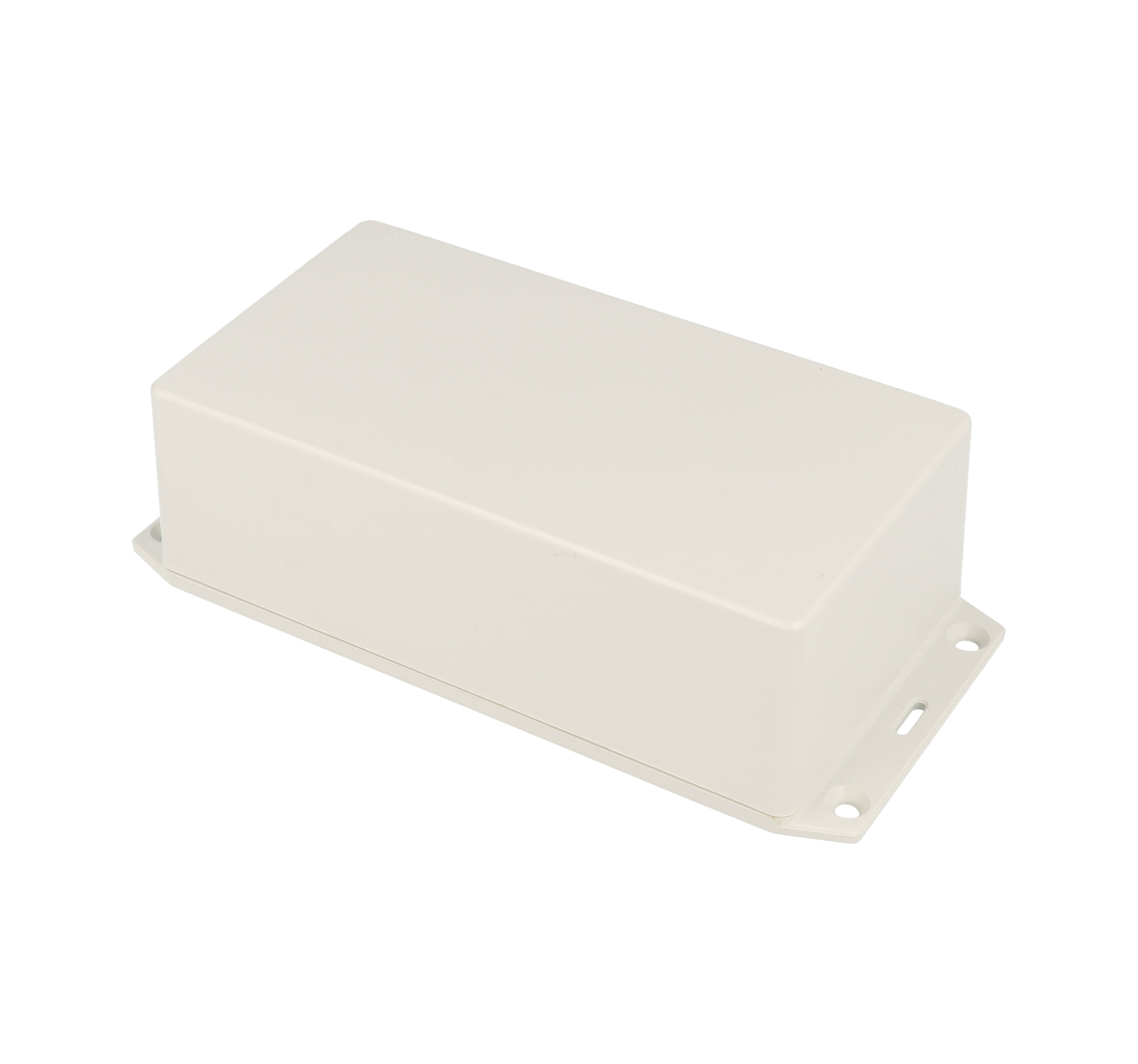

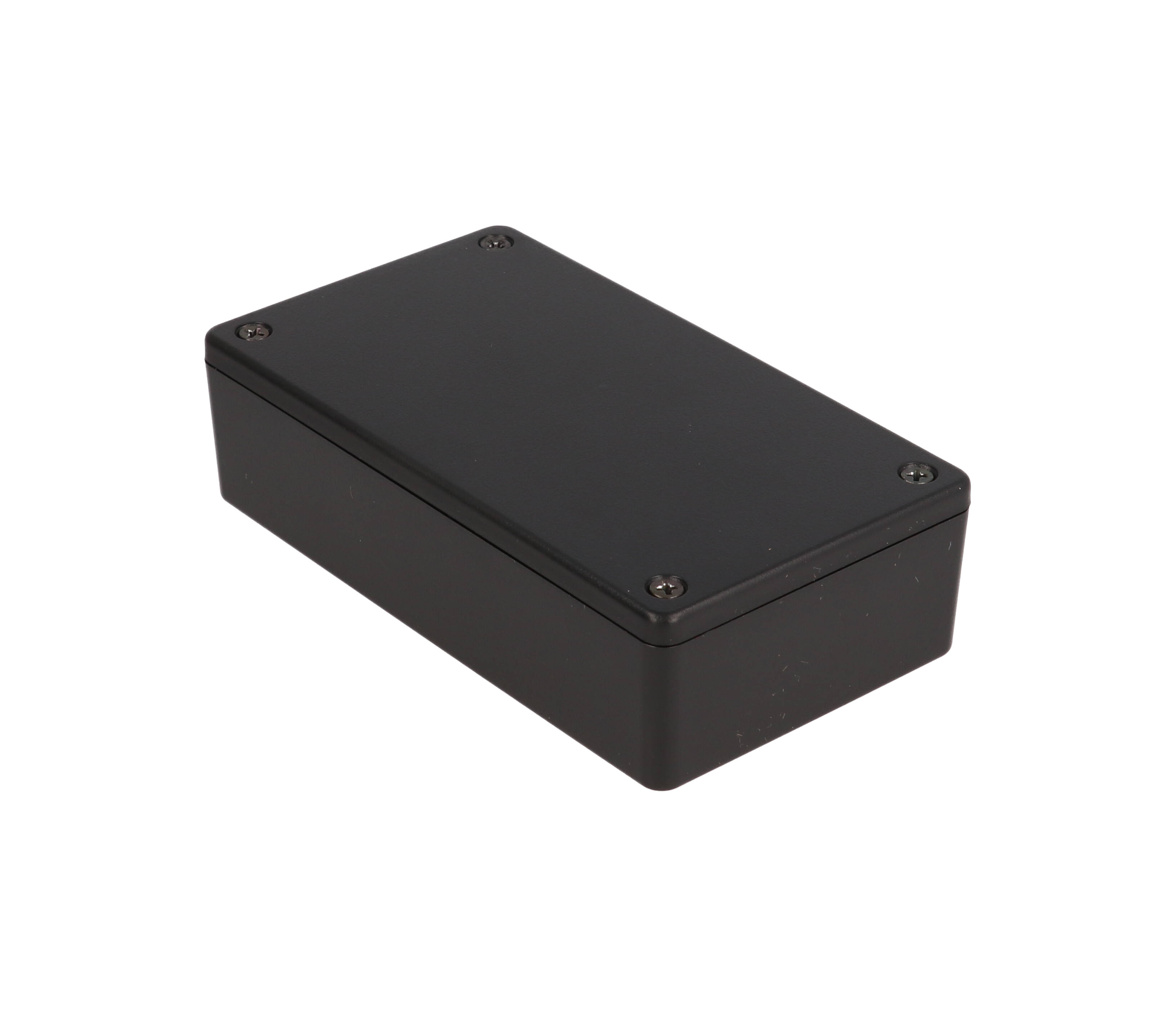

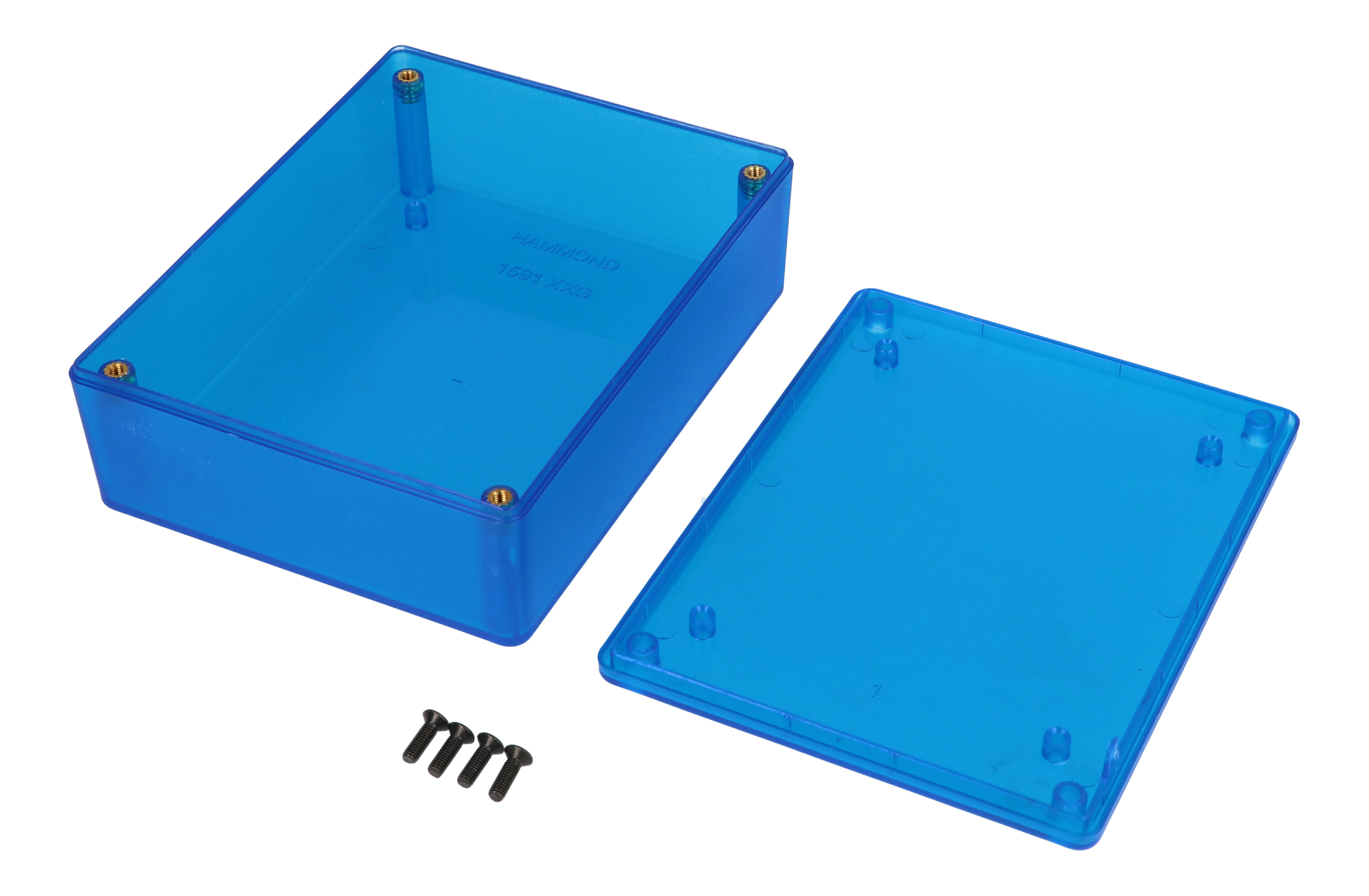

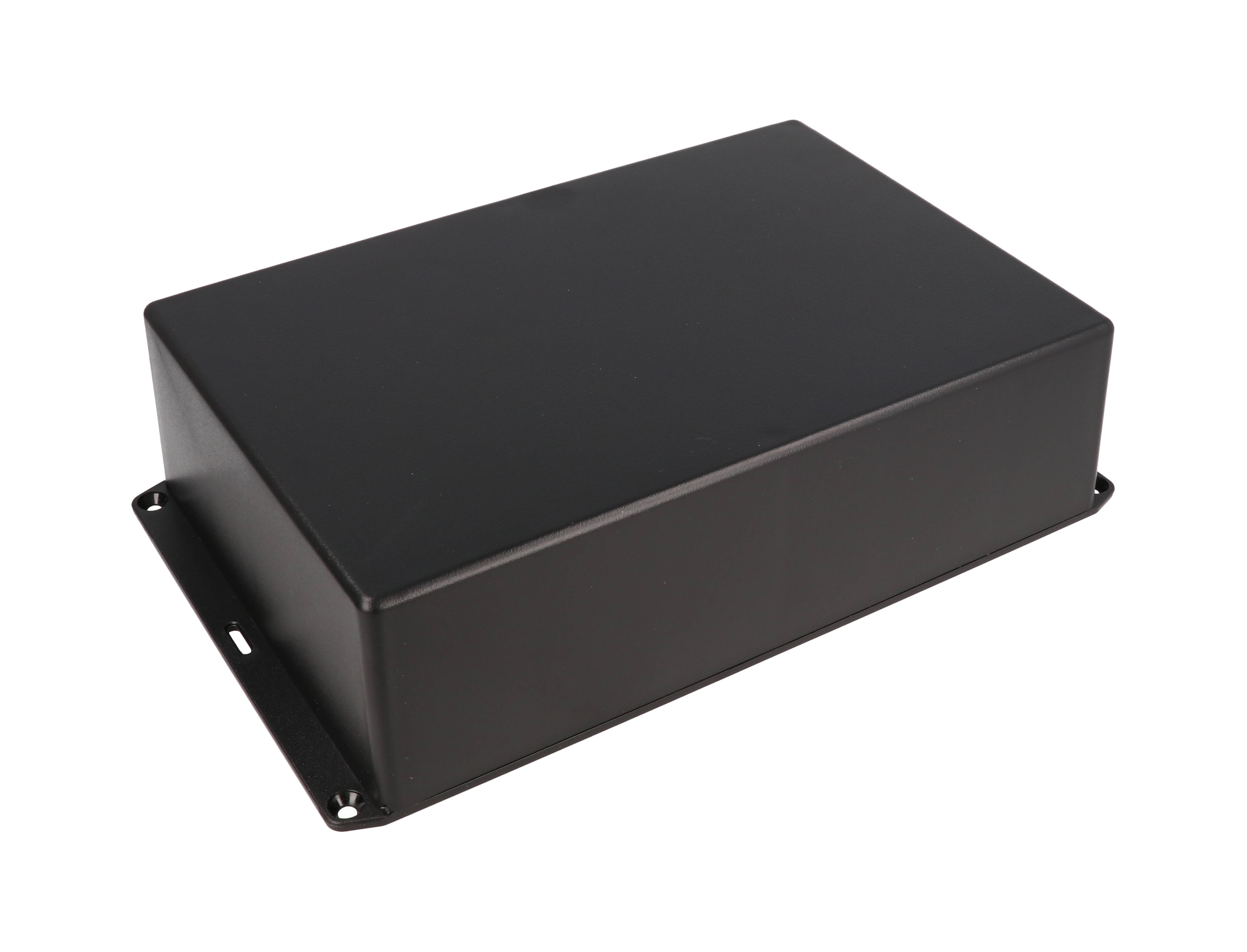

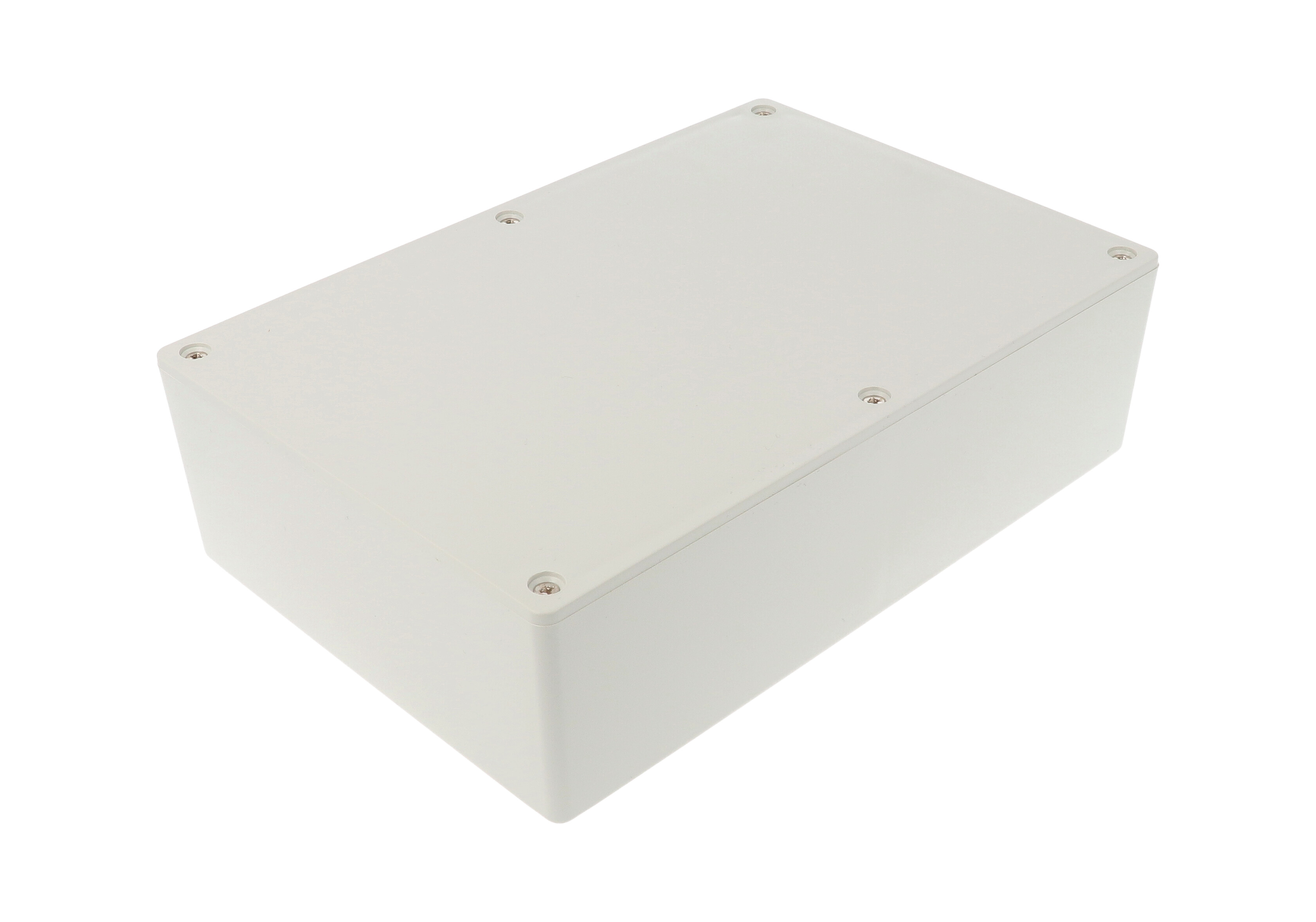

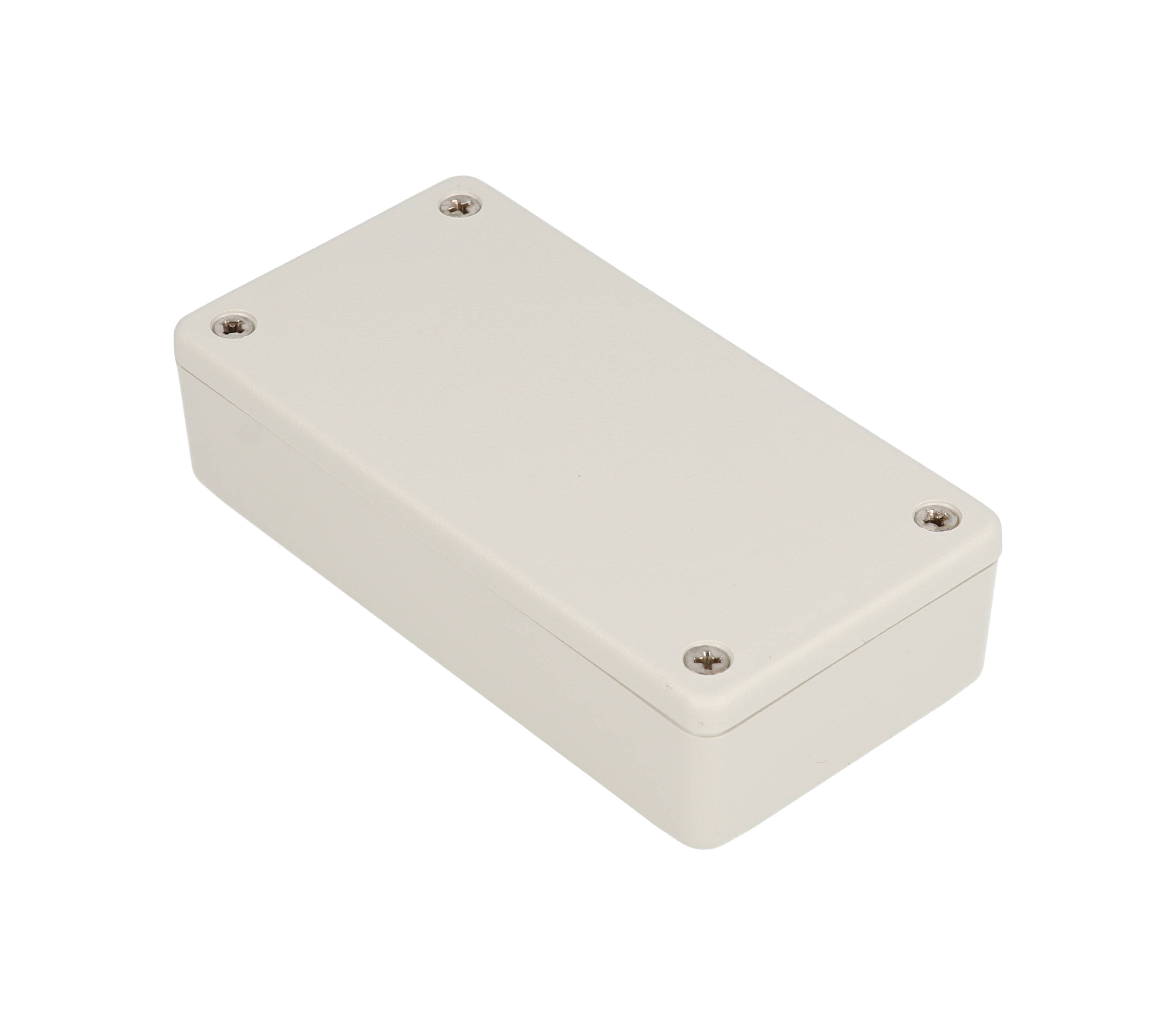

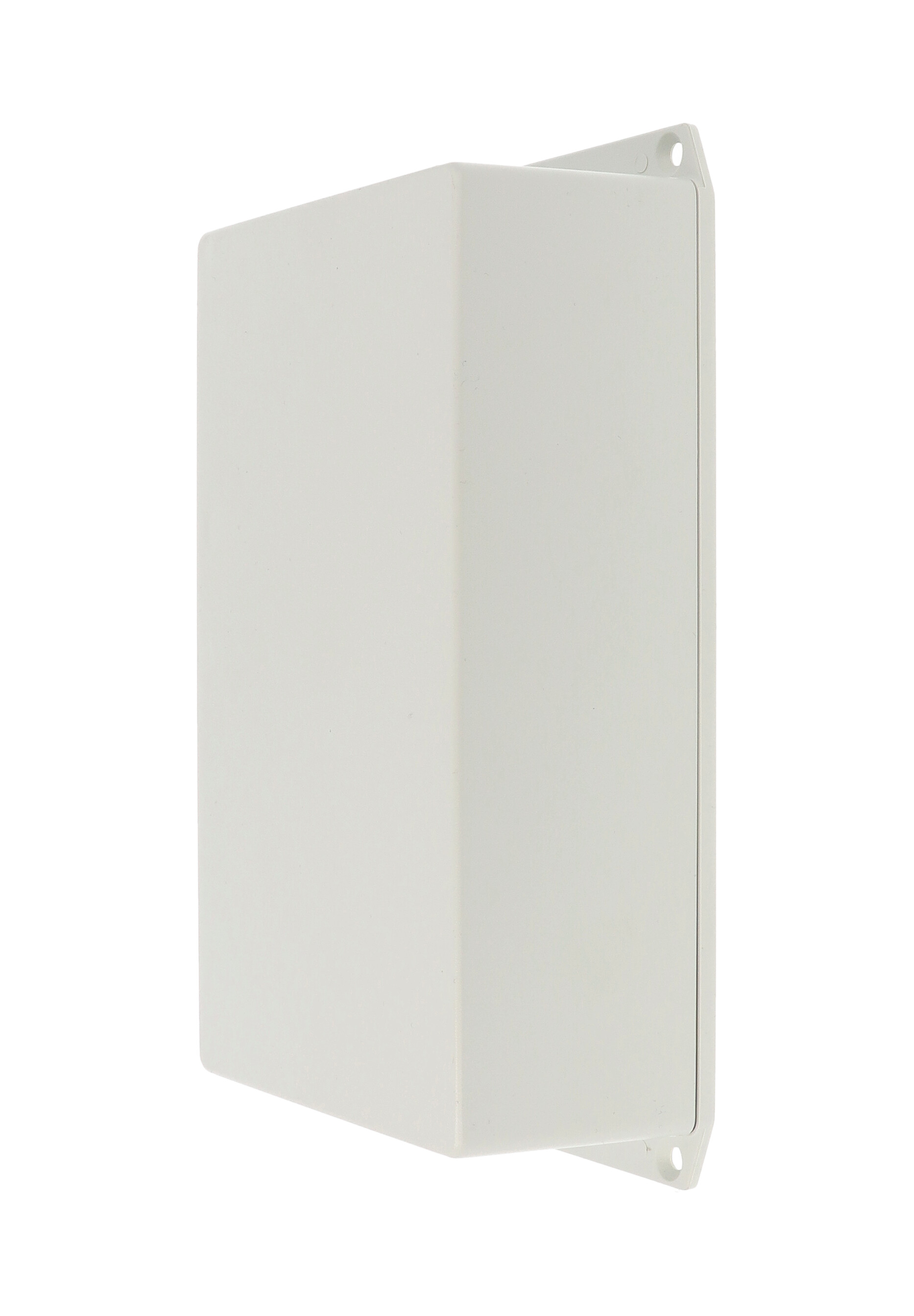

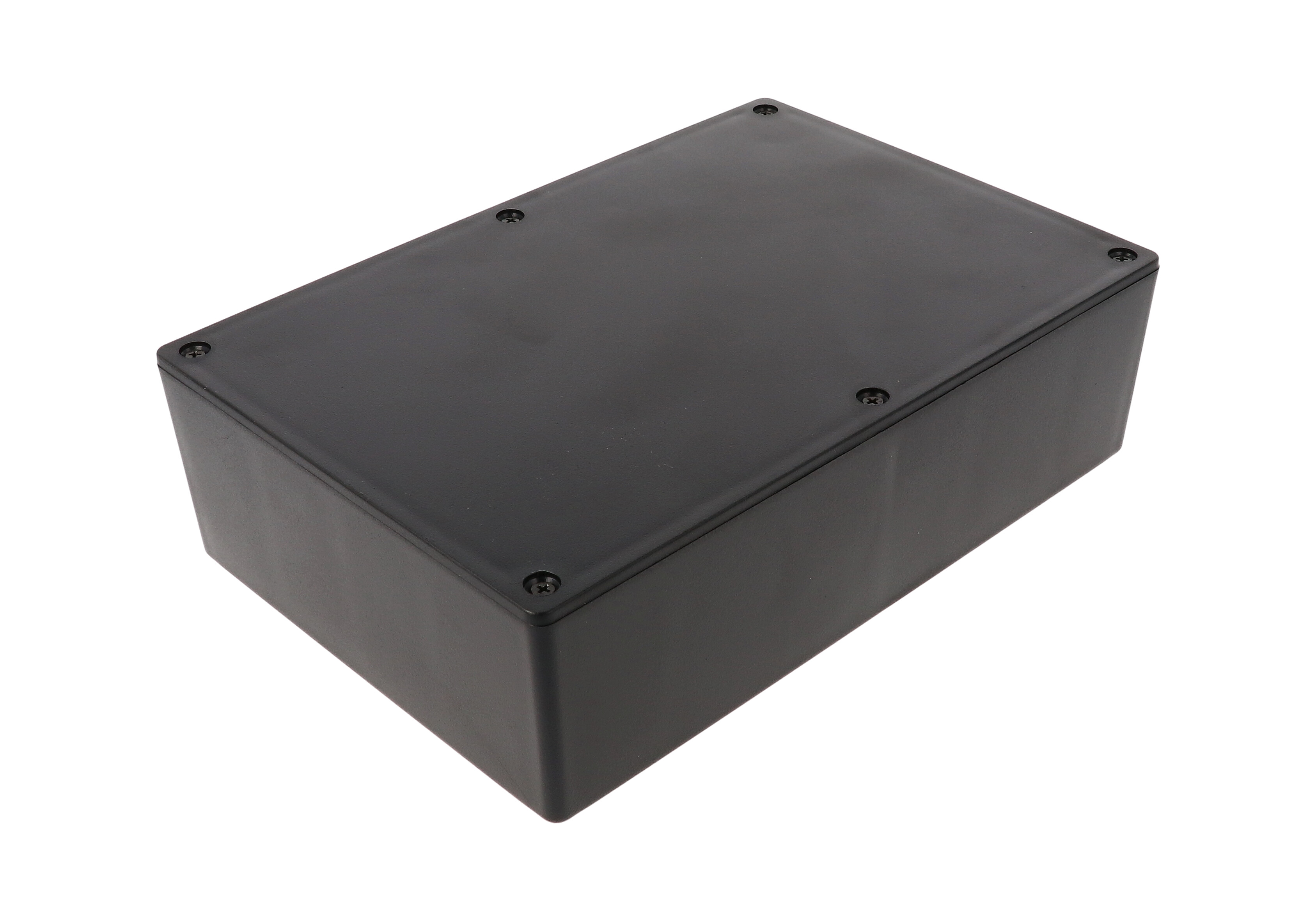

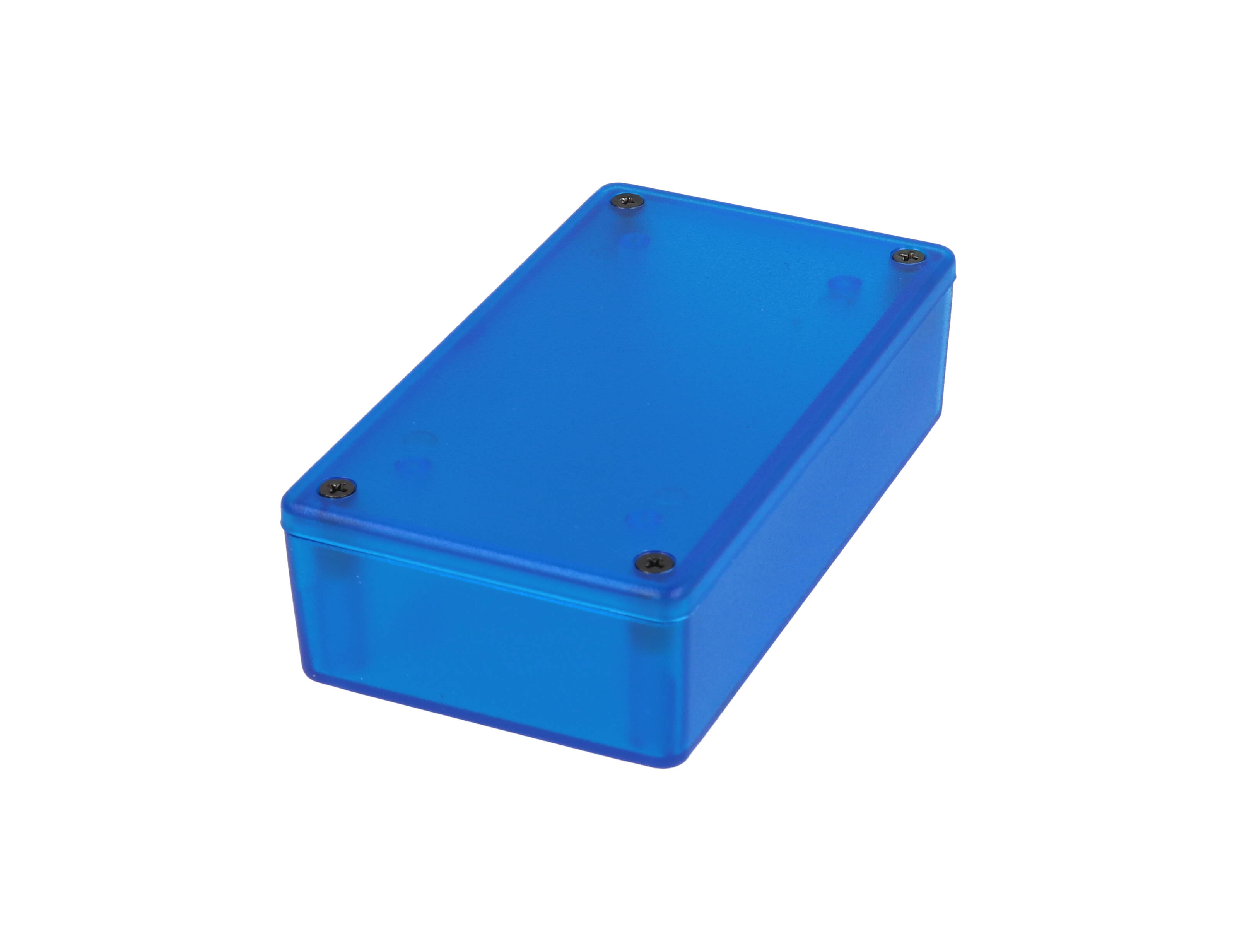

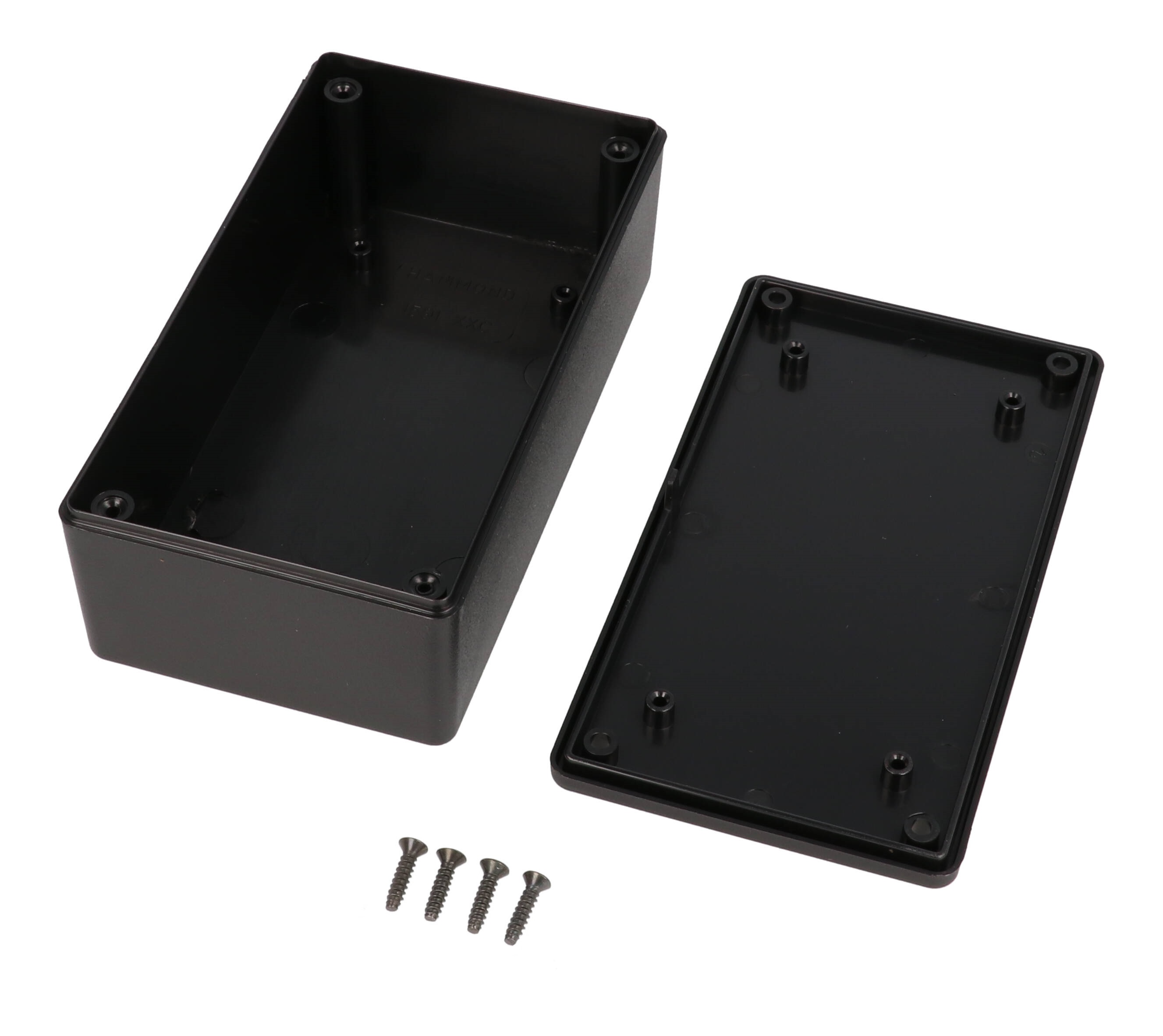

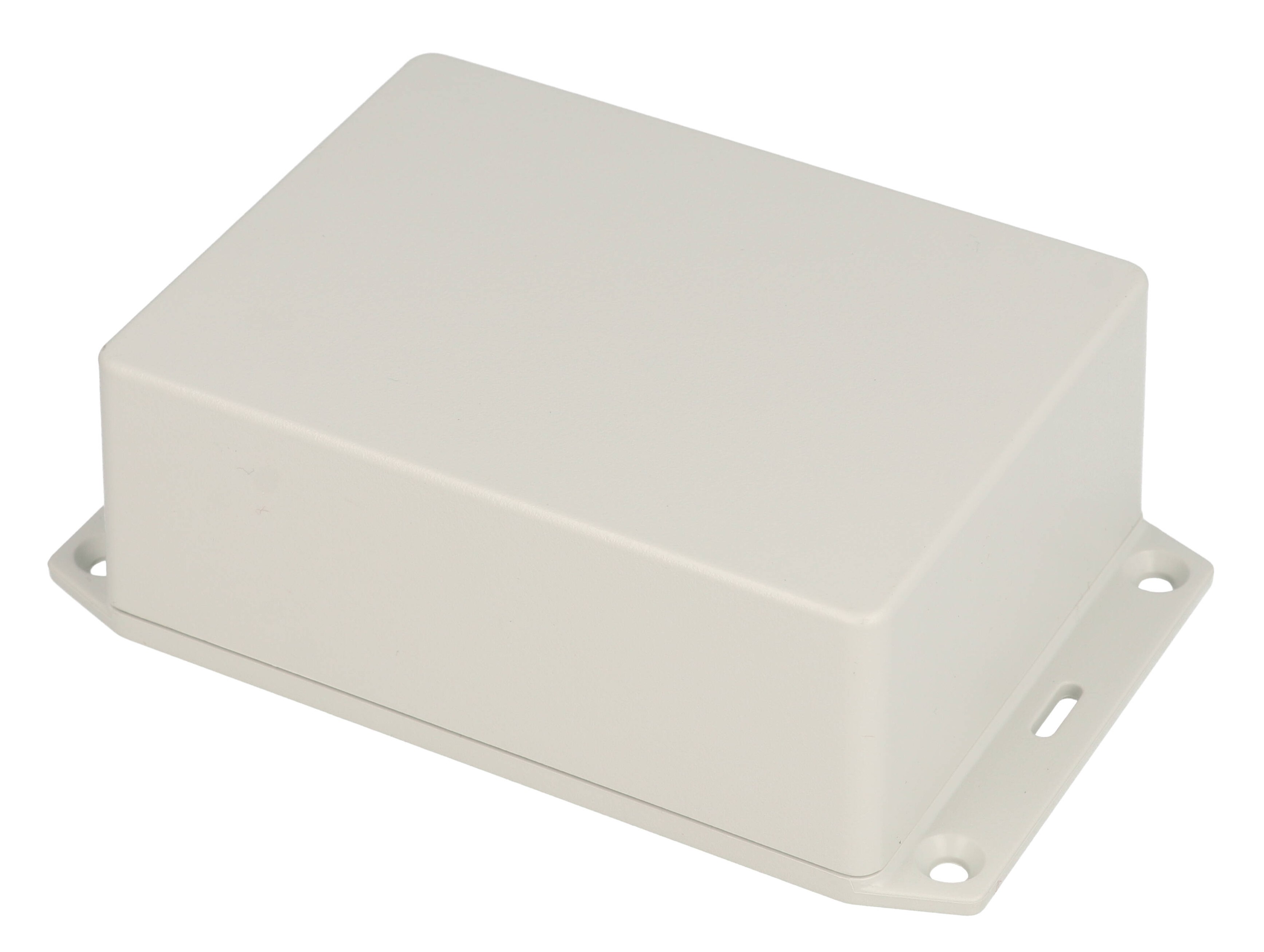

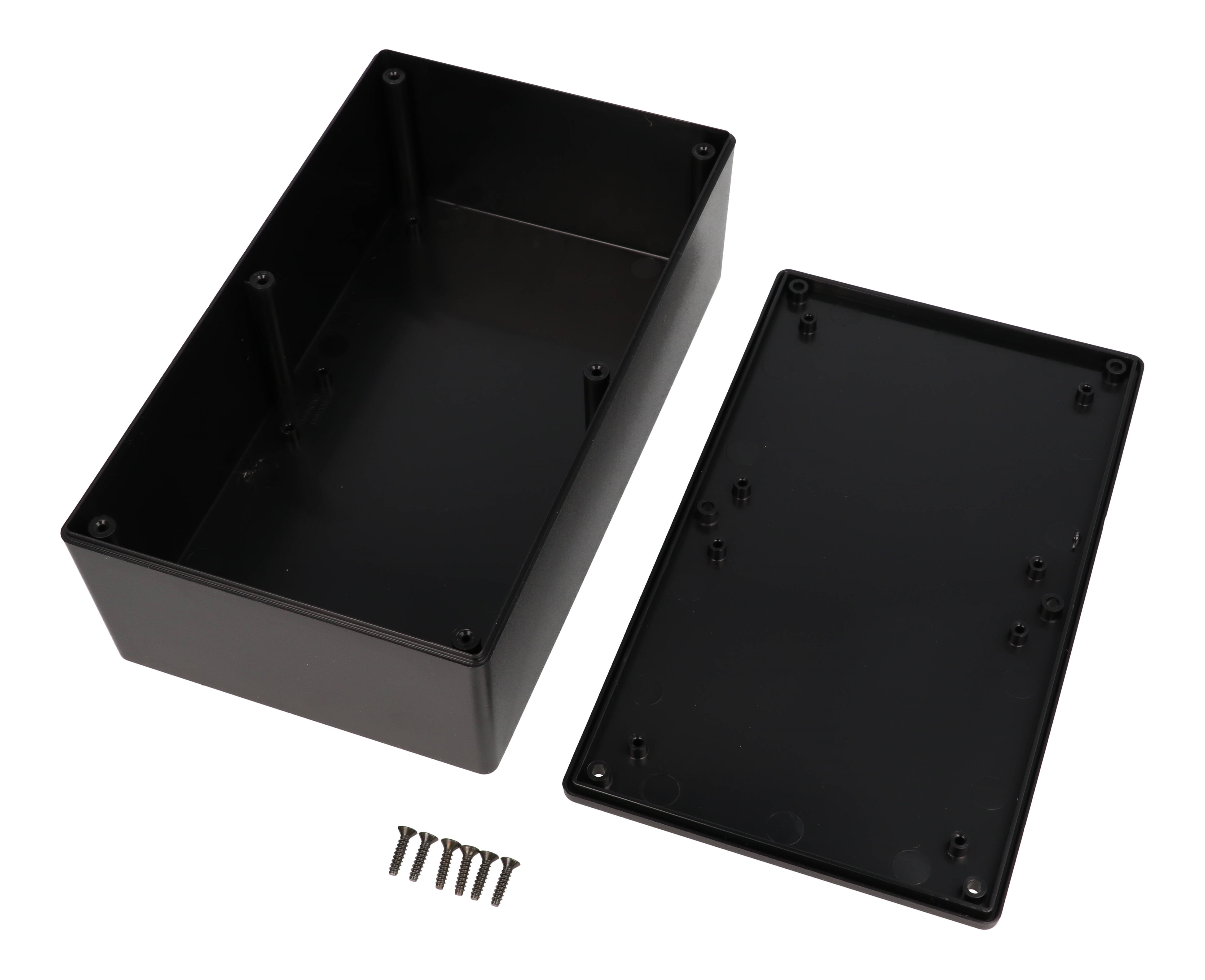

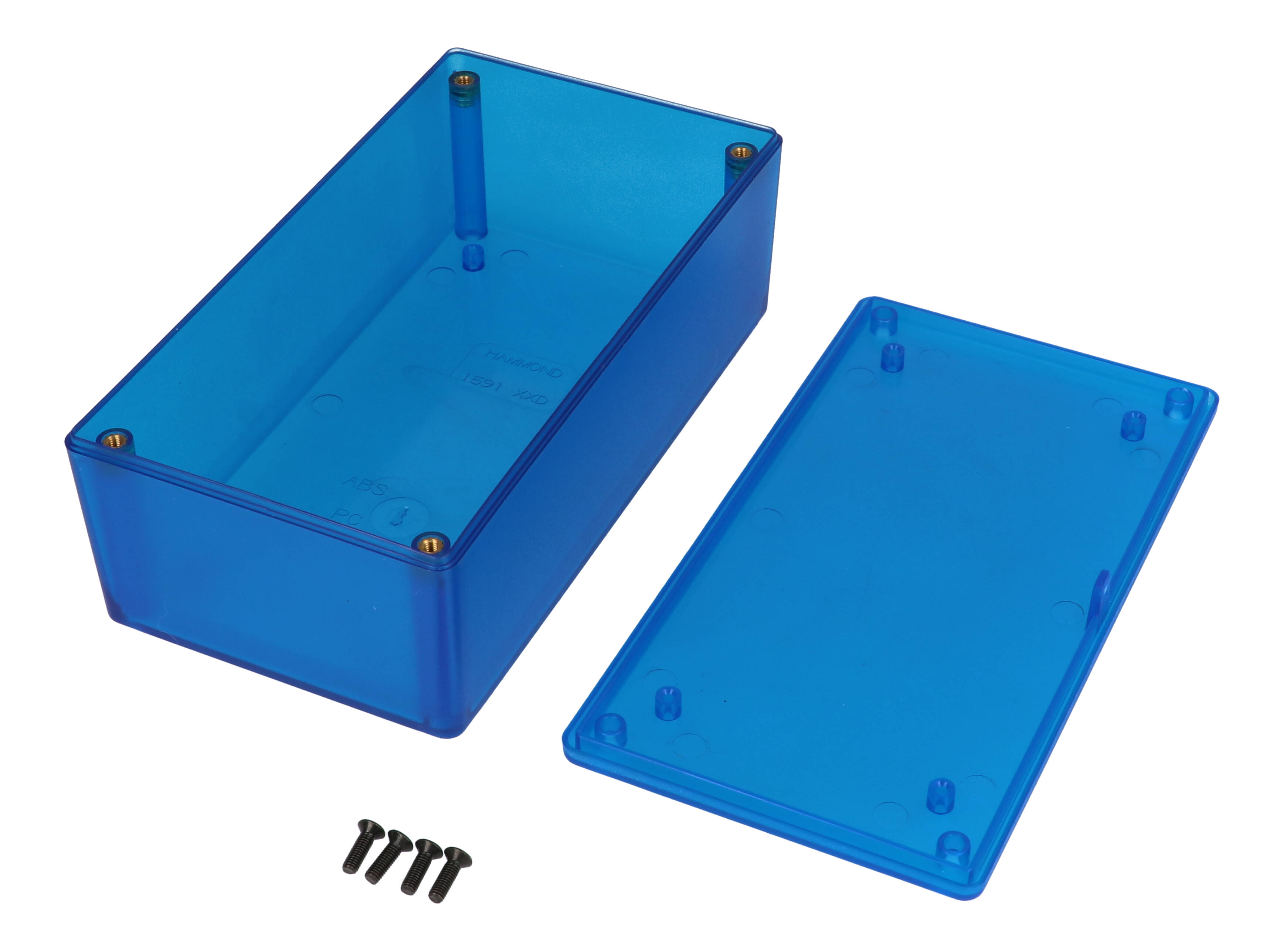

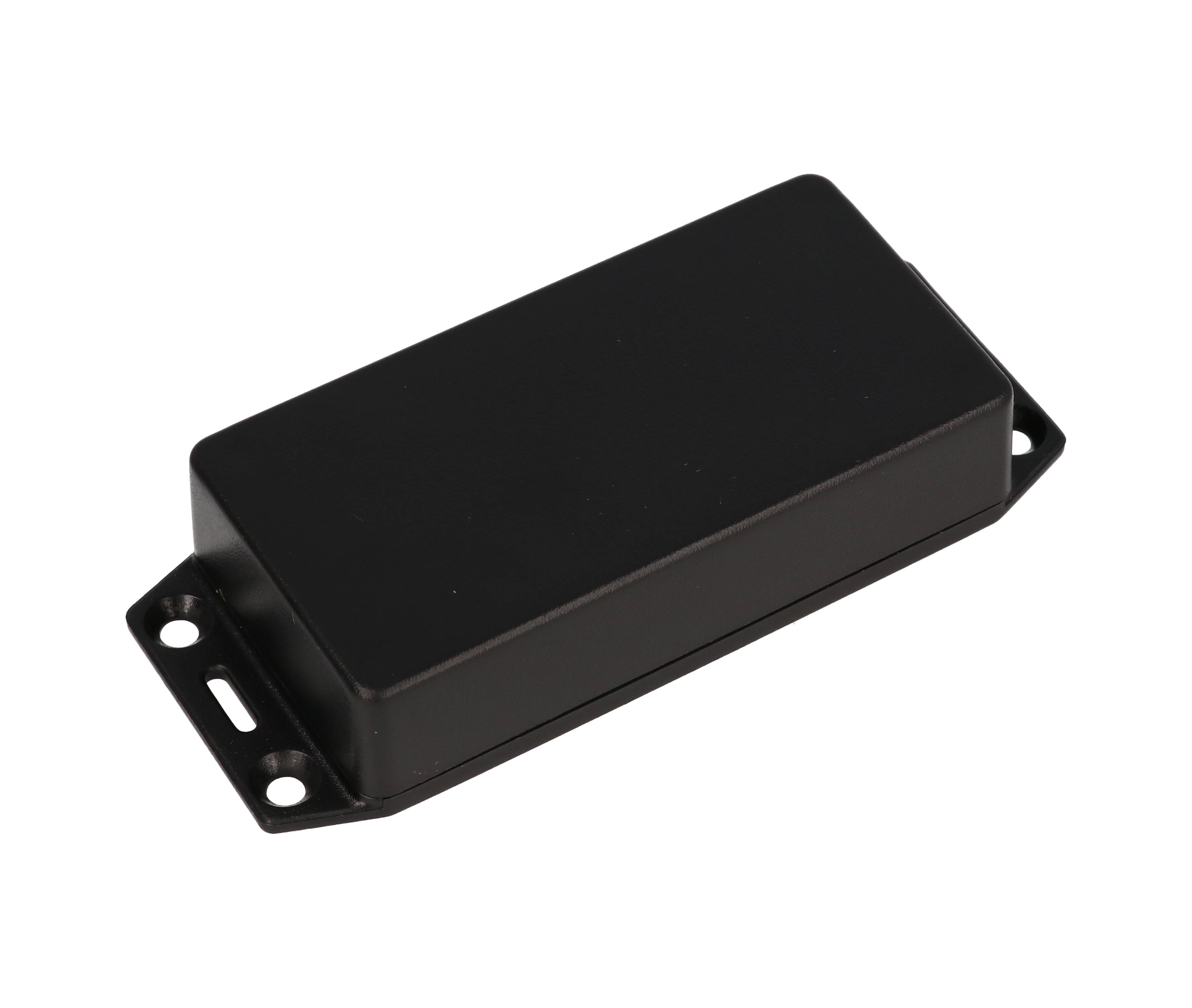

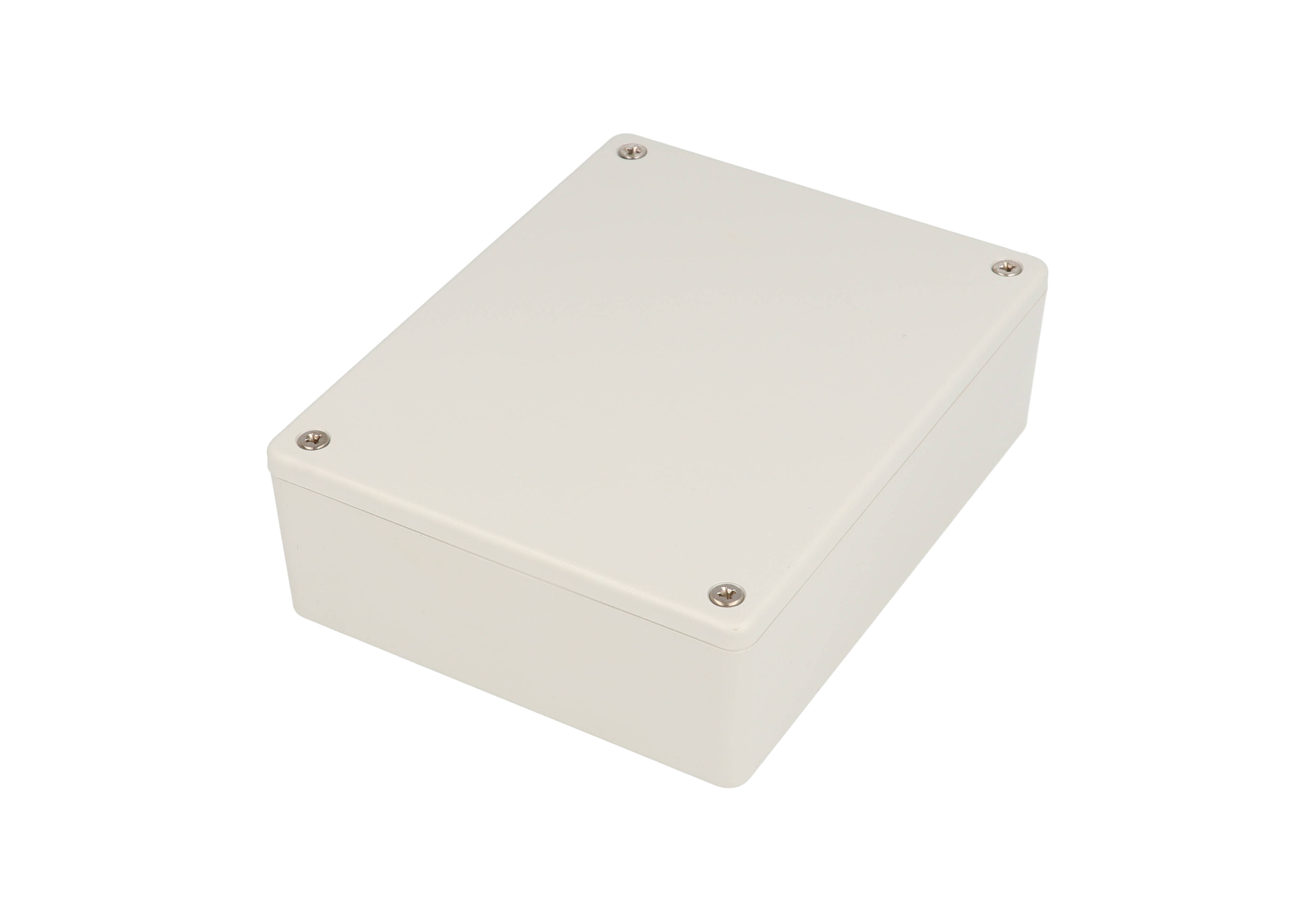

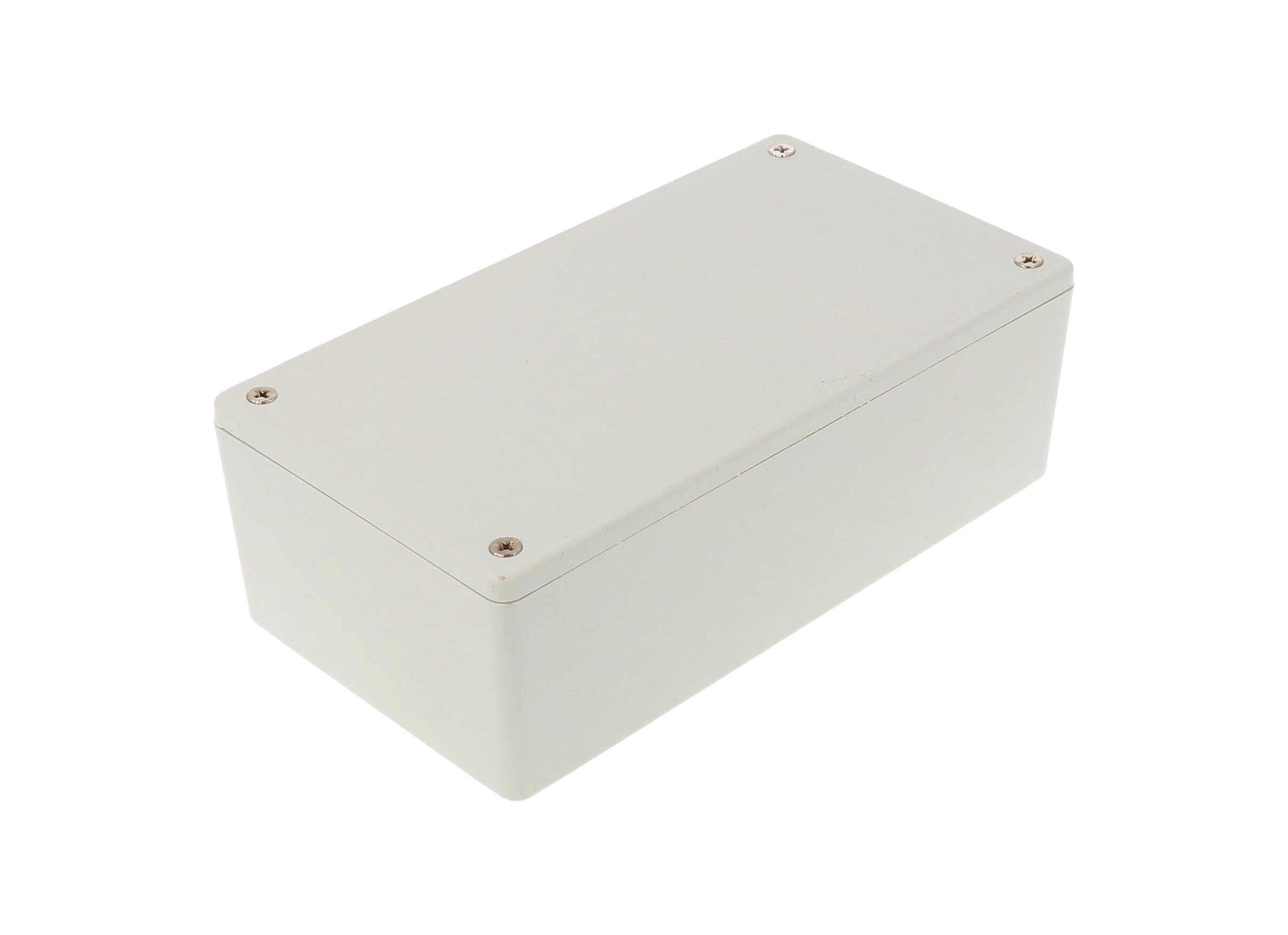

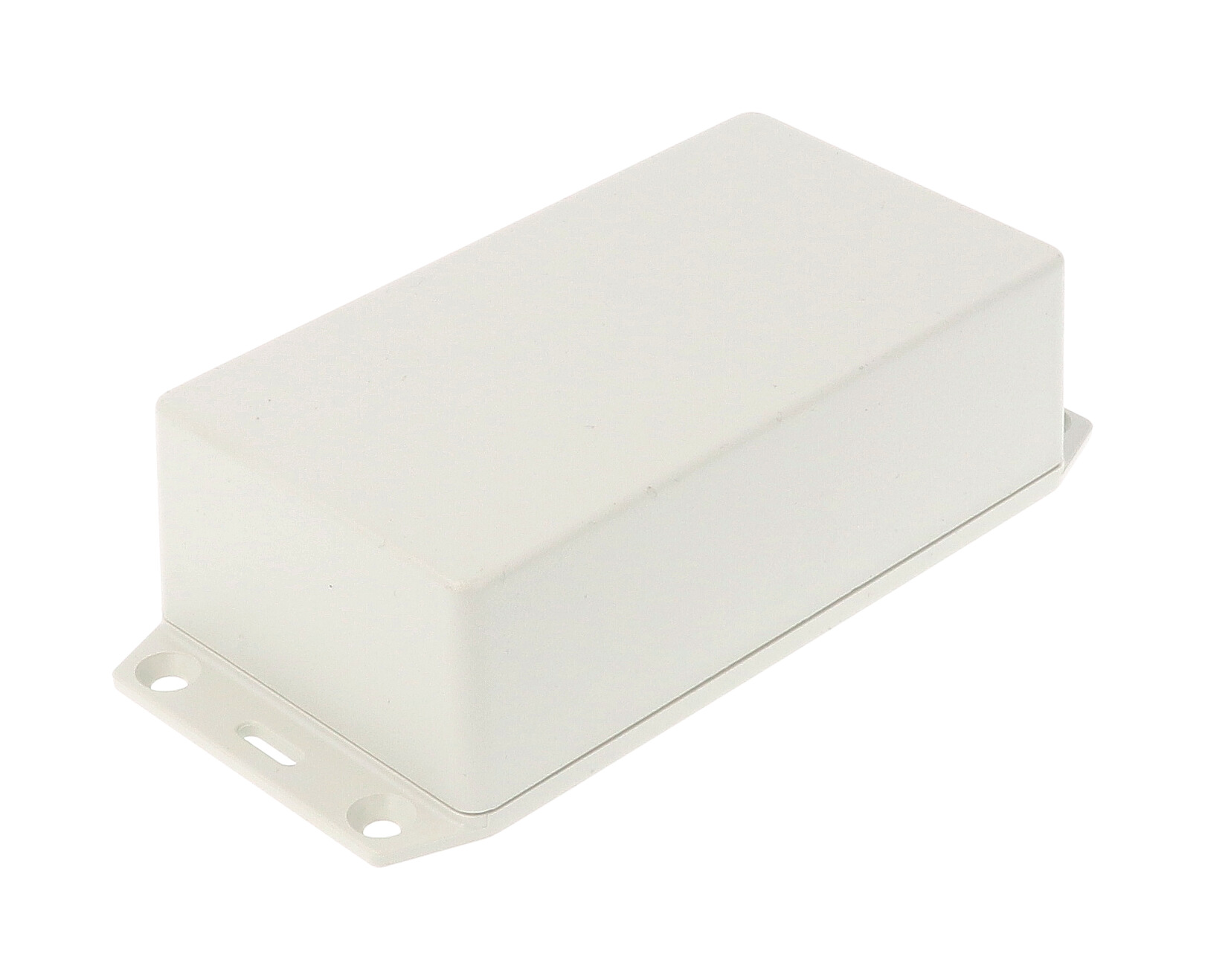

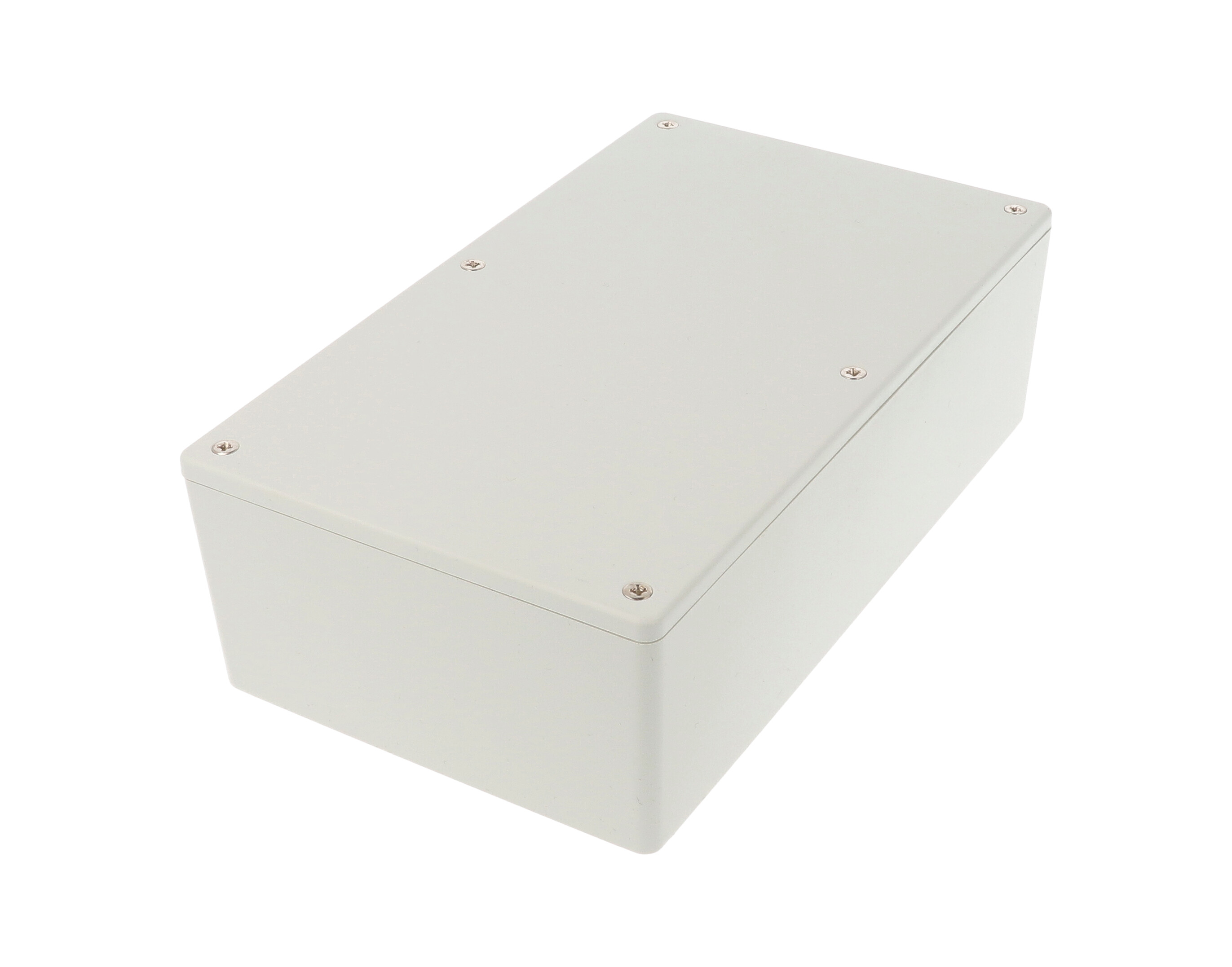

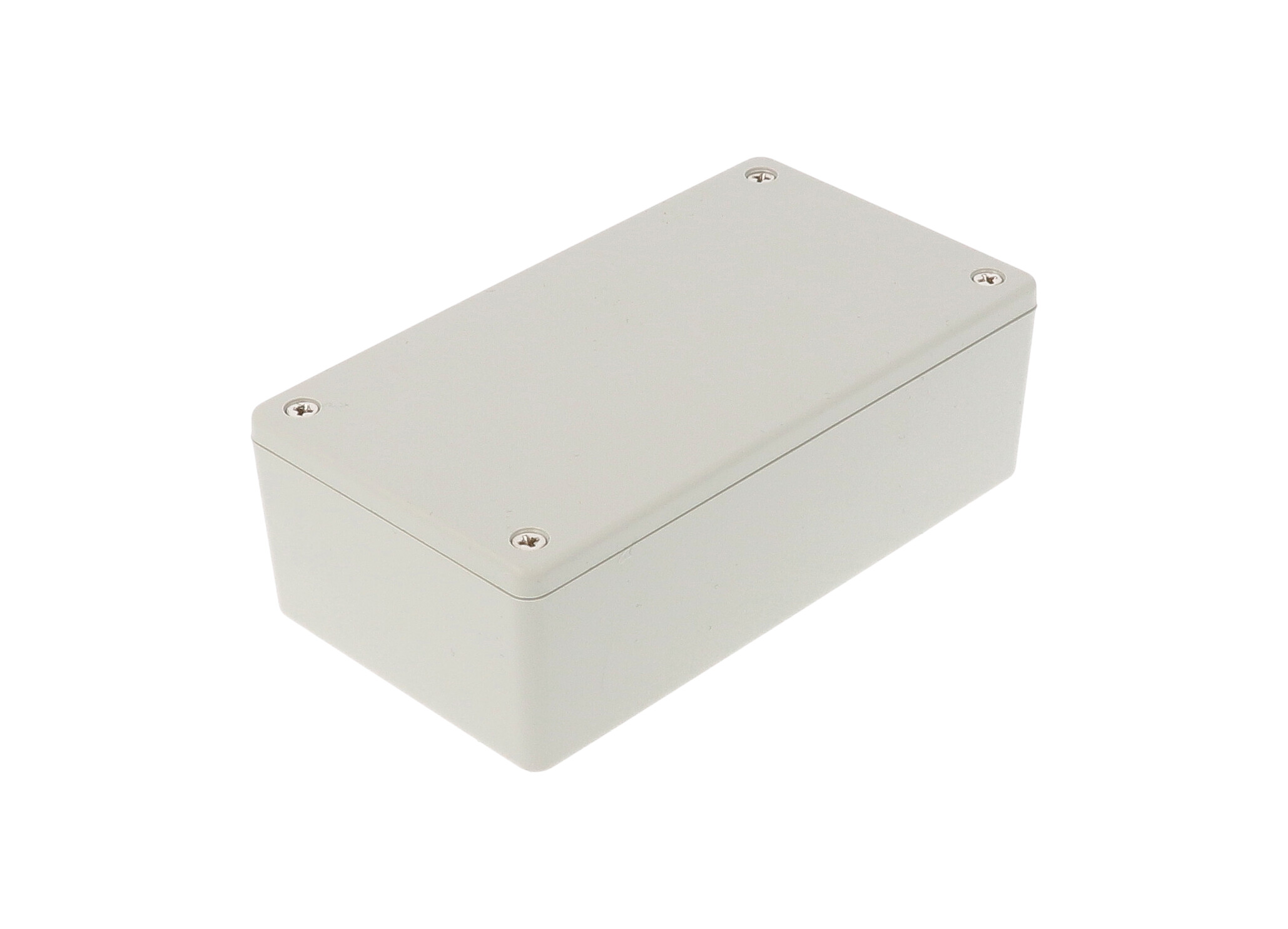

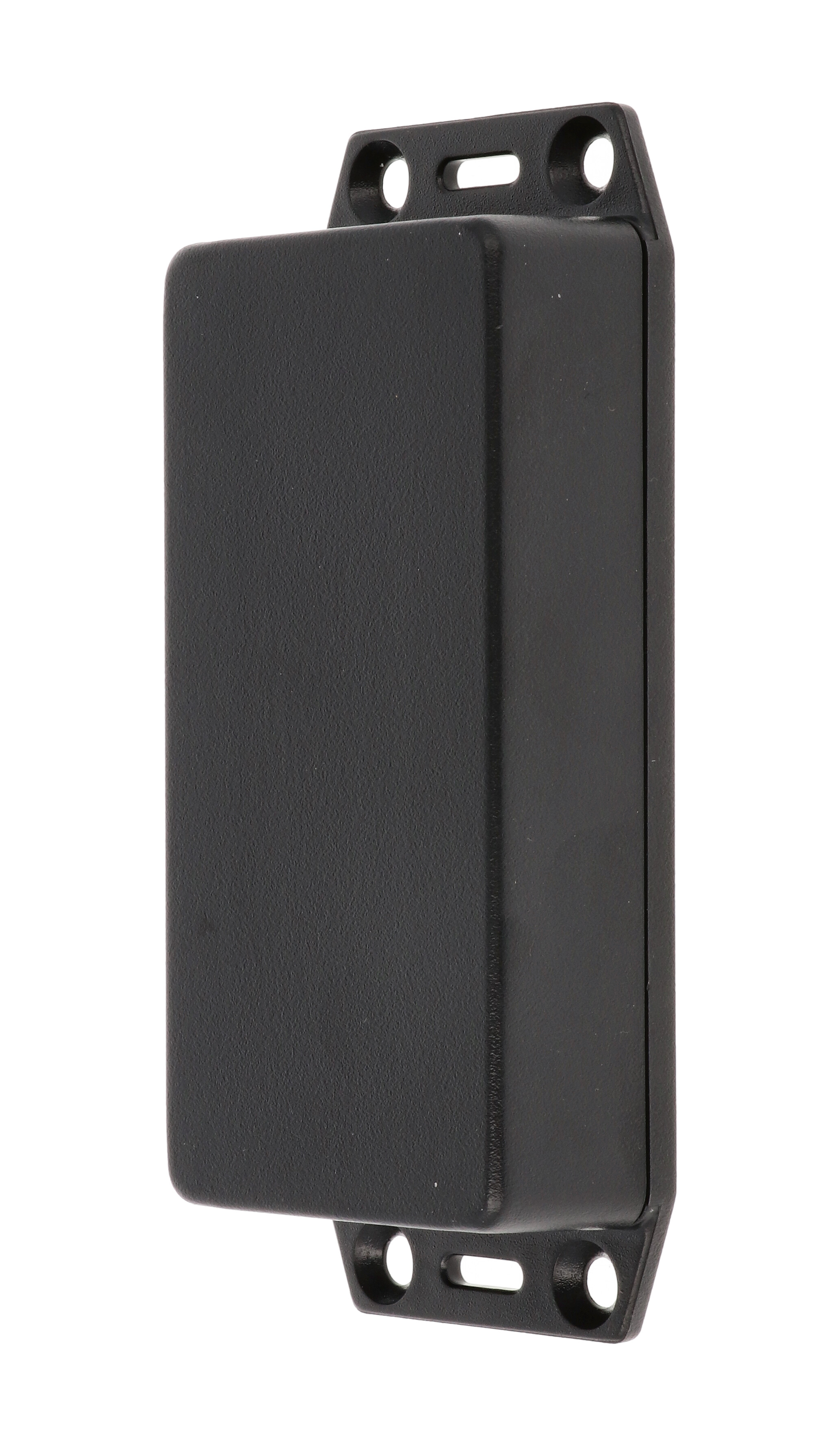

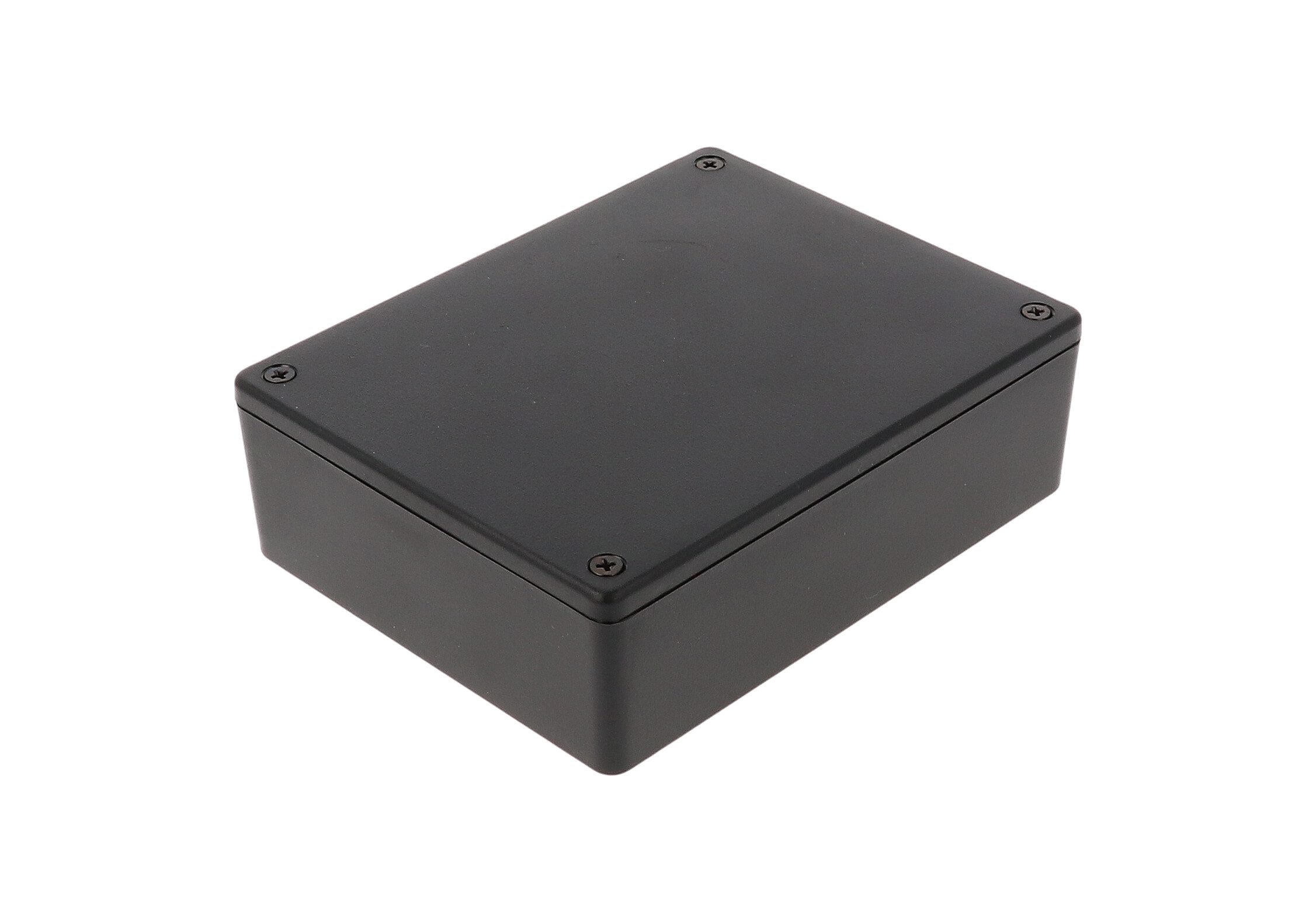

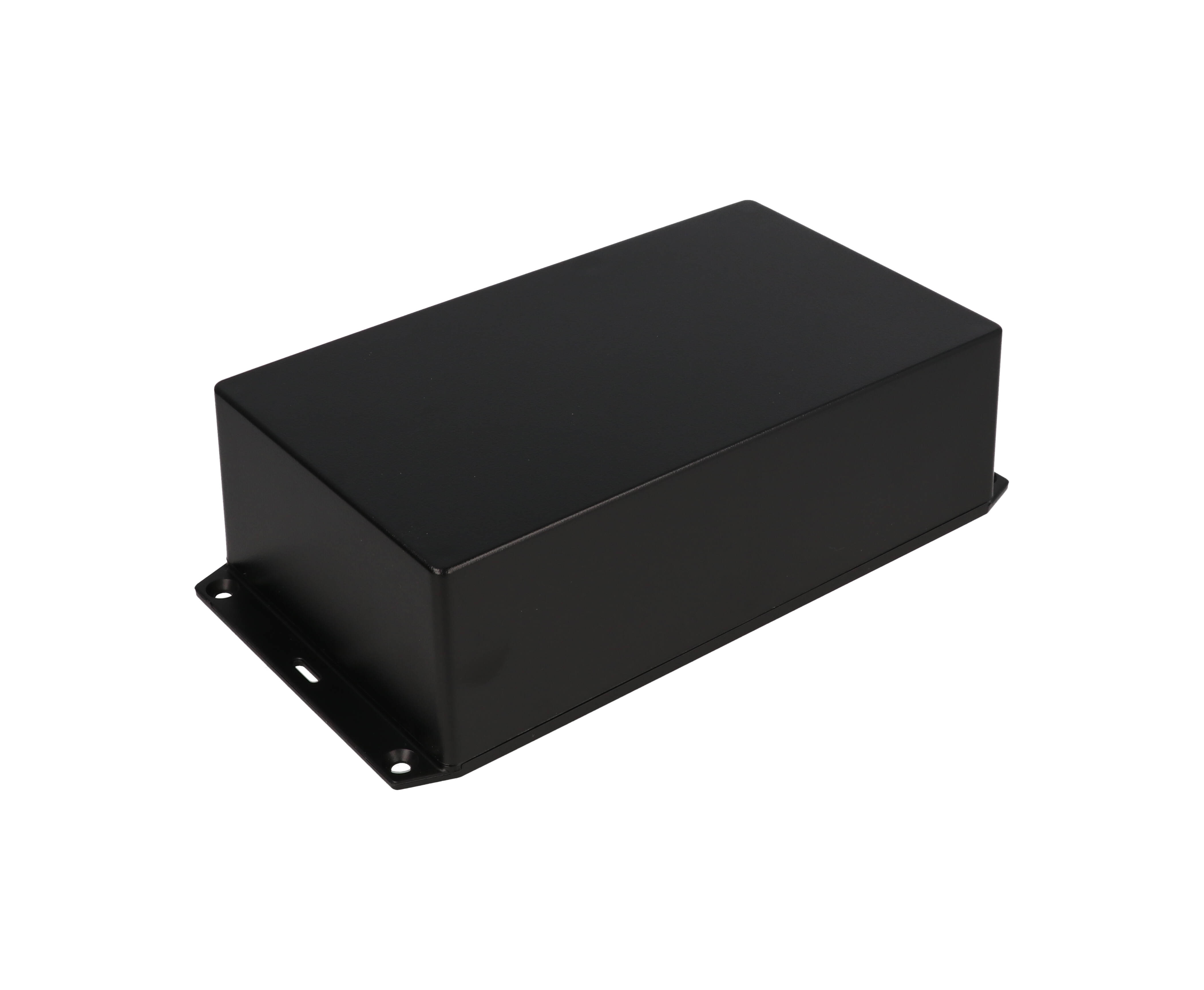

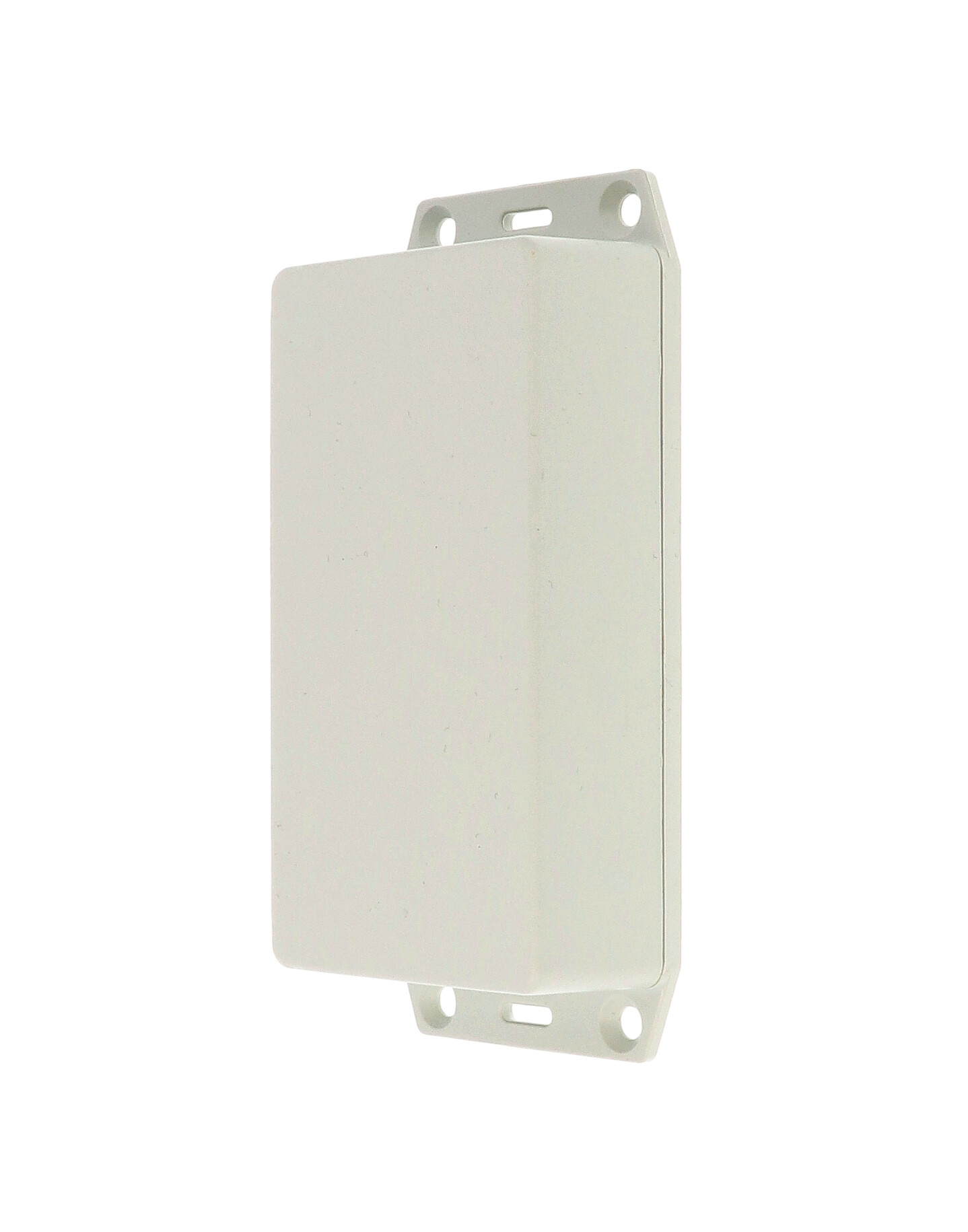

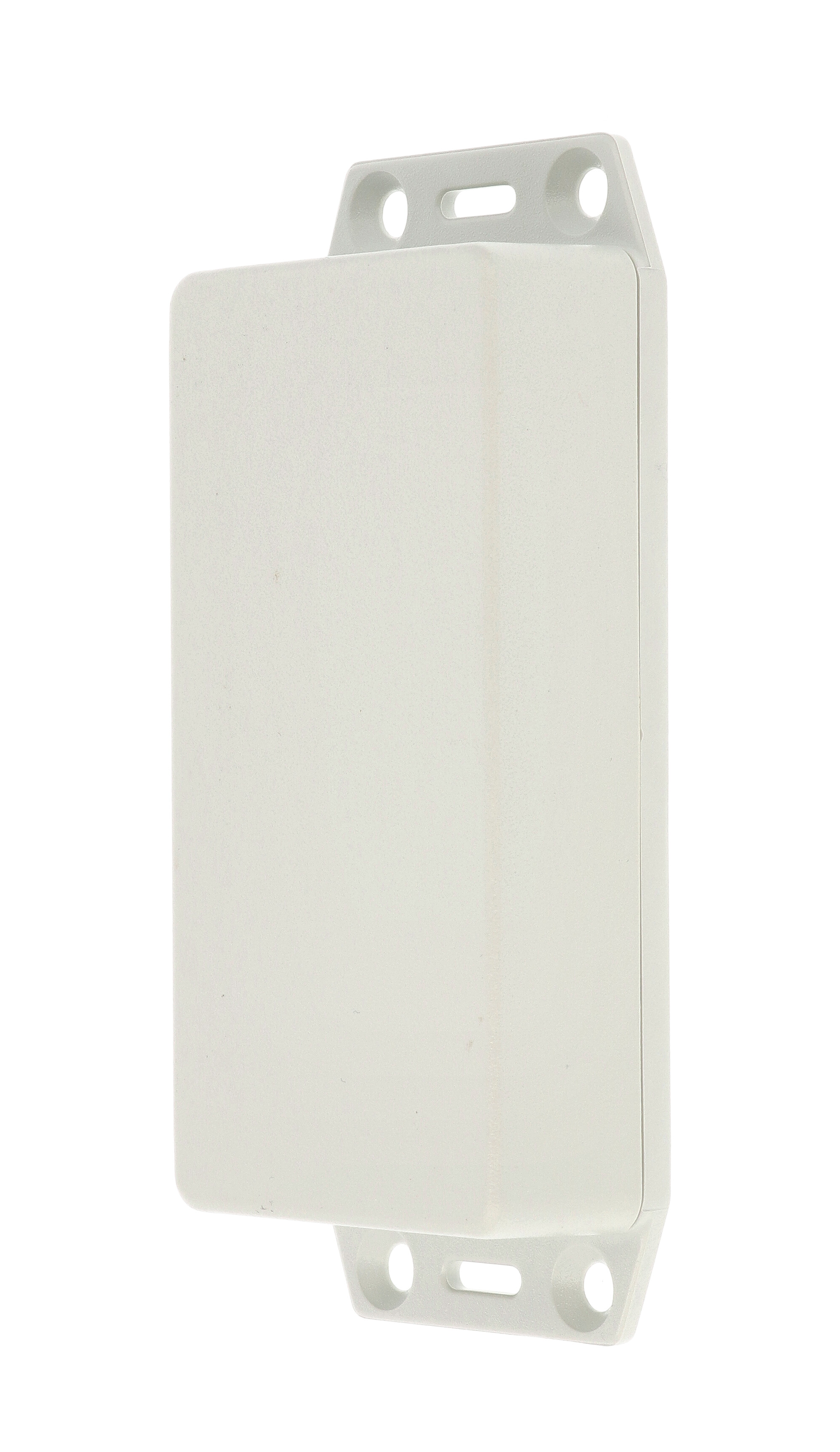

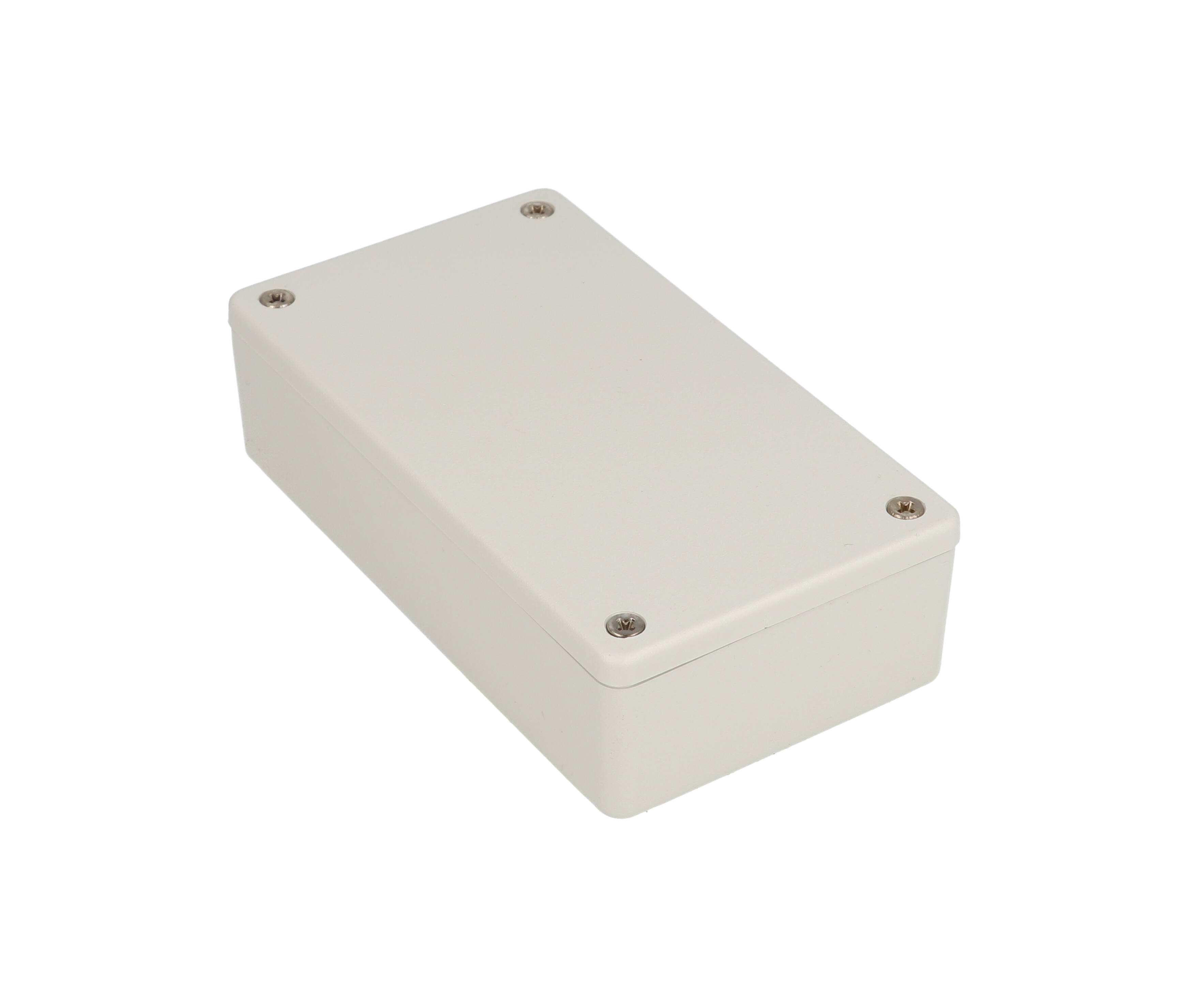

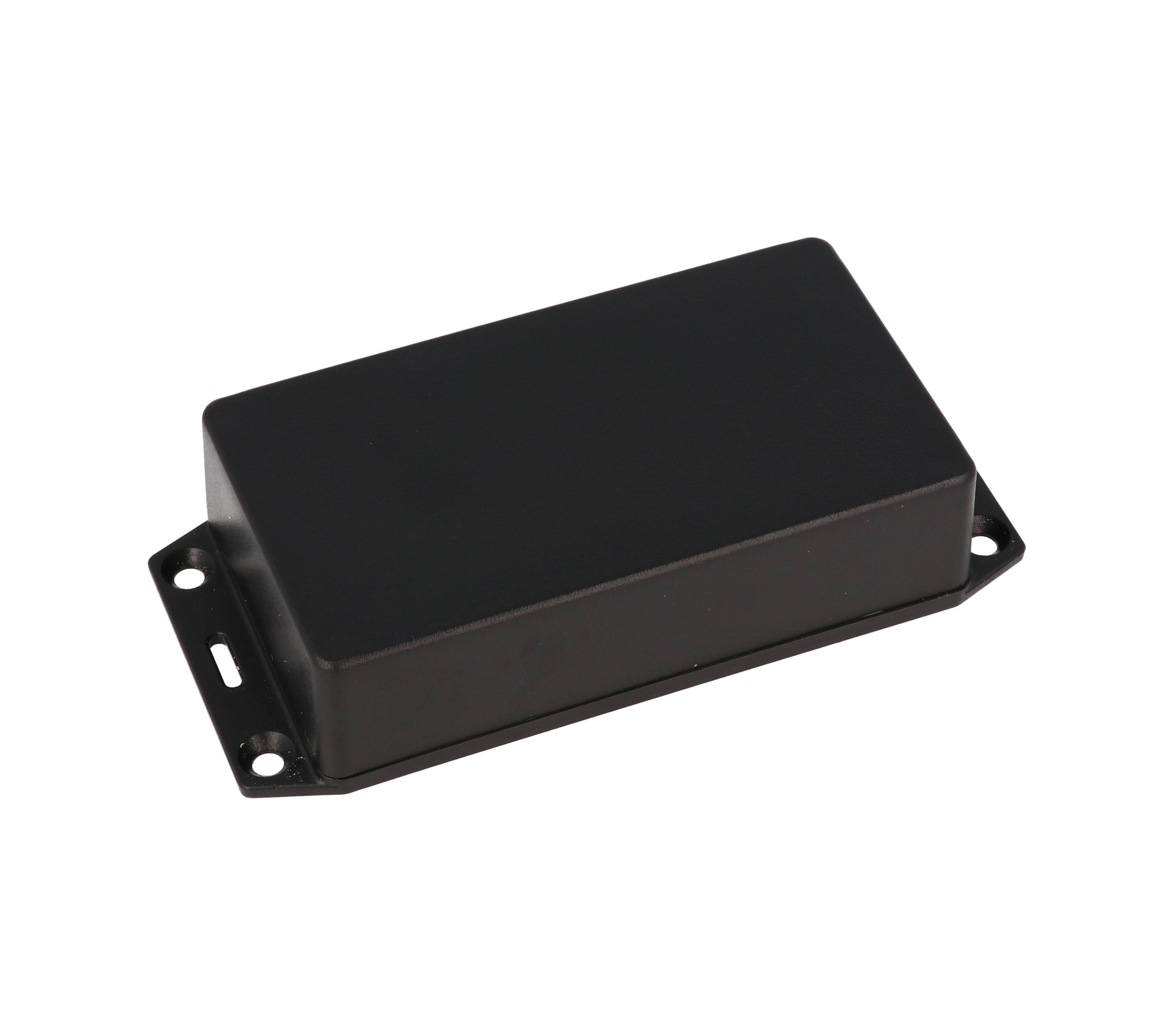

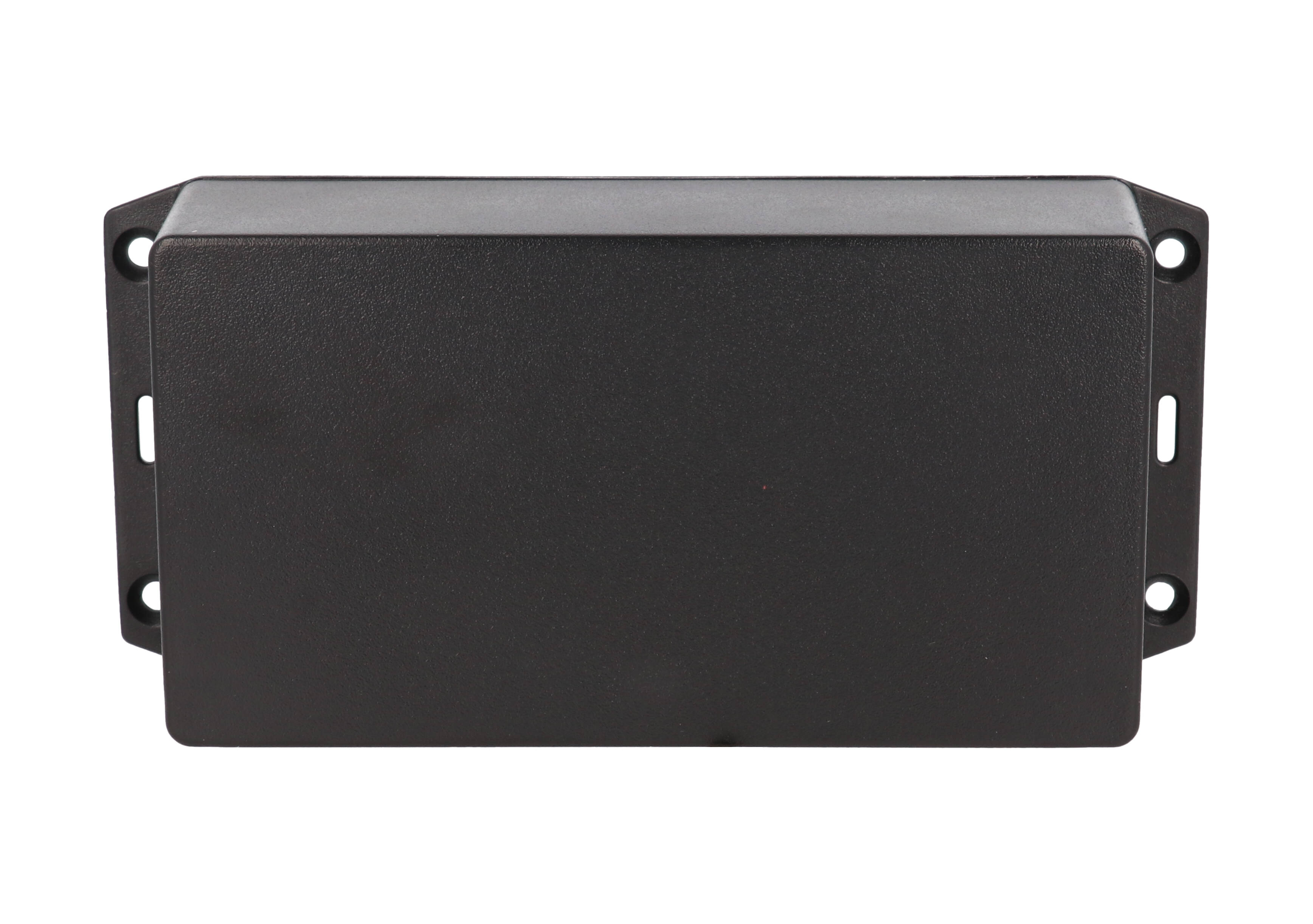

Available in black, gray, or transparent blue. PC board mounting bosses located inside the box and lid and are sized for #4 x 1/4" self-tapping screws (not included with enclosure).

Hardware:

• ■Replacement machine lid screws for standard flame retardant versions are available in packs of 100: 1591MS100 (nickel plated) or 1591MS100BK (black)
• ■Replacement self-tapping lid screws for economy versions are available in packs of 100: 1591TS100 (nickel plated) or 1591TS100BK (black)
• ■PC board screws are available in pack of 50, 1593ATS50 , and pack of 100, 1593ATS100
