Hammond 1591XXEFLGY 193x113x61mm Gray Flanged-Lid FR Abs Enclosure

The 1591XXEFLGY is a gray flanged-lid multi-purpose enclosure from the 1591XX series, molded from easy-to-machine, flame retardant ABS plastic with a UL94 V-0 flammability rating. It is built for electronics designers, OEM engineers and integrators who need a compact housing for a printed circuit board mounted horizontally, with protection against dust and splashing water (designed to meet IP54).

Nominal enclosure size is 7.60 in (193 mm) long, 4.45 in (113 mm) wide and 2.40 in (61 mm) deep; the drawing gives overall dimensions of 193.41 mm [7.61 in] x 113.41 mm [4.47 in] x 61.00 mm [2.40 in], with an inside length of 185.65 mm [7.31 in], inside width of 109.16 mm [4.30 in] and inside height of 57.00 mm [2.24 in] over a 2.00 mm [0.08 in] wall. A PC board up to 185.00 mm x 105.00 mm [7.28 in x 4.13 in] fits in the box or in the lid. The integrated lid flange extends the overall length to 217.13 mm [8.55 in].

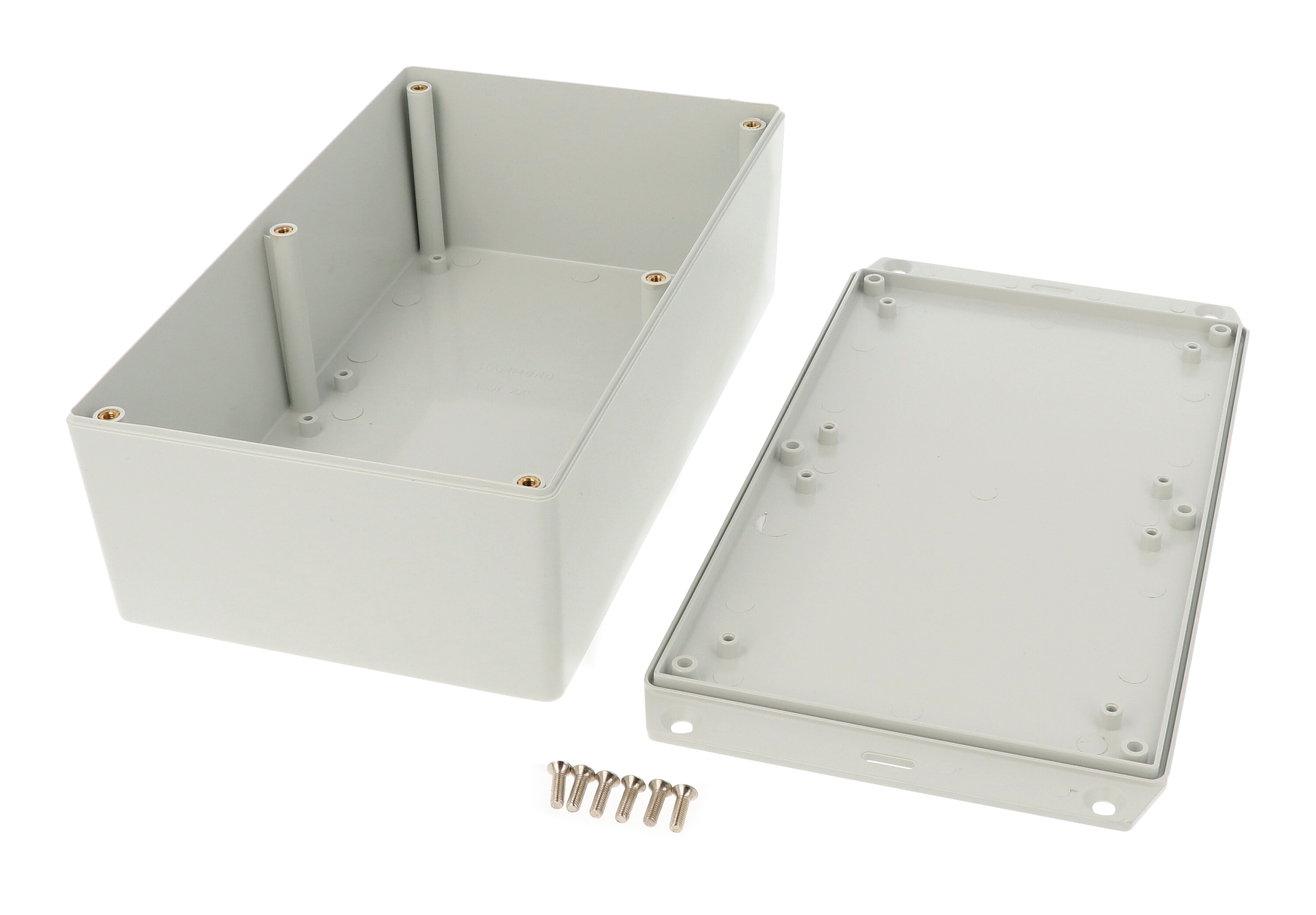

The lid is secured with six M3-0.5 x 10 mm Phillips machine screws (nickel plated) threaded into installed brass inserts, a design suited to applications that need repeated assembly and disassembly; recommended torque is 43-50 ozf.in (30-35 cN.m). Replacement screws are sold in packs of 100 as 1591MS100BK (black) or 1591MS100 (nickel plated). Integral PCB standoffs in the box and lid accept #4 x 1/4" self-tapping screws, not supplied (packs 1593ATS50 and 1593ATS100).

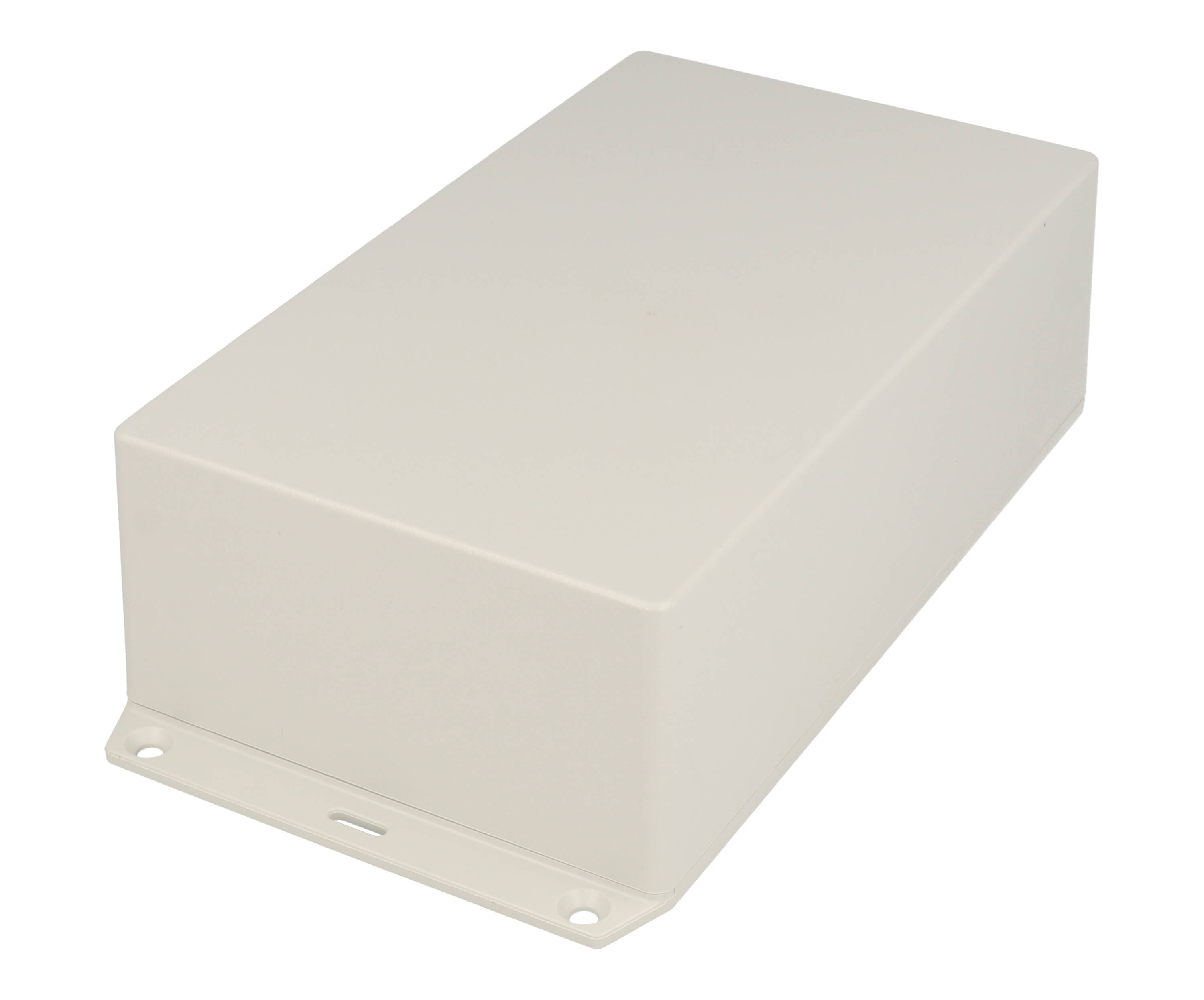

Mounting flanges are integrated into the lid, with four molded countersunk holes (4X 5.00 mm thru, 9.00 mm x 82°) for installing the 1591XXEFLGY on a wall or shelf, and an oval hole in each side of the flange so the unit can be strapped or hung with tie wraps. Internal sides are smooth for easy connector installation. The enclosure is REACH and RoHS compliant, ships shrink wrapped at 0.48 lbs (0.22 kg), and can be factory modified (milling, drilling, printing).
