1591A Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591A, 1591AS; 1591XXA, 1591XXAS
$1.32In stock
Buy now
Plastic Flanges · 1591-FLANGE Series
Brand: Hammond Manufacturing · 20 part numbers
For 1591 and 1591XX Series

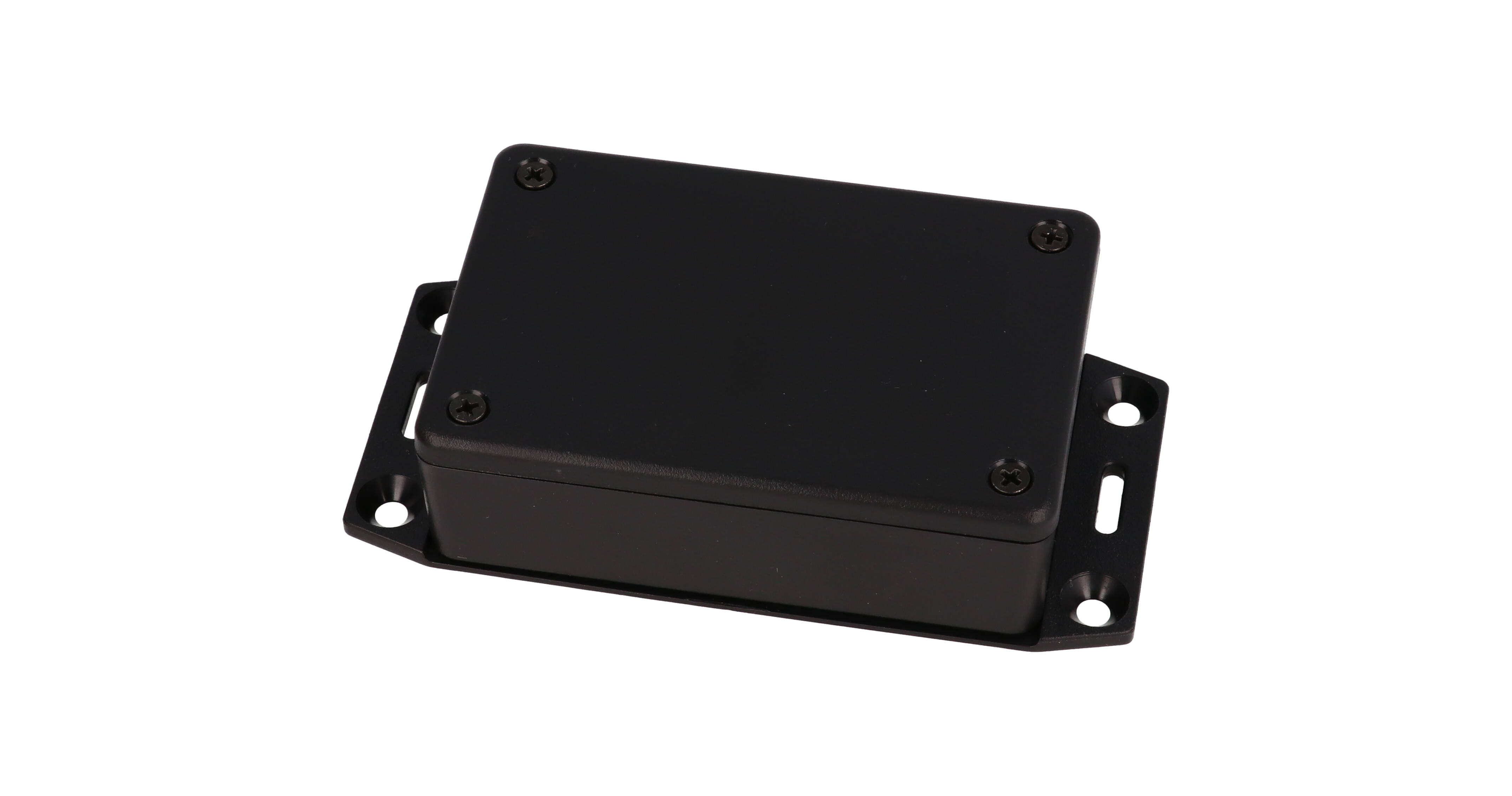

- ■Designed to allow for easy mounting of 1591 series or 1591XX series enclosures to a wall or shelf.
- ■Includes one flange, molded from fire retardant ABS plastic (material carries a UL flammability rating of 94V-0). Satin texture finish.
- ■Easily glued to enclosure using standard ABS cement (not included).
- ■Flange ends are raised on one side to allow easy positioning of enclosure during gluing process.
- ■Four molded counter sunk holes allow for easy installation to wall or shelf.
- ■Oval hole in each side of flange allows the unit to be strapped or hung via tie wraps.
from $1.32
20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1591-FLANGE Series part number
Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
20 of 20 part numbers · 20 priced online
1591A Flange Grey
- Color Light Gray
- Flame Rating UL94-HB
- Use With Enclosure 1591A, 1591AS; 1591XXA, 1591XXAS
$1.32Backorder
Buy now
1591B Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591B, 1591BS; 1591XXB, 1591XXBS
$2.07In stock
Buy now
1591B Flange Grey
- Color Light Gray
- Flame Rating UL94-HB
- Use With Enclosure 1591B, 1591BS; 1591XXB, 1591XXBS
$2.07Backorder
Buy now
1591C Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591C, 1591CS; 1591XXC, 1591XXCS
$2.07In stock
Buy now
1591C Flange Grey
- Color Light Gray
- Flame Rating UL94-HB
- Use With Enclosure 1591C, 1591CS; 1591XXC, 1591XXCS
$2.07In stock
Buy now
1591D Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591D, 1591DS; 1591XXD, 1591XXDS
$2.50In stock
Buy now
1591D Flange Grey
- Color Light Gray
- Flame Rating UL94-HB
- Use With Enclosure 1591D, 1591DS; 1591XXD, 1591XXDS
$2.50Backorder
Buy now
1591E Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591E, 1591ES; 1591XXE, 1591XXES
$2.89In stock
Buy now
1591E Flange Grey
- Color Light Gray
- Flame Rating UL94-HB
- Use With Enclosure 1591E, 1591ES; 1591XXE, 1591XXES
$2.89In stock
Buy now
1591G Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591G, 1591GS
$2.07In stock
Buy now
1591G Flange Grey
- Color Light Gray
- Flame Rating UL94-HB
- Use With Enclosure 1591G, 1591GS
$2.07Backorder
Buy now
1591H Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591H, 1591HS
$2.07Backorder
Buy now
1591H Flange Grey
- Color Light Gray
- Flame Rating UL94-HB
- Use With Enclosure 1591H, 1591HS
$2.07In stock
Buy now
1591L/M Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591L, 1591LS; 1591M, 1591MS; 1591XXL, 1591XXLS
$2.07In stock
Buy now
1591L/M Flange Grey
- Color Light Gray
- Flame Rating UL94-HB
- Use With Enclosure 1591L, 1591LS; 1591M, 1591MS; 1591XXL, 1591XXLS
$2.07In stock
Buy now
1591T Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591T, 1591TS
$2.07In stock
Buy now
1591T Flange Grey
- Use With Enclosure 1591T, 1591TS
$1.86In stock
Buy now
1591U/V Flange Black
- Color Black
- Flame Rating UL94 V-0
- Use With Enclosure 1591U, 1591US; 1591V, 1591VS
$2.50Backorder
Buy now
1591U/V Flange Grey
- Color Light Gray
- Flame Rating UL94-HB
- Use With Enclosure 1591U, 1591US; 1591V, 1591VS
$2.50In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Black Flange (Part No.) | Gray Flange (Part No.) | Use With Enclosure Sizes | Length | Width | Price | Order |
|---|---|---|---|---|---|---|
| 1591FABK | 1591FAGY | 1591A, 1591AS; 1591XXA, 1591XXAS | 4.93 | 1.85 | $1.32In stock1591FABK | Buy now |
| 1591FBBK | 1591FBGY | 1591B, 1591BS; 1591XXB, 1591XXBS | 5.41 | 2.31 | $2.07In stock1591FBBK | Buy now |
| 1591FCBK | 1591FCGY | 1591C, 1591CS; 1591XXC, 1591XXCS | 5.71 | 2.43 | $2.07In stock1591FCBK | Buy now |
| 1591FDBK | 1591FDGY | 1591D, 1591DS; 1591XXD, 1591XXDS | 6.97 | 3.01 | $2.50In stock1591FDBK | Buy now |
| 1591FEBK | 1591FEGY | 1591E, 1591ES; 1591XXE, 1591XXES | 8.66 | 4.20 | $2.89In stock1591FEBK | Buy now |
| 1591FGBK | 1591FGGY | 1591G, 1591GS | 5.74 | 3.54 | $2.07In stock1591FGBK | Buy now |
| 1591FHBK | 1591FHGY | 1591H, 1591HS | 7.51 | 2.64 | $2.07Backorder1591FHBK | Buy now |
| 1591FLBK | 1591FLGY | 1591L, 1591LS; 1591M, 1591MS; 1591XXL, 1591XXLS | 4.34 | 2.08 | $2.07In stock1591FLBK | Buy now |
| 1591FTBK | 1591FTGY | 1591T, 1591TS | 5.78 | 3.02 | $2.07In stock1591FTBK | Buy now |
| 1591FUBK | 1591FUGY | 1591U, 1591US; 1591V, 1591VS | 5.72 | 4.59 | $2.50Backorder1591FUBK | Buy now |
Key Features:
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Designed to allow for easy mounting of 1591 series or 1591XX series enclosures to a wall or shelf.
- ■Includes one flange, molded from fire retardant ABS plastic (material carries a UL flammability rating of 94V-0). Satin texture finish.
- ■Easily glued to enclosure using standard ABS cement (not included).
- ■Flange ends are raised on one side to allow easy positioning of enclosure during gluing process.
- ■Four molded counter sunk holes allow for easy installation to wall or shelf.
- ■Oval hole in each side of flange allows the unit to be strapped or hung via tie wraps.
Documents
Additional information
Part Details
| Black Flange | Gray Flange | Use With Enclosure Sizes | Length | Width |
|---|---|---|---|---|
| 1591FABK | 1591FAGY | 1591A, 1591AS; 1591XXA, 1591XXAS | 4.93 | 1.85 |
| 1591FBBK | 1591FBGY | 1591B, 1591BS; 1591XXB, 1591XXBS | 5.41 | 2.31 |
| 1591FCBK | 1591FCGY | 1591C, 1591CS; 1591XXC, 1591XXCS | 5.71 | 2.43 |
| 1591FDBK | 1591FDGY | 1591D, 1591DS; 1591XXD, 1591XXDS | 6.97 | 3.01 |
| 1591FEBK | 1591FEGY | 1591E, 1591ES; 1591XXE, 1591XXES | 8.66 | 4.20 |
| 1591FGBK | 1591FGGY | 1591G, 1591GS | 5.74 | 3.54 |
| 1591FHBK | 1591FHGY | 1591H, 1591HS | 7.51 | 2.64 |
| 1591FLBK | 1591FLGY | 1591L, 1591LS; 1591M, 1591MS; 1591XXL, 1591XXLS | 4.34 | 2.08 |
| 1591FTBK | 1591FTGY | 1591T, 1591TS | 5.78 | 3.02 |
| 1591FUBK | 1591FUGY | 1591U, 1591US; 1591V, 1591VS | 5.72 | 4.59 |
