Hammond 1591FABK Black Mounting Flange for 1591A Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 1591A, 1591AS, 1591XXA and 1591XXAS enclosures
- Fire retardant black ABS, UL94 V-0, satin texture finish
- 4.93 in (125 mm) long x 1.85 in (47 mm) wide
- Four molded countersunk holes for wall or shelf mounting
- Oval side holes for strapping or hanging with tie wraps
- Raised ends aid positioning; glue with ABS cement (not included)
- IP54 rating listed; RoHS and REACH compliant

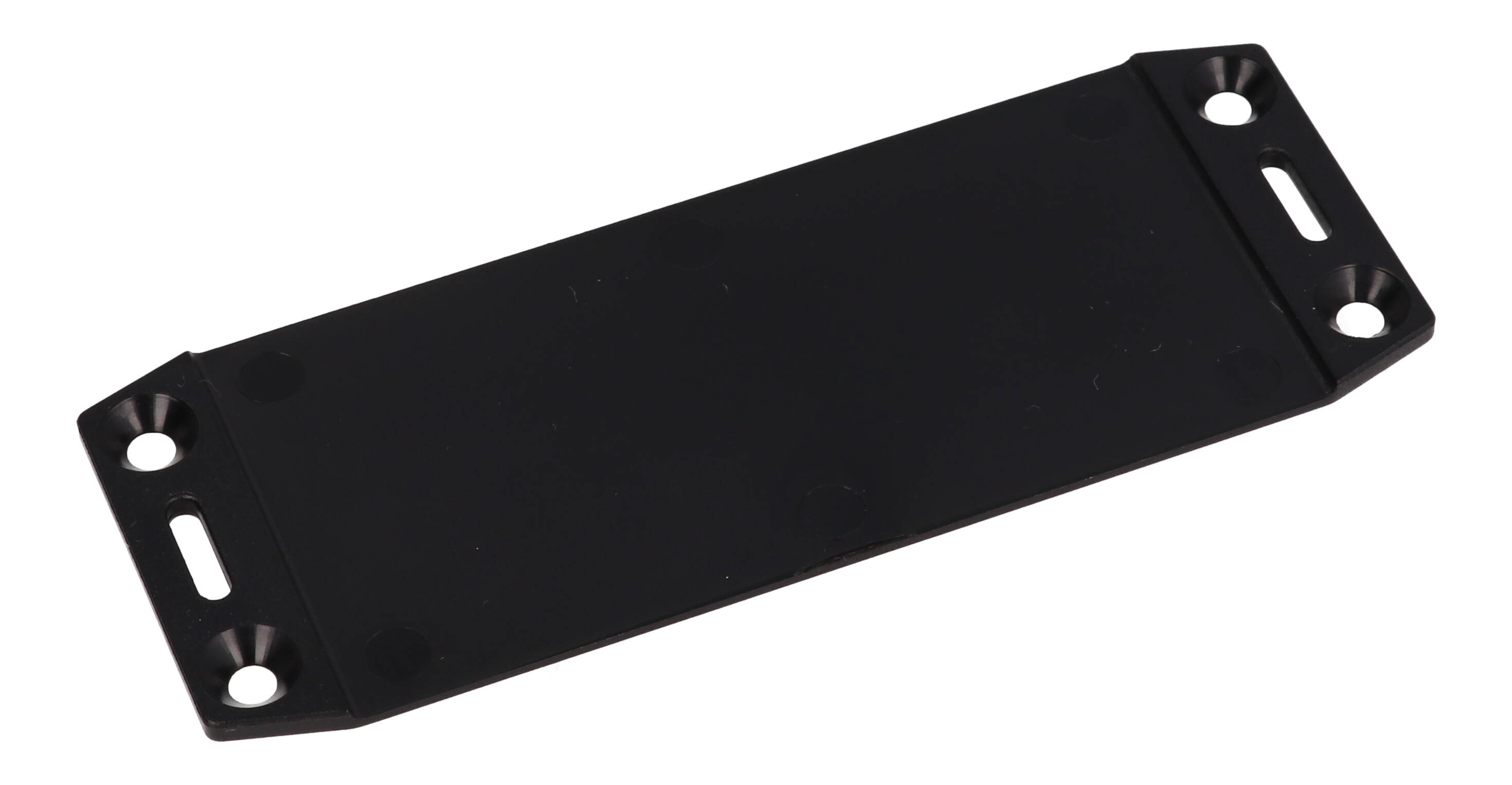

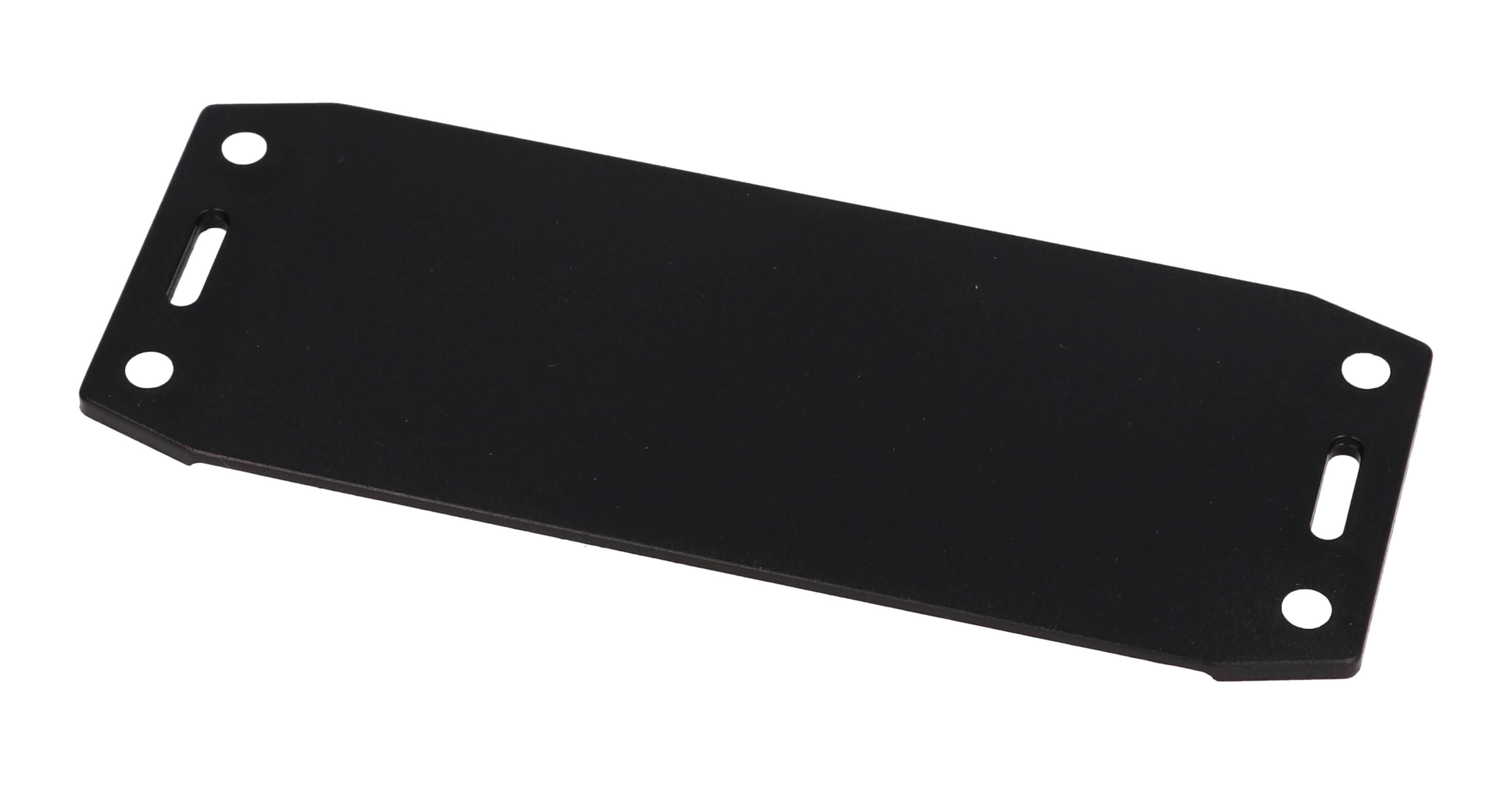

The 1591FABK is a black plastic bottom flange that lets a 1591A, 1591AS, 1591XXA or 1591XXAS enclosure be fixed to a wall or shelf. It is aimed at electronics builders and installers who want a clean surface-mount option for these small plastic boxes without drilling through the enclosure itself.
The flange is molded from fire retardant ABS plastic rated UL94 V-0, with a satin texture finish. It measures 4.93 in (125 mm) long by 1.85 in (47 mm) wide, and the part lists an IP54 rating. One flange is included.
Installation is straightforward:
- Glue the enclosure to the flange with standard ABS cement (not included).
- The flange ends are raised on one side to help position the enclosure while the cement sets.
- Fasten the flange to the wall or shelf through its four molded countersunk holes.
- Alternatively, use the oval hole in each side to strap or hang the unit with tie wraps.
The 1591FABK is RoHS and REACH compliant, ships shrink wrapped at 0.04 lbs (0.02 kg) and carries UPC 623980135939. A light gray version is available as 1591FAGY.
Ideal For
- Wall mounting a 1591A-size plastic enclosure
- Shelf mounting small electronics boxes
- Strapping or hanging an enclosure with tie wraps
Mounting
| Positioning | Flange ends raised on one side |
| Mounting Holes | Four molded countersunk holes |
| Tie-Wrap Provision | Oval hole in each side of flange |
| Attachment To Enclosure | Glued with standard ABS cement (not included) |
Overview
| Type | Flange |
| Description | Plastic bottom flange for 1591A enclosure |
| Gray Version | 1591FAGY |
| Quantity Included | One flange |
| Use With Enclosure Sizes | 1591A, 1591AS; 1591XXA, 1591XXAS |
Dimensions
| Width | 1.85 in (47 mm) |
| Length | 4.93 in (125 mm) |
Identifiers
| UPC | 623980135939 |
| UNSPSC | 39121301 |
| Part Number | 1591FABK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Color | Black |
| Finish | Satin texture |
| Material | ABS Plastic (fire retardant) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1591FABK fit?▾
1591A, 1591AS, 1591XXA and 1591XXAS.
How is the flange attached to the enclosure?▾
It is glued with standard ABS cement, which is not included.
How is it mounted to a wall or shelf?▾
Through four molded countersunk holes, or strapped/hung via tie wraps through the oval hole in each side.
What is its flame rating?▾
UL94 V-0 fire retardant ABS.
What size is it?▾
4.93 in (125 mm) long by 1.85 in (47 mm) wide.
