Hammond 1591FGGY Gray Mounting Flange for 1591G Enclosures
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 1591G and 1591GS enclosures
- 5.74 in (146 mm) long x 3.54 in (90 mm) wide
- Light gray ABS plastic, satin texture finish, UL94-HB flame rating
- Four molded countersunk holes for wall or shelf mounting
- Oval hole in each side for strapping or hanging with tie wraps
- Raised ends help position the enclosure; glue with ABS cement (not included)
- IP54 rating listed; RoHS and REACH compliant

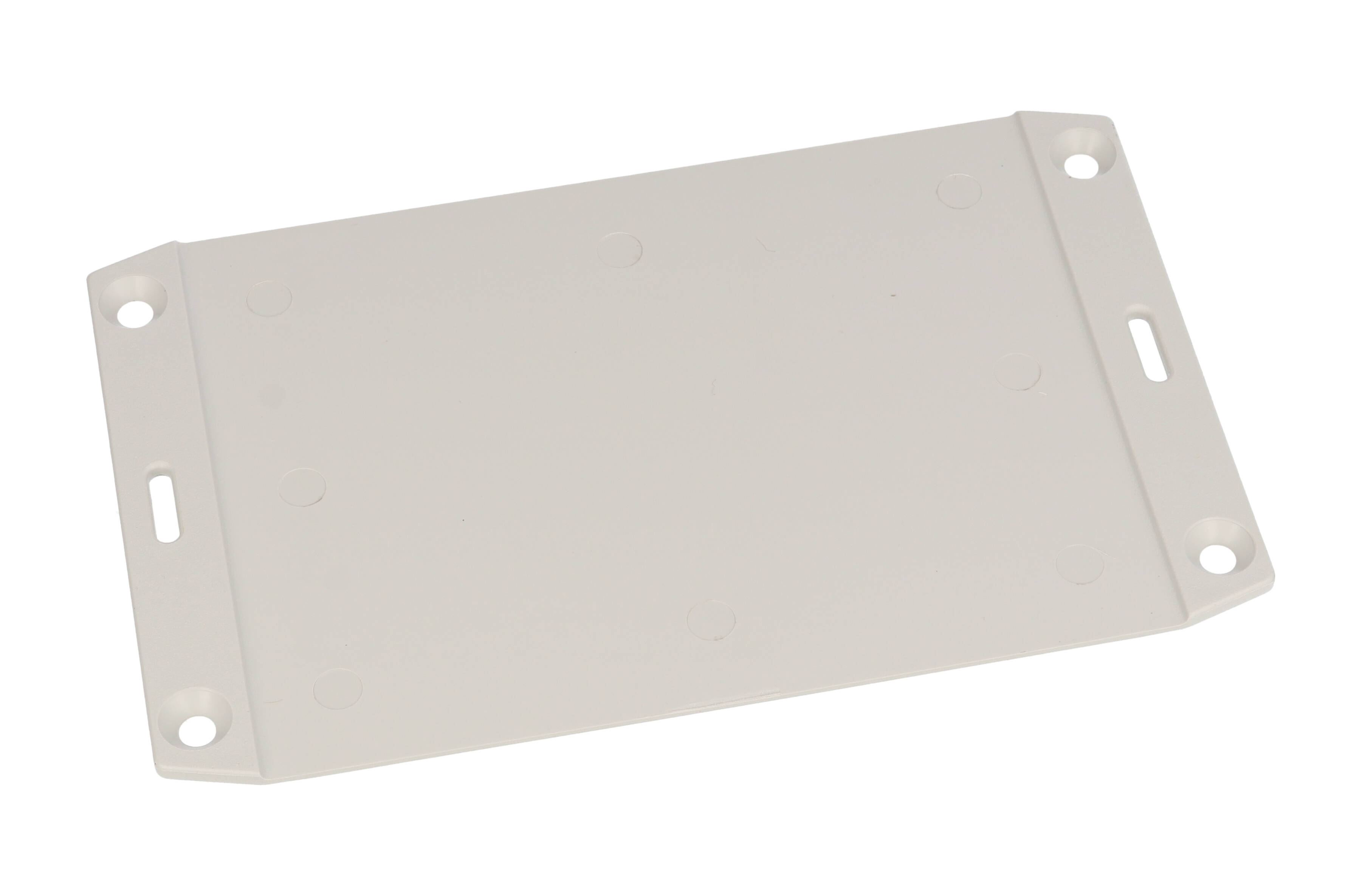

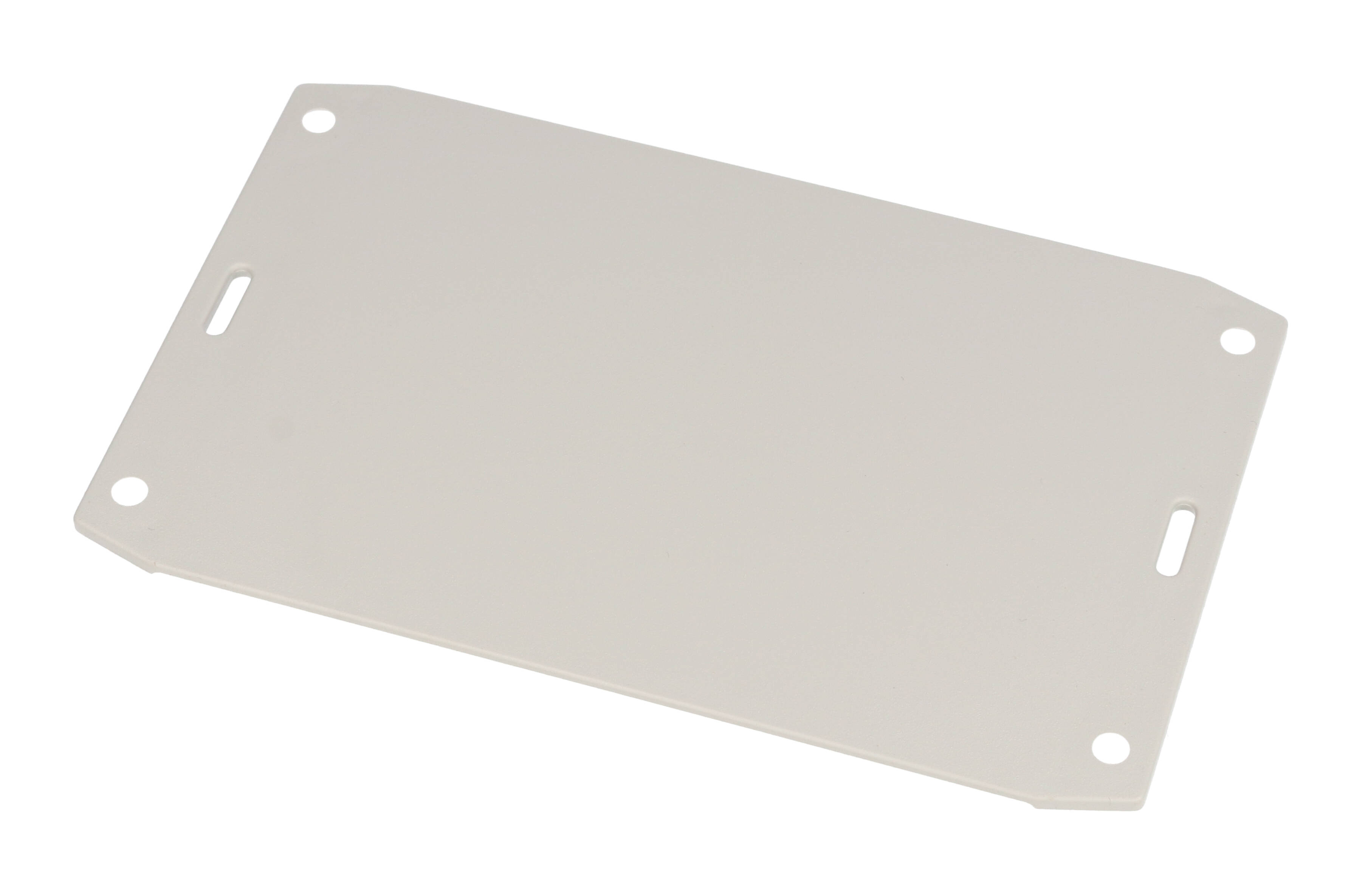

The 1591FGGY lets a 1591G or 1591GS enclosure be mounted to a wall or shelf using a light gray base flange. It is intended for electronics builders, OEM engineers and installers who need to surface-mount a small plastic enclosure cleanly. Compatible enclosure sizes are 1591G and 1591GS.
It is molded from ABS plastic in light gray with a satin texture finish; this gray part is listed with a UL94-HB flame rating. The flange measures 5.74 in (146 mm) long by 3.54 in (90 mm) wide. The part lists an IP54 rating. One flange is included.
The enclosure is glued to the flange with standard ABS cement, which is not included. The flange ends are raised on one side so the enclosure can be positioned easily while it is being glued. Once assembled, the unit is fixed through four molded countersunk holes, or strapped or hung with tie wraps through the oval hole in each side of the flange.
The 1591FGGY is RoHS and REACH compliant, ships shrink wrapped with a shipping weight of 0.07 lbs (0.03 kg) and carries UPC 623980012292. The black version for the same enclosures is 1591FGBK.
Ideal For
- Wall mounting a 1591G-size enclosure
- Shelf mounting small plastic electronics enclosures
- Strapping or hanging an enclosure with tie wraps
Mounting
| Positioning | Flange ends raised on one side |
| Mounting Holes | Four molded counter sunk holes |
| Tie-Wrap Provision | Oval hole in each side of flange |
| Attachment To Enclosure | Glued with standard ABS cement (not included) |
Overview
| Type | Flange |
| Description | 1591G Flange Grey |
| Black Version | 1591FGBK |
| Quantity Included | One flange |
| Use With Enclosure Sizes | 1591G, 1591GS |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 5.74 in (146 mm) |
Identifiers
| UPC | 623980012292 |
| UNSPSC | 39121301 |
| Part Number | 1591FGGY |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.07 lbs (0.03 kg) |
Construction & Finish
| Color | Light Gray |
| Finish | Satin texture |
| Material | ABS Plastic |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94-HB |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1591FGGY fit?▾
1591G and 1591GS.
How does the flange attach to the enclosure?▾
It is glued on with standard ABS cement, which is not included. Raised ends on one side help position the enclosure while gluing.
How is it mounted to a wall or shelf?▾
Through four molded countersunk holes, or by strapping or hanging it with tie wraps through the oval hole in each side.
What are the dimensions of the 1591FGGY?▾
5.74 in (146 mm) long by 3.54 in (90 mm) wide.
What is the flame rating of this gray flange?▾
It is listed as UL94-HB.
Is there another color?▾
Yes, 1591FGBK is the black version for the same enclosures.
