Hammond 1591FTGY Gray Mounting Flange for 1591T Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 1591T and 1591TS enclosures
- 5.78 in (147 mm) long x 3.02 in (77 mm) wide
- ABS plastic with satin texture finish
- Four molded countersunk holes for wall or shelf mounting
- Oval hole in each side for strapping or hanging with tie wraps
- Raised ends help position the enclosure; glue with ABS cement (not included)
- RoHS and REACH compliant

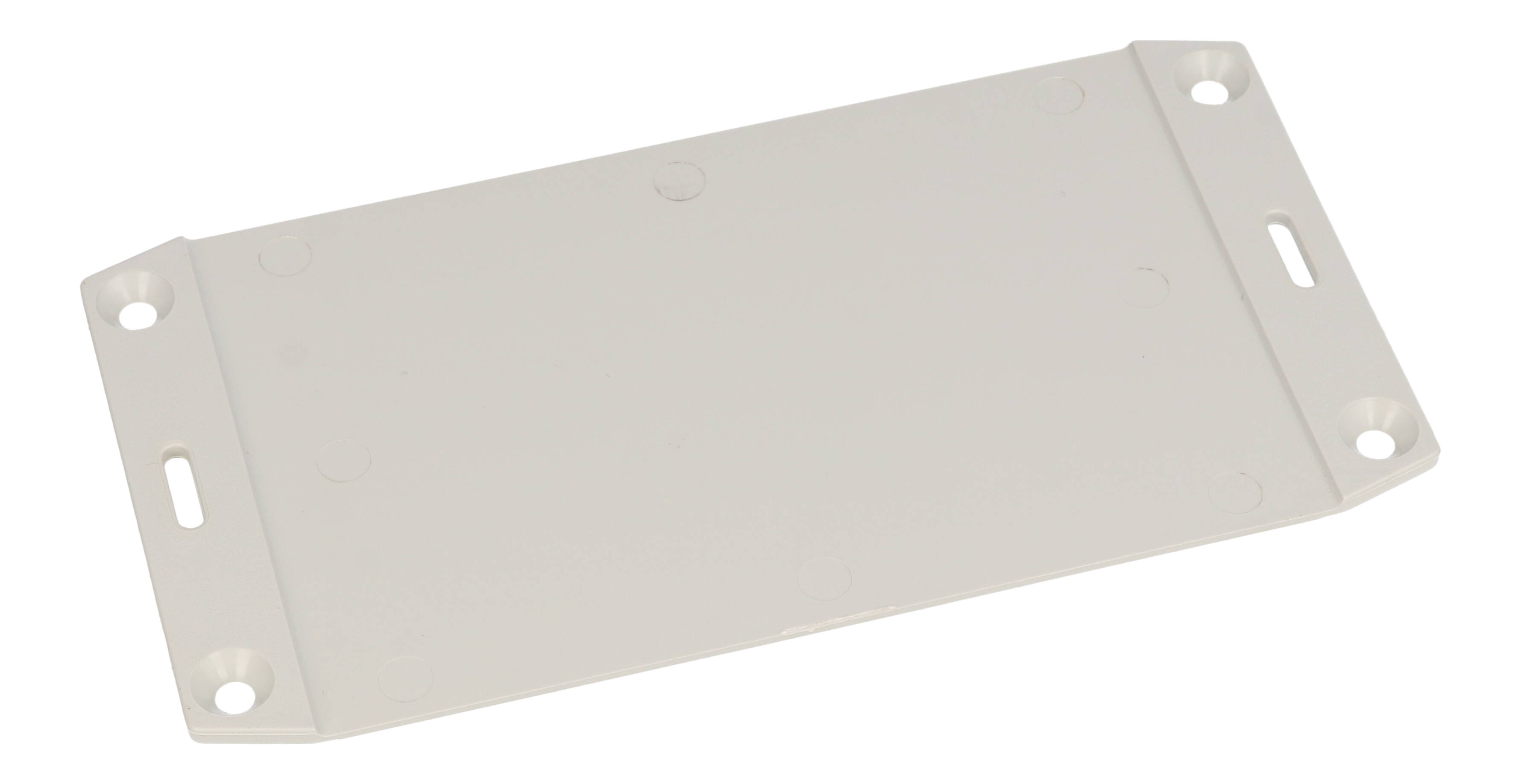

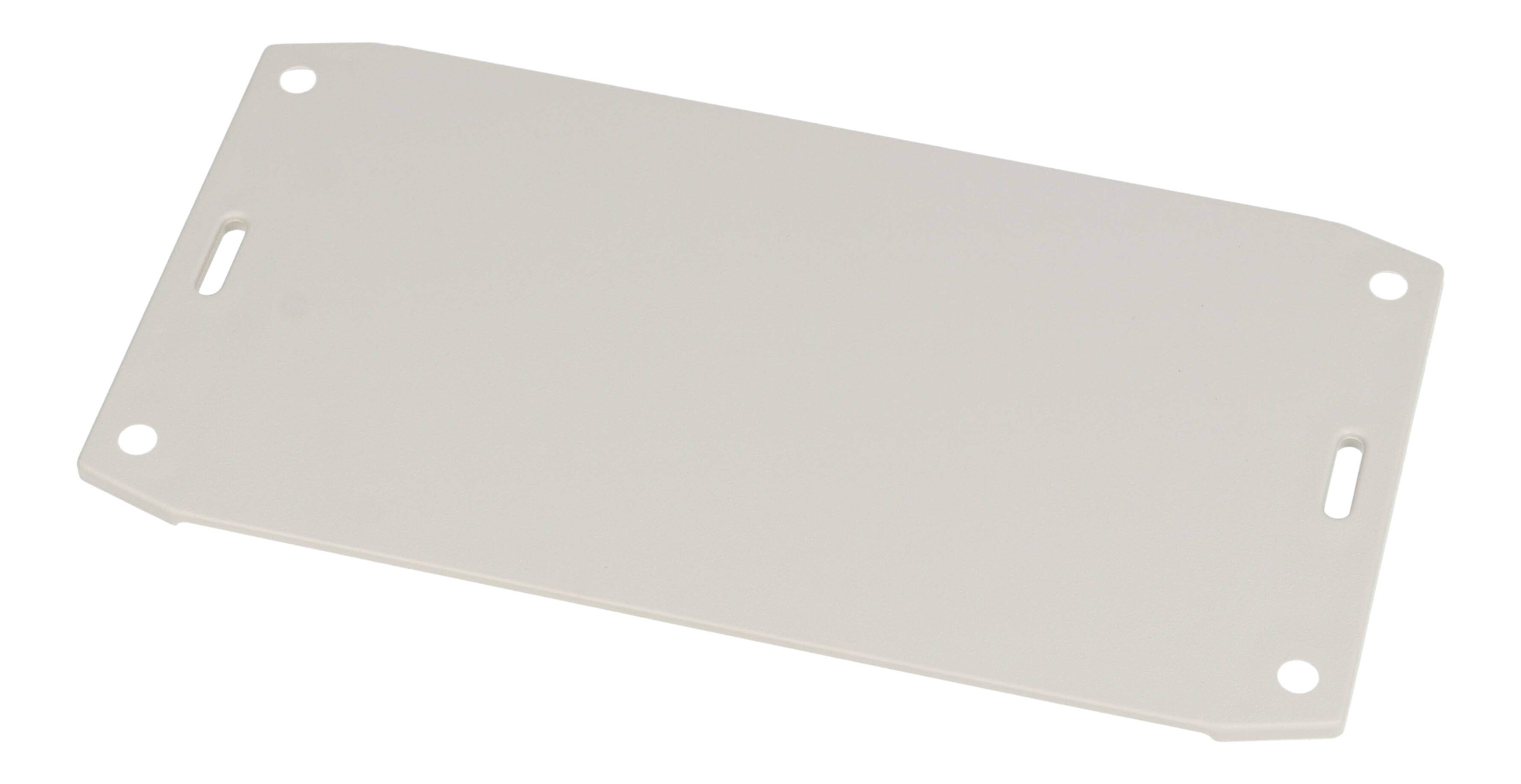

The 1591FTGY is the gray flange option for 1591T and 1591TS enclosures, used to mount the box to a wall or shelf. It is intended for electronics builders, OEM engineers and installers who need to surface-mount a small plastic enclosure cleanly. Compatible enclosure sizes are 1591T and 1591TS.
The part page for this gray flange does not list material, color or flame rating attributes, so check the series data for construction details. Per the series data it is molded from ABS plastic with a satin texture finish. The flange measures 5.78 in (147 mm) long by 3.02 in (77 mm) wide. One flange is included.
The enclosure is glued to the flange with standard ABS cement, which is not included. The flange ends are raised on one side so the enclosure can be positioned easily while it is being glued. Once assembled, the unit is fixed through four molded countersunk holes, or strapped or hung with tie wraps through the oval hole in each side of the flange.
The 1591FTGY is RoHS and REACH compliant, ships with a shipping weight of 0.06 lbs (0.03 kg) and carries UPC 623980012377. The black version for the same enclosures is 1591FTBK.
Ideal For
- Wall mounting a 1591T-size enclosure
- Shelf mounting small plastic electronics enclosures
- Strapping or hanging an enclosure with tie wraps
Mounting
| Positioning | Flange ends raised on one side |
| Mounting Holes | Four molded counter sunk holes |
| Tie-Wrap Provision | Oval hole in each side of flange |
| Attachment To Enclosure | Glued with standard ABS cement (not included) |
Overview
| Description | 1591T Flange Grey |
| Black Version | 1591FTBK |
| Quantity Included | One flange |
| Use With Enclosure Sizes | 1591T, 1591TS |
Dimensions
| Width | 3.02 in (77 mm) |
| Length | 5.78 in (147 mm) |
Identifiers
| UPC | 623980012377 |
| UNSPSC | 39121301 |
| Part Number | 1591FTGY |
Packaging & Shipping
| Shipping Weight | 0.06 lbs (0.03 kg) |
Construction & Finish
| Color | Gray (per series table) |
| Finish | Satin texture |
| Material | ABS Plastic |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1591FTGY fit?▾
1591T and 1591TS.
How does the flange attach to the enclosure?▾
It is glued on with standard ABS cement, which is not included. Raised ends on one side help position the enclosure while gluing.
How is it mounted to a wall or shelf?▾
Through four molded countersunk holes, or by strapping or hanging it with tie wraps through the oval hole in each side.
What are the dimensions of the 1591FTGY?▾
5.78 in (147 mm) long by 3.02 in (77 mm) wide.
Is there another color?▾
Yes, 1591FTBK is the black version for the same enclosures.
