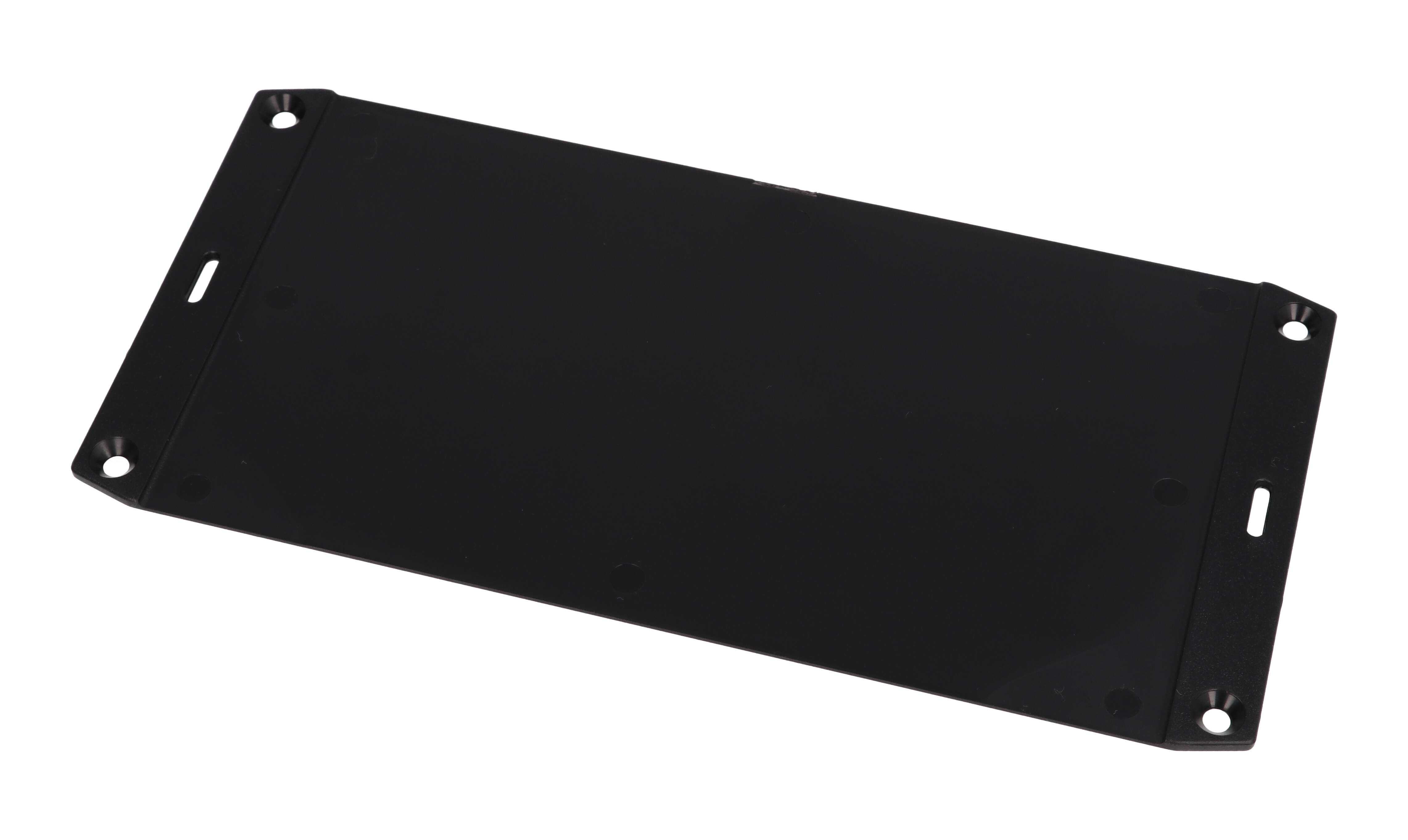

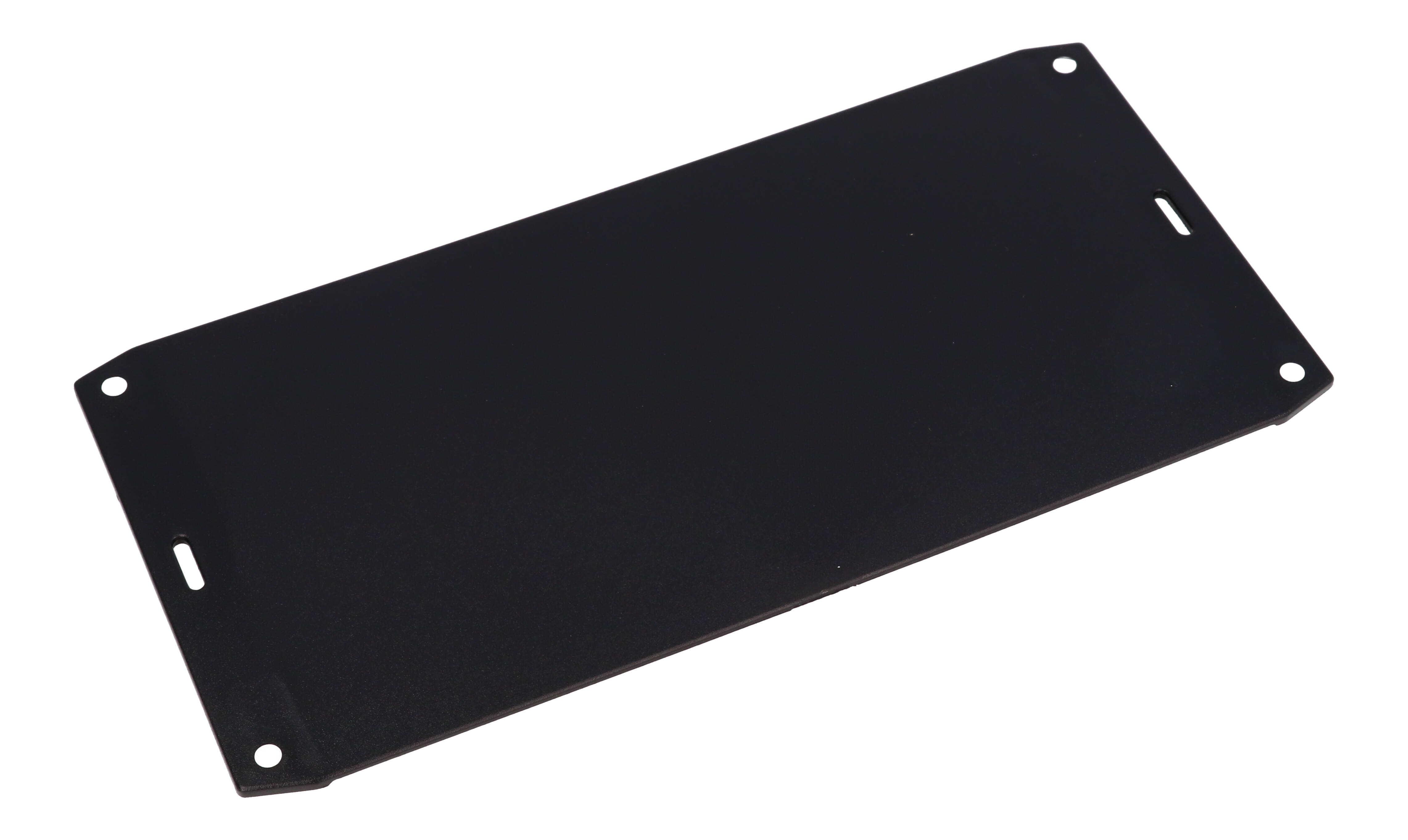

Hammond 1591FEBK Black Mounting Flange for 1591E Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 1591E, 1591ES, 1591XXE and 1591XXES enclosures
- 8.66 in (220 mm) long x 4.20 in (107 mm) wide
- Fire retardant black ABS, UL94 V-0, satin texture finish
- Four molded countersunk holes for wall or shelf mounting
- Oval hole in each side for strapping or hanging with tie wraps
- Raised ends help position the enclosure; glue with ABS cement (not included)
- IP54 rating listed; RoHS and REACH compliant
The 1591FEBK is the largest flange in this group, a black base for 1591E, 1591ES, 1591XXE and 1591XXES enclosures that need wall or shelf mounting. It is intended for electronics builders, OEM engineers and installers who need to surface-mount a small plastic enclosure cleanly. Compatible enclosure sizes are 1591E, 1591ES, 1591XXE and 1591XXES.
It is molded from fire retardant ABS plastic with a UL94 V-0 flammability rating and a satin texture finish. The flange measures 8.66 in (220 mm) long by 4.20 in (107 mm) wide. The part lists an IP54 rating. One flange is included.
The enclosure is glued to the flange with standard ABS cement, which is not included. The flange ends are raised on one side so the enclosure can be positioned easily while it is being glued. Once assembled, the unit is fixed through four molded countersunk holes, or strapped or hung with tie wraps through the oval hole in each side of the flange.
The 1591FEBK is RoHS and REACH compliant, ships shrink wrapped with a shipping weight of 0.12 lbs (0.05 kg) and carries UPC 623980135991. The gray version for the same enclosures is 1591FEGY.
Ideal For
- Wall mounting a 1591E-size enclosure
- Shelf mounting small plastic electronics enclosures
- Strapping or hanging an enclosure with tie wraps
Mounting
| Positioning | Flange ends raised on one side |
| Mounting Holes | Four molded counter sunk holes |
| Tie-Wrap Provision | Oval hole in each side of flange |
| Attachment To Enclosure | Glued with standard ABS cement (not included) |
Overview
| Type | Flange |
| Description | Plastic bottom flange for 1591E enclosure |
| Gray Version | 1591FEGY |
| Quantity Included | One flange |
| Short Description | 1591E FLANGE BLACK |
| Use With Enclosure Sizes | 1591E, 1591ES; 1591XXE, 1591XXES |
Dimensions
| Width | 4.20 in (107 mm) |
| Length | 8.66 in (220 mm) |
Identifiers
| UPC | 623980135991 |
| UNSPSC | 39121301 |
| Part Number | 1591FEBK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Color | Black |
| Finish | Satin texture |
| Material | ABS Plastic (fire retardant) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1591FEBK fit?▾
1591E, 1591ES, 1591XXE and 1591XXES.
How does the flange attach to the enclosure?▾
It is glued on with standard ABS cement, which is not included. Raised ends on one side help position the enclosure while gluing.
How is it mounted to a wall or shelf?▾
Through four molded countersunk holes, or by strapping or hanging it with tie wraps through the oval hole in each side.
What are the dimensions of the 1591FEBK?▾
8.66 in (220 mm) long by 4.20 in (107 mm) wide.
What is the flame rating?▾
The fire retardant ABS carries a UL94 V-0 rating.
Is there another color?▾
Yes, 1591FEGY is the gray version for the same enclosures.
