Hammond 1591FTBK Black Mounting Flange for 1591T Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 1591T and 1591TS enclosures
- 5.78 in (147 mm) long x 3.02 in (77 mm) wide
- Fire retardant black ABS, UL94 V-0, satin texture finish
- Four molded countersunk holes for wall or shelf mounting
- Oval hole in each side for strapping or hanging with tie wraps
- Raised ends help position the enclosure; glue with ABS cement (not included)
- RoHS and REACH compliant

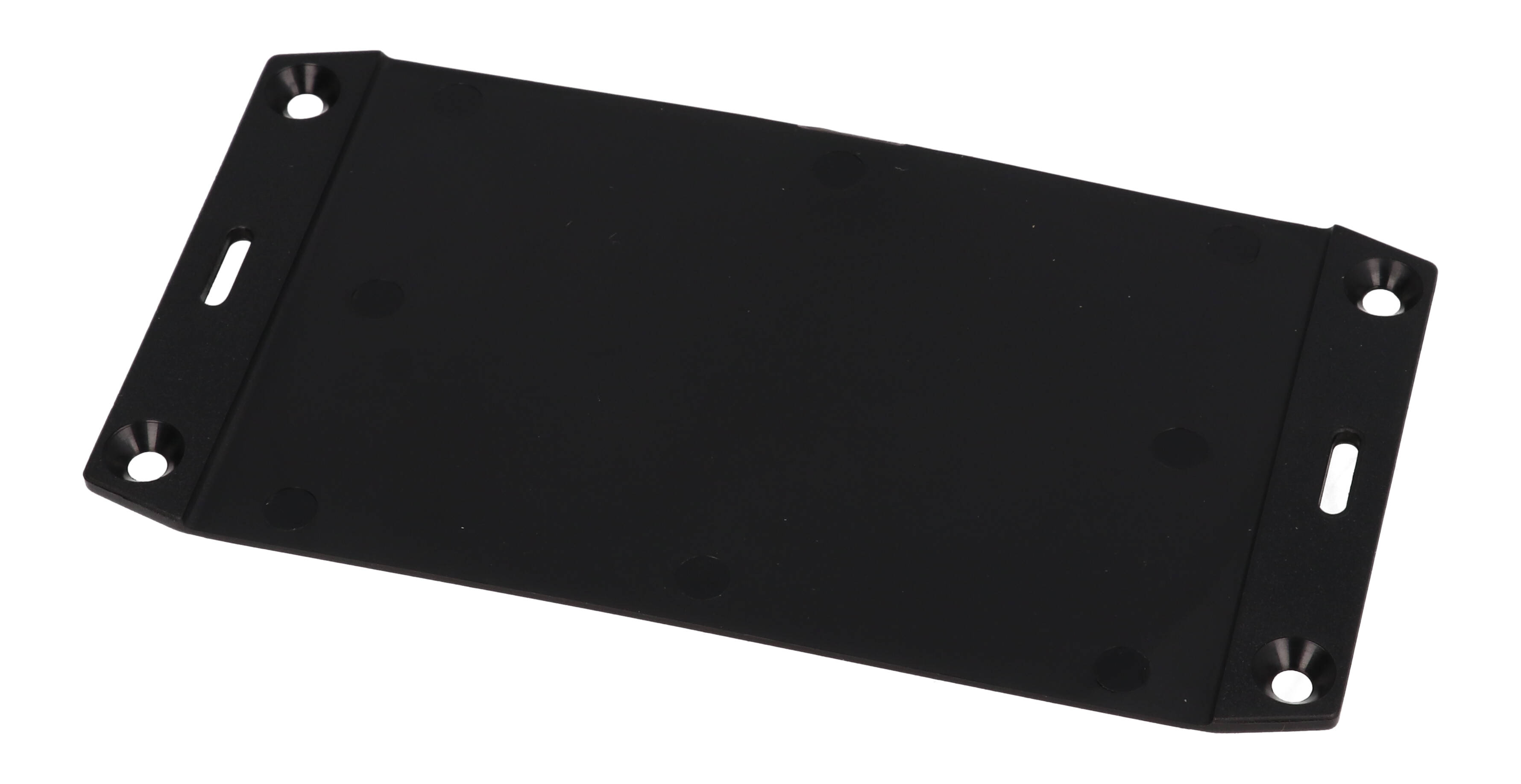

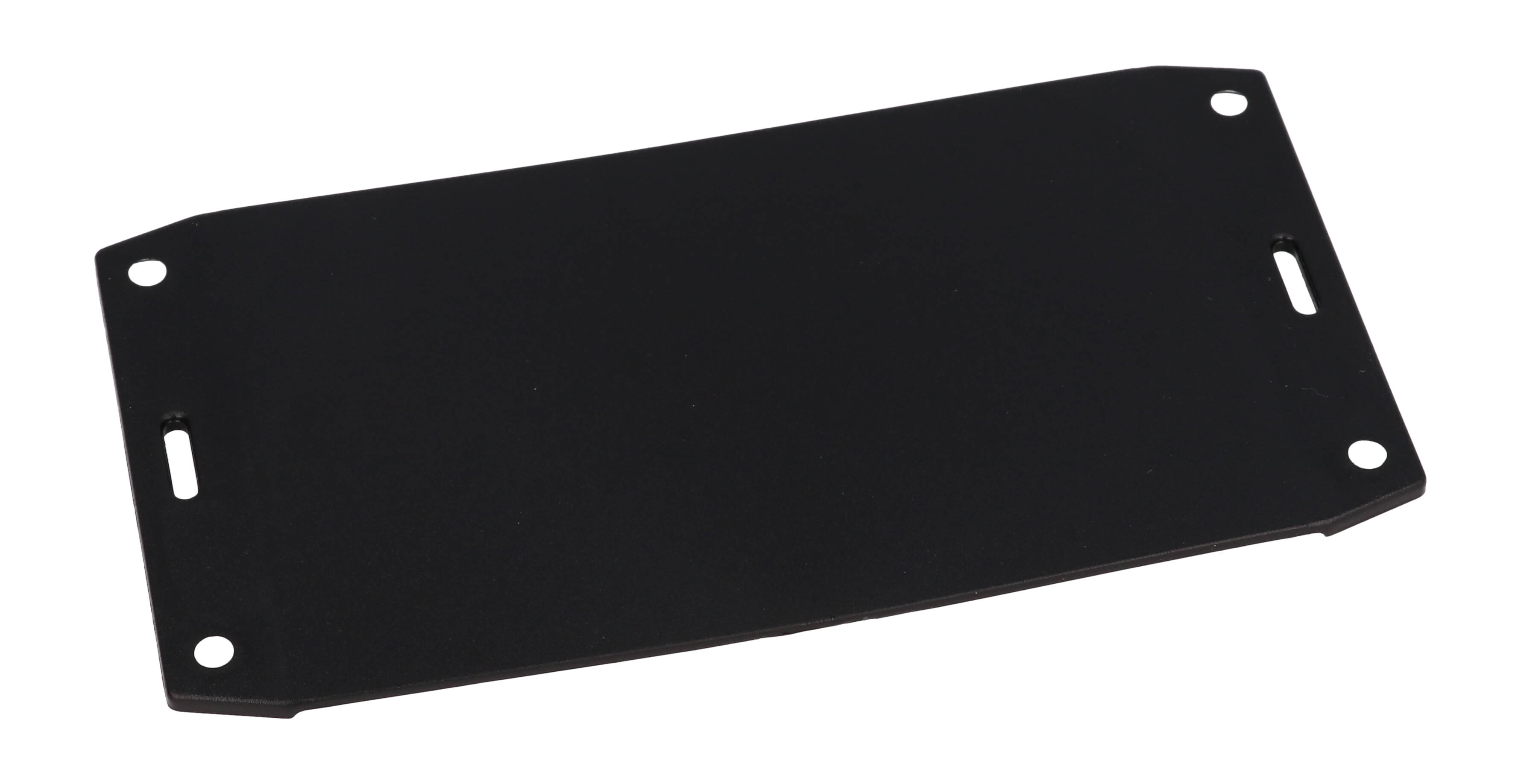

The 1591FTBK is a black bottom flange for 1591T and 1591TS enclosures, providing wall or shelf mounting for these boxes. It is intended for electronics builders, OEM engineers and installers who need to surface-mount a small plastic enclosure cleanly. Compatible enclosure sizes are 1591T and 1591TS.
It is molded from fire retardant ABS plastic with a UL94 V-0 flammability rating and a satin texture finish. The flange measures 5.78 in (147 mm) long by 3.02 in (77 mm) wide, and its part page lists a size of 5.79 in x 3.16 in x 0.12 in (147 mm x 80 mm x 3 mm). One flange is included.
The enclosure is glued to the flange with standard ABS cement, which is not included. The flange ends are raised on one side so the enclosure can be positioned easily while it is being glued. Once assembled, the unit is fixed through four molded countersunk holes, or strapped or hung with tie wraps through the oval hole in each side of the flange.
The 1591FTBK is RoHS and REACH compliant, ships shrink wrapped with a shipping weight of 0.1 lbs (0.05 kg) and carries UPC 623980012186. The gray version for the same enclosures is 1591FTGY.
Ideal For
- Wall mounting a 1591T-size enclosure
- Shelf mounting small plastic electronics enclosures
- Strapping or hanging an enclosure with tie wraps
Mounting
| Positioning | Flange ends raised on one side |
| Mounting Holes | Four molded counter sunk holes |
| Tie-Wrap Provision | Oval hole in each side of flange |
| Attachment To Enclosure | Glued with standard ABS cement (not included) |
Overview
| Type | Flange |
| Description | Plastic bottom flange for 1591T enclosure |
| Gray Version | 1591FTGY |
| Quantity Included | One flange |
| Short Description | 1591T FLANGE BLACK |
| Use With Enclosure Sizes | 1591T, 1591TS |
Dimensions
| Width | 3.02 in (77 mm) |
| Length | 5.78 in (147 mm) |
| Size L X W X H | 5.79 in x 3.16 in x 0.12 in (147 mm x 80 mm x 3 mm) |
Identifiers
| UPC | 623980012186 |
| UNSPSC | 39121301 |
| Part Number | 1591FTBK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Color | Black |
| Finish | Satin texture |
| Material | ABS Plastic (fire retardant) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1591FTBK fit?▾
1591T and 1591TS.
How does the flange attach to the enclosure?▾
It is glued on with standard ABS cement, which is not included. Raised ends on one side help position the enclosure while gluing.
How is it mounted to a wall or shelf?▾
Through four molded countersunk holes, or by strapping or hanging it with tie wraps through the oval hole in each side.
What are the dimensions of the 1591FTBK?▾
5.78 in (147 mm) long by 3.02 in (77 mm) wide. The part page lists 5.79 in x 3.16 in x 0.12 in (147 mm x 80 mm x 3 mm).
What is the flame rating?▾
The fire retardant ABS carries a UL94 V-0 rating.
Is there another color?▾
Yes, 1591FTGY is the gray version for the same enclosures.
