Hammond 1591FUBK Black ABS Mounting Flange for 1591U/V Enclosures
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Bottom mounting flange for 1591U, 1591US, 1591V and 1591VS enclosures
- 5.72 in (145 mm) long x 4.59 in (117 mm) wide
- Molded black ABS plastic with satin texture finish, UL94 V-0 flame rating
- Four molded countersunk holes for wall or shelf mounting
- Oval hole in each side for strapping or hanging with tie wraps
- Raised flange ends on one side help position the enclosure while gluing
- Attaches with standard ABS cement (not included); one flange per part
- RoHS and REACH compliant; IP54 rating listed

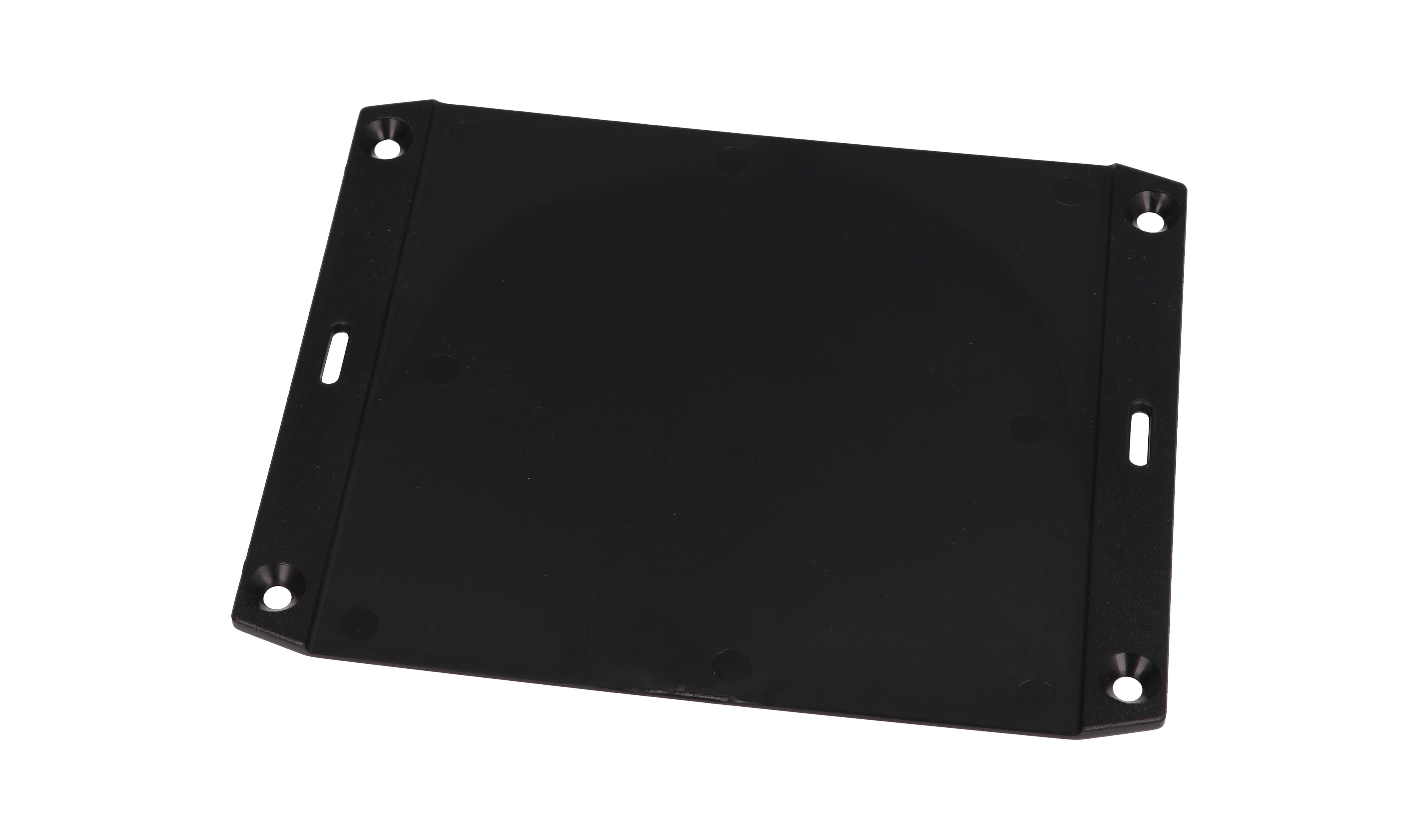

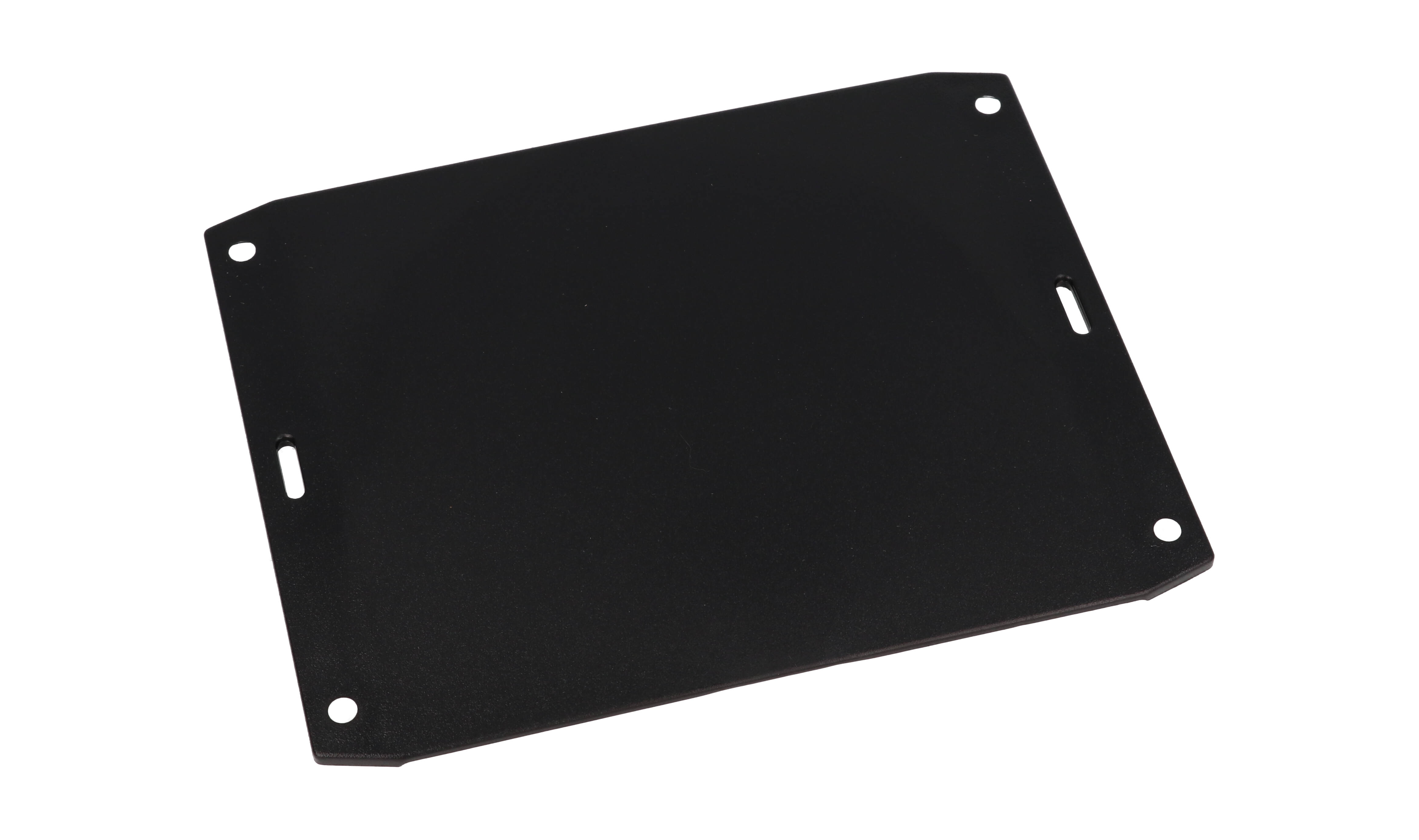

The 1591FUBK is a black plastic bottom flange made for 1591U, 1591US, 1591V and 1591VS enclosures. It gives electronics builders, OEM engineers and installers a simple way to fix one of these small cases to a wall or shelf without drilling into the enclosure itself.
The flange is molded from ABS plastic in black, with a satin texture finish. The part page lists a UL94 V-0 flame rating and an IP54 rating, and the part is marked RoHS and REACH compliant. One flange is supplied per part number, shrink wrapped, with a shipping weight of 0.1 lbs (0.05 kg).
This size measures 5.72 in (145 mm) long by 4.59 in (117 mm) wide. It is attached to the underside of the enclosure with standard ABS cement, which is not included. The flange ends are raised on one side so the enclosure can be positioned easily while the cement sets.
- Four molded countersunk holes for screwing the flange to a wall or shelf
- An oval hole in each side so the unit can be strapped or hung with tie wraps
- Glue-on attachment keeps the enclosure body free of extra mounting holes
If you need the same footprint to match a gray enclosure, the series also offers a gray flange for the same 1591U/V sizes. Order 1591FUBK when your 1591U or 1591V build calls for a black mounting flange.
Ideal For
- Wall mounting 1591U or 1591V plastic enclosures
- Shelf mounting small electronics enclosures
- Strapping or hanging an enclosure with tie wraps
- Adding external mounting without drilling the enclosure
Overview
| Type | Flange |
| Series | 1591-FLANGE Series (Plastic Flanges) |
| Description | Plastic bottom flange for 1591U / V enclosure |
| Part Number | 1591FUBK |
| Gray Equivalent | 1591FUGY |
| Quantity Included | One flange |
| Short Description | 1591U/V FLANGE BLACK |
| Use With Enclosure Sizes | 1591U, 1591US; 1591V, 1591VS |
Dimensions
| Width | 4.59 in (117 mm) |
| Length | 5.72 in (145 mm) |
Identifiers
| UPC | 623980012193 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Color | Black |
| Finish | Satin texture |
| Material | ABS Plastic (fire retardant) |
| Attachment | Glued to enclosure with standard ABS cement (not included) |
| Flange Ends | Raised on one side for positioning during gluing |
| Strap Holes | Oval hole in each side for tie wraps |
| Mounting Holes | Four molded countersunk holes |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1591FUBK fit?▾
It is made for the 1591U, 1591US, 1591V and 1591VS enclosure sizes.
How is the flange attached to the enclosure?▾
It is glued to the enclosure using standard ABS cement, which is not included. The flange ends are raised on one side to help position the enclosure while gluing.
What are the flange dimensions?▾
The 1591FUBK is 5.72 in (145 mm) long and 4.59 in (117 mm) wide.
How do I mount it to a wall or shelf?▾
The flange has four molded countersunk holes for fastening to a wall or shelf, plus an oval hole in each side so the unit can be strapped or hung with tie wraps.
What material and flame rating does it have?▾
It is molded from black ABS plastic with a satin texture finish and carries a UL94 V-0 flame rating.
How many flanges come in the package?▾
One flange is included, shipped in shrink wrap.
