Hammond 1591XXBTBU 114mm Transparent Blue Abs Pcb Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Transparent blue body keeps the board visible
- General purpose ABS, UL94 HB (not flame retardant)
- M3 x 10 mm lid screws into brass inserts; black screws included
- Nominal 114 x 63 x 31 mm; max PCB 108.00 x 57.50 mm
- Integral PCB standoffs in box and lid
- Designed to meet IP54
- RoHS and REACH compliant

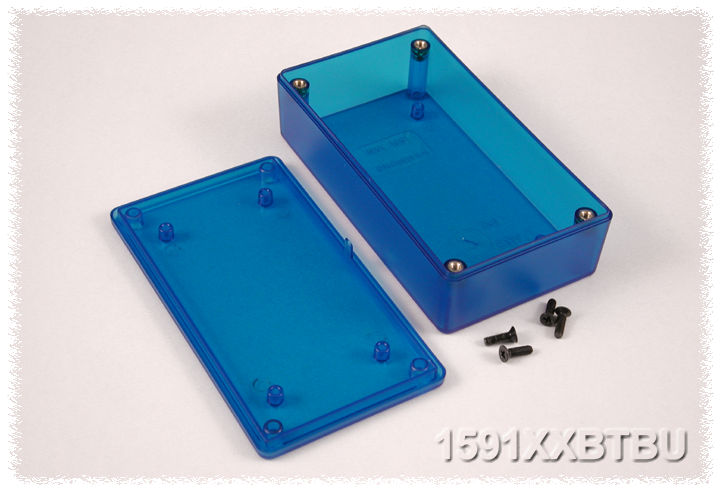

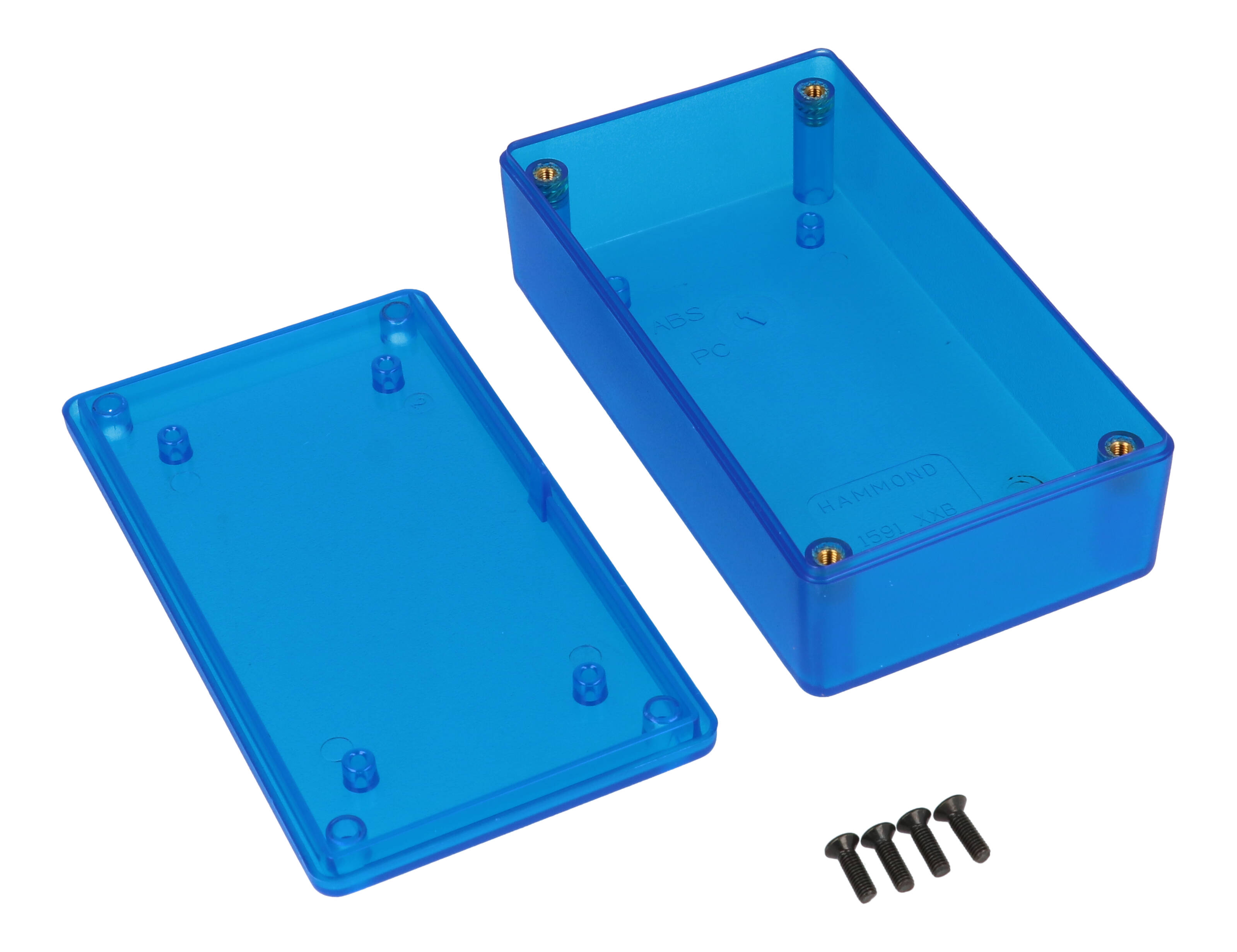

The 1591XXBTBU is the transparent blue version of the 114 x 63 x 31 mm (nominal) 1591XXB enclosure. The see-through blue body lets the board inside be seen while it sits on integral standoffs in the box or lid, and the enclosure is designed for mounting printed circuit boards horizontally.
Transparent blue enclosures in this series are molded from general purpose plastic that is not flame retardant; the part data lists ABS plastic with a UL94 HB flame rating. Internal sides are smooth for easy connector installation. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.
The lid fastens with M3-0.5 x 10 mm Phillips machine screws threaded into brass screw inserts, a construction suited to repeated assembly and disassembly, and transparent blue enclosures include black screws. The enclosure provides protection against dust and splashing water and is designed to meet IP54.
For the 1591XXB body the drawing shows 113.82 x 63.32 x 31.00 mm overall, an interior of 108.15 x 57.65 x 27.00 mm and a maximum PCB size of 108.00 x 57.50 mm. The 1591XXBTBU is RoHS and REACH compliant, ships in shrink wrap at 0.14 lbs (0.06 kg), and can be fitted with the separately sold 1591FBBK or 1591FBGY flange.
Ideal For
- Mounting printed circuit boards horizontally
- Projects where the internal board should be visible
- General purpose project box
Overview
| Type | project box, general purpose |
| Colour | Trans. Blue |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXBTBU |
| Ordering Table | Enclosures Without Mounting Flanges |
| Short Description | 1591XXB TRANSPARENT BLUE |
Dimensions
| Box Height | 28.25 mm [1.11 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 57.65 mm [2.27 in] |
| Inside Height | 27.00 mm [1.06 in] |
| Inside Length | 108.15 mm [4.26 in] |
| Size L X W X H | 4.4 in x 2.5 in x 1.1 in (112 mm x 64 mm x 28 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.48 in (63 mm) |
| Nominal Size – Length | 4.49 in (114 mm) |
| Overall Width (Drawing) | 63.32 mm [2.49 in] |
| Overall Height (Drawing) | 31.00 mm [1.22 in] |
| Overall Length (Drawing) | 113.82 mm [4.48 in] |
| Nominal Size – Enclosure Depth | 1.22 in (31 mm) |
Identifiers
| UPC | 623980137339 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screws (not included) |
| Max PCB Size (Drawing) | 108.00 mm [4.25 in] x 57.50 mm [2.26 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 108 |
| Max. P.C. Board Length (Mm) | 57.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings (installed brass inserts) |
| Material Grade | General purpose ABS (not flame retardant) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | M3-0.5 x 10 mm cover screws: 1591MS100BK (Black, 100 pkg), 1591MS100 (Nickel plated, 100 pkg) |
| Included Cover Screw Colour | Black |
| Accessory Mounting Flange (Sold Separately) | 1591FBBK (Black), 1591FBGY (Grey) |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591XXBTBU flame retardant?▾
No. It is molded from general purpose plastic that is not flame retardant, with a UL94 HB rating.
What colour screws are supplied?▾
Transparent blue enclosures include black screws.
How large a PCB fits?▾
Up to 108.00 x 57.50 mm.
What are the inside dimensions?▾
108.15 x 57.65 x 27.00 mm.
What is its UPC?▾
623980137339.
