Hammond 1591XXBFLGY 114mm Gray Flanged-Lid Flame-Retardant ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Lid-integrated flanges with four countersunk mounting holes
- Oval flange holes for strapping or hanging via tie wraps
- Light gray flame retardant ABS, UL94 V-0
- Nickel plated M3 x 10 mm lid screws into brass inserts
- 137.54 mm overall with flanges; inside 108.15 x 57.65 x 27.00 mm
- Max PCB 108.00 x 57.50 mm
- Designed to meet IP54

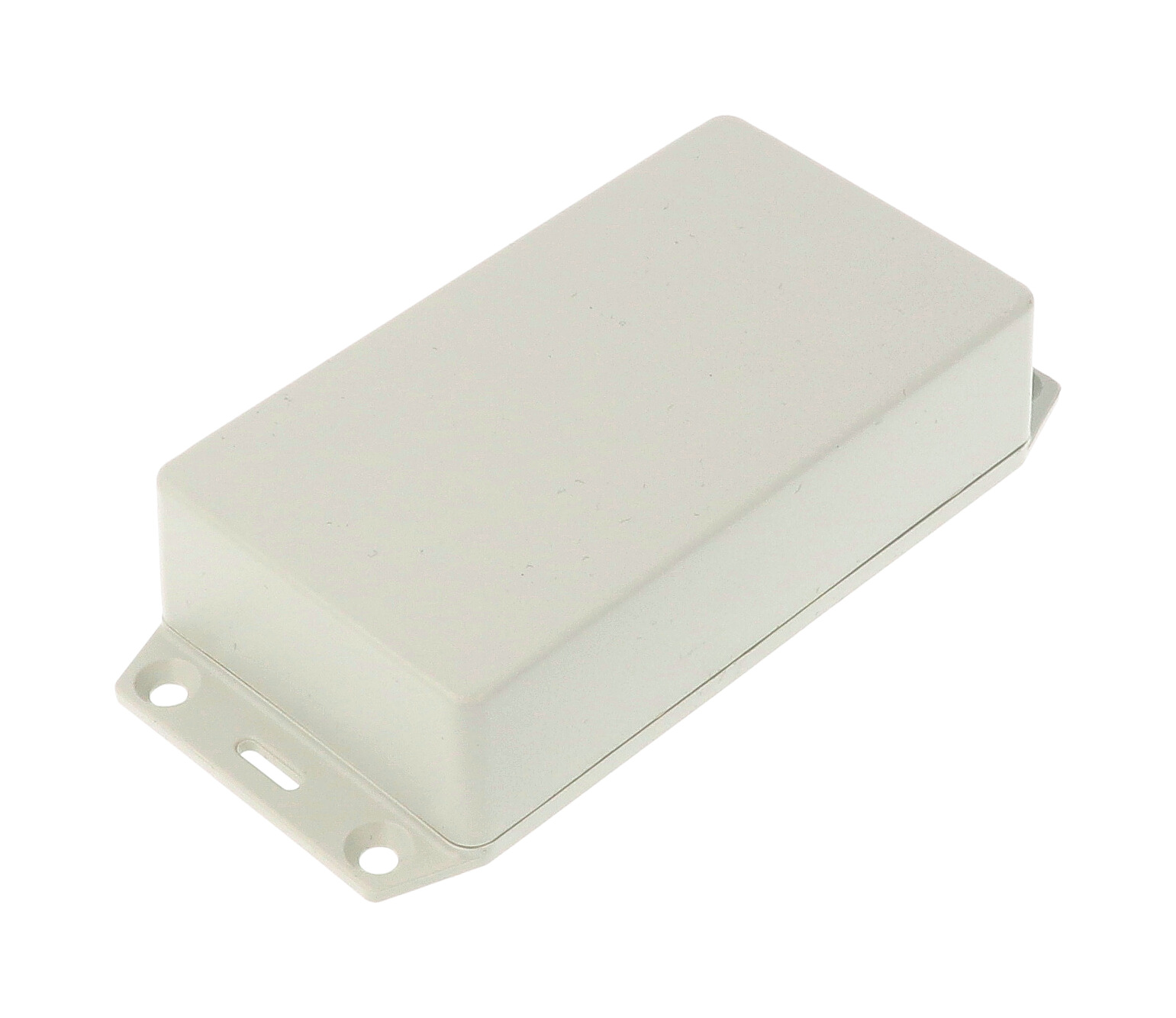

The 1591XXBFLGY is a light gray 1591XXB enclosure with mounting flanges integrated into the lid. It pairs a 114 x 63 x 31 mm (nominal) body with four molded countersunk holes for wall or shelf installation, plus an oval hole in each side of the flange so the unit can be strapped or hung with tie wraps.

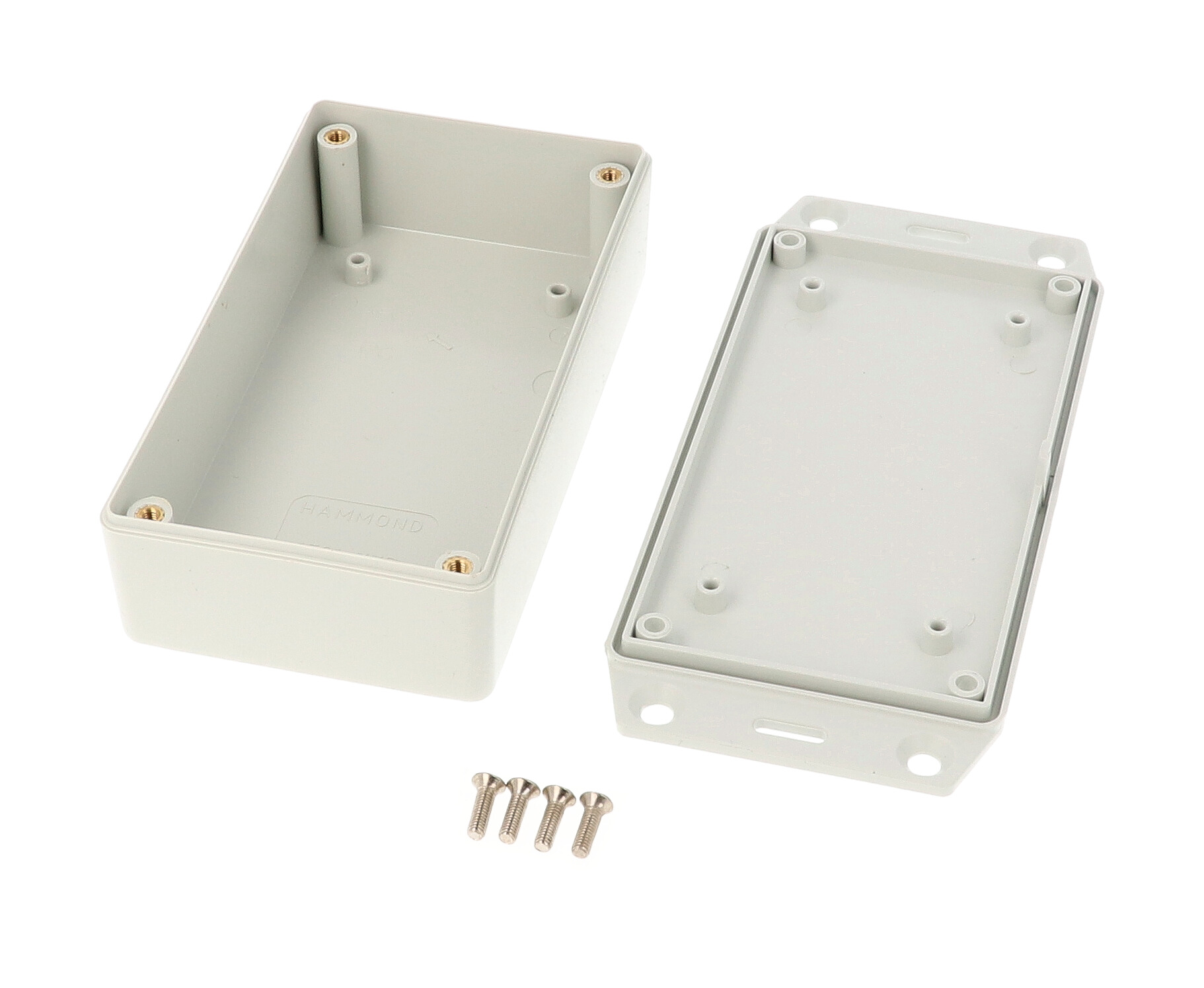

The textured gray box is molded from easy-to-machine flame retardant ABS carrying UL94 V-0. Gray enclosures include nickel plated screws; the lid is secured with M3-0.5 x 10 mm Phillips machine screws into integral brass bushings, so it can be opened and closed repeatedly. Box, lid, 4 cover screws and installed brass inserts are included, and the recommended torque is (43-50) ozf.in / (30-35) cN.m.
The flanged lid brings the overall length to 137.54 mm, and the flange holes are 5.00 mm thru with a 9.00 mm x 82° countersink. Inside, the 1591XXBFLGY measures 108.15 x 57.65 x 27.00 mm; smooth sides ease connector installation, and integral standoffs in box and lid hold a PCB up to 108.00 x 57.50 mm. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.
It is designed to meet IP54, is RoHS and REACH compliant, and ships shrink wrapped at 0.15 lbs (0.07 kg).
Ideal For
- Wall or shelf mounted electronics
- Units strapped or hung with tie wraps
- Mounting printed circuit boards horizontally
- Applications with repetitive assembly and disassembly
Mounting
| Strapping | Oval hole in each side of flange allows the unit to be strapped or hung via tie wraps |
| Mounting Flanges | Integrated into the lid |
| Flange Mounting Holes | 4x 5.00 mm thru, 9.00 mm x 82° countersunk |
Overview
| Type | general purpose, flanged |
| Colour | Light Gray (textured) |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXBFLGY |
| Ordering Table | Enclosures With Mounting Flanges |
| Short Description | 1591XXB GREY FLANGED LID FRABS |
Dimensions
| Box Height | 28.25 mm [1.11 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 57.65 mm [2.27 in] |
| Inside Height | 27.00 mm [1.06 in] |
| Inside Length | 108.15 mm [4.26 in] |
| Size L X W X H | 4.4 in x 2.5 in x 1.1 in (112 mm x 64 mm x 28 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.48 in (63 mm) |
| Nominal Size – Length | 4.49 in (114 mm) |
| Overall Width (Drawing) | 63.32 mm [2.49 in] |
| Overall Height (Drawing) | 31.00 mm [1.22 in] |
| Overall Length (Drawing) | 113.82 mm [4.48 in] |
| Nominal Size – Enclosure Depth | 1.22 in (31 mm) |
| Overall Length Including Lid Flanges | 137.54 mm [5.41 in] |
Identifiers
| UPC | 623980582467 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screws (not included) |
| Max PCB Size (Drawing) | 108.00 mm [4.25 in] x 57.50 mm [2.26 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 108 |
| Max. P.C. Board Length (Mm) | 57.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings (installed brass inserts) |
| Material Grade | Flame retardant ABS (easy to machine) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | M3-0.5 x 10 mm cover screws: 1591MS100BK (Black, 100 pkg), 1591MS100 (Nickel plated, 100 pkg) |
| Molded From (Drawing Note) | FRABS UL 94-V0 plastic |
| Included Cover Screw Colour | Nickel plated |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What screws come with the 1591XXBFLGY?▾
Four nickel plated M3-0.5 x 10 mm cover screws, with installed brass inserts.
What are the mounting hole dimensions?▾
Four holes 5.00 mm thru with a 9.00 mm x 82° countersink.
How long is it overall?▾
137.54 mm including the lid flanges.
What flame rating applies?▾
UL94 V-0.
Is there a black version?▾
Yes, 1591XXBFLBK.
