Hammond 1591XXBSBK 114mm Black Economy ABS Enclosure, Self-Tapping Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Economy version: #4 x 1/2" self-tapping lid screws into plastic posts
- General purpose ABS, UL94 HB, black textured
- Nominal 114 x 63 x 31 mm; inside 108.15 x 57.65 x 27.00 mm
- PCB standoffs in box and lid; max PCB 108.00 x 57.50 mm
- Designed to meet IP54
- Replacement screws 1591TS100BK / 1591TS100
- RoHS and REACH compliant

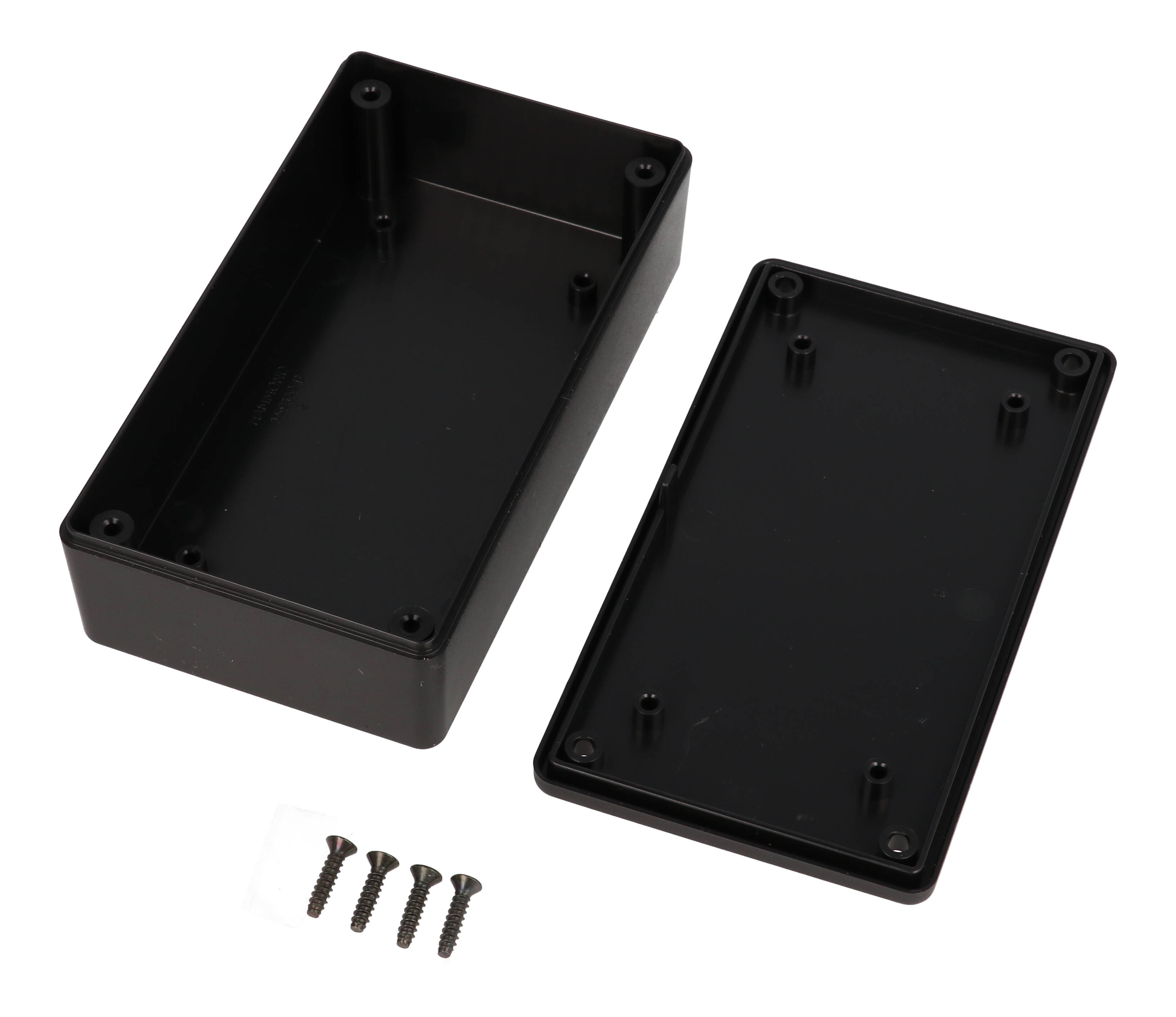

The 1591XXBSBK is the economy version of the 1591XXB size, a nominal 114 x 63 x 31 mm enclosure with integral PC board standoffs in both the box and lid for horizontal board mounting. It offers the same footprint as the standard 1591XXBBK with a simpler self-tapping screw closure, for projects that do not require flame retardant material.
Economy versions are molded from general purpose plastic that is not flame retardant; the drawing specifies GPABS and the part data lists UL94 HB. The lid is assembled with #4 x 1/2" self-tapping screws into fully plastic posts, and black enclosures include black screws. Box, lid and 4 cover screws are included, with a recommended torque of (35-43) ozf.in / (25-30) cN.m.
Per the drawing the enclosure is 113.82 x 63.32 x 31.00 mm overall with an inside length of 108.15 mm, inside width of 57.65 mm and inside height of 27.00 mm. Boards up to 108.00 x 57.50 mm fit in the box or lid, and the smooth internal sides make connector installation easy. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.
The 1591XXBSBK is designed to meet IP54, is RoHS and REACH compliant, and ships shrink wrapped at 0.13 lbs (0.06 kg). Replacement lid screws are 1591TS100BK or 1591TS100, and flanges 1591FBBK / 1591FBGY are sold separately.
Ideal For
- Mounting printed circuit boards horizontally
- Cost-conscious general purpose project box
- Applications not requiring flame retardant material
Overview
| Type | project box, general purpose |
| Colour | Black (textured) |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXBSBK |
| Ordering Table | Enclosures Without Mounting Flanges |
| Short Description | GP ABS PLASTIC CASE |
Dimensions
| Box Height | 28.25 mm [1.11 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 57.65 mm [2.27 in] |
| Inside Height | 27.00 mm [1.06 in] |
| Inside Length | 108.15 mm [4.26 in] |
| Size L X W X H | 4.4 in x 2.5 in x 1.1 in (112 mm x 64 mm x 28 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.48 in (63 mm) |
| Nominal Size – Length | 4.49 in (114 mm) |
| Overall Width (Drawing) | 63.32 mm [2.49 in] |
| Overall Height (Drawing) | 31.00 mm [1.22 in] |
| Overall Length (Drawing) | 113.82 mm [4.48 in] |
| Nominal Size – Enclosure Depth | 1.22 in (31 mm) |
Identifiers
| UPC | 623980011738 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| Max PCB Size (Drawing) | 108.00 mm [4.25 in] x 57.50 mm [2.26 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 108 |
| Max. P.C. Board Length (Mm) | 57.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.13 lbs (0.06 kg) |
Construction & Finish
| Included | Box, lid and 4 cover screws |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | Economy version: #4 x 1/2" self-tapping cover screws into fully plastic posts |
| Material Grade | General purpose ABS (not flame retardant) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (35-43) ozf.in / (25-30) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | #4 x 1/2" self-tapping cover screws: 1591TS100BK (Black, 100 pkg), 1591TS100 (Plated, 100 pkg) |
| Molded From (Drawing Note) | GPABS plastic |
| Included Cover Screw Colour | Black |
| Accessory Mounting Flange (Sold Separately) | 1591FBBK (Black), 1591FBGY (Grey) |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What makes the 1591XXBSBK an economy version?▾
It is assembled with self-tapping screws into fully plastic posts and molded from general purpose plastic that is not flame retardant (UL94 HB).
What is included?▾
Box, lid and 4 cover screws.
What torque should be used?▾
(35-43) ozf.in / (25-30) cN.m.
What PCB fits?▾
Up to 108.00 x 57.50 mm.
What is the shipping weight?▾
0.13 lbs (0.06 kg).
