Hammond 1591XXAFLGY 101mm Gray Flanged-Lid Flame-Retardant ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Lid-integrated mounting flanges with four countersunk holes
- Oval flange slots let the unit be strapped or hung with tie wraps
- Light gray flame retardant ABS, UL94 V-0
- Nickel plated M3 x 10 mm lid screws into brass inserts
- 124.62 mm overall length including flanges; nominal 101 x 51 x 25 mm
- Max PCB 94.00 x 44.50 mm on integral standoffs
- Designed to meet IP54

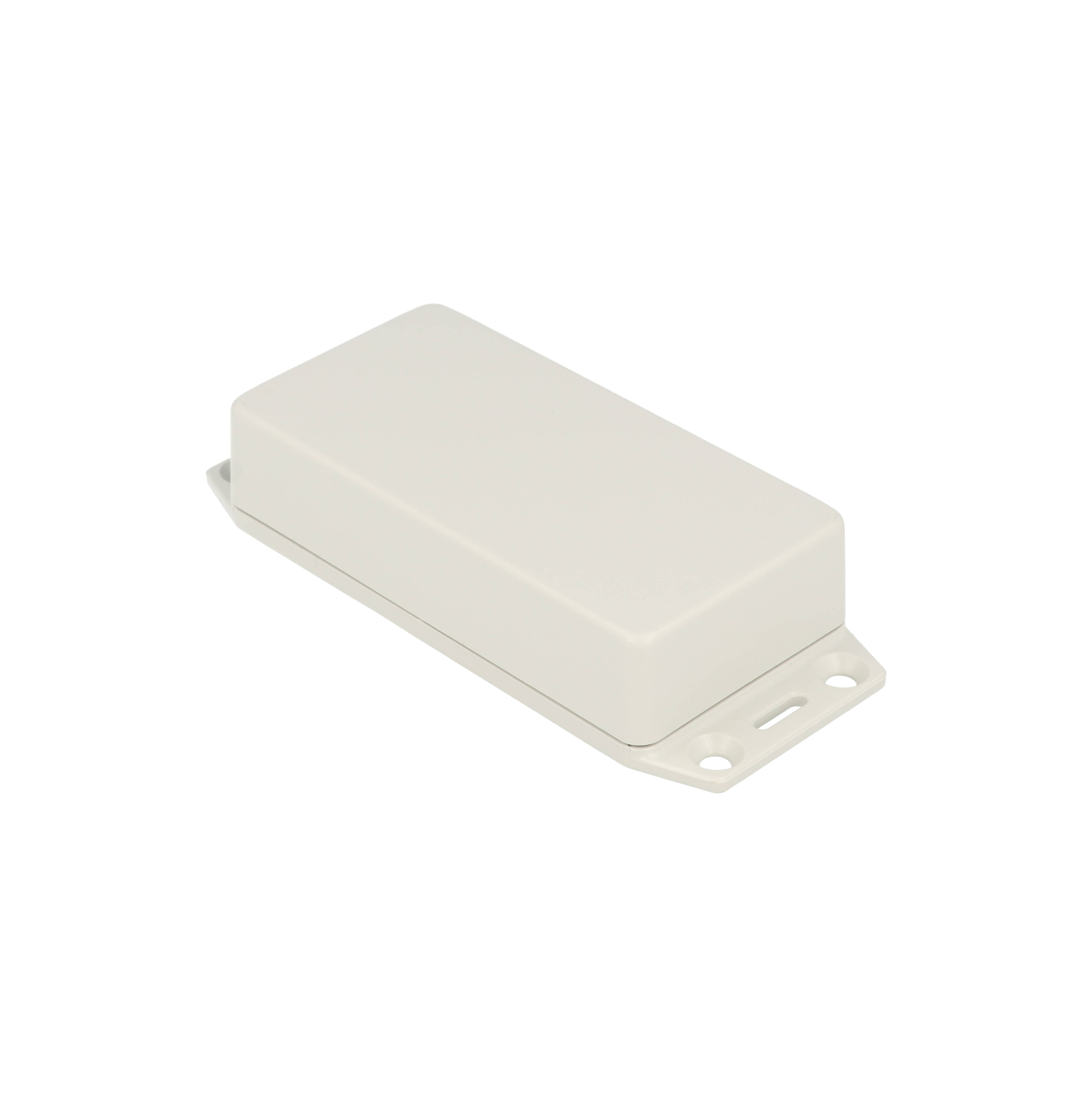

The 1591XXAFLGY is the light gray flanged-lid version of the 1591XXA enclosure. Its mounting flanges are integrated into the lid, with four molded countersunk holes for easy installation to a wall or shelf and an oval hole in each side of the flange so the unit can be strapped or hung via tie wraps. It is a neat option for facilities teams and integrators mounting a small PCB on a surface.

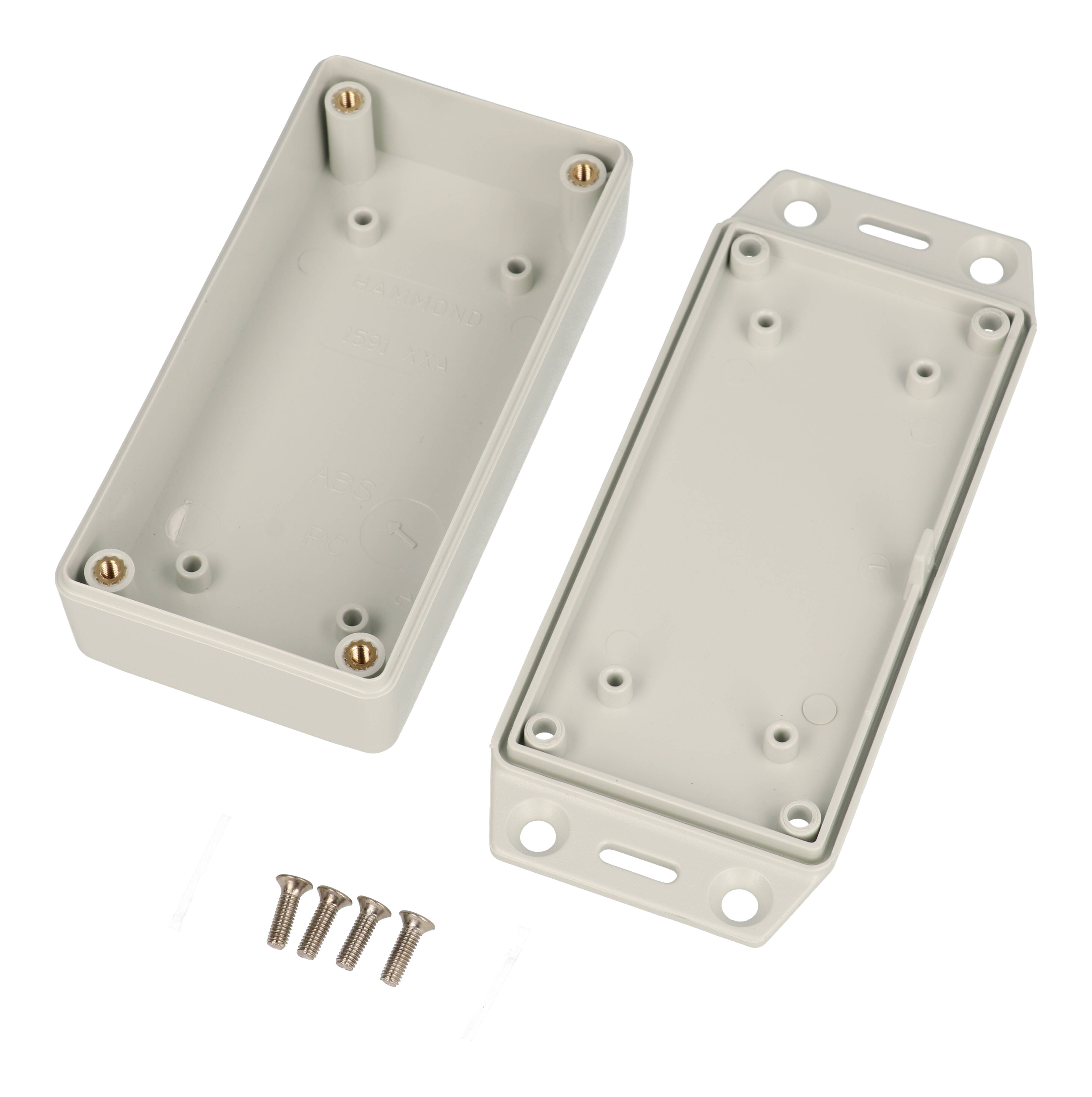

The box is molded from easy-to-machine flame retardant ABS carrying a UL94 V-0 rating, in a textured light gray finish. Gray enclosures in the series include nickel plated screws: the lid fastens with M3-0.5 x 10 mm Phillips machine screws into integral brass bushings. The purchased assembly includes the box, lid, 4 cover screws and installed brass inserts, and the recommended torque is (43-50) ozf.in / (30-35) cN.m.
Nominal dimensions are 101 x 51 x 25 mm, with an overall length of 124.62 mm including the lid flanges. Flange holes are 5.00 mm thru with a 9.00 mm x 82° countersink. The inside measures 95.65 x 46.15 x 21.00 mm, sides are smooth for connector installation, and integral standoffs in lid and box take a PCB up to 94.00 x 44.50 mm. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.
The 1591XXAFLGY is designed to meet IP54 against dust and splashing water, is RoHS and REACH compliant, and has a shipping weight of 0.11 lbs (0.05 kg) in shrink wrap packaging.
Ideal For
- Wall or shelf mounted electronics
- Mounting printed circuit boards horizontally
- Units strapped or hung with tie wraps
- Applications with repetitive assembly and disassembly
Mounting
| Strapping | Oval hole in each side of flange allows the unit to be strapped or hung via tie wraps |
| Mounting Flanges | Integrated into the lid |
| Flange Mounting Holes | 4x 5.00 mm thru, 9.00 mm x 82° countersunk |
Overview
| Type | general purpose, flanged |
| Colour | Light Gray (textured) |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXAFLGY |
| Ordering Table | Enclosures With Mounting Flanges |
| Short Description | 1591XXA FLANGED LID GREY |
Dimensions
| Box Height | 22.25 mm [.88 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 46.15 mm [1.82 in] |
| Inside Height | 21.00 mm [.83 in] |
| Inside Length | 95.65 mm [3.77 in] |
| Size L X W X H | 3.9 in x 2 in x 0.8 in (99 mm x 51 mm x 20 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.01 in (51 mm) |
| Nominal Size – Length | 3.98 in (101 mm) |
| Overall Width (Drawing) | 51.40 mm [2.02 in] |
| Overall Height (Drawing) | 25.00 mm [.98 in] |
| Overall Length (Drawing) | 100.90 mm [3.97 in] |
| Nominal Size – Enclosure Depth | 0.98 in (25 mm) |
| Overall Length Including Lid Flanges | 124.62 mm [4.91 in] |
Identifiers
| UPC | 623980582429 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screws (not included) |
| Max PCB Size (Drawing) | 94.00 mm [3.70 in] x 44.50 mm [1.75 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 94 |
| Max. P.C. Board Length (Mm) | 44.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings (installed brass inserts) |
| Material Grade | Flame retardant ABS (easy to machine) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | M3-0.5 x 10 mm cover screws: 1591MS100BK (Black, 100 pkg), 1591MS100 (Nickel plated, 100 pkg) |
| Molded From (Drawing Note) | FRABS UL 94-V0 plastic |
| Included Cover Screw Colour | Nickel plated |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour are the included screws?▾
Gray enclosures include nickel plated screws.
What are the flange hole sizes?▾
Four holes, 5.00 mm thru with a 9.00 mm x 82° countersink.
What flame rating does the 1591XXAFLGY have?▾
UL94 V-0.
What is the inside size?▾
95.65 mm long, 46.15 mm wide and 21.00 mm high inside.
Is a black version available?▾
Yes, the flanged black equivalent is 1591XXAFLBK.
