Hammond 1591XXUFLBK Black Square Flanged-Lid ABS Enclosure, 124 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4.88 in x 4.88 in x 2.36 in flanged-lid enclosure in black ABS
- UL94 V-0 flame retardant ABS
- Integrated lid flange with 4 countersunk holes and oval tie-wrap slots
- Designed to meet IP54 against dust and splashing water
- Integral PCB standoffs in box and lid; max PCB 114 x 114 mm
- Lid fixes with M3 x 10 mm machine screws into brass inserts
- Includes box, lid, 4 cover screws and installed brass inserts (black screws)

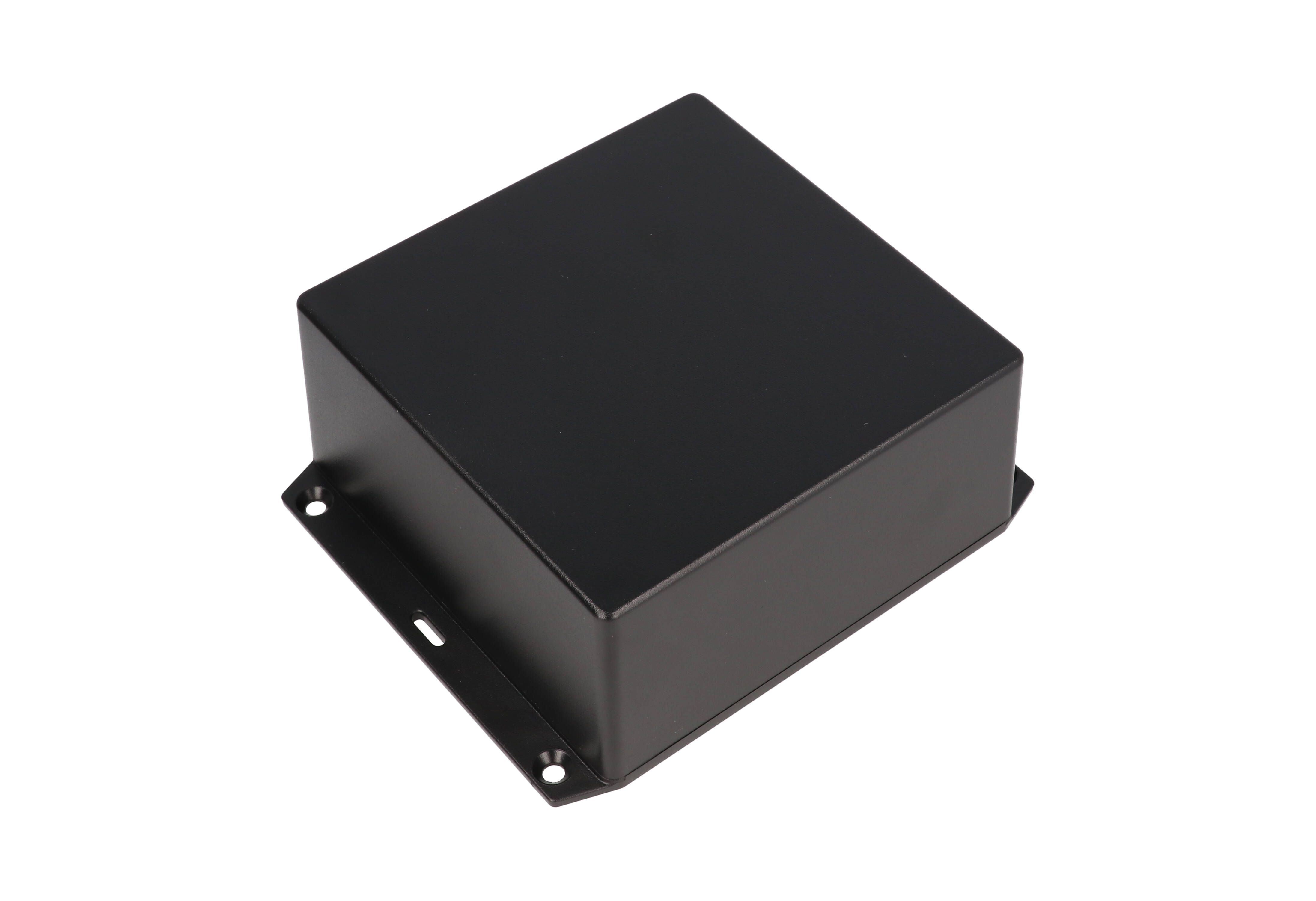

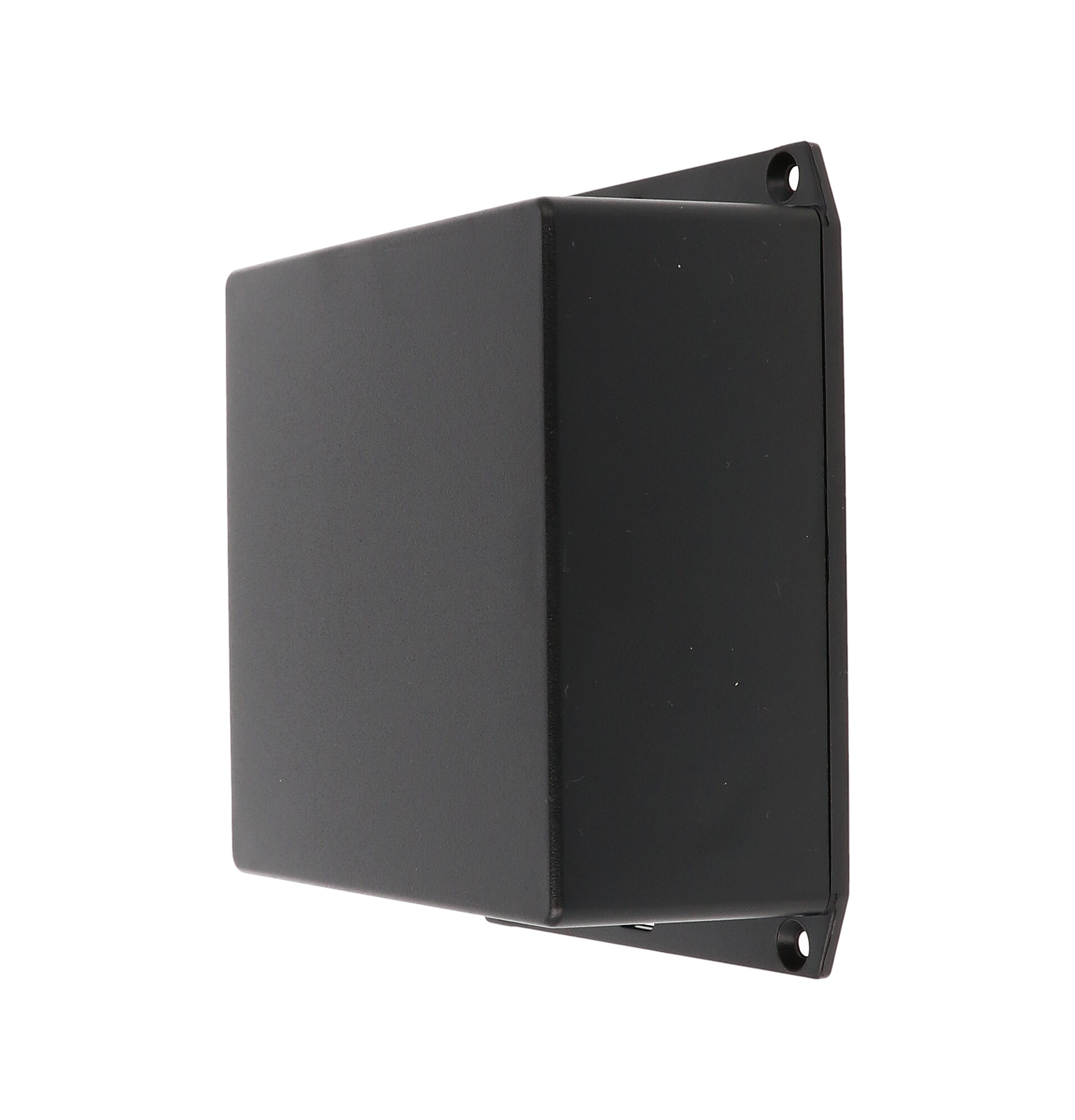

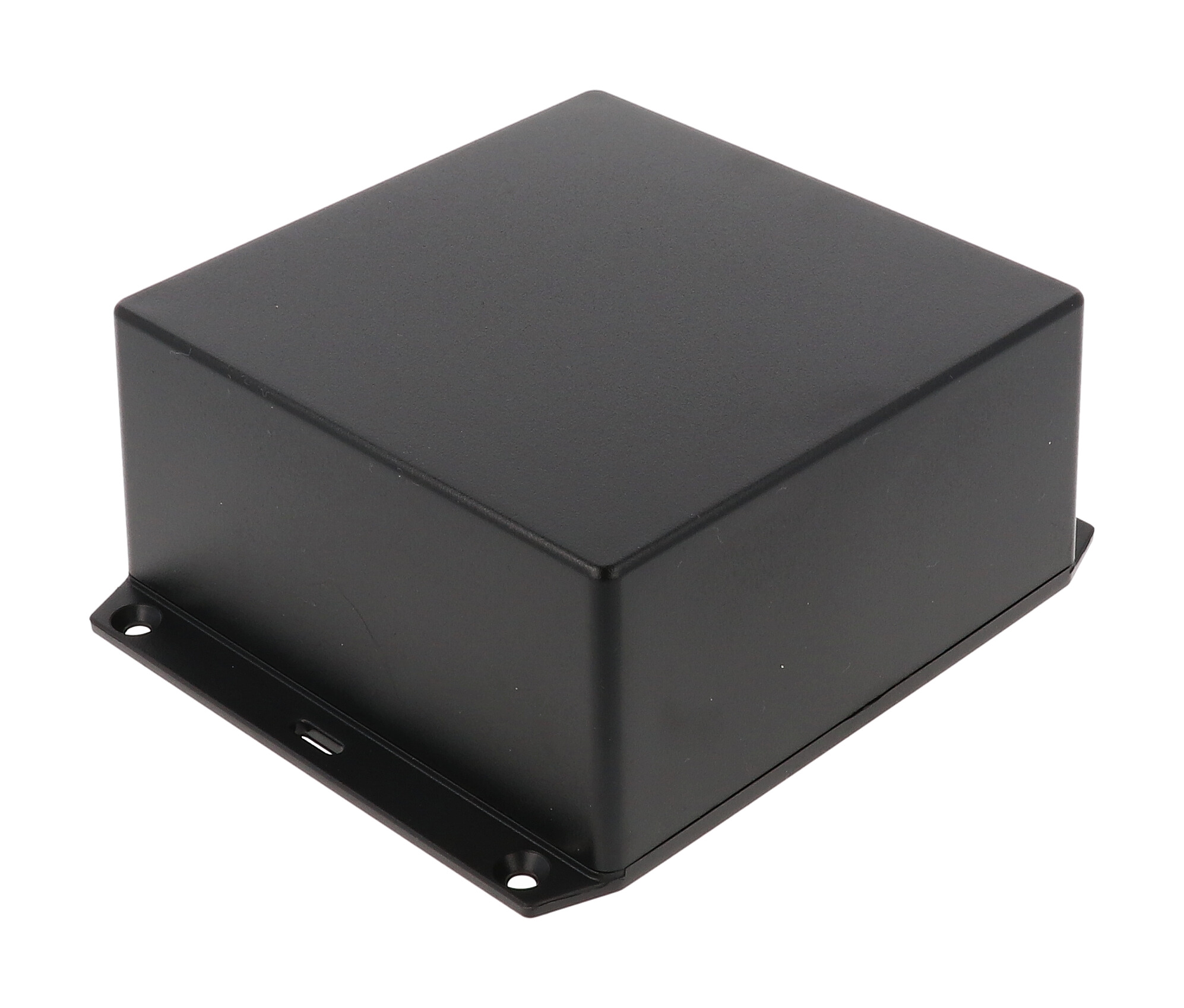

The 1591XXUFLBK is the black flanged-lid version of the square U-size 1591XX enclosure, molded in UL94 V-0 flame retardant ABS with four countersunk flange holes for wall or shelf mounting. It is aimed at electronics designers and OEM engineers.
The box and flanged lid are molded from flame retardant ABS (FRABS) carrying a UL94 V-0 flammability rating, in a black textured finish. The lid is secured with M3 x 10 mm (M3-0.5) Phillips machine screws threaded into integral brass inserts, suited to repeated opening and closing. The purchased assembly includes the box, lid, 4 cover screws and installed brass inserts; black enclosures come with black screws. The enclosure is designed to meet IP54, providing protection against access of dust and splashing water.
Outside, the drawing gives 123.50 mm [4.86 in] long, 123.50 mm [4.86 in] wide and 59.90 mm [2.36 in] high, with the flanged lid extending the overall length to 147.36 mm [5.80 in]. Inside there is 115.66 mm [4.55 in] of length, 115.66 mm [4.55 in] of width and 55.40 mm [2.18 in] of height, with a 2.00 mm [.08 in] wall. The largest PCB listed for this part is 114 mm x 114 mm, and it can be fitted in the box or in the lid; the board is not supplied.
- PCB posts in both box and lid accept #4 x 1/4" self-tapping screws (not included).
- Internal sides are smooth for easy connector installation.
- Four molded countersunk holes (4X 5.00 mm thru, 9.00 mm x 82° countersink) in the flange allow installation to a wall or shelf, and an oval hole in each side of the flange lets the unit be strapped or hung with tie wraps.
- Recommended lid screw torque: (43-50) ozf.in / (30-35) cN.m.
The 1591XXUFLBK is RoHS and REACH compliant, ships in shrink wrap and has a shipping weight of 0.3 lbs (0.14 kg). It can be factory modified (milling, drilling, printing), and solid models are available in STEP or IGES.
Ideal For
- Housing horizontally mounted printed circuit boards
- Electronics projects and prototypes needing a small project box
- Enclosures that are opened and closed repeatedly for service
- Wall or shelf mounted electronics using the flanged lid
Overview
| Type | general purpose, flanged |
| Series | 1591XX ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Version | Enclosure with mounting flanges (flanged lid) |
| Description | enclosure - plastic |
| Part Number | 1591XXUFLBK |
| Short Description | 1591XXU BK FLANGED LID FRABS |
| Ordering Table Group | Flame Retardant Plastic · w/ Brass Screw Inserts · Black |
Dimensions
| Box Height | 57.15 mm [2.25 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 115.66 mm [4.55 in] |
| Inside Height | 55.40 mm [2.18 in] |
| Inside Length | 115.66 mm [4.55 in] |
| Wall Thickness | 2.00 mm [.08 in] |
| Depth (Ordering Table) | 2.36 in (60 mm) |
| Width (Ordering Table) | 4.88 in (124 mm) |
| Length (Ordering Table) | 4.88 in (124 mm) |
| Overall Width (Drawing) | 123.50 mm [4.86 in] |
| Nominal Size (L X W X H) | 4.86 in x 4.86 in x 2.25 in (123 mm x 123 mm x 57 mm) |
| Overall Height (Drawing) | 59.90 mm [2.36 in] |
| Overall Length (Drawing) | 123.50 mm [4.86 in] |
| Overall Length Incl. Lid Flange | 147.36 mm [5.80 in] |
Identifiers
| UPC | 623980572819 |
| UNSPSC | 39121301 |
PCB Mounting
| PC Board | Not supplied with enclosure |
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Notes (Drawing) | Max size PCB fits in box or lid; 90 mm box PCB; 85 mm lid PCB |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screw (not included) |
| Max. P.C. Board Width | 114 mm |
| Max. P.C. Board Length | 114 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.3 lbs (0.14 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured |
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic (FRABS, flame retardant) |
| Cover Screws | 4, black |
| Solid Models | STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws into installed brass inserts |
| Mounting Flange | Integrated into lid; four molded countersunk holes for wall or shelf installation; oval hole in each side for strapping or hanging with tie wraps |
| P.C. Board Screws | 1593ATS50 (pkg 50) or 1593ATS100 (pkg 100), #4 x 1/4" self-tapping |
| Factory Modification | Milling, drilling, printing available from the factory |
| Replacement Lid Screws | 1591MS100 (nickel plated, pkg 100) or 1591MS100BK (black, pkg 100), M3-0.5 x 10 mm |
| Recommended Lid Screw Torque | (43-50) ozf.in / (30-35) cN.m |
Environmental & Protection
| IP Rating | IP54 |
| Protection | Against access of dust and splashing water |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1591XXUFLBK?▾
The drawing gives an inside length of 115.66 mm [4.55 in], inside width of 115.66 mm [4.55 in] and inside height of 55.40 mm [2.18 in], with a 2.00 mm wall. Outside it measures 123.50 mm [4.86 in] x 123.50 mm [4.86 in] x 59.90 mm [2.36 in] before the lid flange, which brings overall length to 147.36 mm [5.80 in].
What size circuit board fits?▾
The maximum P.C. board listed is 114 mm x 114 mm (the drawing notes a 90 mm box PCB and 85 mm lid PCB). It can be mounted in the box or in the lid on the integral standoffs, which accept #4 x 1/4" self-tapping screws. The board and PCB screws are not included; PCB screws are sold as 1593ATS50 or 1593ATS100.
Is it flame retardant?▾
Yes. The 1591XXUFLBK is molded from flame retardant ABS with a UL94 V-0 flammability rating.
How is the lid fastened and what is included?▾
The lid is secured with four black M3-0.5 x 10 mm machine screws into installed brass inserts, suited to repeated assembly and disassembly. The purchased assembly includes box, lid, 4 cover screws and installed brass inserts. Replacement screws: 1591MS100 (nickel plated) or 1591MS100BK (black), packs of 100.
Is the enclosure weather or dust resistant?▾
It is designed to meet IP54, providing protection against access of dust and splashing water.
How do I mount the flanged lid?▾
The lid has integrated mounting flanges with four molded countersunk holes (4X 5.00 mm thru, 9.00 mm x 82° countersink) for installation to a wall or shelf. An oval hole in each side of the flange also allows the unit to be strapped or hung with tie wraps.
