Hammond 1591XXUSFLBK 123mm Square Black Economy Flanged Lid Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Mounting flange integrated into the lid with four countersunk holes and oval tie-wrap slots
- Economy general purpose ABS rated UL94 HB, black
- Designed to meet IP54 against dust and splashing water
- 123 x 123 x 57 mm body, 147.36 mm overall length with flange
- Black #4 x 1/2" self-tapping lid screws into plastic posts
- PC board posts in box and lid for boards up to 114 x 114 mm
- RoHS and REACH compliant

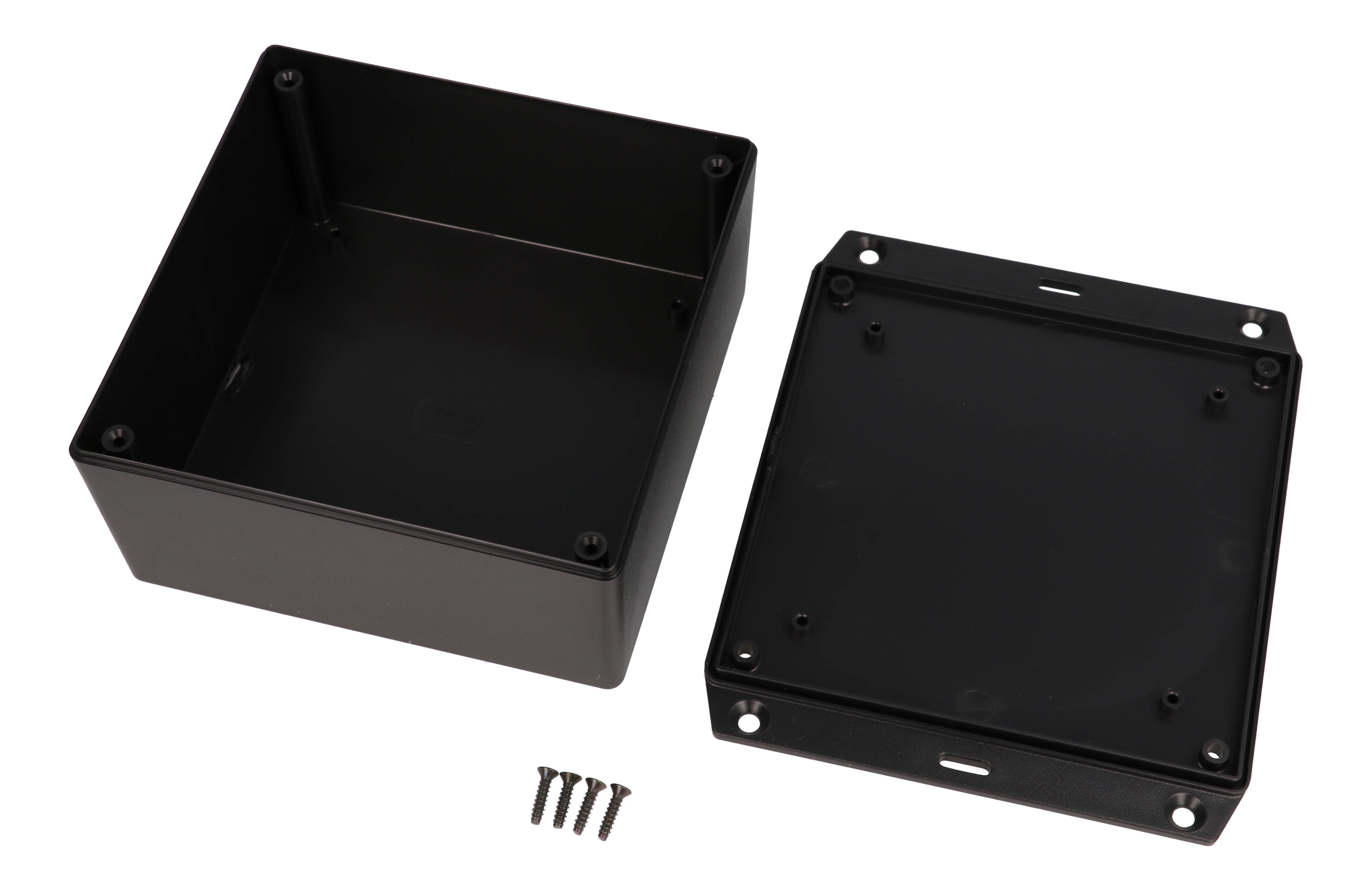

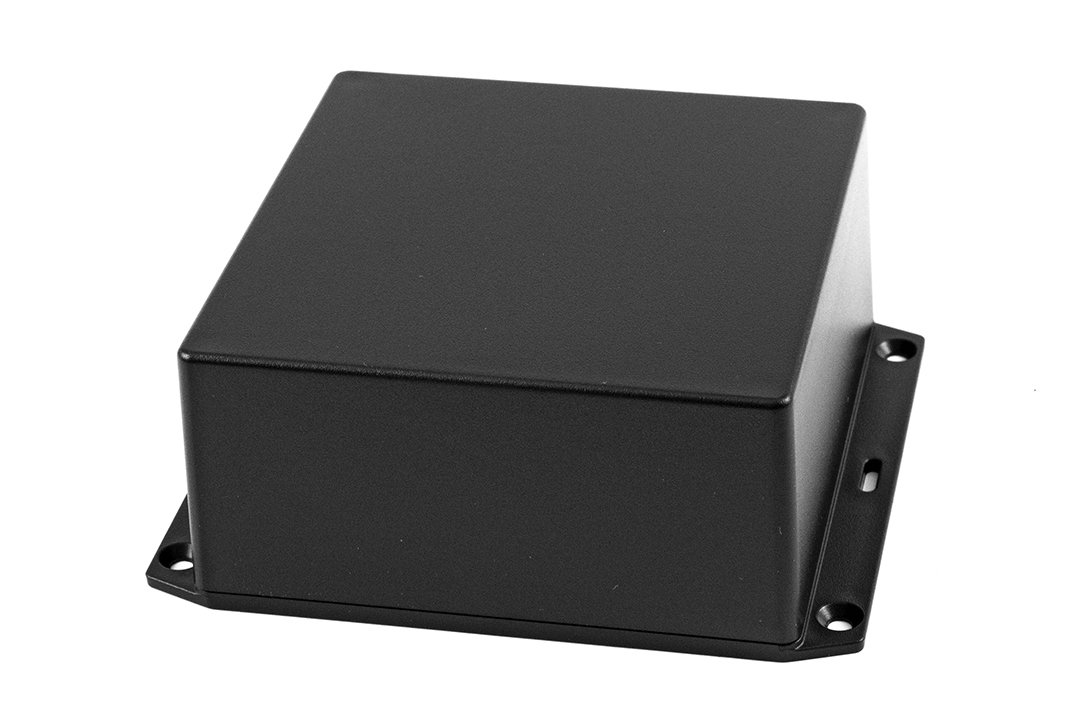

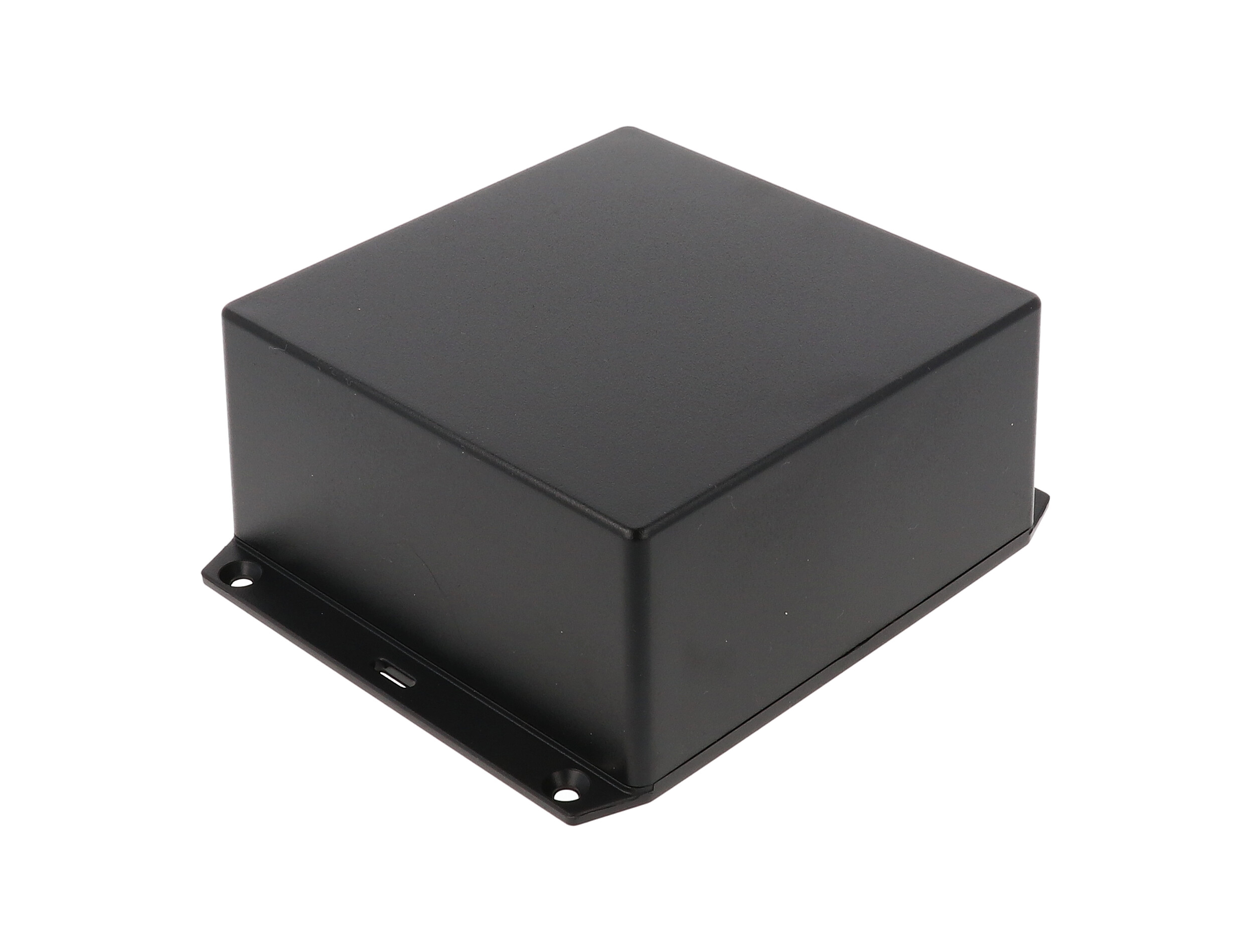

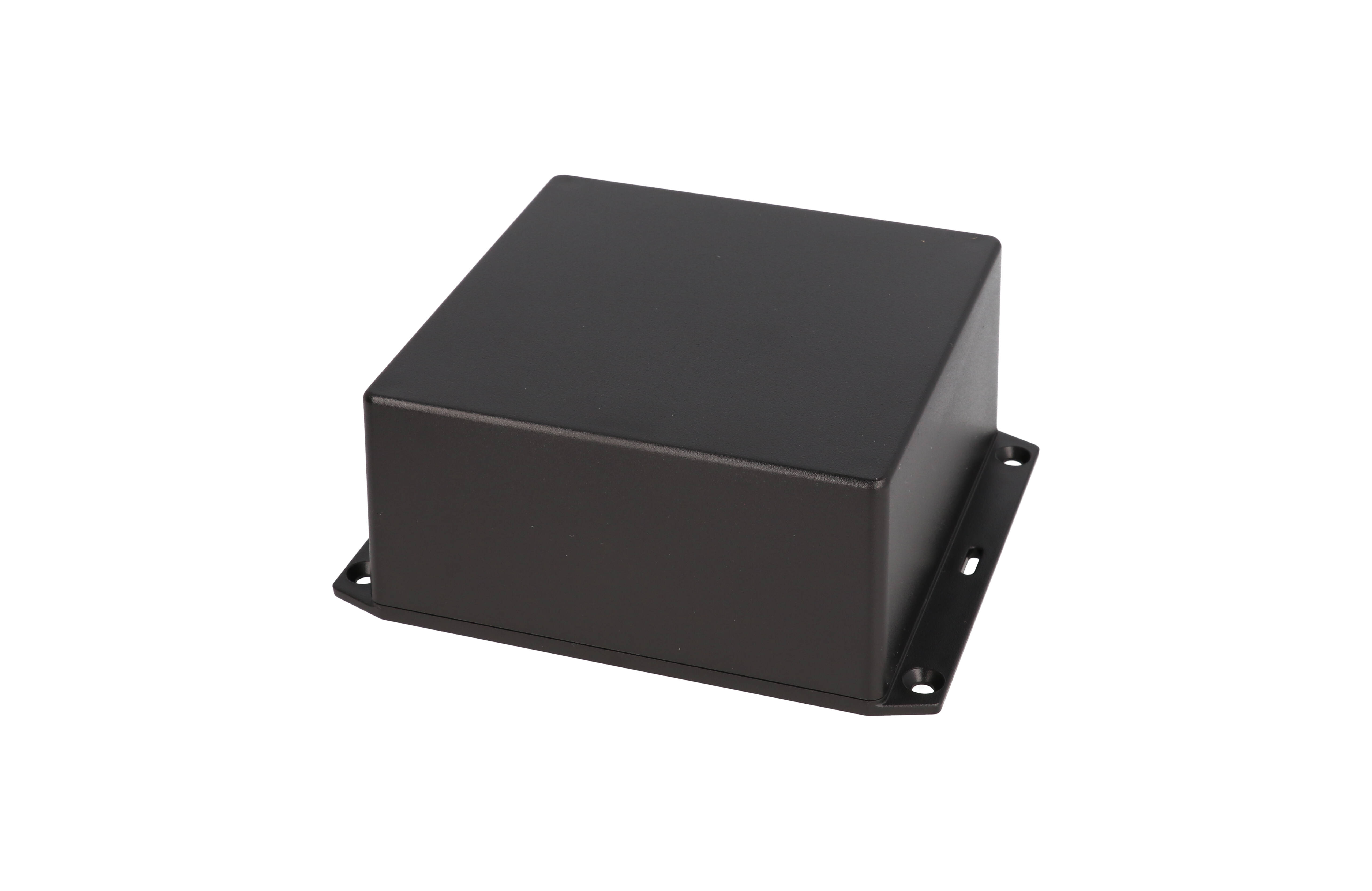

The 1591XXUSFLBK combines the economy construction of the 1591XX series with a mounting flange integrated into the lid. The body measures 4.86 in x 4.86 in x 2.25 in (123 mm x 123 mm x 57 mm), and the flange extends the overall length to 147.36 mm, making it a practical choice for panel builders and OEMs who need to fix a small electronics box to a wall or shelf.
It is molded in black general purpose ABS that is not flame retardant, with a UL94 HB flammability rating, and is designed to meet IP54 for protection against dust and splashing water. The lid is assembled with four black #4 x 1/2" self-tapping screws into fully plastic posts; recommended torque is 35-43 ozf.in (25-30 cN.m).
Four molded countersunk holes (5.00 mm thru) in the flange allow easy installation, and an oval hole on each side of the flange lets the unit be strapped or hung with tie wraps. Inside, the box offers 115.66 mm x 115.66 mm x 55.40 mm of space with 2.00 mm walls and smooth sides for fitting connectors.
Integral posts in the box and lid accept #4 x 1/4" self-tapping PC board screws (not included), with a listed maximum board size of 114 mm x 114 mm. The 1591XXUSFLBK ships in shrink wrap with box, lid and 4 cover screws, and is RoHS and REACH compliant.
Ideal For
- Wall or shelf mounted electronics
- Tie-wrap mounted housings
- Low-cost PCB enclosure
- Horizontal circuit board mounting
Mounting
| Flange | Integrated into the lid |
| Flange Features | Four molded countersunk holes for wall or shelf installation; oval hole in each side of flange for tie-wrap strapping or hanging |
Overview
| Type | general purpose, flanged |
| Series | 1591XX Series ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Version | General Purpose ABS w/ Self Tapping Screws (economy), Enclosure With Mounting Flanges |
| Description | enclosure - plastic |
| Part Number | 1591XXUSFLBK |
| Customization | Factory modification available (milling, drilling, printing); solid models in STEP or IGES |
| Short Description | GPABS PLASTIC CASE |
Dimensions
| Box Height | 57.15 mm [2.25 in] |
| Lid Height | 6.50 mm [0.26 in] |
| Inside Width | 115.66 mm [4.55 in] |
| Inside Height | 55.40 mm [2.18 in] |
| Inside Length | 115.66 mm [4.55 in] |
| Size (L X W X H) | 4.86 in x 4.86 in x 2.25 in (123 mm x 123 mm x 57 mm) |
| Overall Depth (Box And Lid) | 59.90 mm [2.36 in] |
| Overall Length With Flange (Drawing) | 147.36 mm [5.80 in] |
| Nominal Size (L X W X D, Series Table) | 4.88 in x 4.88 in x 2.36 in (124 mm x 124 mm x 60 mm) |
Accessories
| PC Board Screws | 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| Replacement Cover Screws (#4 X 1/2" Self-tapping) | 1591TS100 (plated, pkg 100), 1591TS100BK (black, pkg 100) |
Identifiers
| UPC | 623980572857 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Posts | Box and lid PCB posts accept #4 x 1/4" self-tapping screws (not included) |
| Max. P.C. Board Width | 114 mm |
| Max PCB Size (Drawing) | 114.00 mm [4.49 in] / 96.80 mm [3.81 in]; fits in box or lid; PCB not supplied |
| Max. P.C. Board Length | 114 mm |
| PCB Post Reference (Drawing) | 90 mm box PCB / 85 mm lid PCB |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.3 lbs (0.14 kg) |
Construction & Finish
| Color | Black |
| Finish | Black textured |
| Included | Box, lid and 4 cover screws |
| Material | ABS Plastic (GPABS, not flame retardant) |
| Flame Rating | UL94 HB |
| Screw Finish | Black |
| Lid Fastening | #4 x 1/2" self-tapping screws into plastic posts |
| Internal Sides | Smooth, for easy connector installation |
| Wall Thickness | 2.00 mm [0.08 in] |
| Recommended Torque | (35-43) ozf.in / (25-30) cN.m |
Environmental & Protection
| IP Rating | IP54 (protection against access of dust and splashing water) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How do I mount the 1591XXUSFLBK?▾
Use the four molded countersunk holes in the lid flange to fix it to a wall or shelf, or pass tie wraps through the oval hole on each side of the flange to strap or hang it.
Is it flame retardant?▾

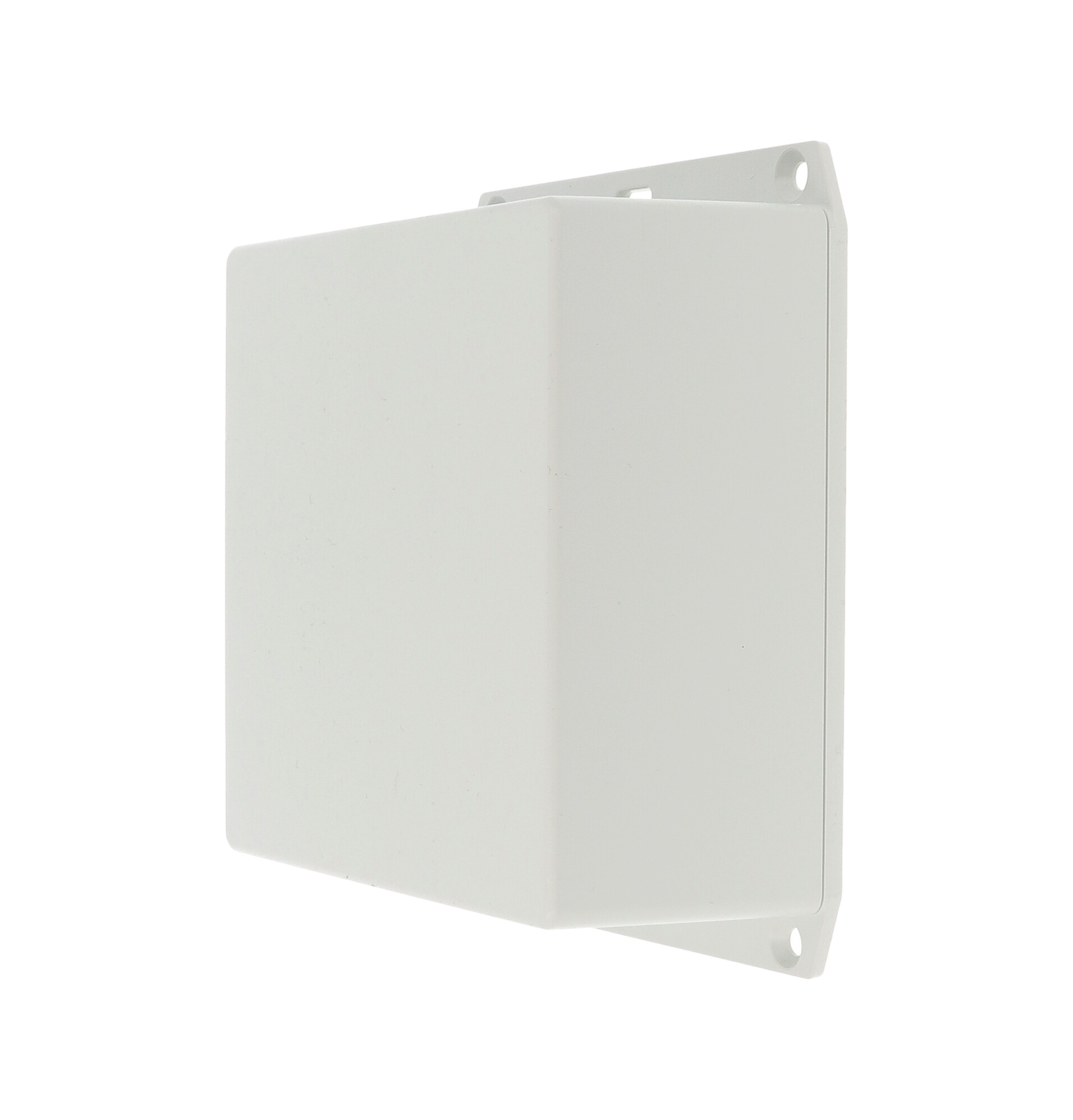

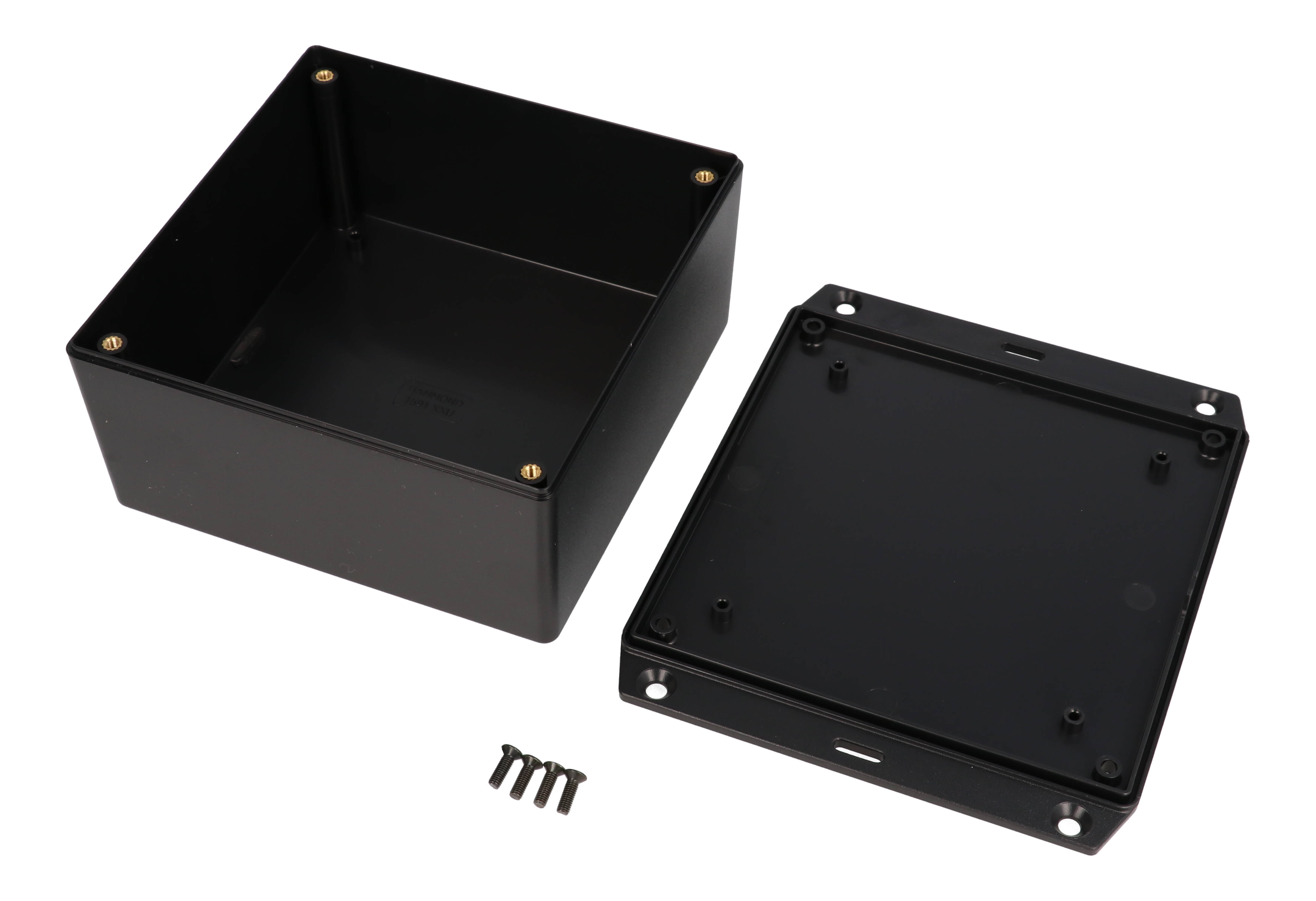

No. This economy version is molded from general purpose ABS with a UL94 HB flammability rating. Flame retardant flanged versions are the 1591XXUFLBK and 1591XXUFLGY.
What is the overall length including the flange?▾
147.36 mm [5.80 in]; the enclosure body is 123 mm x 123 mm x 57 mm.
What is included?▾
The box, lid and 4 cover screws. PC board screws are not included.
What IP rating is it designed for?▾
IP54, protecting against dust and splashing water.
