Hammond 1591XXSGY Gray UL94 V-0 Abs Project Box, 113x85x44 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4.45 in x 3.35 in x 1.73 in enclosure in light gray ABS
- UL94 V-0 flame retardant ABS
- Designed to meet IP54 against dust and splashing water
- Integral PCB standoffs in box and lid; max PCB 77.9 x 105.79 mm
- Lid fixes with M3 x 10 mm machine screws into brass inserts
- Includes box, lid, 4 cover screws and installed brass inserts (nickel plated screws)
- Optional mounting flange sold separately: 1591FSBK / 1591FSGY

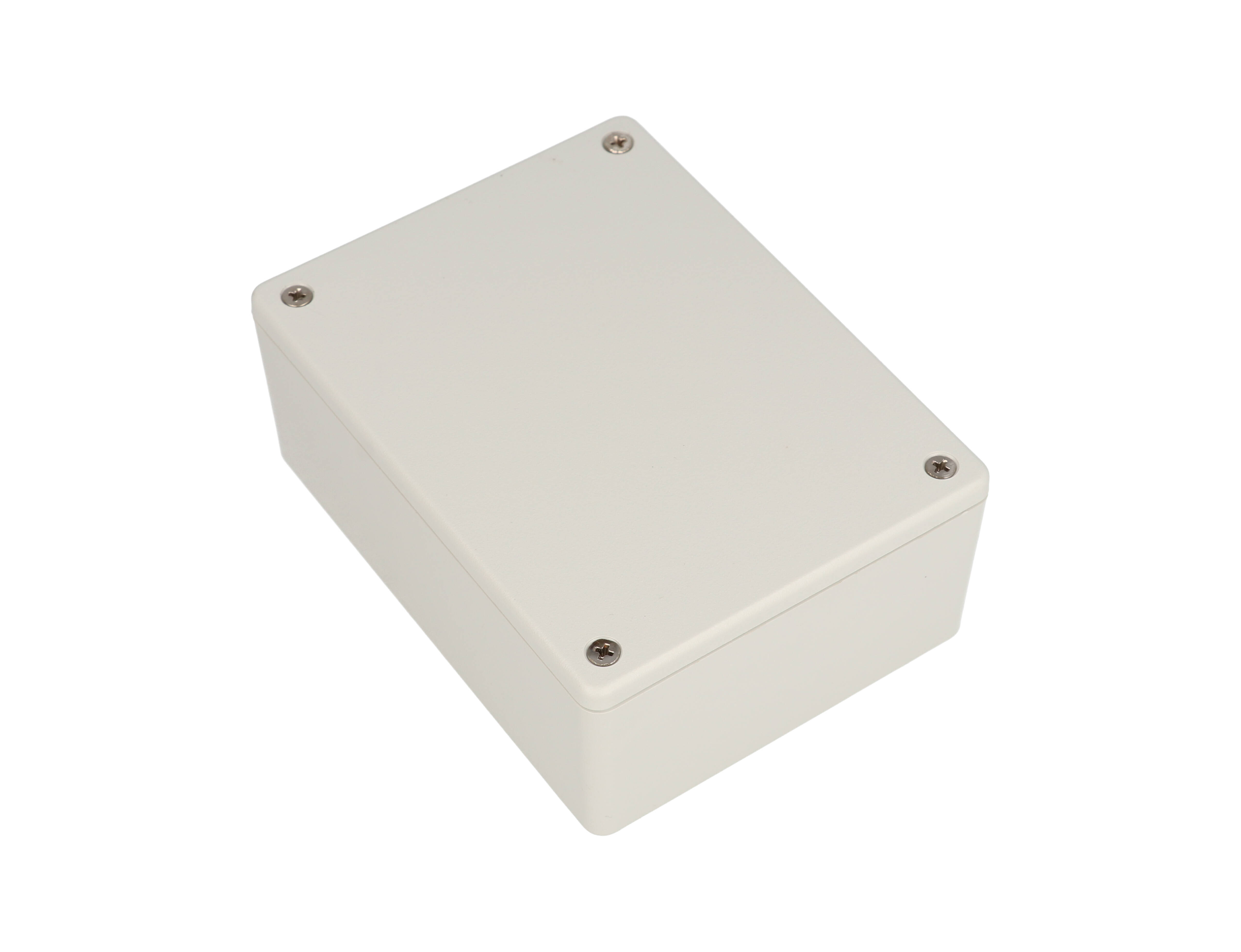

The 1591XXSGY is a light gray S-size project box from the 1591XX series, molded in UL94 V-0 flame retardant ABS for electronics that mount a printed circuit board horizontally. It is aimed at electronics designers and OEM engineers.
The box and lid are molded from flame retardant ABS (FRABS) carrying a UL94 V-0 flammability rating, in a light gray textured finish. The lid is secured with M3 x 10 mm (M3-0.5) Phillips machine screws threaded into integral brass inserts, suited to repeated opening and closing. The purchased assembly includes the box, lid, 4 cover screws and installed brass inserts; light gray enclosures come with nickel plated screws. The enclosure is designed to meet IP54, providing protection against access of dust and splashing water.
Outside, the drawing gives 112.52 mm [4.43 in] long, 84.62 mm [3.33 in] wide and 44.00 mm [1.73 in] high. Inside there is 105.95 mm [4.17 in] of length, 78.05 mm [3.07 in] of width and 40.00 mm [1.57 in] of height, with a 2.00 mm [.08 in] wall. The largest PCB listed for this part is 77.9 mm x 105.79 mm, and it can be fitted in the box or in the lid; the board is not supplied.
- PCB posts in both box and lid accept #4 x 1/4" self-tapping screws (not included).
- Internal sides are smooth for easy connector installation.
- Accessory mounting flanges are available separately: 1591FSBK (black) or 1591FSGY (grey).
- Recommended lid screw torque: (43-50) ozf.in / (30-35) cN.m.
The 1591XXSGY is RoHS and REACH compliant, ships in shrink wrap and has a shipping weight of 0.2 lbs (0.09 kg). It can be factory modified (milling, drilling, printing), and solid models are available in STEP or IGES.
Ideal For
- Housing horizontally mounted printed circuit boards
- Electronics projects and prototypes needing a small project box
- Enclosures that are opened and closed repeatedly for service
- Custom enclosures requiring factory milling, drilling or printing
Overview
| Type | project box, general purpose |
| Series | 1591XX ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Version | Enclosure without mounting flanges |
| Description | enclosure - plastic |
| Part Number | 1591XXSGY |
| Short Description | 1591XXS GREY FRABS |
| Ordering Table Group | Flame Retardant Plastic · w/ Brass Screw Inserts · Gray |
Dimensions
| Box Height | 41.25 mm [1.62 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 78.05 mm [3.07 in] |
| Inside Height | 40.00 mm [1.57 in] |
| Inside Length | 105.95 mm [4.17 in] |
| Wall Thickness | 2.00 mm [.08 in] |
| Depth (Ordering Table) | 1.73 in (44 mm) |
| Width (Ordering Table) | 3.35 in (85 mm) |
| Length (Ordering Table) | 4.45 in (113 mm) |
| Overall Width (Drawing) | 84.62 mm [3.33 in] |
| Nominal Size (L X W X H) | 4.3 in x 3.2 in x 1.6 in (109 mm x 81 mm x 41 mm) |
| Overall Height (Drawing) | 44.00 mm [1.73 in] |
| Overall Length (Drawing) | 112.52 mm [4.43 in] |
Identifiers
| UPC | 623980035444 |
| UNSPSC | 39121301 |
PCB Mounting
| PC Board | Not supplied with enclosure |
| PCB Location | Max size PCB fits in box or in lid |
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screw (not included) |
| Max. P.C. Board Width | 105.79 mm |
| Max. P.C. Board Length | 77.9 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.2 lbs (0.09 kg) |
Construction & Finish
| Color | Light Gray |
| Finish | Textured |
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic (FRABS, flame retardant) |
| Cover Screws | 4, nickel plated |
| Solid Models | STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws into installed brass inserts |
| P.C. Board Screws | 1593ATS50 (pkg 50) or 1593ATS100 (pkg 100), #4 x 1/4" self-tapping |
| Factory Modification | Milling, drilling, printing available from the factory |
| Replacement Lid Screws | 1591MS100 (nickel plated, pkg 100) or 1591MS100BK (black, pkg 100), M3-0.5 x 10 mm |
| Recommended Lid Screw Torque | (43-50) ozf.in / (30-35) cN.m |
| Accessory Mounting Flange (Sold Separately) | 1591FSBK (black ABS), 1591FSGY (grey ABS) |
Environmental & Protection
| IP Rating | IP54 |
| Protection | Against access of dust and splashing water |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1591XXSGY?▾
The drawing gives an inside length of 105.95 mm [4.17 in], inside width of 78.05 mm [3.07 in] and inside height of 40.00 mm [1.57 in], with a 2.00 mm wall. Outside it measures 112.52 mm [4.43 in] x 84.62 mm [3.33 in] x 44.00 mm [1.73 in].
What size circuit board fits?▾
The maximum P.C. board listed is 77.9 mm x 105.79 mm. It can be mounted in the box or in the lid on the integral standoffs, which accept #4 x 1/4" self-tapping screws. The board and PCB screws are not included; PCB screws are sold as 1593ATS50 or 1593ATS100.
Is it flame retardant?▾
Yes. The 1591XXSGY is molded from flame retardant ABS with a UL94 V-0 flammability rating.
How is the lid fastened and what is included?▾
The lid is secured with four nickel plated M3-0.5 x 10 mm machine screws into installed brass inserts, suited to repeated assembly and disassembly. The purchased assembly includes box, lid, 4 cover screws and installed brass inserts. Replacement screws: 1591MS100 (nickel plated) or 1591MS100BK (black), packs of 100.
Is the enclosure weather or dust resistant?▾
It is designed to meet IP54, providing protection against access of dust and splashing water.
Can I add mounting flanges?▾
Yes. Accessory ABS mounting flanges for this size are sold separately: 1591FSBK (black) or 1591FSGY (grey).
