Hammond 1591XXASFLBK 101mm Black Economy Flanged-Lid ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Economy build: #4 x 1/2" self-tapping lid screws into plastic posts
- Lid-integrated flanges with four countersunk mounting holes
- Oval flange holes for tie-wrap strapping or hanging
- General purpose ABS, UL94 HB, black textured
- 124.62 mm overall with flanges; inside 95.65 x 46.15 x 21.00 mm
- PCB standoffs in box and lid; max PCB 94.00 x 44.50 mm
- Designed to meet IP54

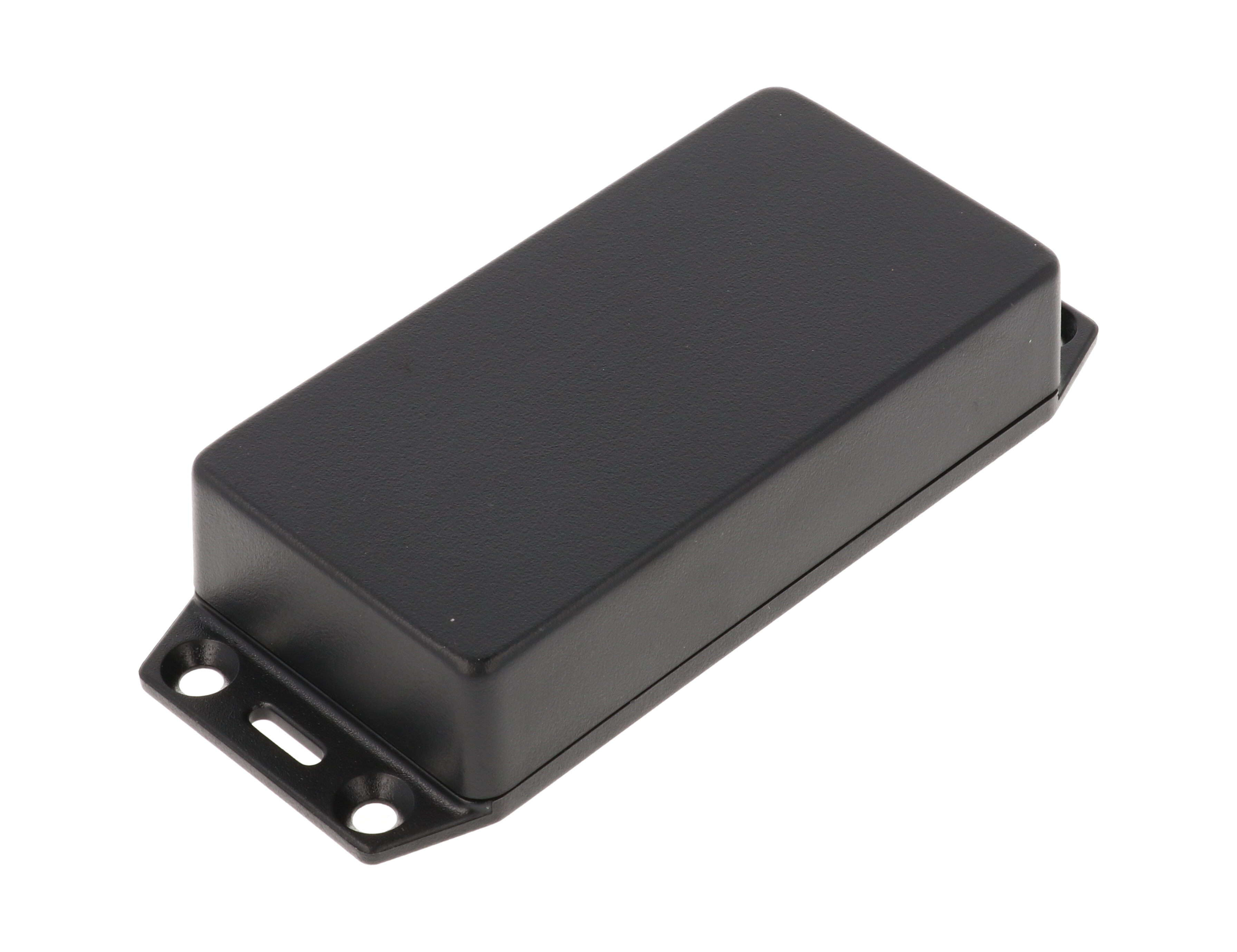

The 1591XXASFLBK combines the economy construction of the 1591XX series with a flanged mounting lid in the 101 x 51 x 25 mm (nominal) 1591XXA size. Mounting flanges integrated into the lid carry four molded countersunk holes for wall or shelf installation, and an oval hole on each side of the flange lets the unit be strapped or hung via tie wraps.

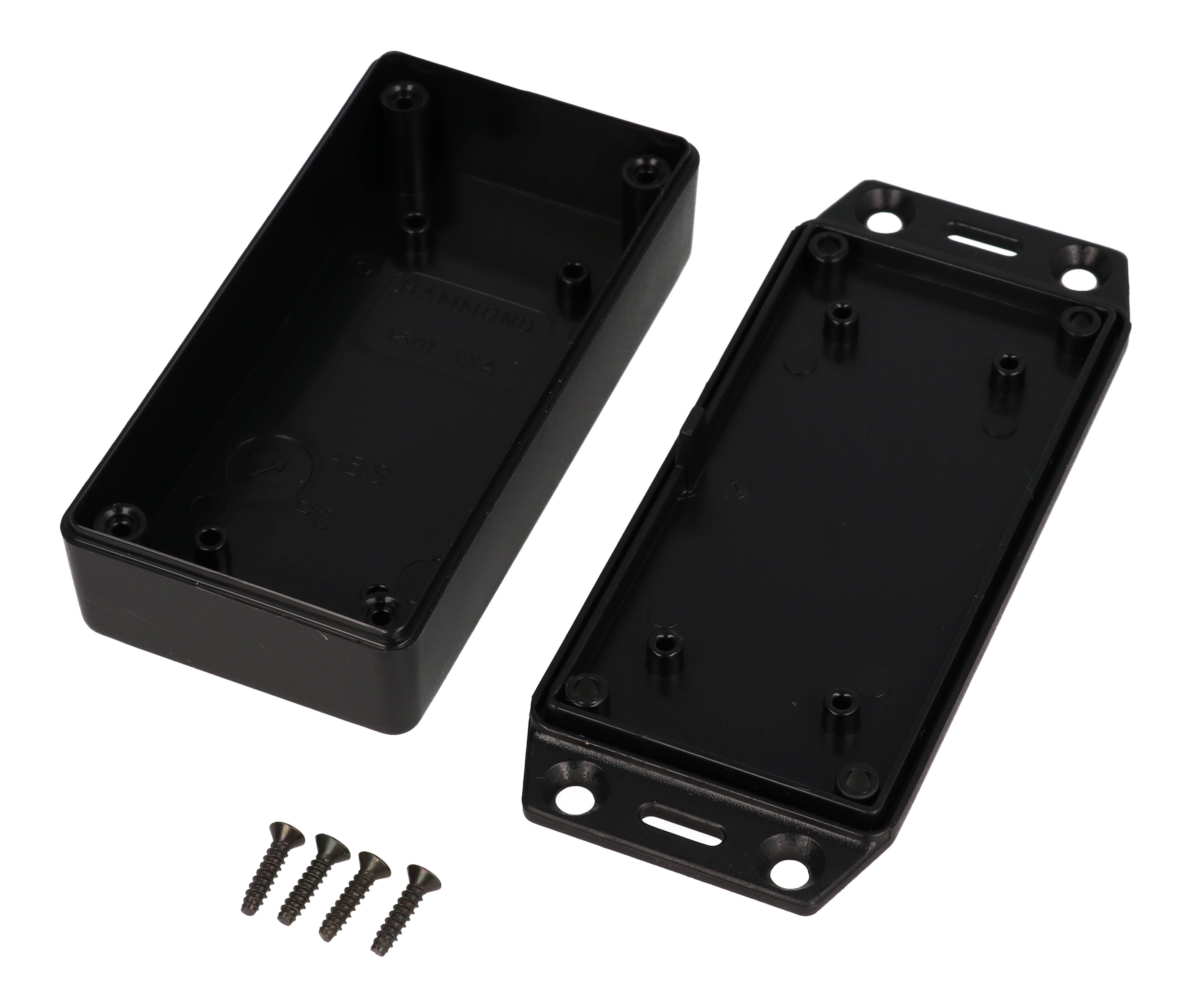

As an economy version it is molded from general purpose plastic that is not flame retardant; the drawing specifies GPABS and the part data gives a UL94 HB rating. The lid is assembled with #4 x 1/2" self-tapping screws into fully plastic posts, and black enclosures include black screws. The package contains box, lid and 4 cover screws, with a recommended torque of (35-43) ozf.in / (25-30) cN.m.
Including flanges, the overall length is 124.62 mm; the flange holes are 5.00 mm thru with a 9.00 mm x 82° countersink. The interior measures 95.65 x 46.15 x 21.00 mm with smooth sides and integral PCB standoffs in both box and lid for a board up to 94.00 x 44.50 mm. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.
The 1591XXASFLBK is designed to meet IP54, is RoHS and REACH compliant, and ships shrink wrapped at 0.09 lbs (0.04 kg). Replacement lid screws are 1591TS100BK (black) or 1591TS100 (plated).
Ideal For
- Wall or shelf mounted electronics
- Units strapped or hung with tie wraps
- Mounting printed circuit boards horizontally
- Cost-conscious general purpose project box
Mounting
| Strapping | Oval hole in each side of flange allows the unit to be strapped or hung via tie wraps |
| Mounting Flanges | Integrated into the lid |
| Flange Mounting Holes | 4x 5.00 mm thru, 9.00 mm x 82° countersunk |
Overview
| Type | general purpose, flanged |
| Colour | Black (textured) |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXASFLBK |
| Ordering Table | Enclosures With Mounting Flanges |
| Short Description | GP ABS PLASTIC CASE |
Dimensions
| Box Height | 22.25 mm [.88 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 46.15 mm [1.82 in] |
| Inside Height | 21.00 mm [.83 in] |
| Inside Length | 95.65 mm [3.77 in] |
| Size L X W X H | 3.9 in x 2 in x 0.8 in (99 mm x 51 mm x 20 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.01 in (51 mm) |
| Nominal Size – Length | 3.98 in (101 mm) |
| Overall Width (Drawing) | 51.40 mm [2.02 in] |
| Overall Height (Drawing) | 25.00 mm [.98 in] |
| Overall Length (Drawing) | 100.90 mm [3.97 in] |
| Nominal Size – Enclosure Depth | 0.98 in (25 mm) |
| Overall Length Including Lid Flanges | 124.62 mm [4.91 in] |
Identifiers
| UPC | 623980011721 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| Max PCB Size (Drawing) | 94.00 mm [3.70 in] x 44.50 mm [1.75 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 94 |
| Max. P.C. Board Length (Mm) | 44.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.09 lbs (0.04 kg) |
Construction & Finish
| Included | Box, lid and 4 cover screws |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | Economy version: #4 x 1/2" self-tapping cover screws into fully plastic posts |
| Material Grade | General purpose ABS (not flame retardant) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (35-43) ozf.in / (25-30) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | #4 x 1/2" self-tapping cover screws: 1591TS100BK (Black, 100 pkg), 1591TS100 (Plated, 100 pkg) |
| Molded From (Drawing Note) | GPABS plastic |
| Included Cover Screw Colour | Black |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591XXASFLBK flame retardant?▾
No. Economy versions use general purpose plastic that is not flame retardant; the flame rating is UL94 HB.
How is the lid fastened?▾
With #4 x 1/2" self-tapping screws into fully plastic posts; 4 are included.
How do I mount it?▾
Use the four countersunk holes (5.00 mm thru, 9.00 mm x 82°) in the lid flanges, or strap it through the oval hole in each side of the flange with tie wraps.
What is the shipping weight?▾
0.09 lbs (0.04 kg).
What replacement screws fit?▾
1591TS100BK (black) or 1591TS100 (plated), packs of 100.
