Hammond 1591XXABK 101mm Black Flame-Retardant Abs Pcb Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flame retardant ABS rated UL94 V-0, black textured finish
- Nominal 101 x 51 x 25 mm; inside 95.65 x 46.15 x 21.00 mm
- Integral PCB standoffs in box and lid; max PCB 94.00 x 44.50 mm
- M3 x 10 mm lid screws into installed brass inserts for repeated access
- Designed to meet IP54 against dust and splashing water
- Smooth internal sides for easy connector installation
- Optional mounting flange 1591FABK / 1591FAGY sold separately

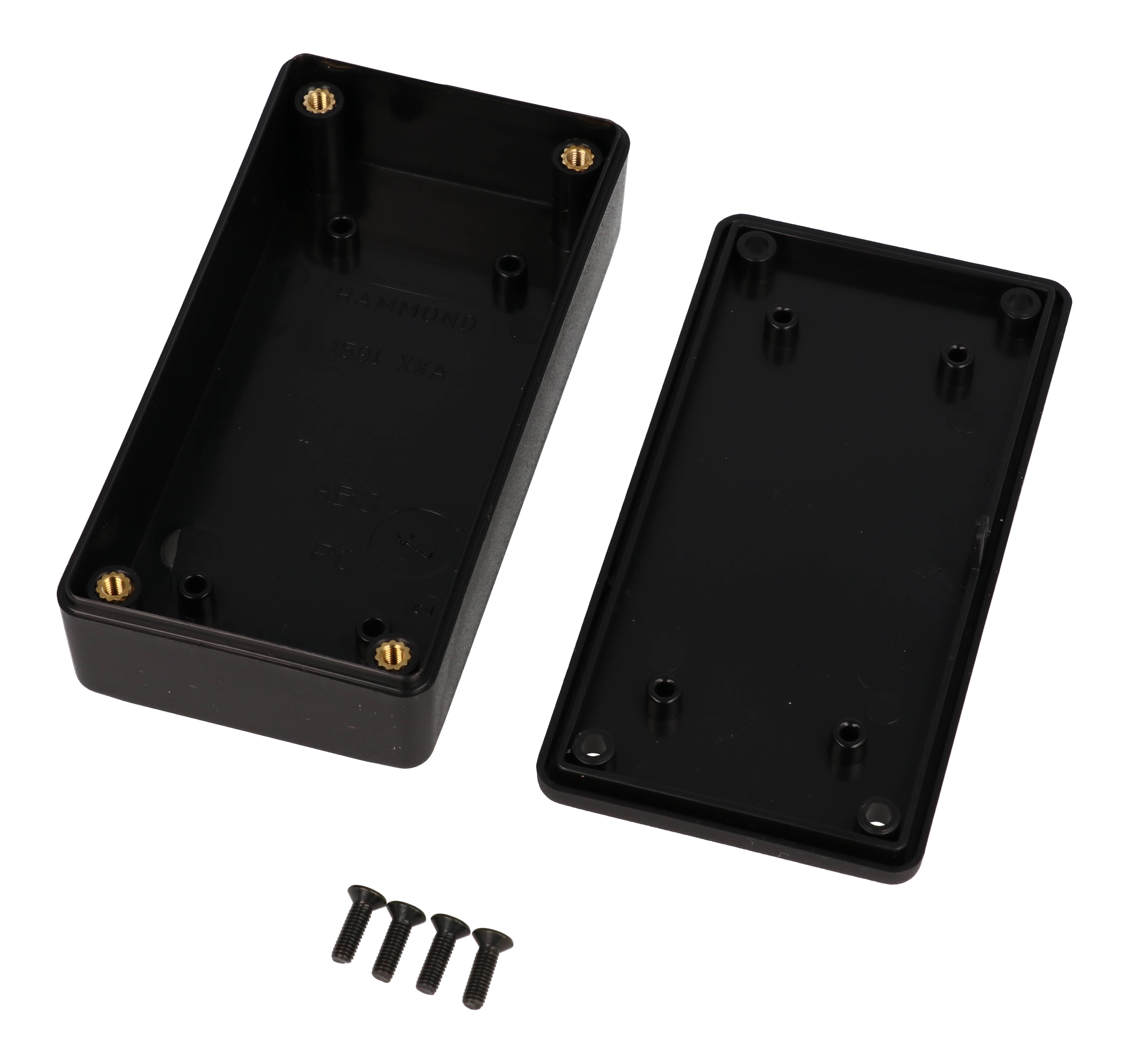

The 1591XXABK is a black, flame retardant ABS enclosure in the 1591XX multi-purpose series, built for mounting a printed circuit board horizontally. At a nominal 101 x 51 x 25 mm it is one of the slimmer sizes in the range and suits OEM engineers and integrators packaging a small board.
The textured black box is molded from easy-to-machine flame retardant ABS carrying a UL94 V-0 flammability rating. Internal sides are smooth for easy connector installation, and both the lid and the box contain integral PC board standoffs. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.
On this standard version the lid is secured with M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings, which suits applications with repeated assembly and disassembly. The purchased assembly includes box, lid, 4 black cover screws and installed brass inserts; recommended torque is (43-50) ozf.in / (30-35) cN.m. The enclosure provides protection against dust and splashing water and is designed to meet IP54.
The drawing shows overall dimensions of 100.90 x 51.40 x 25.00 mm, an inside cavity of 95.65 x 46.15 x 21.00 mm and a 2.00 mm wall. The largest PCB that fits in the box or lid is 94.00 x 44.50 mm. Accessory mounting flanges 1591FABK and 1591FAGY are sold separately. The 1591XXABK is RoHS and REACH compliant and ships shrink wrapped at 0.11 lbs (0.05 kg).
Ideal For
- Mounting printed circuit boards horizontally
- Applications with repetitive assembly and disassembly
- Enclosures needing easy connector installation on smooth sides
- General purpose project box
Overview
| Type | project box, general purpose |
| Colour | Black (textured) |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXABK |
| Ordering Table | Enclosures Without Mounting Flanges |
| Short Description | 1591XXA BLACK FRABS |
Dimensions
| Box Height | 22.25 mm [.88 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 46.15 mm [1.82 in] |
| Inside Height | 21.00 mm [.83 in] |
| Inside Length | 95.65 mm [3.77 in] |
| Size L X W X H | 3.9 in x 2 in x 0.8 in (99 mm x 51 mm x 20 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.01 in (51 mm) |
| Nominal Size – Length | 3.98 in (101 mm) |
| Overall Width (Drawing) | 51.40 mm [2.02 in] |
| Overall Height (Drawing) | 25.00 mm [.98 in] |
| Overall Length (Drawing) | 100.90 mm [3.97 in] |
| Nominal Size – Enclosure Depth | 0.98 in (25 mm) |
Identifiers
| UPC | 623980582405 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screws (not included) |
| Max PCB Size (Drawing) | 94.00 mm [3.70 in] x 44.50 mm [1.75 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 94 |
| Max. P.C. Board Length (Mm) | 44.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings (installed brass inserts) |
| Material Grade | Flame retardant ABS (easy to machine) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | M3-0.5 x 10 mm cover screws: 1591MS100BK (Black, 100 pkg), 1591MS100 (Nickel plated, 100 pkg) |
| Molded From (Drawing Note) | FRABS UL 94-V0 plastic |
| Included Cover Screw Colour | Black |
| Accessory Mounting Flange (Sold Separately) | 1591FABK (Black), 1591FAGY (Grey) |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the largest PCB the 1591XXABK accepts?▾
The drawing lists a maximum PCB size of 94.00 x 44.50 mm, fitting in either the box or the lid. The PCB is not supplied.
Is the 1591XXABK flame retardant?▾
Yes, it is molded from flame retardant ABS with a UL94 V-0 rating.
What screws hold the lid?▾
M3-0.5 x 10 mm Phillips machine screws thread into integral brass bushings. Four black cover screws are included.
Can I add mounting flanges?▾
Yes, accessory mounting flanges 1591FABK (black) and 1591FAGY (grey) are sold separately.
What size screws fit the PCB posts?▾
The box and lid PCB posts accept #4 x 1/4" self-tapping screws, sold as 1593ATS50 or 1593ATS100.
