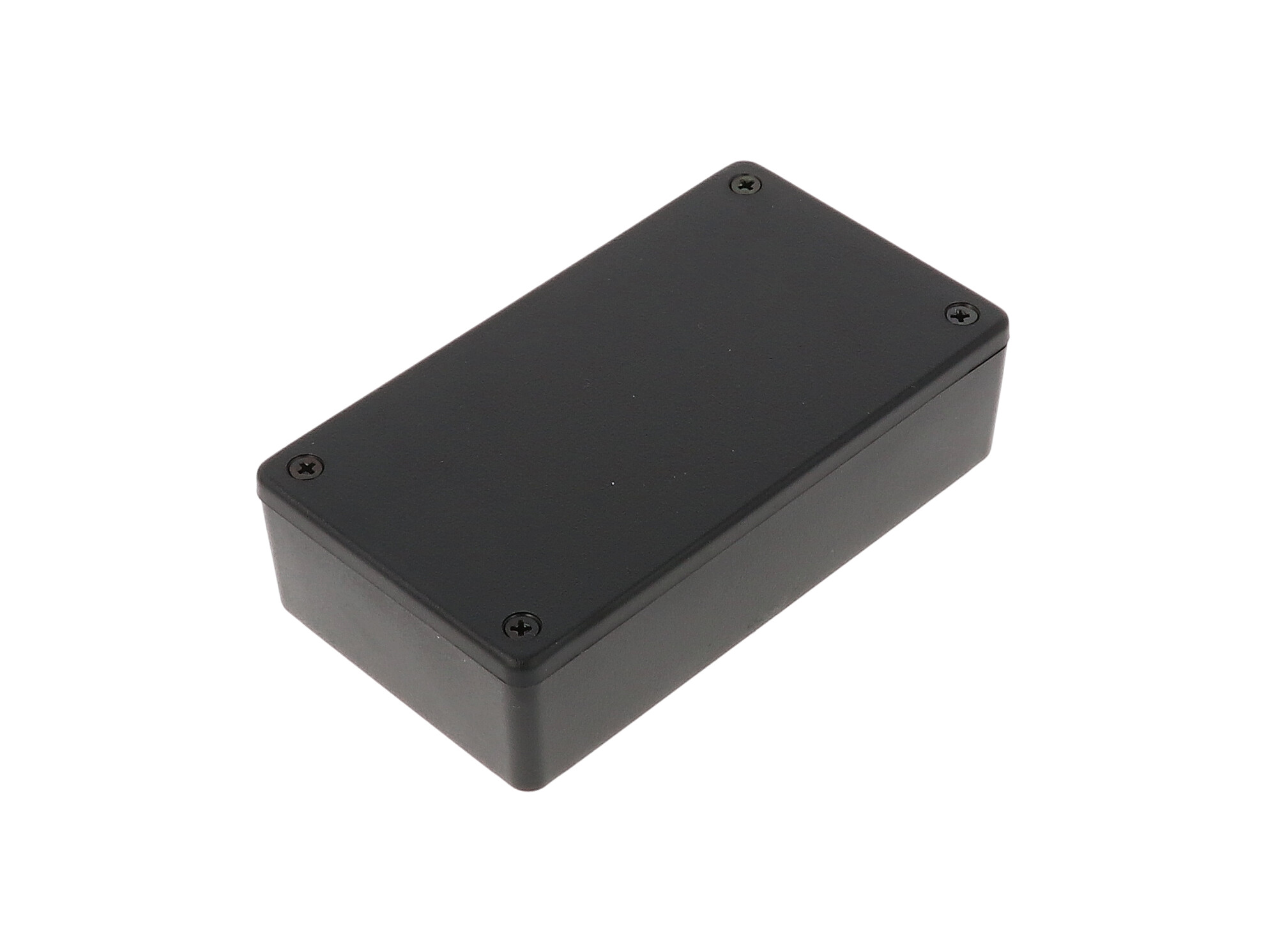

Hammond 1591XXBBK 114mm Black Flame-Retardant Abs Pcb Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flame retardant ABS, UL94 V-0, black textured finish
- Nominal 114 x 63 x 31 mm; inside 108.15 x 57.65 x 27.00 mm
- PCB standoffs in box and lid; max PCB 108.00 x 57.50 mm
- M3 x 10 mm lid screws into installed brass inserts
- Designed to meet IP54
- Smooth internal sides for connector installation
- Accessory flanges 1591FBBK / 1591FBGY sold separately
The 1591XXBBK is the black, flame retardant model of the 1591XXB size, a nominal 114 x 63 x 31 mm enclosure from the 1591XX multi-purpose series. It is designed for mounting a printed circuit board horizontally on integral standoffs and suits OEM engineers and integrators packaging a board up to 108.00 x 57.50 mm.
The textured black body is molded from easy-to-machine flame retardant ABS rated UL94 V-0. Smooth internal sides simplify connector installation, and PC board standoffs are molded into both the lid and the box. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.

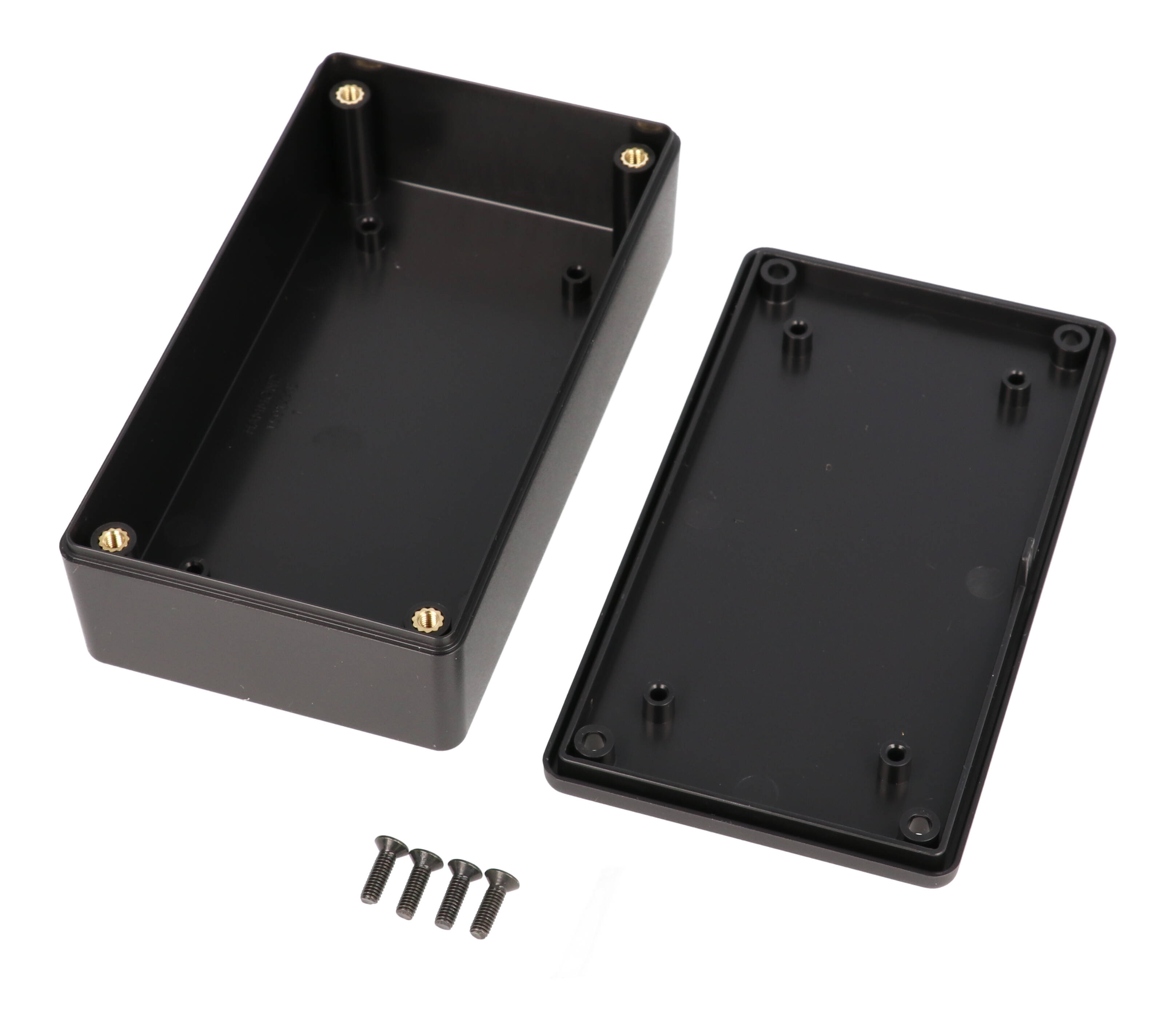

The lid is secured with M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings, ideal where the enclosure will be opened and closed repeatedly. The assembly includes box, lid, 4 black cover screws and installed brass inserts; the recommended torque is (43-50) ozf.in / (30-35) cN.m. It provides protection against dust and splashing water and is designed to meet IP54.
The drawing gives overall dimensions of 113.82 x 63.32 x 31.00 mm, an inside cavity of 108.15 x 57.65 x 27.00 mm and a 2.00 mm wall. Maximum PCB size is 108.00 x 57.50 mm. The 1591XXBBK is RoHS and REACH compliant, ships shrink wrapped at 0.14 lbs (0.06 kg), and accepts the separately sold 1591FBBK or 1591FBGY mounting flange.
Ideal For
- Mounting printed circuit boards horizontally
- Applications with repetitive assembly and disassembly
- Enclosures needing easy connector installation on smooth sides
- General purpose project box
Overview
| Type | project box, general purpose |
| Colour | Black (textured) |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXBBK |
| Ordering Table | Enclosures Without Mounting Flanges |
| Short Description | 1591XXB BLACK FRABS |
Dimensions
| Box Height | 28.25 mm [1.11 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 57.65 mm [2.27 in] |
| Inside Height | 27.00 mm [1.06 in] |
| Inside Length | 108.15 mm [4.26 in] |
| Size L X W X H | 4.4 in x 2.5 in x 1.1 in (112 mm x 64 mm x 28 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.48 in (63 mm) |
| Nominal Size – Length | 4.49 in (114 mm) |
| Overall Width (Drawing) | 63.32 mm [2.49 in] |
| Overall Height (Drawing) | 31.00 mm [1.22 in] |
| Overall Length (Drawing) | 113.82 mm [4.48 in] |
| Nominal Size – Enclosure Depth | 1.22 in (31 mm) |
Identifiers
| UPC | 623980582443 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screws (not included) |
| Max PCB Size (Drawing) | 108.00 mm [4.25 in] x 57.50 mm [2.26 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 108 |
| Max. P.C. Board Length (Mm) | 57.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings (installed brass inserts) |
| Material Grade | Flame retardant ABS (easy to machine) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | M3-0.5 x 10 mm cover screws: 1591MS100BK (Black, 100 pkg), 1591MS100 (Nickel plated, 100 pkg) |
| Molded From (Drawing Note) | FRABS UL 94-V0 plastic |
| Included Cover Screw Colour | Black |
| Accessory Mounting Flange (Sold Separately) | 1591FBBK (Black), 1591FBGY (Grey) |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What PCB size fits the 1591XXBBK?▾
Up to 108.00 x 57.50 mm, mounted in the box or the lid.
Is it flame retardant?▾
Yes, flame retardant ABS with a UL94 V-0 rating.
What is included?▾
Box, lid, 4 cover screws and installed brass inserts; black enclosures include black screws.
What are the inside dimensions?▾
108.15 mm [4.26 in] long, 57.65 mm [2.27 in] wide, 27.00 mm [1.06 in] high.
Can I wall-mount it?▾
Accessory mounting flanges 1591FBBK (black) and 1591FBGY (grey) are sold separately; a flanged-lid version, 1591XXBFLBK, is also available.
