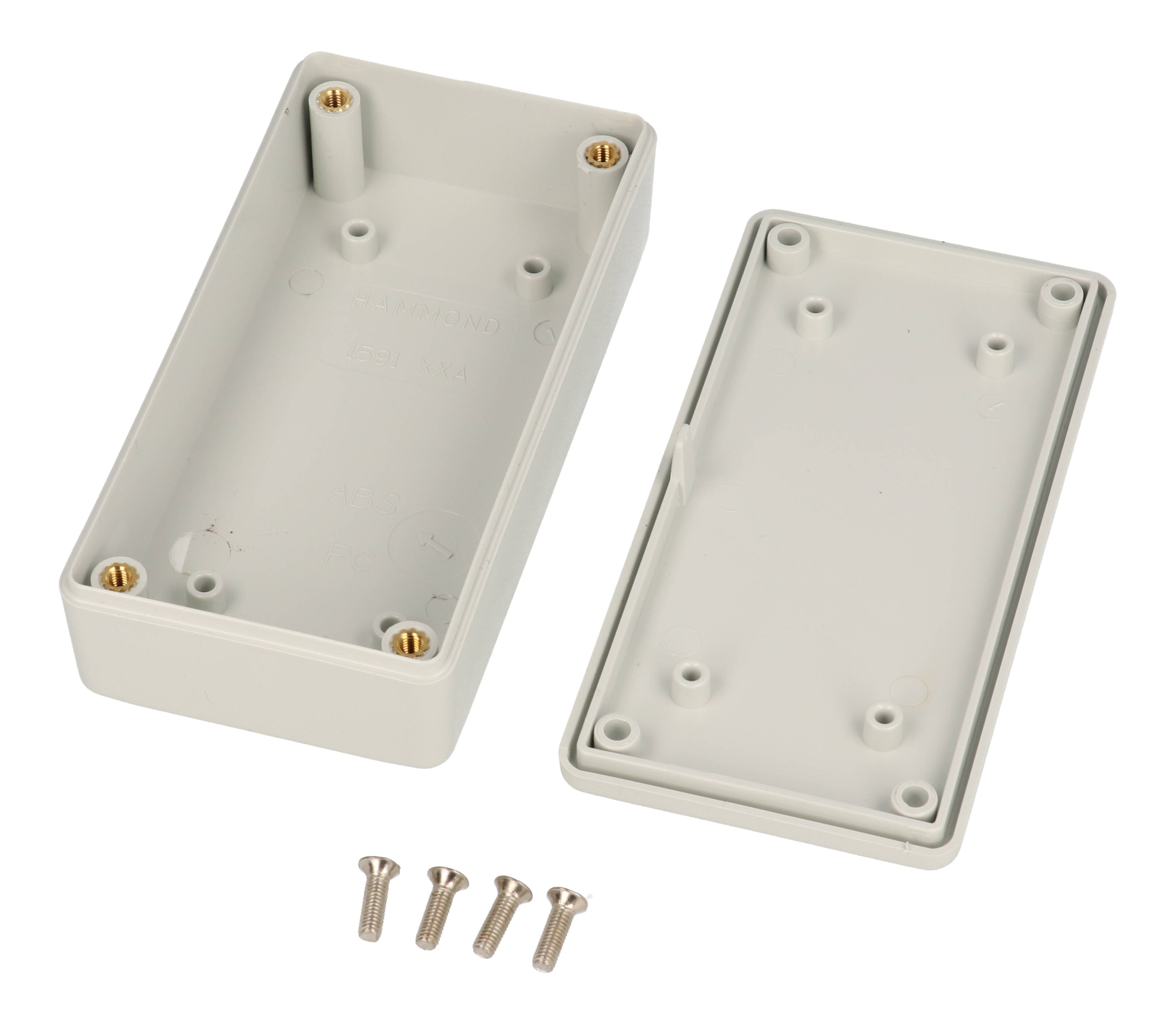

Hammond 1591XXAGY 101mm Gray Flame-Retardant Abs Pcb Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray textured flame retardant ABS, UL94 V-0
- Includes 4 nickel plated M3 x 10 mm cover screws and installed brass inserts
- Nominal 101 x 51 x 25 mm; inside 95.65 x 46.15 x 21.00 mm
- PCB standoffs in both box and lid; max PCB 94.00 x 44.50 mm
- Designed to meet IP54
- Smooth internal sides for connector installation
- RoHS and REACH compliant
The 1591XXAGY is the light gray, flame retardant version of the 1591XXA size in the 1591XX multi-purpose series. It is a compact 101 x 51 x 25 mm (nominal) enclosure designed for mounting a printed circuit board horizontally, and suits OEM engineers and electricians who want a neutral gray finish.
The textured gray box is molded from easy-to-machine flame retardant ABS rated UL94 V-0. Its internal sides are smooth, which makes connector installation straightforward, and integral PC board standoffs are molded into both the lid and the box. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.
Gray enclosures in this series ship with nickel plated screws. The lid fastens with M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings, a construction intended for repeated assembly and disassembly. The purchased assembly includes box, lid, 4 cover screws and installed brass inserts, with a recommended torque of (43-50) ozf.in / (30-35) cN.m. The enclosure is designed to meet IP54.
Per the drawing, the 1591XXAGY measures 100.90 x 51.40 x 25.00 mm overall with an inside length of 95.65 mm, inside width of 46.15 mm and inside height of 21.00 mm. Maximum PCB size is 94.00 x 44.50 mm. It is RoHS and REACH compliant, ships shrink wrapped at 0.11 lbs (0.05 kg) and can take the separately sold 1591FAGY or 1591FABK mounting flange.
Ideal For
- Mounting printed circuit boards horizontally
- Applications with repetitive assembly and disassembly
- Enclosures needing easy connector installation on smooth sides
- General purpose project box
Overview
| Type | project box, general purpose |
| Colour | Light Gray (textured) |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXAGY |
| Ordering Table | Enclosures Without Mounting Flanges |
| Short Description | 1591XXA GREY FRABS |
Dimensions
| Box Height | 22.25 mm [.88 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 46.15 mm [1.82 in] |
| Inside Height | 21.00 mm [.83 in] |
| Inside Length | 95.65 mm [3.77 in] |
| Size L X W X H | 3.9 in x 2 in x 0.8 in (99 mm x 51 mm x 20 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.01 in (51 mm) |
| Nominal Size – Length | 3.98 in (101 mm) |
| Overall Width (Drawing) | 51.40 mm [2.02 in] |
| Overall Height (Drawing) | 25.00 mm [.98 in] |
| Overall Length (Drawing) | 100.90 mm [3.97 in] |
| Nominal Size – Enclosure Depth | 0.98 in (25 mm) |
Identifiers
| UPC | 623980582412 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screws (not included) |
| Max PCB Size (Drawing) | 94.00 mm [3.70 in] x 44.50 mm [1.75 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 94 |
| Max. P.C. Board Length (Mm) | 44.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings (installed brass inserts) |
| Material Grade | Flame retardant ABS (easy to machine) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | M3-0.5 x 10 mm cover screws: 1591MS100BK (Black, 100 pkg), 1591MS100 (Nickel plated, 100 pkg) |
| Molded From (Drawing Note) | FRABS UL 94-V0 plastic |
| Included Cover Screw Colour | Nickel plated |
| Accessory Mounting Flange (Sold Separately) | 1591FABK (Black), 1591FAGY (Grey) |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour screws come with the 1591XXAGY?▾
Gray enclosures in the 1591XX series include nickel plated screws.
What are the inside dimensions?▾
Inside length 95.65 mm [3.77 in], inside width 46.15 mm [1.82 in], inside height 21.00 mm [.83 in].
What flame rating does it have?▾
UL94 V-0.
Does it include PCB screws?▾
No. The PCB posts accept #4 x 1/4" self-tapping screws, which are not included; they are available as 1593ATS50 or 1593ATS100.
What is the recommended lid screw torque?▾
(43-50) ozf.in / (30-35) cN.m.
