Hammond 1591XXMSBK Black Economy ABS Project Box, 86x57x27 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

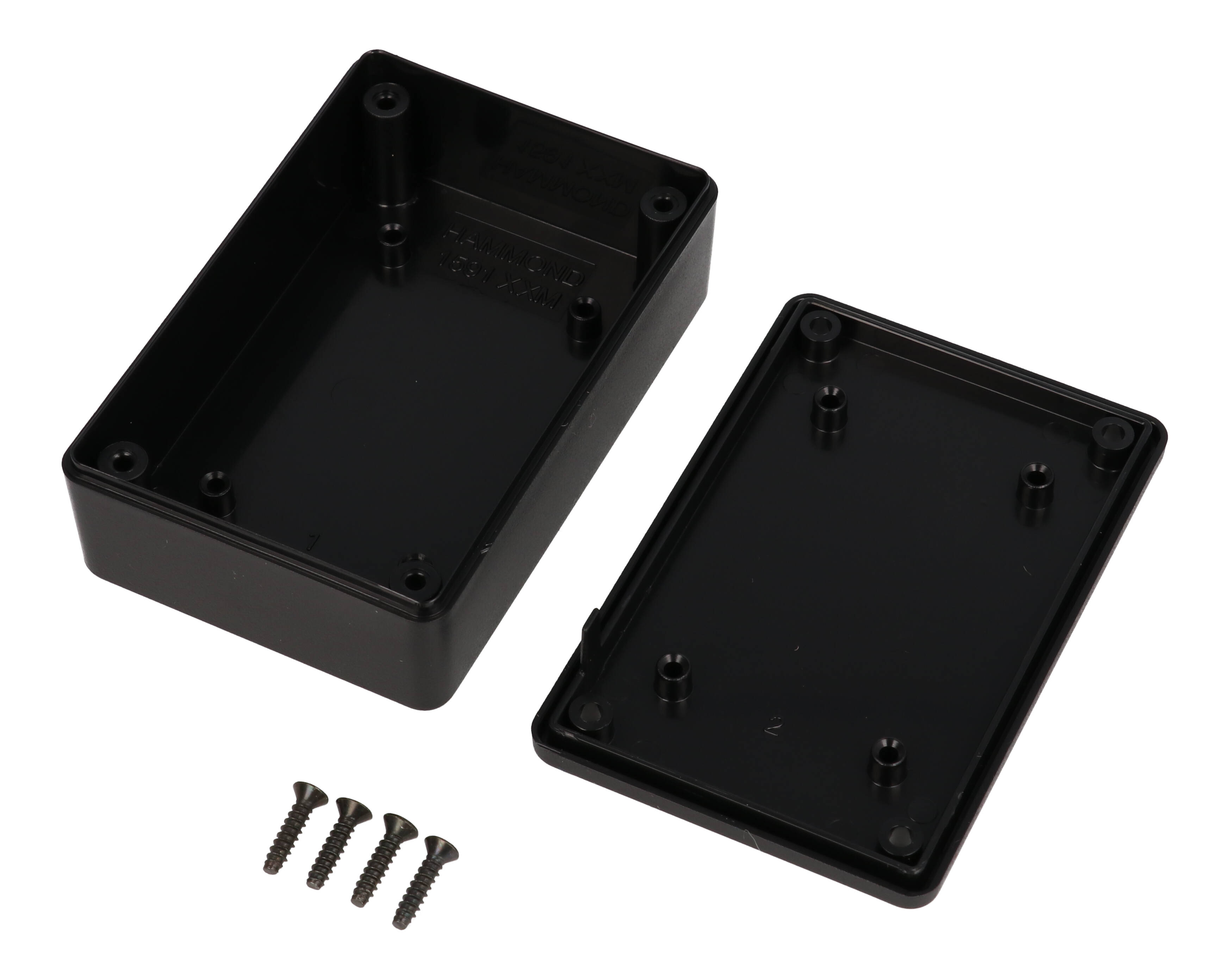

- 3.39 in x 2.24 in x 1.06 in enclosure in black ABS
- General purpose ABS, UL94 HB (not flame retardant)
- Designed to meet IP54 against dust and splashing water
- Integral PCB standoffs in box and lid; max PCB 80.7 x 51.51 mm
- Economy build: self-tapping lid screws into plastic posts
- Includes box, lid and 4 cover screws (black screws)
- Optional mounting flange sold separately: 1591FMBK / 1591FMGY
The 1591XXMSBK is the economy black version of the M-size 1591XX enclosure: the same compact 86 x 57 x 27 mm footprint, molded in general purpose ABS and closed with self-tapping screws driven into plastic posts, for cost-sensitive small electronics builds. It is aimed at electronics designers and OEM engineers.
The box and lid are molded from general purpose ABS that is not flame retardant, rated UL94 HB, in a black textured finish. The lid is secured with #4 x 1/2" self-tapping screws driven into fully plastic posts, the assembly method used on the economy versions of this series. The purchased assembly includes the box, lid and 4 cover screws; black enclosures come with black screws. The enclosure is designed to meet IP54, providing protection against access of dust and splashing water.
Outside, the drawing gives 86.24 mm [3.40 in] long, 57.04 mm [2.25 in] wide and 27.00 mm [1.06 in] high. Inside there is 80.85 mm [3.18 in] of length, 51.65 mm [2.03 in] of width and 23.00 mm [.91 in] of height, with a 2.00 mm [.08 in] wall. The largest PCB listed for this part is 80.7 mm x 51.51 mm, and it can be fitted in the box or in the lid; the board is not supplied.
- PCB posts in both box and lid accept #4 x 1/4" self-tapping screws (not included).
- Internal sides are smooth for easy connector installation.
- Accessory mounting flanges are available separately: 1591FMBK (black) or 1591FMGY (grey).
- Recommended lid screw torque: (35-43) ozf.in / (25-30) cN.m.
The 1591XXMSBK is RoHS and REACH compliant, ships in shrink wrap and has a shipping weight of 0.1 lbs (0.05 kg). It can be factory modified (milling, drilling, printing), and solid models are available in .stp or .x_t.
Ideal For
- Housing horizontally mounted printed circuit boards
- Electronics projects and prototypes needing a small project box
- Cost-sensitive general purpose electronics enclosures
- Custom enclosures requiring factory milling, drilling or printing
Overview
| Type | project box, general purpose |
| Series | 1591XX ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Version | Enclosure without mounting flanges |
| Description | enclosure - plastic |
| Part Number | 1591XXMSBK |
| Short Description | GP ABS PLASTIC CASE |
| Ordering Table Group | General Purpose ABS · w/ Self Tapping Screws · Black |
Dimensions
| Box Height | 24.25 mm [.95 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 51.65 mm [2.03 in] |
| Inside Height | 23.00 mm [.91 in] |
| Inside Length | 80.85 mm [3.18 in] |
| Wall Thickness | 2.00 mm [.08 in] |
| Depth (Ordering Table) | 1.06 in (27 mm) |
| Width (Ordering Table) | 2.24 in (57 mm) |
| Length (Ordering Table) | 3.39 in (86 mm) |
| Overall Width (Drawing) | 57.04 mm [2.25 in] |
| Nominal Size (L X W X H) | 3.3 in x 2.2 in x 0.9 in (84 mm x 56 mm x 23 mm) |
| Overall Height (Drawing) | 27.00 mm [1.06 in] |
| Overall Length (Drawing) | 86.24 mm [3.40 in] |
Identifiers
| UPC | 623980035352 |
| UNSPSC | 39121301 |
PCB Mounting
| PC Board | Not supplied with enclosure |
| PCB Location | Max size PCB fits in box or in lid |
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screw (not included) |
| Max. P.C. Board Width | 51.51 mm |
| Max. P.C. Board Length | 80.7 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured |
| Included | Box, lid and 4 cover screws |
| Material | ABS Plastic (general purpose, not flame retardant) |
| Cover Screws | 4, black |
| Solid Models | .stp or .x_t |
| Lid Fastening | #4 x 1/2" self-tapping screws into fully plastic posts |
| P.C. Board Screws | 1593ATS50 (pkg 50) or 1593ATS100 (pkg 100), #4 x 1/4" self-tapping |
| Factory Modification | Milling, drilling, printing available from the factory |
| Replacement Lid Screws | 1591TS100 (nickel plated, pkg 100) or 1591TS100BK (black, pkg 100), #4 x 1/2" self-tapping |
| Recommended Lid Screw Torque | (35-43) ozf.in / (25-30) cN.m |
| Accessory Mounting Flange (Sold Separately) | 1591FMBK (black ABS), 1591FMGY (grey ABS) |
Environmental & Protection
| IP Rating | IP54 |
| Protection | Against access of dust and splashing water |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1591XXMSBK?▾
The drawing gives an inside length of 80.85 mm [3.18 in], inside width of 51.65 mm [2.03 in] and inside height of 23.00 mm [.91 in], with a 2.00 mm wall. Outside it measures 86.24 mm [3.40 in] x 57.04 mm [2.25 in] x 27.00 mm [1.06 in].
What size circuit board fits?▾
The maximum P.C. board listed is 80.7 mm x 51.51 mm. It can be mounted in the box or in the lid on the integral standoffs, which accept #4 x 1/4" self-tapping screws. The board and PCB screws are not included; PCB screws are sold as 1593ATS50 or 1593ATS100.
Is it flame retardant?▾
No. The 1591XXMSBK is molded from general purpose ABS that is not flame retardant; its flame rating is UL94 HB.
How is the lid fastened and what is included?▾
The lid is secured with four black self-tapping screws into fully plastic posts. The purchased assembly includes box, lid and 4 cover screws. Replacement screws: 1591TS100 (nickel plated) or 1591TS100BK (black), packs of 100.
Is the enclosure weather or dust resistant?▾
It is designed to meet IP54, providing protection against access of dust and splashing water.
Can I add mounting flanges?▾
Yes. Accessory ABS mounting flanges for this size are sold separately: 1591FMBK (black) or 1591FMGY (grey).
