Hammond 1591XXATBU 101mm Transparent Blue Abs Pcb Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Transparent blue body shows the board inside
- General purpose ABS, UL94 HB (not flame retardant)
- M3 x 10 mm lid screws into brass inserts; black screws included
- Nominal 101 x 51 x 25 mm; max PCB 94.00 x 44.50 mm
- Integral PCB standoffs in box and lid
- Designed to meet IP54
- RoHS and REACH compliant

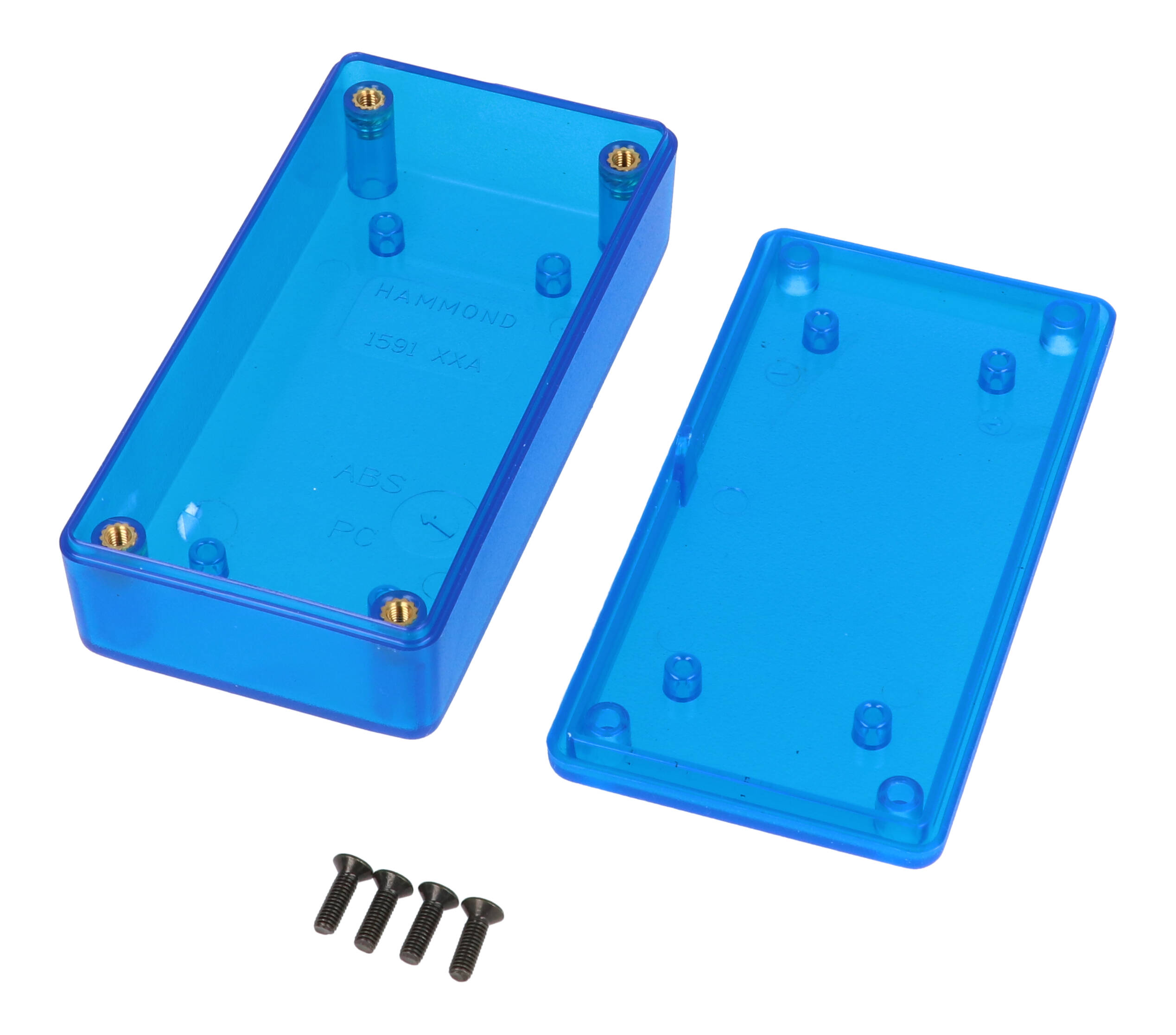

The 1591XXATBU is the transparent blue version of the 1591XXA size, a 101 x 51 x 25 mm (nominal) multi-purpose enclosure with integral PC board standoffs. The see-through blue body lets a board be seen inside the case, and the enclosure is intended for mounting printed circuit boards horizontally.
Unlike the black and gray flame retardant versions, transparent blue enclosures are molded from general purpose plastic that is not flame retardant; the part data lists the material as ABS plastic with a UL94 HB flame rating. Internal sides are smooth for easy connector installation, and both the lid and box include PC board standoffs. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.
The lid is secured with M3-0.5 x 10 mm Phillips machine screws threaded into brass screw inserts, and transparent blue enclosures come with black screws. The enclosure provides protection against access of dust and splashing water and is designed to meet IP54.
Drawing dimensions for the 1591XXA body are 100.90 x 51.40 x 25.00 mm overall, with a 95.65 x 46.15 x 21.00 mm interior, 2.00 mm wall and a maximum PCB size of 94.00 x 44.50 mm. The 1591XXATBU is RoHS and REACH compliant, ships shrink wrapped and has a shipping weight of 0.11 lbs (0.05 kg). Mounting flanges 1591FABK and 1591FAGY are sold separately.
Ideal For
- Mounting printed circuit boards horizontally
- Projects where the internal board should be visible
- General purpose project box
Overview
| Type | project box, general purpose |
| Colour | Trans. Blue |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXATBU |
| Ordering Table | Enclosures Without Mounting Flanges |
| Short Description | 1591XXA TRANSPARENT BLUE |
Dimensions
| Box Height | 22.25 mm [.88 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 46.15 mm [1.82 in] |
| Inside Height | 21.00 mm [.83 in] |
| Inside Length | 95.65 mm [3.77 in] |
| Size L X W X H | 3.9 in x 2 in x 0.8 in (99 mm x 51 mm x 20 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.01 in (51 mm) |
| Nominal Size – Length | 3.98 in (101 mm) |
| Overall Width (Drawing) | 51.40 mm [2.02 in] |
| Overall Height (Drawing) | 25.00 mm [.98 in] |
| Overall Length (Drawing) | 100.90 mm [3.97 in] |
| Nominal Size – Enclosure Depth | 0.98 in (25 mm) |
Identifiers
| UPC | 623980137308 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screws (not included) |
| Max PCB Size (Drawing) | 94.00 mm [3.70 in] x 44.50 mm [1.75 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 94 |
| Max. P.C. Board Length (Mm) | 44.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings (installed brass inserts) |
| Material Grade | General purpose ABS (not flame retardant) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | M3-0.5 x 10 mm cover screws: 1591MS100BK (Black, 100 pkg), 1591MS100 (Nickel plated, 100 pkg) |
| Included Cover Screw Colour | Black |
| Accessory Mounting Flange (Sold Separately) | 1591FABK (Black), 1591FAGY (Grey) |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591XXATBU flame retardant?▾
No. Transparent blue enclosures are molded from general purpose plastic that is not flame retardant; the flame rating is UL94 HB.
What screws are included?▾
Transparent blue enclosures include black screws; the lid uses M3-0.5 x 10 mm machine screws into brass inserts.
What is the maximum PCB size?▾
94.00 x 44.50 mm, fitting in the box or the lid.
What are the overall dimensions?▾
The part page lists 3.9 x 2 x 0.8 in (99 x 51 x 20 mm); the ordering table lists 101 x 51 x 25 mm.
Is it waterproof?▾
It is designed to meet IP54, providing protection against access of dust and splashing water.
