Hammond 1591XXAFLBK 101mm Black Flanged-Lid Flame-Retardant ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Mounting flanges integrated into the lid with four countersunk holes
- Oval flange holes for strapping or hanging with tie wraps
- Flame retardant ABS, UL94 V-0, black textured finish
- Nominal 101 x 51 x 25 mm; 124.62 mm long including flanges
- M3 x 10 mm lid screws into installed brass inserts
- PCB standoffs in box and lid; max PCB 94.00 x 44.50 mm
- Designed to meet IP54

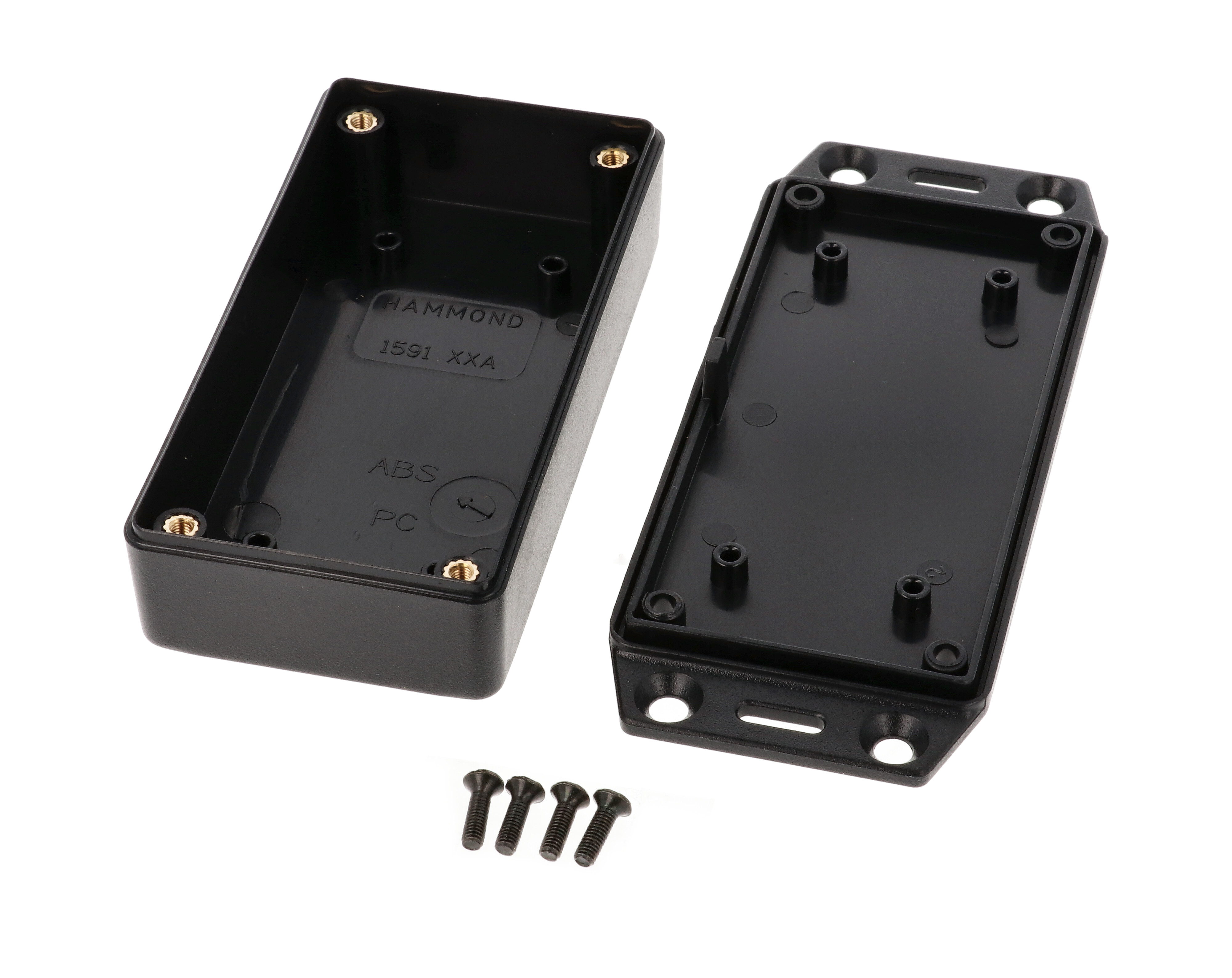

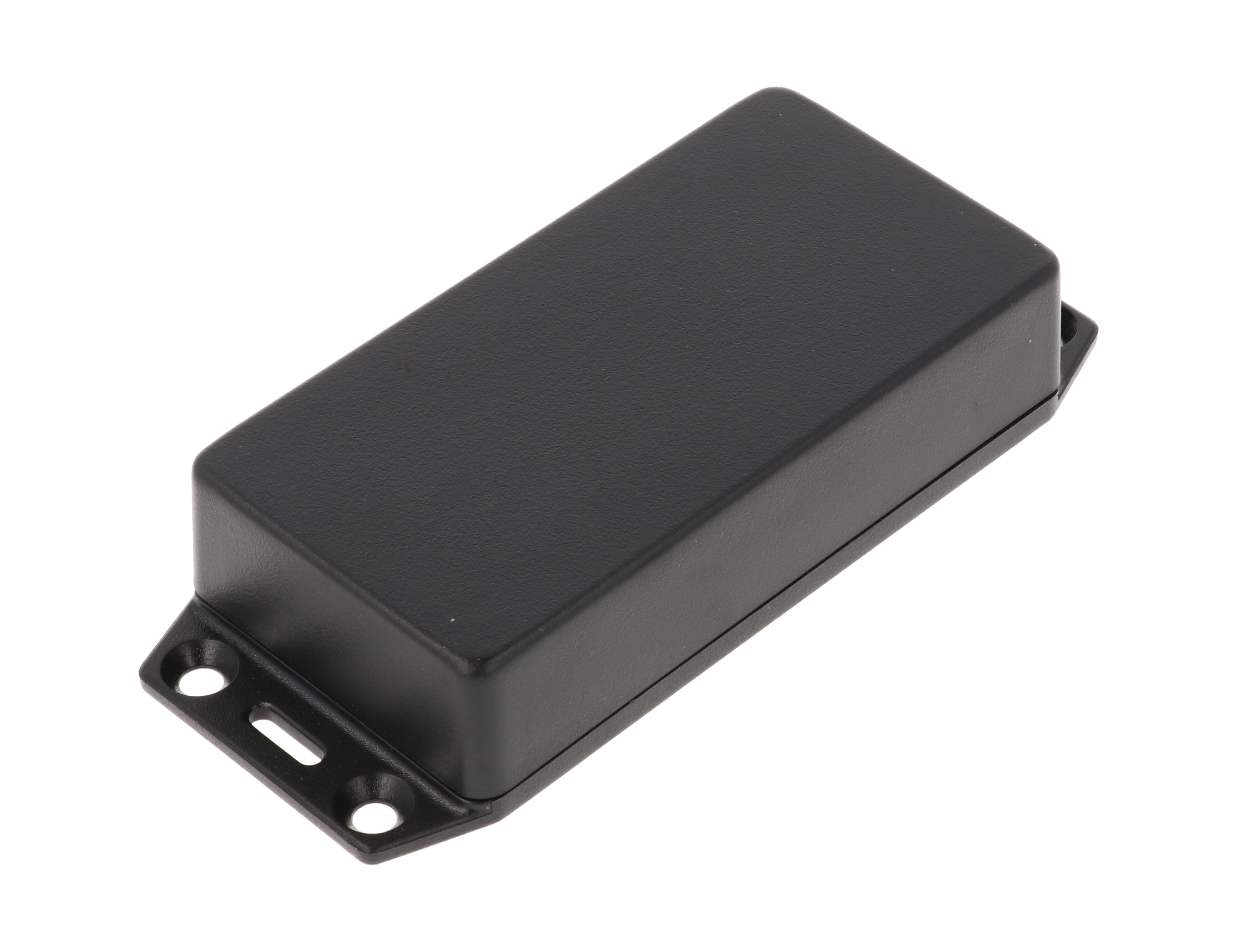

The 1591XXAFLBK is a black 1591XXA enclosure with mounting flanges integrated into the lid, so the box can be fixed directly to a wall, shelf or panel. Four molded countersunk holes make installation easy, and an oval hole in each side of the flange allows the unit to be strapped or hung with tie wraps. It suits electricians, OEM engineers and facilities teams who need a small, surface-mounted PCB housing.
The textured black body is molded from easy-to-machine flame retardant ABS with a UL94 V-0 rating. The lid is secured with M3-0.5 x 10 mm Phillips machine screws into integral brass bushings, supporting repeated assembly and disassembly, and the assembly includes box, lid, 4 black cover screws and installed brass inserts. Recommended torque is (43-50) ozf.in / (30-35) cN.m.
Nominal size is 101 x 51 x 25 mm, and with the flanges the overall length is 124.62 mm [4.91 in]. The flange holes are 5.00 mm thru with a 9.00 mm x 82° countersink. Inside, the box measures 95.65 x 46.15 x 21.00 mm, with smooth side walls and integral PCB standoffs in lid and box accepting a board up to 94.00 x 44.50 mm. PC board mounting bosses inside the box and lid are sized for #4 x 1/4" self-tapping screws, which are not included; PC board screws are available as 1593ATS50 or 1593ATS100.
The 1591XXAFLBK is designed to meet IP54, is RoHS and REACH compliant, and ships shrink wrapped at 0.11 lbs (0.05 kg).
Ideal For
- Wall or shelf mounted electronics
- Mounting printed circuit boards horizontally
- Units strapped or hung with tie wraps
- Applications with repetitive assembly and disassembly
Mounting
| Strapping | Oval hole in each side of flange allows the unit to be strapped or hung via tie wraps |
| Mounting Flanges | Integrated into the lid |
| Flange Mounting Holes | 4x 5.00 mm thru, 9.00 mm x 82° countersunk |
Overview
| Type | general purpose, flanged |
| Colour | Black (textured) |
| Series | 1591XX Series – ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Description | enclosure - plastic |
| Part Number | 1591XXAFLBK |
| Ordering Table | Enclosures With Mounting Flanges |
| Short Description | 1591XXA FLANGED LID BLACK |
Dimensions
| Box Height | 22.25 mm [.88 in] |
| Lid Height | 6.50 mm [.26 in] |
| Inside Width | 46.15 mm [1.82 in] |
| Inside Height | 21.00 mm [.83 in] |
| Inside Length | 95.65 mm [3.77 in] |
| Size L X W X H | 3.9 in x 2 in x 0.8 in (99 mm x 51 mm x 20 mm) |
| Wall Thickness | 2.00 mm [.08 in] |
| Nominal Size – Width | 2.01 in (51 mm) |
| Nominal Size – Length | 3.98 in (101 mm) |
| Overall Width (Drawing) | 51.40 mm [2.02 in] |
| Overall Height (Drawing) | 25.00 mm [.98 in] |
| Overall Length (Drawing) | 100.90 mm [3.97 in] |
| Nominal Size – Enclosure Depth | 0.98 in (25 mm) |
| Overall Length Including Lid Flanges | 124.62 mm [4.91 in] |
Identifiers
| UPC | 623980582436 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Standoffs | Integral PC board standoffs in both lid and box |
| Internal Sides | Smooth for easy connector installation |
| PCB Post Screw Size | #4 x 1/4" (6.4 mm) self-tapping screws (not included) |
| Max PCB Size (Drawing) | 94.00 mm [3.70 in] x 44.50 mm [1.75 in]; fits in box or in lid; PCB not supplied |
| Max. P.C. Board Width (Mm) | 94 |
| Max. P.C. Board Length (Mm) | 44.5 |
| P.C. Board Screws (Accessory) | 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and installed brass inserts |
| Material | ABS Plastic |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | M3-0.5 x 10 mm Phillips machine screws threaded into integral brass bushings (installed brass inserts) |
| Material Grade | Flame retardant ABS (easy to machine) |
| Cover Screw Holes | 4x 3.50 mm thru, 6.00 mm x 82° |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Replacement Lid Screws | M3-0.5 x 10 mm cover screws: 1591MS100BK (Black, 100 pkg), 1591MS100 (Nickel plated, 100 pkg) |
| Molded From (Drawing Note) | FRABS UL 94-V0 plastic |
| Included Cover Screw Colour | Black |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1591XXAFLBK mounted?▾
Mounting flanges are integrated into the lid, with four molded countersunk holes (5.00 mm thru, 9.00 mm x 82°) for wall or shelf installation; an oval hole in each side lets it be strapped or hung via tie wraps.
How long is it with the flanges?▾
The drawing shows an overall length of 124.62 mm [4.91 in] including the flanges.
Is it flame retardant?▾
Yes, flame retardant ABS rated UL94 V-0.
What is included?▾
Box, lid, 4 cover screws and installed brass inserts.
What PCB fits inside?▾
A board up to 94.00 x 44.50 mm fits in the box or the lid; PCB screws are #4 x 1/4" self-tapping (not included).
