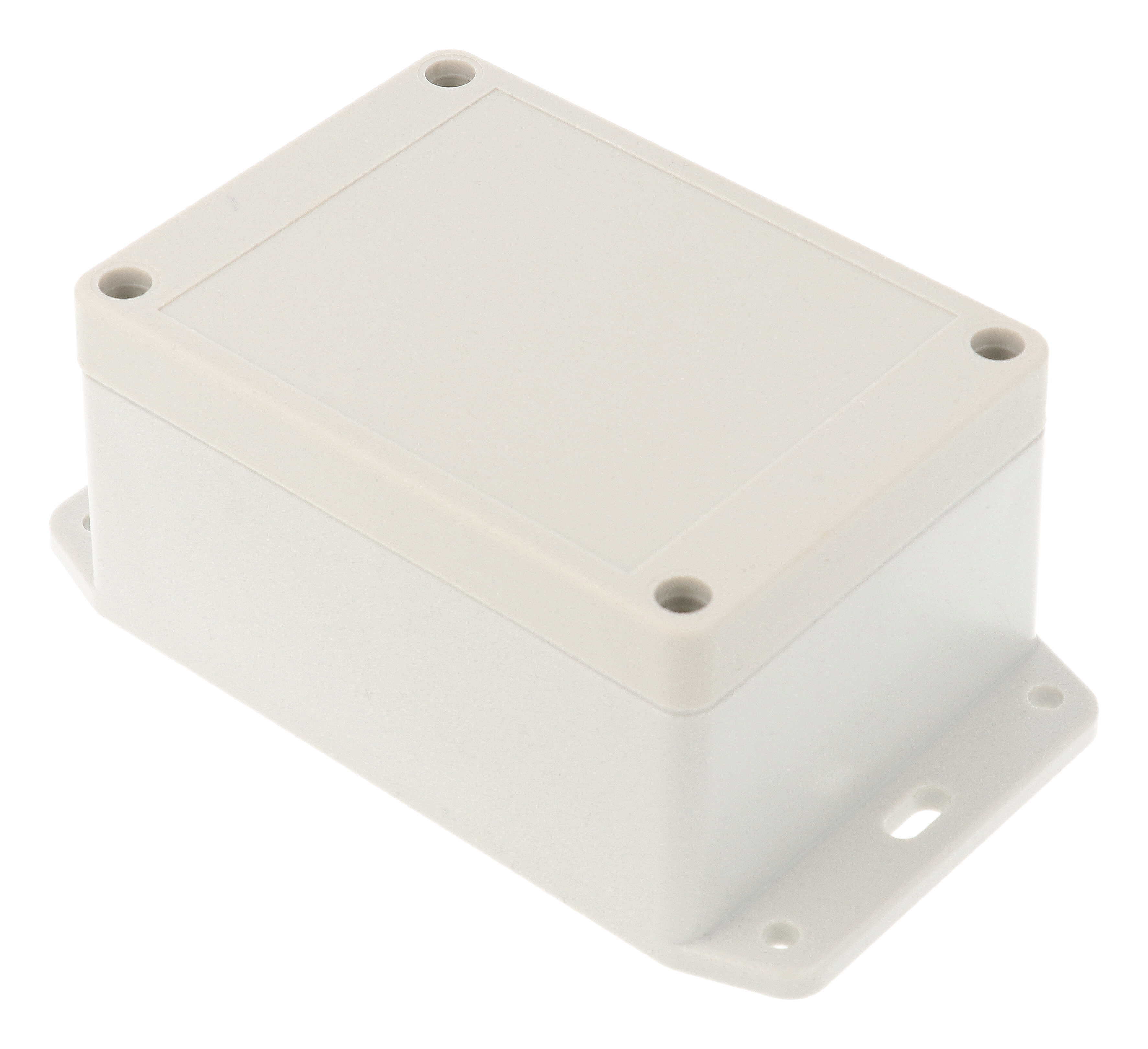

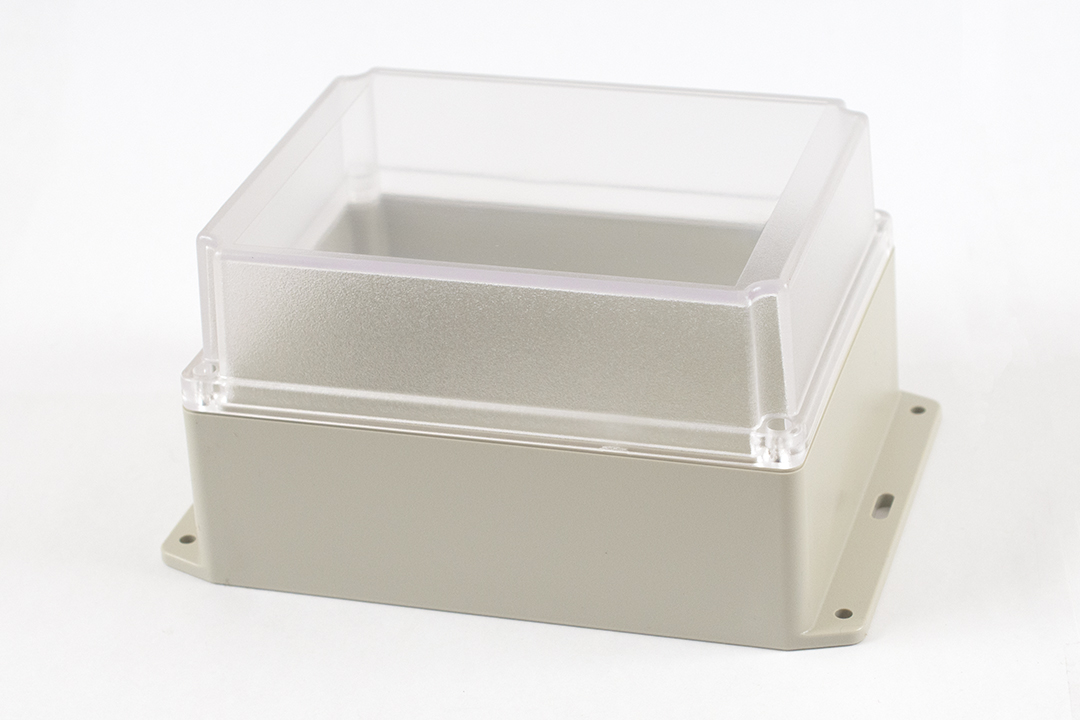

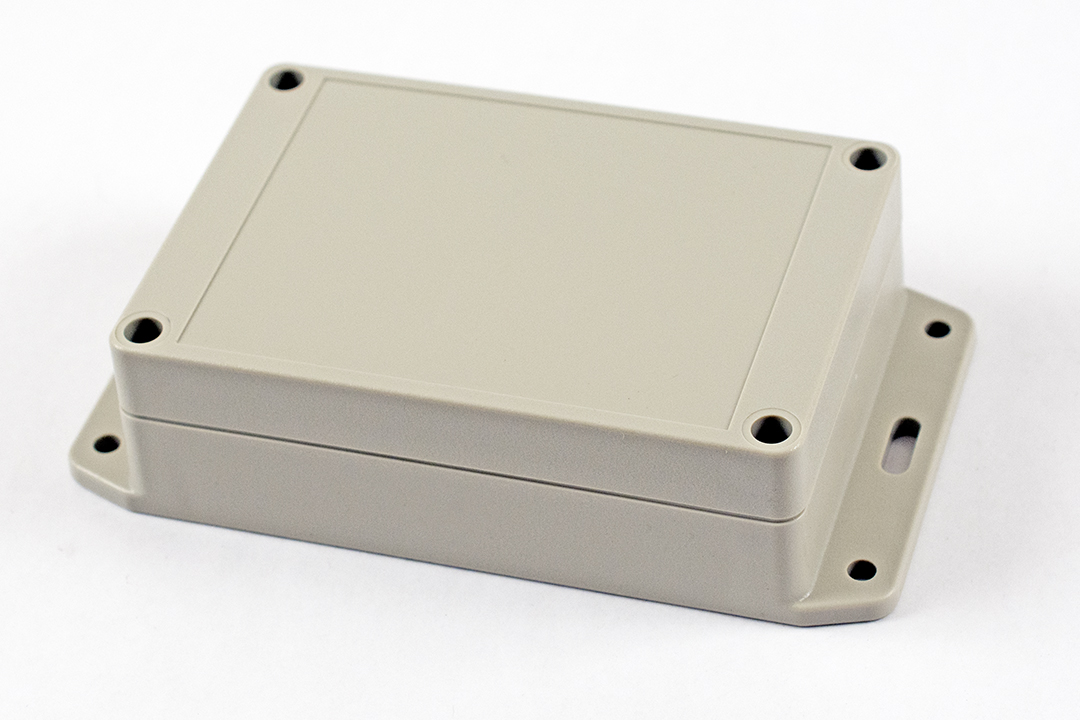

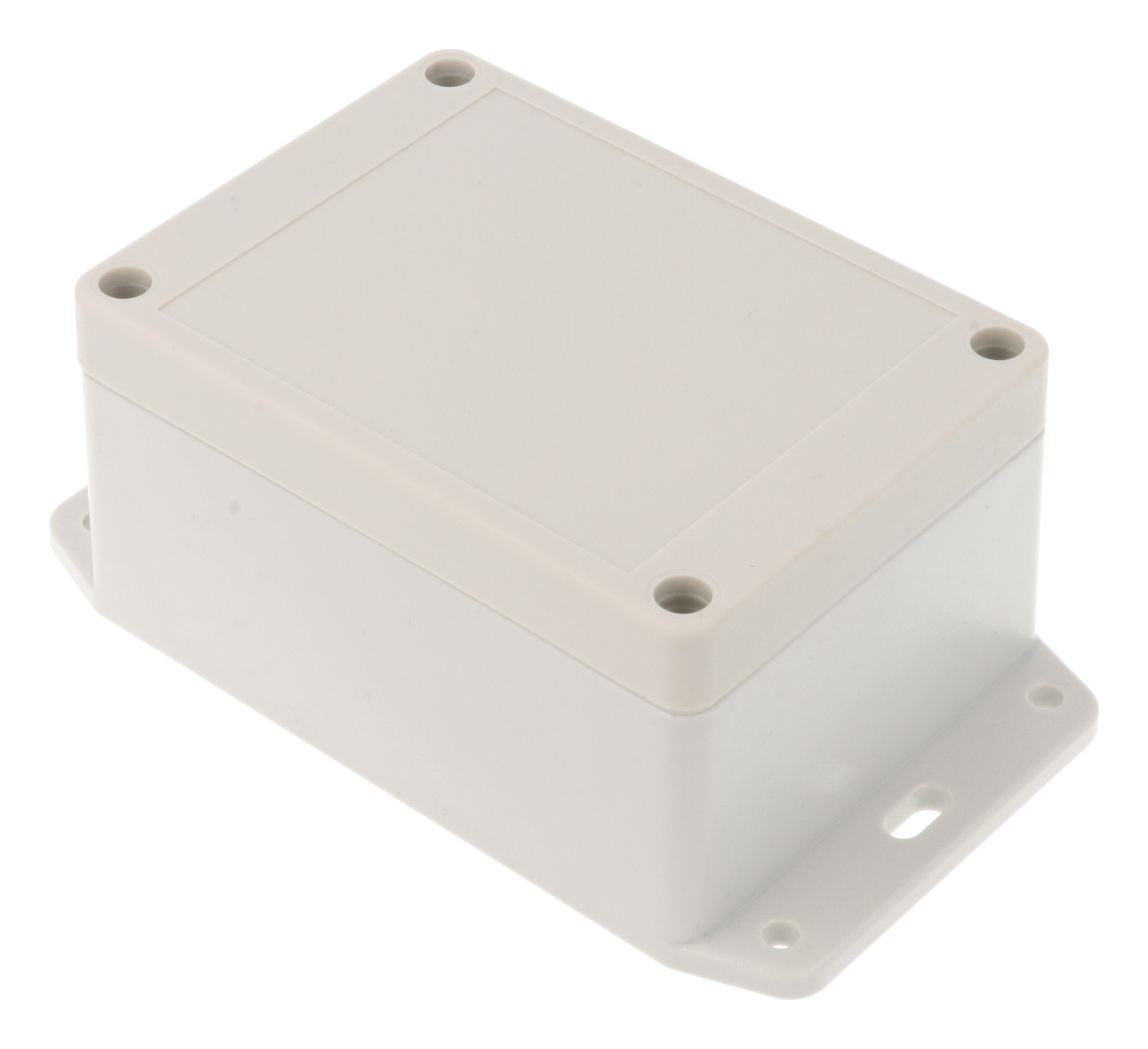

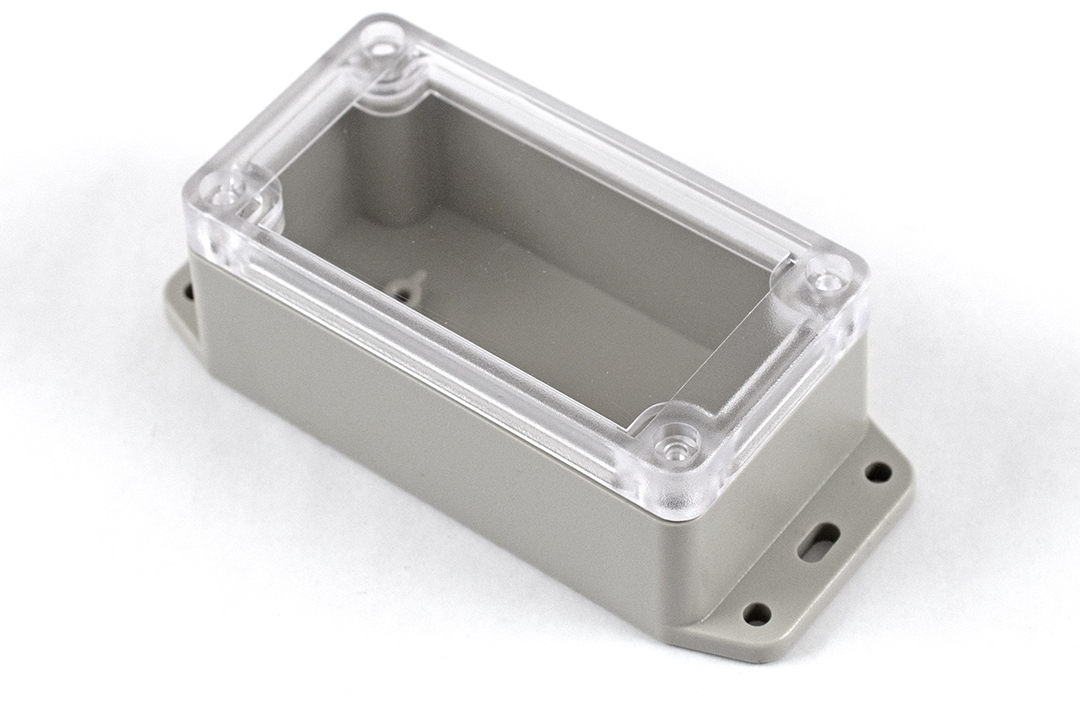

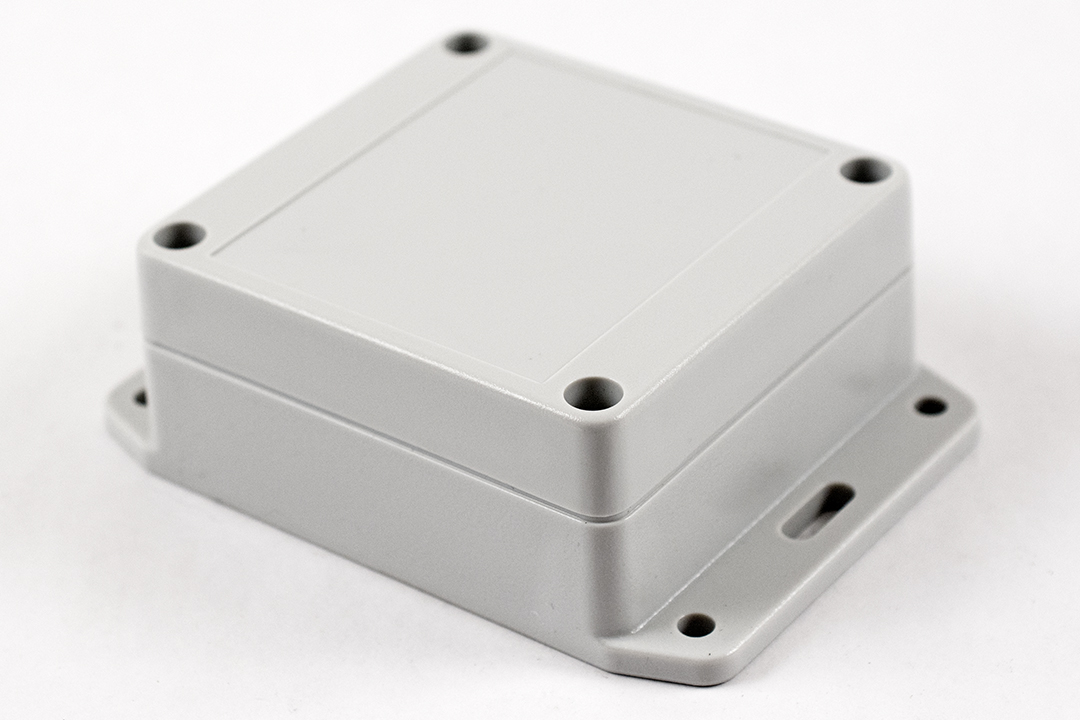

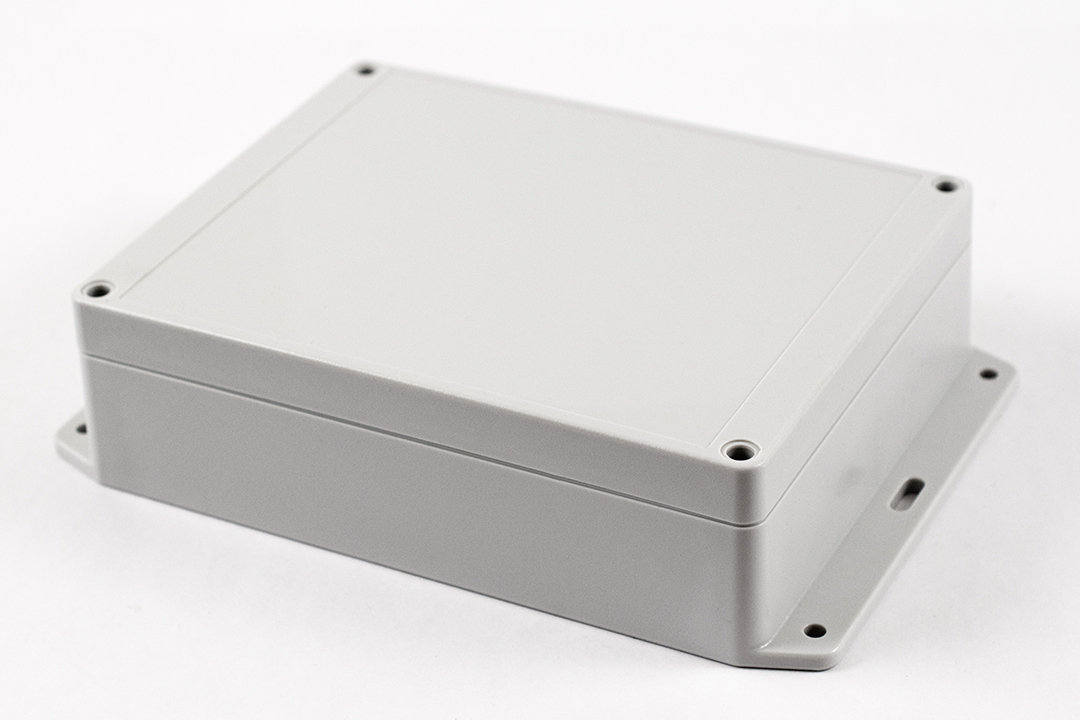

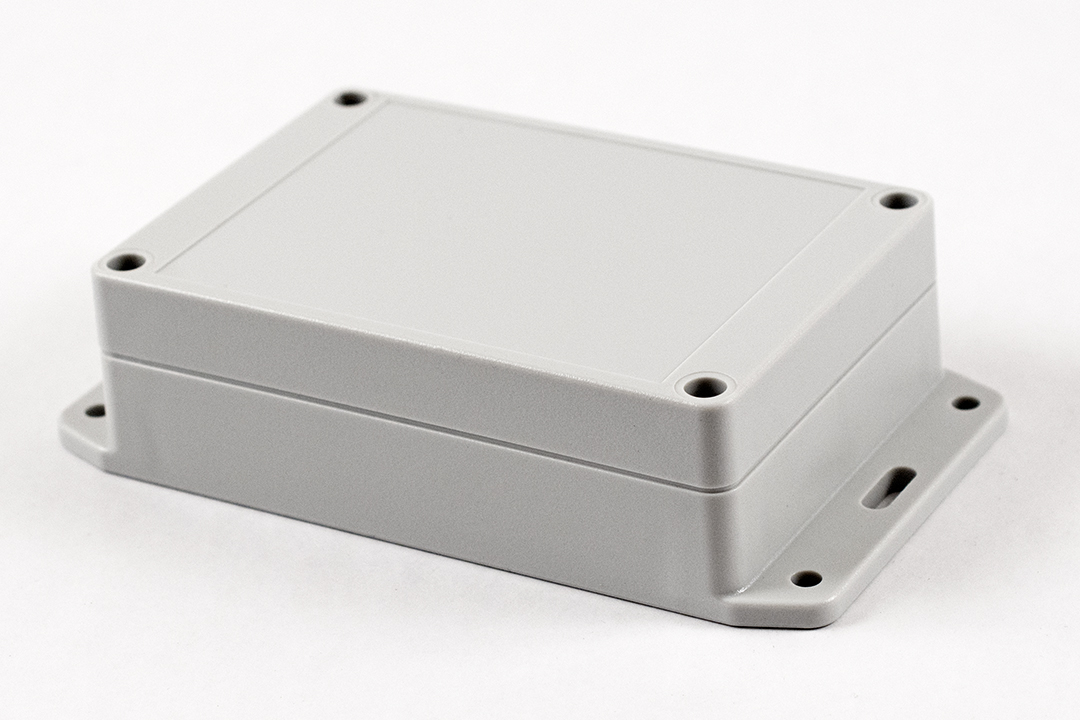

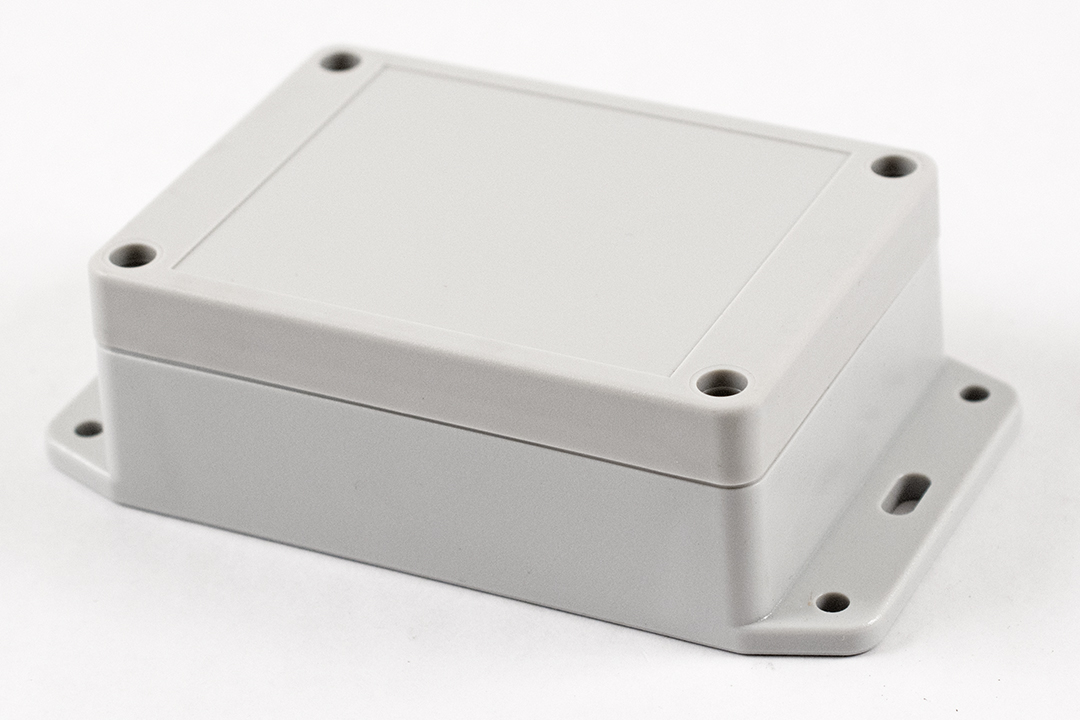

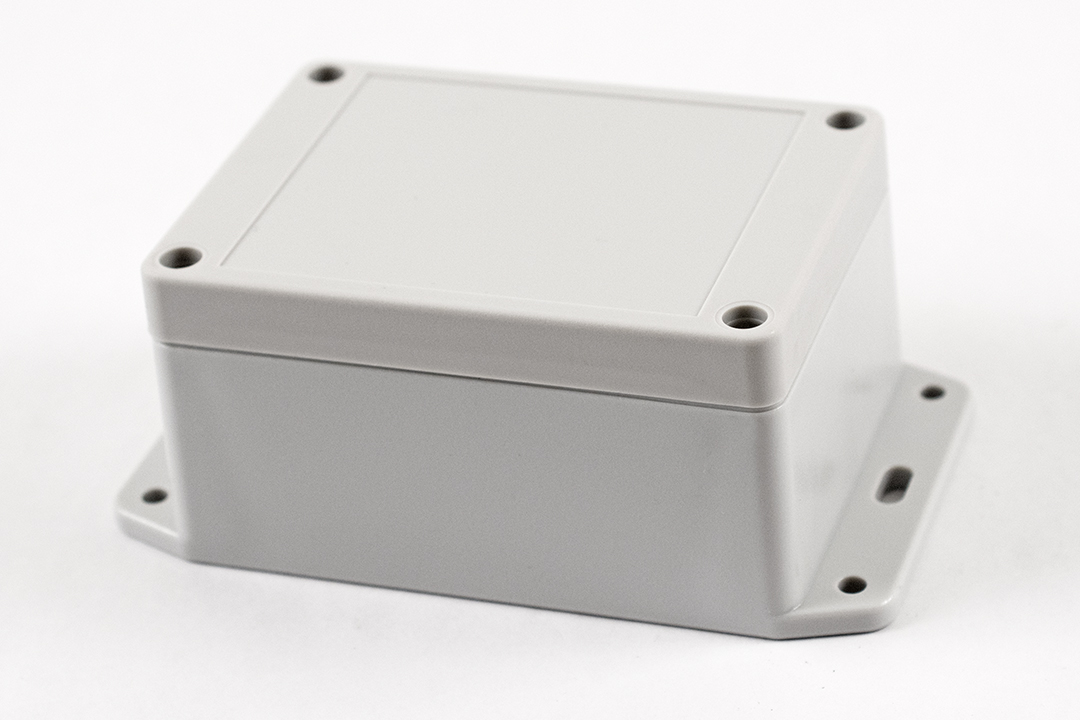

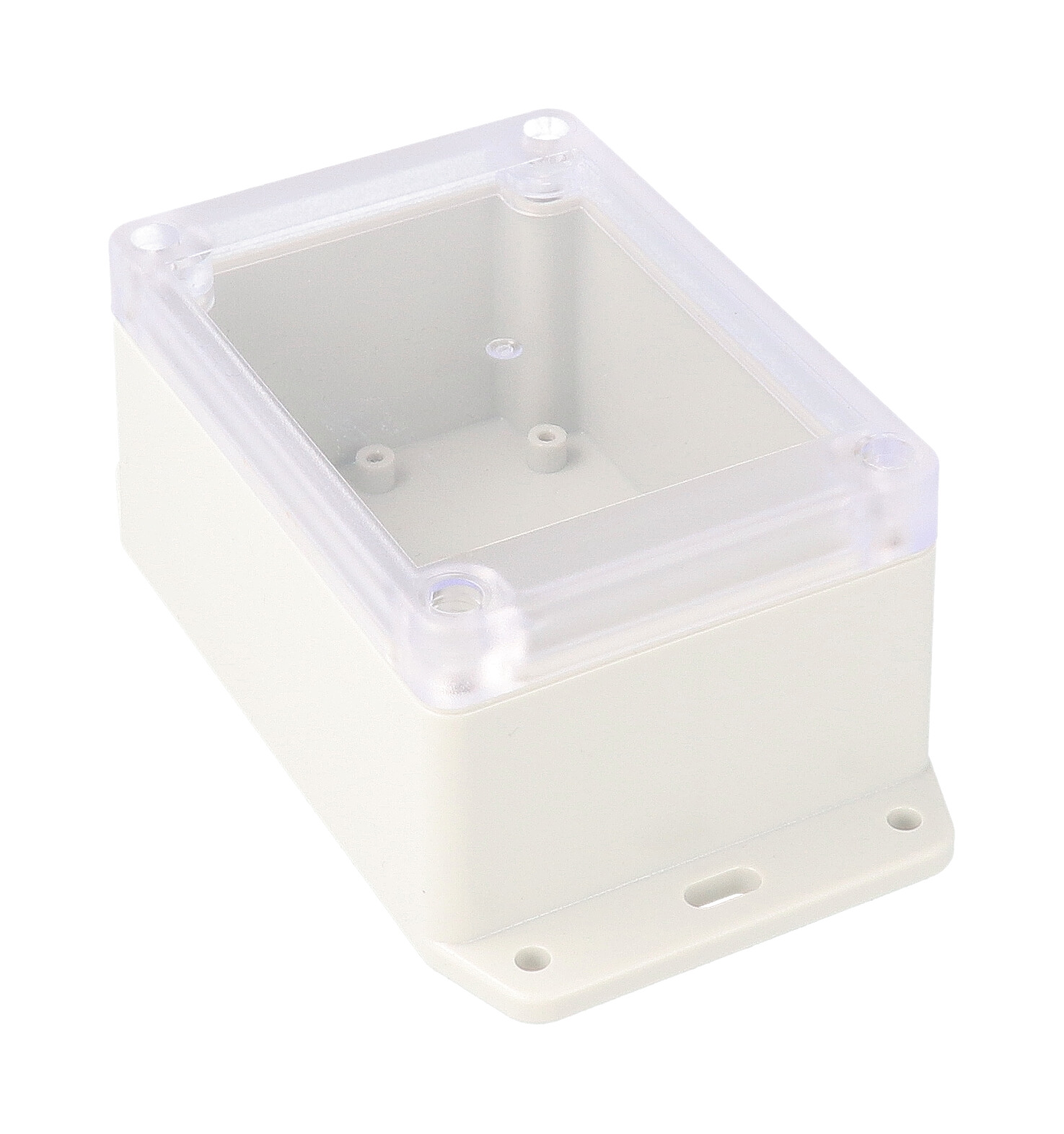

Water-Tight ABS & Polycarbonate Enclosures · RP Series

Key Features

• ■Ideally suited for mounting printed circuit boards or components.
• ■Choice of two materials: General purpose ABS with a flame rating of UL94-HB Polycarbonate with a flame rating of UL94-V2
• ■General purpose ABS with a flame rating of UL94-HB
• ■Polycarbonate with a flame rating of UL94-V2

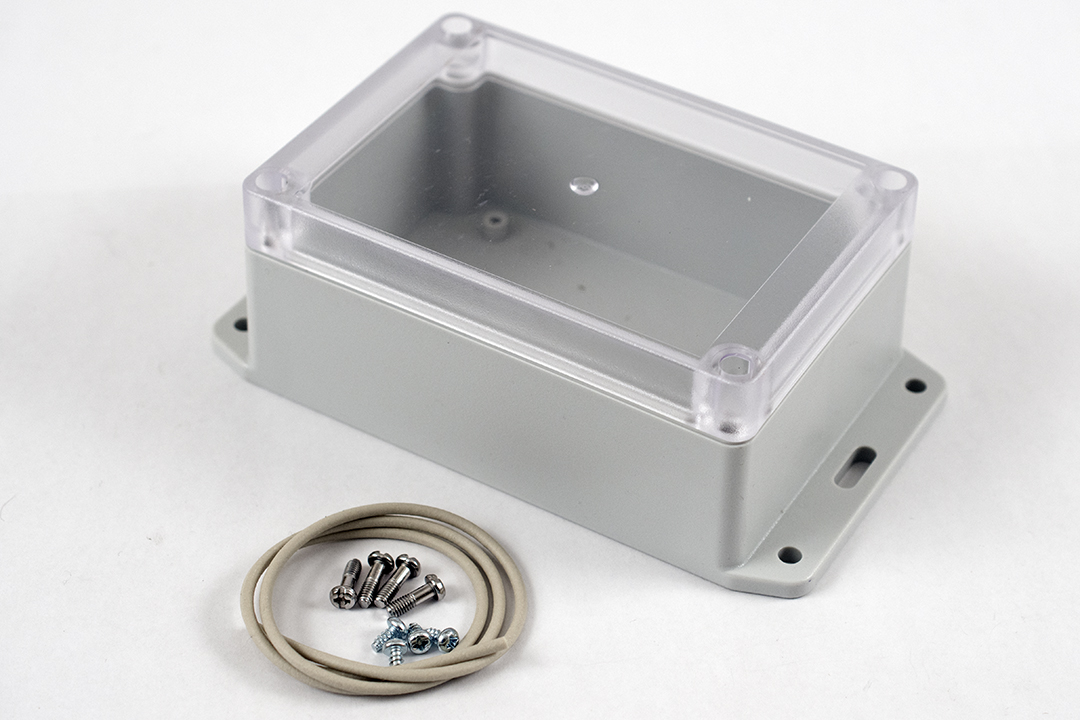

• ■Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust, and water.
• ■For version with no flanges, see RP Series .

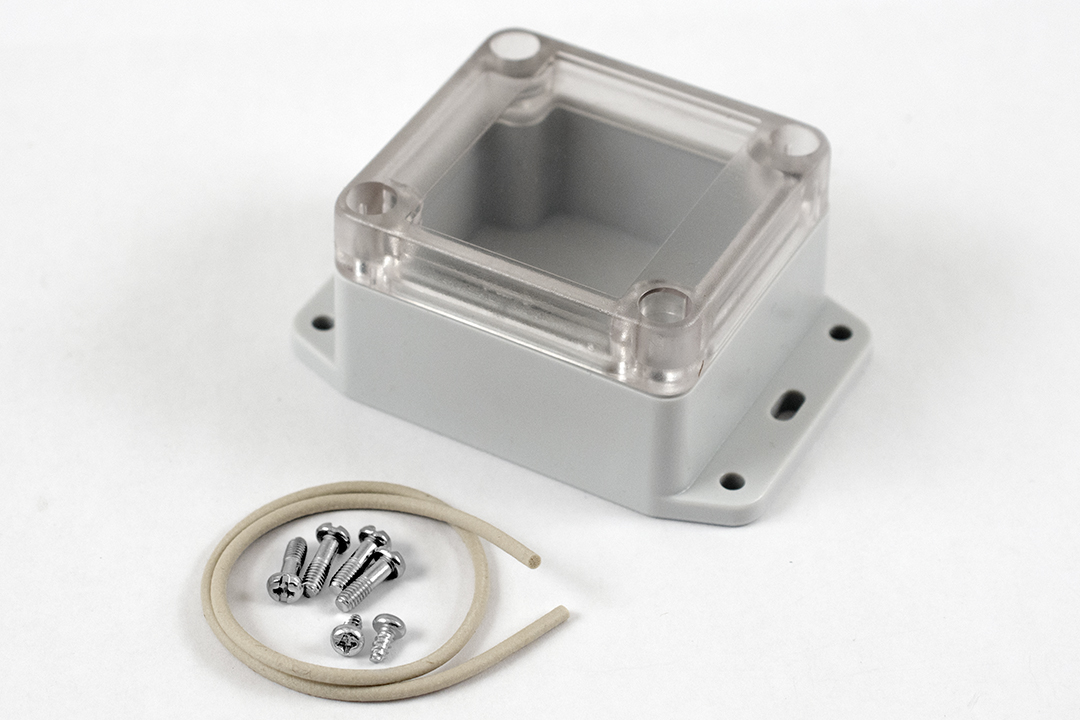

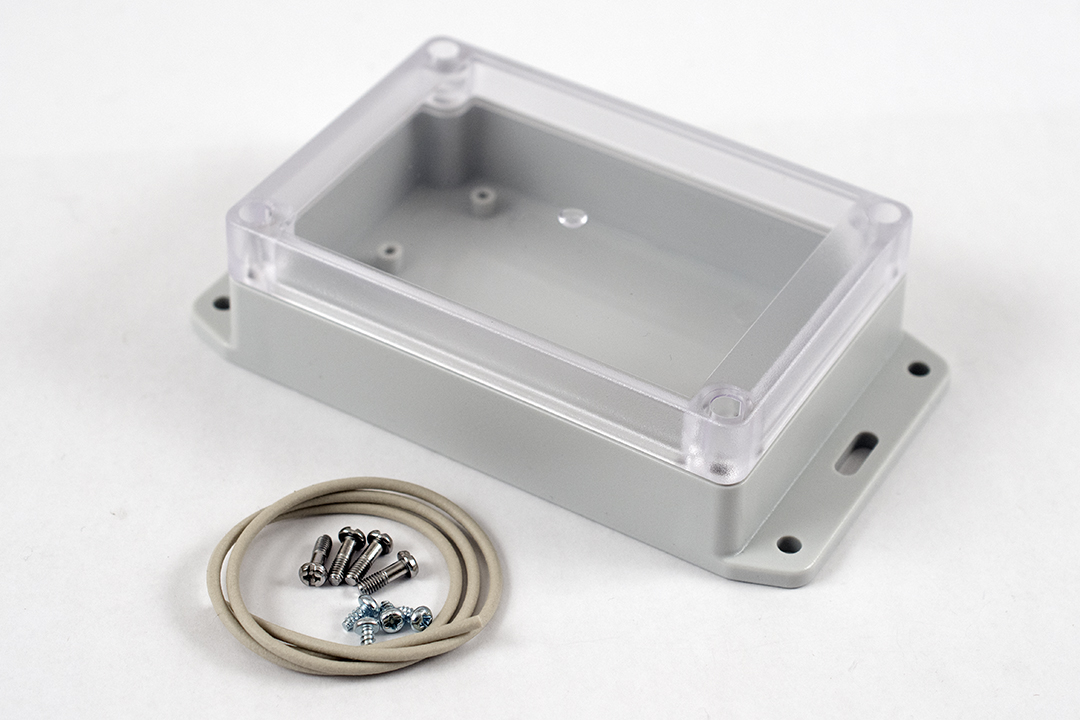

• ■Rubber gasket is included and must be field installed.
• ■Lid includes smooth recessed area for membrane, label or silkscreen.
• ■Designed to meet IP65.
• ■Lid is secured with self captivating M3.5 stainless steel machine screws (included), threaded into corrosion resistant bushings (for repetitive assembly & disassembly).
• ■Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
• ■Internal features are maximized for mounting options: Internal DIN rail mounting tabs PC board mounting posts Options vary with size, please refer to drawings by clicking on the part numbers below.
• ■Internal DIN rail mounting tabs

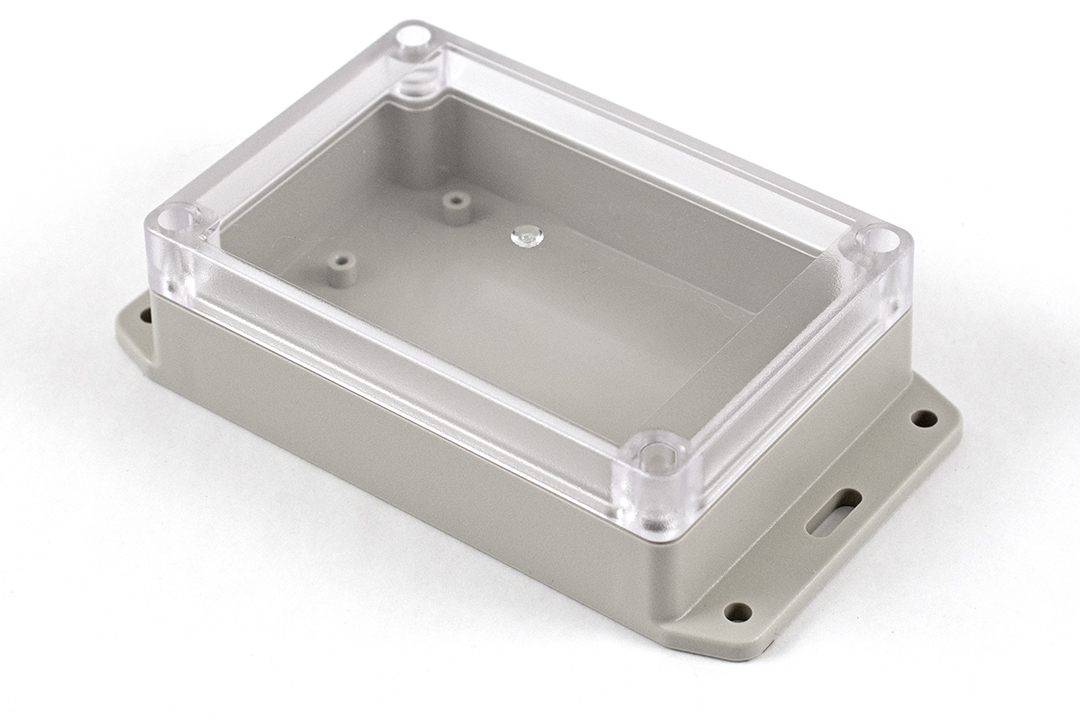

• ■PC board mounting posts
• ■Options vary with size, please refer to drawings by clicking on the part numbers below.
• ■Extra self-tapping M3.5-0.6 x 10mm lid screws: SC619-50
• ■Extra self-tapping M3 x 6mm PC Board screws: SC622-50
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
