Hammond RP1095BFC 105x75x55mm IP65 Abs Enclosure, Clear Lid & Flange

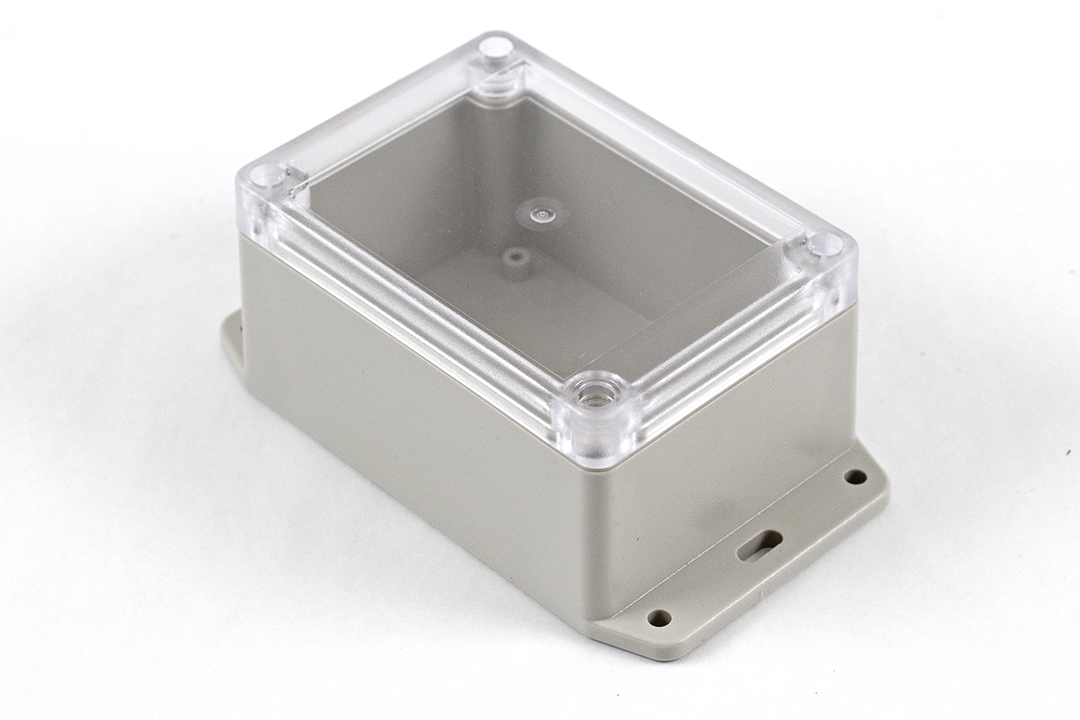

The RP1095BFC is a water-tight general-purpose ABS enclosure with an integral bottom flange and a clear lid, measuring 105 x 75 x 55 mm (4.13 in x 2.95 in x 2.17 in). It suits electronics builders, OEM engineers and electricians who want a general-purpose gasketed housing for printed circuit boards or components, fixed down through its flange. The clear lid leaves the board and components inside visible while the lid stays closed.

It is moulded in light gray ABS plastic with a flame rating of UL94 HB; the series also offers polycarbonate (UL94-V2) versions of the same size. A two-piece tongue-and-groove lid with a rubber gasket (included, field installed) guards against oil, dust and water, and the design is rated IP65. Self-captivating M3.5 stainless steel lid screws (included) thread into corrosion-resistant bushings for repeated assembly and disassembly.

The drawing gives inside dimensions of 98.13 mm [3.86 in] long, 68.13 mm [2.68 in] wide and 49.30 mm [1.94 in] high, and 131.97 mm [5.20 in] overall length across the flange, which carries 5.20 mm [0.20 in] mounting holes. The part page lists a maximum PC board size of 92 x 62 mm, and the internal board posts accept M3 self-tapping screws. This size is a 105 x 75 mm footprint that the series ordering table offers in 40 mm and 55 mm heights.

Matching accessories listed for the RP1095BFC include plastic inner panel STC109, aluminum inner panel STA109 and replacement gasket two-pack RP108GASKET. Spare lid screws (SC619-50) and PC board screws (SC622-50) come in 50-packs. It is RoHS and REACH compliant, packed in a bag at a shipping weight of 0.29 lbs (0.13 kg).
