Hammond RP1375BFC ABS Watertight Box with Clear Lid, 186x146x90 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear lid over a light gray ABS base for visual checks
- 186 x 146 x 90 mm; 178.21 x 138.21 x 83.33 mm inside per drawing
- Designed to meet IP65 with a tongue & groove gasketed lid
- Integral bottom flange with 5.20 mm holes, 205.00 mm spacing
- Captive M3.5 stainless steel lid screws in corrosion resistant bushings
- Board capacity 173 x 134 mm with M3 self-tapping screw posts
- UL94 HB flame rated; RoHS and REACH compliant

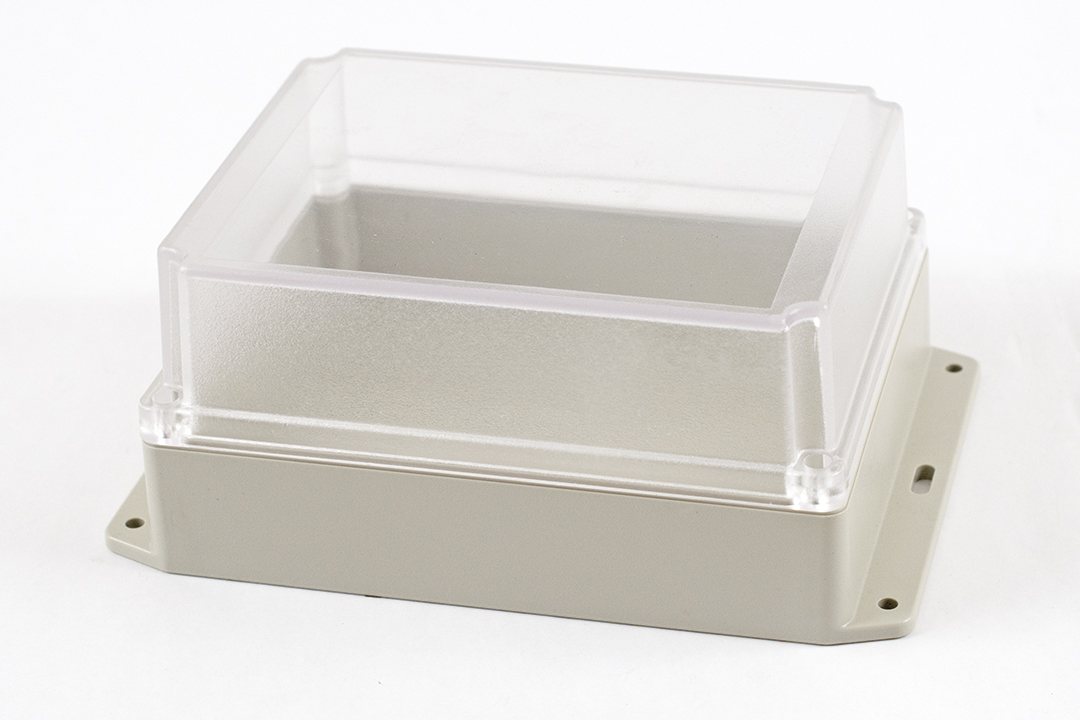

RP1375BFC is a light gray ABS enclosure with a clear lid, sized 186 x 146 x 90 mm (7.32 x 5.75 x 3.54 in) in the RP Series With Bottom Flange. The clear cover lets maintenance staff check indicators or wiring at a glance, and the integral bottom flange allows the box to be fixed straight onto a wall, panel or chassis.
The lid is gasketed with a two piece "tongue & groove" profile that provides protection against oil, dust and water, and the enclosure is designed to meet IP65. A rubber gasket is included and must be fitted on site. Self captivating M3.5 stainless steel machine screws (included) secure the lid through corrosion resistant bushings, supporting repeated access. The ABS carries a UL94 HB flame rating.
The part drawing shows an inside length of 178.21 mm, inside width of 138.21 mm and inside height of 83.33 mm, an overall flanged length of 219.95 mm, and 5.20 mm flange holes on 205.00 mm centres. PC boards up to 173 x 134 mm can be installed; the posts accept M3 self-tapping screws.
- Inner panels: STC128 (plastic), STA128 (aluminum)
- Replacement gasket (2-pk): RP128GASKET
- 50-packs of screws: SC619-50 (lid), SC622-50 (PC board)
RP1375BFC is RoHS and REACH compliant and ships in a bag weighing 1.1 lbs (0.50 kg).
Ideal For
- Enclosures where LEDs or gauges must be visible without opening
- Wall-mounted IP65 electronics in dusty or wet areas
- Prototype housings for boards up to 173 x 134 mm
- Service-friendly junction and control boxes
Overview
| Type | General purpose, water-tight |
| Series | RP Series With Bottom Flange (Water-Tight ABS & Polycarbonate Enclosures) |
| Part Number | RP1375BFC |
| Long Description | enclosure - plastic |
| Short Description | ABS WATERTIGHT CLEAR LID |
| Ordering Table Listing | Light Gray ABS Plastic · Clear Lid w/ Bottom Flange |
Services
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Dimensions
| Width | 5.75 in (146 mm) |
| Height | 3.54 in (90 mm) |
| Length | 7.32 in (186 mm) |
| Size L X W X H | 7.32 in x 5.75 in x 3.54 in (186 mm x 146 mm x 90 mm) |
| Max. P.C. Board Width | 134 mm |
| Inside Width (Drawing) | 138.21 mm [5.44 in] |
| Max. P.C. Board Length | 173 mm |
| Inside Height (Drawing) | 83.33 mm [3.28 in] |
| Inside Length (Drawing) | 178.21 mm [7.02 in] |
| Lid Inlay Depth (Drawing) | 0.40 mm [0.02 in] |
| Flange Mounting Hole Spacing (Drawing) | 205.00 mm [8.07 in] |
| Flange Mounting Hole Diameter (Drawing) | 5.20 mm [0.20 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 219.95 mm [8.66 in] |
Accessories
| Replacement Gasket (2-pk) | RP128GASKET |
| Optional Inner Panel · Plastic | STC128 |
| Optional Inner Panel · Aluminum | STA128 |
| Extra PC Board Screws (M3 X 6mm, 50-pack) | SC622-50 |
| Extra Lid Screws (M3.5-0.6 X 10mm, 50-pack) | SC619-50 |
Identifiers
| UPC | 623980745572 |
| UNSPSC | 39121301 |
| Drawing Reference | RP137 BF (REV:20.11.2025) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 1.1 lbs (0.50 kg) |
Construction & Finish
| Lid | Clear lid |
| Color | Light Gray |
| Gasket | Rubber gasket included; must be field installed |
| Material | ABS Plastic |
| Mounting | Integral bottom flange |
| Lid Fasteners | Self captivating M3.5 stainless steel machine screws (included), threaded into corrosion resistant bushings |
| Lid Label Area | Smooth recessed area for membrane, label or silkscreen |
| Lid Construction | Gasketed lid with two piece "tongue & groove" construction |
| Hardware Included | Lid screws, PC board screws and gasket |
| P.C. Board Mounting Posts | Accept M3 self-tapping screw (drawing) |
Environmental & Protection
| IP Rating | IP65 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; see manufacturer's Plastic Chemical Resistance statement |
Related Models (Same Size)
| Light Gray ABS · Opaque Lid | RP1375BF |
| Off-White Polycarbonate · Clear Lid | RP1370BFC |
| Off-White Polycarbonate · Opaque Lid | RP1370BF |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the RP1375BFC have a clear or opaque lid?▾
A clear lid. RP1375BF is the same ABS enclosure with an opaque lid.
What is the overall length including the flange?▾
The drawing gives 219.95 mm [8.66 in].
What IP rating is it designed for?▾
IP65.
What screws fit the PC board posts?▾
The posts accept M3 self-tapping screws; spare M3 x 6mm PC board screws are available as SC622-50.
How much does it weigh?▾
The shipping weight is 1.1 lbs (0.50 kg).
Related Products
Save 52%RP1375BF — enclosure - plastic
Hammond Manufacturing · RP1375BF

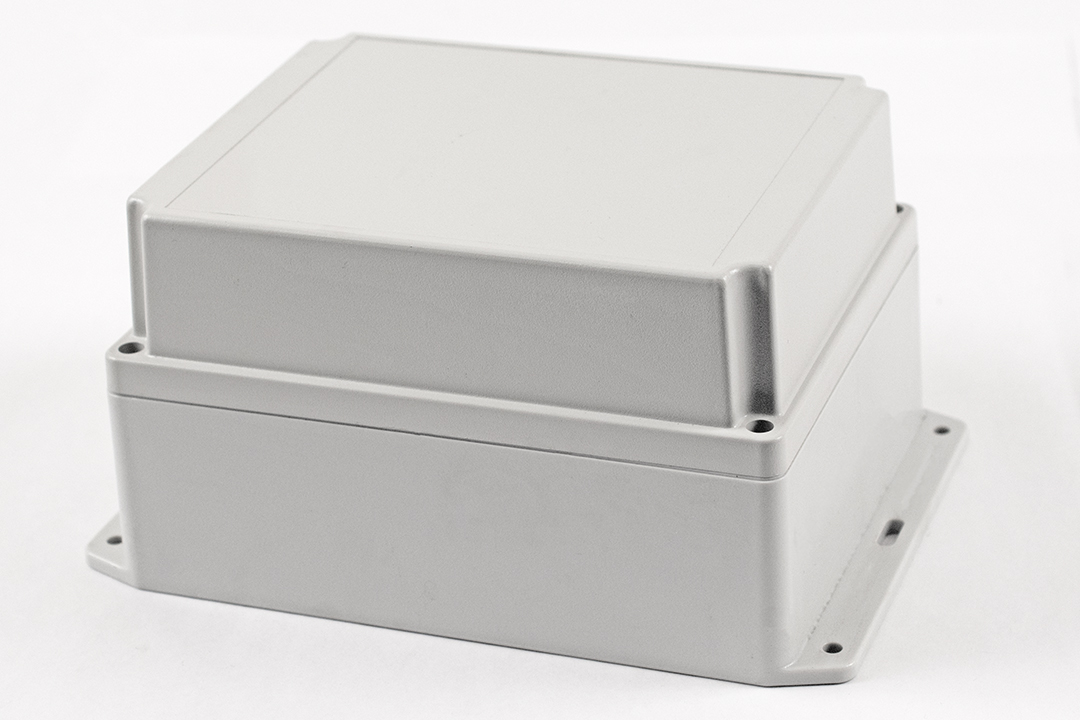

Save 52%RP1380BF — Polycarb Watertight
