Hammond RP1200BFC 145x105 mm IP65 Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65 with a gasketed tongue & groove lid against oil, dust and water
- Polycarbonate body, flame rating UL94 V-2, clear lid
- Nominal 5.71 in (145 mm) x 4.13 in (105 mm) footprint; inside height 39.50 mm [1.56 in] per drawing
- Integral bottom flange with 4.50 mm [0.18 in] mounting holes; 174.95 mm [6.89 in] overall length
- Holds a PC board up to 132 mm x 92 mm on posts that take M3 self-tapping screws
- Internal DIN rail mounting tabs for rail-mounted components
- Self-captivating M3.5 stainless steel lid screws into corrosion-resistant bushings
- Recessed lid area for a membrane, label or silkscreen; optional STC121/STA121 inner panels

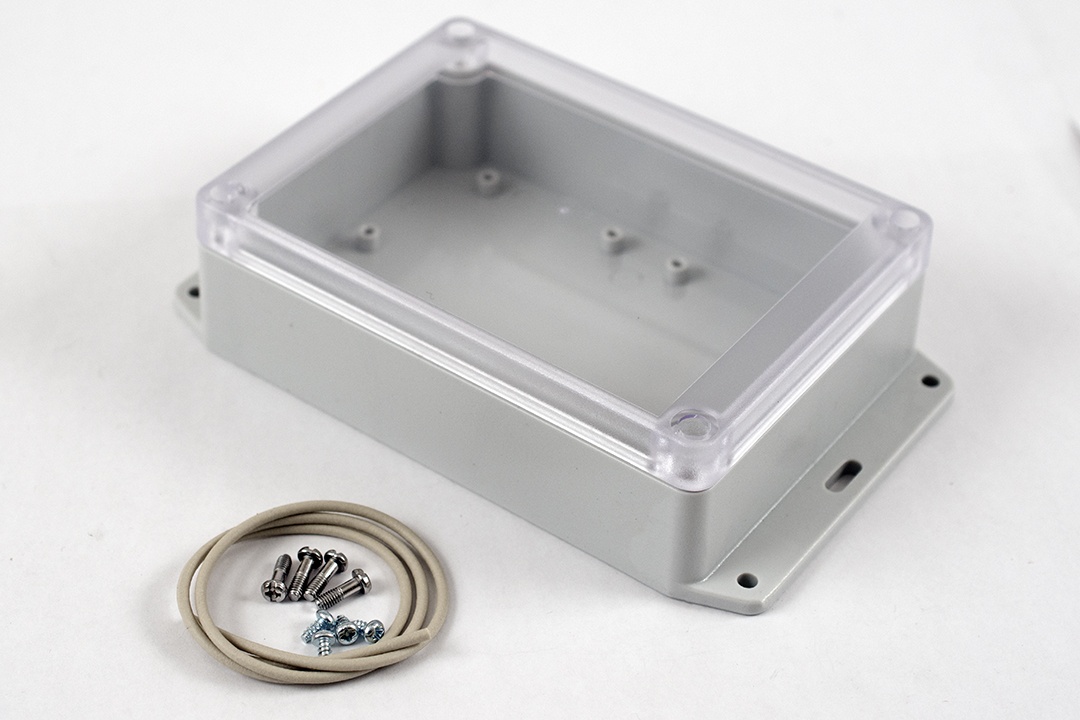

The RP1200BFC is a water-tight polycarbonate enclosure from the RP Series With Bottom Flange, built with a clear lid and an integral bottom flange for surface mounting. It suits OEM engineers and integrators housing printed circuit boards or components, and is designed to meet IP65.
It is moulded in polycarbonate with a flame rating of UL94 V-2. The series ordering table lists this part as the off-white polycarbonate version, while the part page gives the colour as Light Gray. The gasketed lid uses two-piece "tongue & groove" construction to protect against access of oil, dust and water; the rubber gasket is included and must be field installed. The lid is secured with self-captivating M3.5 stainless steel machine screws (included) threaded into corrosion-resistant bushings, and it has a smooth recessed area (0.40 mm [0.02 in] inlay depth on the drawing) for a membrane, label or silkscreen.
The series ordering table lists its nominal size as 5.71 in (145 mm) x 4.13 in (105 mm) x 1.57 in (40 mm); the part page lists 5.71 in x 4.13 in x 1.77 in (145 mm x 105 mm x 45 mm) and the drawing shows 45.00 mm [1.77 in] overall height. This 145 x 105 mm body is the low-profile member of its footprint, with 39.50 mm of inside height for a flat PC board assembly. Per the drawing, the inside dimensions are 137.55 mm [5.42 in] long, 97.55 mm [3.84 in] wide and 39.50 mm [1.56 in] high, the overall length across the flange is 174.95 mm [6.89 in], and the flange mounting holes are 4.50 mm [0.18 in] in diameter. Shipping weight is 0.49 lbs (0.22 kg).
Inside, the RP1200BFC has PC board mounting posts that accept M3 self-tapping screws and internal DIN rail mounting tabs. Optional inner panels are available in plastic (STC121) or aluminum (STA121), with replacement gasket 2-pack RP120GASKET and 50-packs of lid screws (SC619-50) and PC board screws (SC622-50). The part is RoHS and REACH compliant. Avoid acetone, thread-locking compounds and cutting fluid, which can damage the plastic.
Ideal For
- Housing printed circuit boards or electronic components
- Water-tight enclosure for dust, oil and water exposure (IP65 design)
- DIN rail mounted components inside a sealed box
- Flange-mounted surface installation
- Sealed housings where a clear lid is wanted
Overview
| Lid | Clear lid |
| Type | General purpose, water-tight |
| Series | RP Series With Bottom Flange (Water-Tight ABS & Polycarbonate Enclosures) |
| Mounting | Integral bottom flange |
| Part Number | RP1200BFC |
| Long Description | enclosure - plastic |
| Short Description | PC WATERTIGHT CLEAR LID |
| Series Table Variant | Off-White Polycarbonate · Clear Lid w/ Bottom Flange |
Dimensions
| Nominal Width | 4.13 in (105 mm) |
| Nominal Height | 1.57 in (40 mm) |
| Nominal Length | 5.71 in (145 mm) |
| Max. P.C. Board Width | 92 mm |
| Inside Width (Drawing) | 97.55 mm [3.84 in] |
| Max. P.C. Board Length | 132 mm |
| Inside Height (Drawing) | 39.50 mm [1.56 in] |
| Inside Length (Drawing) | 137.55 mm [5.42 in] |
| Overall Height (Drawing) | 45.00 mm [1.77 in] |
| Lid Inlay Depth (Drawing) | 0.40 mm [0.02 in] |
| Size L X W X H (Part Page) | 5.71 in x 4.13 in x 1.77 in (145 mm x 105 mm x 45 mm) |
| Nominal Size (Series Ordering Table) | 5.71 in (145 mm) x 4.13 in (105 mm) x 1.57 in (40 mm) |
| Overall Length Incl. Flange (Drawing) | 174.95 mm [6.89 in] |
| Flange Mounting Hole Diameter (Drawing) | 4.50 mm [0.18 in] |
Accessories
| Extra Lid Screws | SC619-50 (50-pack, self-tapping M3.5-0.6 x 10mm) |
| Extra PC Board Screws | SC622-50 (50-pack, self-tapping M3 x 6mm) |
| Replacement Gasket (2-pk) | RP120GASKET |
| Optional Inner Panel (Plastic) | STC121 |
| Optional Inner Panel (Aluminum) | STA121 |
Identifiers
| UPC | 623980745053 |
| UNSPSC | 39121301 |
| Drawing Reference | RP120 BF, REV:20.11.2025 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.49 lbs (0.22 kg) |
Construction & Finish
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Fasteners | Self-captivating M3.5 stainless steel machine screws (included), threaded into corrosion-resistant bushings |
| PC Board Screw | Accepts M3 self-tapping screw |
| Lid Construction | Gasketed two-piece "tongue & groove" lid |
| Lid Marking Area | Smooth recessed area for membrane, label or silkscreen |
| Color (Part Page) | Light Gray |
| Hardware Included | Lid screws, PC board screws and gasket |
| Internal Mounting | Internal DIN rail mounting tabs; PC board mounting posts |
| Lid Screw Threads | Lid holes are threaded with the first installation of the lid screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Color (Series Ordering Table) | Off-White |
Environmental & Protection
| Gasket | Rubber gasket included; must be field installed |
| IP Rating | IP65 |
| Protection | Protection against access of oil, dust and water |
| Flame Rating | UL94 V-2 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the RP1200BFC?▾
The series ordering table lists 5.71 in (145 mm) x 4.13 in (105 mm) x 1.57 in (40 mm); the part page lists 5.71 in x 4.13 in x 1.77 in (145 mm x 105 mm x 45 mm). The drawing shows an overall height of 45.00 mm [1.77 in], 174.95 mm [6.89 in] overall length across the flange, and inside dimensions of 137.55 mm [5.42 in] x 97.55 mm [3.84 in] x 39.50 mm [1.56 in].
What is the largest PC board that fits?▾
The part data gives a maximum PC board length of 132 mm and width of 92 mm. Boards mount on internal posts that accept M3 self-tapping screws.
Is the RP1200BFC water-tight?▾
It is designed to meet IP65. The gasketed two-piece tongue & groove lid protects against access of oil, dust and water. The rubber gasket is included and must be field installed.
What material and flame rating is it?▾
Polycarbonate with a flame rating of UL94 V-2. The part page lists the colour as Light Gray; the series ordering table lists this part under Off-White Polycarbonate.
Which accessories fit it?▾
Optional inner panels STC121 (plastic) and STA121 (aluminum), replacement gasket 2-pack RP120GASKET, extra lid screws SC619-50 and extra PC board screws SC622-50.
How is it mounted?▾
It has an integral bottom flange with 4.50 mm [0.18 in] diameter holes (per the drawing). Inside, DIN rail mounting tabs and PC board posts are provided.
