Hammond RP1285BF 186x146x75 mm Flanged ABS Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

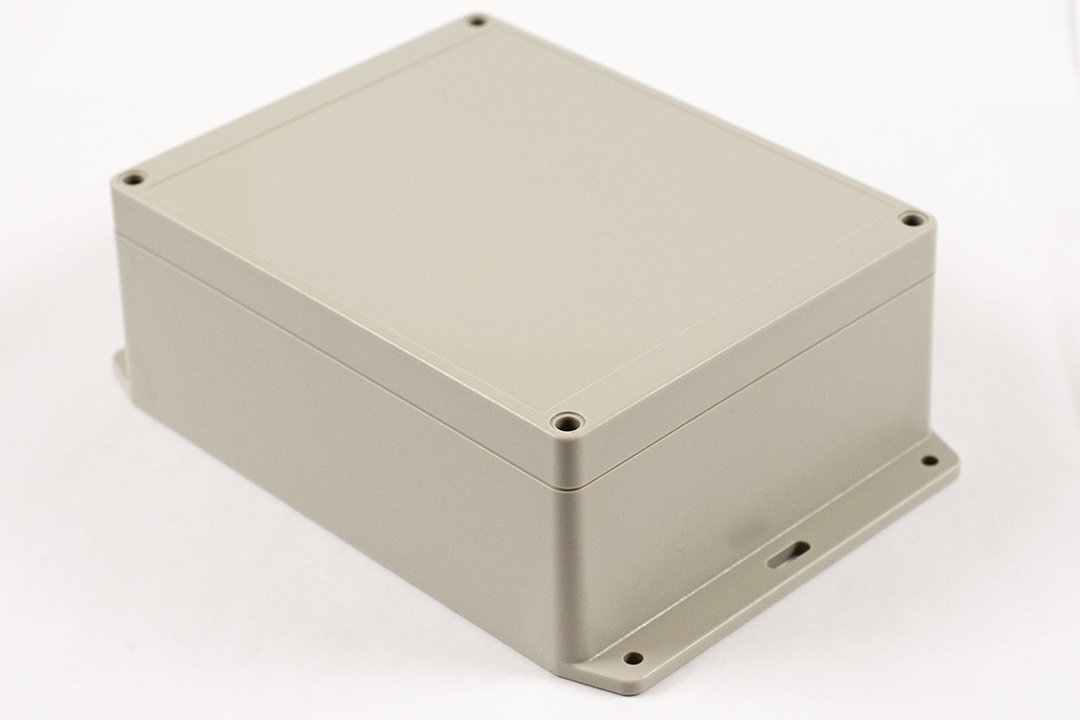

- IP65-designed ABS enclosure, 186 x 146 x 75 mm (7.32 x 5.75 x 2.95 in)
- Integral bottom flange with 5.20 mm holes on 205.00 mm centres for surface mounting
- Opaque light gray lid with smooth recessed area for a membrane, label or silkscreen
- Tongue & groove gasketed lid resists oil, dust and water; rubber gasket included
- Captive M3.5 stainless steel lid screws thread into corrosion resistant bushings
- Takes PC boards up to 173 x 134 mm on posts that accept M3 self-tapping screws
- UL94 HB flame rated ABS, RoHS and REACH compliant
The RP1285BF is a light gray ABS plastic enclosure from the RP Series With Bottom Flange, built for OEM engineers, panel builders and field electricians who need a sealed housing for printed circuit boards or small components. It pairs an opaque lid with an integral bottom flange, so the box can be screwed straight to a wall, machine frame or backplate.
The lid uses a gasketed, two piece "tongue & groove" design that guards against oil, dust and water, and the enclosure is designed to meet IP65. The rubber gasket ships with the enclosure and is installed in the field. Self captivating M3.5 stainless steel machine screws, included, thread into corrosion resistant bushings so the lid can be removed and refitted repeatedly. The ABS body carries a UL94 HB flame rating.
Outside, the box measures 7.32 x 5.75 x 2.95 in (186 x 146 x 75 mm). The drawing gives inside dimensions of 177.51 x 137.51 x 68.13 mm and an overall length of 219.95 mm across the flange, with 5.20 mm mounting holes on 205.00 mm centres. Boards up to 173 x 134 mm fit, and the PC board posts accept M3 self-tapping screws.
- Optional inner panels: STC128 (plastic) or STA128 (aluminum)
- Replacement gasket 2-pack: RP128GASKET
- Spare screws: SC619-50 (lid) and SC622-50 (PC board)
RP1285BF is RoHS and REACH compliant, ships in a bag at 1.06 lbs (0.48 kg), and a smooth recessed lid area takes a membrane, label or silkscreen.
Ideal For
- Housing printed circuit boards in wet or dusty locations
- Wall or frame mounted control and sensor electronics
- OEM equipment needing a flanged IP65 plastic box
- Custom-labelled instrument housings using the recessed lid area
Overview
| Type | General purpose, water-tight |
| Series | RP Series With Bottom Flange (Water-Tight ABS & Polycarbonate Enclosures) |
| Part Number | RP1285BF |
| Long Description | enclosure - plastic |
| Short Description | ABS WATERTIGHT |
| Ordering Table Listing | Light Gray ABS Plastic · Opaque Lid w/ Bottom Flange |
Services
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Dimensions
| Width | 5.75 in (146 mm) |
| Height | 2.95 in (75 mm) |
| Length | 7.32 in (186 mm) |
| Size L X W X H | 7.32 in x 5.75 in x 2.95 in (186 mm x 146 mm x 75 mm) |
| Max. P.C. Board Width | 134 mm |
| Inside Width (Drawing) | 137.51 mm [5.41 in] |
| Max. P.C. Board Length | 173 mm |
| Inside Height (Drawing) | 68.13 mm [2.68 in] |
| Inside Length (Drawing) | 177.51 mm [6.99 in] |
| Lid Inlay Depth (Drawing) | 0.40 mm [0.02 in] |
| Flange Mounting Hole Spacing (Drawing) | 205.00 mm [8.07 in] |
| Flange Mounting Hole Diameter (Drawing) | 5.20 mm [0.20 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 219.95 mm [8.66 in] |
Accessories
| Replacement Gasket (2-pk) | RP128GASKET |
| Optional Inner Panel · Plastic | STC128 |
| Optional Inner Panel · Aluminum | STA128 |
| Extra PC Board Screws (M3 X 6mm, 50-pack) | SC622-50 |
| Extra Lid Screws (M3.5-0.6 X 10mm, 50-pack) | SC619-50 |
Identifiers
| UPC | 623980745336 |
| UNSPSC | 39121301 |
| Drawing Reference | RP128 BF (REV:20.11.2025) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 1.06 lbs (0.48 kg) |
Construction & Finish
| Lid | Opaque lid |
| Color | Light Gray |
| Gasket | Rubber gasket included; must be field installed |
| Material | ABS Plastic |
| Mounting | Integral bottom flange |
| Lid Fasteners | Self captivating M3.5 stainless steel machine screws (included), threaded into corrosion resistant bushings |
| Lid Label Area | Smooth recessed area for membrane, label or silkscreen |
| Lid Construction | Gasketed lid with two piece "tongue & groove" construction |
| Hardware Included | Lid screws, PC board screws and gasket |
| P.C. Board Mounting Posts | Accept M3 self-tapping screw (drawing) |
Environmental & Protection
| IP Rating | IP65 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; see manufacturer's Plastic Chemical Resistance statement |
Related Models (Same Size)
| Light Gray ABS · Clear Lid | RP1285BFC |
| Off-White Polycarbonate · Clear Lid | RP1280BFC |
| Off-White Polycarbonate · Opaque Lid | RP1280BF |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the RP1285BF?▾
The drawing lists an inside length of 177.51 mm [6.99 in], inside width of 137.51 mm [5.41 in] and inside height of 68.13 mm [2.68 in].
How is the RP1285BF mounted?▾
It has an integral bottom flange. The drawing shows 5.20 mm mounting holes spaced 205.00 mm apart, and an overall length of 219.95 mm including the flange.
Is the gasket already fitted?▾
No. A rubber gasket is included with the enclosure but must be field installed.
What is the largest circuit board it accepts?▾
The maximum P.C. board size is 173 mm long by 134 mm wide.
Is there a clear-lid or polycarbonate version of this size?▾
Yes. RP1285BFC is the ABS version with a clear lid; RP1280BF and RP1280BFC are the polycarbonate versions with opaque and clear lids.
Which inner panels fit this enclosure?▾
The series ordering table lists STC128 (plastic) and STA128 (aluminum) as optional inner panels for this size.
