Hammond RP1385BFC Deep ABS Clear Lid Enclosure, 186x146x110 mm Flanged
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear lid on a light gray ABS base, 186 x 146 x 110 mm
- 103.33 mm inside height per drawing for tall assemblies
- Designed to meet IP65 with gasketed tongue & groove lid
- Bottom flange, 5.20 mm holes on 205.00 mm centres
- Captive M3.5 stainless steel lid screws in corrosion resistant bushings
- PC boards up to 173 x 134 mm on M3 self-tapping screw posts
- UL94 HB flame rating; RoHS and REACH compliant

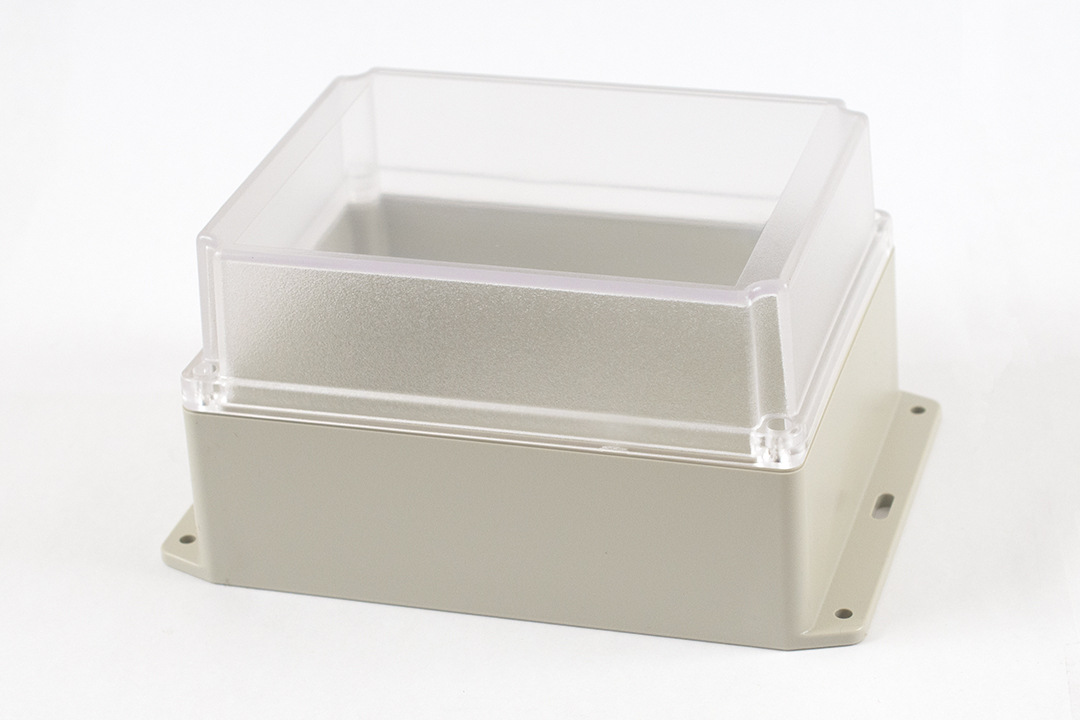

RP1385BFC pairs a light gray ABS base with a clear lid in the 186 x 146 x 110 mm (7.32 x 5.75 x 4.33 in) size of the RP Series With Bottom Flange. It is the clear-lid ABS option for projects that need the full 110 mm height, such as boards with tall components or extra wiring, while keeping indicators visible from outside. The integral bottom flange mounts directly to a surface.
A gasketed lid with two piece "tongue & groove" construction protects the contents from oil, dust and water, and the enclosure is designed to meet IP65. The included rubber gasket is field installed. The lid is secured with self captivating M3.5 stainless steel machine screws (included) threaded into corrosion resistant bushings, which supports repeated servicing. The ABS carries a UL94 HB flame rating.
The drawing shows 177.51 mm inside length, 137.51 mm inside width and 103.33 mm inside height, an overall flanged length of 219.95 mm, and 5.20 mm diameter mounting holes on 205.00 mm centres. The PC board posts accept M3 self-tapping screws, and the maximum board size is 173 x 134 mm.
RP1385BFC is RoHS and REACH compliant and ships in a bag at 1.15 lbs (0.52 kg). Inner panels STC128 (plastic) and STA128 (aluminum), gasket 2-pack RP128GASKET and 50-piece screw packs SC619-50 and SC622-50 are listed for this size.
Ideal For
- Tall assemblies where indicators must remain visible
- Surface-mounted IP65 control and monitoring electronics
- Enclosures for boards up to 173 x 134 mm with wiring space
- Service-access junction boxes with a see-through cover
Overview
| Type | General purpose, water-tight |
| Series | RP Series With Bottom Flange (Water-Tight ABS & Polycarbonate Enclosures) |
| Part Number | RP1385BFC |
| Long Description | enclosure - plastic |
| Short Description | ABS WATERTIGHT CLEAR LID |
| Ordering Table Listing | Light Gray ABS Plastic · Clear Lid w/ Bottom Flange |
Services
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Dimensions
| Width | 5.75 in (146 mm) |
| Height | 4.33 in (110 mm) |
| Length | 7.32 in (186 mm) |
| Size L X W X H | 7.32 in x 5.75 in x 4.33 in (186 mm x 146 mm x 110 mm) |
| Max. P.C. Board Width | 134 mm |
| Inside Width (Drawing) | 137.51 mm [5.41 in] |
| Max. P.C. Board Length | 173 mm |
| Inside Height (Drawing) | 103.33 mm [4.07 in] |
| Inside Length (Drawing) | 177.51 mm [6.99 in] |
| Lid Inlay Depth (Drawing) | 0.40 mm [0.02 in] |
| Flange Mounting Hole Spacing (Drawing) | 205.00 mm [8.07 in] |
| Flange Mounting Hole Diameter (Drawing) | 5.20 mm [0.20 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 219.95 mm [8.66 in] |
Accessories
| Replacement Gasket (2-pk) | RP128GASKET |
| Optional Inner Panel · Plastic | STC128 |
| Optional Inner Panel · Aluminum | STA128 |
| Extra PC Board Screws (M3 X 6mm, 50-pack) | SC622-50 |
| Extra Lid Screws (M3.5-0.6 X 10mm, 50-pack) | SC619-50 |
Identifiers
| UPC | 623980745589 |
| UNSPSC | 39121301 |
| Drawing Reference | RP138 BF (REV:20.11.2025) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 1.15 lbs (0.52 kg) |
Construction & Finish
| Lid | Clear lid |
| Color | Light Gray |
| Gasket | Rubber gasket included; must be field installed |
| Material | ABS Plastic |
| Mounting | Integral bottom flange |
| Lid Fasteners | Self captivating M3.5 stainless steel machine screws (included), threaded into corrosion resistant bushings |
| Lid Label Area | Smooth recessed area for membrane, label or silkscreen |
| Lid Construction | Gasketed lid with two piece "tongue & groove" construction |
| Hardware Included | Lid screws, PC board screws and gasket |
| P.C. Board Mounting Posts | Accept M3 self-tapping screw (drawing) |
Environmental & Protection
| IP Rating | IP65 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; see manufacturer's Plastic Chemical Resistance statement |
Related Models (Same Size)
| Light Gray ABS · Opaque Lid | RP1385BF |
| Off-White Polycarbonate · Clear Lid | RP1380BFC |
| Off-White Polycarbonate · Opaque Lid | RP1380BF |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What distinguishes RP1385BFC from RP1385BF?▾
Both are light gray ABS, 186 x 146 x 110 mm, with a bottom flange; RP1385BFC has a clear lid and RP1385BF an opaque one.
How much internal height is there?▾
The drawing lists 103.33 mm [4.07 in] inside height.
Can the lid be opened repeatedly?▾
Yes. The stainless steel lid screws thread into corrosion resistant bushings for repetitive assembly and disassembly.
Which replacement gasket fits?▾
RP128GASKET, a 2-pack, per the series ordering table.
Is there a polycarbonate equivalent?▾
Yes, RP1380BFC (clear lid) and RP1380BF (opaque lid).
