ABS Plastic Instrument Enclosures · 1598 Series

Features:

Flame Retardant version

General Purpose Version

Other 1598 Series

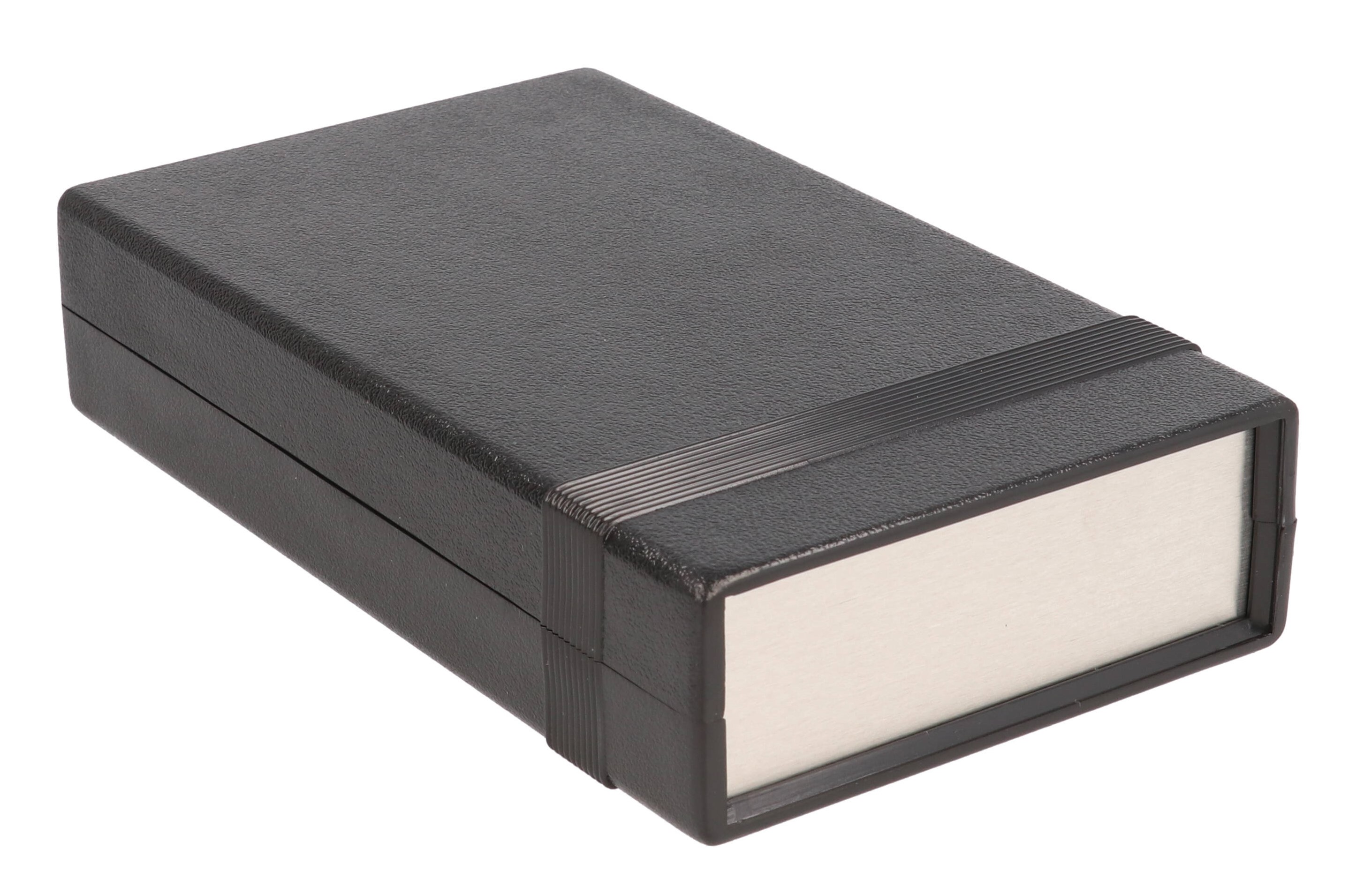

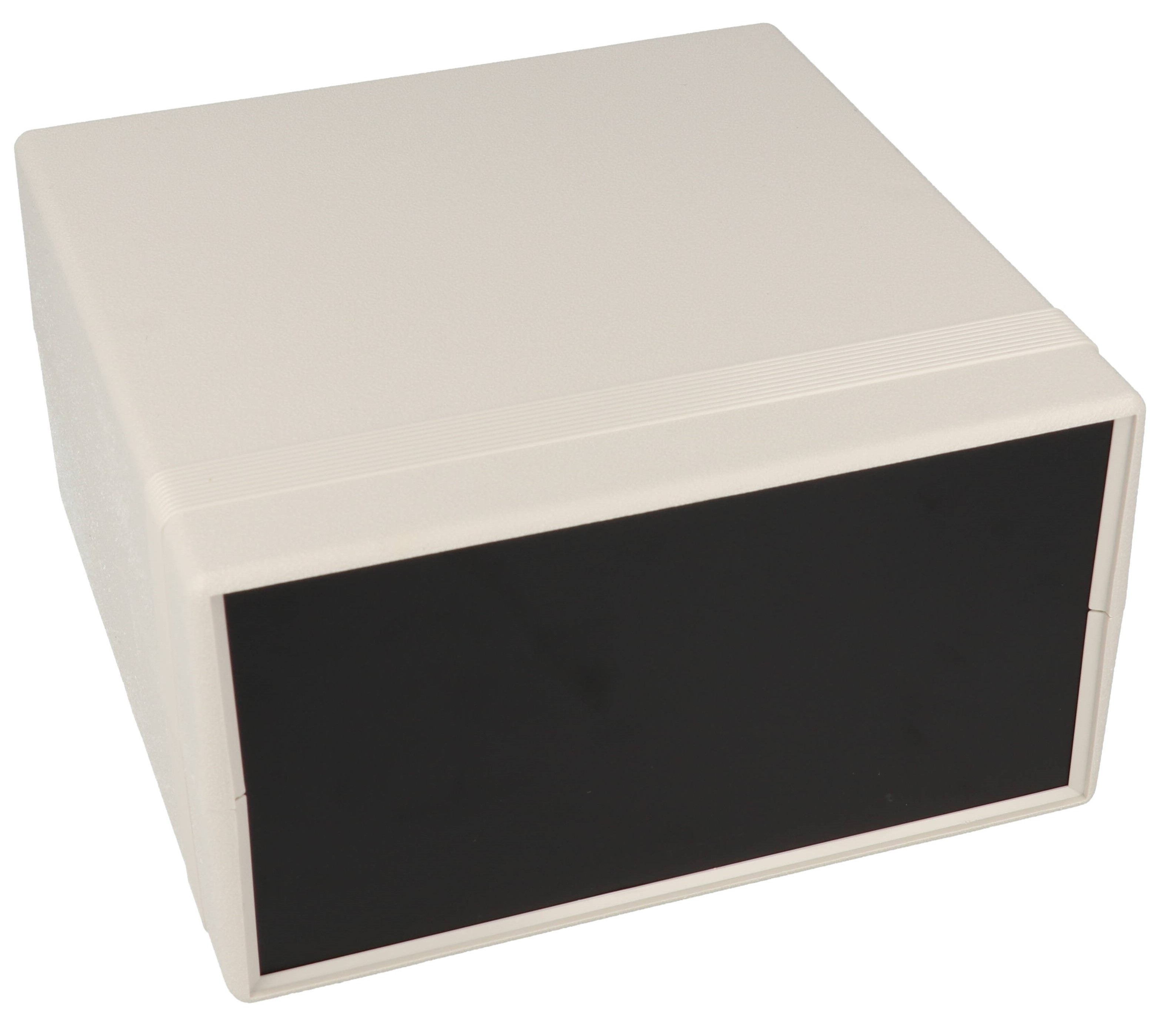

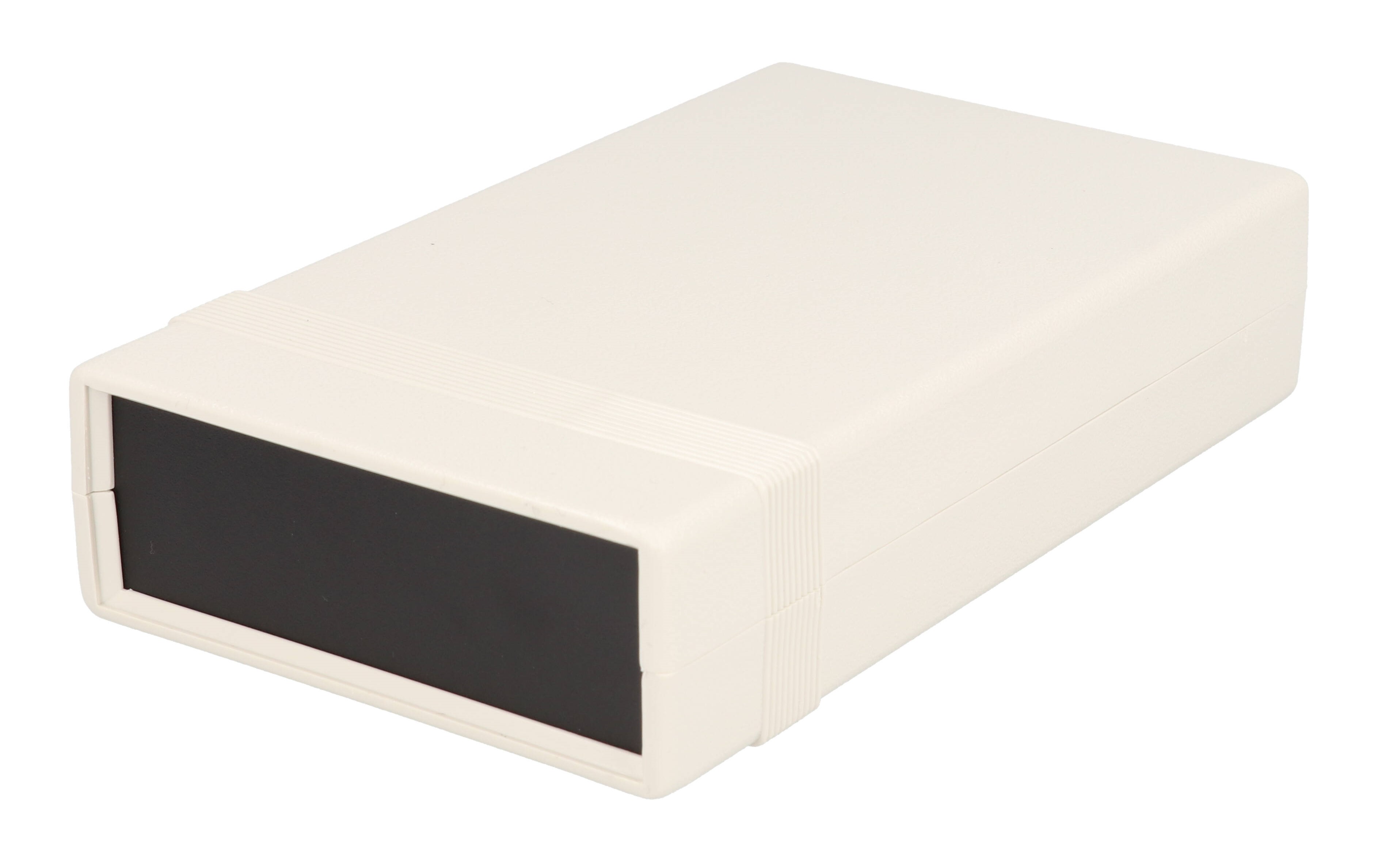

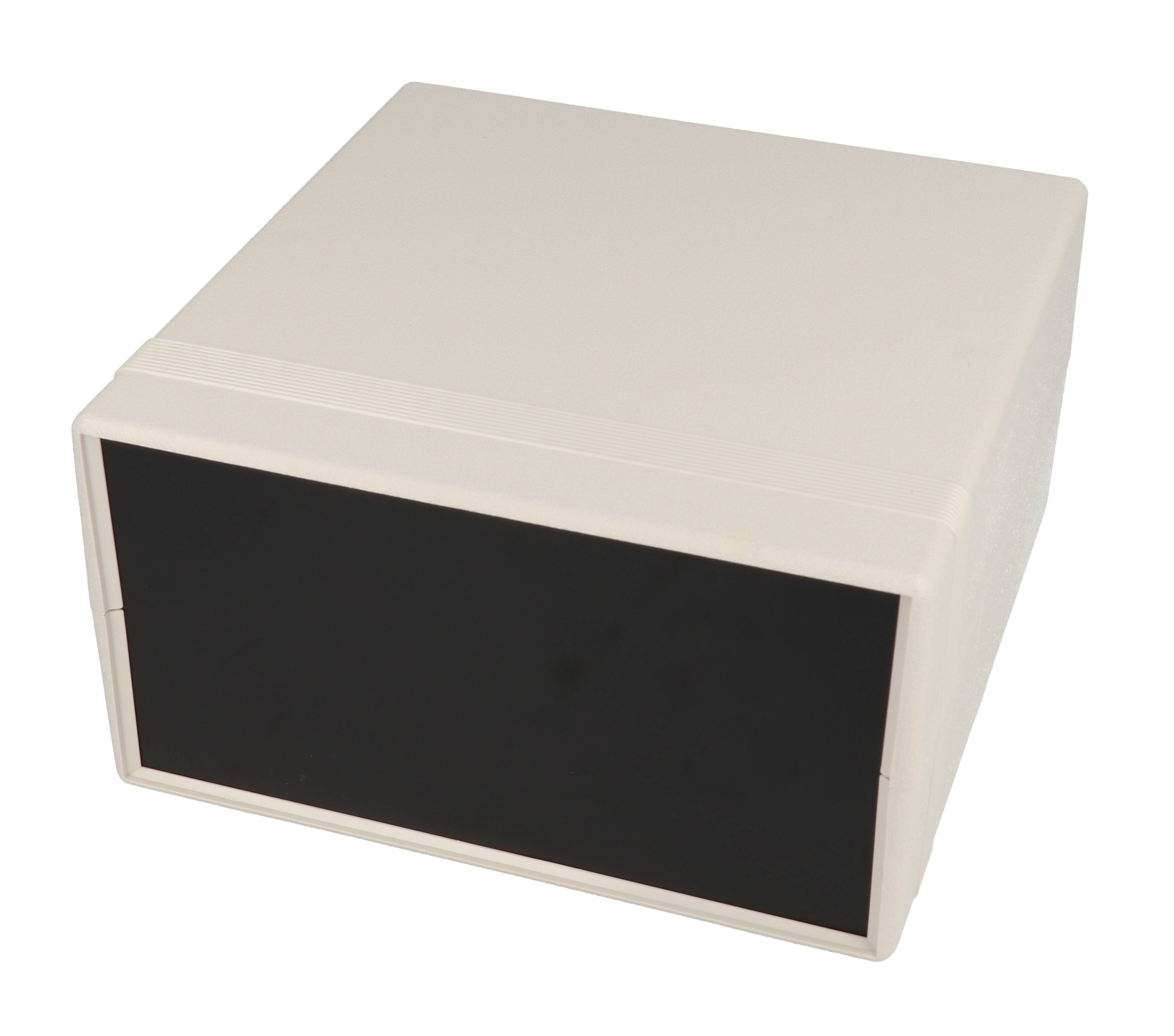

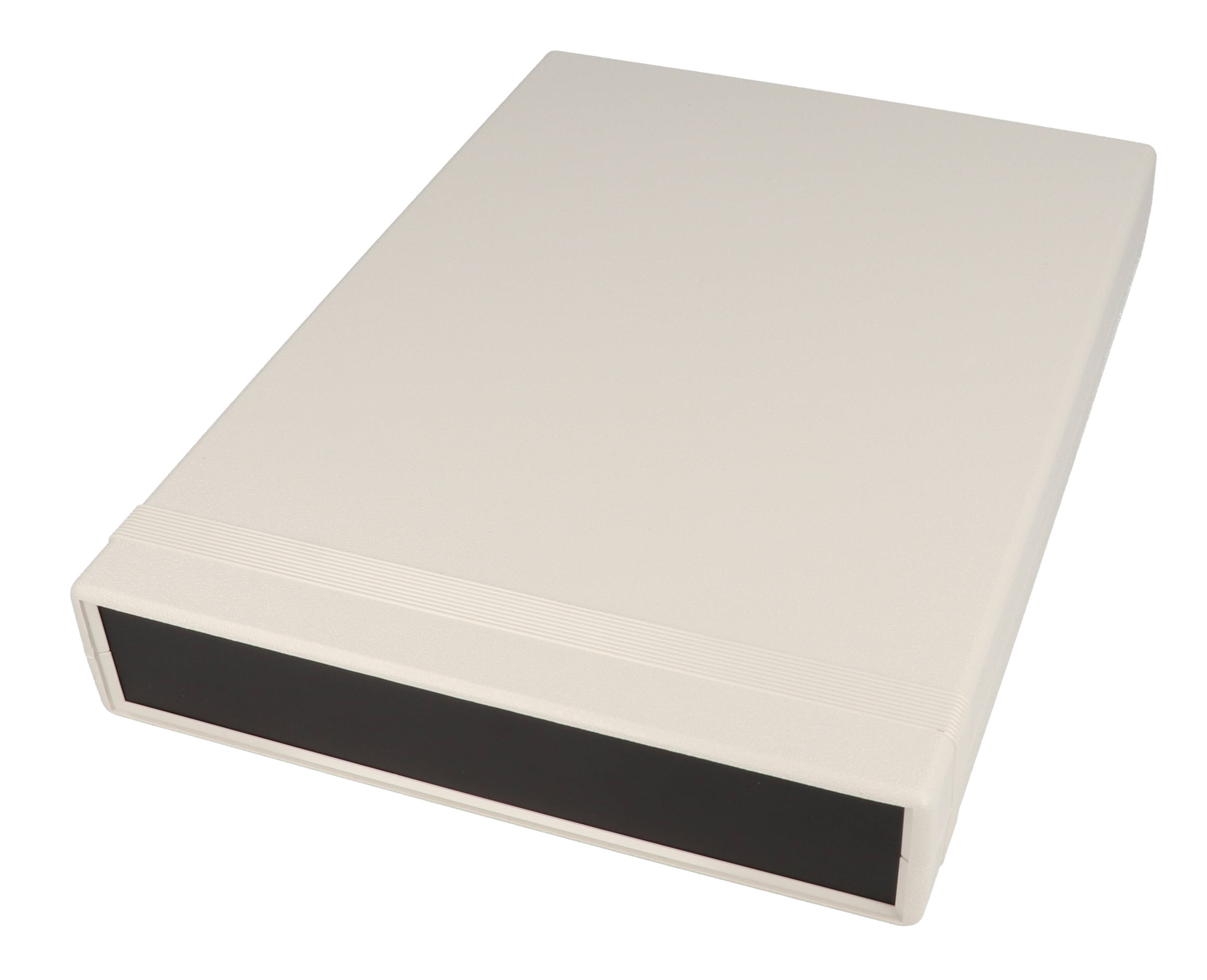

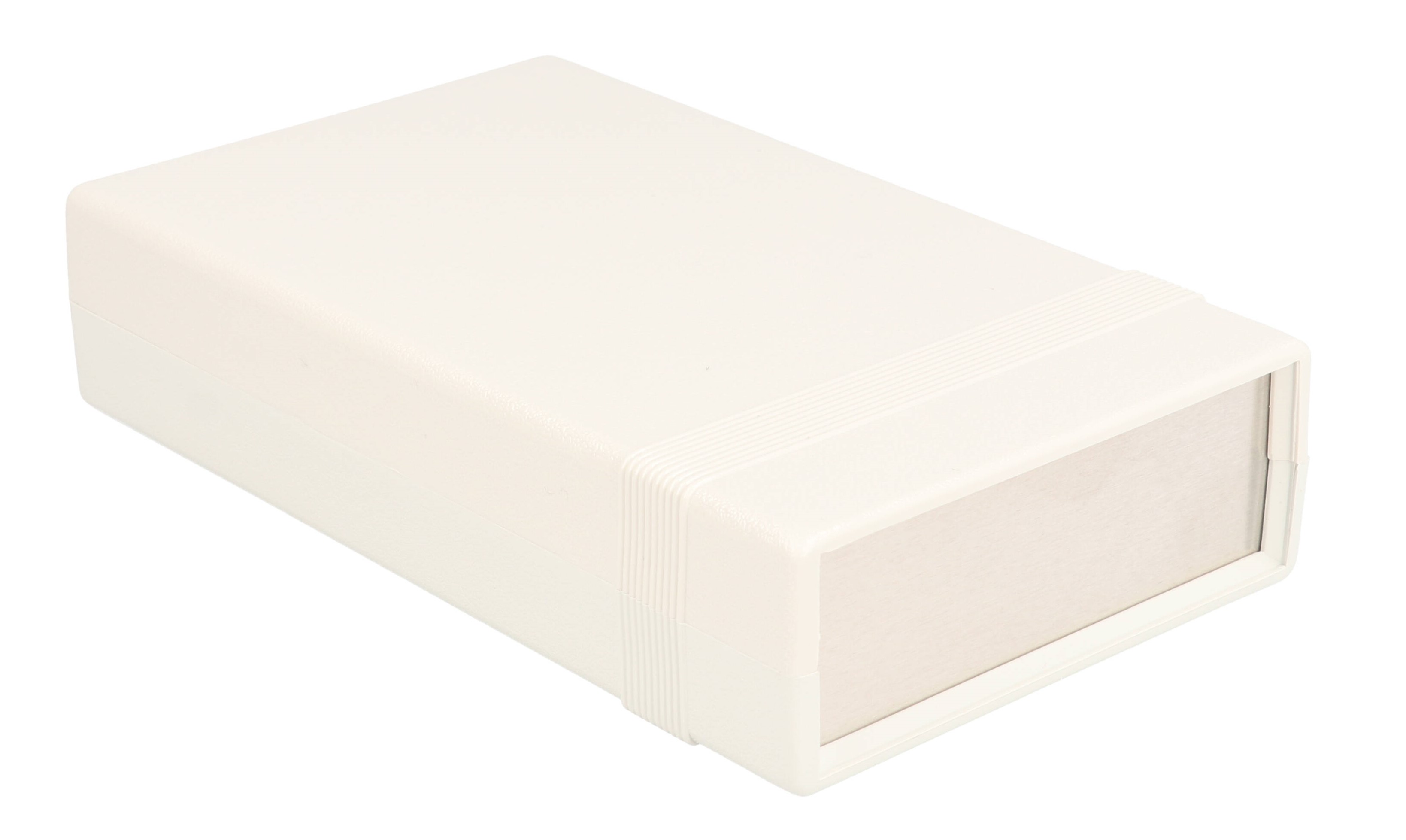

• ■Desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards.
• ■Designed to meet IP54.
• ■Two sets of vertical 1.5 mm (0.062”) PC board guides are molded into front and rear of case halves.
• ■Integral horizontal PC card mounts on Eurocard centers.
• ■PC card standoffs molded into top and bottom half of enclosure require #6 x 1/4” (6.4mm) screws, not included. Order part number 1598ATS100.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

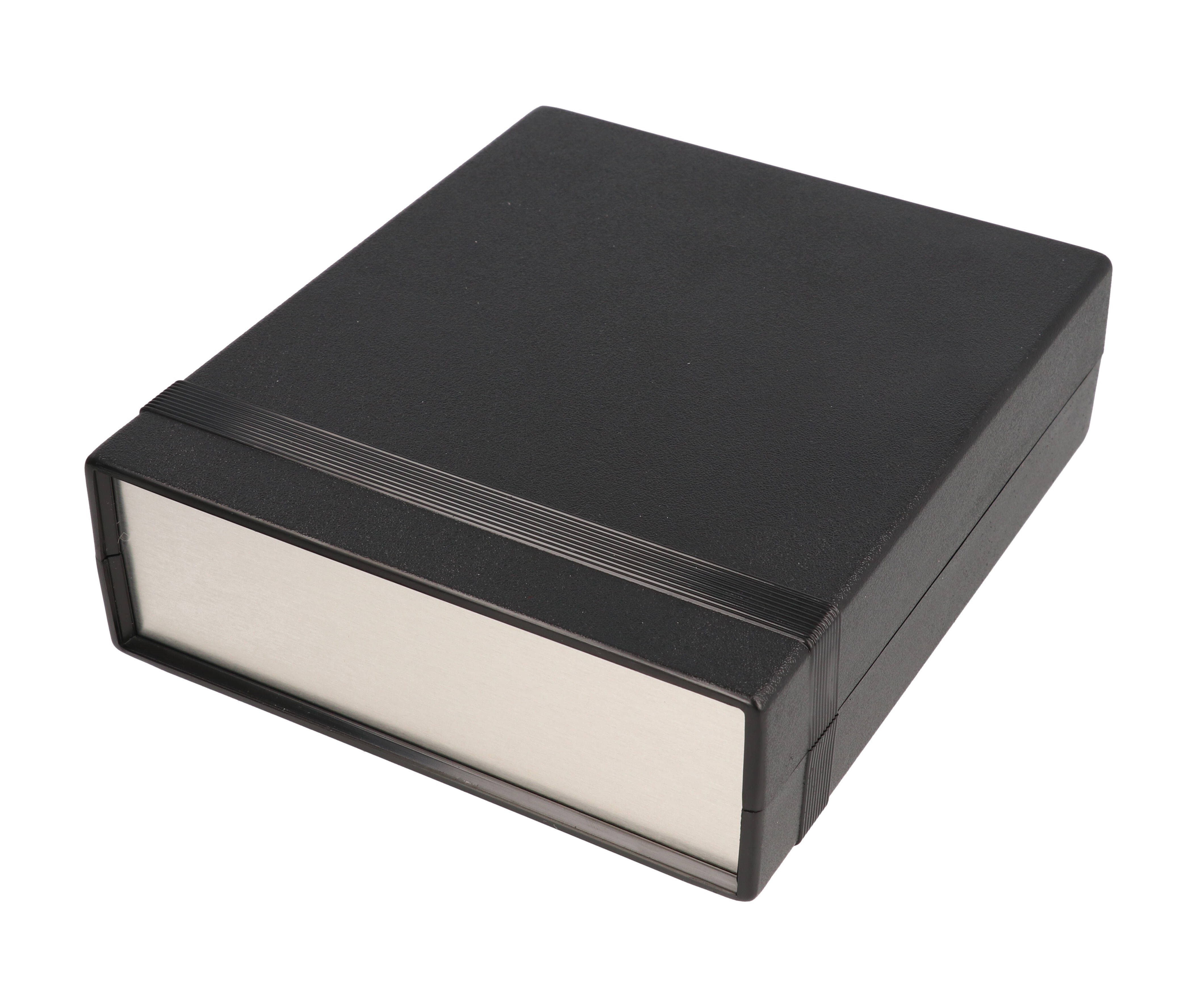

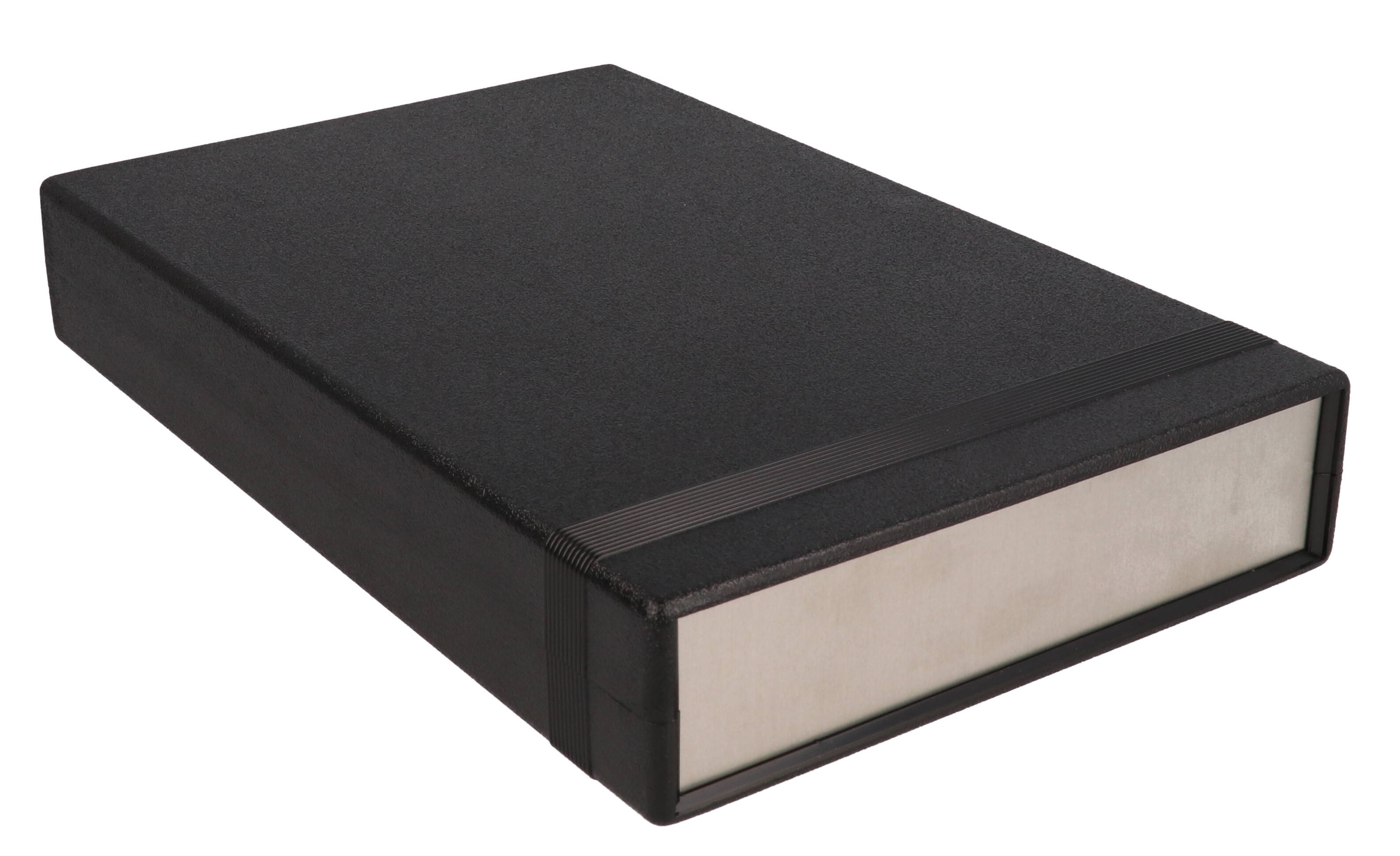

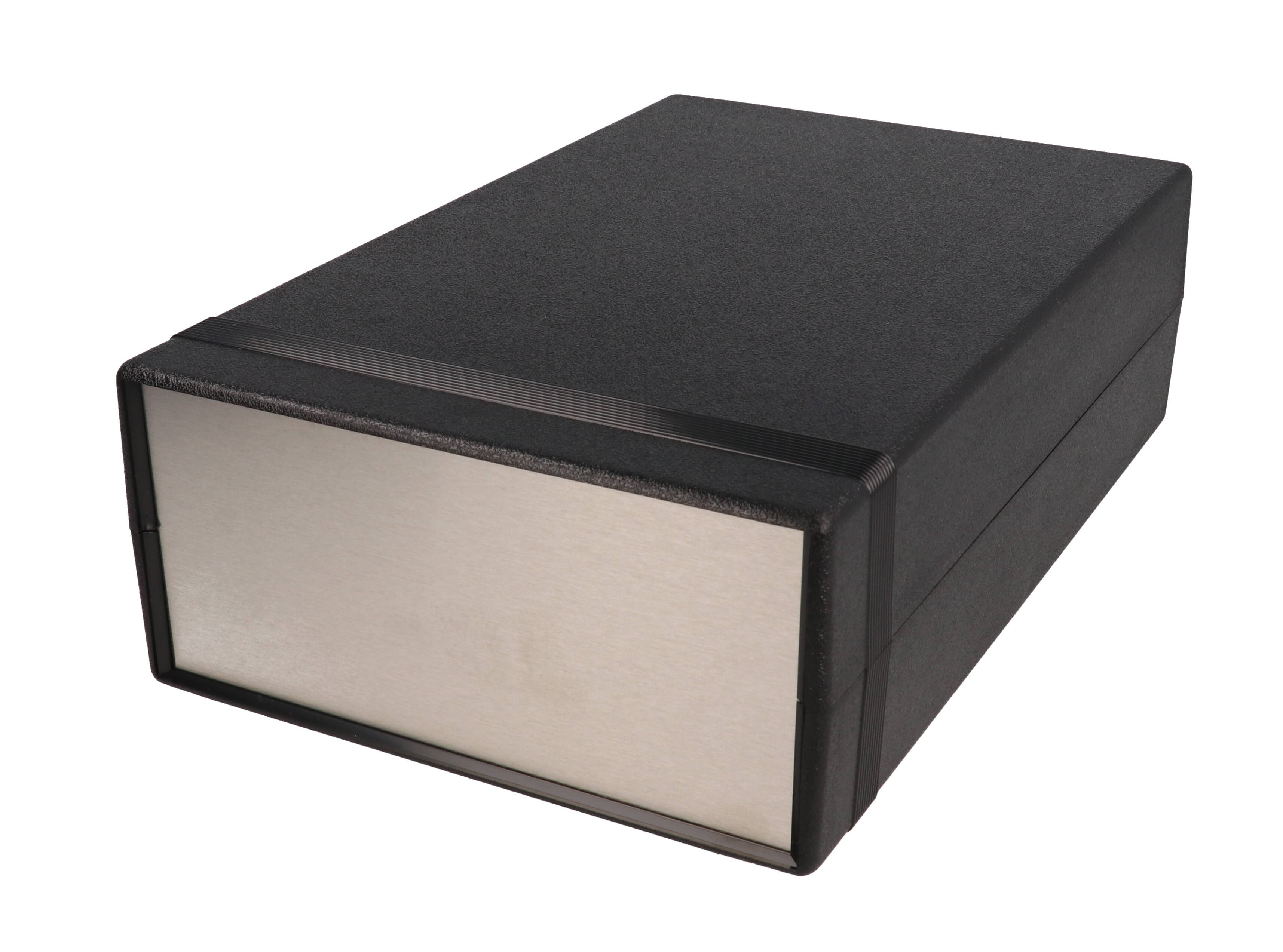

• ■Stocked in matte textured black and grey.
• ■Molded from flame retardant ABS plastic which carries a UL flammability rating of 94V-0.

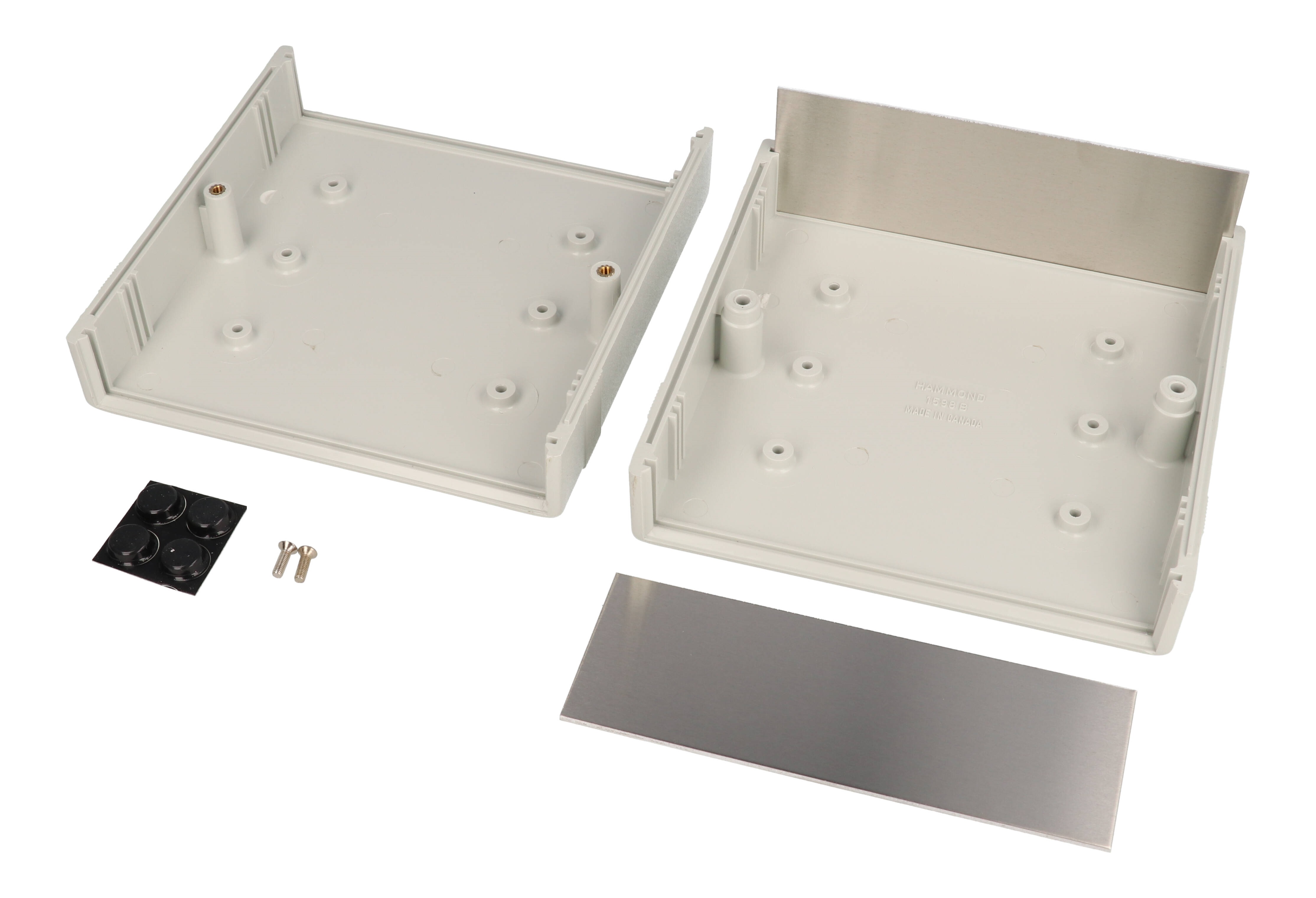

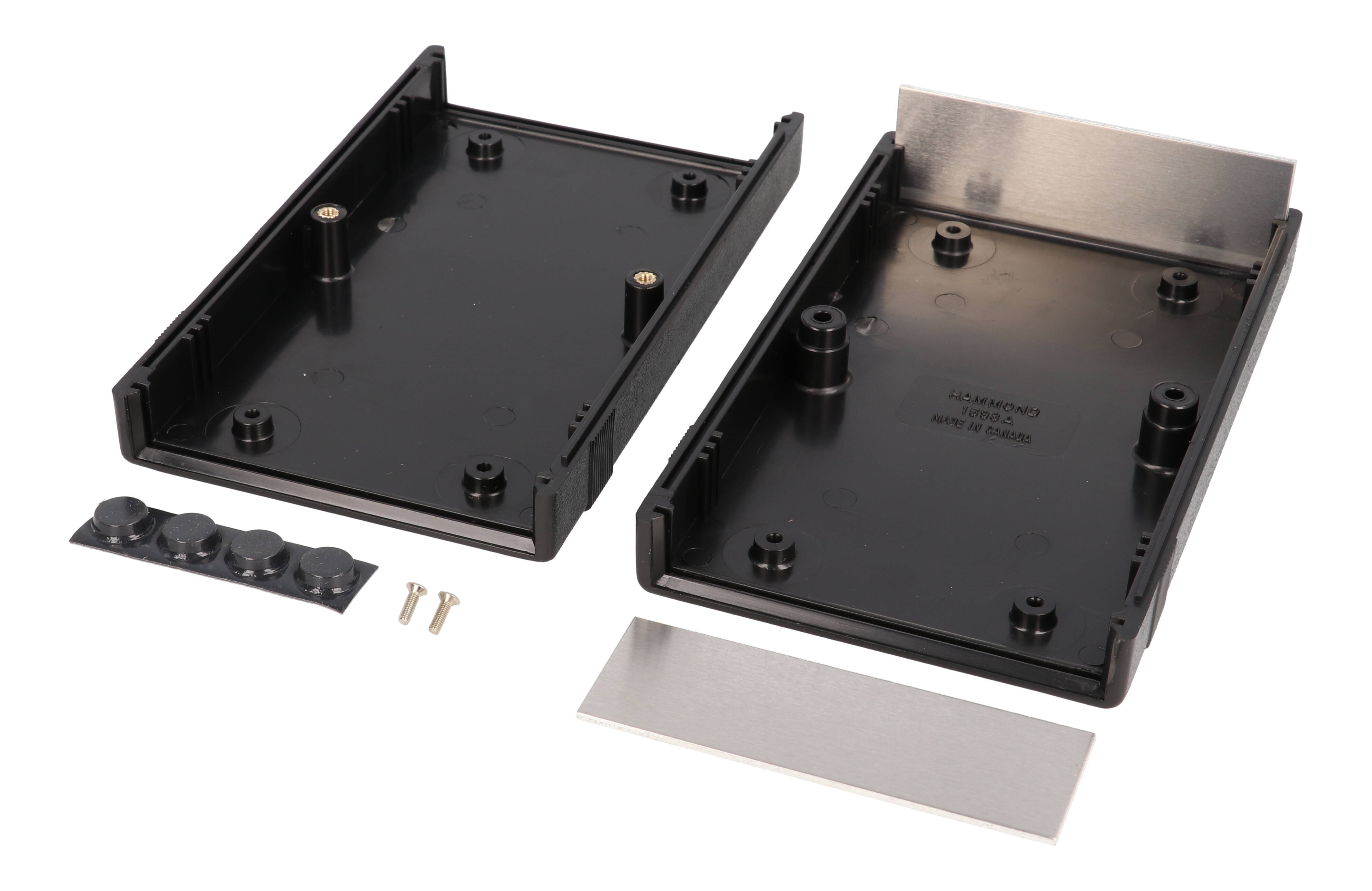

• ■Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.

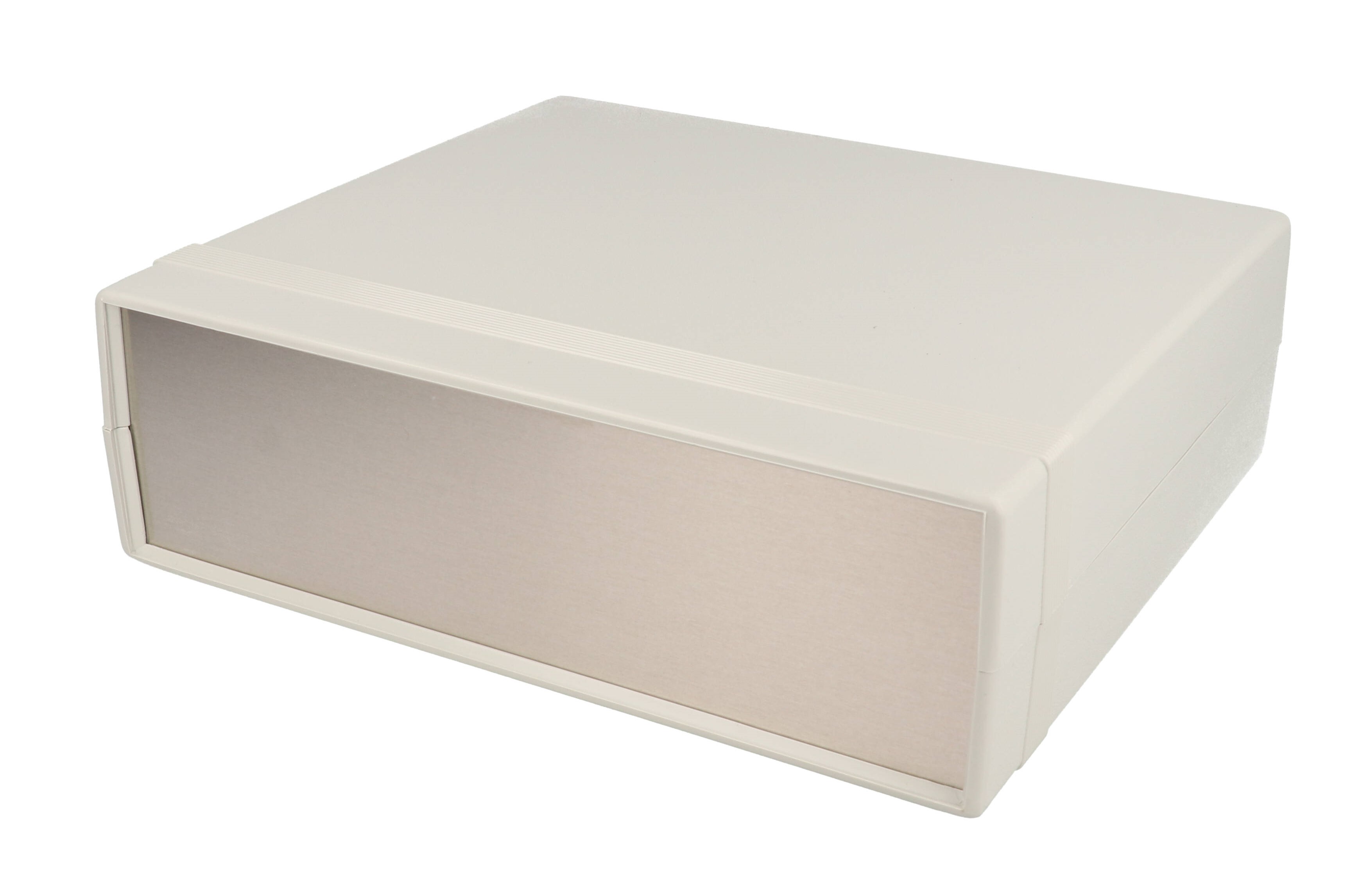

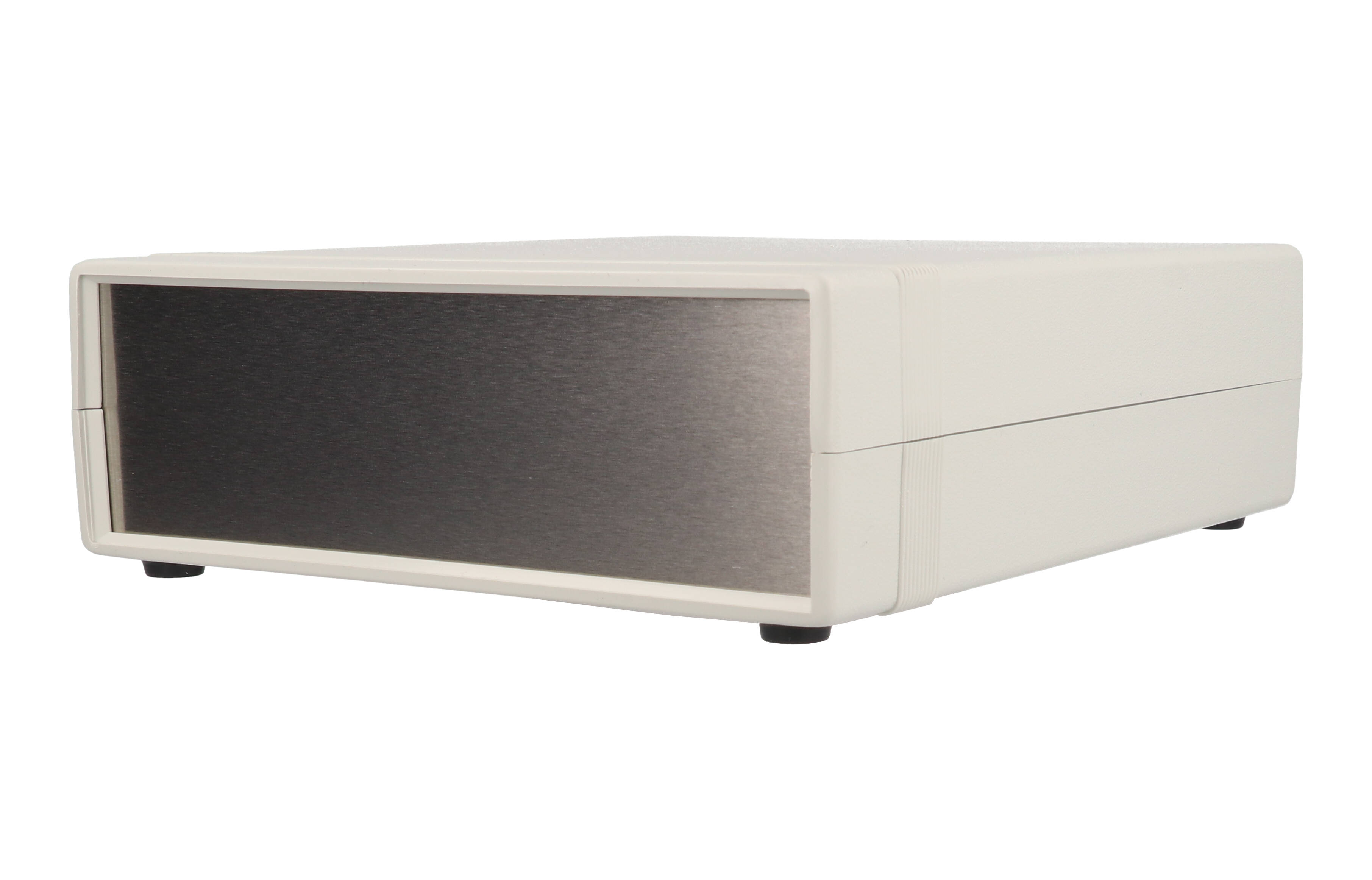

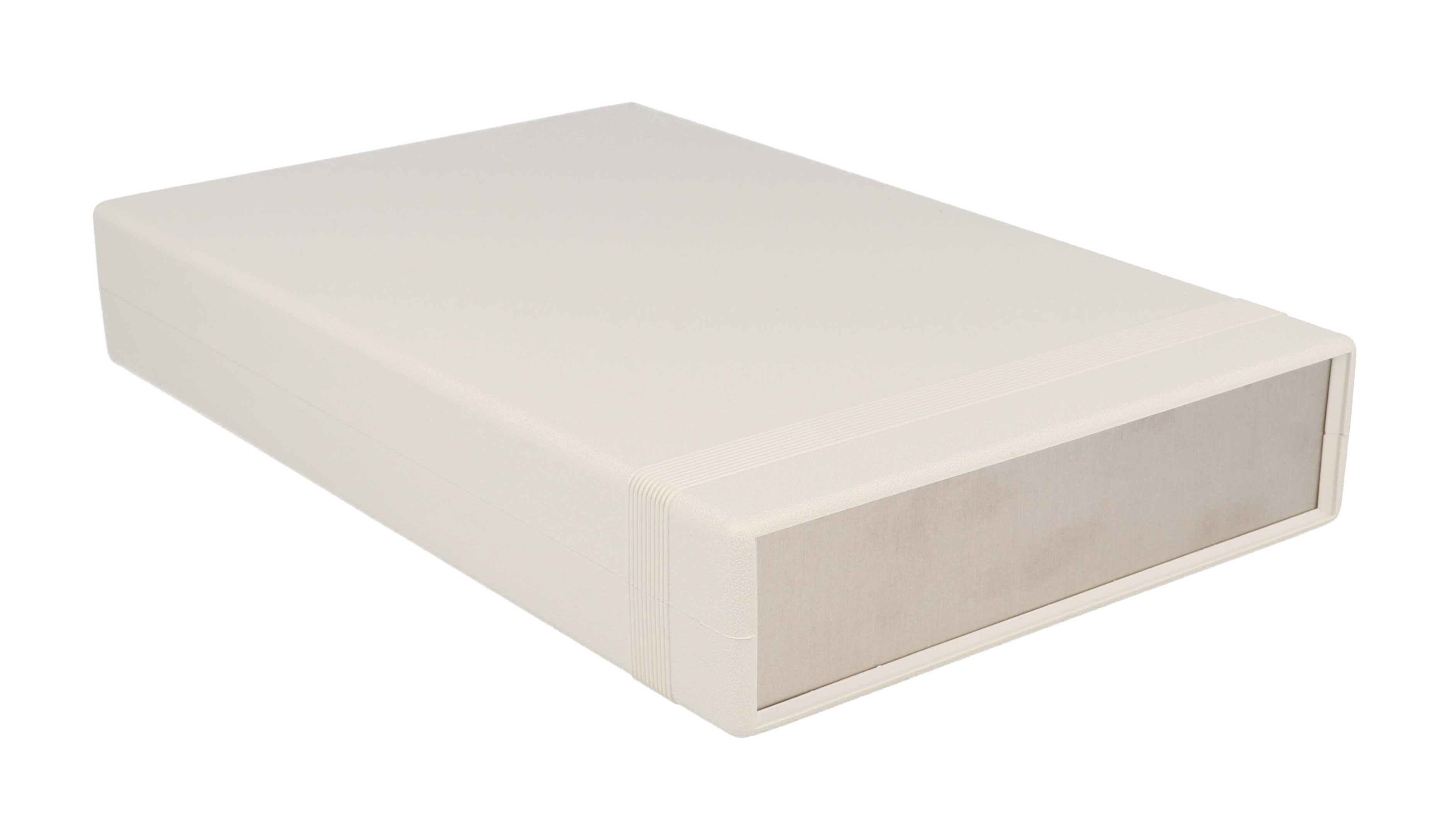

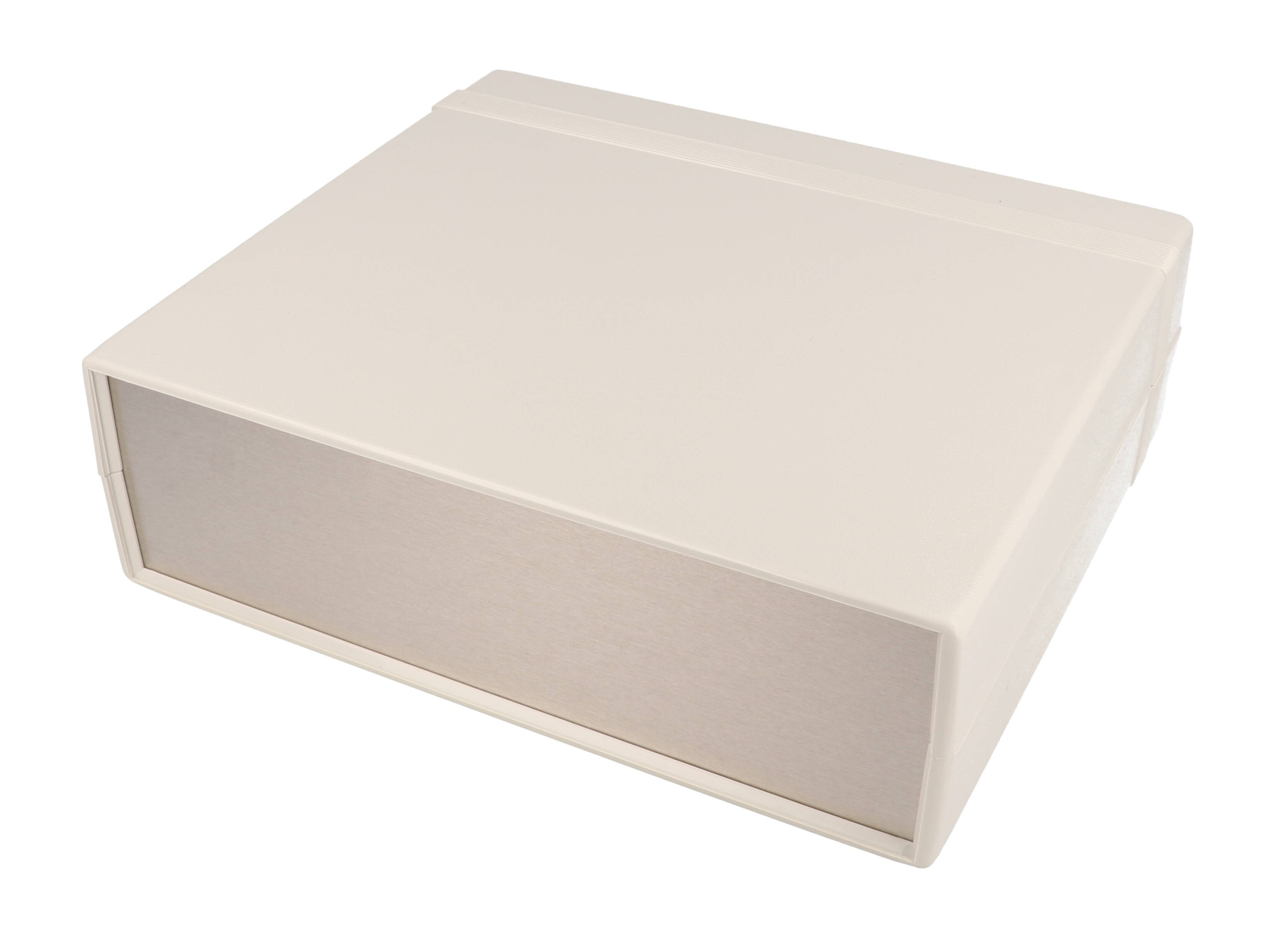

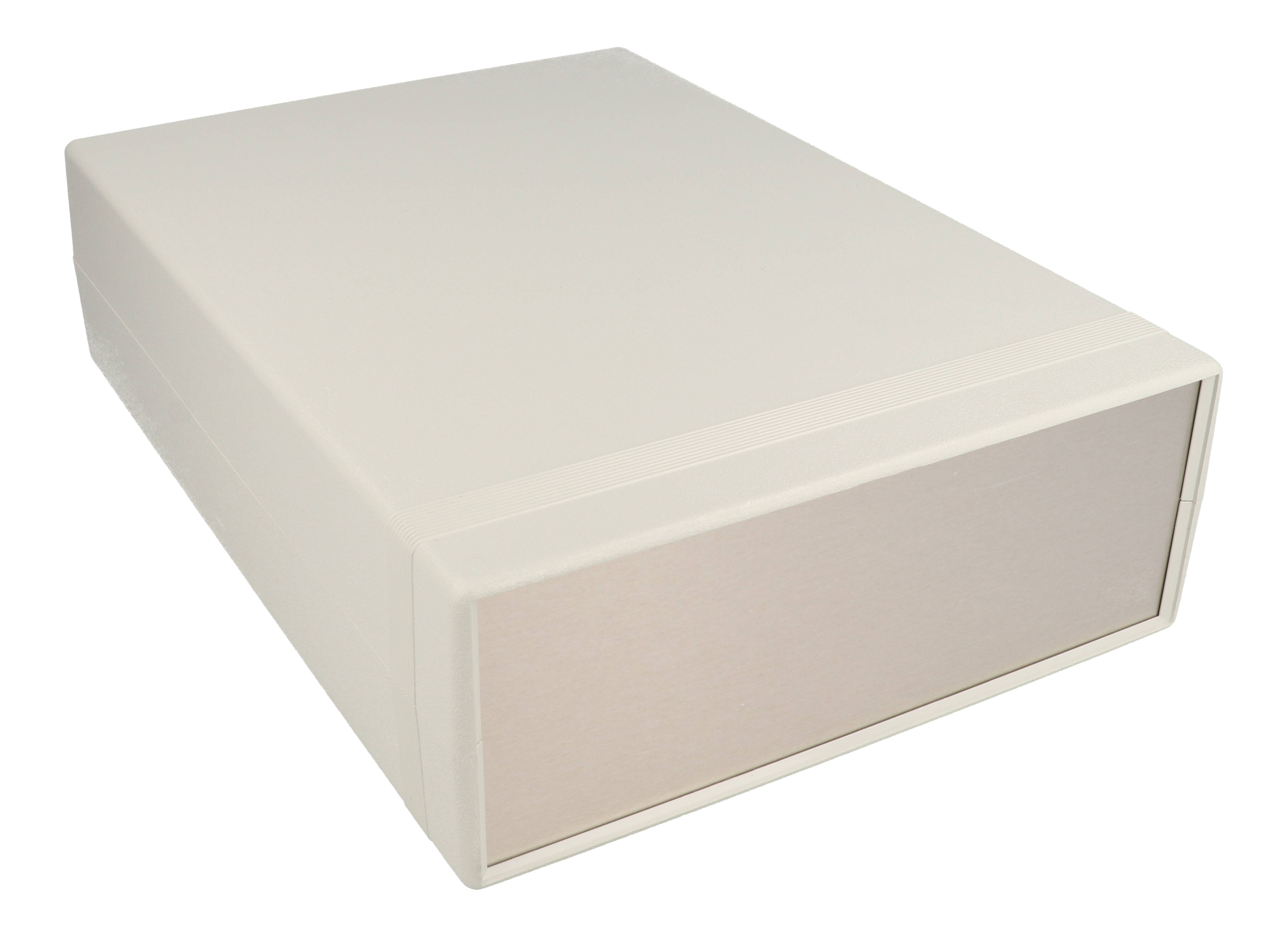

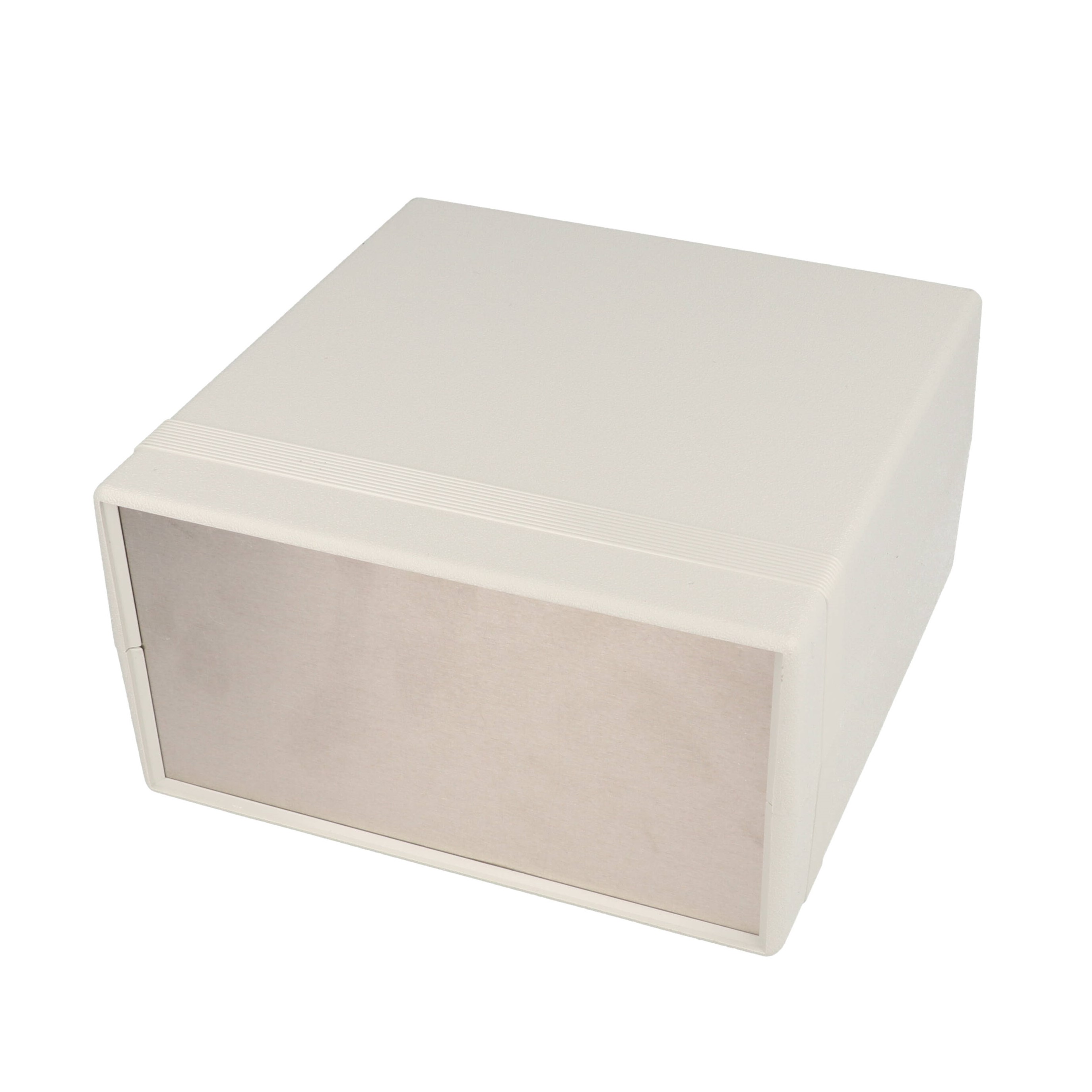

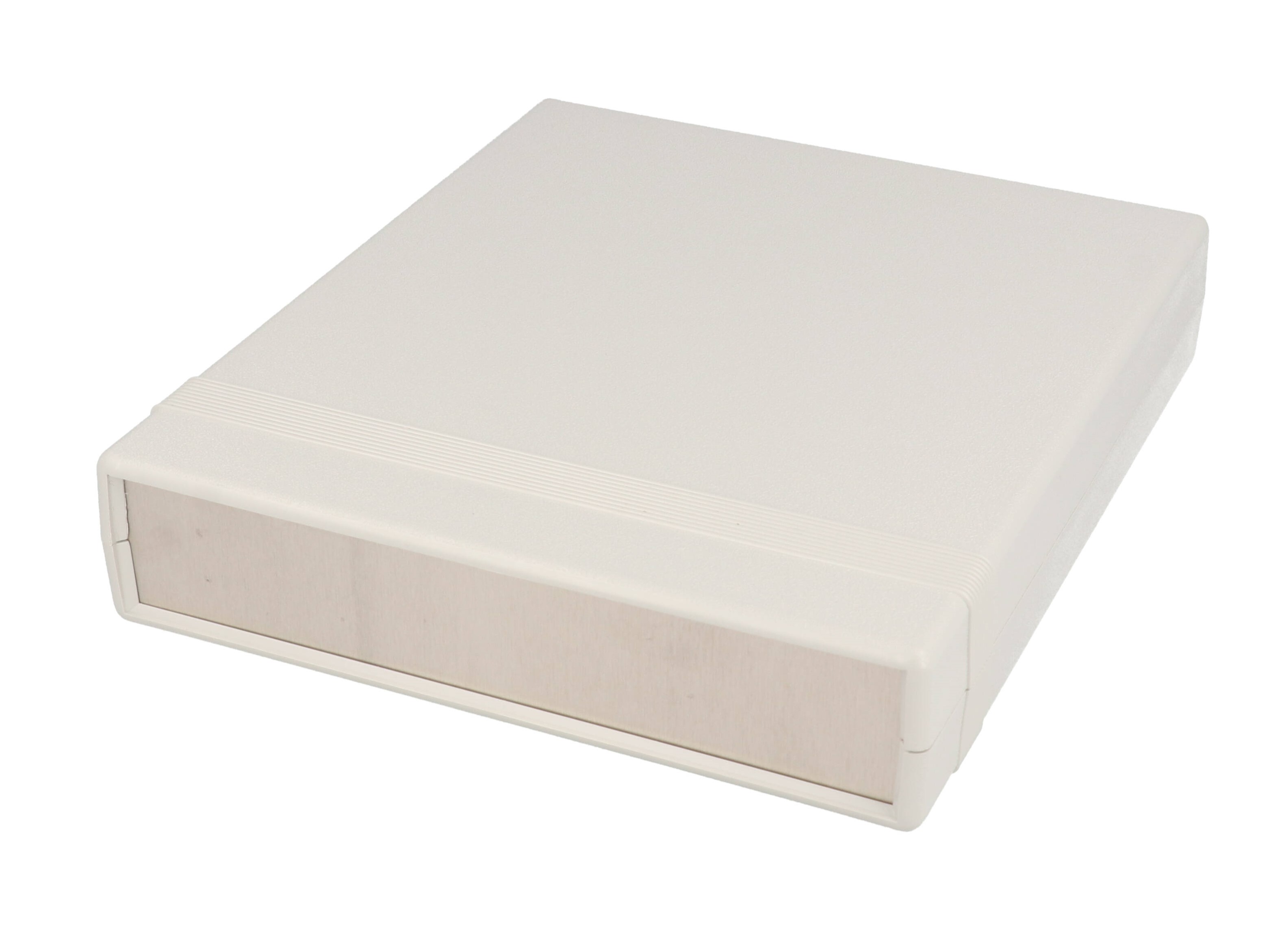

• ■Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
• ■Molded from general purpose ABS plastic (not flame retardant).

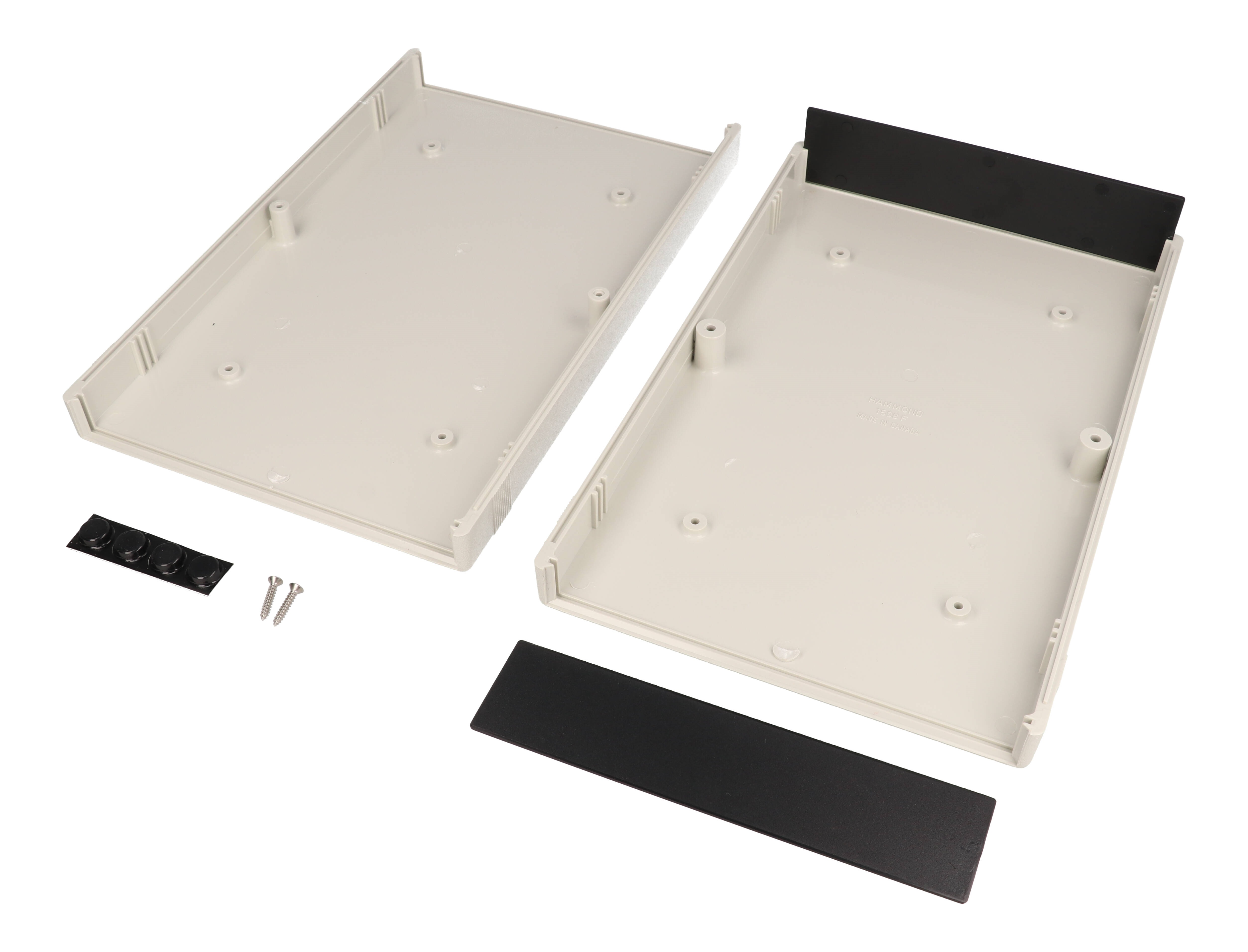

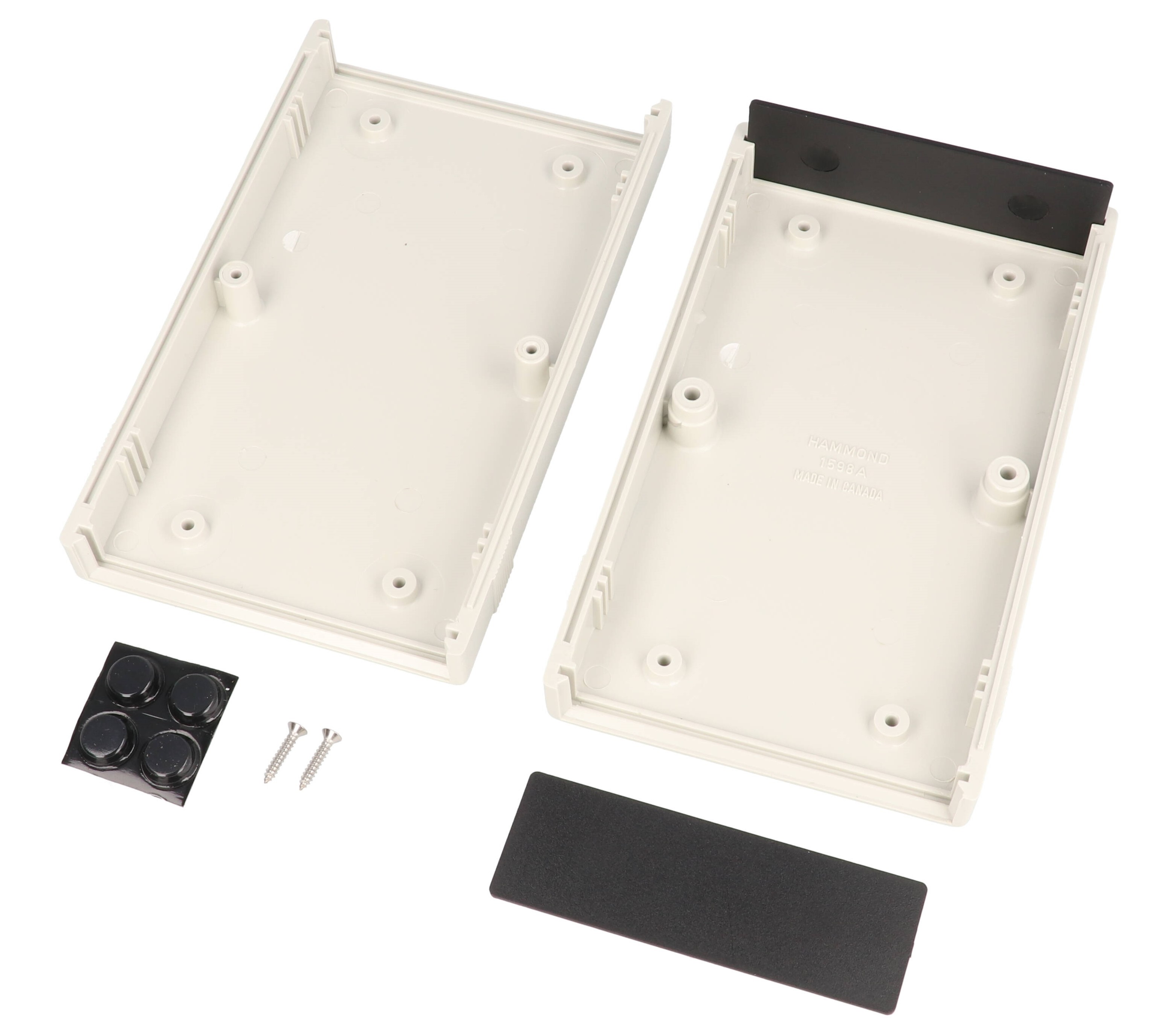

• ■Enclosure halves are secured with self tapping screws threaded into plastic standoffs. Not recommended for repeated assembly and disassembly.

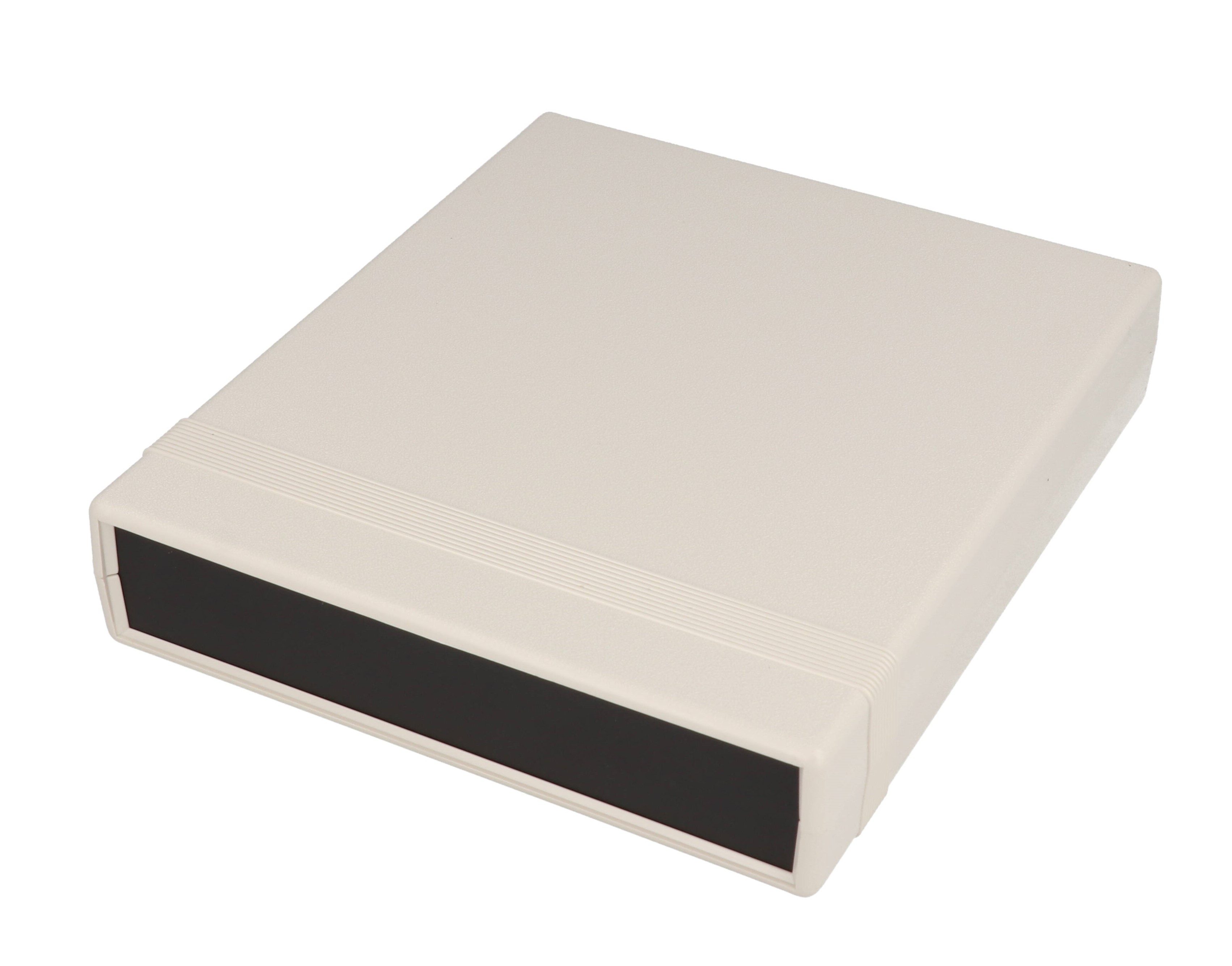

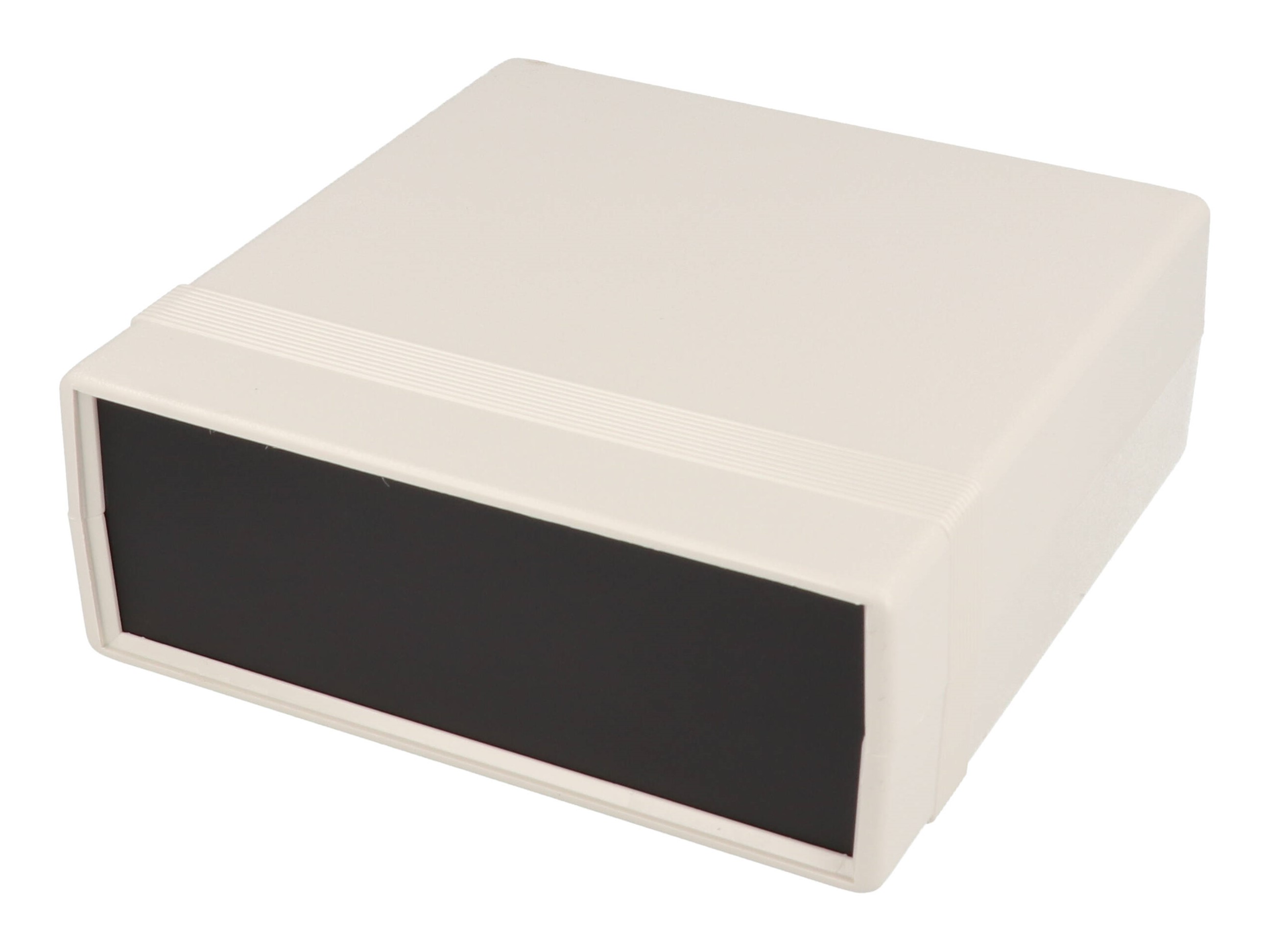

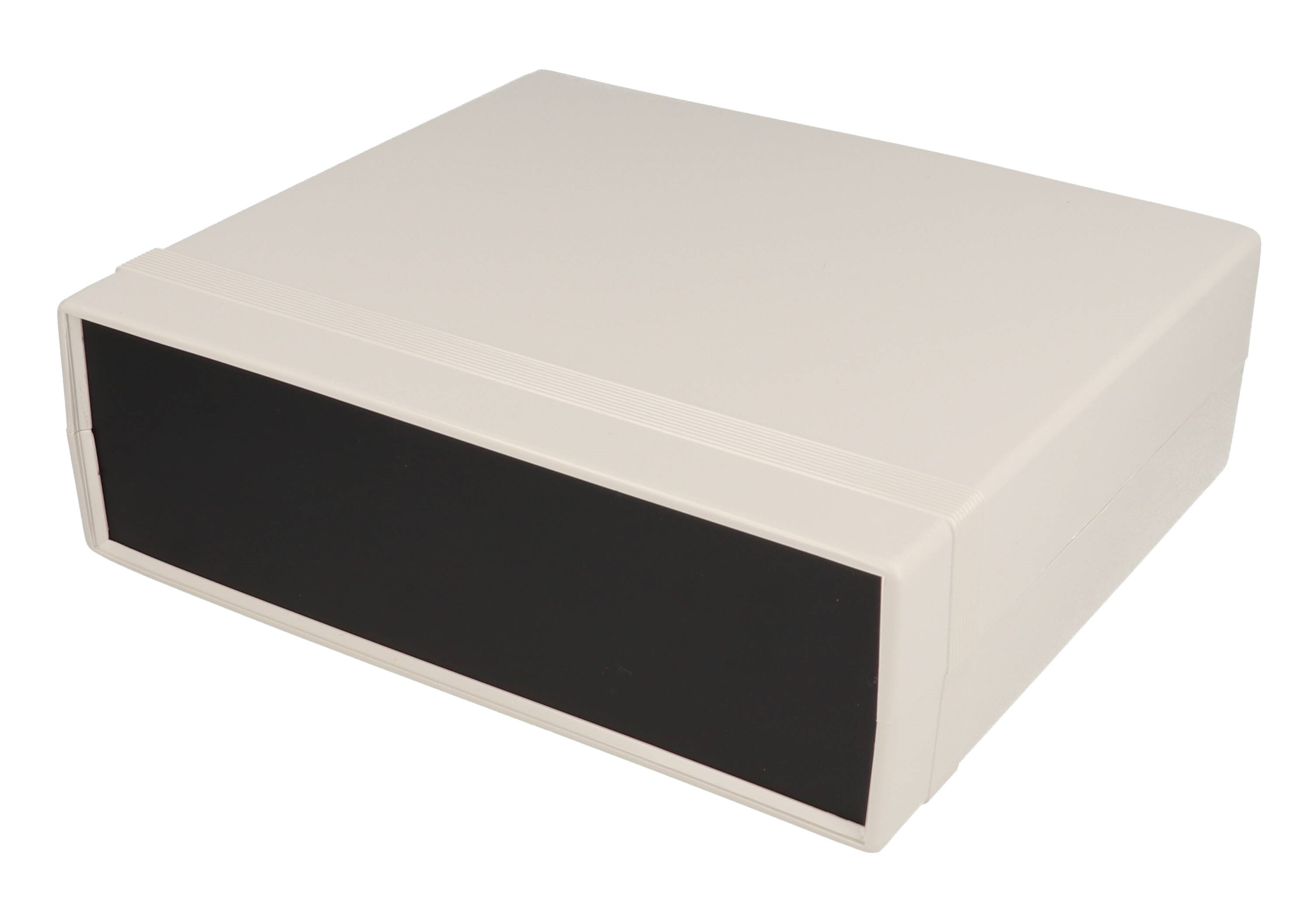

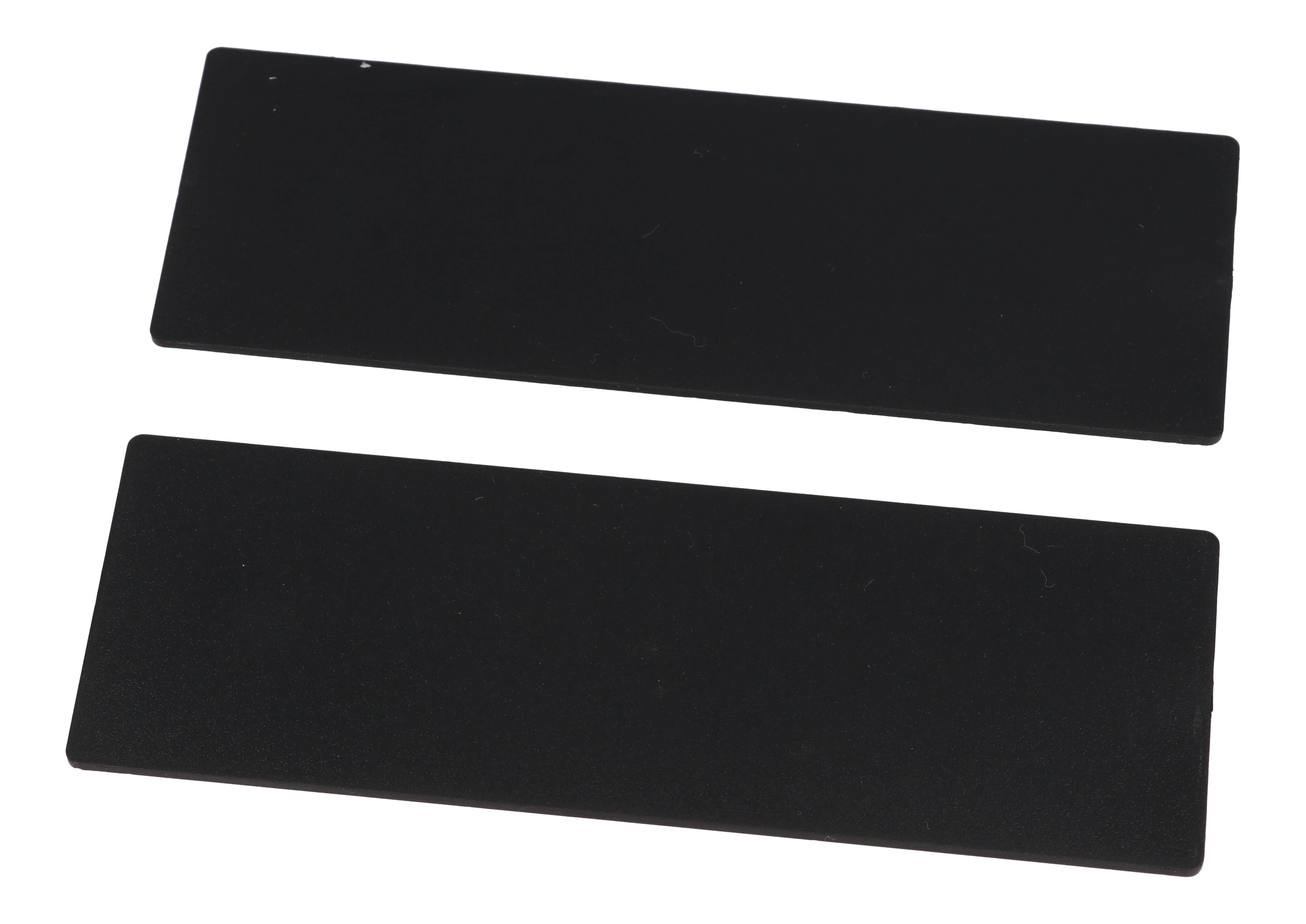

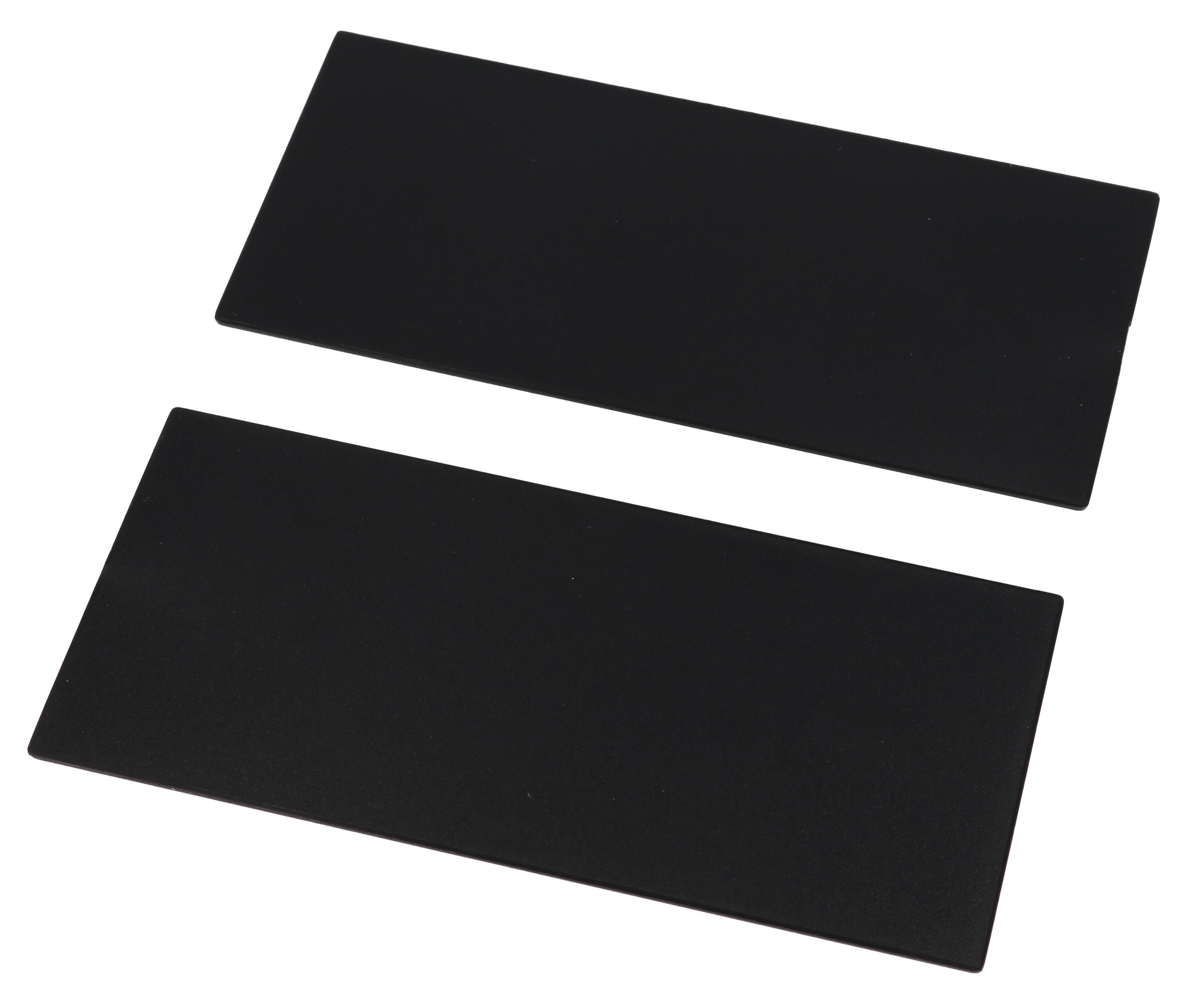

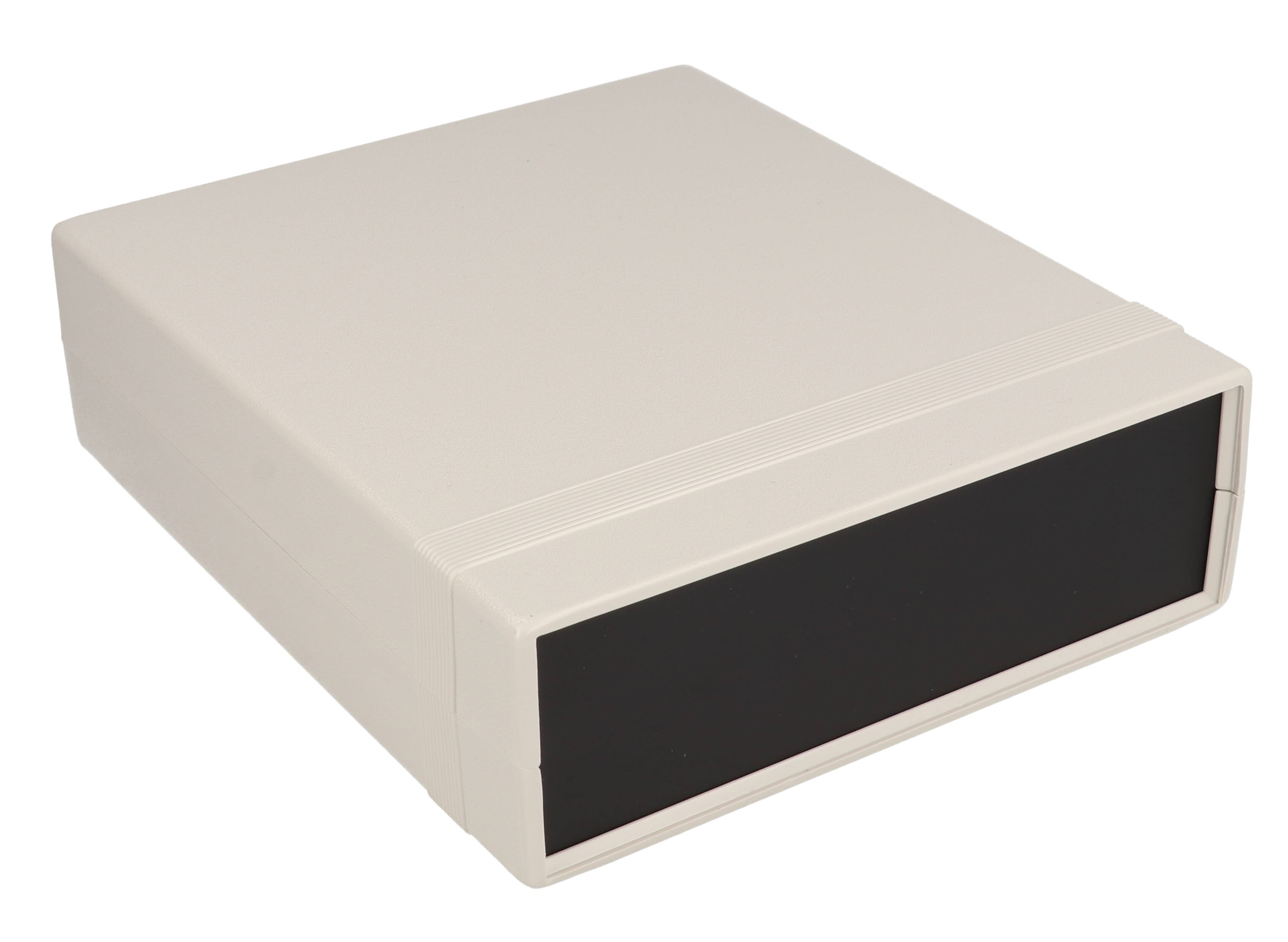

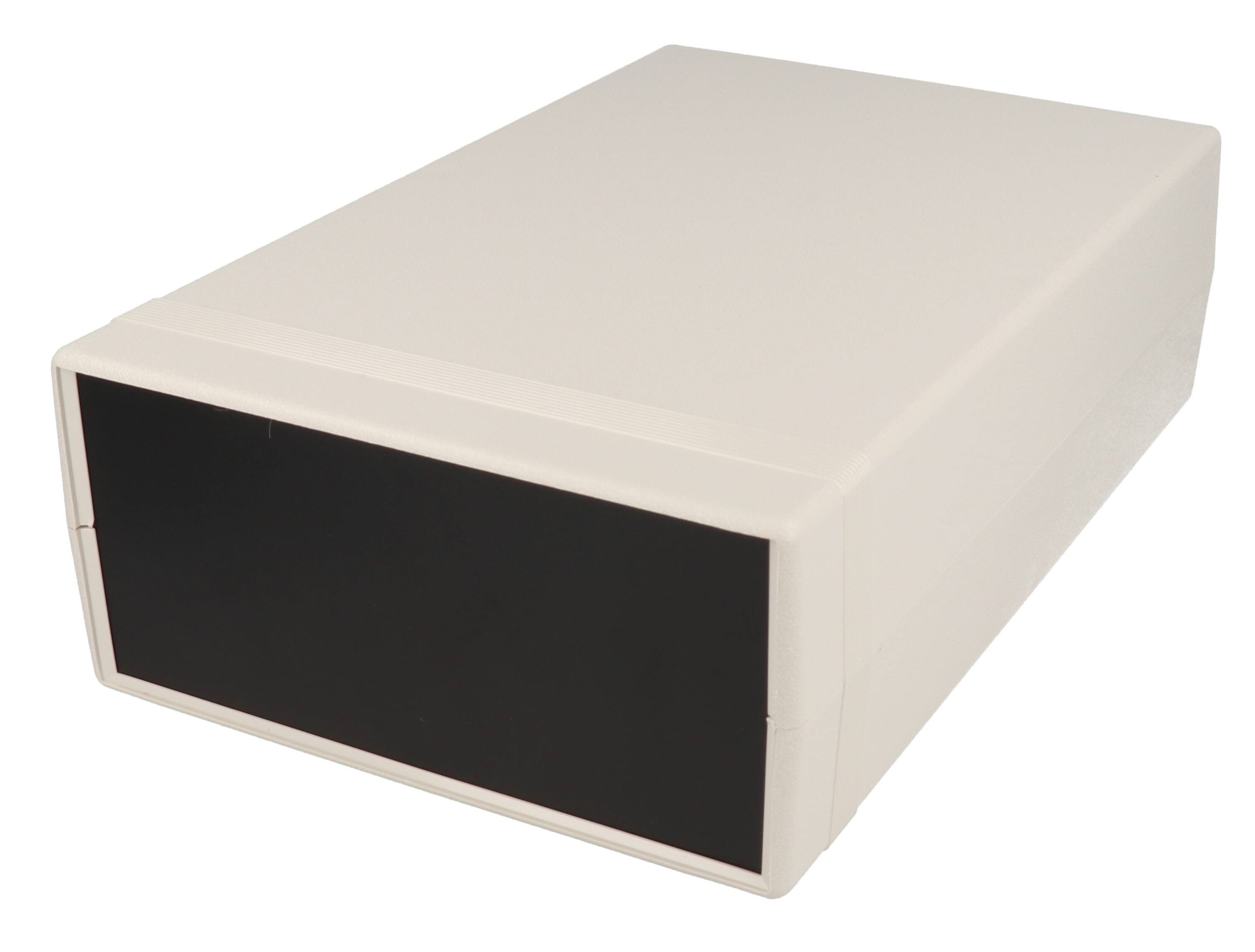

• ■Available with either brushed aluminum or black plastic end panels.
• ■If EMI/ RFI shielding is required, try series 1598R.
