Hammond 1598PLBBBK 1598BB Case Black Plastic End Panels, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pair of black plastic end panels for 1598BB enclosures
- Fits 1598BBBK, 1598BBGY, 1598BBSGY and 1598BBSGYPBK
- ABS plastic, UL94 V-0 flame rating
- For enclosures measuring 7.05 in (179 mm) x 6.10 in (155 mm) x 1.38 in (35 mm)
- Aluminum alternative: 1598PLBB-AL
- RoHS and REACH compliant
- Shipping weight 0.04 lbs (0.02 kg), bag packaging

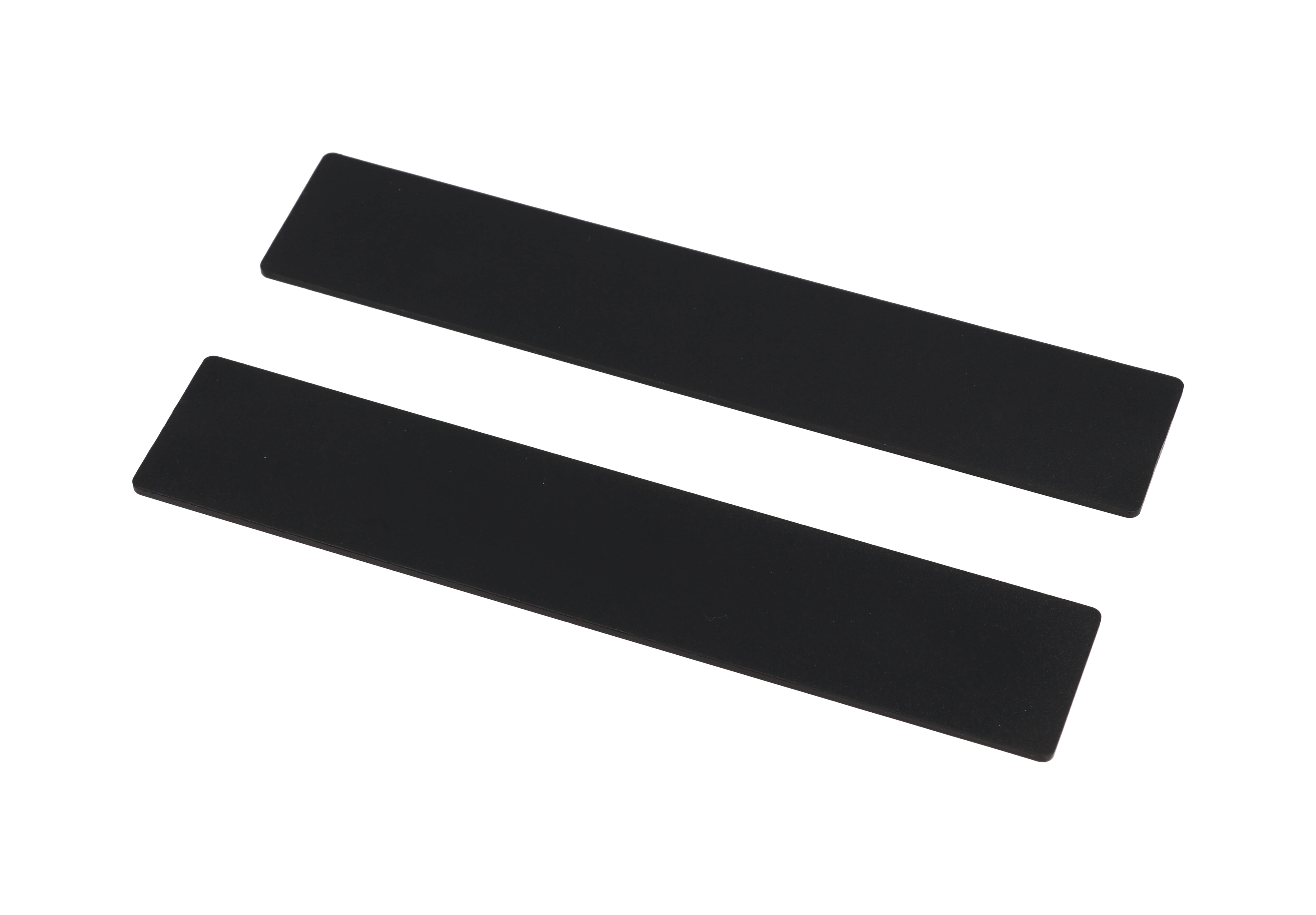

1598PLBBBK is a pair of black plastic end panels for Hammond 1598BB ABS instrument enclosures. It is a replacement or spare front-and-rear panel set for engineers, technicians and product builders who need to swap, customize or re-machine the end panels of a 1598BB case.
The panels are molded from ABS plastic in black with a UL94 V-0 flame rating. The 1598 Series notes that replacement natural finish aluminum and black plastic end panels are available, with the compatible panel set shown in the part number table; for the 1598BB size that black plastic set is 1598PLBBBK, while the aluminum alternative is 1598PLBB-AL.
The series table lists the matching 1598BB enclosures as 1598BBBK (flame retardant, black), 1598BBGY (flame retardant, gray), 1598BBSGY (general purpose, gray) and 1598BBSGYPBK (general purpose gray enclosure with black plastic panels). The enclosure measures 7.05 in (179 mm) long, 6.10 in (155 mm) wide and 1.38 in (35 mm) deep. The 1598BB is a slim 35 mm deep case with a 179 mm x 155 mm footprint.
When cutting openings for switches, displays and connectors, note that Hammond's chemical resistance statement for the series advises against acetone, ketones, thread locking compounds, cutting or tapping fluid and strong solvents on its plastic parts; an air blast is recommended to clear chips after modification.
1598PLBBBK is RoHS and REACH compliant and ships in a bag with a shipping weight of 0.04 lbs (0.02 kg). Tilt bail kit 1598TH1 is listed for the same enclosure size.
Ideal For
- Replacement end panels for 1598BB cases
- Custom-drilled front panels for switches and connectors
- Converting aluminum-panel cases to black plastic ends
- Spare panels for prototype iterations
Overview
| Type | End panels |
| Color | Black |
| Description | hardware - plastic end panels for 1598BB enclosures, 2-pack |
| Part Number | 1598PLBBBK |
| Pack Quantity | 2-pack (pair) |
| Short Description | PLASTIC ENDPLATE |
Identifiers
| UPC | 623980568997 |
| UNSPSC | 39121301 |
Compatibility
| Enclosure Depth | 1.38 in (35 mm) |
| Enclosure Width | 6.10 in (155 mm) |
| Enclosure Length | 7.05 in (179 mm) |
| For Enclosure Size | 1598BB |
| Flame Retardant Version (Gray) | 1598BBGY |
| General Purpose Version (Gray) | 1598BBSGY |
| Flame Retardant Version (Black) | 1598BBBK |
| Tilt Bail Kit For Same Enclosure | 1598TH1 |
| Aluminum End Panel Alternative (Pair) | 1598PLBB-AL |
| Gen. Purpose (Gray Enclosure W/ Black Plastic Panels) | 1598BBSGYPBK |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Material | ABS Plastic |
Environmental & Protection
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does 1598PLBBBK fit?▾
The 1598BB size: 1598BBBK, 1598BBGY, 1598BBSGY and 1598BBSGYPBK.
How many panels are included?▾
Two, it is a 2-pack (front and rear pair).
What material and flame rating are the panels?▾
Black ABS plastic with a UL94 V-0 flame rating.
Is there an aluminum version?▾
Yes, 1598PLBB-AL is the aluminum end panel pair for the same enclosure size.
Can I machine the panels?▾
The series chemical resistance statement recommends avoiding cutting or tapping fluid on its plastics and using an air blast to clear chips when making modifications.
