Hammond 1598FSGYPBK 249x160x41 mm Gray Case with Black Plastic Panels
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray ABS body with black plastic end panels, nominal 249 x 160 x 41 mm (9.8 x 6.3 x 1.6 in)
- Holds a P.C. board up to 238.35 x 144.71 mm on four 3.51 mm mounting holes
- General purpose ABS, UL94 HB flame rating
- Designed to meet IP54; RoHS and REACH compliant
- Vertical 1.5 mm board guides and horizontal card mounts on Eurocard centers
- Includes 2 cover screws and 4 rubber feet; tilt bail kit 1598TH1 available

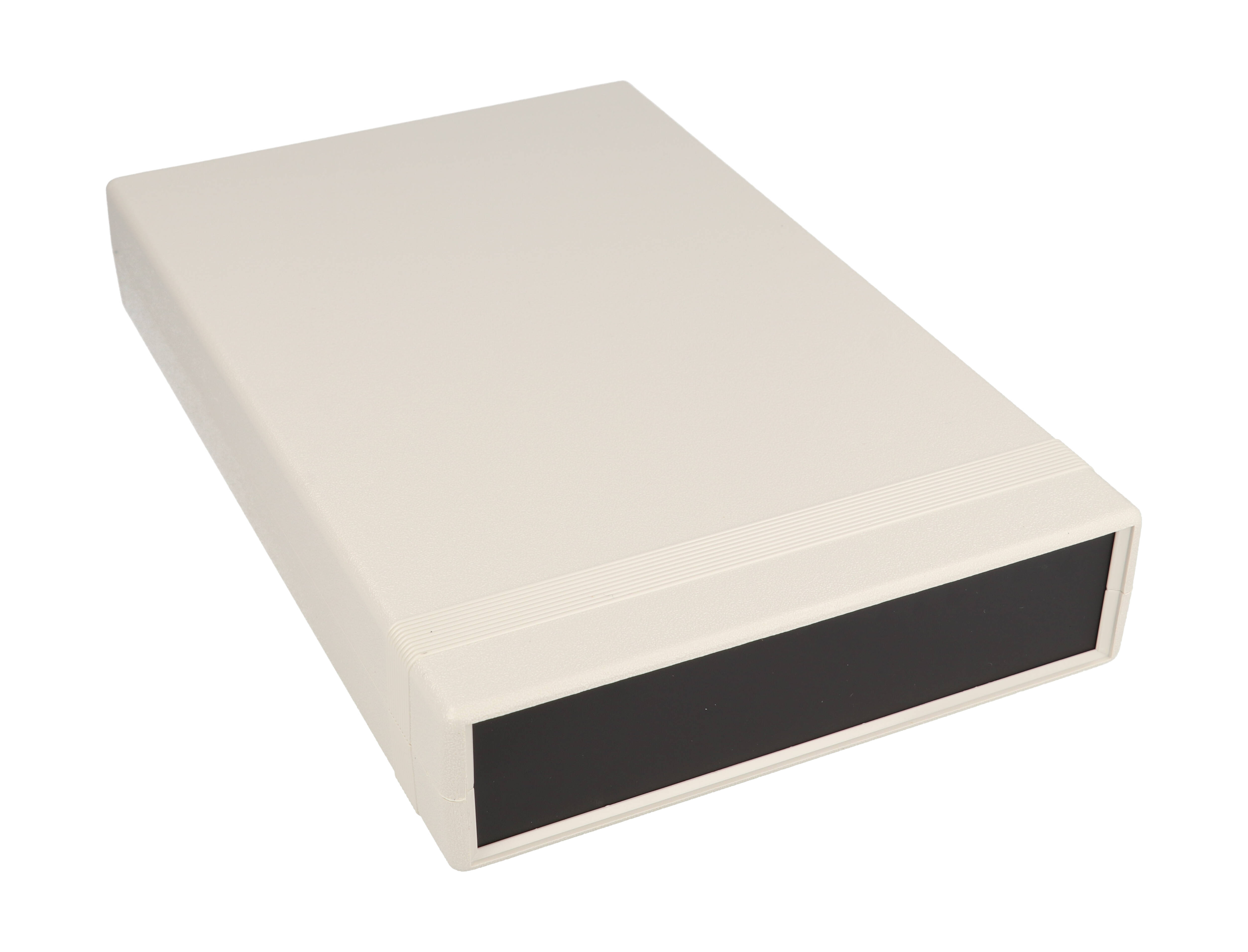

1598FSGYPBK pairs a light gray general purpose ABS clam shell body with black plastic end panels, giving a two-tone, all-plastic desktop housing for printed circuit boards. It is a practical choice for product developers and OEMs who want the slim F-size 1598 case without metal front and rear panels.
The case is nominally 9.8 in x 6.3 in x 1.6 in (249 mm x 160 mm x 41 mm); the drawing shows 249.70 mm x 159.25 mm x 40.90 mm overall and an inner box of 239.35 x 150.21 x 33.70 mm. Front and rear panels are 151.38 mm x 35.00 mm, with a 146.15 mm x 32.70 mm viewing area for controls and connectors. The shipping weight is 0.86 lbs (0.39 kg).
- Maximum P.C. board size 238.35 mm x 144.71 mm, aligned on bosses with four 3.51 mm holes
- Two sets of vertical 1.5 mm (0.062") board guides front and rear
- Horizontal card mounts on Eurocard centers; standoffs take #6 x 1/4" screws (1598ATS100, not included)
As a general purpose part it carries a UL94 HB flame rating and closes with self tapping screws into plastic standoffs, so it is not recommended for repeated assembly and disassembly. Replacement #4 x 5/8" (15.9 mm) screws are 1591TS100 and spare black plastic panels are 1598PLFBK. The assembly includes the top and bottom cover, two cover screws and four rubber feet.
The 1598FSGYPBK is designed to meet IP54 and is RoHS and REACH compliant. An aluminum-panel version of the same case is 1598FSGY.
Ideal For
- Desktop electronic instruments
- Printed circuit board housings
- Low-profile control units
- Prototype electronics
Included
| Purchased Assembly Includes | Top and bottom cover, black plastic end panels, 2 cover screws, 4 rubber feet |
Overview
| Type | Instrument Case |
| Color | Light Gray |
| Series | 1598 Series ABS Plastic Instrument Enclosures (ABS Clam Shell Body w/ End Panels) |
| Version | Gen. Purpose (Gray Enclosure w/ Black Plastic Panels) |
| Description | enclosure - plastic |
| Part Number | 1598FSGYPBK |
| Case Size Code | 1598F |
| Short Description | PLASTIC BOX C/W PLASTIC ENDS |
Dimensions
| Inner Box Width | 150.21 mm [5.914 in] |
| Inner Box Height | 33.70 mm [1.327 in] |
| Inner Box Length | 239.35 mm [9.423 in] |
| Depth (Series Table) | 1.61 in (41 mm) |
| Width (Series Table) | 6.26 in (159 mm) |
| Front/Rear Panel Size | 151.38 mm x 35.00 mm [5.960 in x 1.378 in] |
| Length (Series Table) | 9.84 in (250 mm) |
| Overall Width (Drawing) | 159.25 mm [6.270 in] |
| Nominal Size (L X W X H) | 9.8 in x 6.3 in x 1.6 in (249 mm x 160 mm x 41 mm) |
| Overall Height (Drawing) | 40.90 mm [1.610 in] |
| Overall Length (Drawing) | 249.70 mm [9.831 in] |
| Front/Rear Panel Viewing Area | 146.15 mm x 32.70 mm [5.754 in x 1.287 in] |
| Front/Rear Panel Thickness (Drawing) | 1.65 mm [.065 in] |
Accessories
| Tilt Bail Kit | 1598TH1 |
| PCB Screws (Pkg 100) | 1598ATS100 [#6 x 1/4" (6.4 mm)] |
| Rubber Feet (Pkg 24) | 1421T2 |
| Plastic End Panels (Pair) | 1598PLFBK |
| Aluminum End Panels (Pair) | 1598PLF-AL |
| Replacement Cover Screws (Pkg 100) | 1591TS100 [#4 x 5/8" (15.9 mm)] for 1598 GPABS |
Identifiers
| UPC | 623980323084 |
| UNSPSC | 39121301 |
PCB Mounting
| P.C. Card Standoffs | Molded into top and bottom half; require #6 x 1/4" (6.4 mm) screws, not included (order 1598ATS100) |
| P.C. Board Alignment | P.C. board aligned on bosses (board not supplied) |
| Max. P.C. Board Width (Mm) | 238.35 |
| Vertical P.C. Board Guides | Two sets of vertical 1.5 mm (0.062") guides molded into front and rear of case halves |
| Horizontal P.C. Card Mounts | Integral, on Eurocard centers |
| Max. P.C. Board Length (Mm) | 144.71 |
| PCB Distance From End Panel | 0.50 mm [.020 in] |
| PCB Distance From Inner Wall | 2.75 mm [.108 in] |
| Maximum P.C. Board Size (Drawing) | 238.35 mm x 144.71 mm [9.384 in x 5.697 in] |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. |
Related Versions
| Flame Retardant, Gray | 1598FGY |
| General Purpose, Gray | 1598FSGY |
| Black EMI/RFI Shielded | 1598RFBK |
| Flame Retardant, Black | 1598FBK |
| General Purpose, Gray W/ Black Plastic Panels | 1598FSGYPBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.86 lbs (0.39 kg) |
Construction & Finish
| Material | ABS Plastic |
| ABS Grade | General purpose ABS (not flame retardant), GPABS |
| Body Style | Clam shell (top and bottom cover halves) with end panels |
| End Panels | Black plastic |
| Cover Fastening | Self tapping screws threaded into plastic standoffs (#4 x 5/8" (15.9 mm)); not recommended for repeated assembly and disassembly |
Environmental & Protection
| IP Rating | IP54 (designed to meet IP54) |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does 1598FSGYPBK differ from 1598FSGY?▾
Both are gray general purpose ABS cases of the same size. 1598FSGYPBK comes with black plastic end panels, while 1598FSGY has brushed aluminum panels.
What is the inside space?▾
The inner box measures 239.35 mm long x 150.21 mm wide x 33.70 mm high according to the drawing.
What flame rating does it have?▾
UL94 HB. It is molded from general purpose ABS, not flame retardant ABS.
Which replacement panels fit?▾
Black plastic end panels 1598PLFBK or aluminum end panels 1598PLF-AL, each sold as a pair.
Are the board screws supplied?▾
No. The PCB standoffs require #6 x 1/4" (6.4 mm) screws, part 1598ATS100 (100-pack).
