Hammond 1598PLB-AL 1598RB Size Natural Aluminum End Panels, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pair of natural aluminum end panels (2-pack)
- Listed as extra aluminum panels for the 1598RBBK EMI/RFI shielded enclosure
- For an enclosure measuring 134 x 135 x 51 mm
- 1598R Series front/rear panels are 1.6 mm (0.064") brushed aluminum with protective paper on one side
- RoHS and REACH compliant
- Shipping weight 0.04 lbs (0.02 kg), bag packaging

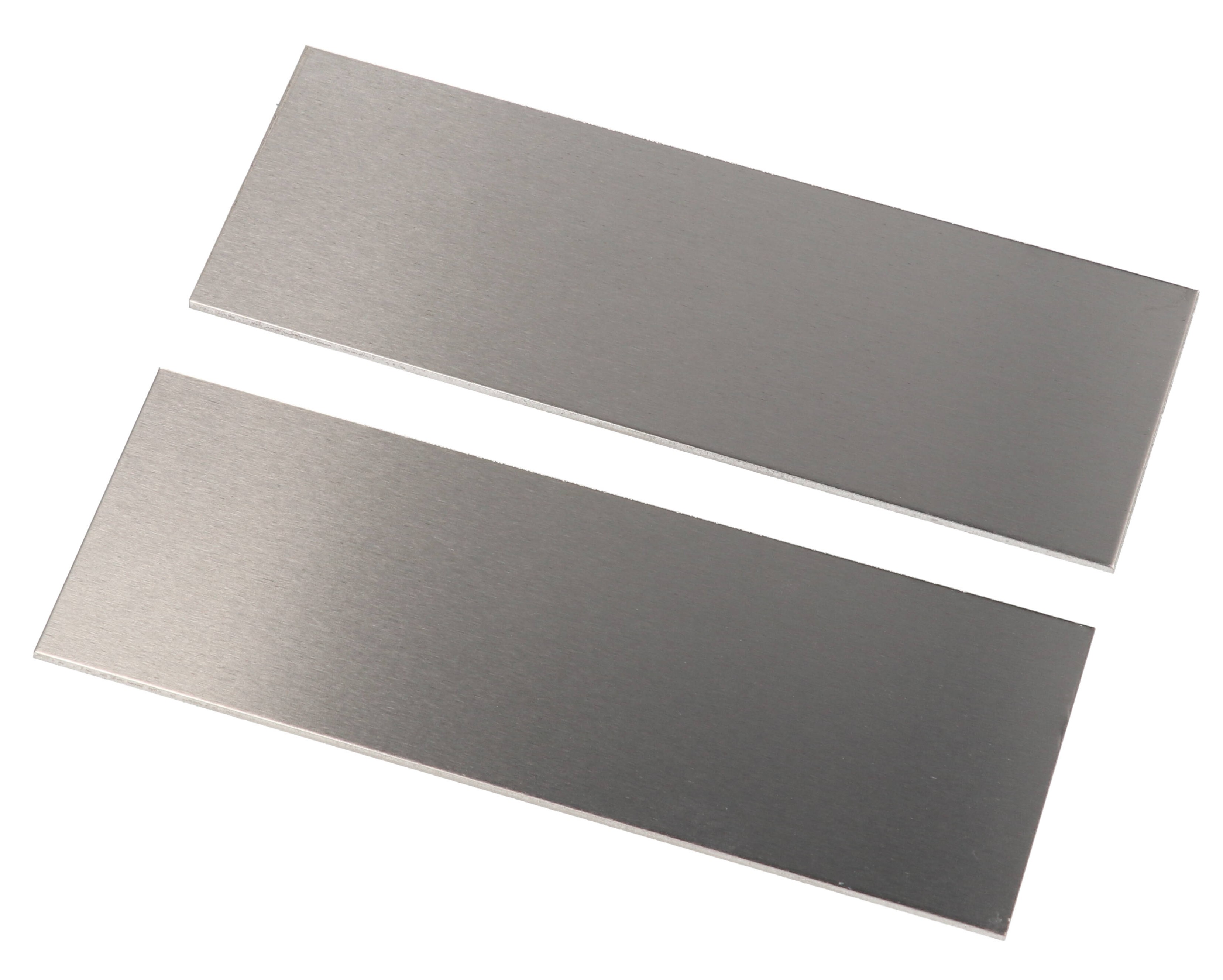

1598PLB-AL is an aluminum end panel set, supplied as a 2-pack in a natural aluminum colour. In the 1598R Series ordering table it is listed as the extra aluminum panel pair for the 1598RBBK, a black ABS instrument enclosure with an EMI/RFI copper conductive coating inside. It suits engineers who need spare or additional panels to machine for connectors, switches and displays.
The 1598RBBK enclosure it pairs with measures 134 mm long, 135 mm wide and 51 mm deep. The 1598R Series specifies front and rear panels of 1.6 mm (0.064") brushed aluminum with protective paper on one side, so a second set lets you prototype a panel layout or keep a spare without disturbing the original.
The 1598RBBK is molded from flame retardant ABS carrying a UL flammability rating of 94V-0, designed to meet IP54, and its coating manufacturer specifies attenuation of more than 75 dB from 1 MHz to 1 GHz. Its case halves are secured with M3 machine screws into tapped integral brass bushings, and it provides vertical 1.5 mm (0.062") P.C. board guides and horizontal card mounts on Eurocard centers.
1598PLB-AL is RoHS and REACH compliant, ships in a bag and has a shipping weight of 0.04 lbs (0.02 kg). The UNSPSC code is 39121301 and the UPC is 623980403694.
Ideal For
- Spare end panels for the 1598RBBK shielded enclosure
- Machined front panels for connectors and switches
- Panel layout prototyping
- EMI/RFI shielded instrument builds
Overview
| Type | End panels |
| Color | Natural Aluminum |
| Description | hardware - aluminum end panels , 2-pack |
| Part Number | 1598PLB-AL |
| Pack Quantity | 2-pack (pair) |
| Short Description | ALUMINUM ENDPLATE SET |
Identifiers
| UPC | 623980403694 |
| UNSPSC | 39121301 |
Compatibility
| Enclosure Color | Black |
| Enclosure Depth (Mm) | 51 |
| Enclosure Width (Mm) | 135 |
| Enclosure Length (Mm) | 134 |
| Listed As Extra Aluminum Panels (Pair) For | 1598RBBK |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Material | Aluminum |
| 1598R Series Front/Rear Panel Spec | 1.6 mm (0.064") brushed aluminum with protective paper on one side |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosure is 1598PLB-AL listed for?▾
The 1598R Series table lists it as the extra aluminum panel pair for 1598RBBK, a black enclosure measuring 134 x 135 x 51 mm.
How many panels are in the pack?▾
Two, it is a 2-pack.
What finish are the panels?▾
The part colour is Natural Aluminum; the 1598R Series describes its front and rear panels as 1.6 mm (0.064") brushed aluminum with protective paper on one side.
Does the 1598RBBK provide EMI/RFI shielding?▾
Yes, the interior of each enclosure half is masked and sprayed with an RFI/EMI copper conductive coating; the coating manufacturer specifies more than 75 dB attenuation from 1 MHz to 1 GHz.
Is it RoHS compliant?▾
Yes, it is both RoHS and REACH compliant.
