Hammond 1598PLF-AL 250x159x41 mm Case Aluminum End Panel Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Extra aluminum end panel pair listed for the 1598RFBK shielded enclosure
- Sold as a 2-pack - one front and one rear panel set
- Aluminum construction in natural aluminum color
- Matches a 250 x 159 x 41 mm case (ordering table)
- RoHS and REACH compliant
- Bagged; shipping weight 0.04 lbs (0.02 kg)

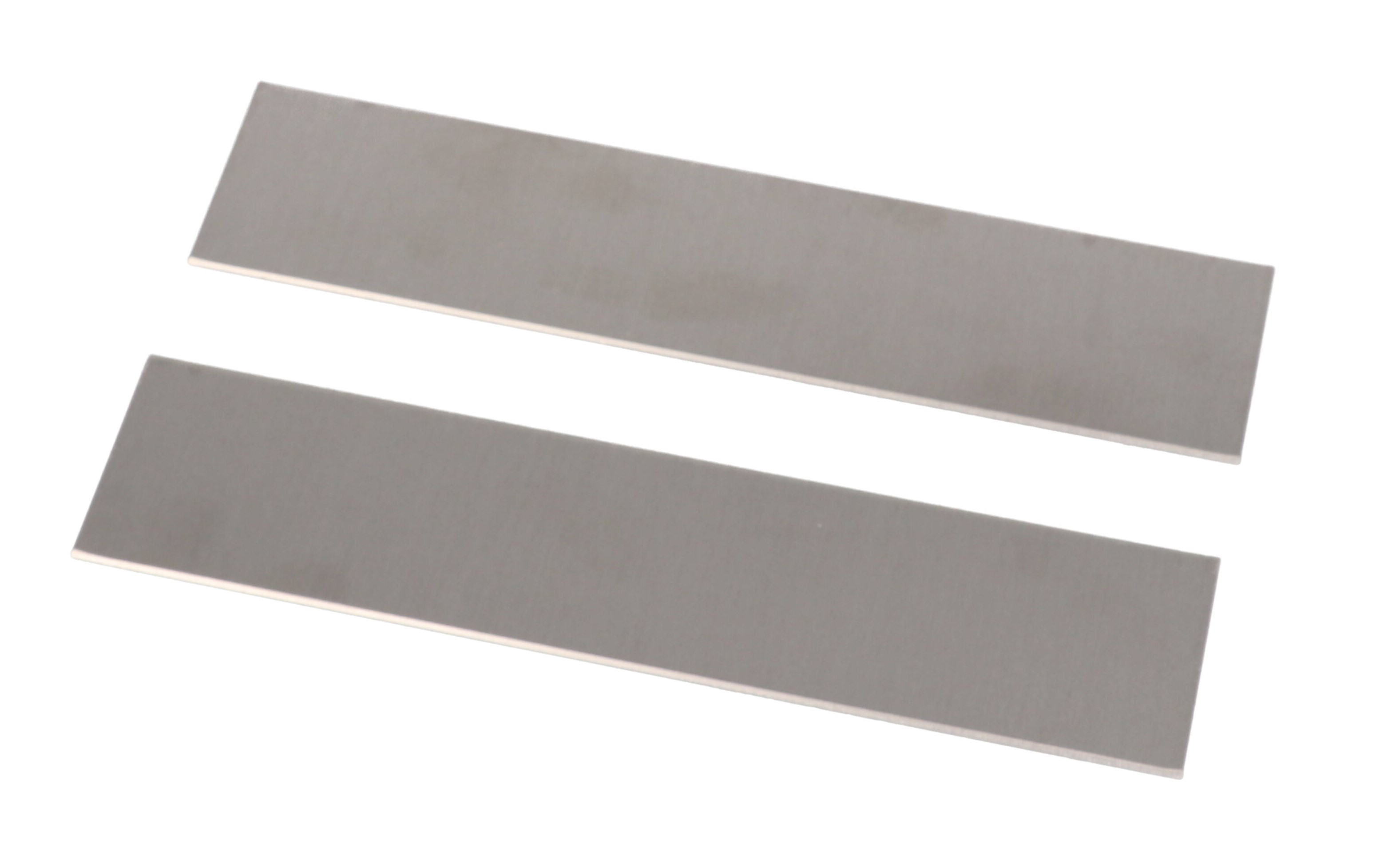

The 1598PLF-AL is a 2-pack of aluminum end panels, listed in the 1598R ordering table as the extra aluminum panel pair for the 1598RFBK shielded instrument case. It is the part to order when a project needs spare front and rear panels - for example, a second set to drill for a revised connector layout, or replacements for panels that have already been machined.
The panels are aluminum in a natural aluminum color and are sold as a set of two ("aluminum endplate set"). They ship in a bag at a shipping weight of 0.04 lbs (0.02 kg) and are RoHS and REACH compliant.
The matching enclosure, 1598RFBK, is the long, low-profile member of the series at 250 mm long, 159 mm wide and 41 mm deep in the ordering table. That case is a copper-coated EMI/RFI shielded ABS enclosure, and the series specifies its front and rear panels as 1.6 mm (0.064") brushed aluminum with protective paper on one side.
Order 1598PLF-AL only for the 1598RFBK size; other 1598R cases use their own panel pairs (for example 1598PLG-AL for the deeper 1598RGBK). The tilt bail kit listed for the same enclosure is 1598TH1.
Ideal For
- Spare front and rear panels for the 1598RFBK
- Re-machining panels for revised connector or control layouts
- Replacing drilled or damaged end panels
- Prototype iterations of long, low-profile instrument cases
Overview
| Quantity | 2-pack (pair) |
| Description | hardware - aluminum end panels, 2-pack |
| Product Type | End panels |
| Short Description | ALUMINUM ENDPLATE SET |
Identifiers
| UPC | 623980404745 |
| UNSPSC | 39121301 |
| Part Number | 1598PLF-AL |
Compatibility
| Enclosure Color | Black |
| Enclosure Size (Ordering Table) | 250 mm L x 159 mm W x 41 mm D |
| Fits Enclosure (Ordering Table) | 1598RFBK |
| Tilt Bail Kit For Same Enclosure | 1598TH1 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Material | Aluminum |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosure does the 1598PLF-AL fit?▾
The 1598R series ordering table lists 1598PLF-AL as the extra aluminum panel pair for the 1598RFBK, a black enclosure 250 mm long, 159 mm wide and 41 mm deep.
How many panels are included?▾
It is an aluminum endplate set sold as a 2-pack.
What material and finish are the panels?▾
The part data lists the material as aluminum and the color as natural aluminum.
Is it RoHS and REACH compliant?▾
Yes, the manufacturer lists it as both RoHS compliant and REACH compliant.
How is it packaged?▾
It ships in a bag with a shipping weight of 0.04 lbs (0.02 kg).
