Hammond 1598PLDBK 1598D Case Black Plastic End Panels, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pair of black plastic end panels for 1598D enclosures
- Fits 1598DBK, 1598DGY, 1598DSGY and 1598DSGYPBK
- ABS plastic, UL94 V-0 flame rating
- For enclosures measuring 7.09 in (180 mm) x 8.07 in (205 mm) x 2.48 in (63 mm)
- Aluminum alternative: 1598PLD-AL
- RoHS and REACH compliant
- Shipping weight 0.09 lbs (0.04 kg), bag packaging

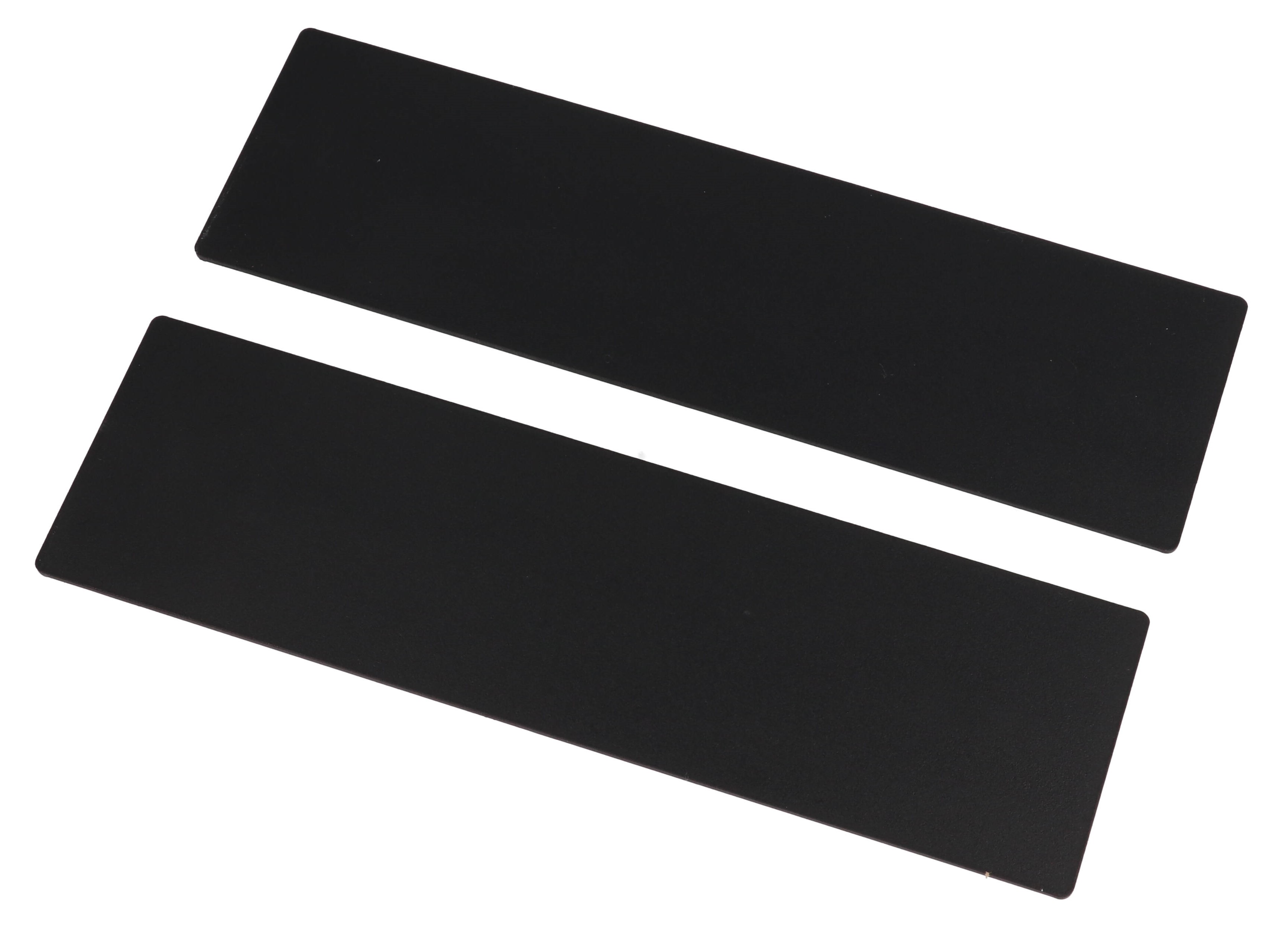

1598PLDBK is a pair of black plastic end panels for Hammond 1598D ABS instrument enclosures. It is a replacement or spare front-and-rear panel set for engineers, technicians and product builders who need to swap, customize or re-machine the end panels of a 1598D case.
The panels are molded from ABS plastic in black with a UL94 V-0 flame rating. The 1598 Series notes that replacement natural finish aluminum and black plastic end panels are available, with the compatible panel set shown in the part number table; for the 1598D size that black plastic set is 1598PLDBK, while the aluminum alternative is 1598PLD-AL.
The series table lists the matching 1598D enclosures as 1598DBK (flame retardant, black), 1598DGY (flame retardant, gray), 1598DSGY (general purpose, gray) and 1598DSGYPBK (general purpose gray enclosure with black plastic panels). The enclosure measures 7.09 in (180 mm) long, 8.07 in (205 mm) wide and 2.48 in (63 mm) deep. The 1598D is 180 mm long and 205 mm wide, with a 63 mm depth.
When cutting openings for switches, displays and connectors, note that Hammond's chemical resistance statement for the series advises against acetone, ketones, thread locking compounds, cutting or tapping fluid and strong solvents on its plastic parts; an air blast is recommended to clear chips after modification.
1598PLDBK is RoHS and REACH compliant and ships in a bag with a shipping weight of 0.09 lbs (0.04 kg). Tilt bail kit 1598TH2 is listed for the same enclosure size.
Ideal For
- Replacement end panels for 1598D cases
- Custom-drilled front panels for switches and connectors
- Converting aluminum-panel cases to black plastic ends
- Spare panels for prototype iterations
Overview
| Type | End panels |
| Color | Black |
| Description | hardware - plastic end panels for 1598D enclosures, 2-pack |
| Part Number | 1598PLDBK |
| Pack Quantity | 2-pack (pair) |
| Short Description | 1598D PLASTIC ENDPANEL BLACK |
Identifiers
| UPC | 623980796178 |
| UNSPSC | 39121301 |
Compatibility
| Enclosure Depth | 2.48 in (63 mm) |
| Enclosure Width | 8.07 in (205 mm) |
| Enclosure Length | 7.09 in (180 mm) |
| For Enclosure Size | 1598D |
| Flame Retardant Version (Gray) | 1598DGY |
| General Purpose Version (Gray) | 1598DSGY |
| Flame Retardant Version (Black) | 1598DBK |
| Tilt Bail Kit For Same Enclosure | 1598TH2 |
| Aluminum End Panel Alternative (Pair) | 1598PLD-AL |
| Gen. Purpose (Gray Enclosure W/ Black Plastic Panels) | 1598DSGYPBK |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.09 lbs (0.04 kg) |
Construction & Finish
| Material | ABS Plastic |
Environmental & Protection
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does 1598PLDBK fit?▾
The 1598D size: 1598DBK, 1598DGY, 1598DSGY and 1598DSGYPBK.
How many panels are included?▾
Two, it is a 2-pack (front and rear pair).
What material and flame rating are the panels?▾
Black ABS plastic with a UL94 V-0 flame rating.
Is there an aluminum version?▾
Yes, 1598PLD-AL is the aluminum end panel pair for the same enclosure size.
Can I machine the panels?▾
The series chemical resistance statement recommends avoiding cutting or tapping fluid on its plastics and using an air blast to clear chips when making modifications.
