Hammond 1598GGY 249x160x76 mm Gray Flame Retardant Instrument Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray flame retardant ABS, UL94 V-0, nominal 249 x 160 x 76 mm
- Brass bushings with M3 machine screws suit repeated assembly and disassembly
- Inner box 239.50 x 149.14 x 68.00 mm; max. P.C. board 238.50 x 143.57 mm
- Brushed aluminum 5052-H32 front and rear panels, 145.90 x 67.00 mm viewing area
- Designed to meet IP54; RoHS and REACH compliant
- Vertical 1.5 mm board guides and Eurocard-center horizontal card mounts
- Tilt bail kit 1598TH1 available for angled desktop use

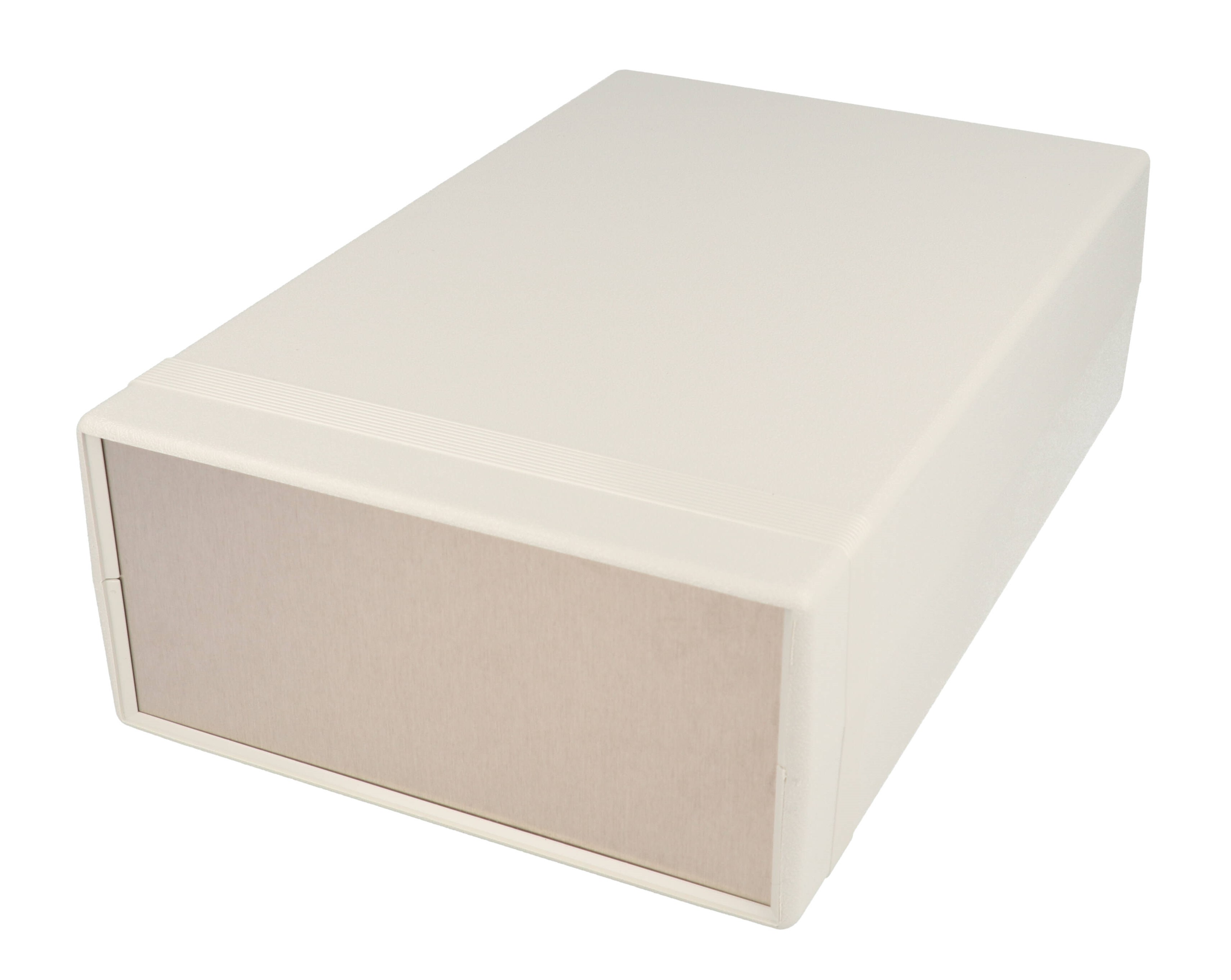

1598GGY is the light gray, flame retardant member of the G-size 1598 instrument cases: a desktop clam shell enclosure with brushed aluminum end panels, aimed at designers of bench instruments, controllers and other PCB-based equipment that need a UL94 V-0 rated housing.
The nominal size is 9.8 in x 6.3 in x 3 in (249 mm x 160 mm x 76 mm), and the drawing shows 249.70 mm x 159.00 mm x 75.00 mm overall. Inside there is 239.50 mm of length, 149.14 mm of width and 68.00 mm of height, with a maximum P.C. board size of 238.50 mm x 143.57 mm. The 151.00 mm x 69.50 mm front and rear panels offer a 145.90 mm x 67.00 mm viewing area.
Construction is matte textured flame retardant ABS. The halves are secured with M3 x 0.5 x 10 mm Phillips machine screws threaded into tapped integral brass bushings, a design suited to repetitive assembly and disassembly. The aluminum panels are 5052-H32 alloy with an SPV coating on one side and protective paper for handling.

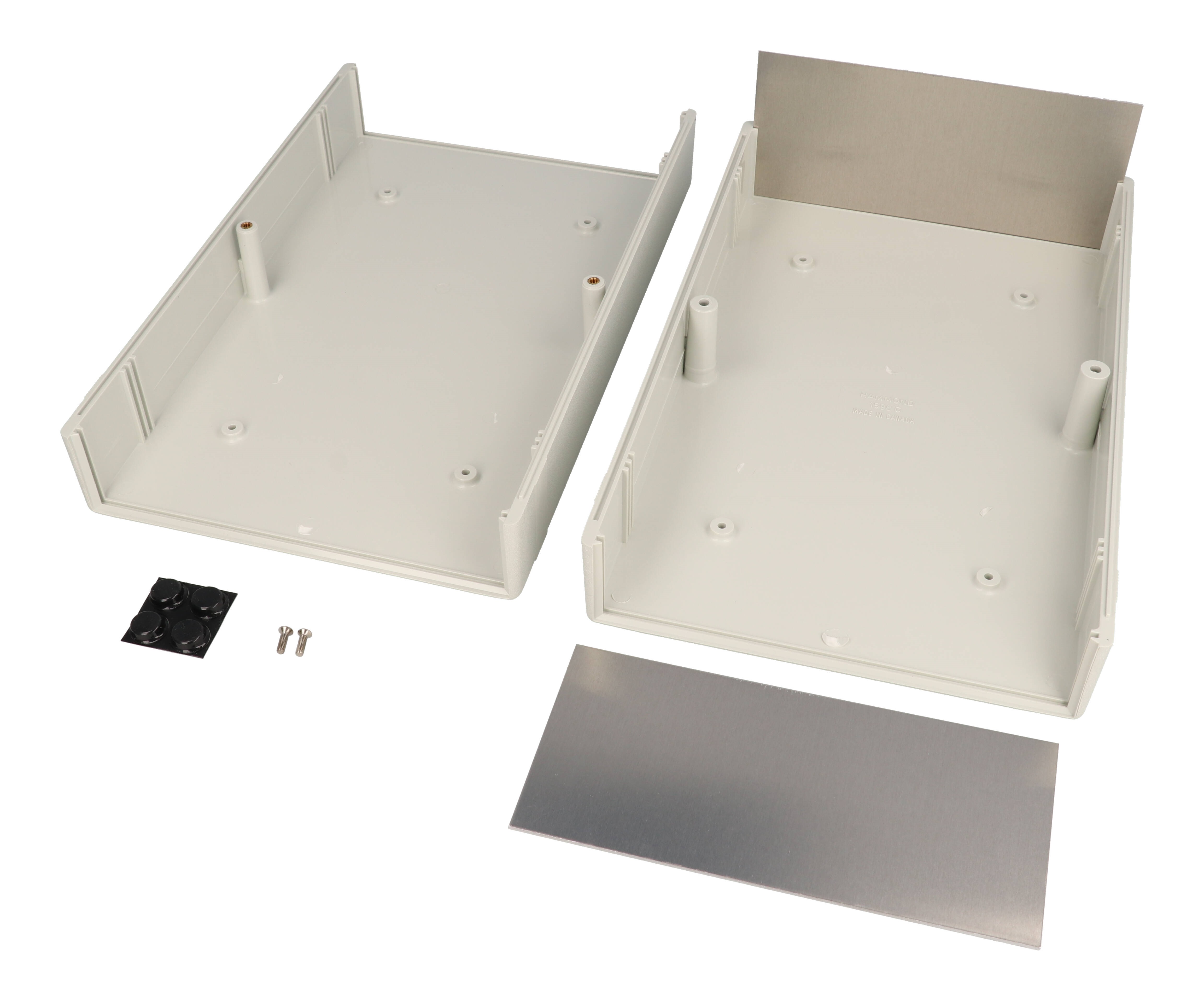

Boards slide into two sets of vertical 1.5 mm (0.062") guides or mount horizontally on Eurocard centers using molded standoffs that take #6 x 1/4" (6.4 mm) screws, sold separately as 1598ATS100. The 1598GGY ships with top and bottom cover, aluminum panels, two cover screws and four rubber feet, with a shipping weight of 1.25 lbs (0.57 kg).
It is designed to meet IP54 and is RoHS and REACH compliant. Tilt bail kit 1598TH1 and replacement panels 1598PLG-AL or 1598PLGBK fit this size.
Ideal For
- Bench and desktop instruments
- PCB-based controllers
- Test equipment requiring UL94 V-0 housings
- Enclosures opened frequently for service
Included
| Purchased Assembly Includes | Top and bottom cover, front and end aluminum panels, 2 cover screws, 4 rubber feet |
Overview
| Type | Instrument Case |
| Color | Light Gray |
| Series | 1598 Series ABS Plastic Instrument Enclosures (ABS Clam Shell Body w/ End Panels) |
| Version | Flame Retardant Version (Gray) |
| Description | enclosure - plastic |
| Part Number | 1598GGY |
| Case Size Code | 1598G |
| Short Description | PLSTC INSTR CASE |
Dimensions
| Inner Box Width | 149.14 mm [5.872 in] |
| Inner Box Height | 68.00 mm [2.677 in] |
| Inner Box Length | 239.50 mm [9.429 in] |
| Depth (Series Table) | 2.95 in (75 mm) |
| Width (Series Table) | 6.26 in (159 mm) |
| Front/Rear Panel Size | 151.00 mm x 69.50 mm [5.945 in x 2.736 in] |
| Length (Series Table) | 9.84 in (250 mm) |
| Overall Width (Drawing) | 159.00 mm [6.260 in] |
| Nominal Size (L X W X H) | 9.8 in x 6.3 in x 3 in (249 mm x 160 mm x 76 mm) |
| Overall Height (Drawing) | 75.00 mm [2.953 in] |
| Overall Length (Drawing) | 249.70 mm [9.831 in] |
| Front/Rear Panel Viewing Area | 145.90 mm x 67.00 mm [5.744 in x 2.638 in] |
| Front/Rear Panel Thickness (Drawing) | 1.65 mm [.065 in] |
Accessories
| Tilt Bail Kit | 1598TH1 |
| PCB Screws (Pkg 100) | 1598ATS100 [#6 x 1/4" (6.4 mm)] |
| Rubber Feet (Pkg 24) | 1421T2 |
| Plastic End Panels (Pair) | 1598PLGBK |
| Aluminum End Panels (Pair) | 1598PLG-AL |
| Replacement Cover Screws (Pkg 100) | 1591MS100 [M3 - 0.5 x 10 mm] for 1598 FR-ABS |
Identifiers
| UPC | 623980796369 |
| UNSPSC | 39121301 |
PCB Mounting
| P.C. Card Standoffs | Molded into top and bottom half; require #6 x 1/4" (6.4 mm) screws, not included (order 1598ATS100) |
| P.C. Board Alignment | P.C. board aligned on bosses (board not supplied) |
| Max. P.C. Board Width (Mm) | 238.5 |
| Vertical P.C. Board Guides | Two sets of vertical 1.5 mm (0.062") guides molded into front and rear of case halves |
| Horizontal P.C. Card Mounts | Integral, on Eurocard centers |
| Max. P.C. Board Length (Mm) | 143.57 |
| PCB Distance From End Panel | 0.50 mm [.020 in] |
| PCB Distance From Inner Wall | 2.79 mm [.110 in] |
| Maximum P.C. Board Size (Drawing) | 238.50 mm x 143.57 mm [9.390 in x 5.652 in] |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. |
Related Versions
| Flame Retardant, Gray | 1598GGY |
| General Purpose, Gray | 1598GSGY |
| Black EMI/RFI Shielded | 1598RGBK |
| Flame Retardant, Black | 1598GBK |
| General Purpose, Gray W/ Black Plastic Panels | 1598GSGYPBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.25 lbs (0.57 kg) |
Construction & Finish
| Finish | Matte textured |
| Material | ABS Plastic |
| ABS Grade | Flame retardant ABS |
| Body Style | Clam shell (top and bottom cover halves) with end panels |
| End Panels | Aluminum, 1.6 mm (0.064") brushed, with protective paper on one side |
| Cover Fastening | M3 x 0.5 x 10 mm (0.39") Phillips machine screws threaded into tapped integral brass bushings |
| End Panel Alloy | 5052-H32, SPV coating on one side |
Environmental & Protection
| IP Rating | IP54 (designed to meet IP54) |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1598GGY the same case as the 1598GBK?▾
They share the same size, flame retardant ABS and brass-bushing fastening; 1598GGY is light gray while 1598GBK is black.
What flame rating does 1598GGY carry?▾
UL94 V-0 (flame retardant ABS).
What are the front panel dimensions?▾
The front and rear panels are 151.00 mm x 69.50 mm, with a 145.90 mm x 67.00 mm viewing area.
Which tilt bail fits?▾
The series table lists tilt bail kit 1598TH1 for this size.
Are rubber feet included?▾
Yes, the purchased assembly includes 4 rubber feet along with 2 cover screws, top and bottom cover and aluminum panels. Extra feet are 1421T2 (pkg 24).
