Hammond 1598JGY 279x198x76 mm Gray Flame Retardant Instrument Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray flame retardant ABS, UL94 V-0
- Nominal 279 x 198 x 76 mm (11 x 7.8 x 3 in)
- Max. P.C. board 268.60 x 184.50 mm; 68.00 mm inner height
- Brass bushings with M3 machine screws for repeated opening
- Brushed aluminum end panels, 185.06 x 67.00 mm viewing area
- Designed to meet IP54; RoHS and REACH compliant
- Includes 2 cover screws and 4 rubber feet; tilt bail 1598TH2

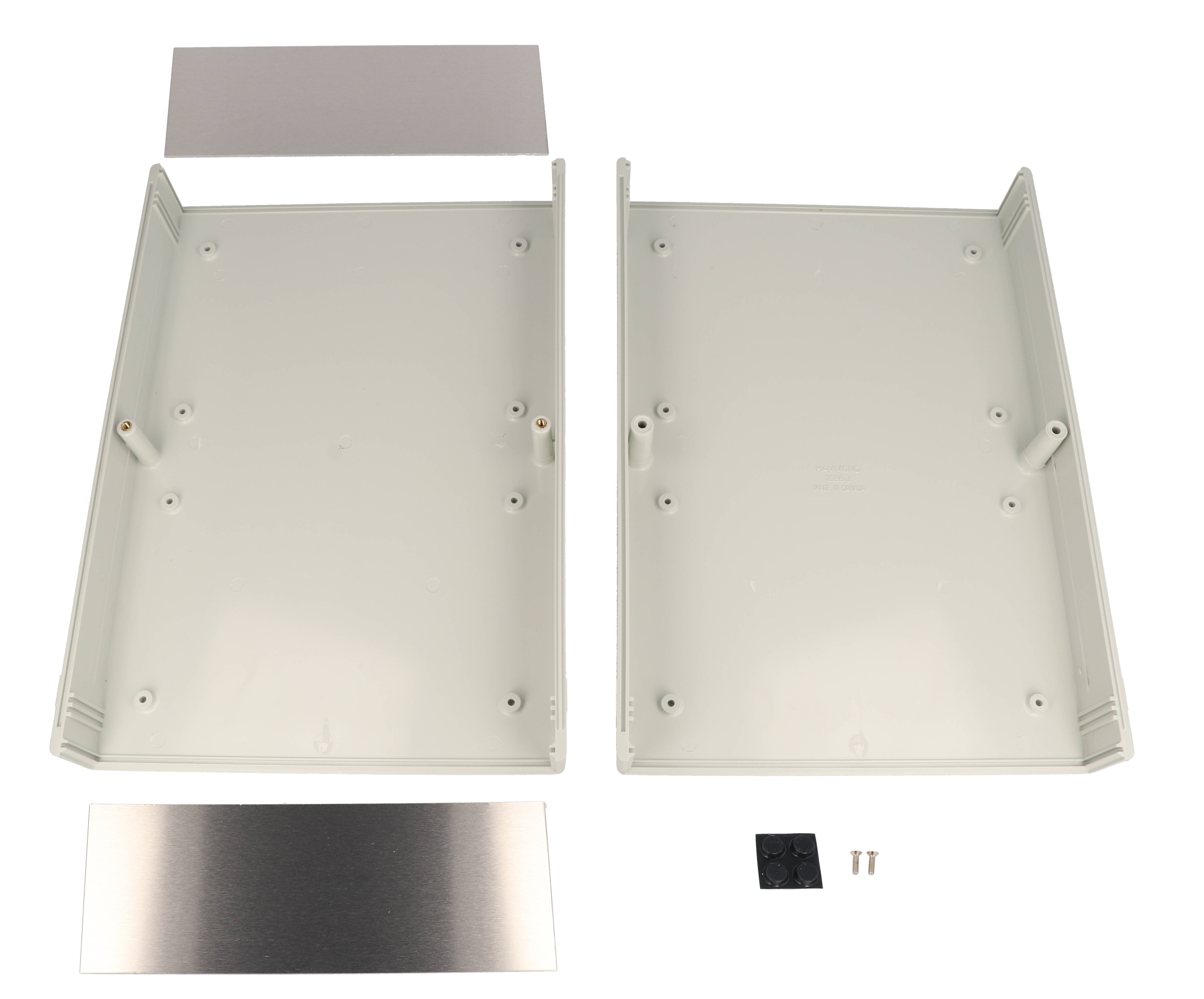

1598JGY is a light gray, flame retardant ABS instrument case in the J size, pairing a wide footprint with a 3 in nominal height. With brushed aluminum end panels and a UL94 V-0 body, it serves designers of bench instruments, controllers and interface units built around a large P.C. board.
The nominal size is 11 in x 7.8 in x 3 in (279 mm x 198 mm x 76 mm), with 280.10 mm x 199.50 mm x 75.80 mm overall on the drawing. The inner box measures 269.60 mm x 189.64 mm x 68.00 mm and accepts a board up to 268.60 mm x 184.50 mm. Front and rear panels are 191.30 mm x 69.50 mm, with a 185.06 mm x 67.00 mm viewing area for displays and I/O.
The matte textured gray halves are secured with M3 x 0.5 x 10 mm Phillips machine screws into tapped integral brass bushings, a fastening intended for repetitive assembly and disassembly. Spare cover screws are 1591MS100. The end panels are 5052-H32 aluminum, SPV coated on one side.
Boards can stand in two sets of vertical 1.5 mm (0.062") guides or mount horizontally on Eurocard centers; eight 3.51 mm holes align the board on bosses, and standoffs take #6 x 1/4" (6.4 mm) screws (1598ATS100, not included). Two cover screws and four rubber feet come with the case.
1598JGY is designed to meet IP54 and is RoHS and REACH compliant, shipping at 1.64 lbs (0.74 kg). Tilt bail kit 1598TH2 and replacement panels 1598PLJ-AL or 1598PLJBK fit this size.
Ideal For
- Bench and desktop instruments
- Large PCB controllers
- Interface and I/O units
- Equipment requiring UL94 V-0 housings
Included
| Purchased Assembly Includes | Top and bottom cover, front and end aluminum panels, 2 cover screws, 4 rubber feet |
Overview
| Type | Instrument Case |
| Color | Light Gray |
| Series | 1598 Series ABS Plastic Instrument Enclosures (ABS Clam Shell Body w/ End Panels) |
| Version | Flame Retardant Version (Gray) |
| Description | enclosure - plastic |
| Part Number | 1598JGY |
| Case Size Code | 1598J |
| Short Description | PLSTC INSTR CASE |
Dimensions
| Inner Box Width | 189.64 mm [7.466 in] |
| Inner Box Height | 68.00 mm [2.677 in] |
| Inner Box Length | 269.60 mm [10.614 in] |
| Depth (Series Table) | 2.99 in (76 mm) |
| Width (Series Table) | 7.87 in (200 mm) |
| Front/Rear Panel Size | 191.30 mm x 69.50 mm [7.531 in x 2.736 in] |
| Length (Series Table) | 11.02 in (280 mm) |
| Overall Width (Drawing) | 199.50 mm [7.854 in] |
| Nominal Size (L X W X H) | 11 in x 7.8 in x 3 in (279 mm x 198 mm x 76 mm) |
| Overall Height (Drawing) | 75.80 mm [2.984 in] |
| Overall Length (Drawing) | 280.10 mm [11.028 in] |
| Front/Rear Panel Viewing Area | 185.06 mm x 67.00 mm [7.286 in x 2.638 in] |
| Front/Rear Panel Thickness (Drawing) | 1.65 mm [.065 in] |
Accessories
| Tilt Bail Kit | 1598TH2 |
| PCB Screws (Pkg 100) | 1598ATS100 [#6 x 1/4" (6.4 mm)] |
| Rubber Feet (Pkg 24) | 1421T2 |
| Plastic End Panels (Pair) | 1598PLJBK |
| Aluminum End Panels (Pair) | 1598PLJ-AL |
| Replacement Cover Screws (Pkg 100) | 1591MS100 [M3 - 0.5 x 10 mm] for 1598 FR-ABS |
Identifiers
| UPC | 623980796420 |
| UNSPSC | 39121301 |
PCB Mounting
| P.C. Card Standoffs | Molded into top and bottom half; require #6 x 1/4" (6.4 mm) screws, not included (order 1598ATS100) |
| P.C. Board Alignment | P.C. board aligned on bosses (board not supplied) |
| Max. P.C. Board Width (Mm) | 268.6 |
| Vertical P.C. Board Guides | Two sets of vertical 1.5 mm (0.062") guides molded into front and rear of case halves |
| Horizontal P.C. Card Mounts | Integral, on Eurocard centers |
| Max. P.C. Board Length (Mm) | 184.5 |
| PCB Distance From End Panel | 0.50 mm [.020 in] |
| PCB Distance From Inner Wall | 2.57 mm [.101 in] |
| Maximum P.C. Board Size (Drawing) | 268.60 mm x 184.50 mm [10.575 in x 7.264 in] |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. |
Related Versions
| Flame Retardant, Gray | 1598JGY |
| General Purpose, Gray | 1598JSGY |
| Black EMI/RFI Shielded | 1598RJBK |
| Flame Retardant, Black | 1598JBK |
| General Purpose, Gray W/ Black Plastic Panels | 1598JSGYPBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.64 lbs (0.74 kg) |
Construction & Finish
| Finish | Matte textured |
| Material | ABS Plastic |
| ABS Grade | Flame retardant ABS |
| Body Style | Clam shell (top and bottom cover halves) with end panels |
| End Panels | Aluminum, 1.6 mm (0.064") brushed, with protective paper on one side |
| Cover Fastening | M3 x 0.5 x 10 mm (0.39") Phillips machine screws threaded into tapped integral brass bushings |
| End Panel Alloy | 5052-H32, SPV coating on one side |
Environmental & Protection
| IP Rating | IP54 (designed to meet IP54) |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What distinguishes 1598JGY from 1598JSGY?▾
1598JGY is flame retardant ABS (UL94 V-0) with brass bushings; 1598JSGY is general purpose ABS (UL94 HB) with self tapping screws into plastic standoffs.
What are the overall dimensions?▾
Nominally 11 in x 7.8 in x 3 in (279 x 198 x 76 mm); the drawing gives 280.10 x 199.50 x 75.80 mm.
What colour options exist in this size?▾
Black (1598JBK) and light gray (1598JGY) in flame retardant ABS, plus the gray general purpose 1598JSGY and 1598JSGYPBK.
Are the aluminum panels protected?▾
Yes, the series states the brushed aluminum panels have protective paper on one side.
Which replacement screws fit?▾
1591MS100, M3 - 0.5 x 10 mm cover screws in a 100-pack.
