Hammond 1598PLEBK 1598E Case Black Plastic End Panels, 2-Pack
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pair of black plastic end panels for 1598E enclosures
- Fits 1598EBK, 1598EGY, 1598ESGY and 1598ESGYPBK
- ABS plastic, UL94 V-0 flame rating
- For enclosures measuring 6.30 in (160 mm) x 6.26 in (159 mm) x 3.35 in (85 mm)
- Aluminum alternative: 1598PLE-AL
- RoHS and REACH compliant
- Shipping weight 0.09 lbs (0.04 kg), bag packaging

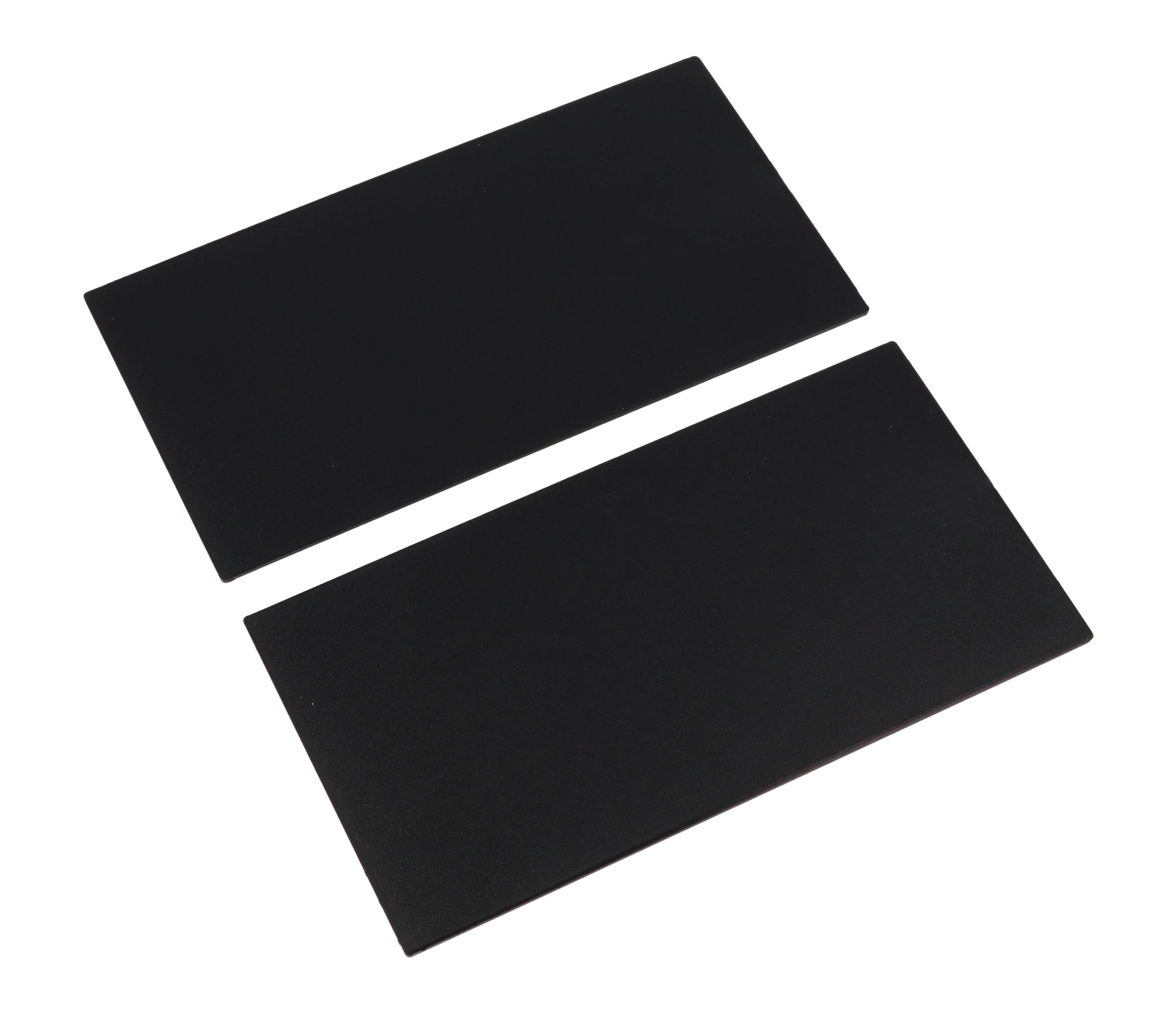

1598PLEBK is a pair of black plastic end panels for Hammond 1598E ABS instrument enclosures. It is a replacement or spare front-and-rear panel set for engineers, technicians and product builders who need to swap, customize or re-machine the end panels of a 1598E case.
The panels are molded from ABS plastic in black with a UL94 V-0 flame rating. The 1598 Series notes that replacement natural finish aluminum and black plastic end panels are available, with the compatible panel set shown in the part number table; for the 1598E size that black plastic set is 1598PLEBK, while the aluminum alternative is 1598PLE-AL.
The series table lists the matching 1598E enclosures as 1598EBK (flame retardant, black), 1598EGY (flame retardant, gray), 1598ESGY (general purpose, gray) and 1598ESGYPBK (general purpose gray enclosure with black plastic panels). The enclosure measures 6.30 in (160 mm) long, 6.26 in (159 mm) wide and 3.35 in (85 mm) deep. The 1598E is 160 mm x 159 mm with an 85 mm depth, the deepest case in the table.
When cutting openings for switches, displays and connectors, note that Hammond's chemical resistance statement for the series advises against acetone, ketones, thread locking compounds, cutting or tapping fluid and strong solvents on its plastic parts; an air blast is recommended to clear chips after modification.
1598PLEBK is RoHS and REACH compliant and ships in a bag with a shipping weight of 0.09 lbs (0.04 kg). Tilt bail kit 1598TH1 is listed for the same enclosure size.
Ideal For
- Replacement end panels for 1598E cases
- Custom-drilled front panels for switches and connectors
- Converting aluminum-panel cases to black plastic ends
- Spare panels for prototype iterations
Overview
| Type | End panels |
| Color | Black |
| Description | hardware - plastic end panels for 1598E enclosures, 2-pack |
| Part Number | 1598PLEBK |
| Pack Quantity | 2-pack (pair) |
| Short Description | PLASTIC PANEL |
Identifiers
| UPC | 623980569987 |
| UNSPSC | 39121301 |
Compatibility
| Enclosure Depth | 3.35 in (85 mm) |
| Enclosure Width | 6.26 in (159 mm) |
| Enclosure Length | 6.30 in (160 mm) |
| For Enclosure Size | 1598E |
| Flame Retardant Version (Gray) | 1598EGY |
| General Purpose Version (Gray) | 1598ESGY |
| Flame Retardant Version (Black) | 1598EBK |
| Tilt Bail Kit For Same Enclosure | 1598TH1 |
| Aluminum End Panel Alternative (Pair) | 1598PLE-AL |
| Gen. Purpose (Gray Enclosure W/ Black Plastic Panels) | 1598ESGYPBK |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.09 lbs (0.04 kg) |
Construction & Finish
| Material | ABS Plastic |
Environmental & Protection
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does 1598PLEBK fit?▾
The 1598E size: 1598EBK, 1598EGY, 1598ESGY and 1598ESGYPBK.
How many panels are included?▾
Two, it is a 2-pack (front and rear pair).
What material and flame rating are the panels?▾
Black ABS plastic with a UL94 V-0 flame rating.
Is there an aluminum version?▾
Yes, 1598PLE-AL is the aluminum end panel pair for the same enclosure size.
Can I machine the panels?▾
The series chemical resistance statement recommends avoiding cutting or tapping fluid on its plastics and using an air blast to clear chips when making modifications.
