Hammond 1598DSGYPBK 180x205x63mm Gray ABS Case with Black Plastic Panels

The 1598DSGYPBK is a light gray general purpose ABS instrument case from the 1598 Series, supplied with black plastic end panels. It is a desktop electronic instrument enclosure ideally suited for mounting printed circuit boards, and the 1598D size is a broad case with room for a board up to about 166 x 191 mm. The ordering table lists it at 7.09 in (180 mm) long, 8.07 in (205 mm) wide and 2.48 in (63 mm) deep.

This version is molded from general purpose ABS plastic that is not flame retardant (flame rating UL94 HB). Its halves are secured with #4 x 5/8" (15.9 mm) self tapping screws threaded into plastic standoffs, so it is not recommended for repeated assembly and disassembly. Replacement black plastic end panels are sold as a pair under 1598PLDBK, while 1598PLD-AL is the matching aluminum pair. The case is designed to meet IP54.

Inside, two sets of vertical 1.5 mm (0.062") PC board guides are molded into the front and rear of the case halves, and integral horizontal PC card mounts sit on Eurocard centers. The maximum board size is 166.30 mm [6.547 in] x 191.48 mm [7.539 in], aligned on bosses with 8 mounting holes of Ø3.51 mm [.138 in]. The molded standoffs take #6 x 1/4" (6.4 mm) screws, which are not included; order 1598ATS100 (100-pack). Inner height is 59.00 mm [2.323 in].

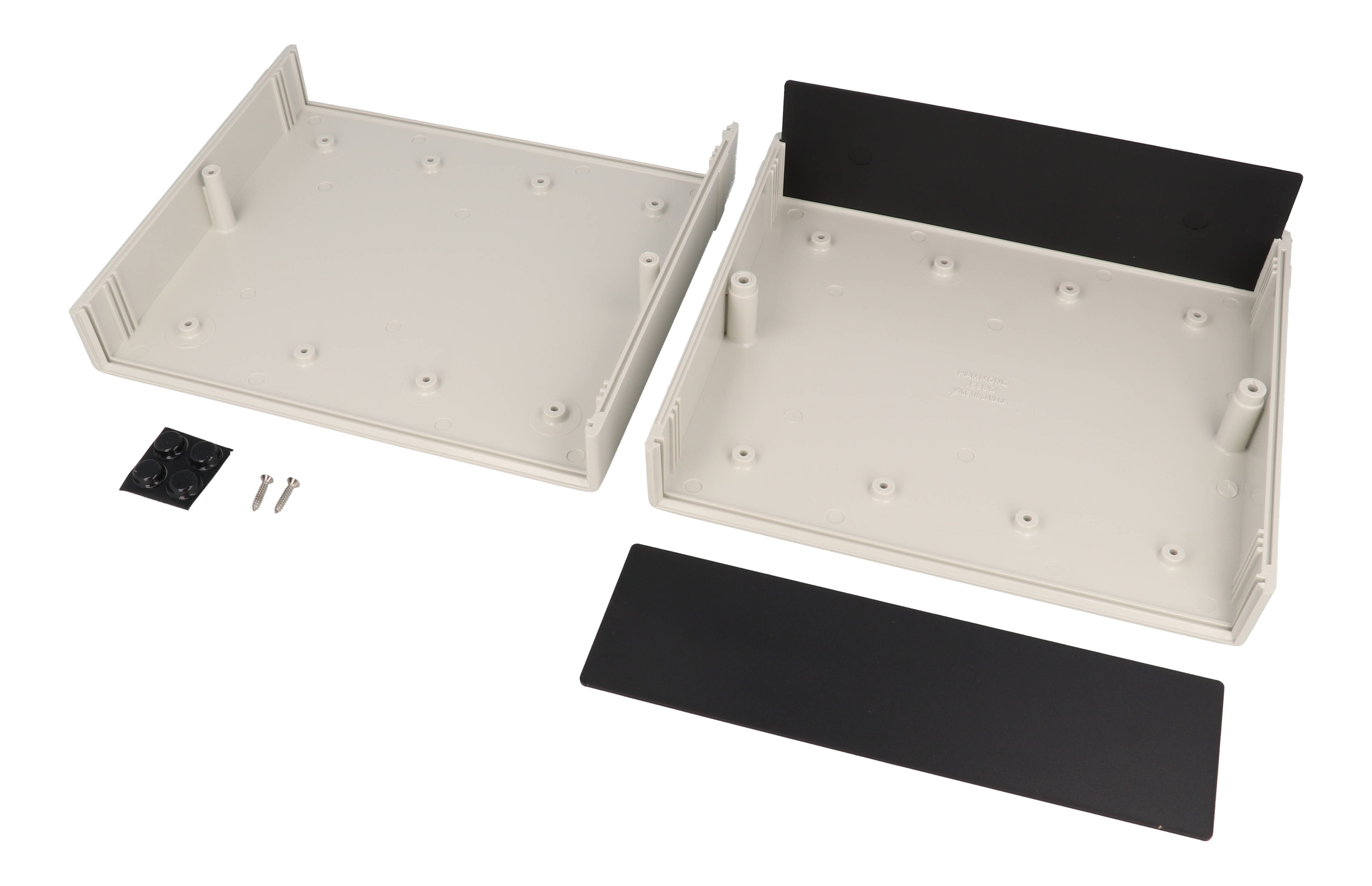

The purchased assembly includes the top and bottom cover, front and rear end panels (black plastic on this version), 2 cover screws and 4 rubber feet. A tilt bail kit, 1598TH2, is listed for this size. Enclosures can be factory modified with milling, drilling and printing, and STEP or IGES solid models are available from the factory. Some chemicals can damage ABS, so review the Chemical Resistance Statement. Shipping weight is 0.78 lbs (0.35 kg).
