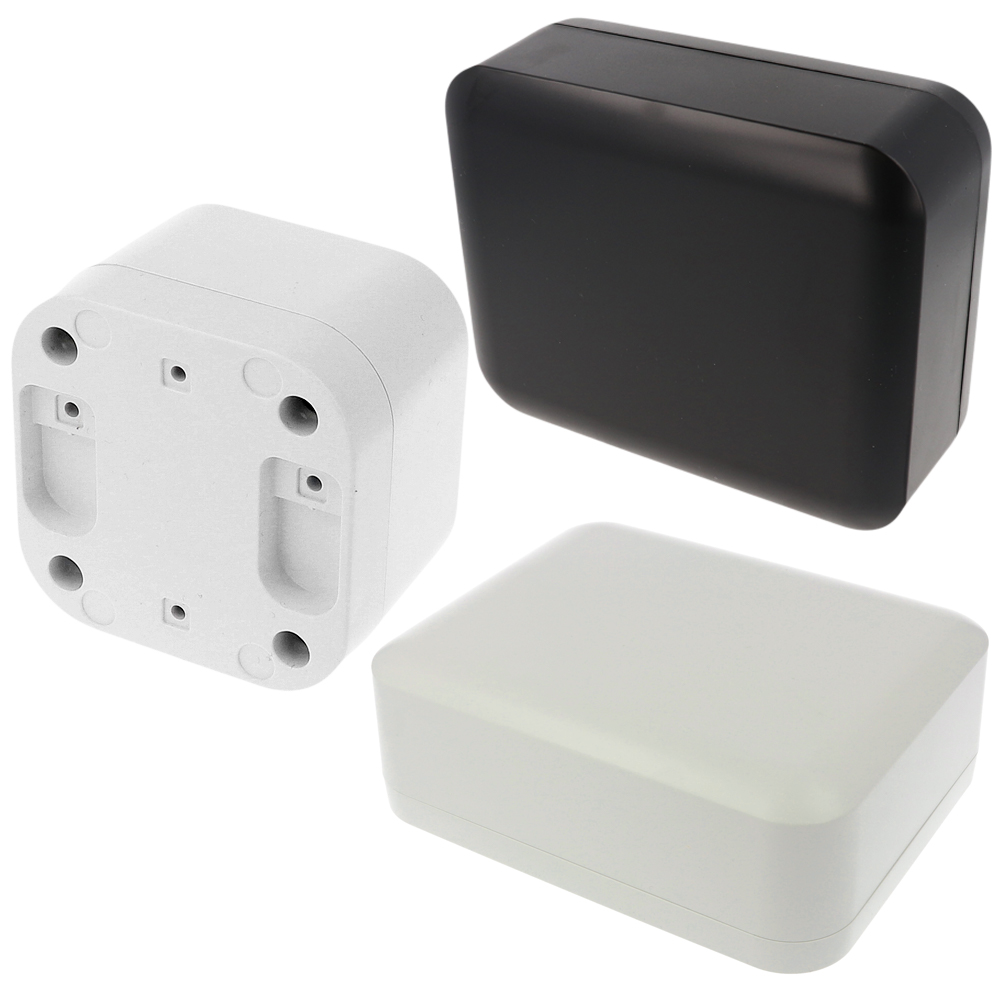

Modern General Purpose Enclosures 1556 Series

Modern General Purpose Enclosures · 1556 Series

Brand: Hammond Manufacturing · 68 part numbers

Dual Wall-Mount or Desktop

  • ■Ideally suited for mounting printed circuit boards, IoT equipment, and other small electronics.
  • ■Can be used in a tabletop configuration using rubber feet (included) or two different wall-mount configurations using wall mount foot kit (sold separately).
  • ■Rounded corners and face provide a more modern look.
  • ■Lap joint construction provides protection against access of dust and splashing water.
  • ■Available in black, gray, or white flame retardant ABS plastic with light satin texture.
  • ■Molded from flame retardant material which carries a flammability rating of UL94 V-0. For indoor use.

from $1.97

68 of 68 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 1556 Series part number

Filter 52 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

52 of 52 part numbers · 52 priced online

1556BABK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$4.96In stock
Buy now
1556BAGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$4.96In stock
Buy now
1556BAWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$4.96In stock
Buy now

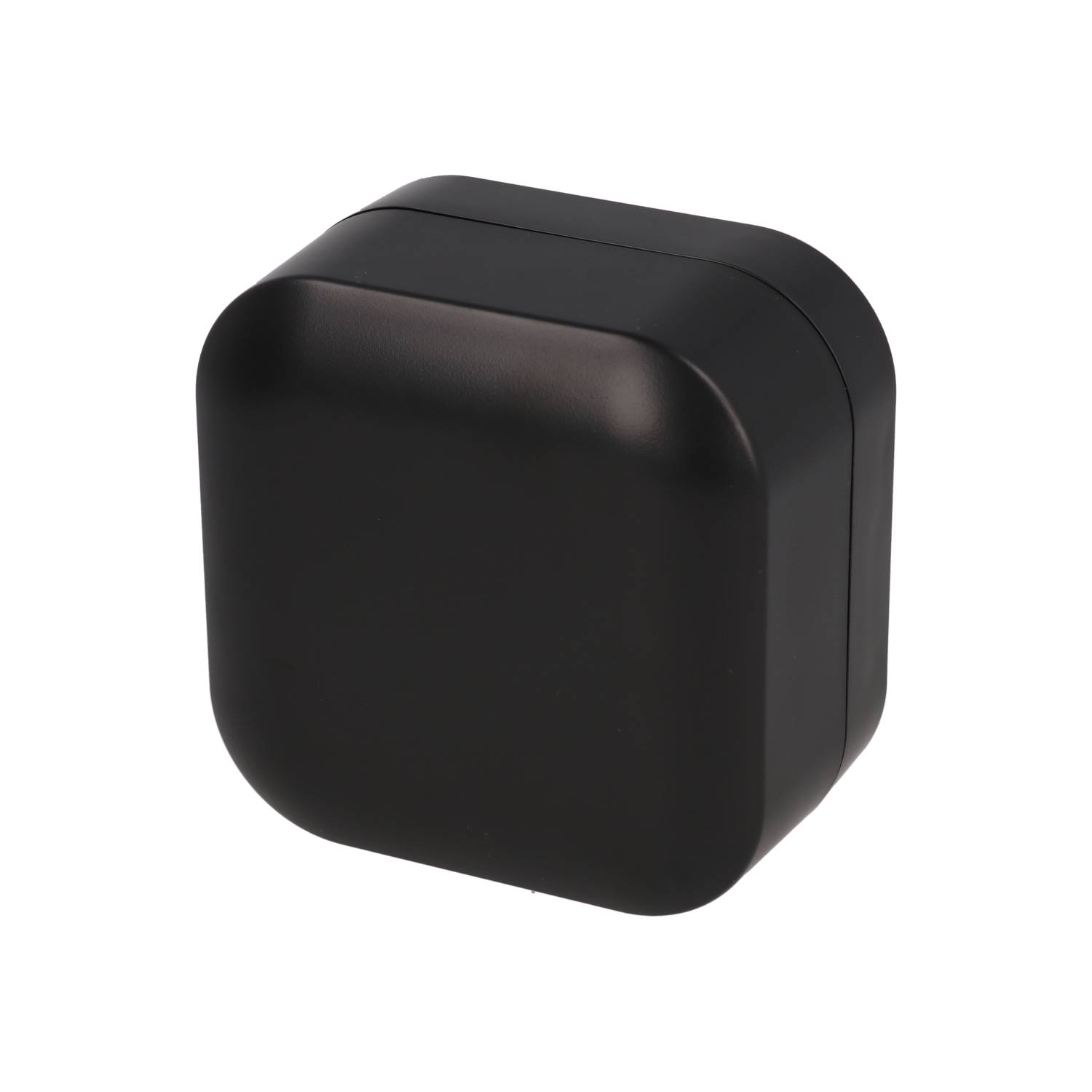

1556BBK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$4.66In stock
Buy now
1556BGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$4.66In stock
Buy now
1556BPL

1556B Inner Panel

  • Color Natural Aluminum
$1.97In stock
Buy now
1556BWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$4.66In stock
Buy now
1556CABK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$5.67In stock
Buy now
1556CAGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$5.67In stock
Buy now

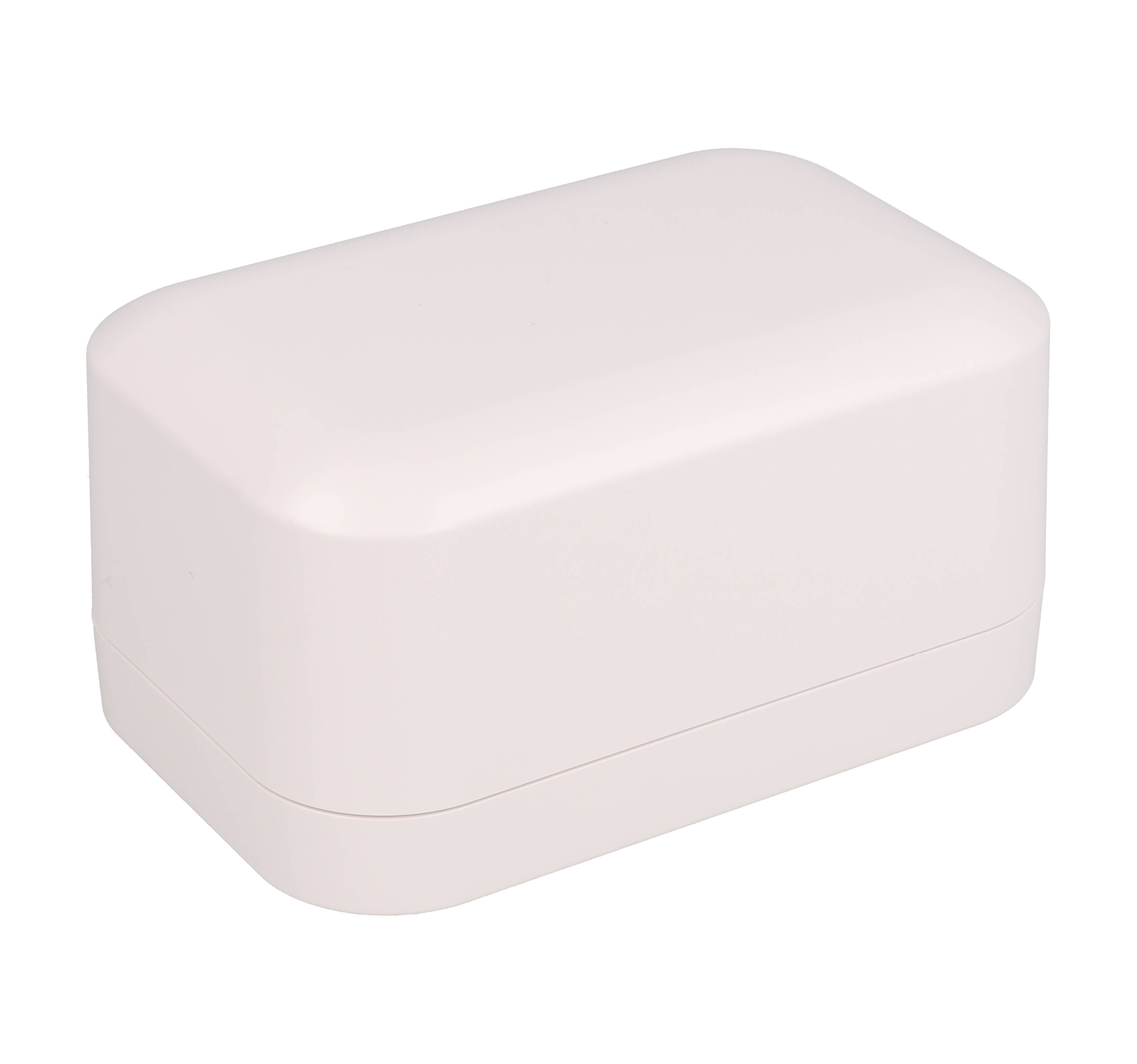

1556CAWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$5.67In stock
Buy now
1556CBK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$5.30In stock
Buy now

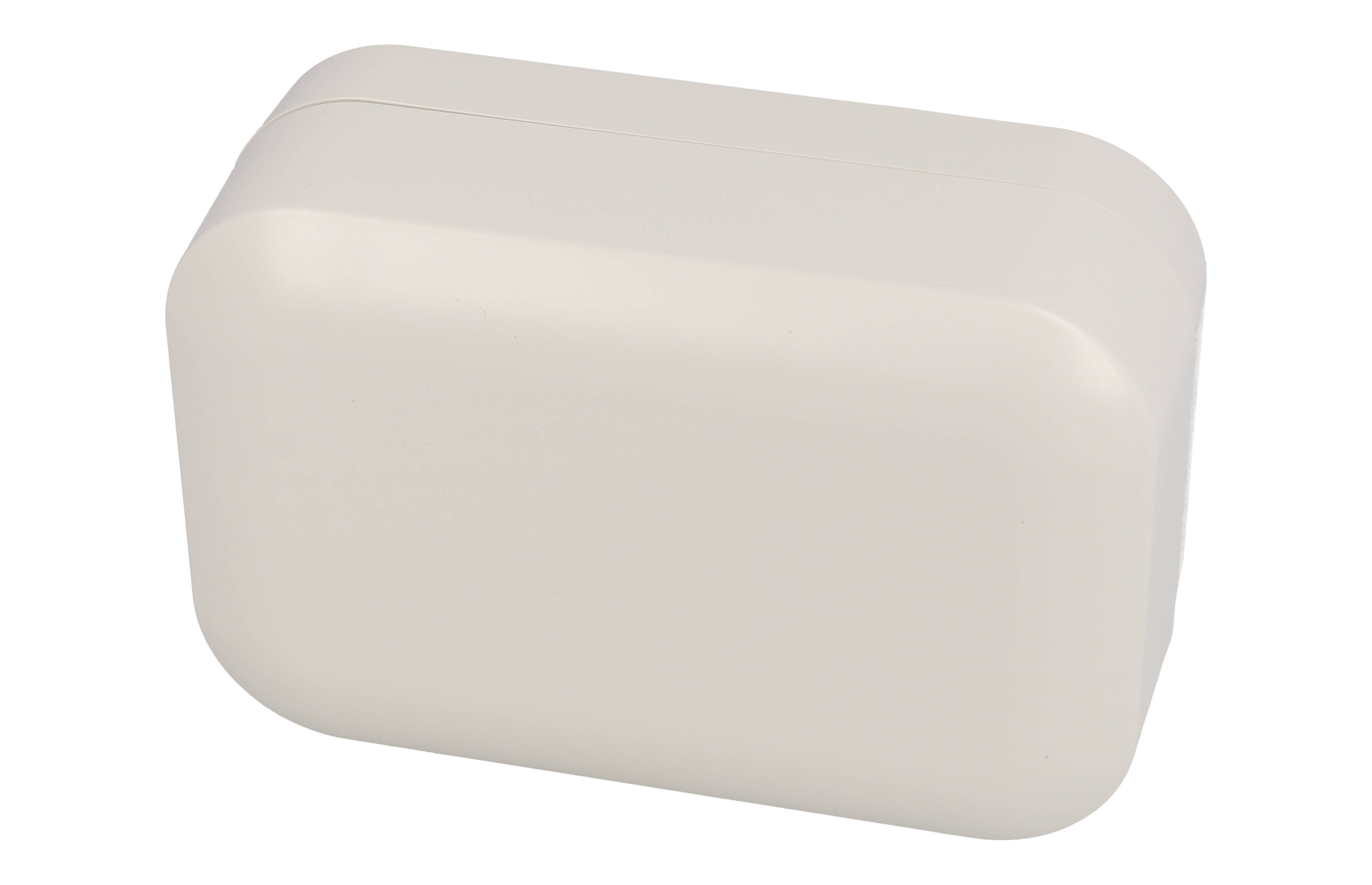

1556CGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$5.30In stock
Buy now
1556CPL

1556C Inner Panel

  • Color Natural Aluminum
$2.17In stock
Buy now
1556CWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$5.30In stock
Buy now
1556DABK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$6.68In stock
Buy now
1556DAGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$6.68In stock
Buy now
1556DAWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$6.68In stock
Buy now

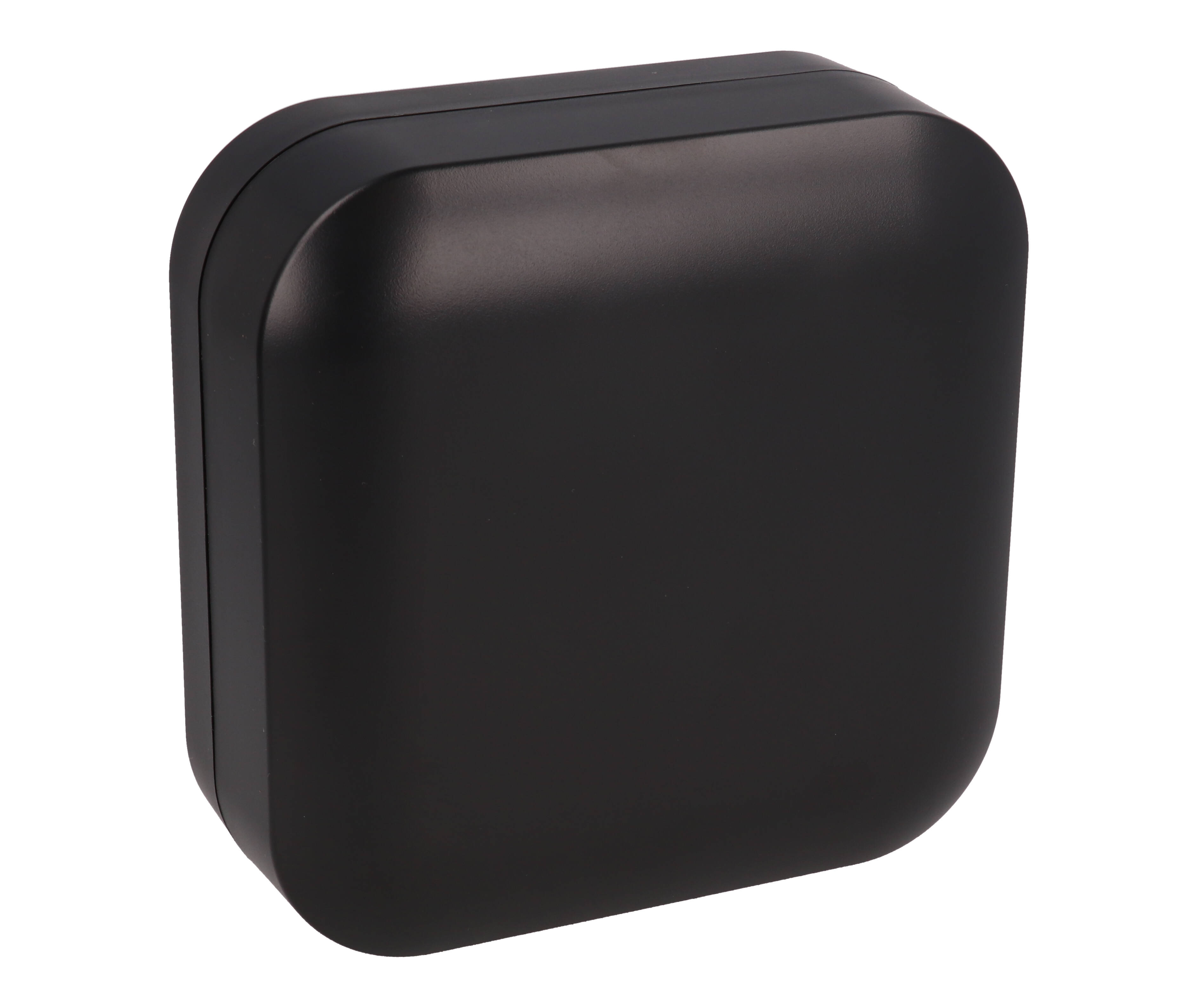

1556DBK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$5.98In stock
Buy now

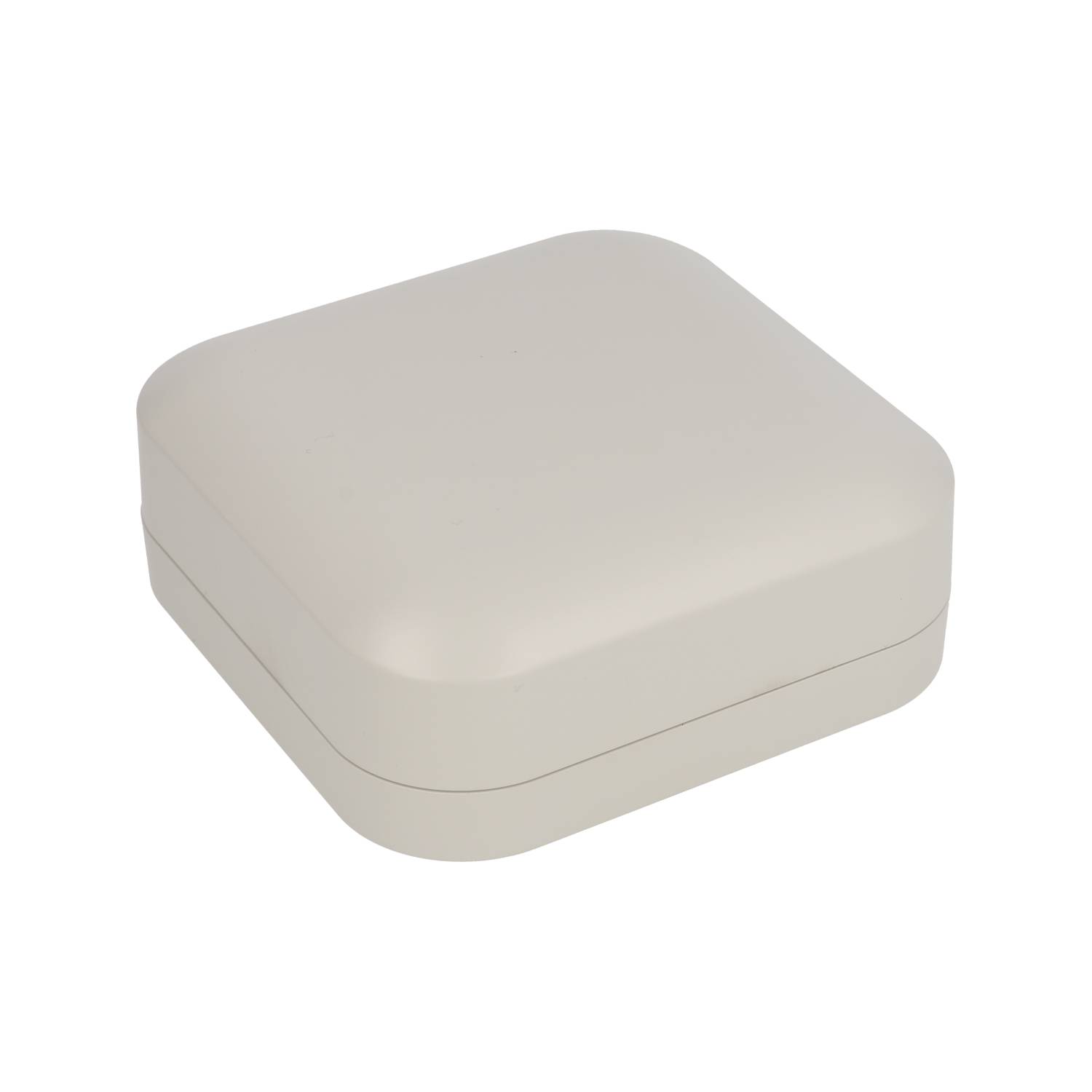

1556DGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$5.98In stock
Buy now
1556DPL

1556D Inner Panel

  • Color Natural Aluminum
$2.75In stock
Buy now
1556DWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$5.98In stock
Buy now
1556EABK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$7.54In stock
Buy now
1556EAGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$7.54In stock
Buy now

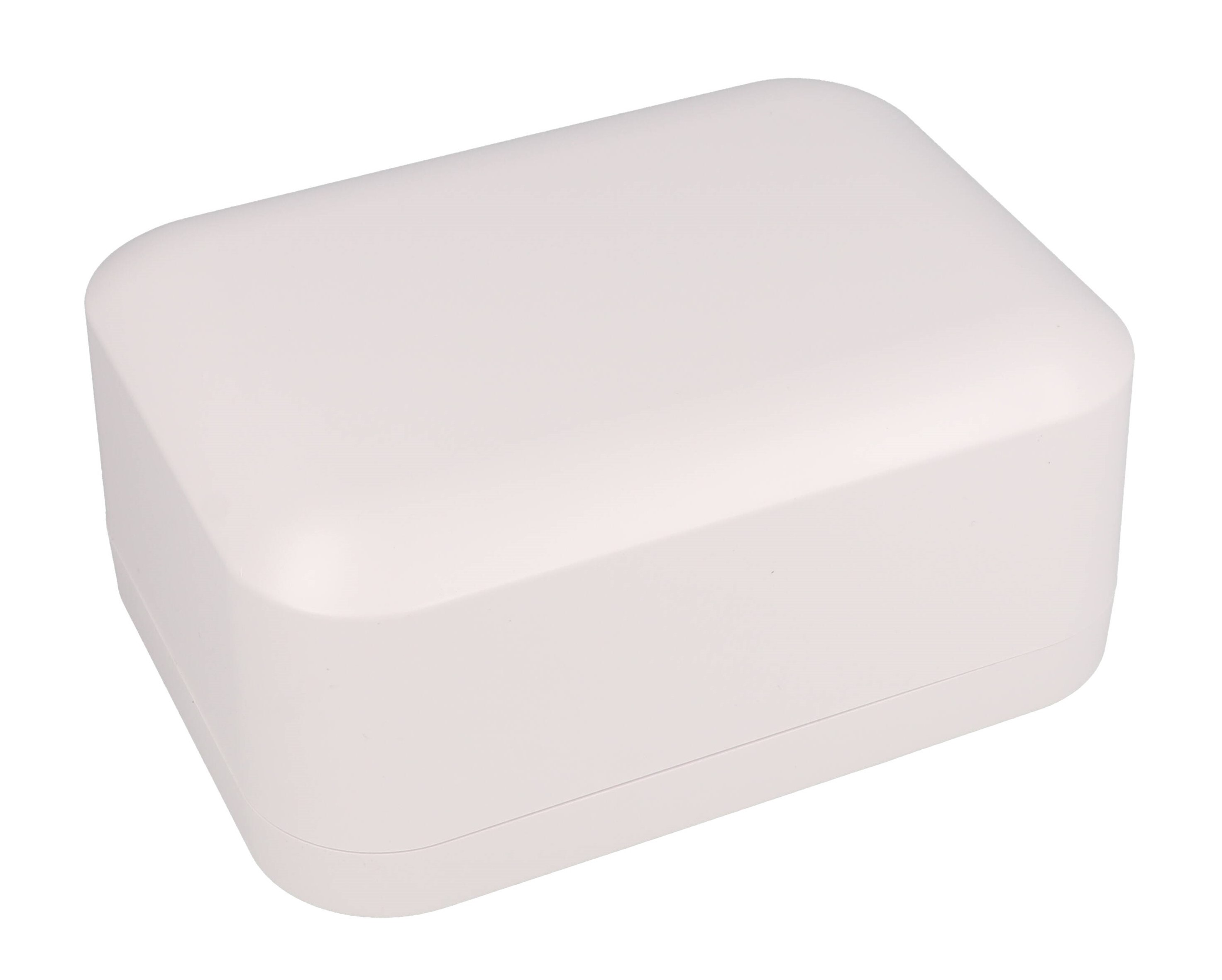

1556EAWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$7.54In stock
Buy now
1556EBK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$6.70In stock
Buy now

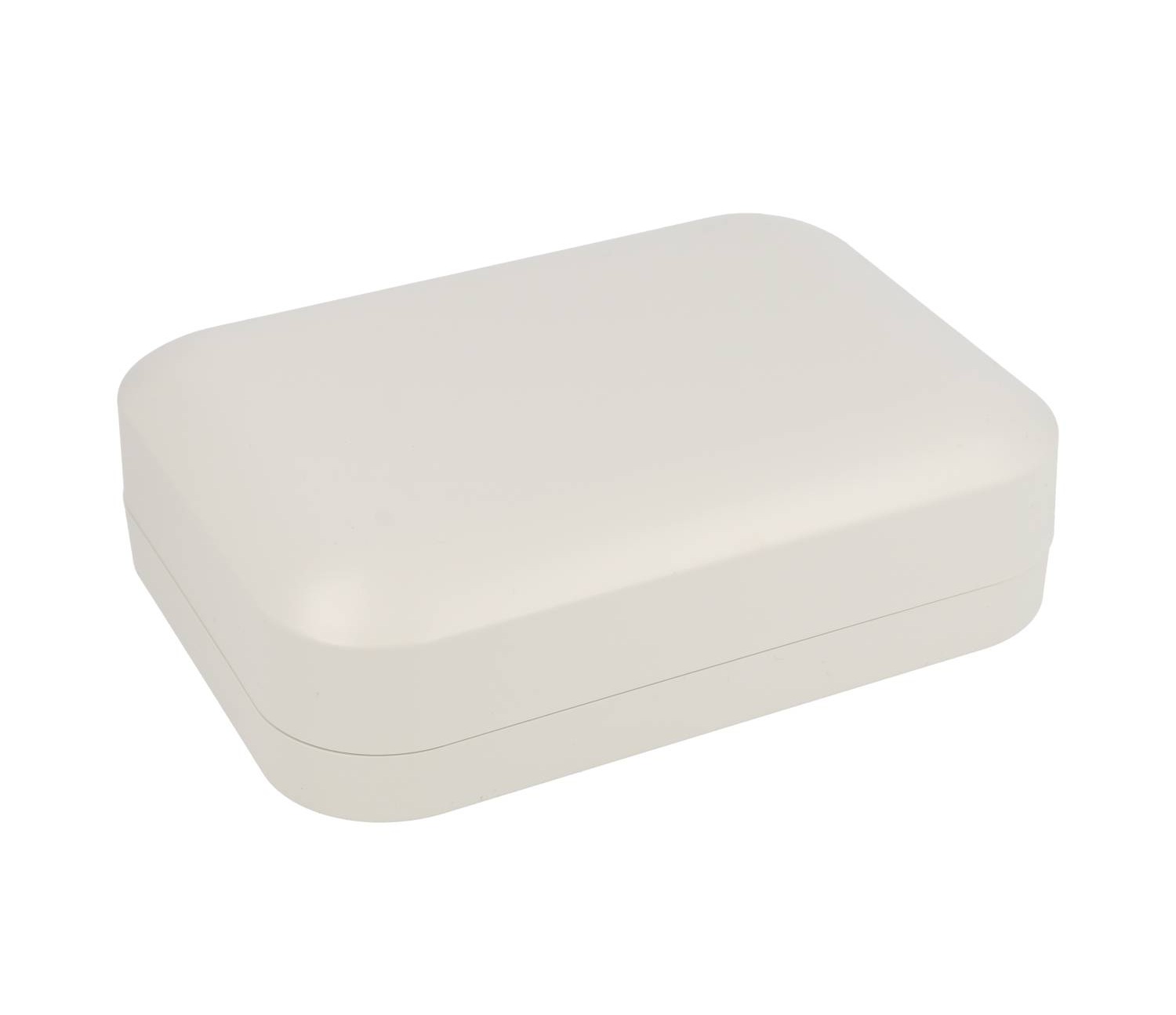

1556EGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$6.70In stock
Buy now
1556EPL

1556E Inner Panel

  • Color Natural Aluminum
$3.03In stock
Buy now

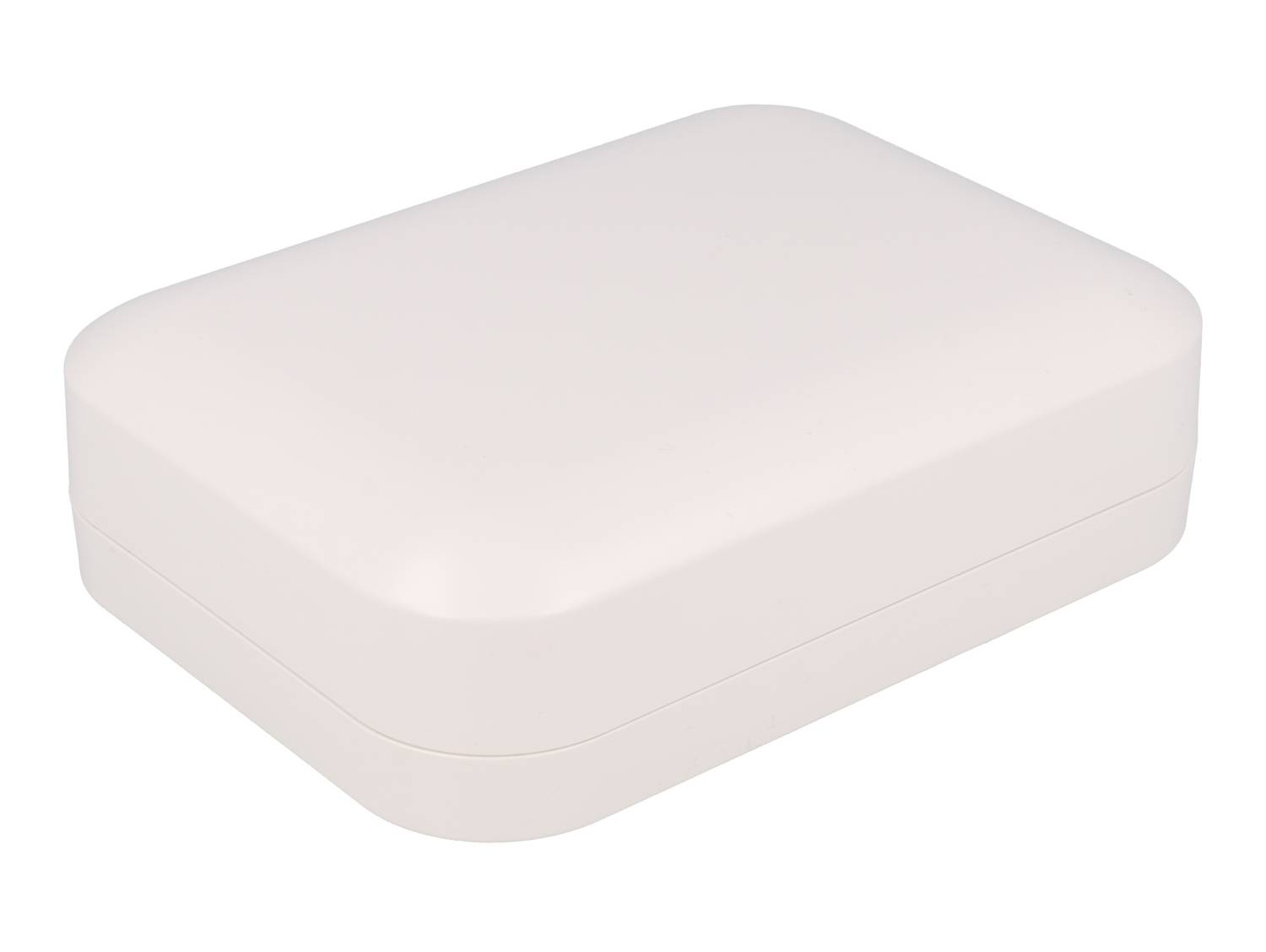

1556EWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$6.70In stock
Buy now
1556FABK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$10.15In stock
Buy now
1556FAGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$10.15In stock
Buy now

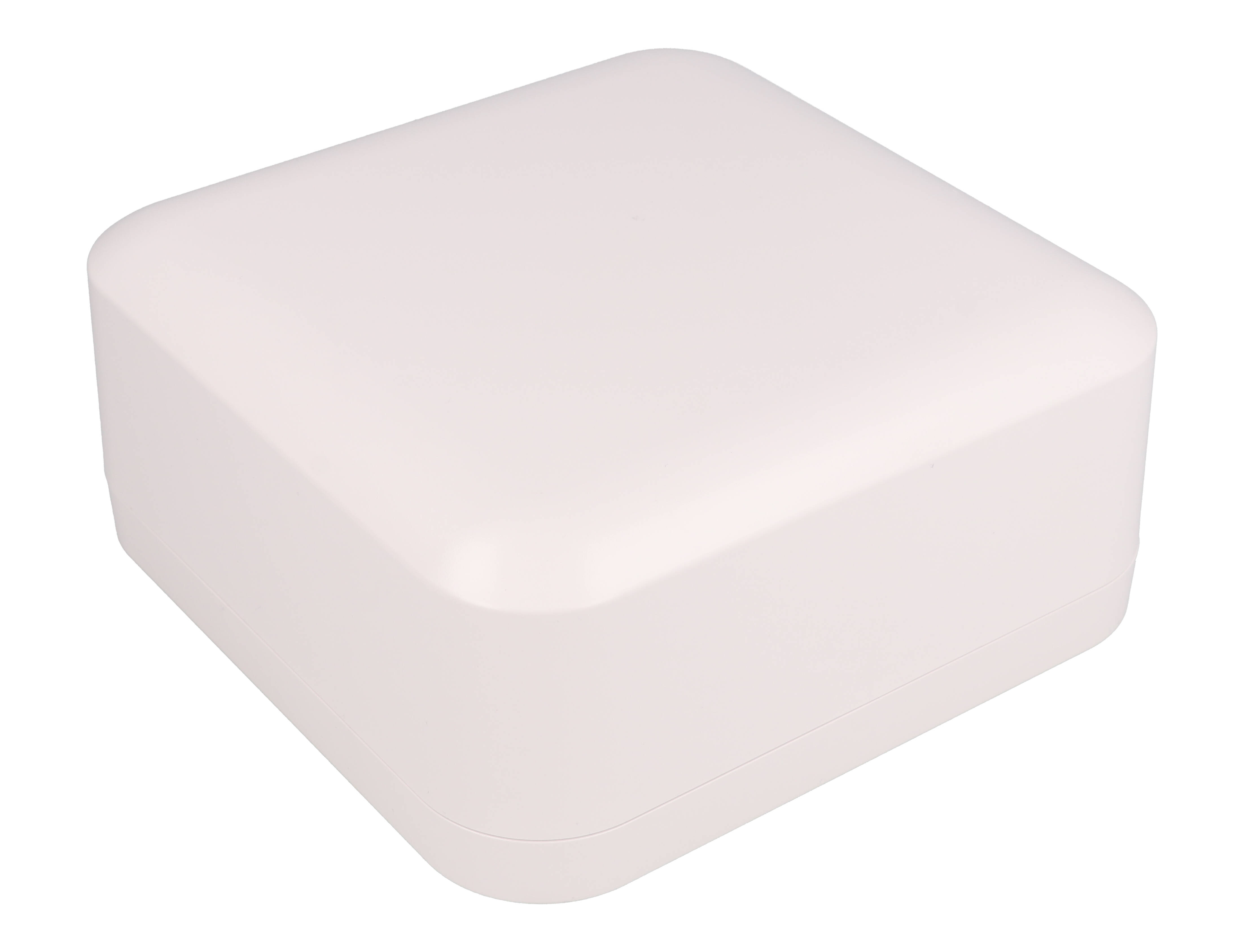

1556FAWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$10.15In stock
Buy now
1556FBK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$9.21In stock
Buy now

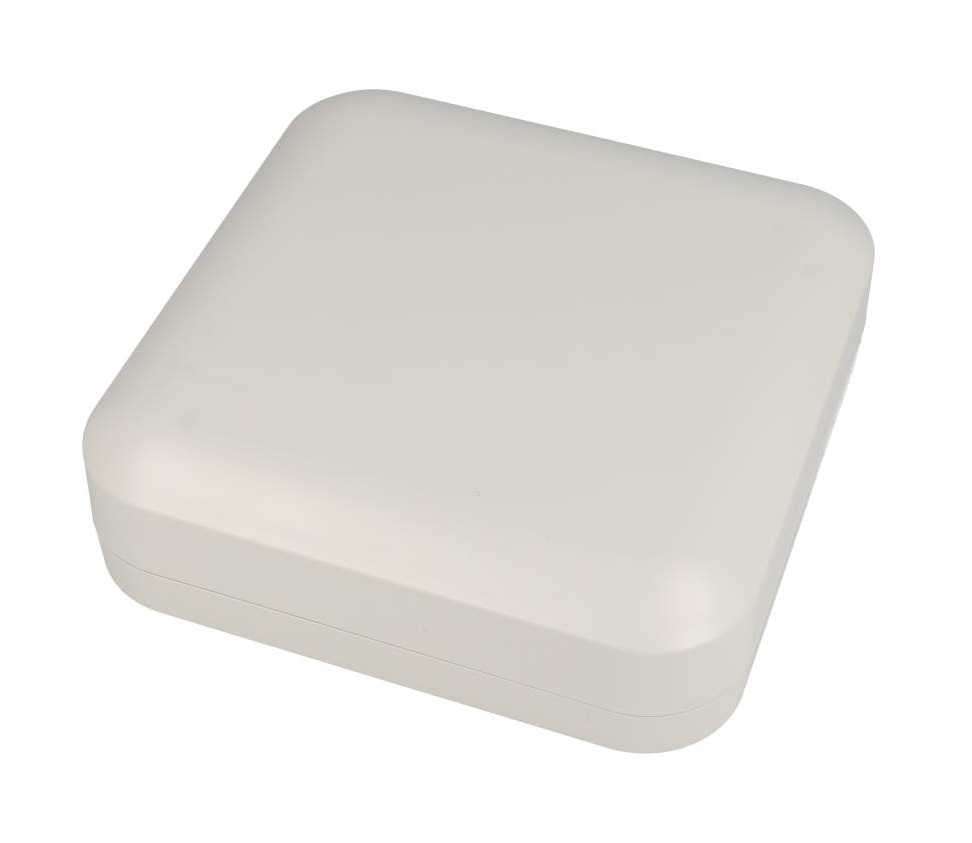

1556FGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$9.21In stock
Buy now

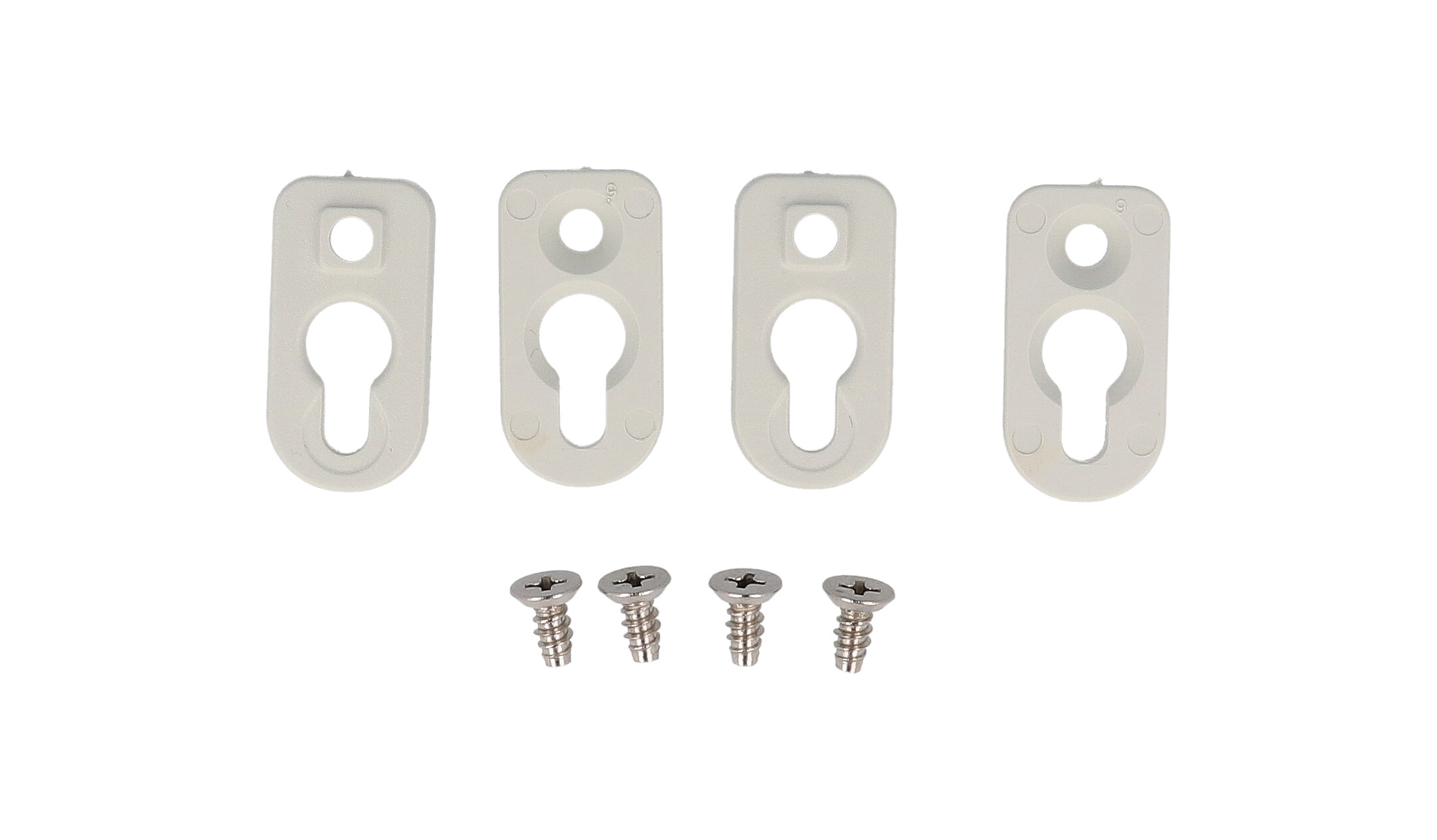

1556FOOTGY-4

1556 Foot Kit Frabs Gy- 4 Pk

  • Color Light Gray
$2.38In stock
Buy now
1556FPL

1556F Inner Panel

  • Color Natural Aluminum
$3.40In stock
Buy now
1556FWH

Frabs Wall Mount/ IOT Enclosure

  • Color white
$9.21In stock
Buy now

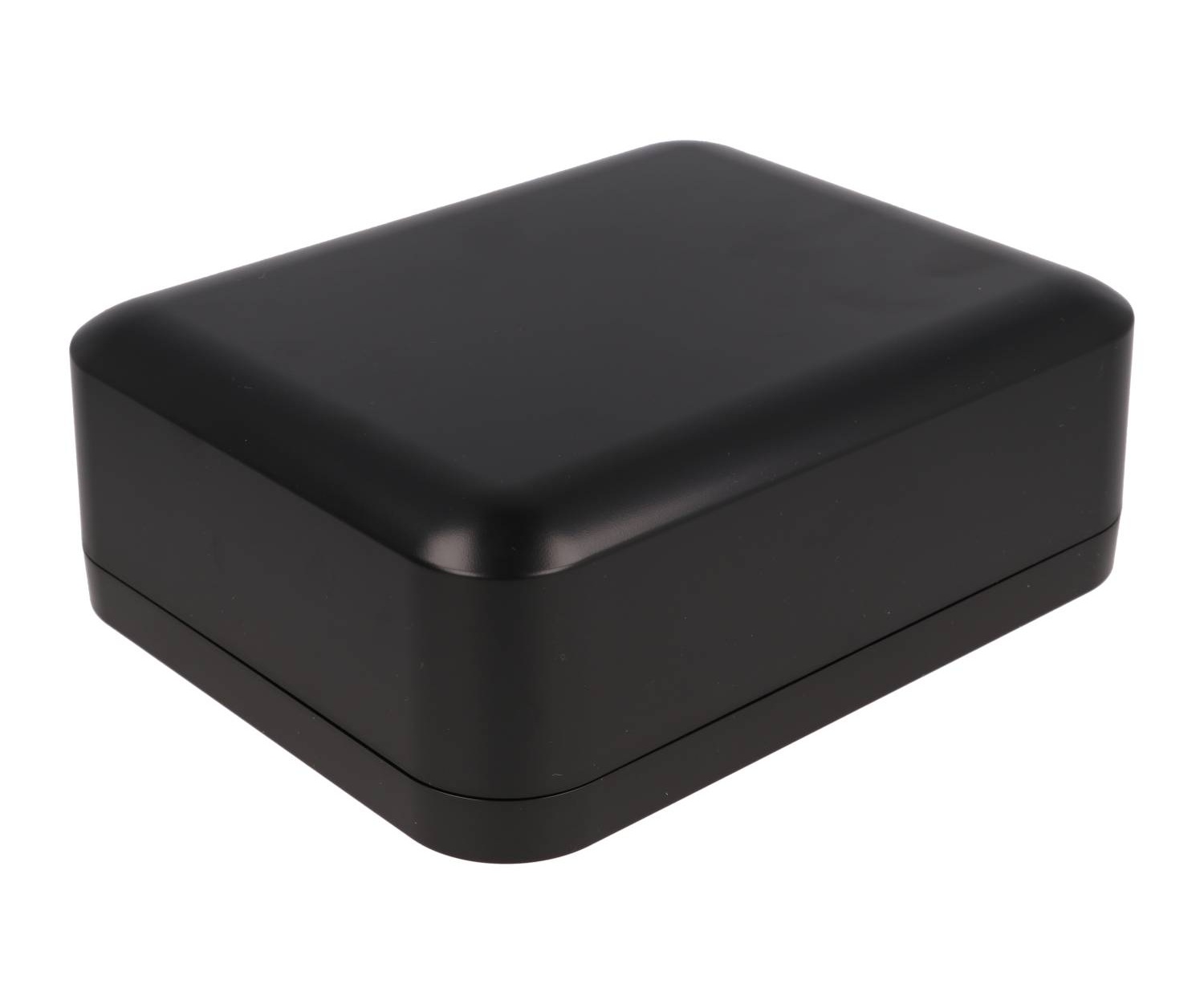

1556GABK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$11.18In stock
Buy now

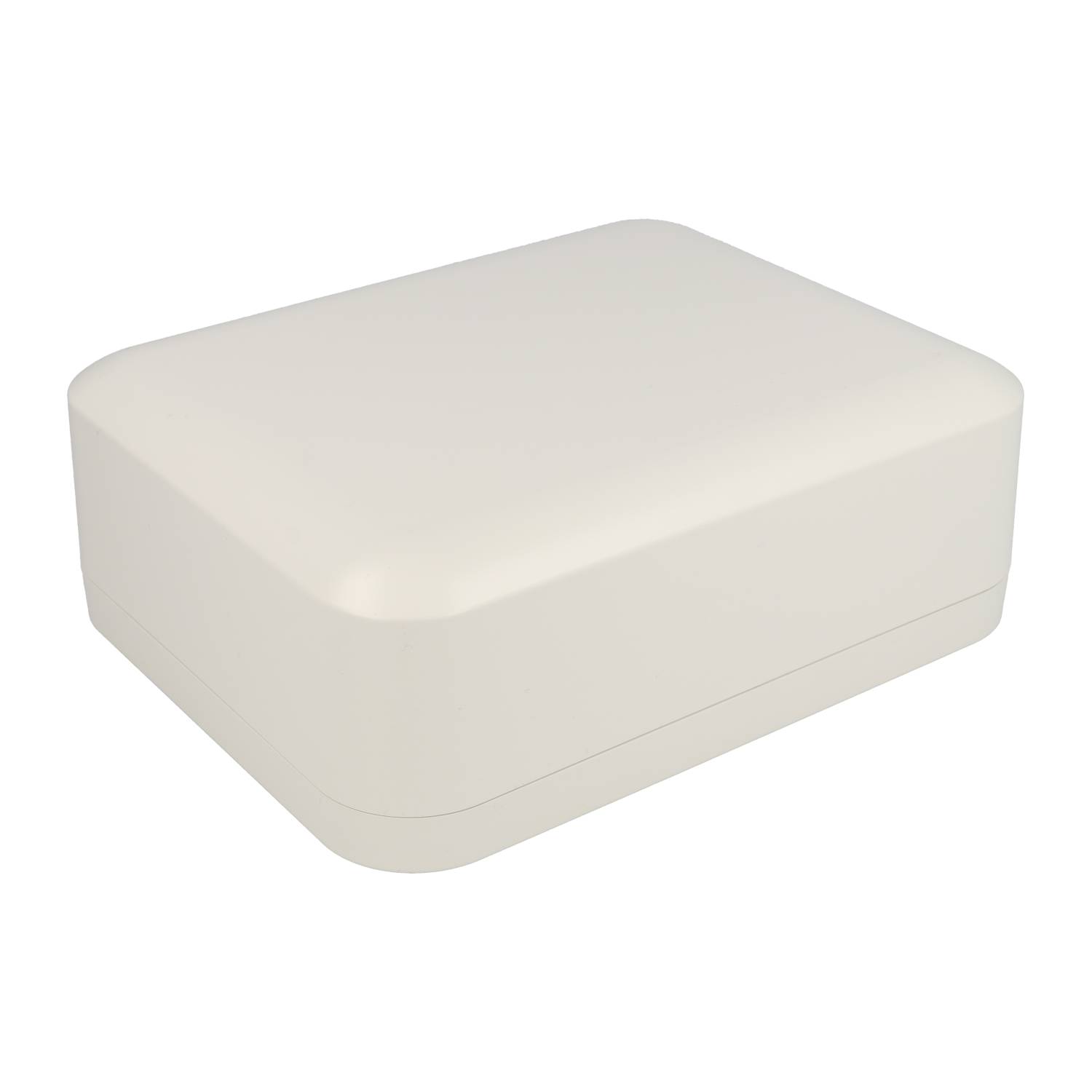

1556GAGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$11.18In stock
Buy now

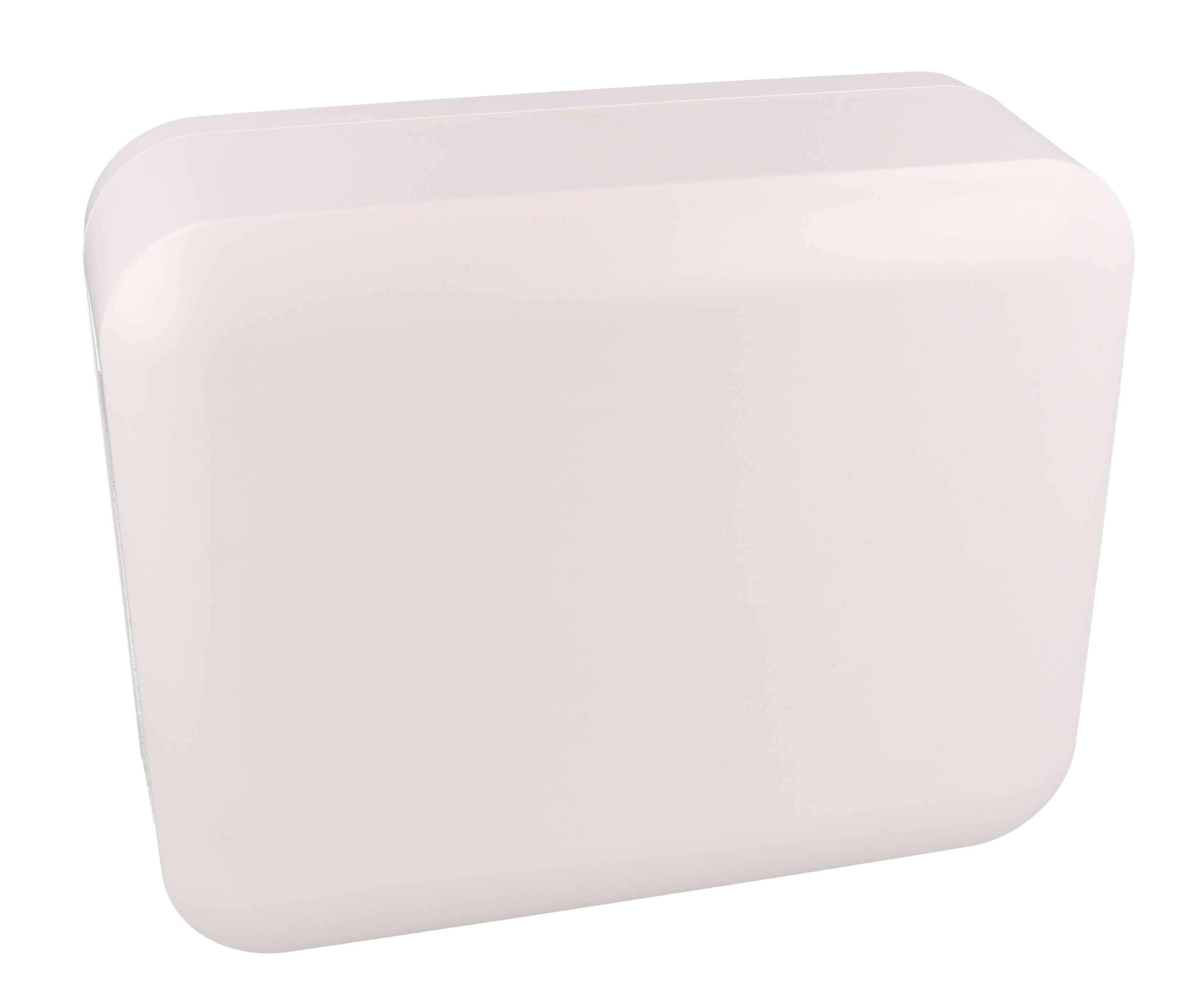

1556GAWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$11.18In stock
Buy now

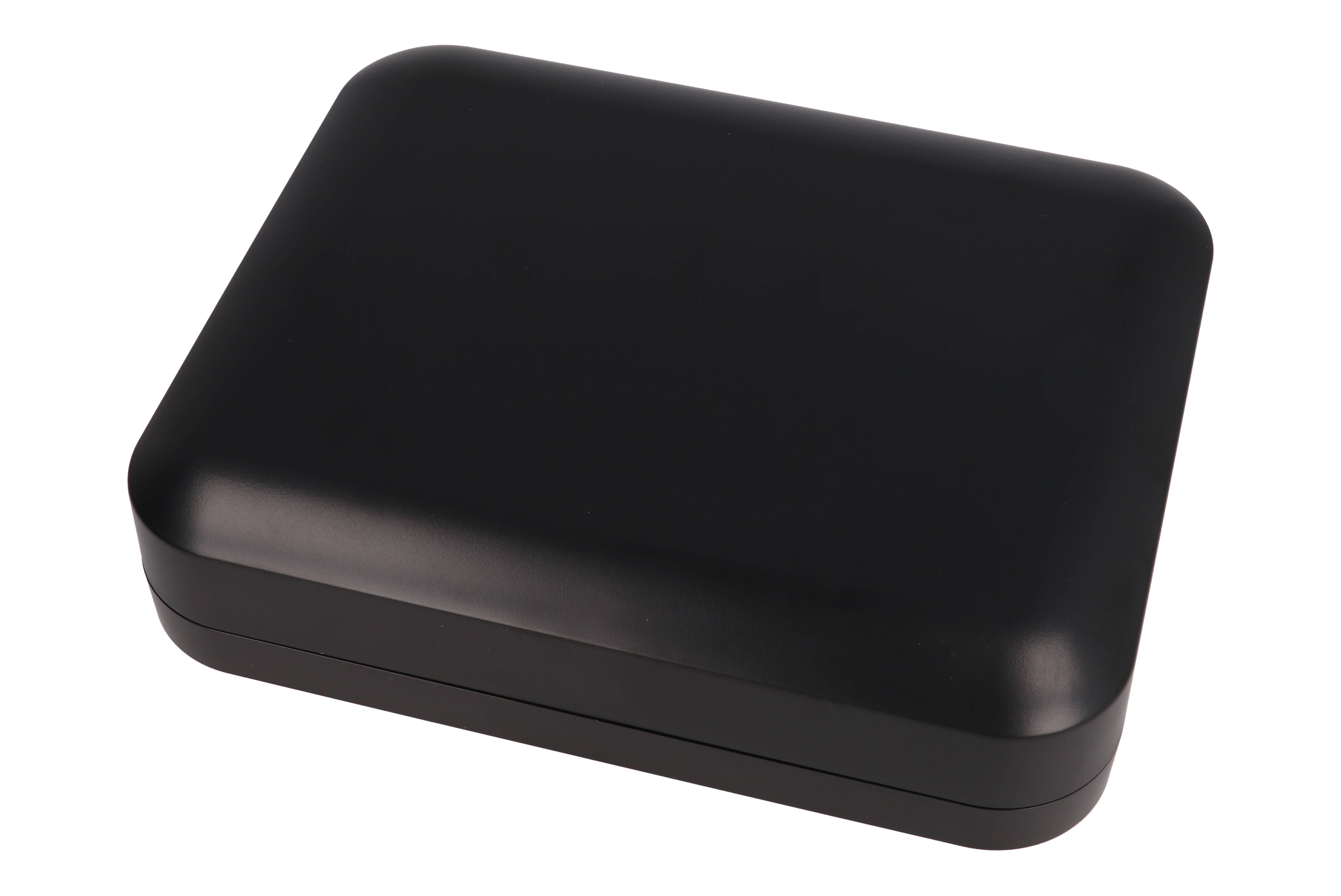

1556GBK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$10.14In stock
Buy now

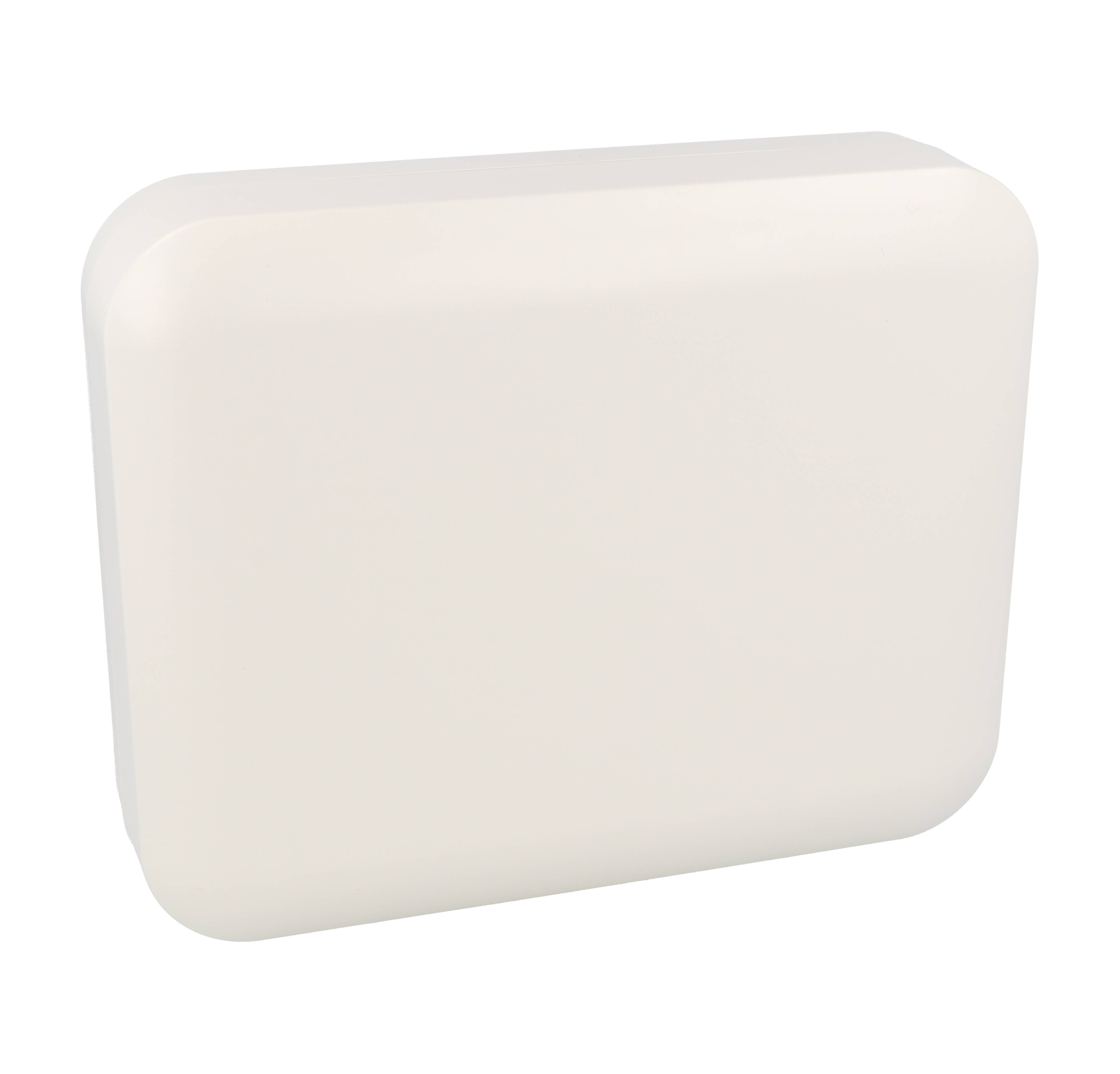

1556GGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$10.14In stock
Buy now
1556GPL

1556G Inner Panel

  • Color Natural Aluminum
$3.83In stock
Buy now

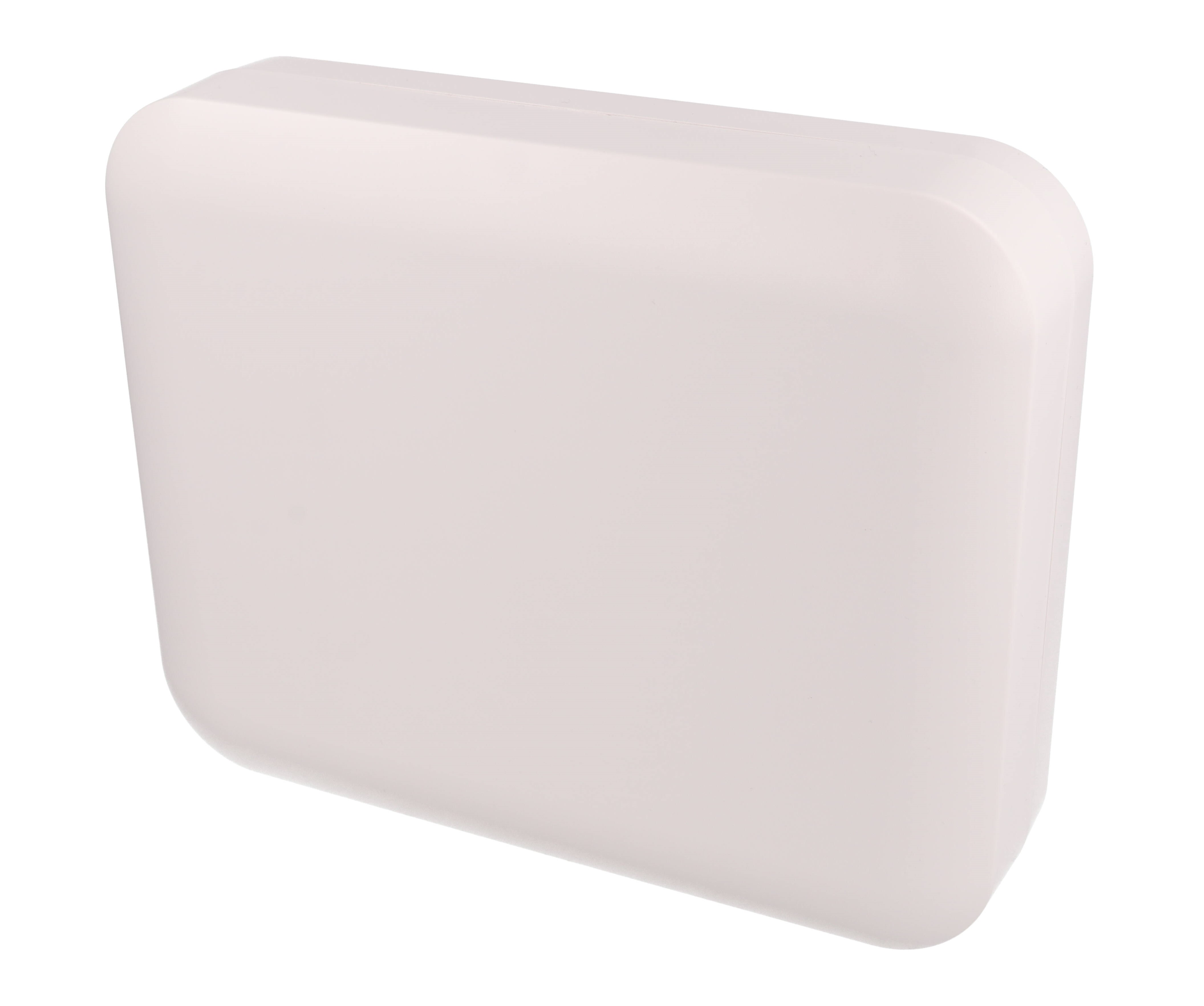

1556GWH

Frabs Wall Mount/ IOT Enclosure

  • Color white
$10.14In stock
Buy now

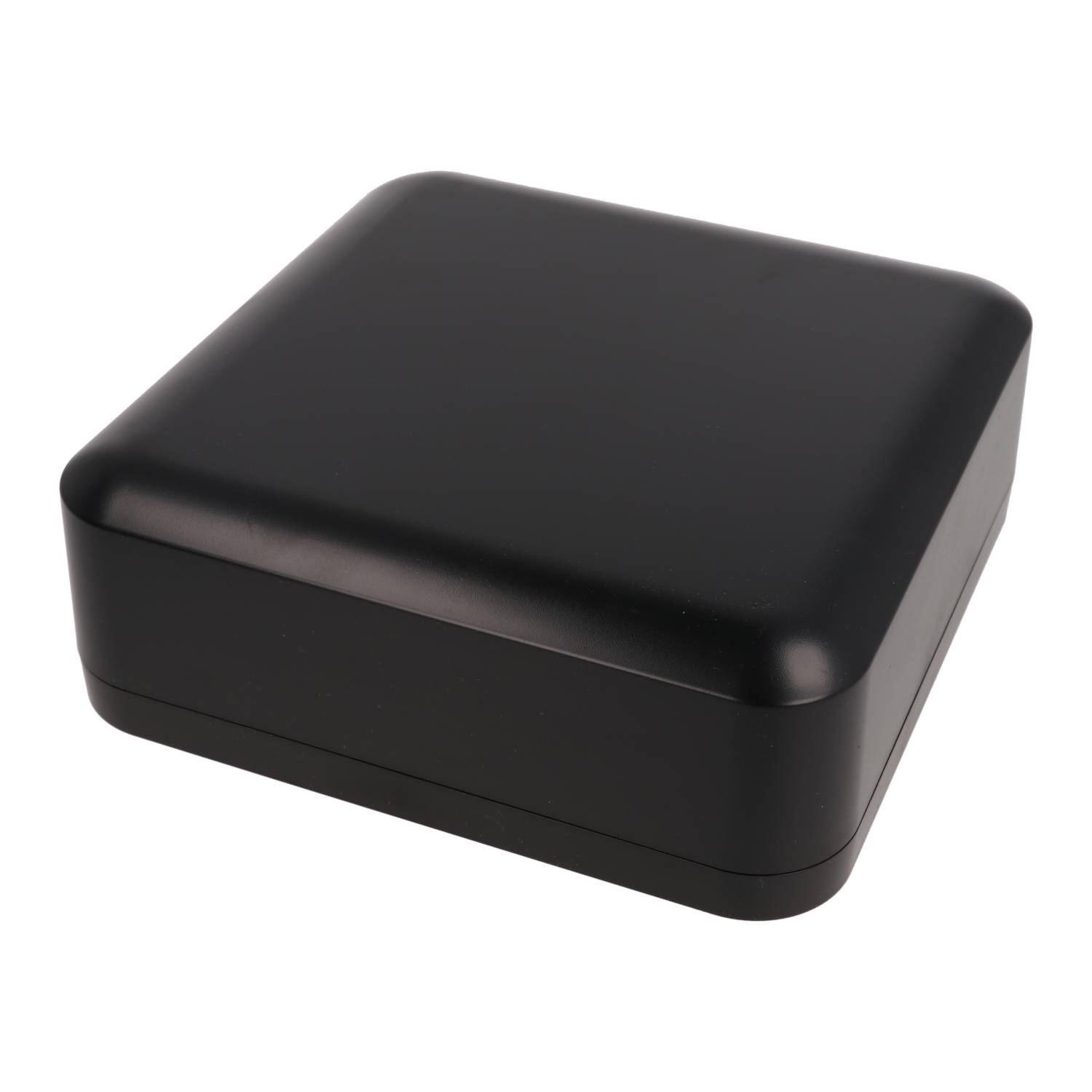

1556HABK

Frabs Wall Mount/ IOT Enclosure

  • Color Black
$12.42In stock
Buy now

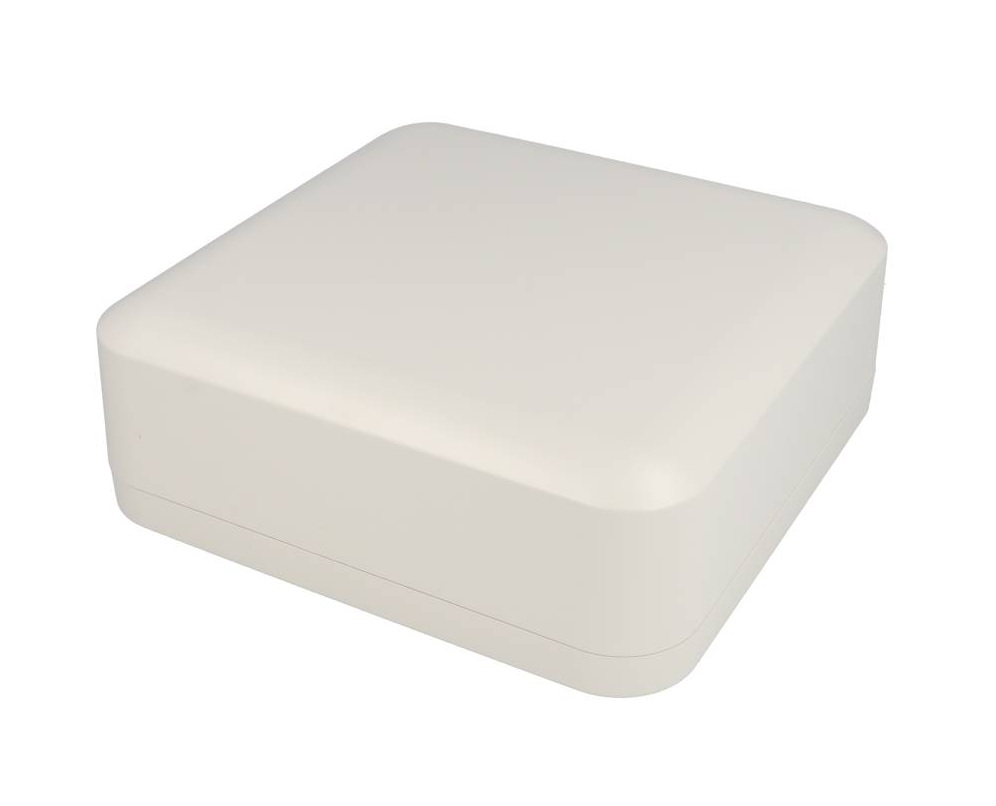

1556HAGY

Frabs Wall Mount/ IOT Enclosure

  • Color Light Gray
$12.42In stock
Buy now

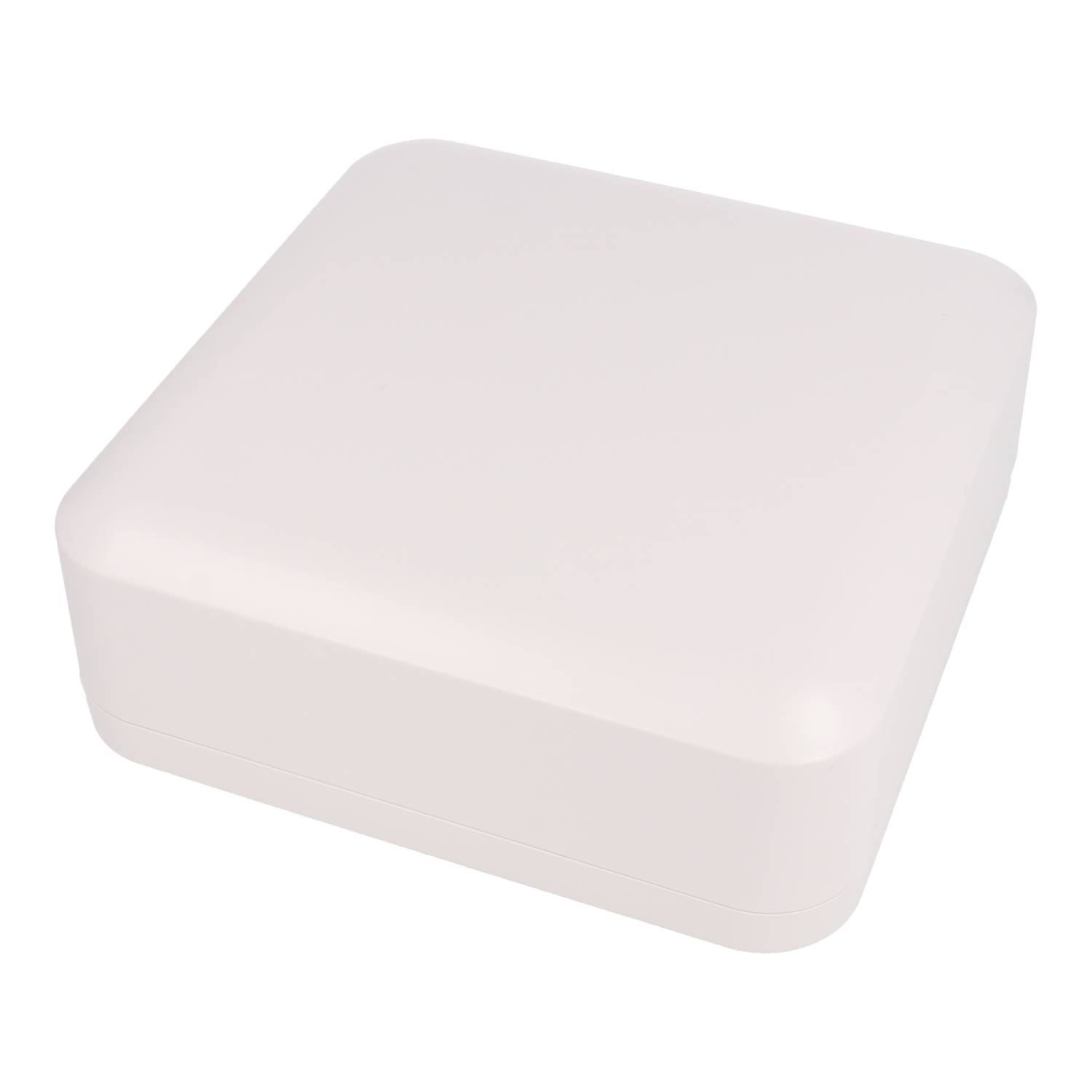

1556HAWH

Frabs Wall Mount/ IOT Enclosure

  • Color White
$12.42Backorder
Buy now
Dimension tables (inches / mm)

Units shown: mm . Switch units to: inch

Black · ABS (Part No.)Light Gray · ABS (Part No.)White · ABS (Part No.)LengthWidthTotal HeightAluminum · Inner Panel (Part No.)PriceOrder
1556BBK1556BGY1556BWH3.153.151.771556BPL$4.66In stock1556BBKBuy now
1556BABK1556BAGY1556BAWH3.153.152.361556BPL$4.96In stock1556BABKBuy now
1556CBK1556CGY1556CWH4.723.151.771556CPL$5.30In stock1556CBKBuy now
1556CABK1556CAGY1556CAWH4.723.152.361556CPL$5.67In stock1556CABKBuy now
1556DBK1556DGY1556DWH4.724.721.771556DPL$5.98In stock1556DBKBuy now
1556DABK1556DAGY1556DAWH4.724.722.761556DPL$6.68In stock1556DABKBuy now
1556EBK1556EGY1556EWH6.304.721.771556EPL$6.70In stock1556EBKBuy now
1556EABK1556EAGY1556EAWH6.304.722.761556EPL$7.54In stock1556EABKBuy now
1556FBK1556FGY1556FWH6.306.301.771556FPL$9.21In stock1556FBKBuy now
1556FABK1556FAGY1556FAWH6.306.302.761556FPL$10.15In stock1556FABKBuy now
1556GBK1556GGY1556GWH7.876.301.771556GPL$10.14In stock1556GBKBuy now
1556GABK1556GAGY1556GAWH7.876.302.761556GPL$11.18In stock1556GABKBuy now
1556HBK1556HGY1556HWH7.877.871.771556HPL$11.26In stock1556HBKBuy now
1556HABK1556HAGY1556HAWH7.877.872.761556HPL$12.42In stock1556HABKBuy now

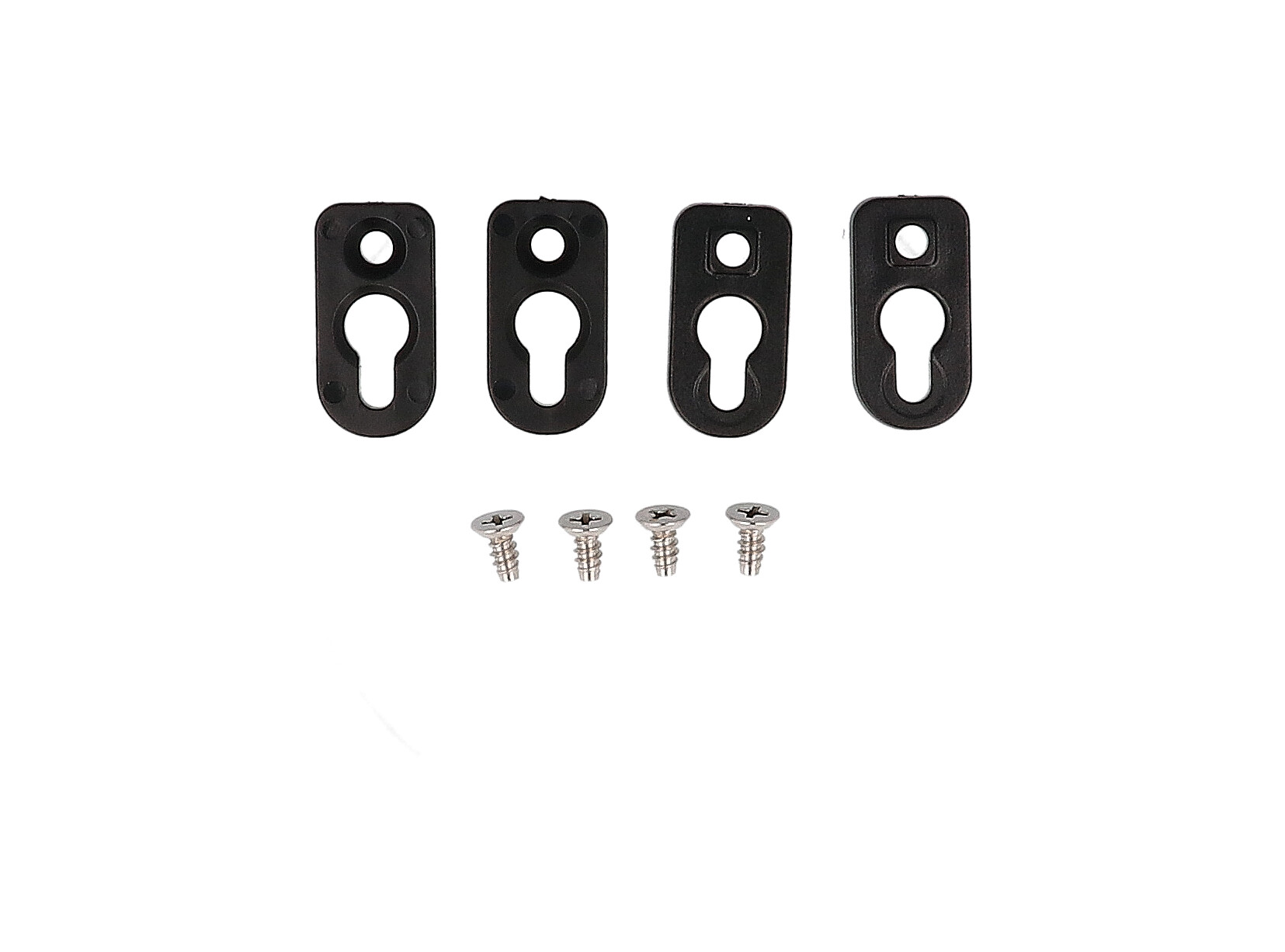

Mounting Feet (Hardware Included)

Part Number · (Pack of 4)ColorPriceOrder
1556FOOTBK-4Black$2.38In stockBuy now
1556FOOTGY-4Light Gray$2.38In stockBuy now

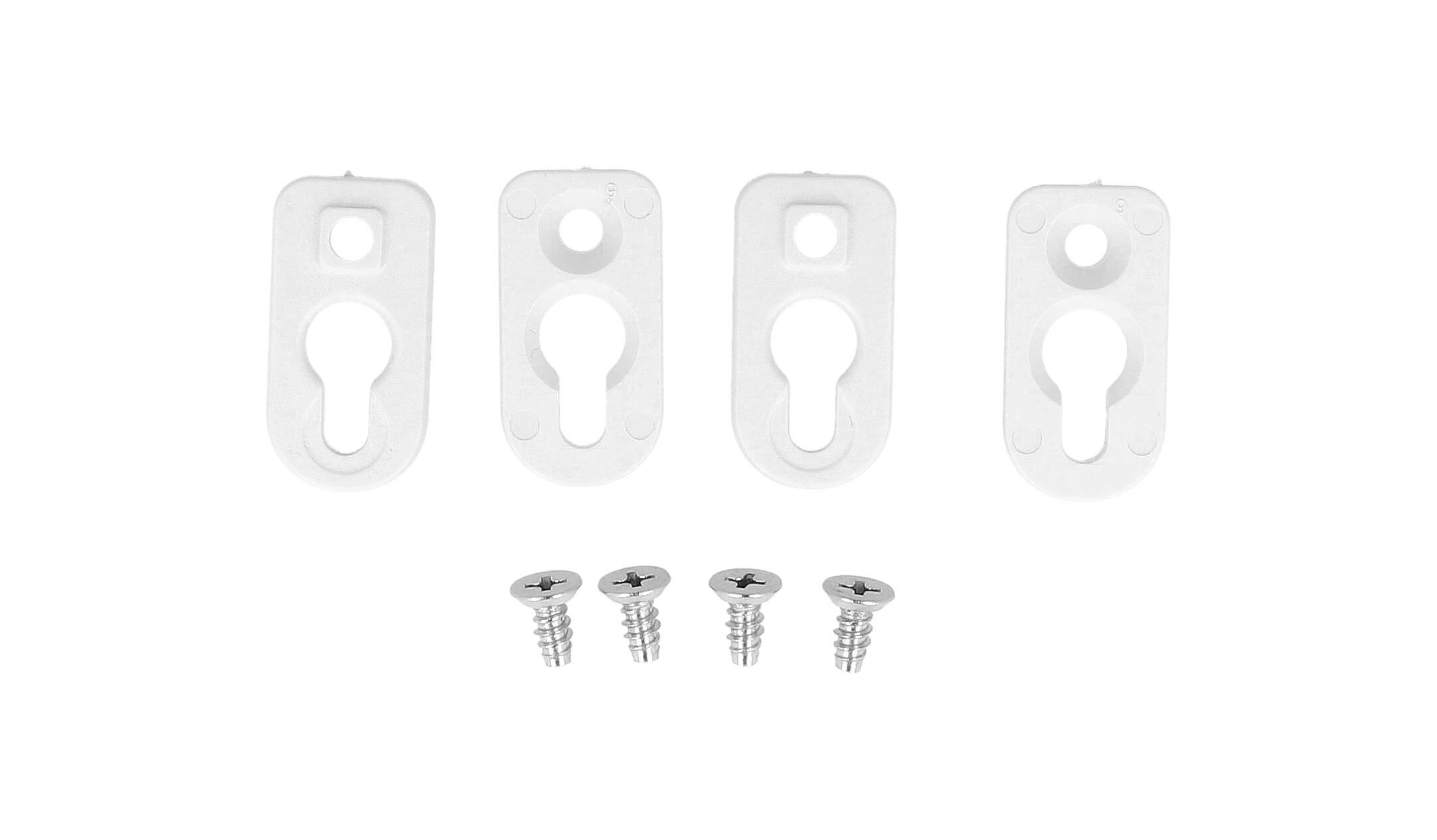

1556FOOTWH-4White$2.38In stockBuy now

Replacement Hardware

Part Number · (Pack of 24)TypePriceOrder
SC527-50Cover Screw$5.34In stockBuy now
SC526-50PC Board Screw$3.69In stockBuy now
SC556-50Mounting Foot Screw$4.77In stockBuy now

Replacement Rubber Feet (24-pack)

col1col2PriceOrder
Part No.1421T6CL$5.69In stockBuy now

Pole Mount Bracket

1556 EnclosurePole Mount Kit (7" Max.) (Part No.)Pole Mount Kit (15" Max.) (Part No.)Screw typeReplacement Screw Pack (Part No.)PriceOrder
1556BPMB5057WKIT1PMB5057WKIT2#8 x 1/2"SCPMB4-20$17.85In stockPMB5057WKIT1Buy now
1556BAPMB5057WKIT1PMB5057WKIT2#8 x 1/2"SCPMB4-20$17.85In stockPMB5057WKIT1Buy now
1556CPMB5057KIT1PMB5057KIT2#8 x 1/2"SCPMB4-20$17.85In stockPMB5057KIT1Buy now
1556CAPMB5057KIT1PMB5057KIT2#8 x 1/2"SCPMB4-20$17.85In stockPMB5057KIT1Buy now
1556DPMB5057KIT3PMB5057KIT4#8 x 3/8"SCPMB5-20$17.85In stockPMB5057KIT3Buy now
1556DAPMB5057KIT3PMB5057KIT4#8 x 3/8"SCPMB5-20$17.85In stockPMB5057KIT3Buy now
1556EPMB6687KIT3PMB6687KIT4#8 x 3/8"SCPMB5-20$20.80BackorderPMB6687KIT3Buy now
1556EAPMB6687KIT3PMB6687KIT4#8 x 3/8"SCPMB5-20$20.80BackorderPMB6687KIT3Buy now
1556FPMB6687KIT3PMB6687KIT4#8 x 3/8"SCPMB5-20$20.80BackorderPMB6687KIT3Buy now
1556FAPMB6687KIT3PMB6687KIT4#8 x 3/8"SCPMB5-20$20.80BackorderPMB6687KIT3Buy now
1557GPMB110127KIT3PMB110127KIT4#8 x 3/8"SCPMB5-20$22.85In stockPMB110127KIT3Buy now
1557GAPMB110127KIT3PMB110127KIT4#8 x 3/8"SCPMB5-20$22.85In stockPMB110127KIT3Buy now
1556HPMB110127KIT3PMB110127KIT4#8 x 3/8"SCPMB5-20$22.85In stockPMB110127KIT3Buy now
1556HAPMB110127KIT3PMB110127KIT4#8 x 3/8"SCPMB5-20$22.85In stockPMB110127KIT3Buy now

Key Features:

  • ■Ideally suited for mounting printed circuit boards, IoT equipment, and other small electronics.
  • ■Can be used in a tabletop configuration using rubber feet (included) or two different wall-mount configurations using wall mount foot kit (sold separately).
  • ■Rounded corners and face provide a more modern look.
  • ■Lap joint construction provides protection against access of dust and splashing water.
  • ■Available in black, gray, or white flame retardant ABS plastic with light satin texture.
  • ■Molded from flame retardant material which carries a flammability rating of UL94 V-0. For indoor use.
  • ■Designed to meet IP54.
  • ■Lid hardware and 4x rubber feet included with enclosure. Lid is secured with high strength #6 x 1/2" self-tapping Plastite screws.
  • ■Aluminum inner panels are available as accessories. Sold separately. See table below.
  • ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

Documents

Specification SheetPlastic Chemical Resistance Statement 10-2023
