Hammond 1556EAWH 160x120x70mm White IP54 Abs Wall/Desktop Enclosure

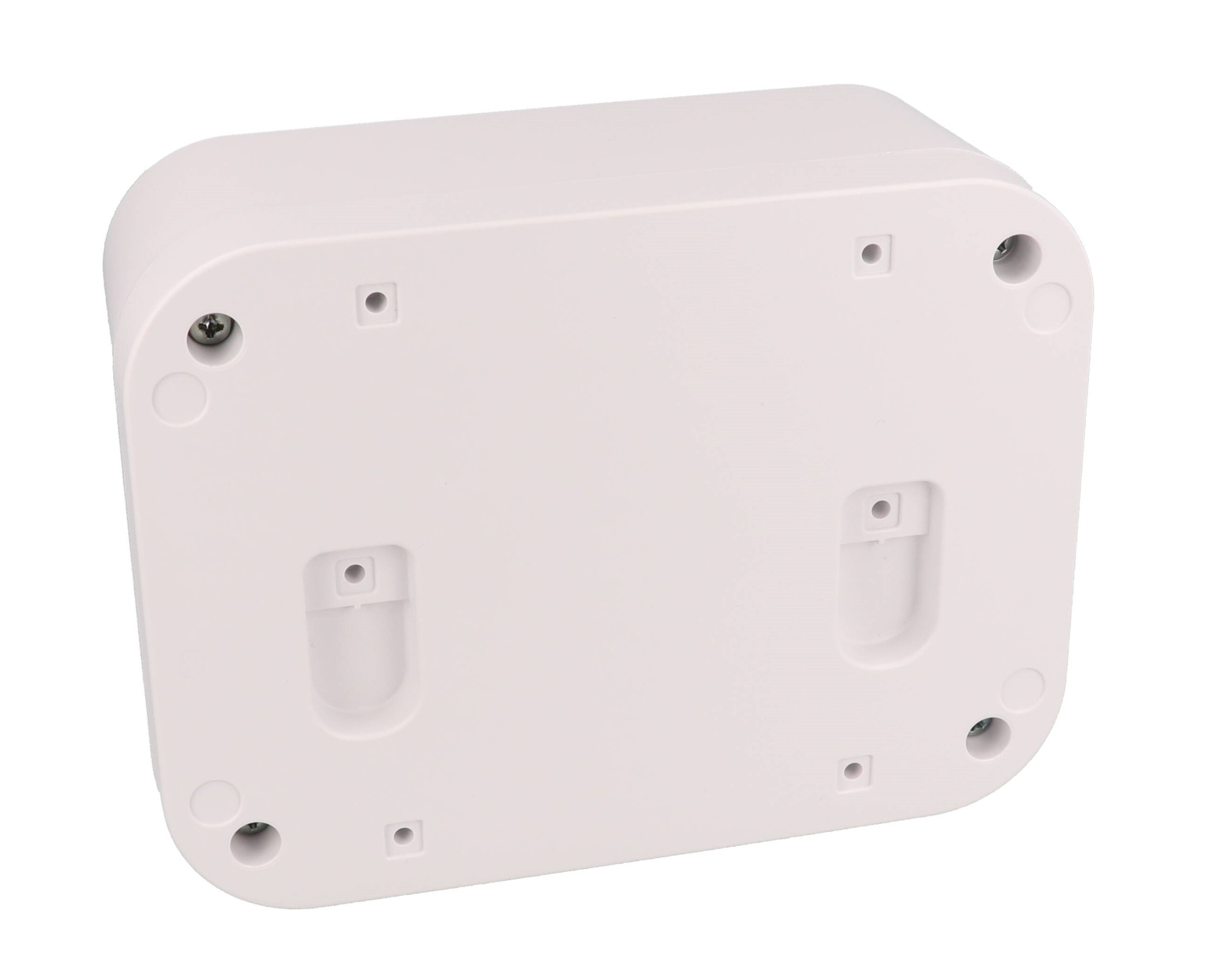

The 1556EAWH is a white flame-retardant ABS enclosure from the Hammond 1556 Series of modern general purpose enclosures, built in the 70 mm high version of the 160 x 120 mm 1556 Series footprint. It is designed for mounting printed circuit boards, IoT equipment and other small electronics, and can sit on a desk or tabletop or be mounted on a wall, making it a practical choice for OEM engineers, integrators and electronics designers housing a small indoor device.

Outside it is 160 x 120 x 70 mm; inside, the drawing gives 153.21 mm length, 113.21 mm width and 64.00 mm height. It takes a PC board up to 145 x 102 mm, and the added height over the 45 mm 1556E suits assemblies with taller components, cabling or stacked boards.

The box and lid are molded from flame-retardant ABS (FRABS) rated UL94 V-0, finished in white with a light satin texture and shaped with rounded corners and face. Lap joint construction between lid and base protects against dust and splashing water, and the enclosure is designed to meet IP54. It is intended for indoor use; the series is not designed for outdoor use. Multiple mounting locations inside the lid and base accept #6 self-tapping PCB screws or an optional aluminum inner panel (1556EPL, sold separately).

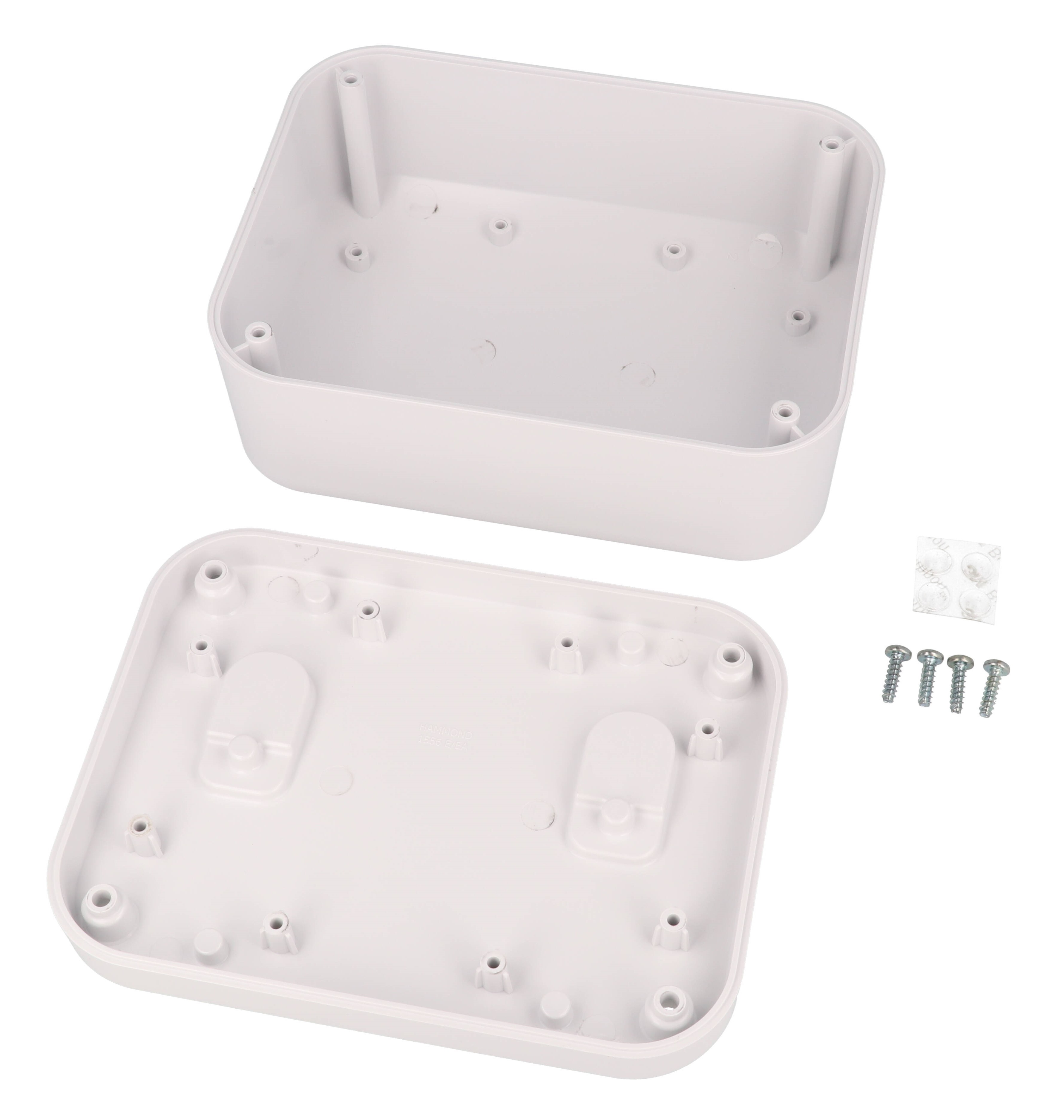

Each 1556EAWH ships with the box, lid, 4 cover screws and 4 rubber feet for tabletop use. The lid is secured with high strength #6 x 1/2" self-tapping Plastite screws; recommended cover screw torque is 71-85 ozf-in (50-60 cN-m) and PCB screw torque 42-56 ozf-in (30-40 cN-m). For wall installation, the white wall mount foot kit 1556FOOTWH-4 (pack of 4, sold separately) supports either a heavy duty wall flange mount or a flush keyhole-style wall mount, and the feet accept #8 self-tapping screws. Pole mount kits PMB6687KIT3 (7" max.) and PMB6687KIT4 (15" max.) are listed for this size. The part is RoHS and REACH compliant.
