Hammond 1556BWH 80x80x45mm White Low-Profile IoT Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- White FRABS enclosure, 80 x 80 x 45 mm
- UL94 V-0 material; designed to meet IP54
- Holds PC boards up to 71 x 71 mm
- 40.00 mm inside height
- Lid screws and 4 rubber feet included
- 1556FOOTWH-4 white wall mount feet sold separately
- RoHS and REACH compliant

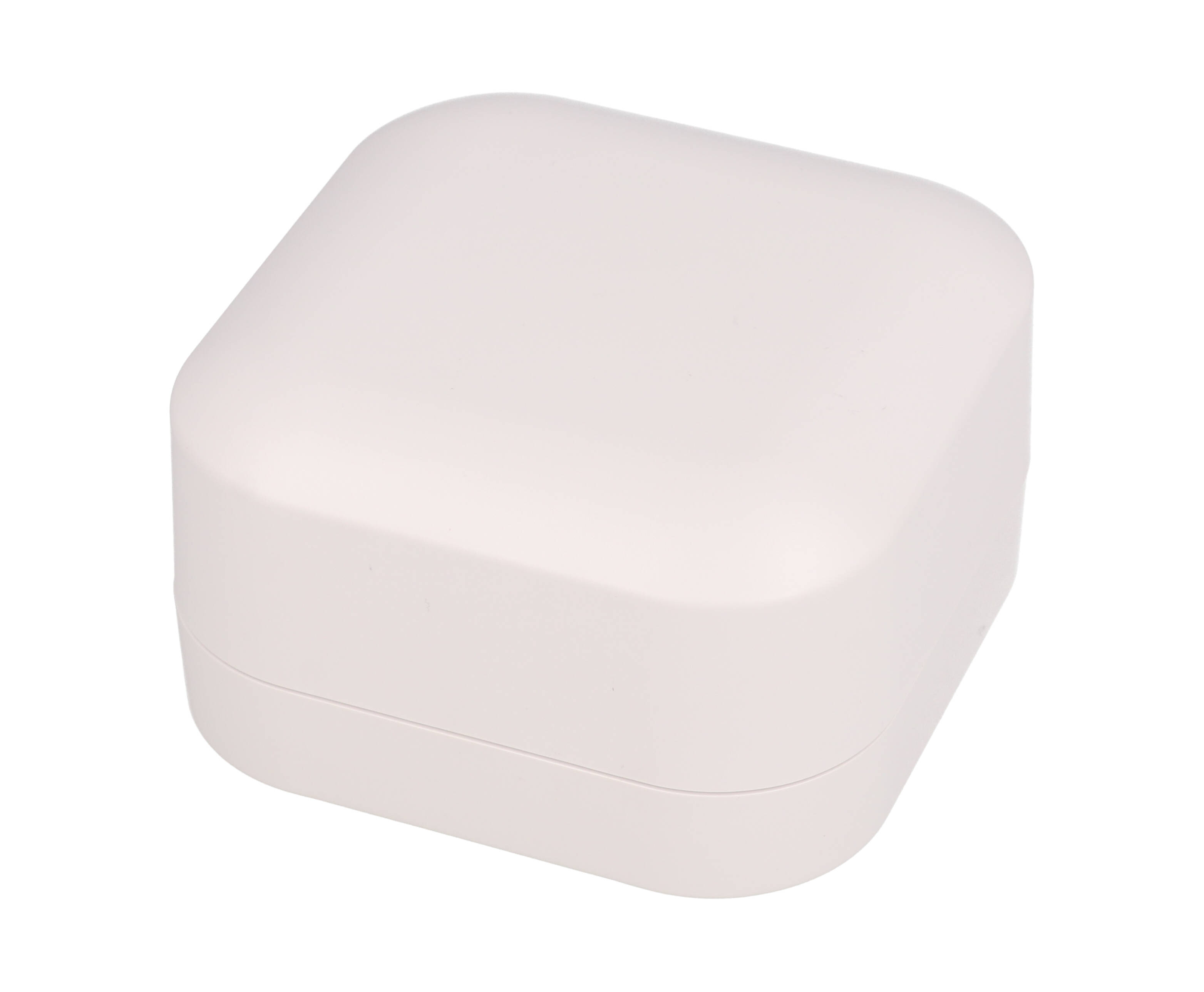

The 1556BWH is a white, low-profile 1556 series enclosure measuring 3.15 in x 3.15 in x 1.77 in (80 mm x 80 mm x 45 mm). It is designed to hold printed circuit boards, IoT equipment and other small electronics indoors, on a desk or on a wall.
It is molded from white flame retardant ABS carrying a UL94 V-0 rating, finished in a light satin texture with rounded corners and face. Lap joint construction keeps out dust and splashing water; the enclosure is designed to meet IP54 and is not designed for outdoor use.
Inside length is 74.40 mm [2.93 in], inside width 74.18 mm [2.92 in] and inside height 40.00 mm [1.57 in]. It accepts PC boards up to 71 mm x 71 mm on lid and base bosses that take #6 self-tapping screws, or the 1556BPL aluminum inner panel sold separately.

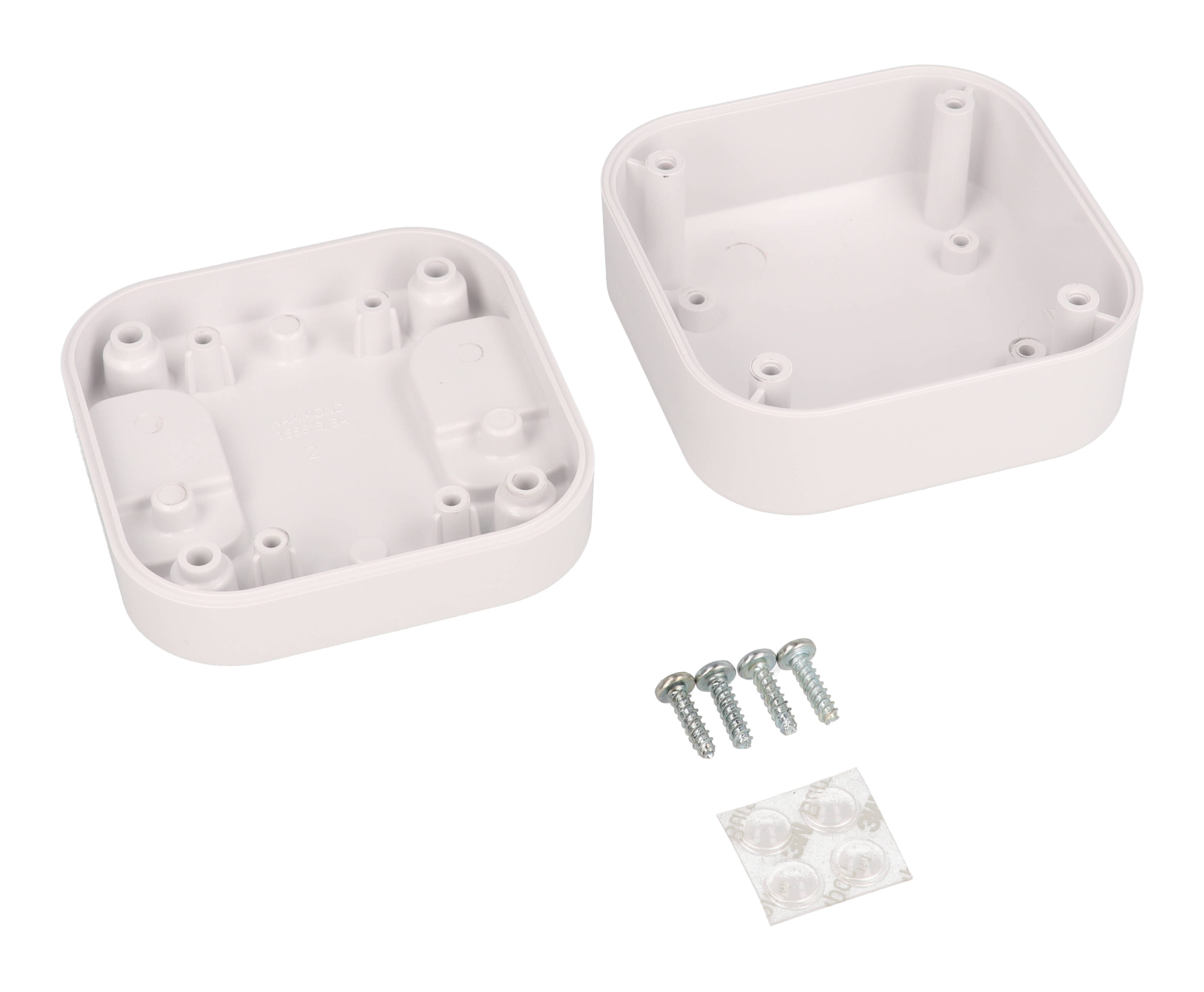

The enclosure comes with its lid, four #6 x 1/2" Plastite cover screws and four rubber feet. The white 1556FOOTWH-4 kit adds heavy duty flange or flush keyhole wall mounting, and PMB5057WKIT1 (7" max.) or PMB5057WKIT2 (15" max.) provide pole mounting.
Ideal For
- Consumer-facing IoT devices
- Indoor wall-mounted sensors
- Desktop electronics
- Compact PCB housings
Mounting
| Rubber Feet | 4 included; replacement clear rubber feet 1421T6CL (Pkg 24) |

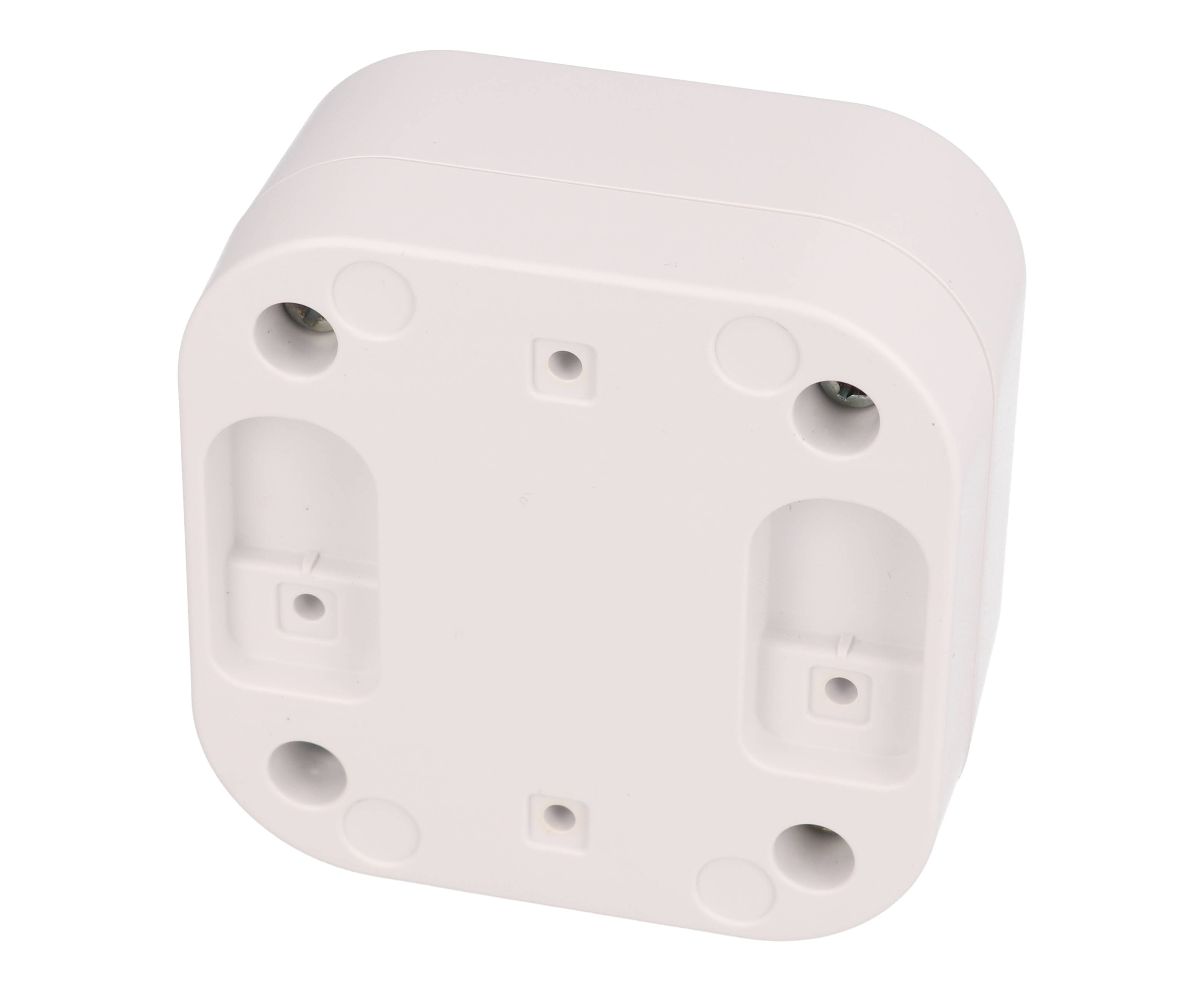

| Mounting Options | Desktop/tabletop on included rubber feet; heavy duty wall flange mount or flush wall mount (keyhole slots) using wall mount foot kit, sold separately |
| Pole Mount Kit (7" Max.) | PMB5057WKIT1 |
| Pole Mount Kit (15" Max.) | PMB5057WKIT2 |
| Replacement Wall Mount Foot Screws | SC556-50 (Stainless Steel, #8 X 3/8" Self Tapping, Pkg 50) |
| Pole Mount Screw Type / Replacement Pack | #8 x 1/2" / SCPMB4-20 |
| Wall Mount Foot Kit (Pkg 4, Sold Separately) | 1556FOOTBK-4 (Black), 1556FOOTGY-4 (Light Gray), 1556FOOTWH-4 (White); #8 X 3/8" self tapping screws included |
Overview
| Color | White |
| Series | 1556 Series Modern General Purpose Enclosures (Dual Wall-Mount or Desktop) |
| CAD Models | Solid models available in .stp or .x_t |
| Description | FRABS DESKTOP/WALL MOUNT/IOT INDOOR ENCLOSURE |
| Short Description | FRABS WALL MOUNT/ IOT ENCL |
| Enclosure Size Code | 1556B |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Colour Variants In This Size | 1556BBK (Black), 1556BGY (Light Gray), 1556BWH (White) |
Dimensions
| Width | 3.15 in (80 mm) |
| Length | 3.15 in (80 mm) |
| Inside Width | 74.18 mm [2.92 in] |
| Total Height | 1.77 in (45 mm) |
| Inside Height | 40.00 mm [1.57 in] |
| Inside Length | 74.40 mm [2.93 in] |
| Wall Thickness | 2.50 mm [.10 in] |
| Size L X W X H (Part Page) | 3.15 in x 3.15 in x 1.77 in (80 mm x 80 mm x 45 mm) |
Identifiers
| UPC | 623980666983 |
| UNSPSC | 39121301 |
| Part Number | 1556BWH |
Internal Mounting
| PC Board Mounting | Multiple mounting locations inside the lid and base; accept #6 self-tapping screws |
| Max. P.C. Board Width | 71 mm |
| Max. P.C. Board Length | 71 mm |
| Replacement PC Board Screws | SC526-50 (Steel P.C. Board Screw, #6 X 1/4" Self Tapping, Pkg 50) |
| Recommended PCB Screw Torque | 42-56 ozf-in (30-40 cN-m) |
| Aluminum Inner Panel (Sold Separately) | 1556BPL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and 4 rubber feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.16 lbs (0.07 kg) |
Construction & Finish
| Finish | Light satin texture; rounded corners and face |
| Material | Flame retardant ABS (FRABS) plastic |
| Lid Screws | 4 included #6 x 1/2" high strength self-tapping Plastite screws |
| Construction | Lap joint construction for protection against dust and splashing water |
| Replacement Cover Screws | SC527-50 (Steel Cover Screws, #6 X 1/2" Self Tapping, Pkg 50) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 V-0 |
| Intended Use | Indoor use; not designed for outdoor use |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the outside dimensions of the 1556BWH?▾
3.15 in x 3.15 in x 1.77 in (80 mm x 80 mm x 45 mm).
Is the 1556BWH waterproof?▾
It is designed to meet IP54, protecting against dust and splashing water, and is intended for indoor use.
Which inner panel fits the 1556BWH?▾
The 1556BPL aluminum inner panel.
What torque should be used on the PCB screws?▾
42-56 ozf-in (30-40 cN-m).
Can it be modified?▾
Yes, enclosures can be factory modified (milling, drilling, printing etc.).
