Hammond 1556BAWH 80x80x60mm White Wall-Mount or Desktop Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- White FRABS enclosure, 80 x 80 x 60 mm
- UL94 V-0 flame rating, designed to meet IP54
- Fits PC boards up to 71 x 71 mm
- 55.00 mm inside height
- Desktop feet included; 1556FOOTWH-4 wall feet sold separately
- Rounded modern styling with light satin texture
- Pole mount kits PMB5057WKIT1 and PMB5057WKIT2

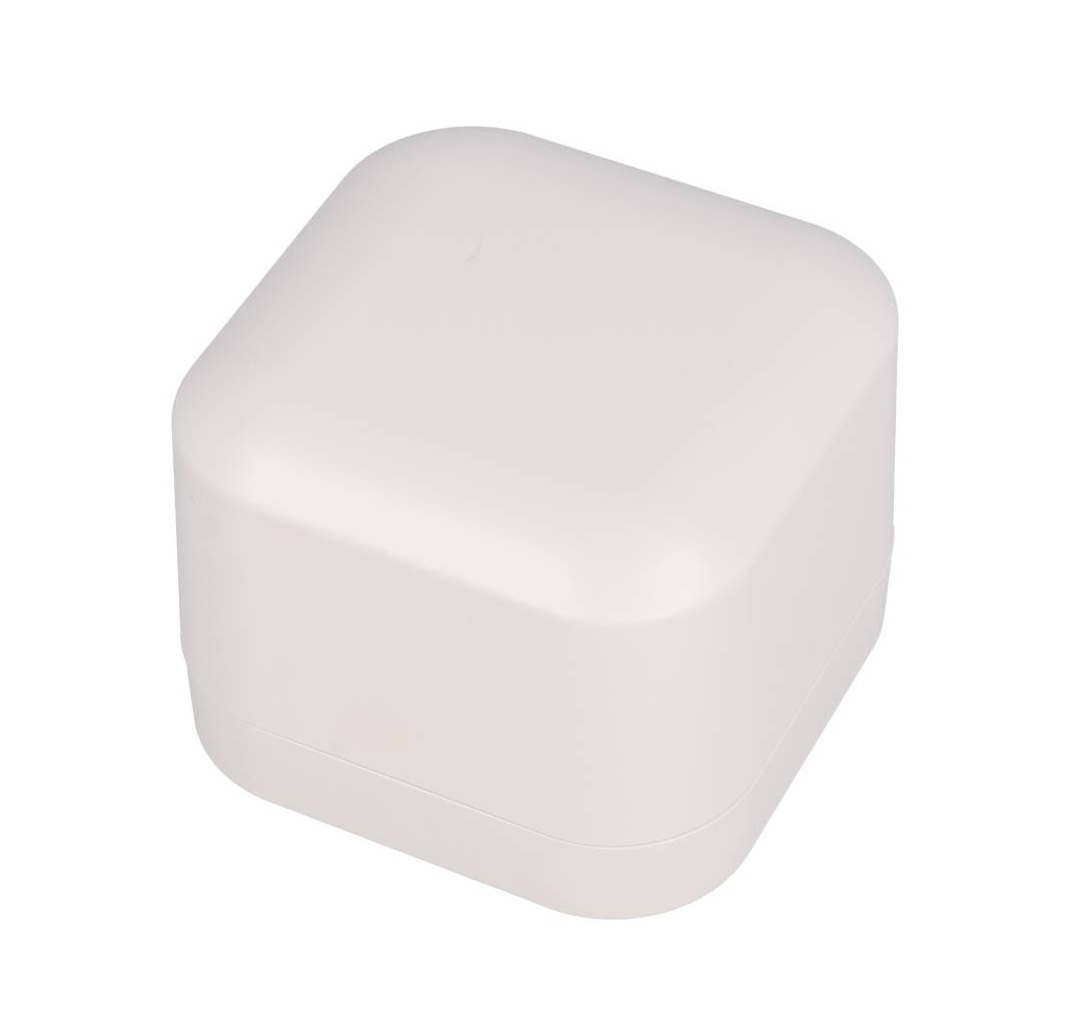

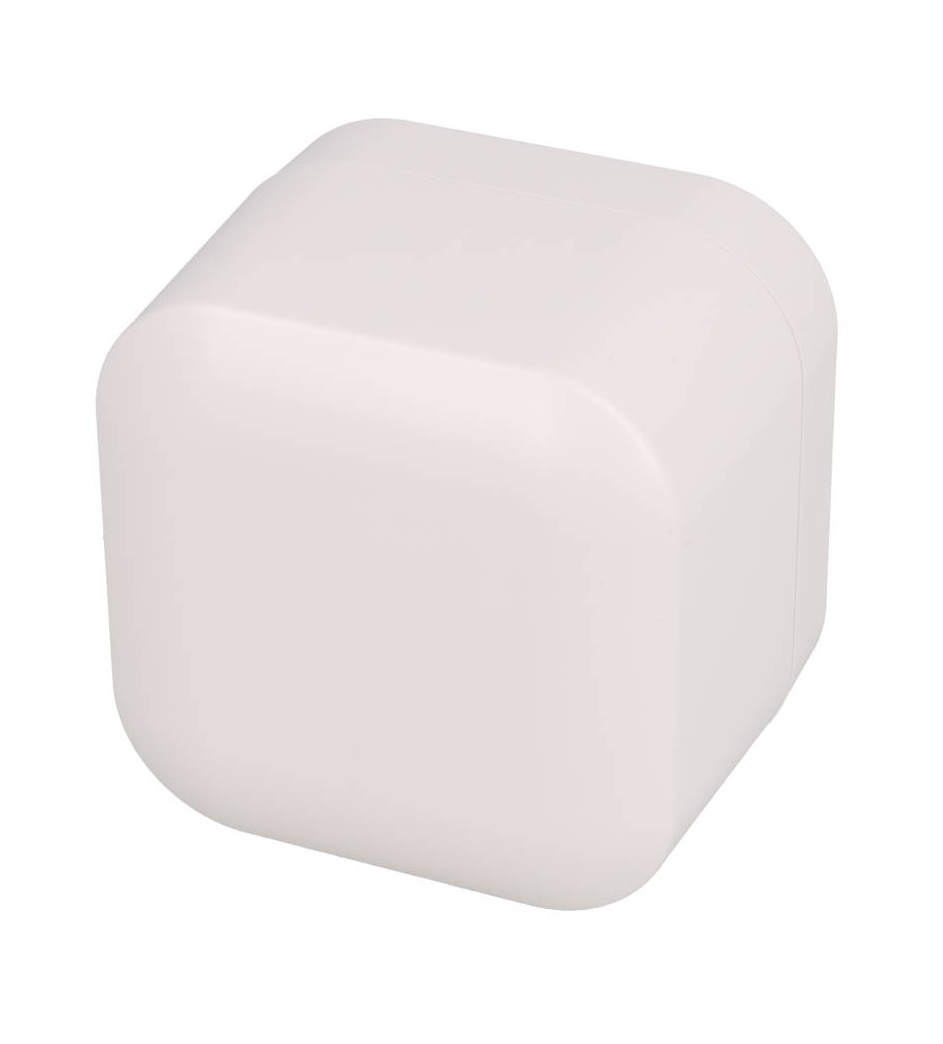

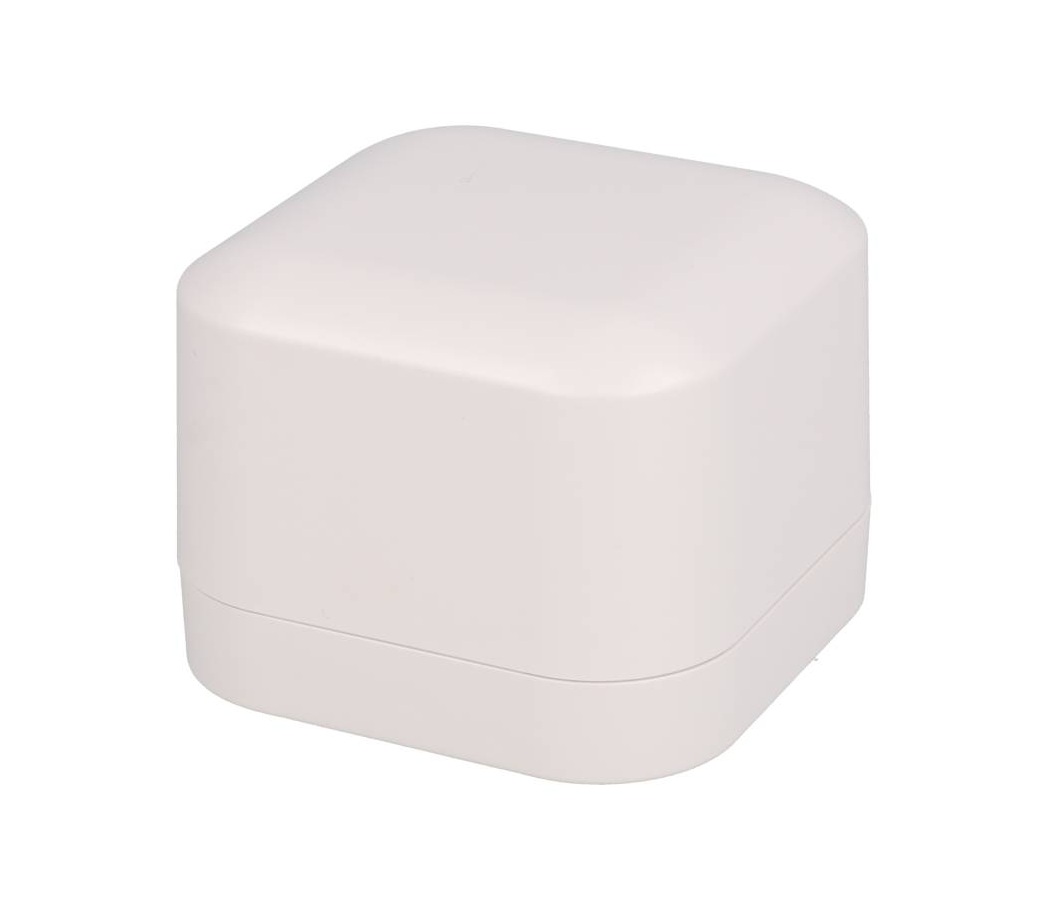

The 1556BAWH is a white 3.15 in x 3.15 in x 2.36 in (80 mm x 80 mm x 60 mm) enclosure from the 1556 series, for IoT equipment, printed circuit boards and small electronics that will live indoors, whether on a tabletop or mounted to a wall.
Molded in white flame retardant ABS with a UL94 V-0 rating and a light satin texture, it has rounded corners and a rounded face. Its lap joint construction protects against dust and splashing water and the enclosure is designed to meet IP54; the series is not designed for outdoor use.
The interior measures 74.40 mm x 74.18 mm with 55.00 mm [2.17 in] inside height, and the largest PC board it takes is 71 mm x 71 mm. Mounting locations in both lid and base accept #6 self-tapping screws, and the 1556BPL aluminum inner panel is available separately.

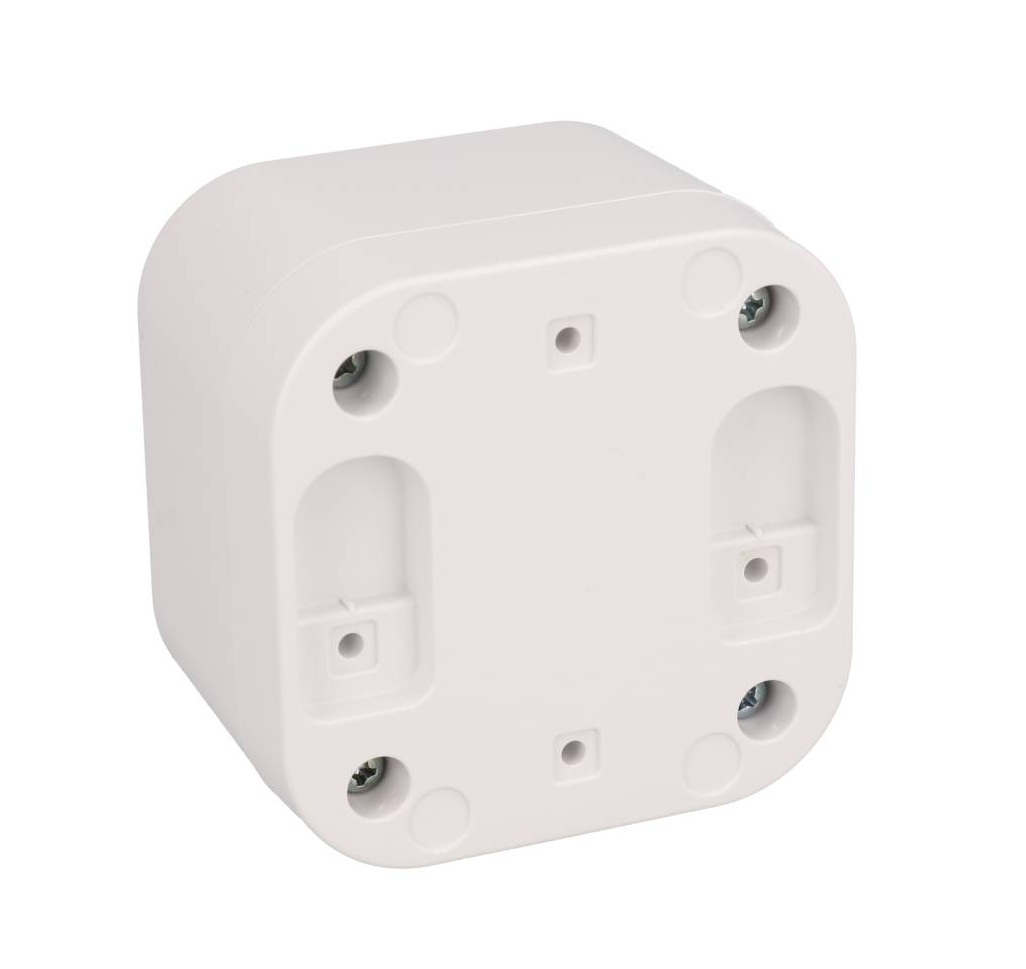

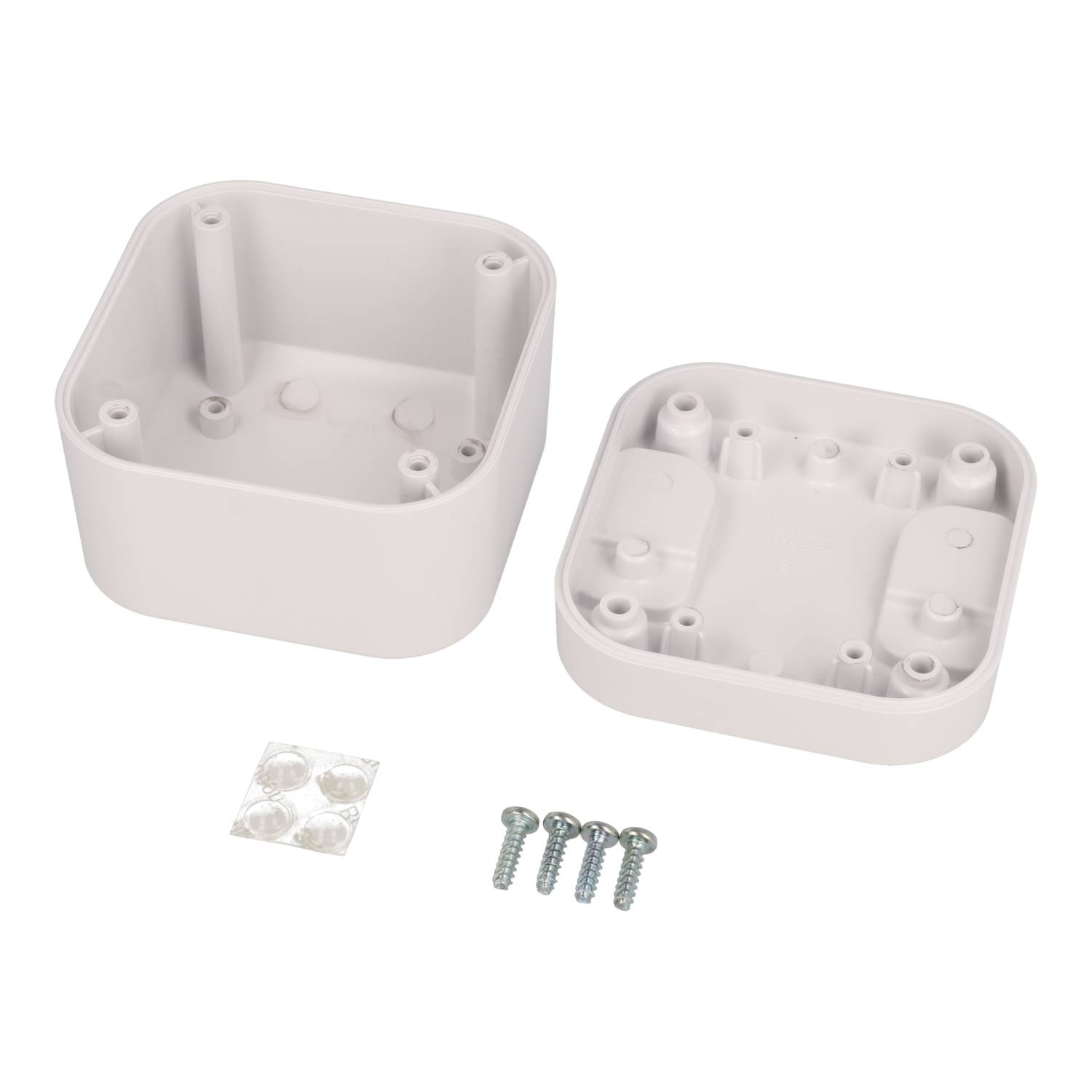

Included are the lid, four #6 x 1/2" high strength self-tapping Plastite screws and four rubber feet. For wall installation add the white 1556FOOTWH-4 foot kit, which supports heavy duty flange mounting or flush keyhole mounting; pole mounting uses PMB5057WKIT1 (7" max.) or PMB5057WKIT2 (15" max.) with #8 x 1/2" screws.
Ideal For
- White-finish IoT devices
- Indoor wall-mounted sensors
- Desktop electronics
- Small PCB assemblies
Mounting
| Rubber Feet | 4 included; replacement clear rubber feet 1421T6CL (Pkg 24) |
| Mounting Options | Desktop/tabletop on included rubber feet; heavy duty wall flange mount or flush wall mount (keyhole slots) using wall mount foot kit, sold separately |
| Pole Mount Kit (7" Max.) | PMB5057WKIT1 |
| Pole Mount Kit (15" Max.) | PMB5057WKIT2 |
| Replacement Wall Mount Foot Screws | SC556-50 (Stainless Steel, #8 X 3/8" Self Tapping, Pkg 50) |
| Pole Mount Screw Type / Replacement Pack | #8 x 1/2" / SCPMB4-20 |
| Wall Mount Foot Kit (Pkg 4, Sold Separately) | 1556FOOTBK-4 (Black), 1556FOOTGY-4 (Light Gray), 1556FOOTWH-4 (White); #8 X 3/8" self tapping screws included |
Overview
| Color | White |
| Series | 1556 Series Modern General Purpose Enclosures (Dual Wall-Mount or Desktop) |
| CAD Models | Solid models available in .stp or .x_t |
| Description | FRABS DESKTOP/WALL MOUNT/IOT INDOOR ENCLOSURE |
| Short Description | FRABS WALL MOUNT/ IOT ENCL |
| Enclosure Size Code | 1556BA |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Colour Variants In This Size | 1556BABK (Black), 1556BAGY (Light Gray), 1556BAWH (White) |
Dimensions
| Width | 3.15 in (80 mm) |
| Length | 3.15 in (80 mm) |
| Inside Width | 74.18 mm [2.92 in] |
| Total Height | 2.36 in (60 mm) |
| Inside Height | 55.00 mm [2.17 in] |
| Inside Length | 74.40 mm [2.93 in] |
| Wall Thickness | 2.50 mm [.10 in] |
| Size L X W X H (Part Page) | 3.15 in x 3.15 in x 2.36 in (80 mm x 80 mm x 60 mm) |
Identifiers
| UPC | 623980667010 |
| UNSPSC | 39121301 |
| Part Number | 1556BAWH |
Internal Mounting
| PC Board Mounting | Multiple mounting locations inside the lid and base; accept #6 self-tapping screws |
| Max. P.C. Board Width | 71 mm |
| Max. P.C. Board Length | 71 mm |
| Replacement PC Board Screws | SC526-50 (Steel P.C. Board Screw, #6 X 1/4" Self Tapping, Pkg 50) |
| Recommended PCB Screw Torque | 42-56 ozf-in (30-40 cN-m) |
| Aluminum Inner Panel (Sold Separately) | 1556BPL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and 4 rubber feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Finish | Light satin texture; rounded corners and face |
| Material | Flame retardant ABS (FRABS) plastic |
| Lid Screws | 4 included #6 x 1/2" high strength self-tapping Plastite screws |
| Construction | Lap joint construction for protection against dust and splashing water |
| Replacement Cover Screws | SC527-50 (Steel Cover Screws, #6 X 1/2" Self Tapping, Pkg 50) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 V-0 |
| Intended Use | Indoor use; not designed for outdoor use |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1556BAWH flame retardant?▾
Yes, it is molded from flame retardant ABS rated UL94 V-0.
How is the lid fastened?▾
With four included #6 x 1/2" high strength self-tapping Plastite screws; replacements are SC527-50.
Can I pole mount the 1556BAWH?▾
Yes, with PMB5057WKIT1 for poles up to 7" or PMB5057WKIT2 for up to 15".
What is the shipping weight?▾
0.19 lbs (0.09 kg).
Is it RoHS compliant?▾
Yes, it is RoHS and REACH compliant.
