Hammond PMB5057KIT1 50-57mm Stainless Pole Mount Kit, 7 in Max
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 7" pole mount kit (50-57mm, small clamp) for poles 1.5in - 7in
- Fits 1554/55E, EE, F, G, J, JL, K; 1555FF, 1555JF; 1556C, 1556CA
- 2 stainless steel brackets, 2 stainless steel clamps and hardware
- M4-0.7 x 20mm screws for 1554/55/1555F; #8 x 1/2" for 1556C/CA
- Can also mount to square or rectangular shapes
- Torque 11.5-13.5 lbf-in (130-150 cN-m)
- RoHS and REACH compliant
The PMB5057KIT1 is a 7" pole mount kit in stainless steel, the 50-57mm size with small clamps. It lets installers and integrators mount compatible Hammond enclosures securely to poles from 1.5in to 7in in diameter, and the brackets can also be mounted to square or rectangular shapes.
According to the ordering table it suits the non-flanged 1554/55E, 1554/55EE, 1554/55F, 1554/55G, 1554/55J, 1554/55JL and 1554/55K, the flanged 1555FF and 1555JF (all M4-0.7 x 20mm screws), and the 1556C and 1556CA, which use #8 x 1/2" screws. Note that the 1556 series is not designed for outdoor use.
The purchased kit includes 2 brackets, 2 clamps and hardware, all made from stainless steel. The part page lists a size of 11 in x 5.5 in x 1 in (279 mm x 140 mm x 25 mm) and a shipping weight of 0.71 lbs (0.32 kg); the bracket drawing shows 88.00 mm [3.46 in] length, 46.99 mm [1.85 in] width and 43.38 mm [1.71 in] height. Recommended hardware torque is 11.5-13.5 lbf-in (130-150 cN-m).
Install brackets with a hex key and nut drive (3mm hex key and 7mm nut drive for M4 hardware), then wrap and thread the clamps through the brackets and tighten with a 5/16in (8mm) nut drive while holding the enclosure against the pole. The kit is bagged and is RoHS and REACH compliant; the 15" version is PMB5057KIT2.
Ideal For
- Pole mounting 1554 and 1555 enclosures
- Mounting 1555F flanged enclosures to posts
- Enclosures on poles up to 7 in diameter
- Mounting to square or rectangular posts
Overview
| Type | Pole Mounting Kit |
| Series | PMB Series (Pole Mount Kit) |
| Description | 7" pole mount kit for series 1554, 1555, 1555F, 1590Z, and 1590ZGRP |
| Part Number | PMB5057KIT1 |
| Kit Contents | 2 stainless steel pole mounting brackets, 2 stainless steel strap clamps, stainless steel mounting hardware |
| Kit Designation | 50-57mm Pole Mount Kit Small Clamp |
| Short Description | 7" POLE MOUNT KIT |
| Compatible Enclosures | 1554/1555 non-flanged: 1554/55E, 1554/55EE, 1554/55F, 1554/55G, 1554/55J, 1554/55JL, 1554/55K; 1555F flanged: 1555FF, 1555JF; 1556: 1556C, 1556CA |
Dimensions
| Size L X W X H | 11 in x 5.5 in x 1 in (279 mm x 140 mm x 25 mm) |
| Hole Spacing (Drawing) | 50.00 mm [1.97 in]; 58.00 mm [2.28 in]; 69.85 mm [2.75 in] |
| Bracket Width (Drawing) | 46.99 mm [1.85 in] |
| Mounting Hole (Drawing) | 4.20 mm [.17 in] |
| Bracket Height (Drawing) | 43.38 mm [1.71 in] |
| Bracket Length (Drawing) | 88.00 mm [3.46 in] |
| Other Drawing Dimensions | 26.67 mm [1.05 in]; 23.39 mm [.92 in]; 15.62 mm [.62 in]; 11.43 mm [.45 in]; 8.64 mm [.34 in]; 7.92 mm [.31 in]; 6.35 mm [.25 in]; 1.80 mm [.07 in]; R3.18 mm [R.13 in] |
Identifiers
| UPC | 623980580418 |
| UNSPSC | 39121301 |
Rack Mounting
| Clamp Tightening | 5/16in (8mm) nut drive |
| Installation Tools | 3mm hex key and 7mm nut drive for M4 hardware; #2 Phillips head for #8 hardware (1556C, 1556CA) |
| Replacement Clamps | HCLAMP1 small stainless steel clamp [2pkg]; HCLAMP2 large stainless steel clamp [2pkg] |
| Pole Diameter Range | 1.5in - 7in (3.8cm to 17.8cm), small clamp |
| Enclosure Screw Type | M4-0.7 x 20mm (1554/55 and 1555F enclosures); #8 x 1/2" (1556C, 1556CA) |
| Maximum Pole Diameter | 7" (178 mm) |
| Minimum Pole Diameter | 1.5" (38 mm) |
| Replacement Screw Pack | SCPMB1-20 (M4-0.7 x 20mm SHCS [20pkg], M4-0.7 serrated flange lock nut [20pkg]) for M4 enclosures; SCPMB4-20 (#8 x 1/2" screws) for 1556C/CA |
| Other Mounting Surfaces | Can also be mounted to square or rectangular shapes |
| Recommended Hardware Torque | 11.5-13.5 lbf-in (130-150 cN-m) |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.71 lbs (0.32 kg) |
Construction & Finish
| Material | Stainless steel (all parts) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does PMB5057KIT1 fit?▾
1554/55E, 1554/55EE, 1554/55F, 1554/55G, 1554/55J, 1554/55JL, 1554/55K, 1555FF, 1555JF, 1556C and 1556CA.
What is the maximum pole diameter?▾
7" (178 mm); the small clamp covers 1.5in - 7in (3.8cm to 17.8cm).
What screws are used?▾
M4-0.7 x 20mm for the 1554/55 and 1555F enclosures; #8 x 1/2" for 1556C and 1556CA. Replacement packs are SCPMB1-20 and SCPMB4-20 respectively.
Can the 1556 be pole mounted outdoors?▾
The series notes that the 1556 series is not designed for outdoor use.
What is in the kit?▾
2 stainless steel pole mounting brackets, 2 stainless steel strap clamps and stainless steel mounting hardware.
Related Products
Save 52%PMB110127KIT4 — 15" pole mount kit for 1556, 1557
Hammond Manufacturing · PMB110127KIT4
Save 52%PMB5057KIT2 — 15" pole mount kit for series 1554, 1555, 1555F, 1590Z, and 1590ZGRP
Hammond Manufacturing · PMB5057KIT2
Save 52%PMB110127KIT3 — 7" pole mount kit for 1556, 1557
Hammond Manufacturing · PMB110127KIT3
Save 52%PMB5057KIT3 — 7" pole mount kit for 1556, 1557
Hammond Manufacturing · PMB5057KIT3

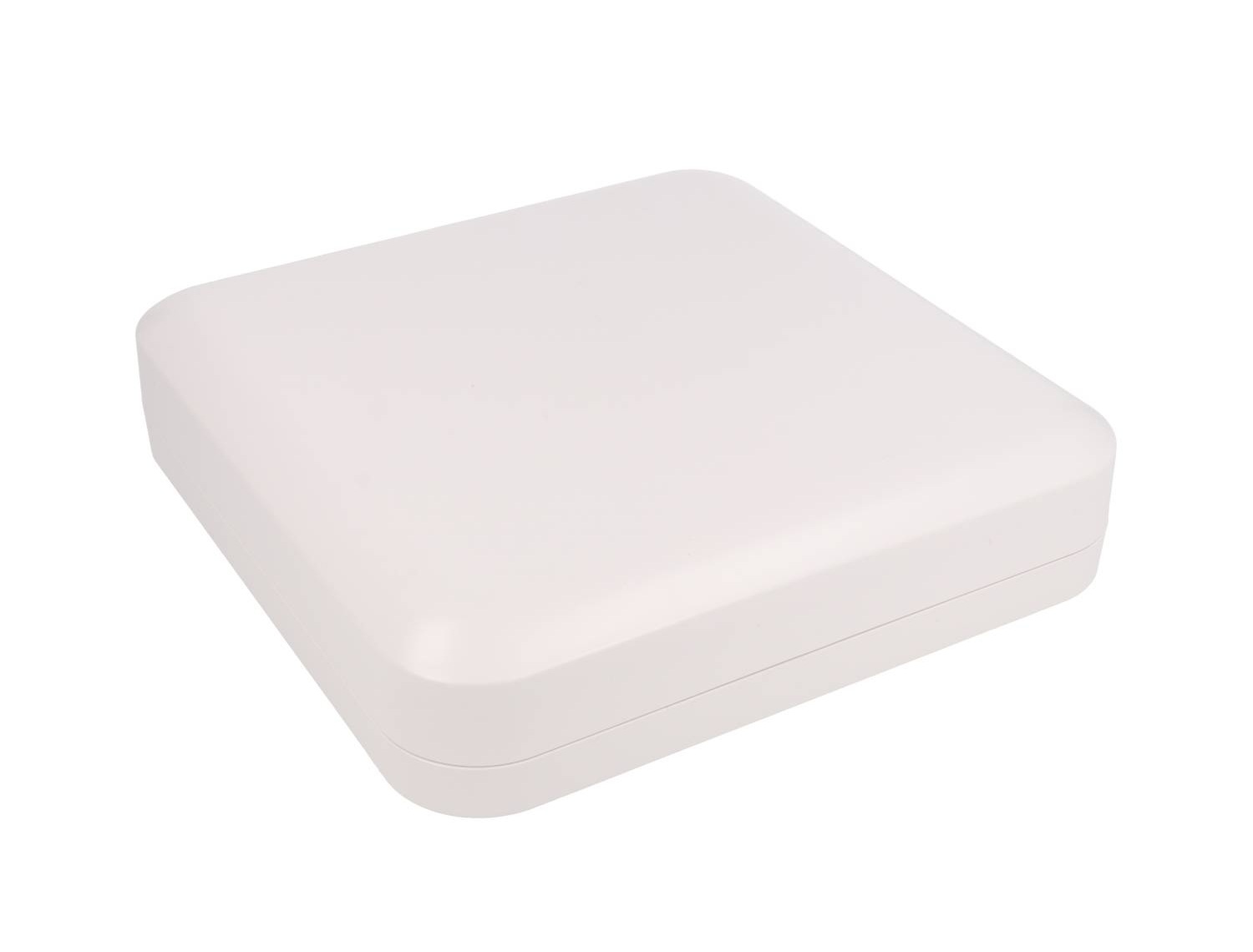

Save 52%1556HWH — FRABS DESKTOP/WALL MOUNT/IOT INDOOR ENCLOSURE
